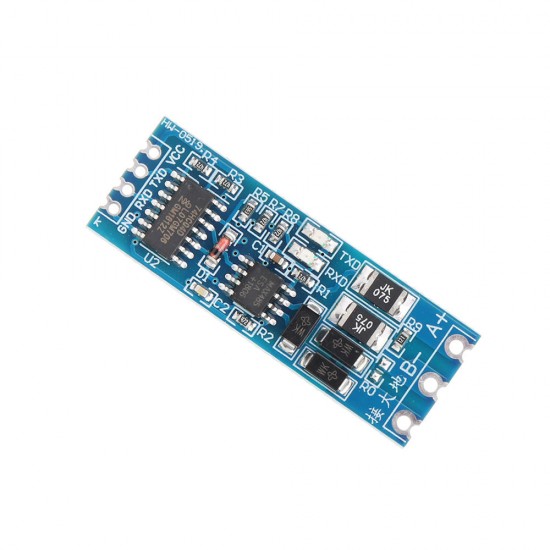

TTL to RS485 Module Hardware Automatic Flow Control Module Serial UART Level Mutual Converter Power Supply Module 3.3V 5V

Based on 0 reviews. - Write a review

$5.99

Ex Tax: $5.99

Stock: In Stock
Model: EB0050910
SKU: EB0050910

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Voltage: 3-5V DC

Precise details>>

Features:

(1) The module is fully considered mine design, long-distance transmission signal 485 in the wild, the module "Connected to the ground" terminal is connected to the earth, can play a very good anti-jamming and anti- effect, more secure; it can not connect with the ground when the indoor short-distance transmission.

(2) Using the standard 2.54 pitch design, easy secondary development.

(3) Has a 120 ohm termination resistors, shorted R0to enable the termination resistor.

(4) Support multi-machine communication, allowing access at up to 128 devices on the bus

(5) The module can be hot swapped, the signal does not appear dead phenomenon.

(6) A large area of copper to prevent interference.

(7) Compatible with 3.3V and 5.0V power supply.

(8) Compatible with 3.3V and 5.0V signal.

(9) Absolute using imported chips, industrial design, anti-interference ability, while using more effective mine design can be used in the industrial field and harsh field environments, the working temperature of -40 ° to + 85 ° transmission distance up to 1 kilometer (made with 850 meters of cable F1.5 tests recommended in the 800 meters, more than 800 m, please add repeaters).

(10) Semi-hole pads, onboard module, thin PCB, having a thickness of 0.8mm.

(11) Has RXD, TXD signal indicator light, monitor send and receive status.

Note:

Only one in the whole network, 3.3V and 5.0V power supply, RS485 signal perfectly compatible with automatic flow control module.

Without "Receiving - launch" control, this module is as simple to use with your serial port operations.

Package Included:

1 x TTL To RS485 Module Hardware Automatic Flow Control Module
