T5 V1.0 Wifi bluetooth Wireless Module ESP-32 ESP32 1.54 Inch RBW OLED ePaper Display Sperker Development Board
- Stock: In Stock
- Model: EB0050274
- SKU: EB0050274
This is an E-paper display module, resolution with embedded controller, communicating via SPI interface, supports more color display.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features:
· No backlight, keeps displaying last content for a long time even when power down
· Ultra low power consumption, basically power is only required for refreshing
· Comes with development resources and manual (examples for Arduin-esp32)
Specifications:
· Operating voltage: 3.3V
· Interface: 3-wire SPI, 4-wire SPI
· Display color: red, black, white
· Grey level: 2
· Refresh power: 26.4mW(typ.)
· Standby power: <0.017mW
· Viewing angle: >170°
| SYMBOL | DESCRIPTION |
| VCC | 3.3V |
| GND | Ground |
| DIN | SPI MOSI pin |
| CLK | SPI SCK pin |
| CS | SPI chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | External reset, low active |
| BUSY | Busy status output, low active |
For more product information, please enter: https://github.com/LilyGO/TTGO-T5-ePaper1.54

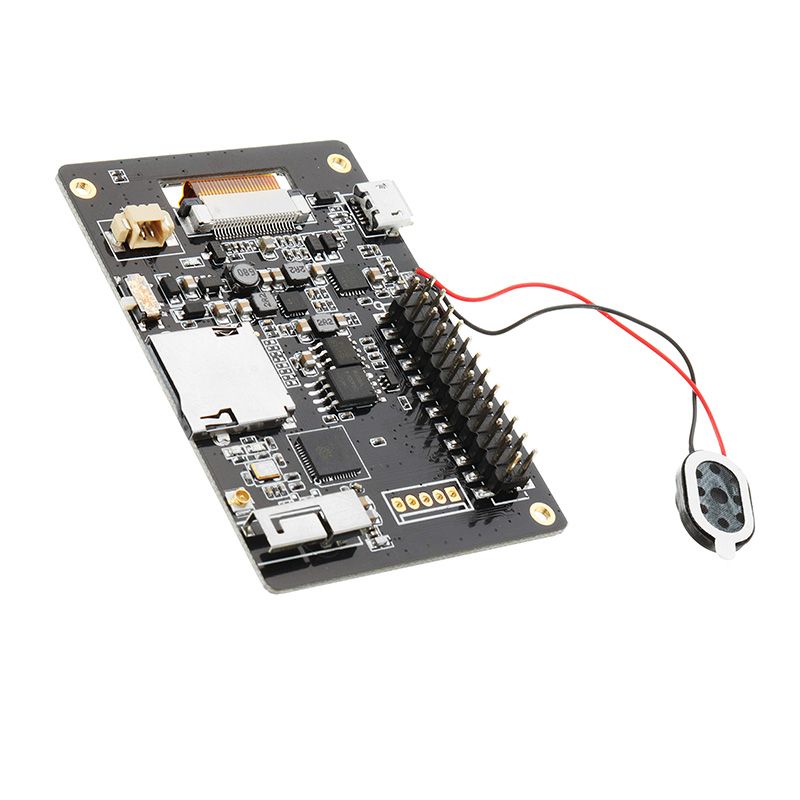

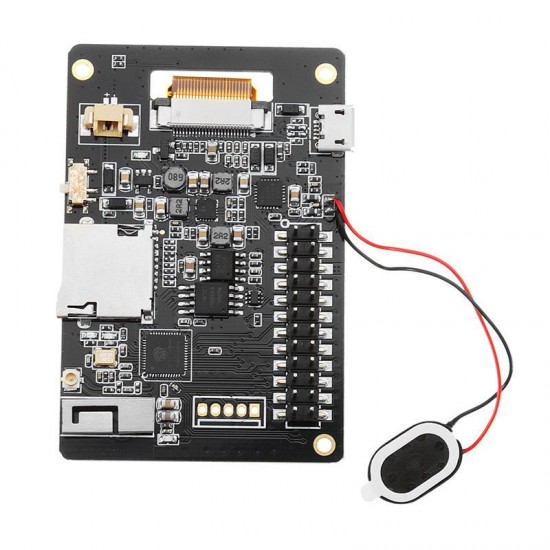

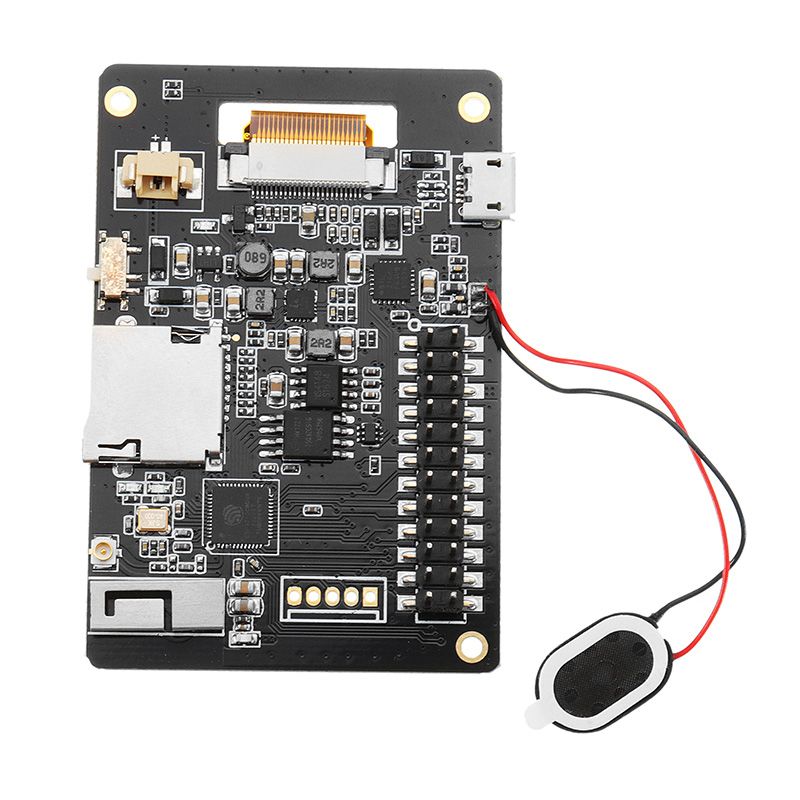

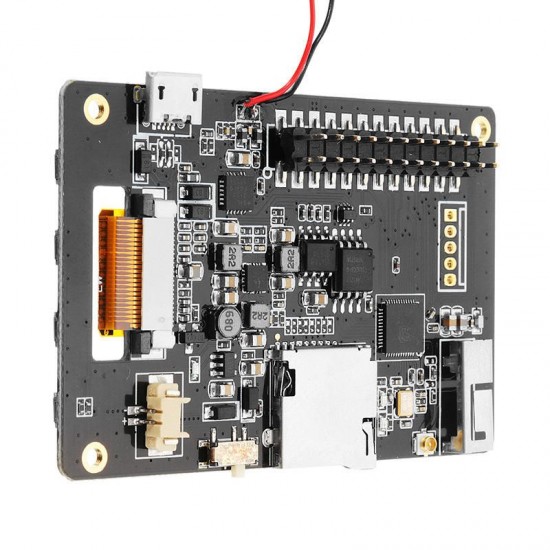

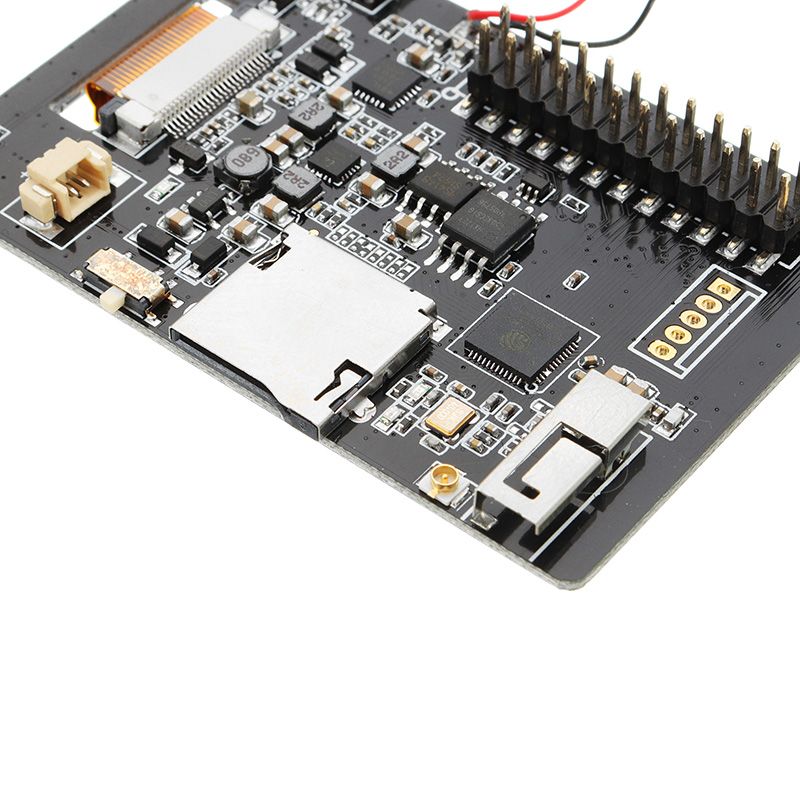

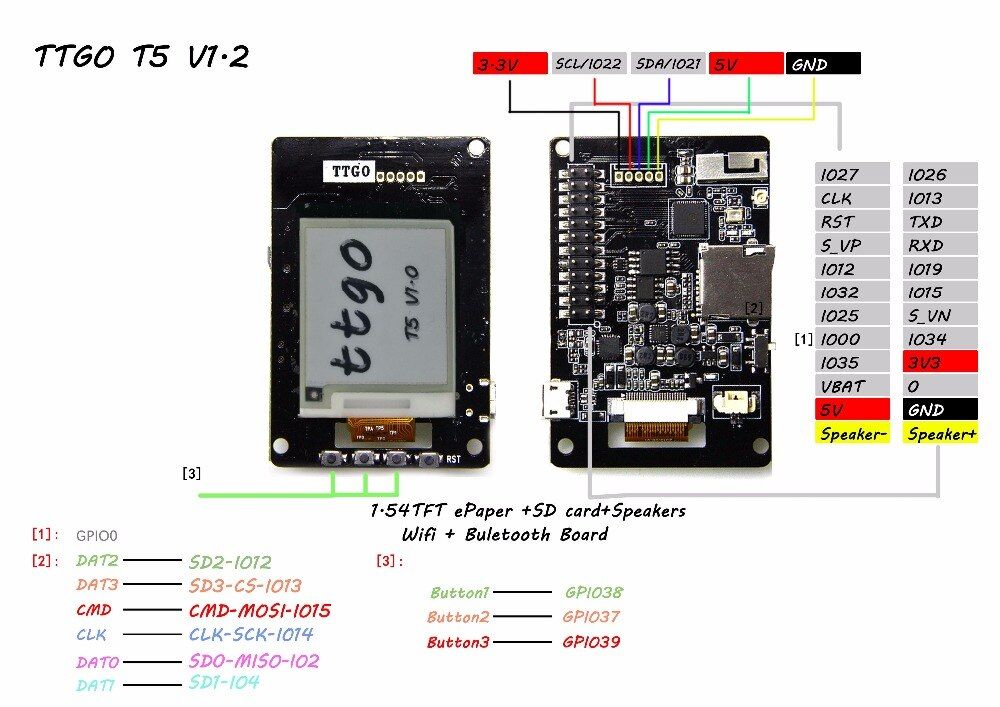

Product Diagram:

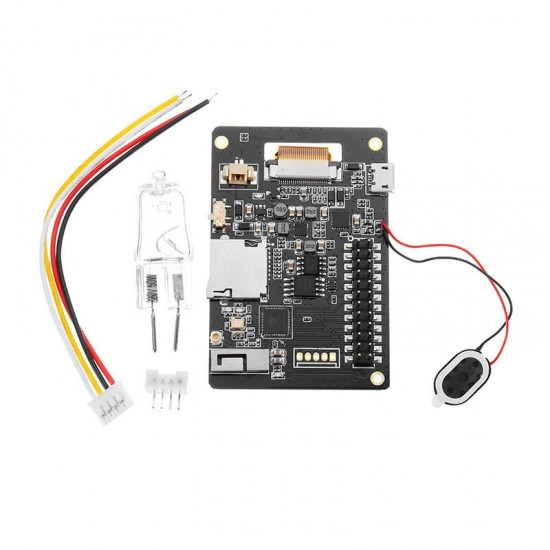

Package included:

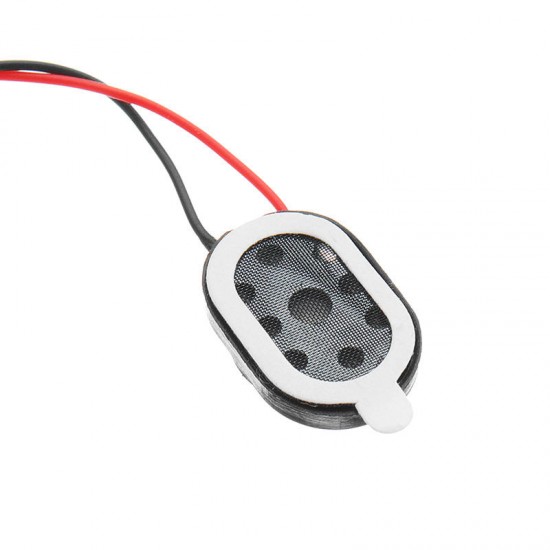

1 x T5 ESP-32 Module (Includes display screen and speaker)

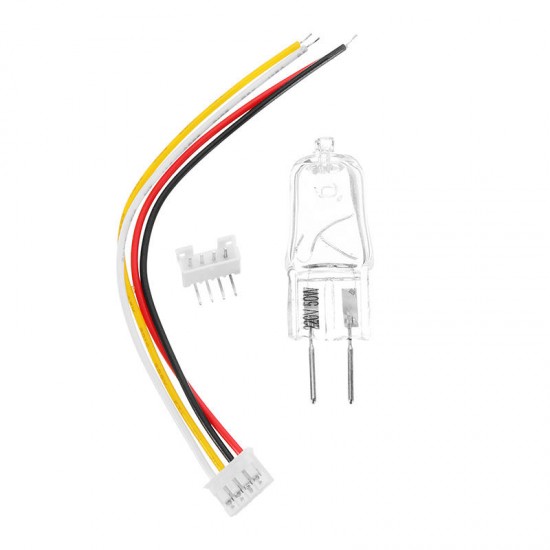

1 x Power Cable
,
,
,
,
,
,
