ESP32 433/868/915Mhz v0.7 WiFi Wireless bluetooth Module ESP-32 GPS NEO-6M SMA 32 18650 Battery Holder
- Stock: In Stock
- Model: EB000451
- SKU: EB000451
Features:
ESP32
ESP32 Version: REV0.7
WIFI
bluetooth
4MB Flash
3D Antenna
LORA
Working voltage: 1.8~3.7v
Acceptable current: 10~14mA
Transmit current: 120mA@+20dBm
90mA@+17dBm
29mA@+13dBm
Operating frequency: 433MHz/868MHz/915MHz
Transmit power: +20dBm
Receive sensitivity: -139dBm@LoRa &62.5Khz&SF=12&146bps
-136dBm@LoRa &125Khz&SF=12&293bps
-118dBm@LoRa &125Khz&SF=6&9380bps
-123dBm@FSK&5Khz&1.2Kbps
Frequency error: +/-15KHz
FIFO space: 64Byte
Data rate: 1.2K~300Kbps@FSK
0.018K~37.5Kbps@LoRa
Modulation Mode: FSK, GFSK, MSK, GMSK, LoRa TM, OOK
Interface form: SPI
Sleep current: 0.2uA@SLEEP
1.5uA@IDLE
Operating temperature: -40℃- +85℃
Digital RSSI function
Automatic frequency correction
Automatic gain control
RF wake-up function
Low voltage detection and temperature sensor
Fast wake-up and frequency hopping
Highly configurable data packet handler
GPS
GPS modules NEO-6M, 3V-5V power supply Universal
Destined module with ceramic antenna, signal super
Save the configuration parameter data EEPROM Down
With data backup battery
There are LED signal indicator
Default Baud Rate: 9600
Power
IP5306
2A Bat
tery Management
LED indicator: There are 4 LEDs show the battery status in real time.
Power button: Click one time will start. Fast click 2 times will shut down.
USB
CP2104-GMR

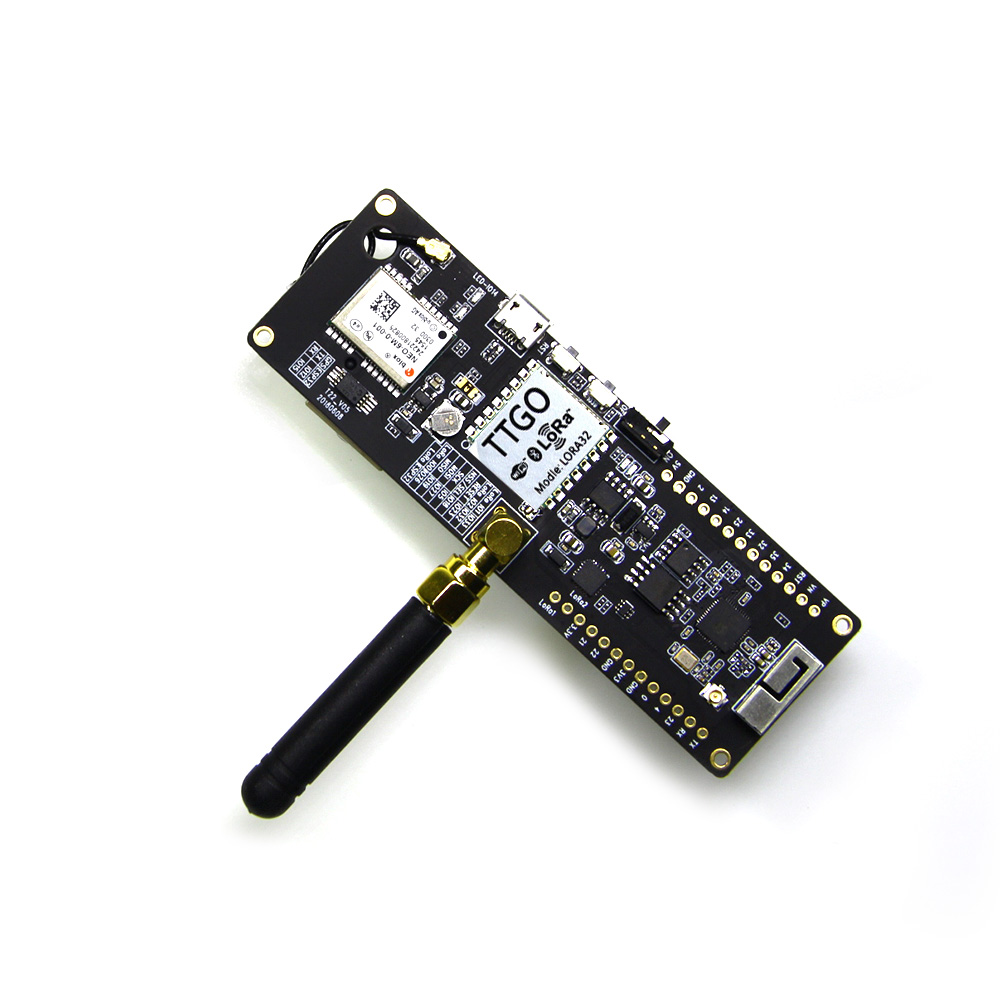

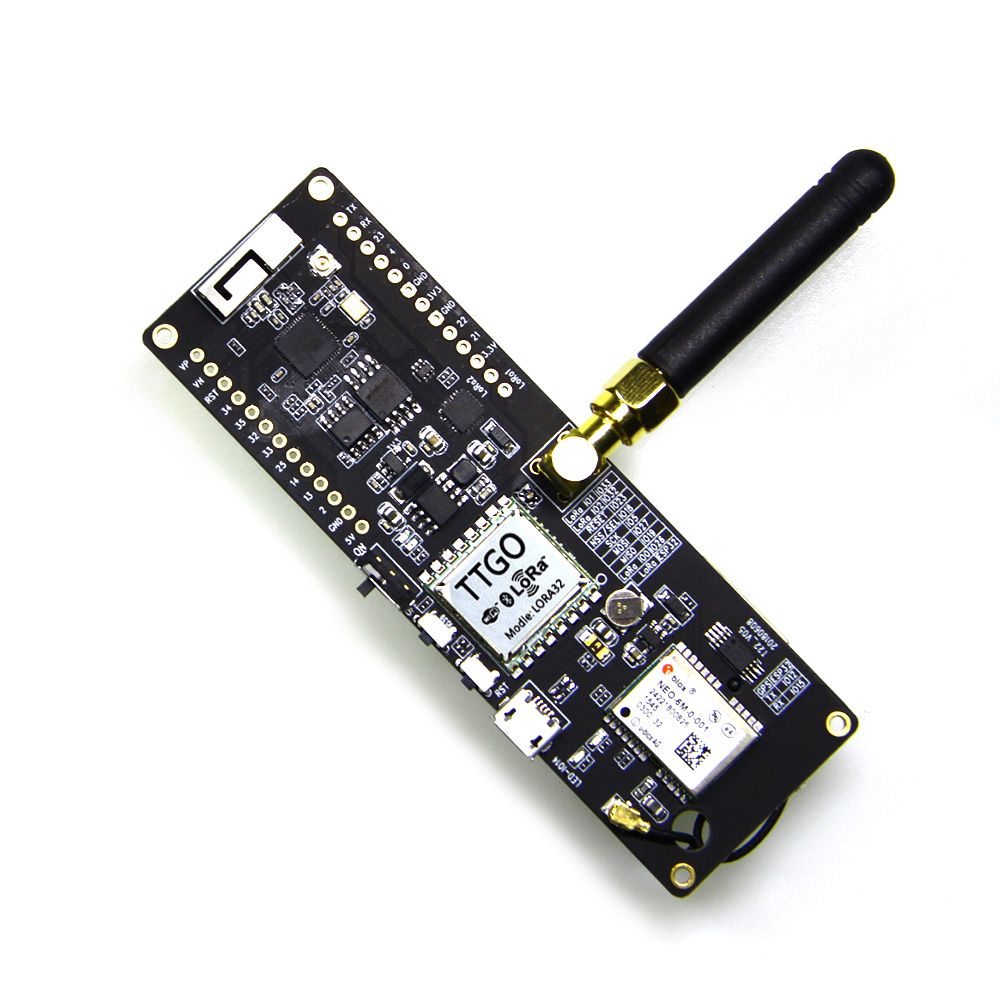

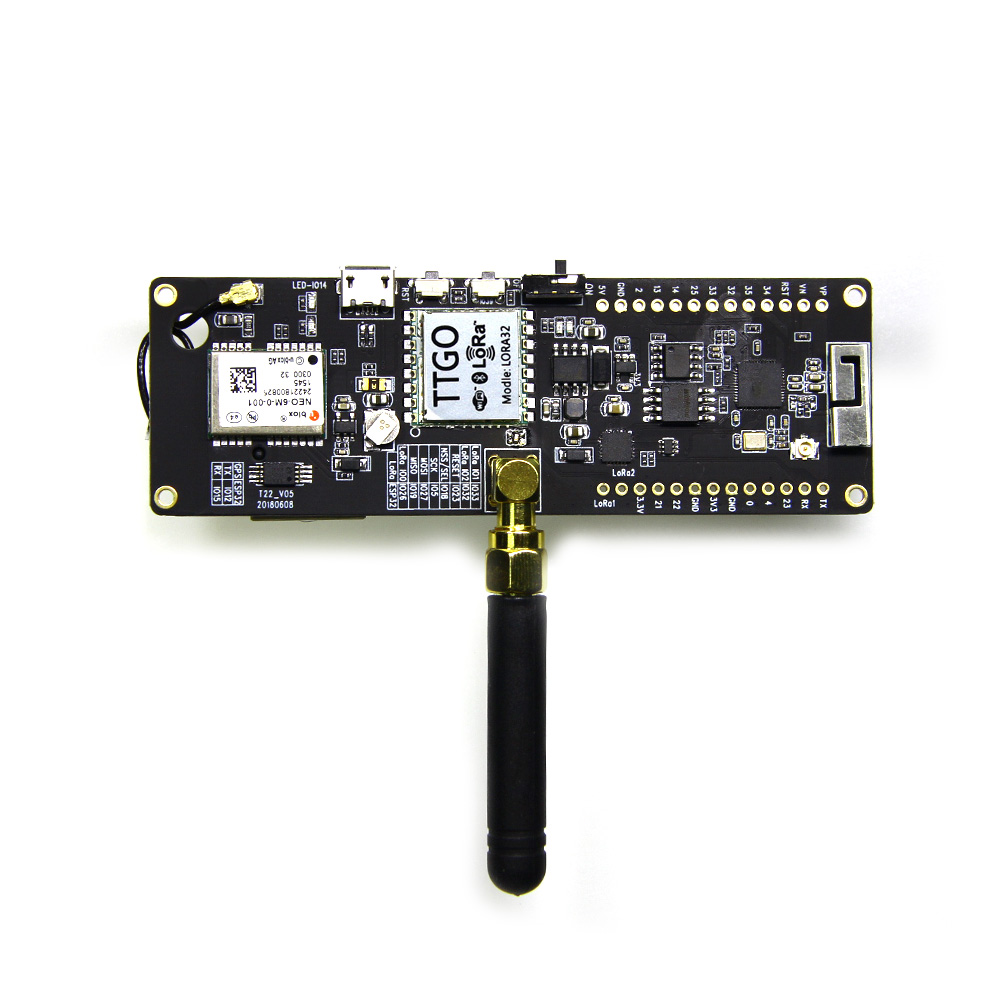

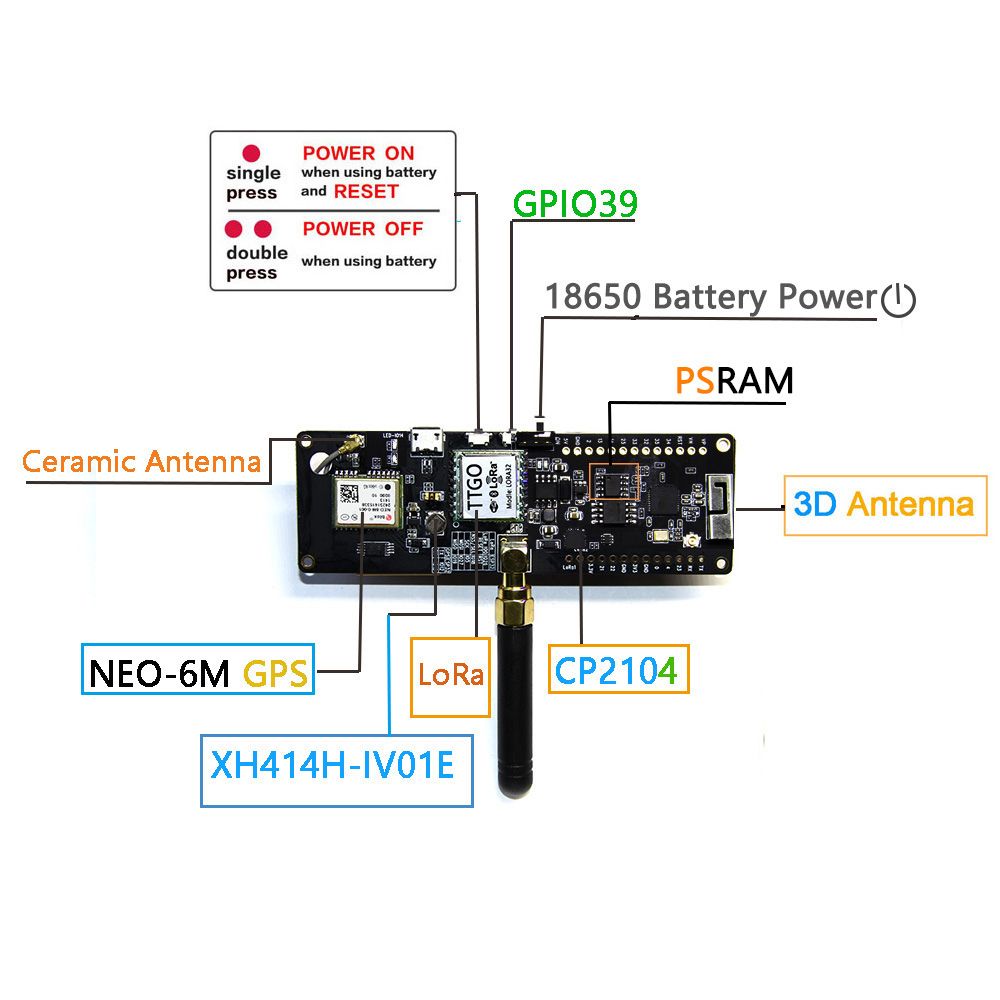

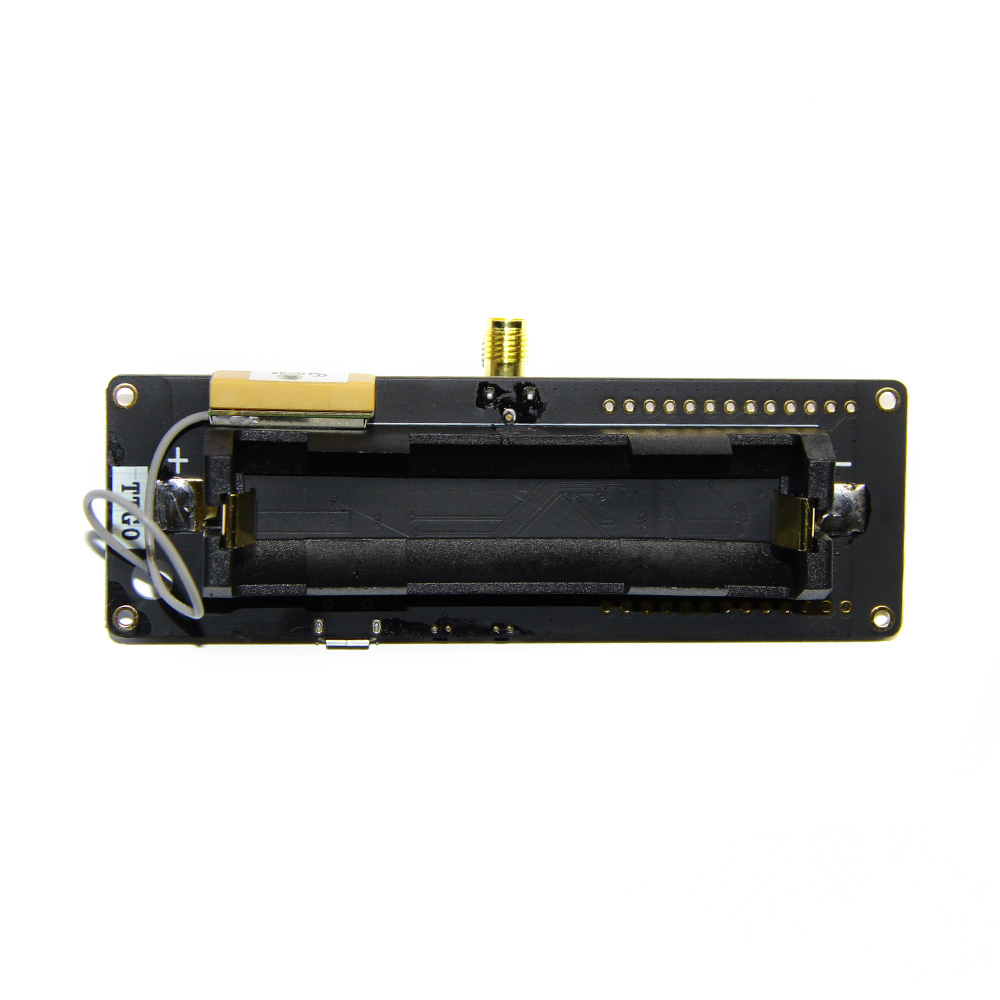

Product Details:

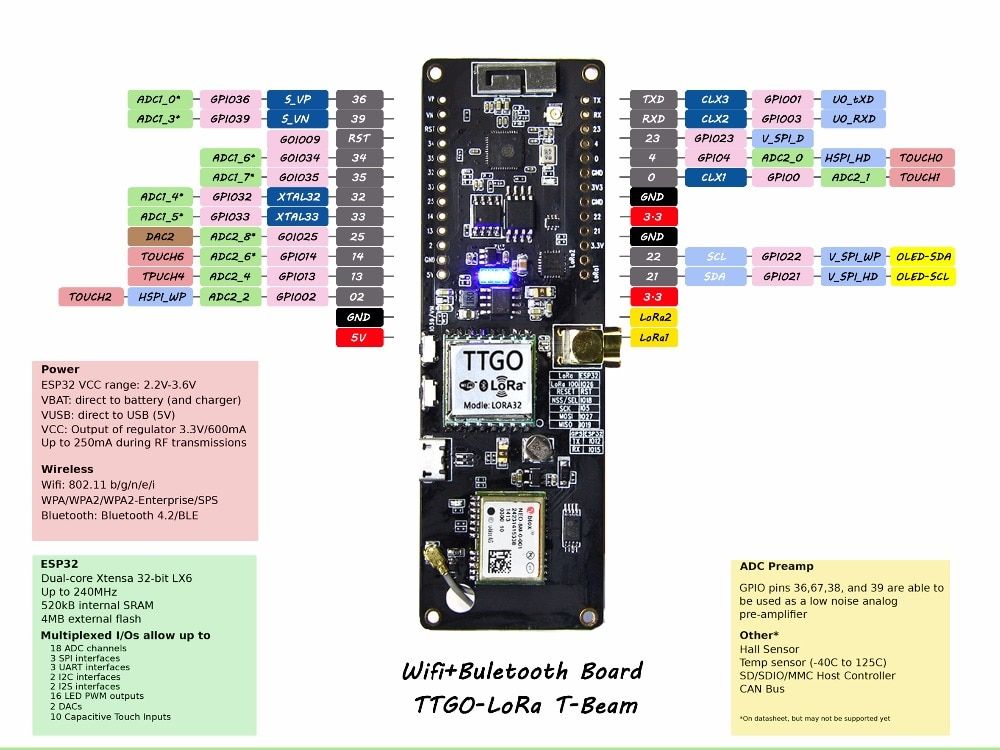

Pin Schematic:

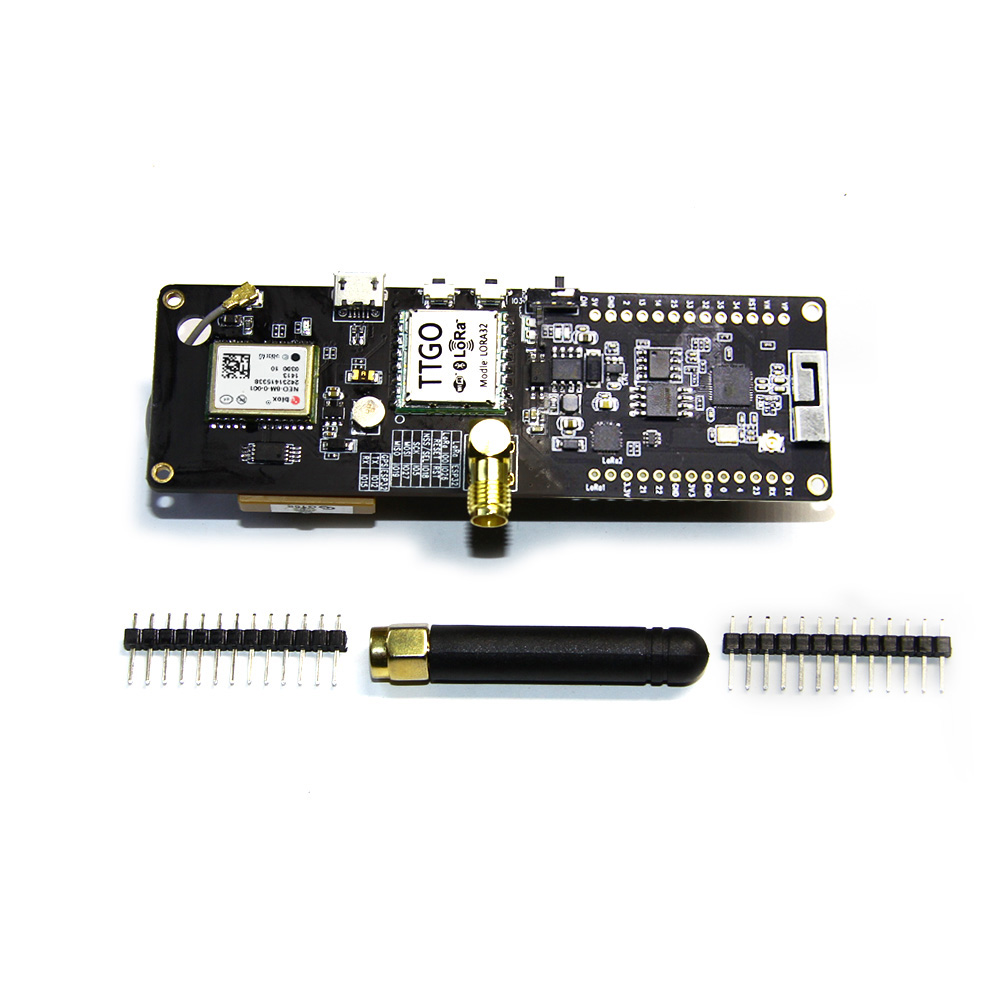

Package included:
1 x TTGO T-Beam ESP32
1 x Antenna
2 x Pin
