433Mhz SX1278 ESP32 0.96 OLED Display Module 16M bytes (128M Bit) for Arduino - products that work with official Arduino boards

Based on 0 reviews. - Write a review

$15.99

Ex Tax: $15.99

Stock: In Stock
Model: EB0050279
SKU: EB0050279

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

More details: Click here to open: https://github.com/LilyGO/TTGO-LORA32-V2.0/tree/LilyGO-patch-1

Description:

The 433MHz antenna must be used in conjunction with the IPEX interface (if the antenna is not connected, it may damage the LoRa chip)

Lithium battery charging and discharging circuit, when the battery is full, the blue LED will stop working. When using,
pay attention to the positive and negative of the battery, otherwise it will be damaged!

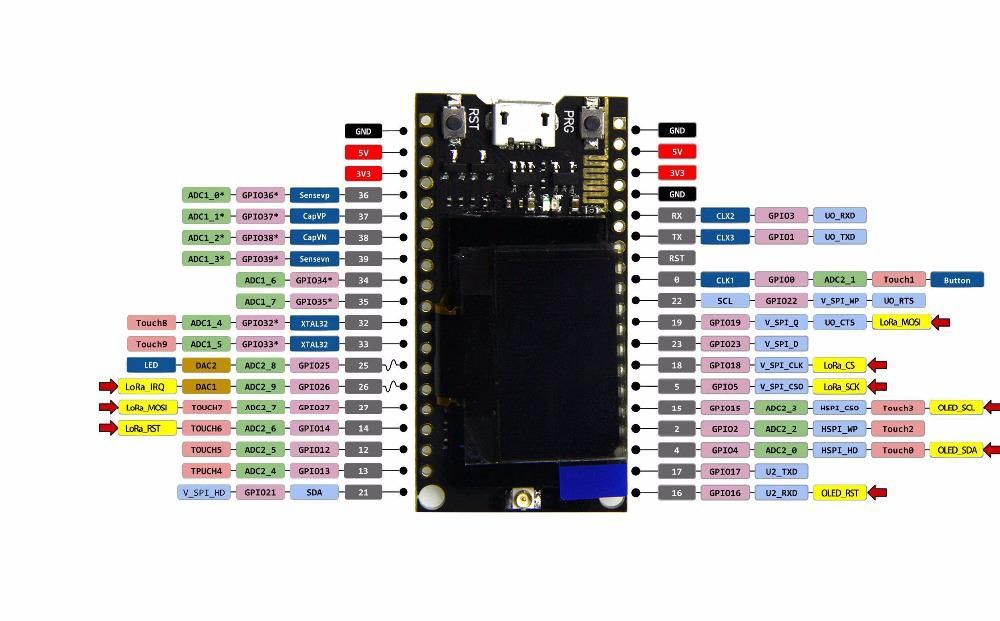

Using the IO port touch screen touch signal input, you need to add the 100nF pull-down capacitor at this pin!

Example:

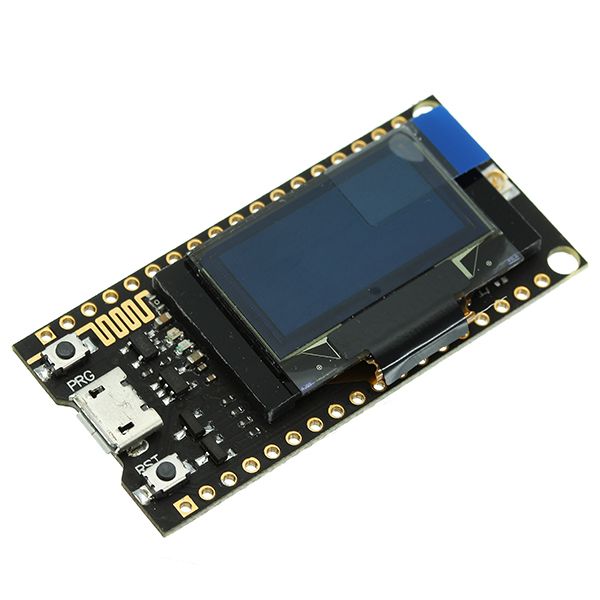

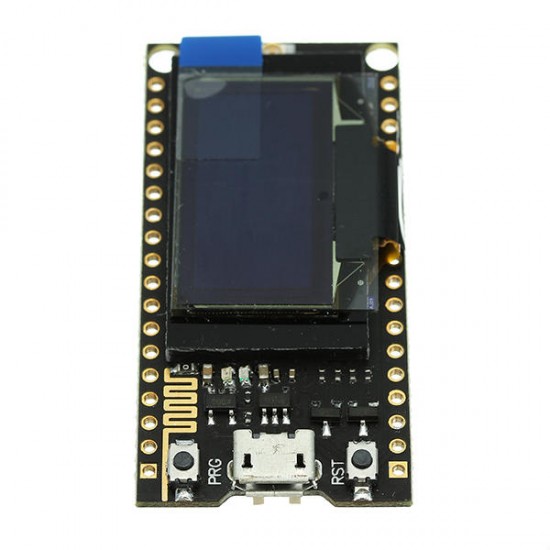

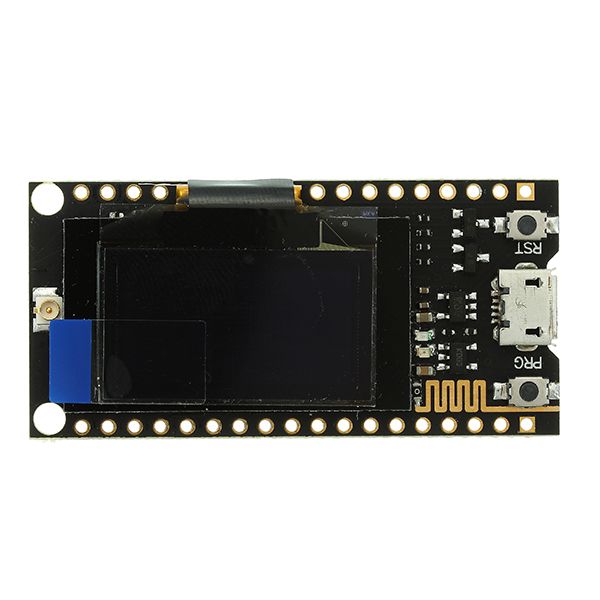

This product is a SX1278 chip based on ESP32 WIFI increased OLED, namely LoRa remote modem, 433MHz frequency,
high sensitivity is about -148dBm, +20dBm output power, high reliability, long transmission distance.

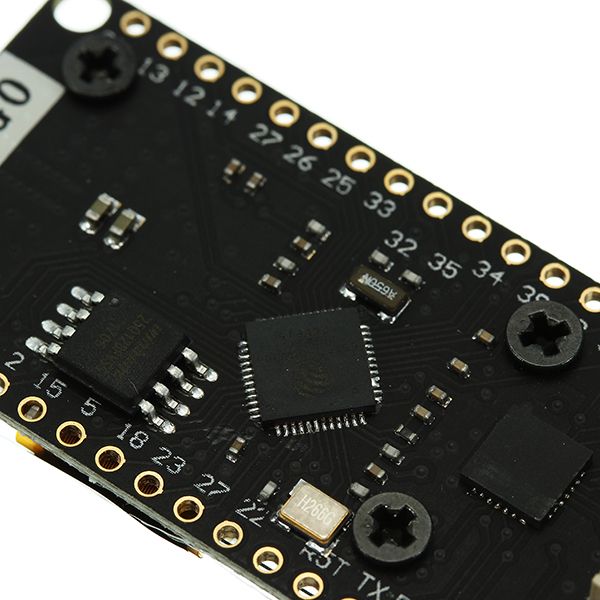

The onboard 32MByte Flash, Wi-Fi antenna, 0.96 inch blue OLED display, lithium battery charging circuit, CP2102 interface

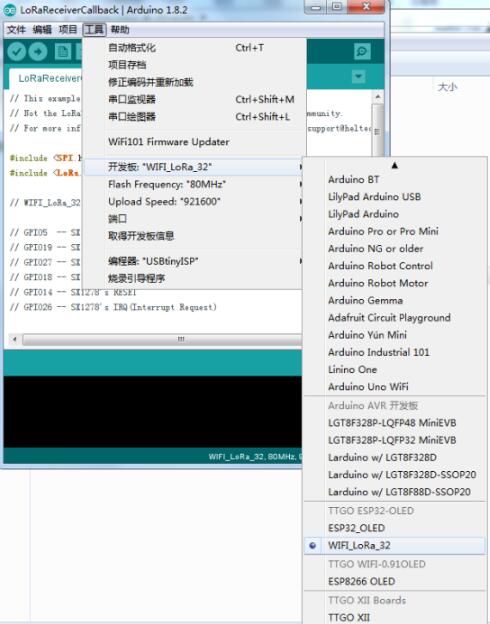

and USB serial chip, the perfect support for development environment, can be used for program verification
and product development is very simple and fast.

Operating voltage: 3.3V to 7V

Operating temperature range: -40 degrees C to +90 degrees C

Support for Sniffer, Station, softAP, and Wi-Fi Direct modes

Data rates: 150 Mbps@11n HT40, 72 Mbps@11n HT20, 54 Mbps@11g, 11 Mbps@11b

Transmit power: 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n

Receiver sensitivity up to -98 dBm

UDP sustained throughput of 135 Mbps

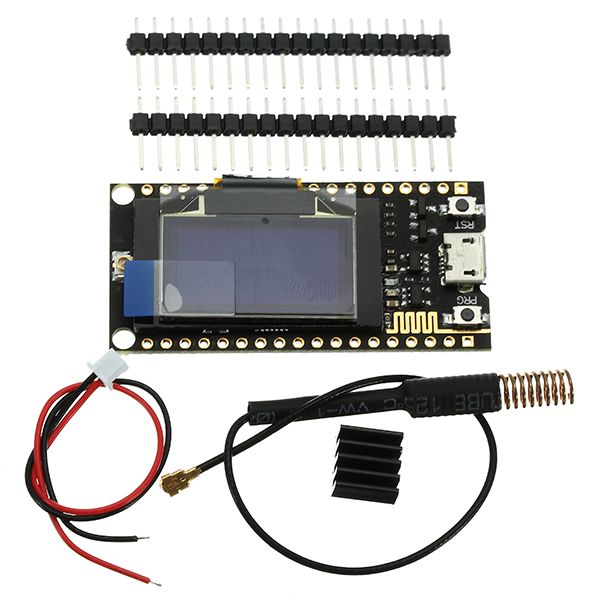

Package included:

1 x ESP32 OLED
1 x cable

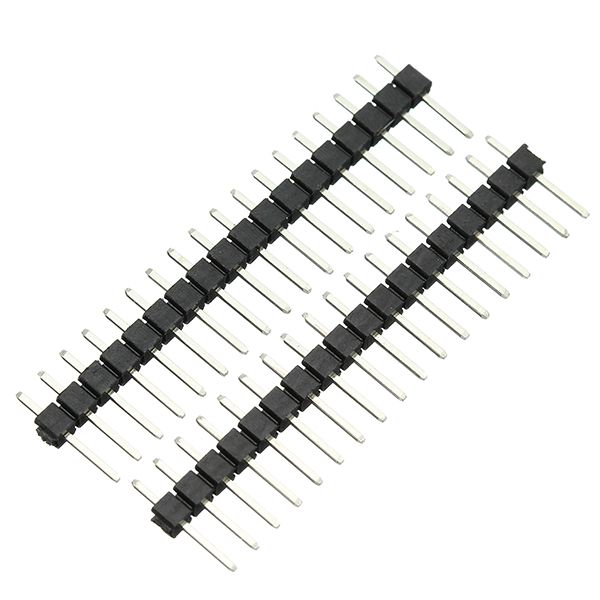

2 x normal pin
1 x 433m Spring Antenna

TTGO-433Mhz-LORA-SX1278-ESP32-096-OLED-Display-Module-16M-bytes-128M-Bit-LILYGO-for-Arduino---produc-1205930
