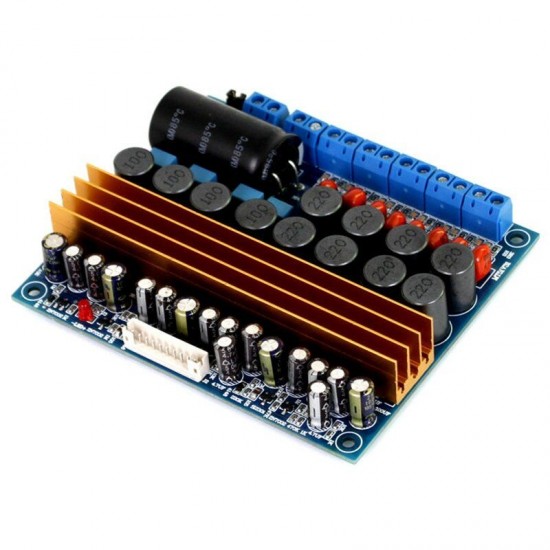

TPA3116 Power Amplifier Audio Board 100Wx2+50Wx4 6 Channel Class D Digital Sound Speaker Amplifier for 5.1 Home Theater

Based on 0 reviews. - Write a review

$42.99

Ex Tax: $42.99

Stock: In Stock
Model: EB0051109
SKU: EB0051109

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Power: 200W - 399W

Precise details>>

Content-Length: 2112 >

Features:

1. Using TPA3116D

2. Imported electrolytic capacitor 3300UF / 50V

3. The main circuit of the electrolytic capacitor signal uses Taiwan capacitors, and the main filter capacitor uses

Japanese imported electrolytic capacitors.

4. Resistance The main circuit uses a five-ring metal film resistor with an accuracy of +/- 1% to ensure a good

signal-to-noise ratio.

5. The PCB adopts 1.6mm thick double-sided sheet, 2.0 oz copper thickness, and the whole process of spraying

tin to ensure the good passing performance of the current.

Parameter:

Maximum Power Per Channel: 100W

Model Number: TPA3116 5.1 Home Theater Amplifier

Channels: 6 (5.1)

Color: blue

Material:Metal + pc

PCB size: 100 * 84.5MM

Working method: Class D

Quiescent current: 150mA

Working efficiency: 90%

Rated output power: 100W + 100W + 4 * 50W

Frequency response: 20Hz to 20KHz

Working voltage: DC18V to DC24V

Package included:

1 x TPA3116 Power Amplifier Audio Board
