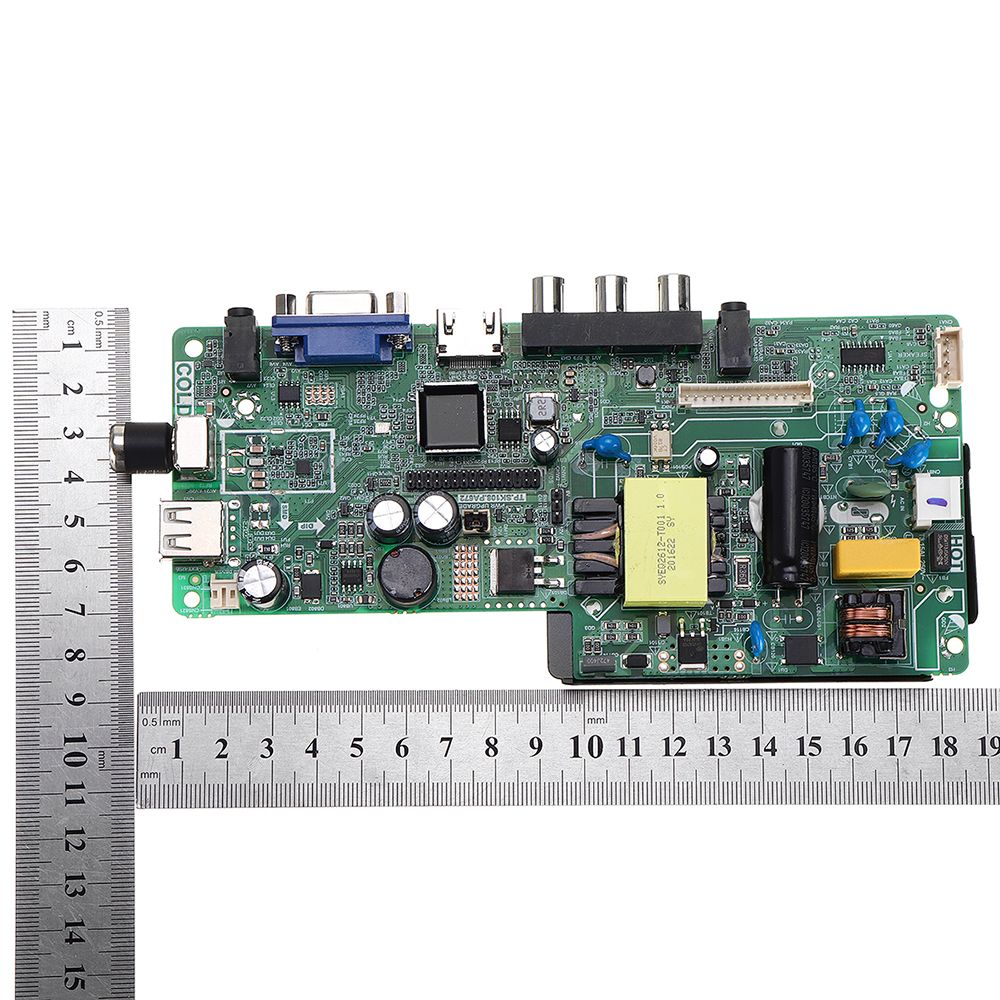

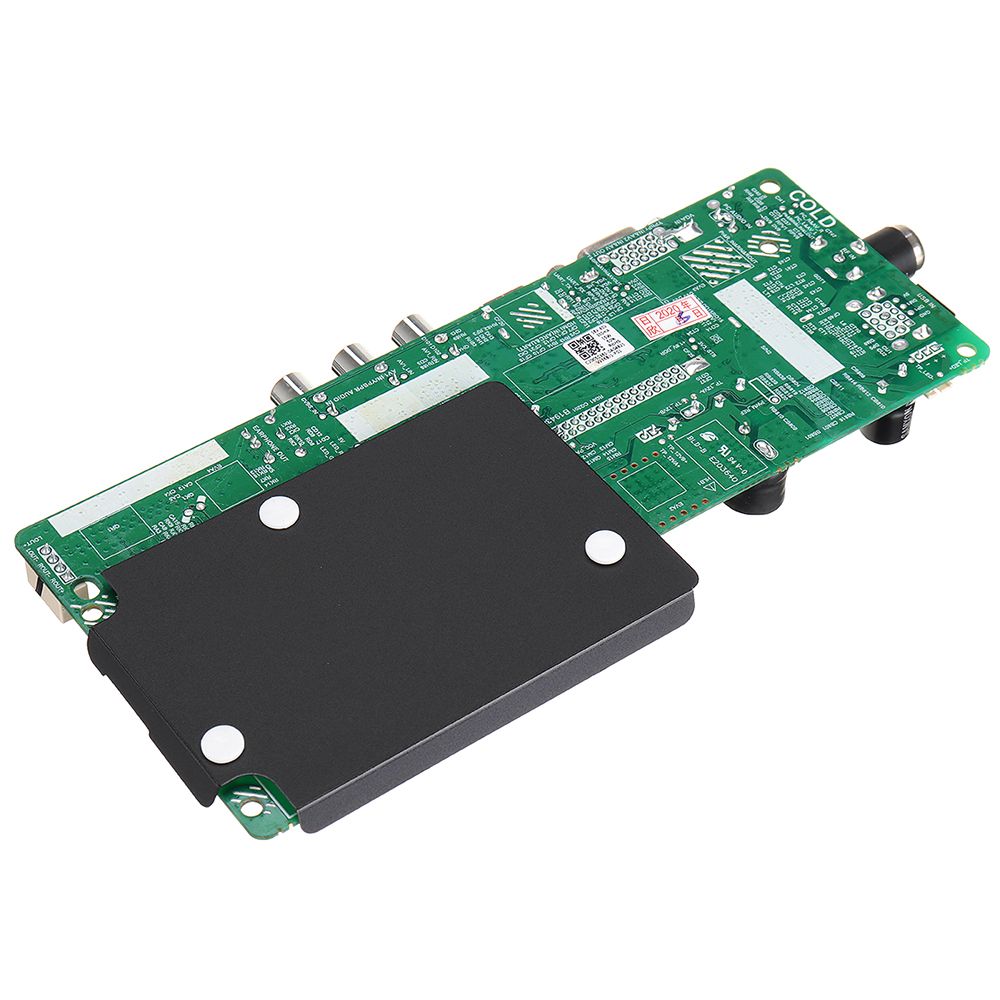

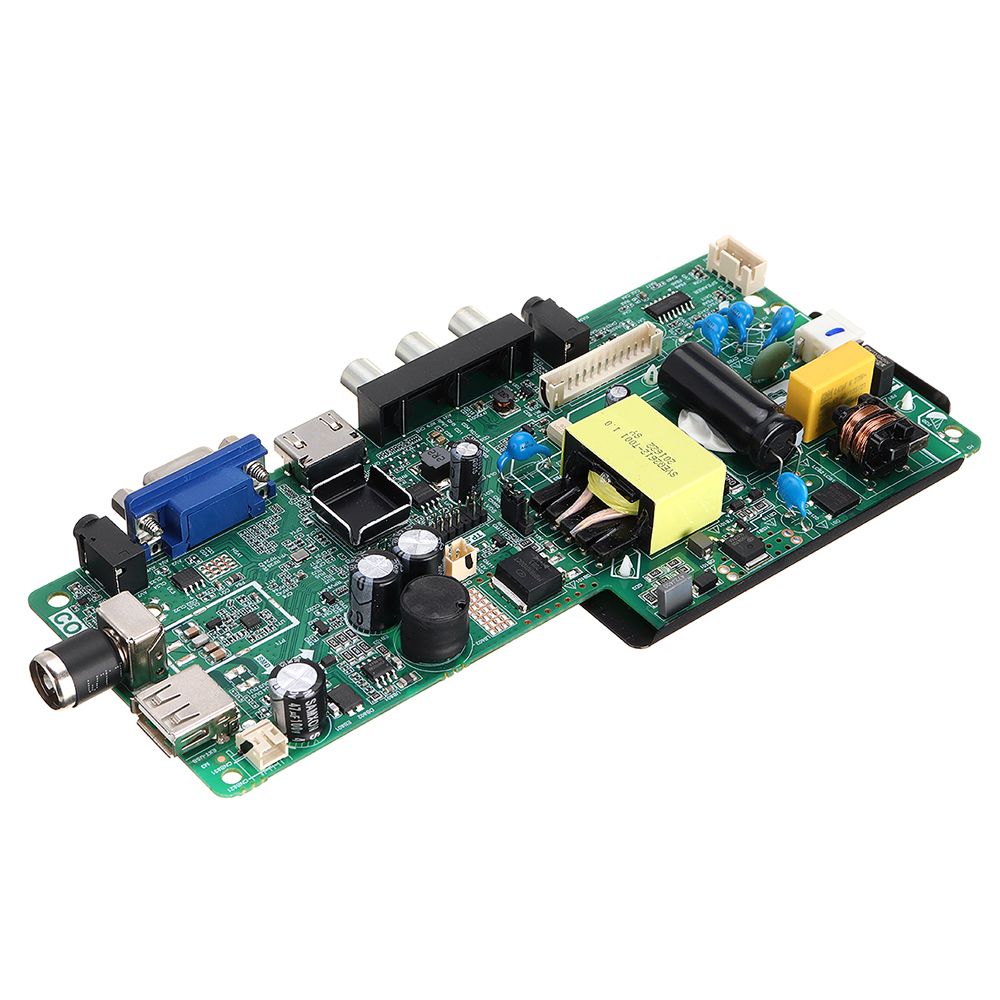

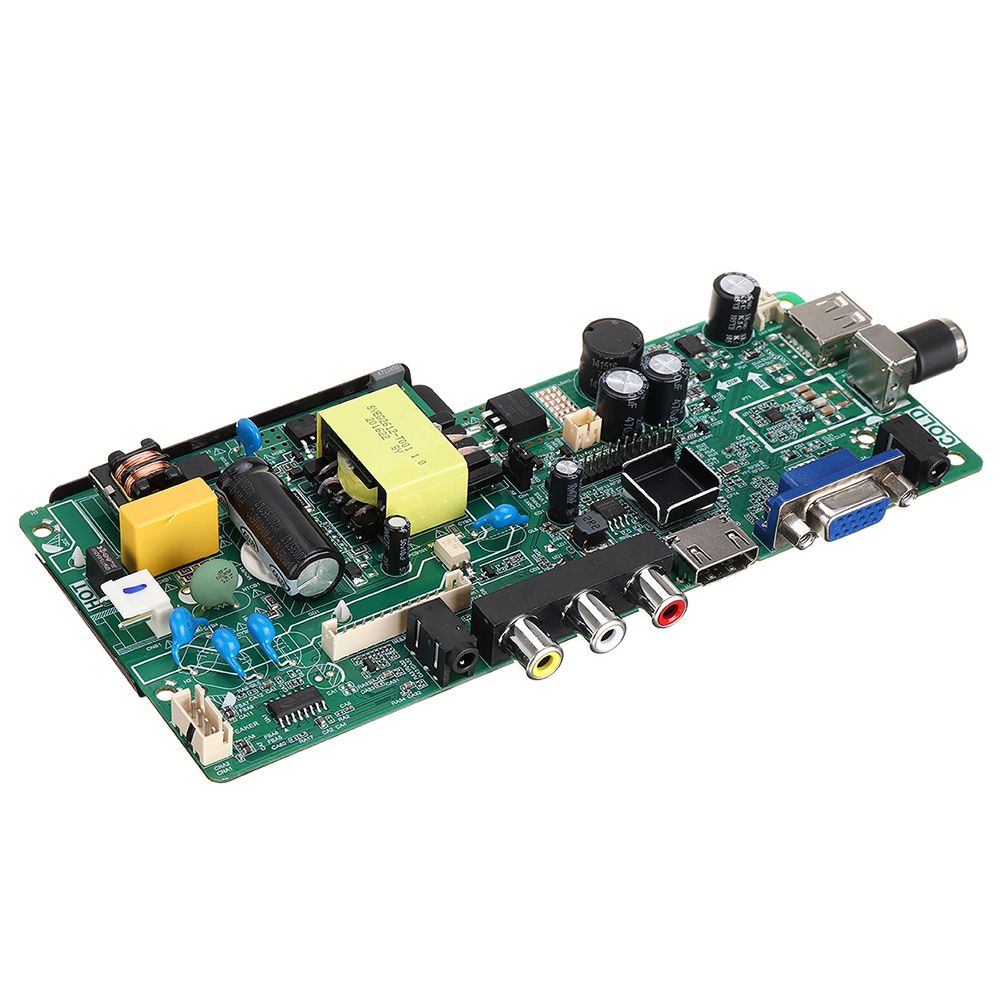

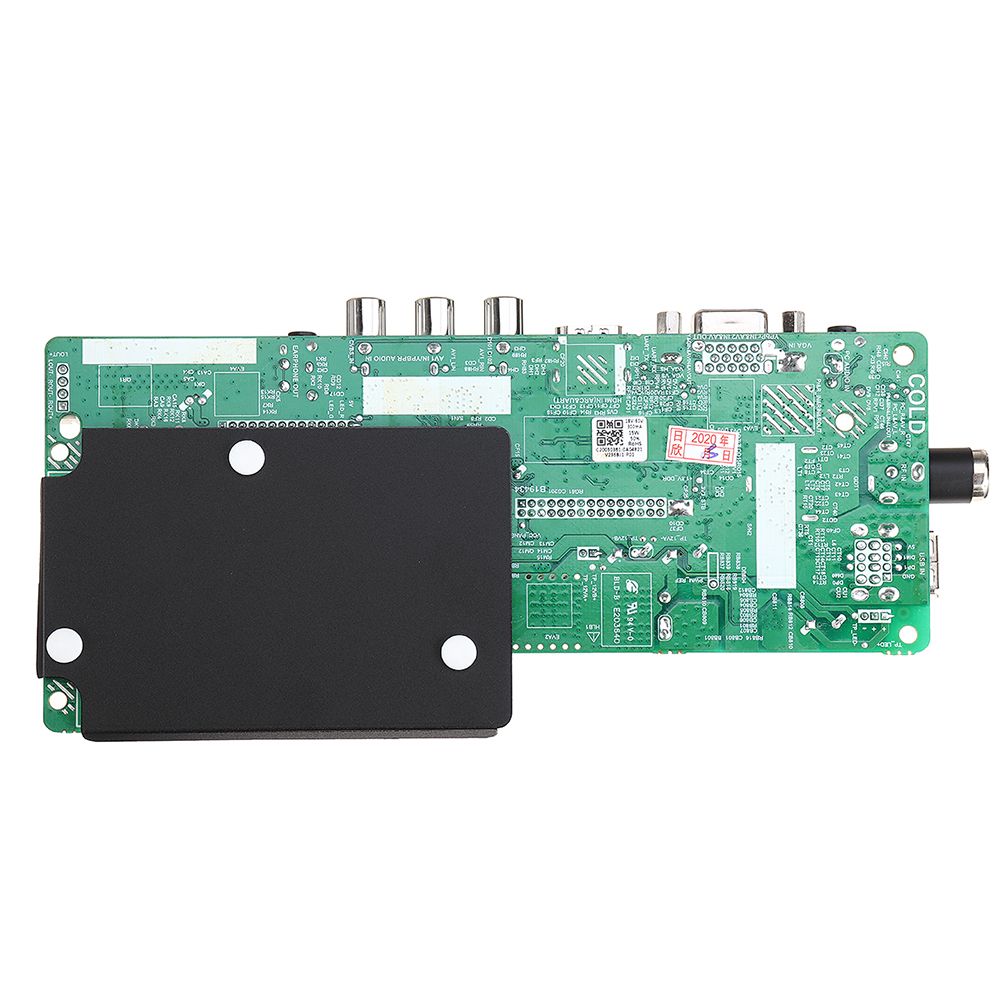

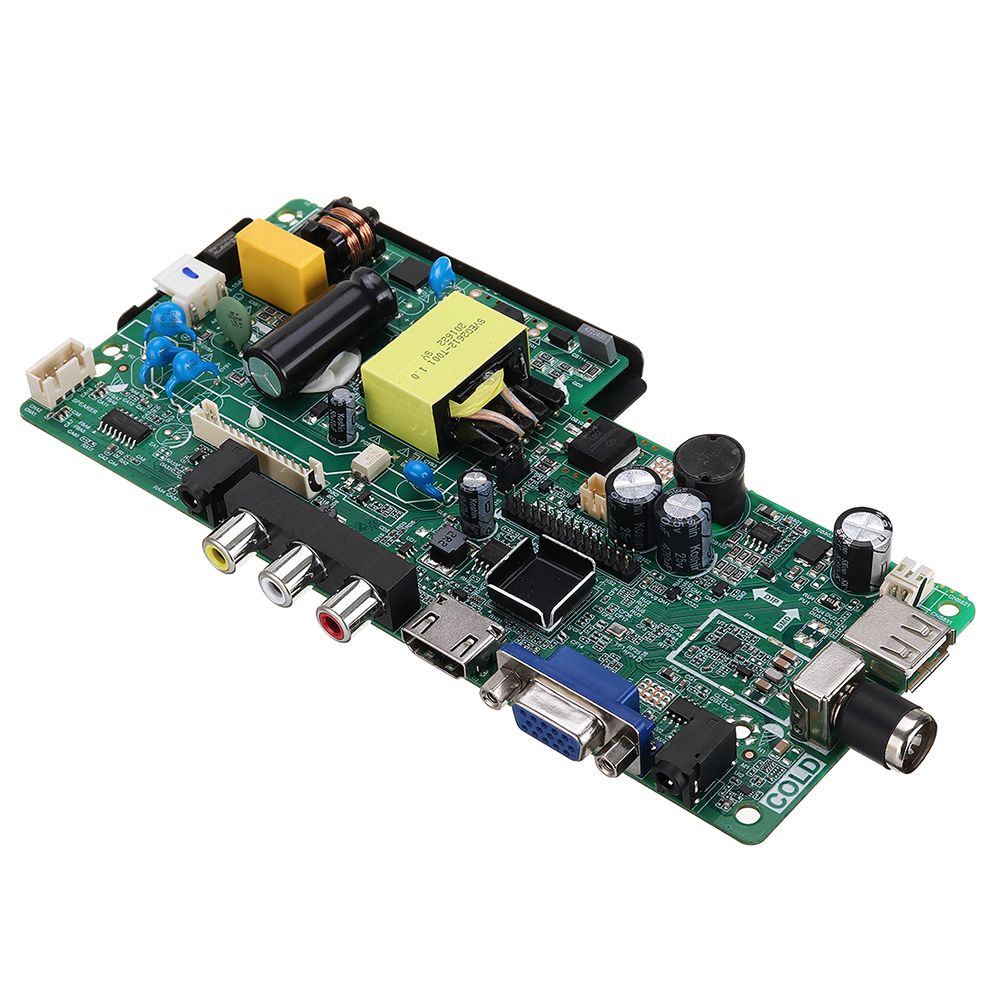

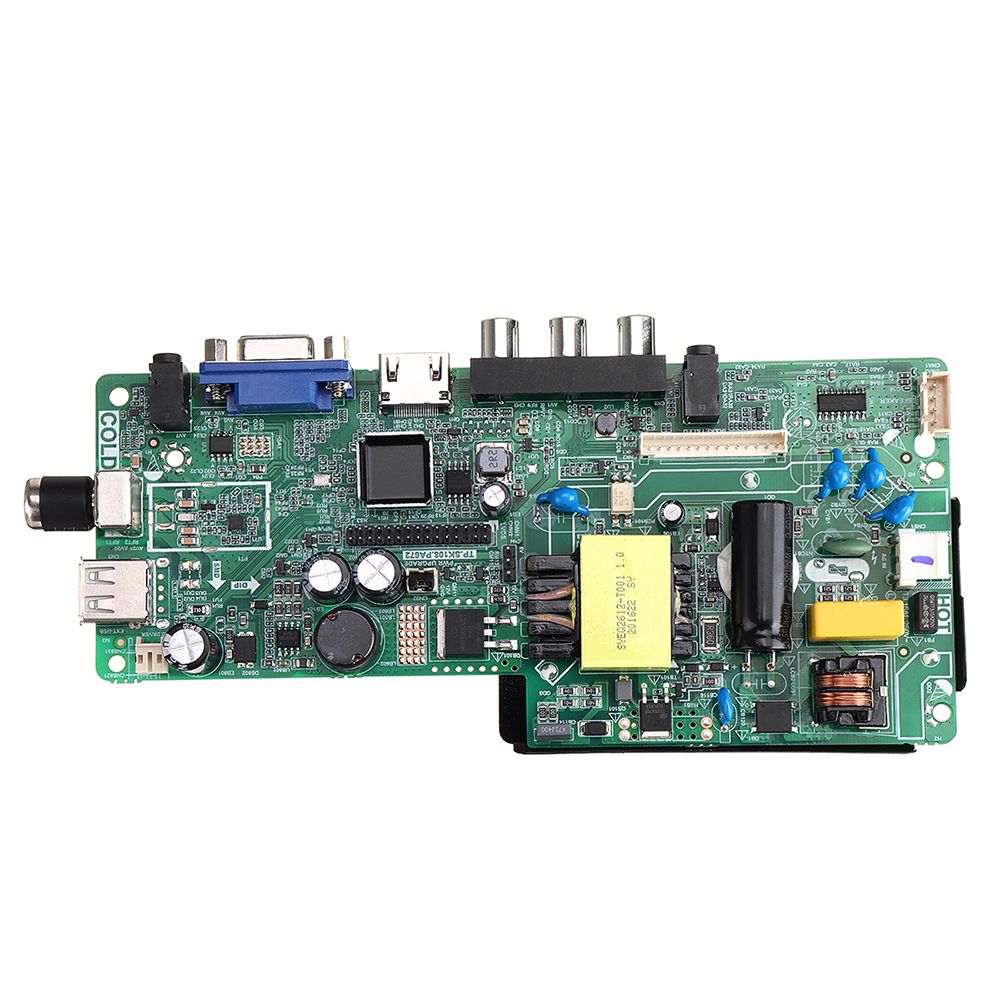

TP.SK108.PA672 Power Motherboard Integrated LCD TV Driver Board Instead of TP.V56.PA671/TP.VST59.PA671/SKR.671/TP.RD8503.671 with Remote Control

Based on 0 reviews. - Write a review

$21.99

Ex Tax: $21.99

Stock: In Stock
Model: EB0042077
SKU: EB0042077

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description:

Model: TP.SK108.PA672 (New version, update from May 25, 2020)

Main chip solution: TSUM53RWU-Z1

Input interface: USB / VGA / HDMI / Video /

Working voltage: support 100-240V wide voltage

Screen voltage selection: 5V / 12V

Resolution support: 1920 * 1080, 1336 * 768, 1440 * 900, 1680 * 1050, 1920 * 1200, 1600 * 900, 1280 * 1024, 1280 * 768, 1280 * 720, etc.

Key type: KEYPAD_LUCKY

Key definition: MENU, CH-, CH +, SOURCE, VOL-, VOL +, POWER, NULL

Languages: English, Russian, French, Arabic, Spanish, Portuguese, Italian, Thai, Vietnamese, German

Default language: English

Remote control: IR_XY_AP_M90

PQ effect: PQ_CVTE_DEFAULT

Sound curve: SOUND_CS85636S_DEFAULT_SK108_PA672_V53RW_26DB5V4R3W

Backlight default: 100

Old version TP.VST59.PA671: https://www.renhotecic.com/image/download/rar/2019032803415556.rar

TP.SK108.PA672: https://www.renhotecic.com/image/download/rar/20200525045715TP.SK108.PA672.rar

Burning method:

Store the screen program to be burned in the U disk, insert the U disk into the board, plug in the key board, and power on; the indicator light of the button board will flash alternately red and green, and the program will start to write when the light flashes. (please don't power off), the light flashes slowly, after a short flash, it will flash quickly. After the flash is stopped, the program is written. After the power is turned off, the U disk is taken to complete the program burning.

As long as you have a USB flash drive, you can upgrade the replacement program at will! Super convenient.

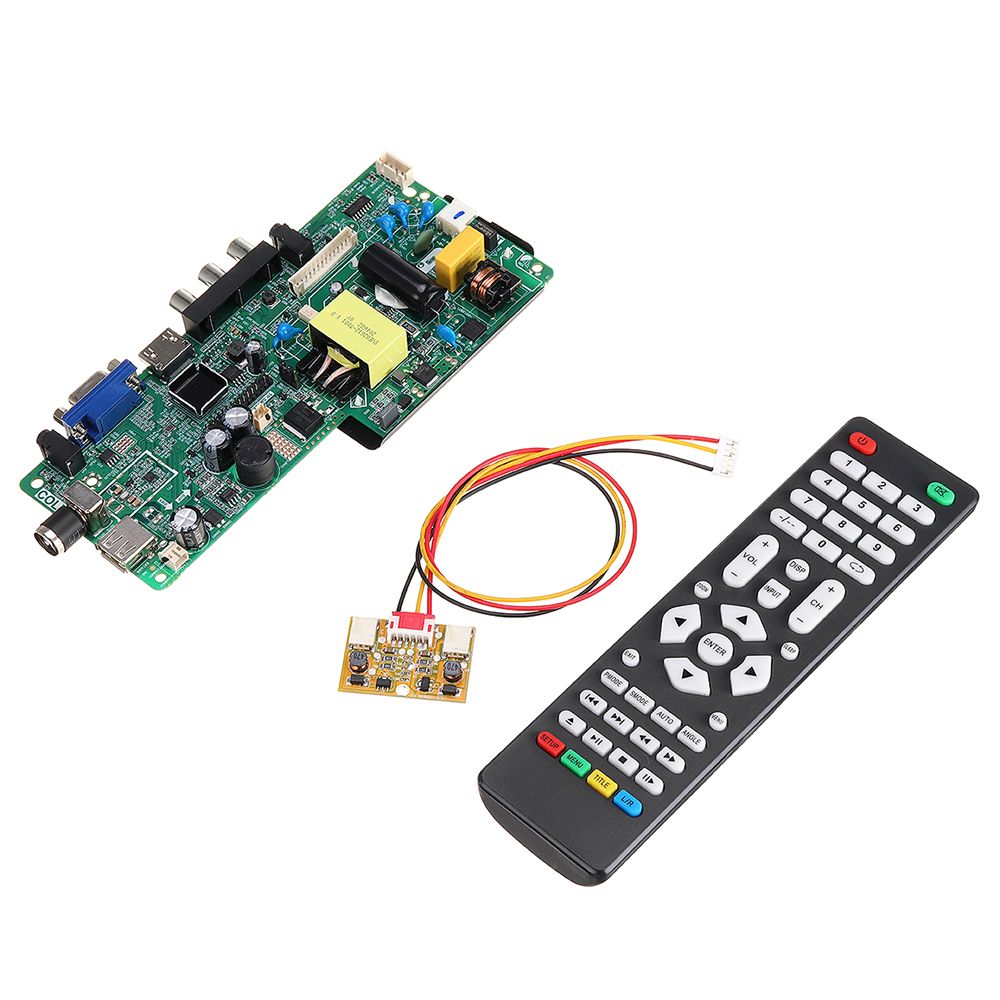

Package included:

1 x LCD Driver Board

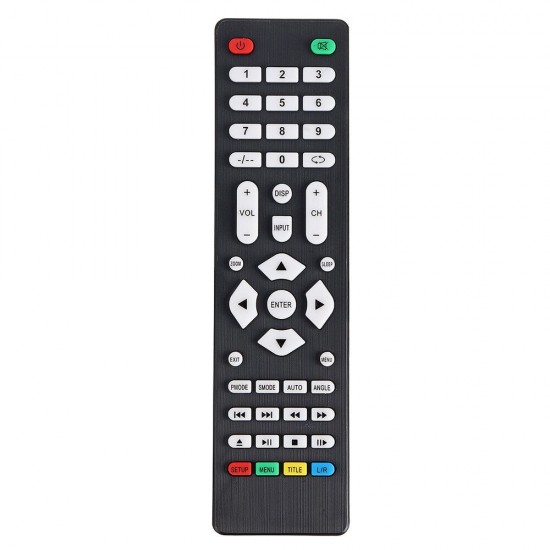

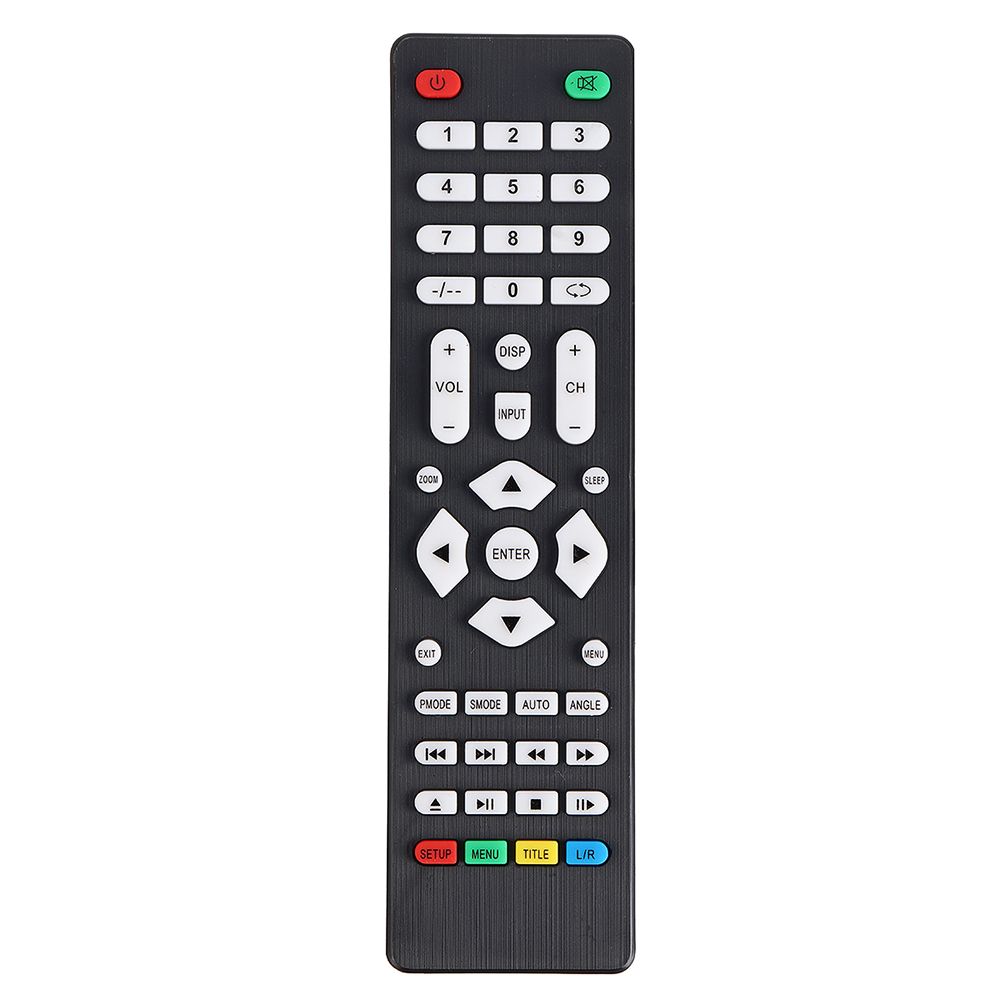

1 x Remote Control
1 x Cable

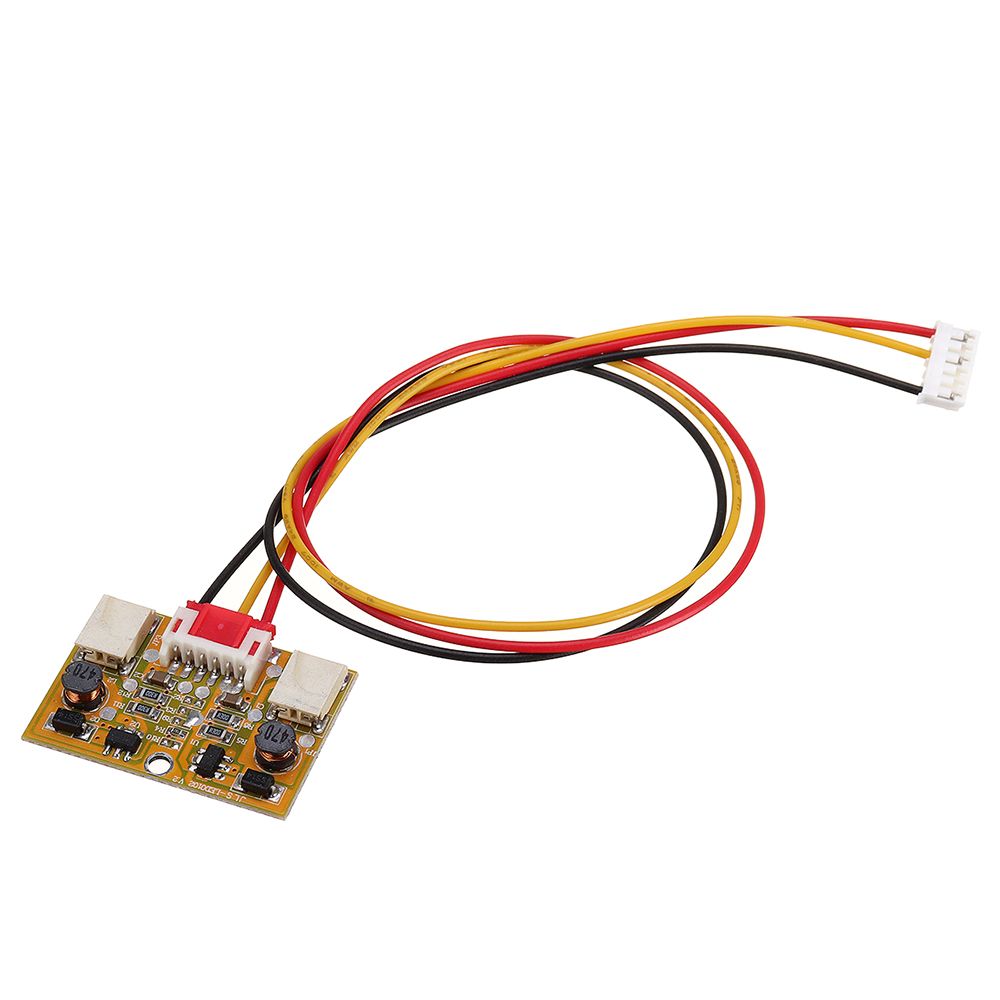

1 x IR
1 x Power Board
