TDS-100H DN50-700mm M2 Transducer Portable Digital Ultrasonic Liquid Flowmeter Handheld Flow Meter
- Stock: In Stock
- Model: EB006300
- SKU: EB006300
| Linearity | 0.5% |
| Repeatability | 0.2% |
| Accuracy | plusmn1% of reading at rates>0.6 ft/s. plusmn0.5% with on-site calibration |
| Response Time | 0-999 seconds, user-configurable |
| Velocit y | plusmn0.03 ~ plusmn105 ft/s (plusmn0.01 ~ plusmn30 m/s), bi-directional |
| Pipe Size | (15 ~ 6,000mm) |
| Rate Units | Meter, Feet, Cubic Meter, Liter, Cubic Feet, USA Gallon, Imperial Gallon, Oil Barrel, USA Liquid Barrel, Imperial Liquid Barrel, Million USA Gallons. User configurable. |
| Totaliser | 7-digit totals for net, positive and negative flow |
| Liquid Types | Virtually all liquids |
| Security | Setup lockout. Access code needed for unlocking |
| Display | 4x16 English letters |

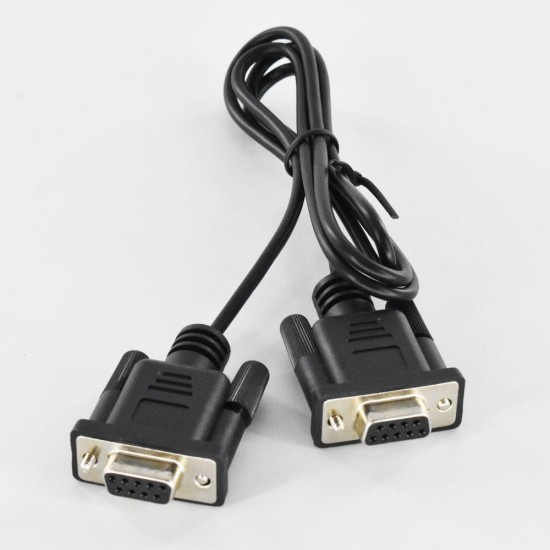

| Communication Interface | RS-232C, baud-rate: from 75 to 115,200 bps. Protocol made by the manufacturer. User protocols can be made on enquiry. |
| Transducers | Model M1 for standard, other 3 models for optional |

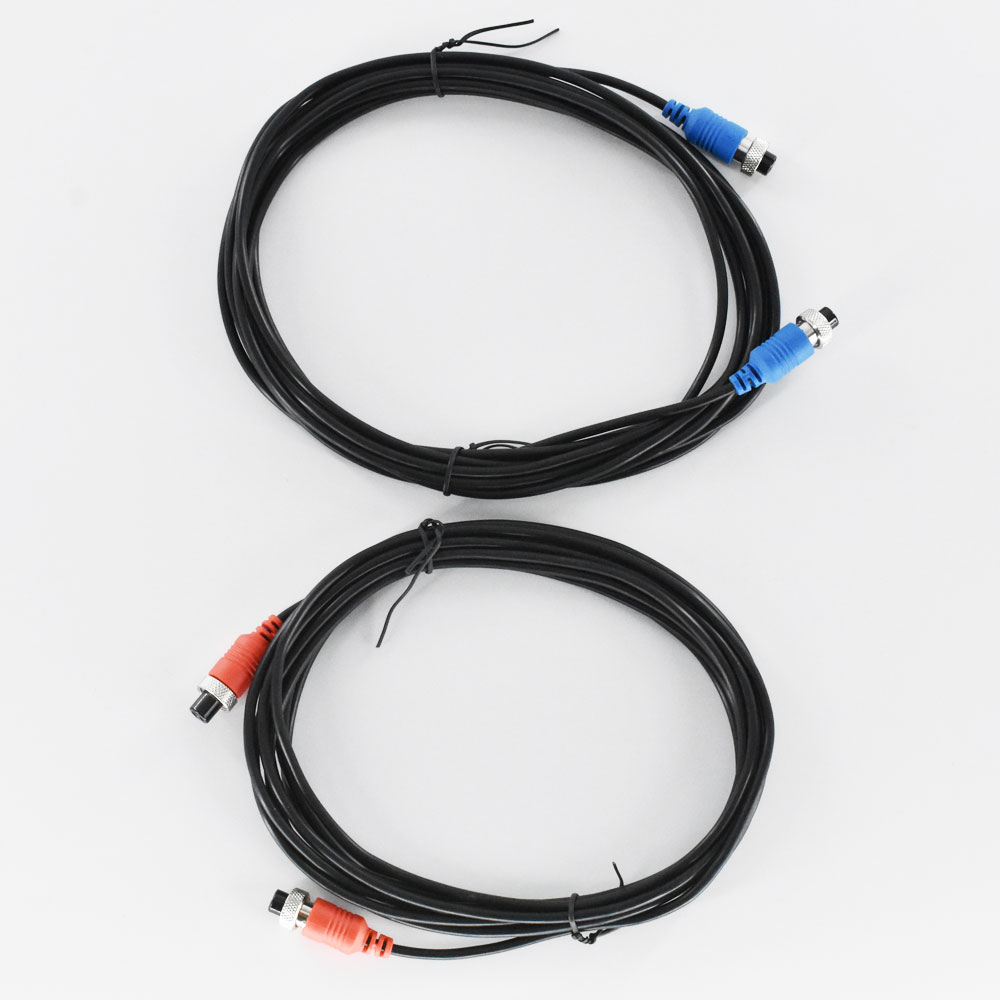

| Transducer Cable | Standard 2x30? (10m), optional 2x1,500? (500m) |
| Power Supply | 3 AAA Ni-H built-in batteries. When fully charged it will last over 10 hours of operation. 90-230VAC for the charger |
| Data Logger | Built-in data logger can store over 2,000 lines of data |
| Manual Totalizer | 7-digit press-key-to-go totalizer for calibration |

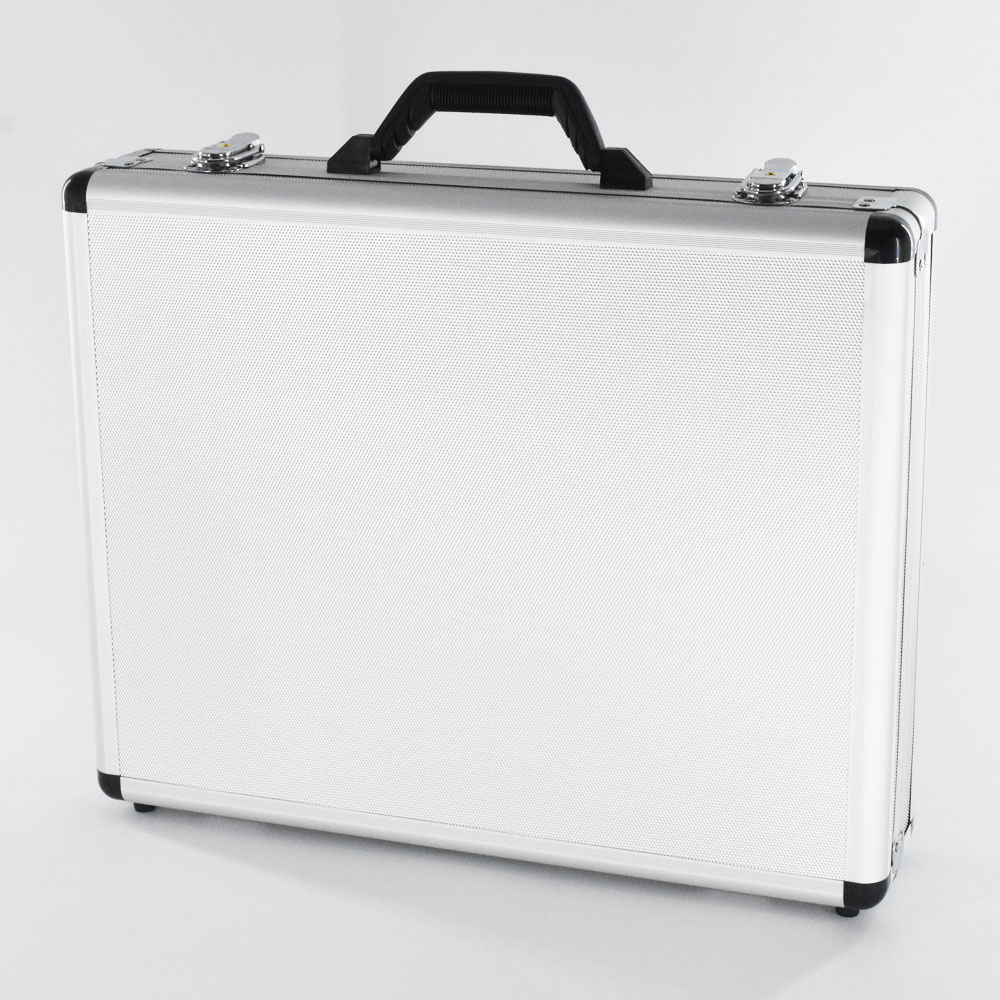

| Housing Material | ABS. Aluminum alloy protective case |
| Case Size | 3.9"x2.6"x0.8" (100x66x20mm) |
| Handset Weight | 1.2 lbs (514g) with batteries |

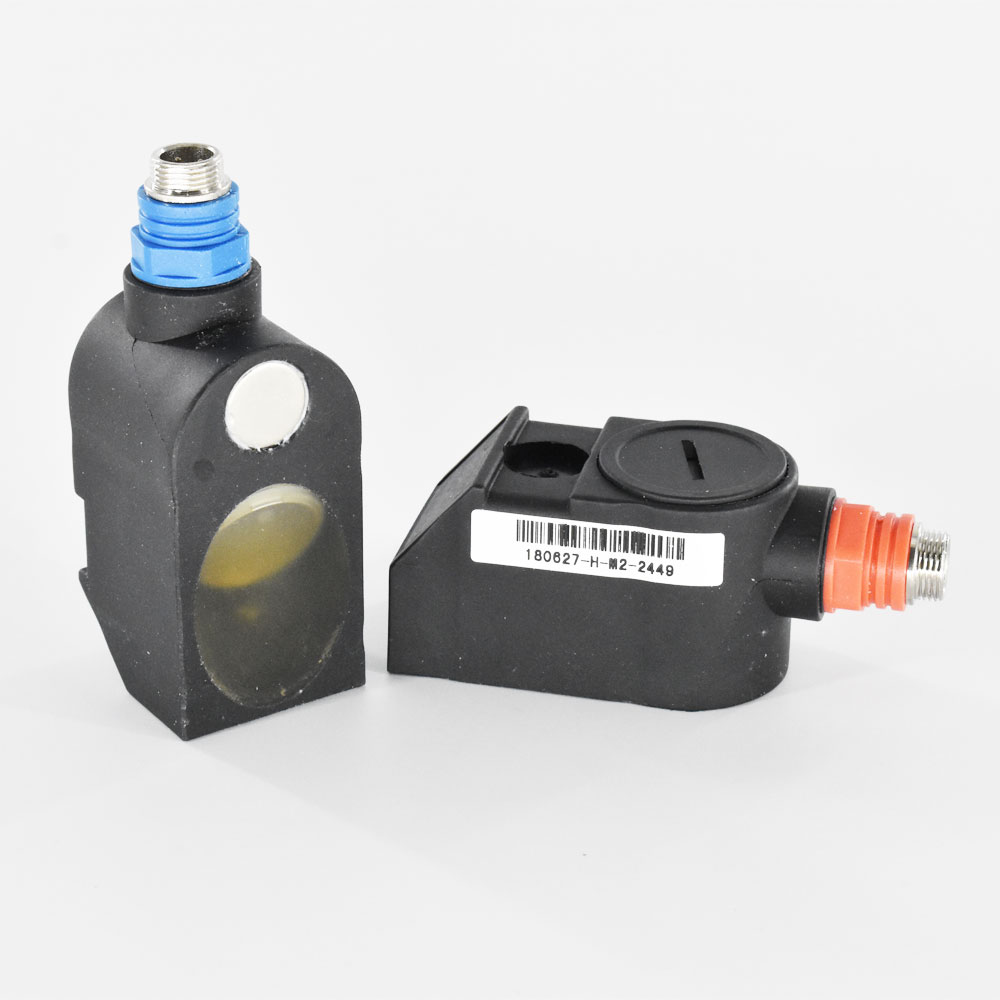

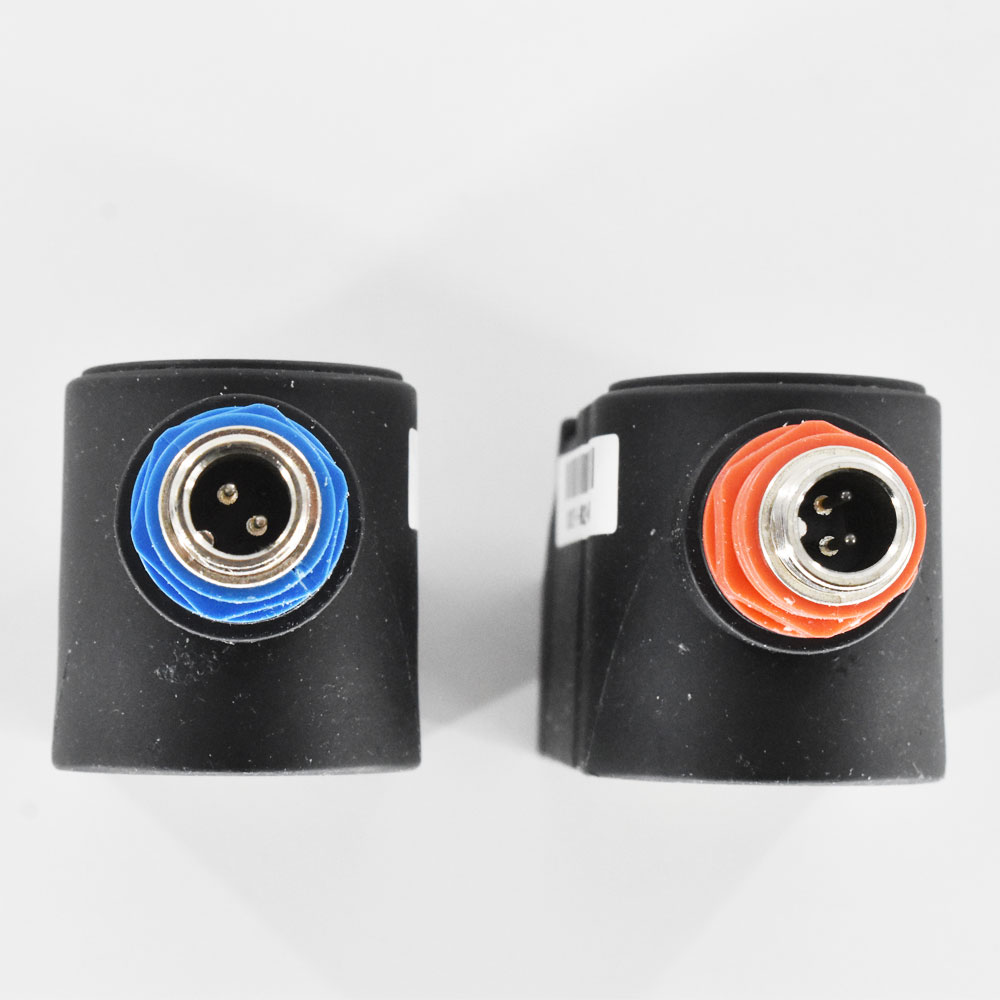

| Transducer | Standard S2 type | Standard M2 type | Standard L2 type |
|
|
| Suitable pipe diameter | DN15-DN100mm | DN50-DN700mm | DN300-DN6000mm |
|
|
| Fluid temperature | 0degc-160degc | 0degc-160degc | 0degc-160degc |
|
|
| Outer size | 45times30times30mm | 60times45times45 | 80times70times55 |
|
|
| Quality | 75g | 250g | 528g |
|
|

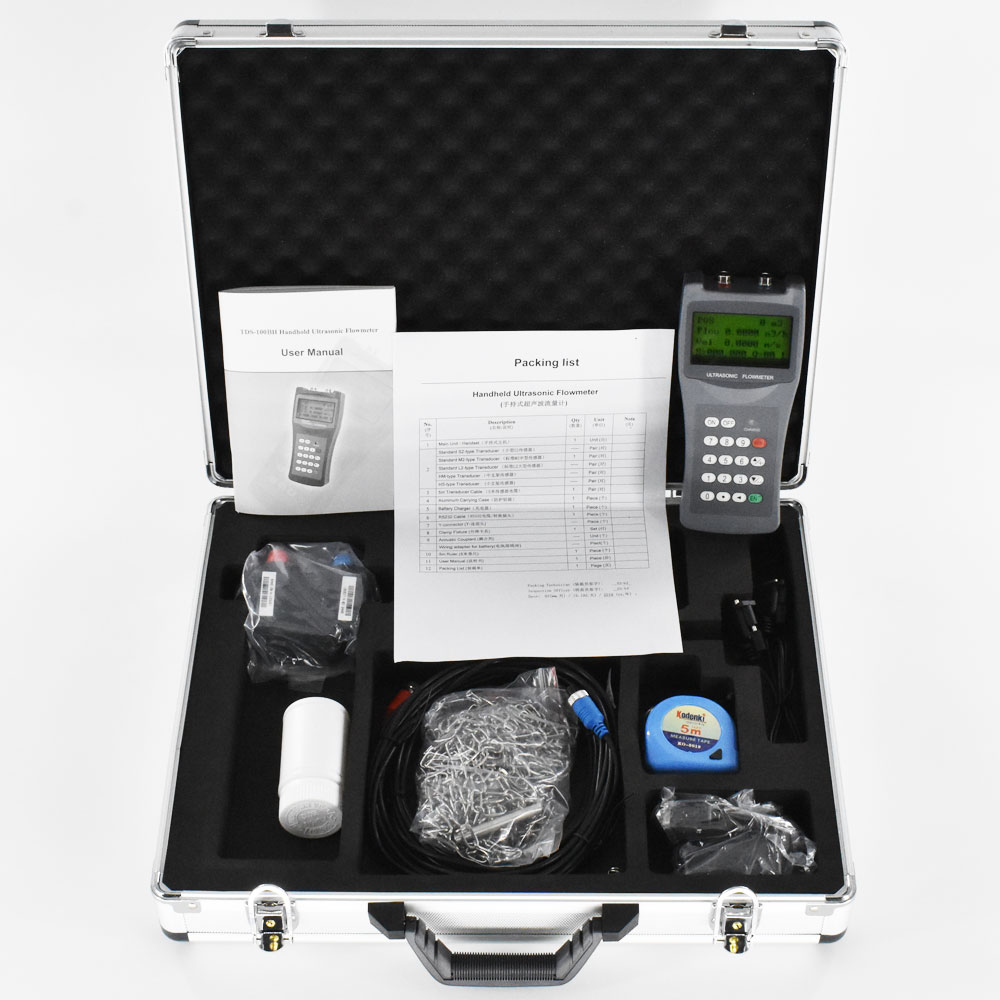

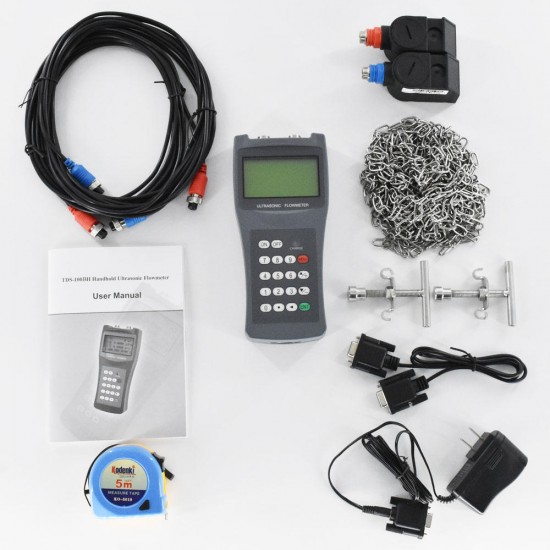

Package Includes:

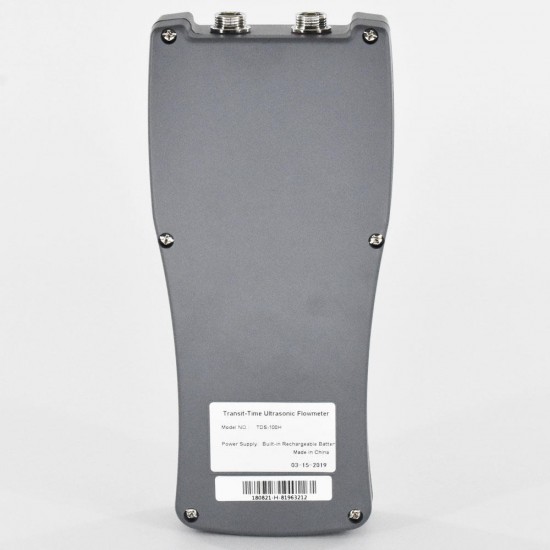

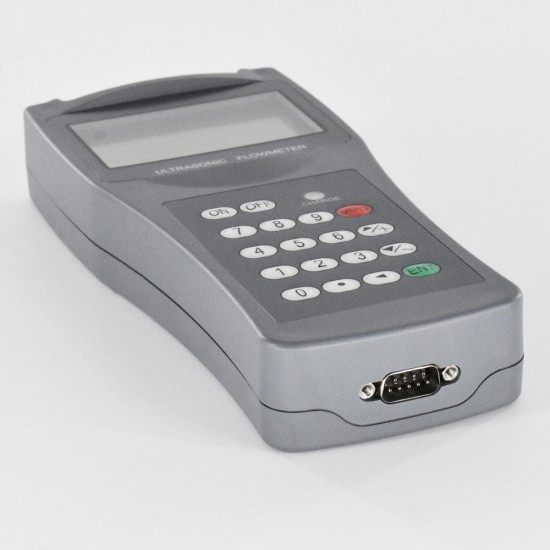

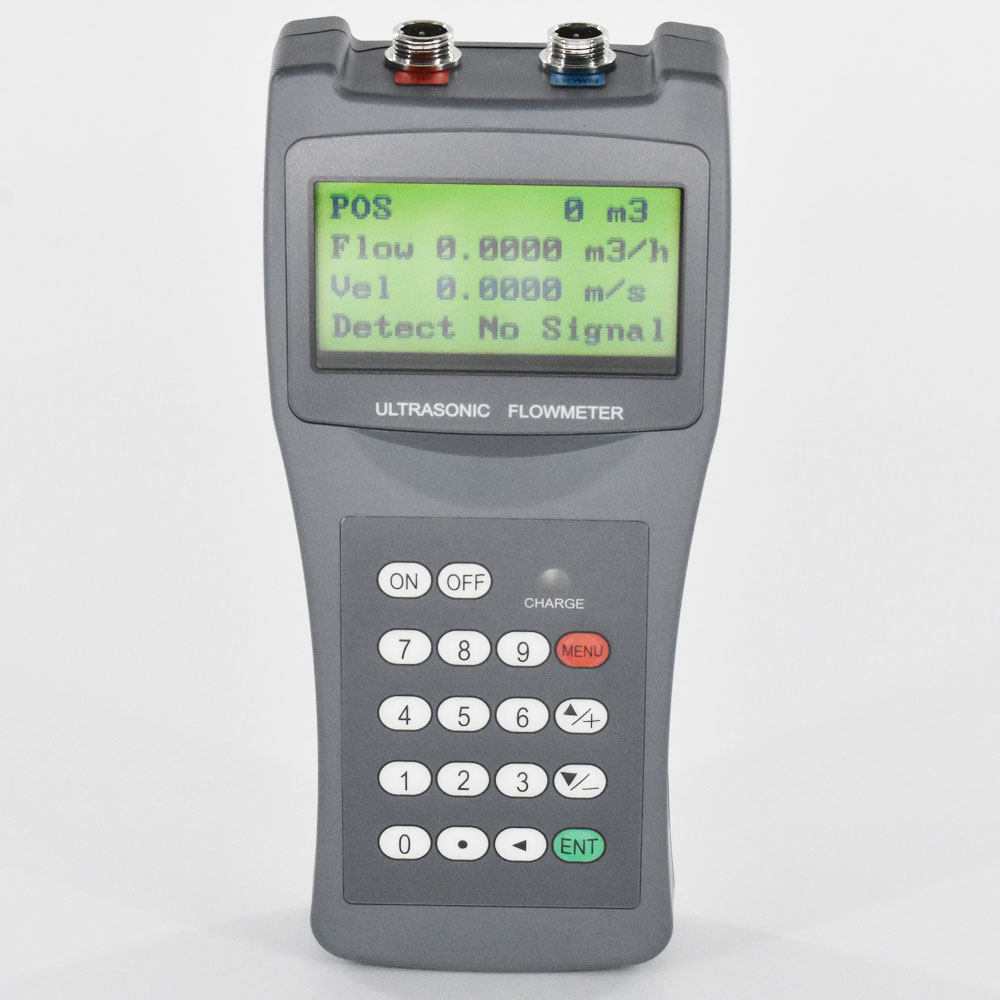

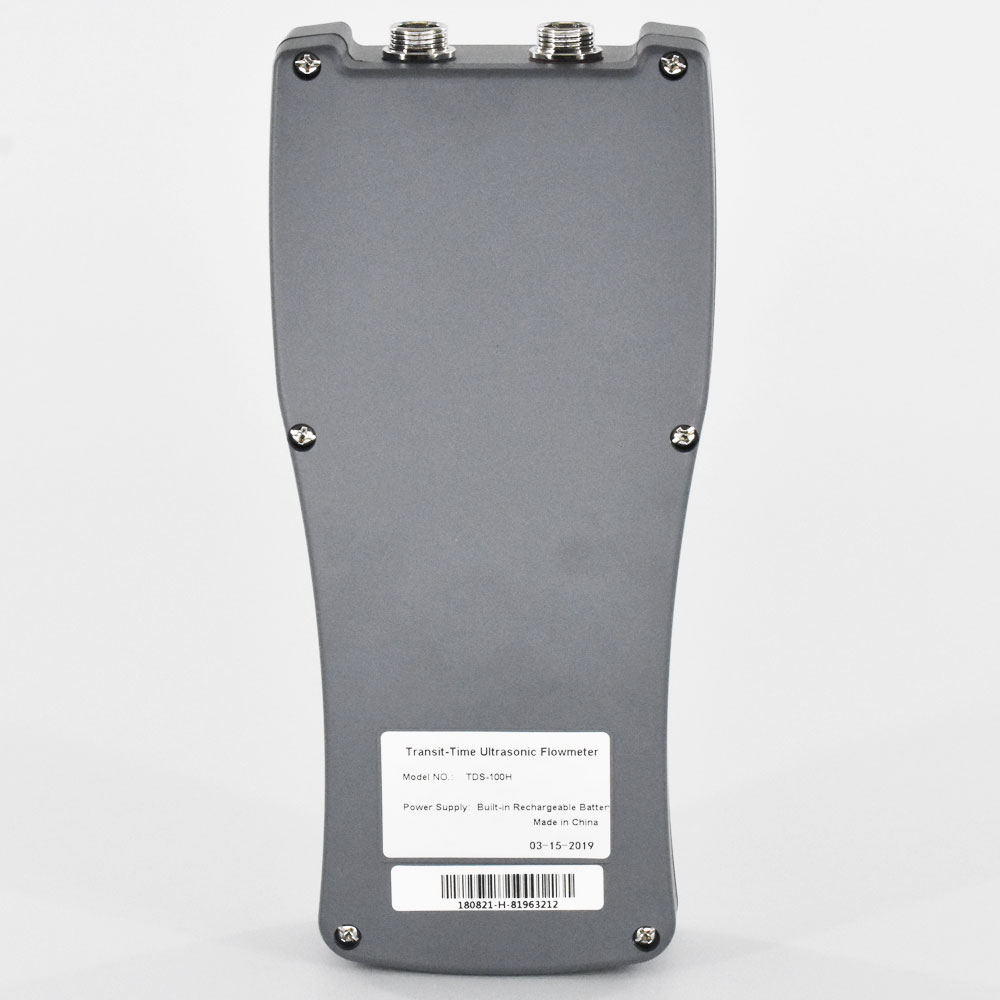

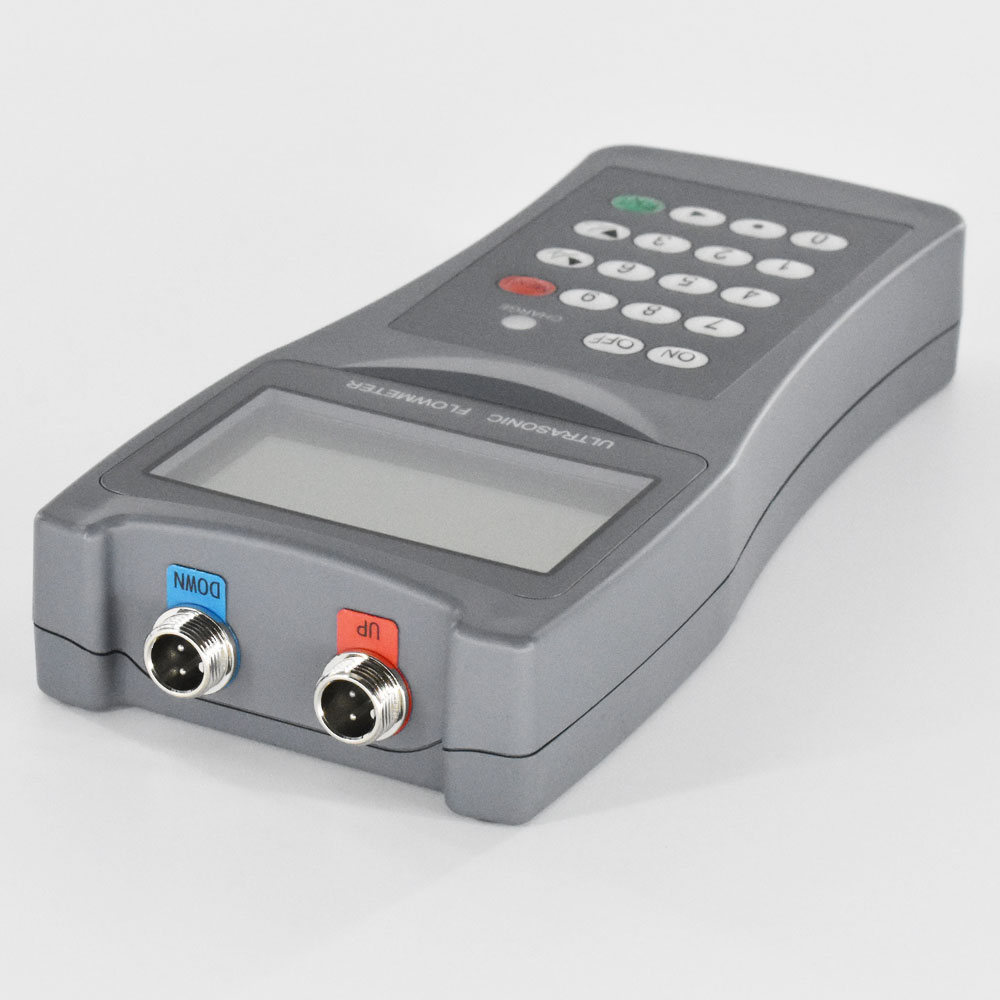

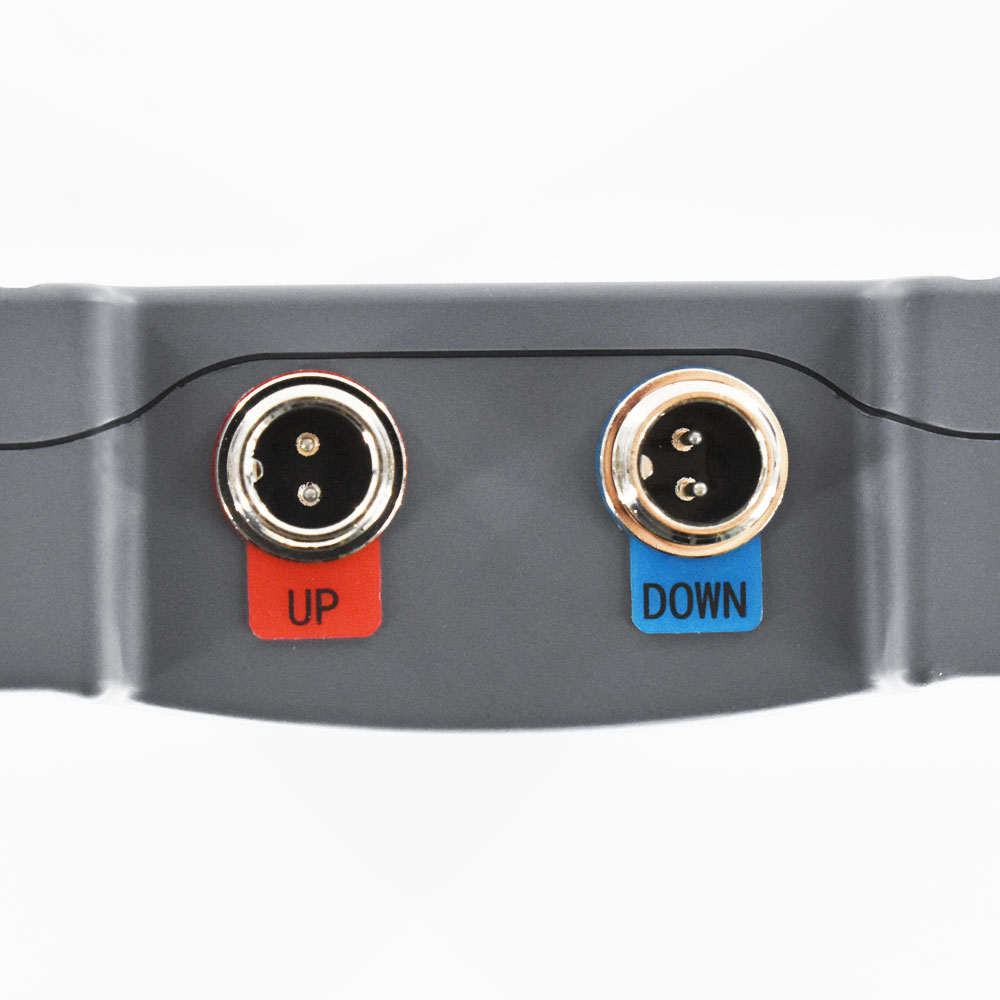

Details Pictures:
