T-SIM7000G ESP32 Wireless Communication Module Small Card Development Board
- Stock: In Stock
- Model: EB0041467
- SKU: EB0041467
- Voltage: DC 12V
Precise details:
>>>More details: Click here to open<<<
Update information: V1.1 (From December, 2020)
Feature:
| Hardware Specifications | |
| Main chip | ESP32 |
| Module | ESP32-WR0VER-B,SIH7000G |

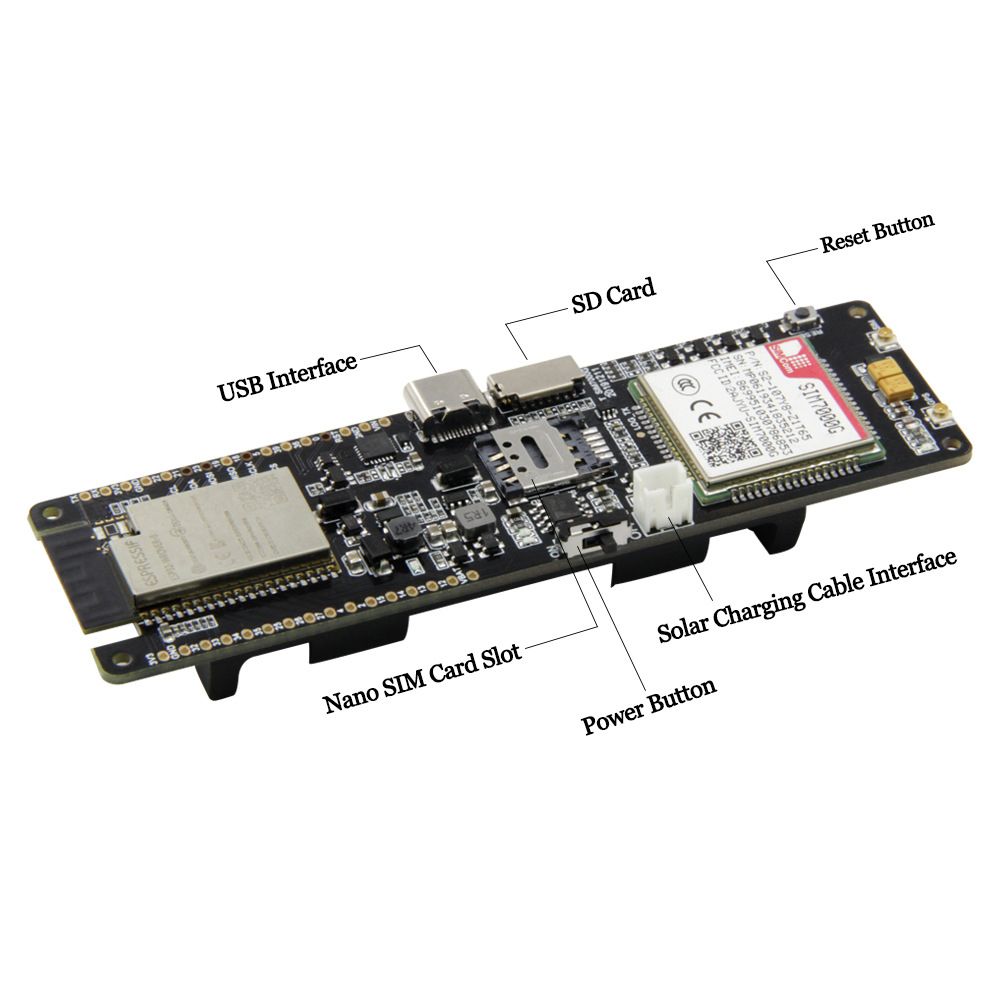

| Interface | USB,SD Card, Solar Input interface |
| Flash Memory | 4M Flash / 8M PSRAM |
| Button | Reset,Power switch |

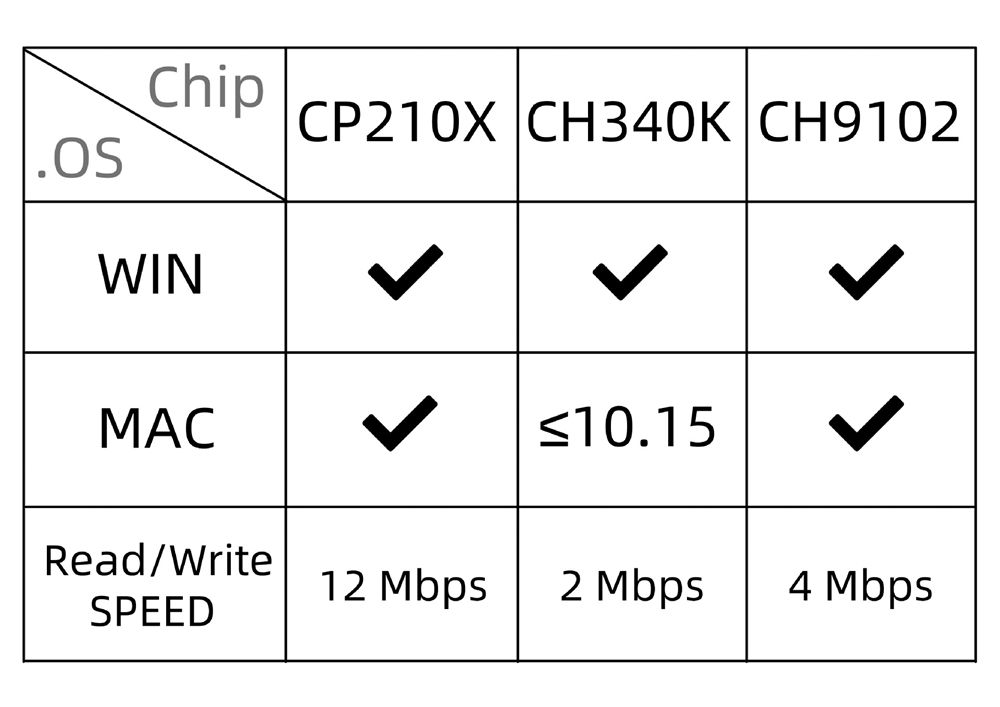

| USB to TTL | CP2104 / CH9102F (optional) |
| Car Clock | 40HHz |
| SIM Card Size | Nano SIM Card |

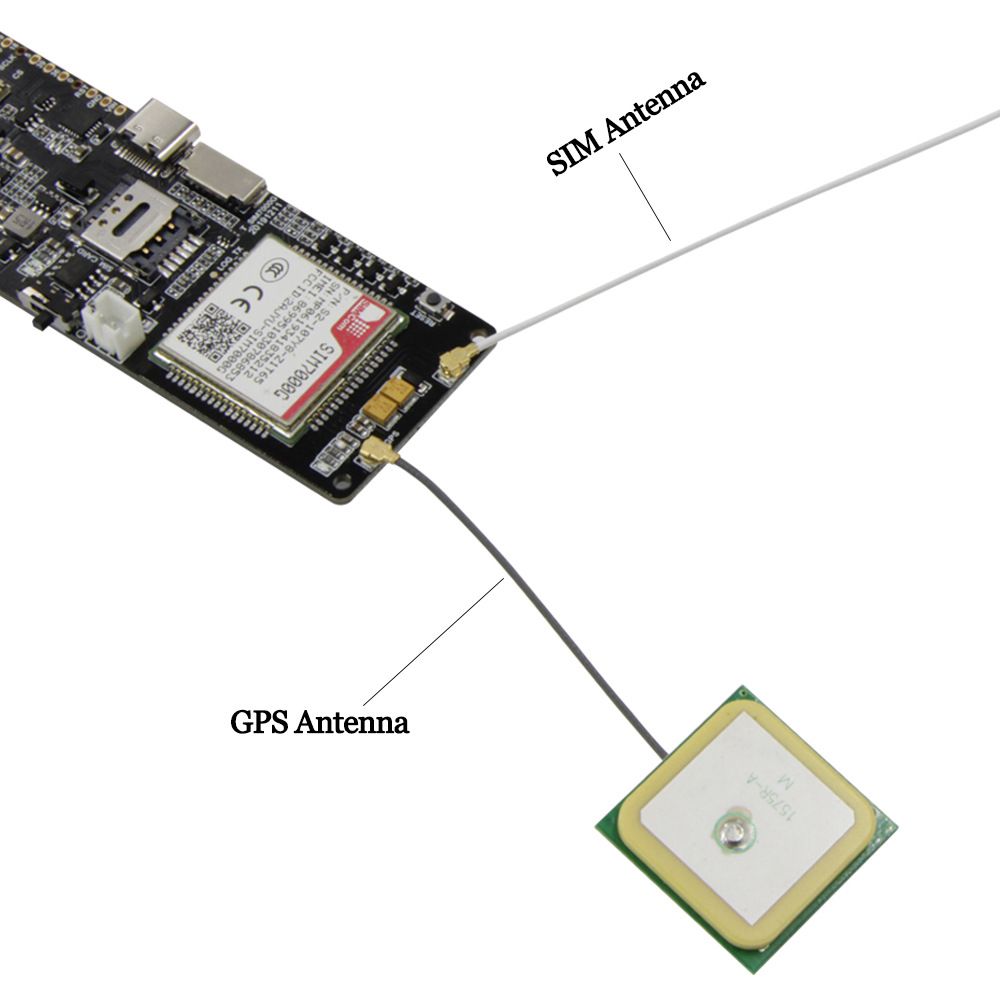

| SIM Antenna Model | Full Band LTE Antenna 698-960 1710-2690MHz |
| GPS Antenna Model | 1575R-AM |
| Operating Temperature Range | -40~85 degrees |

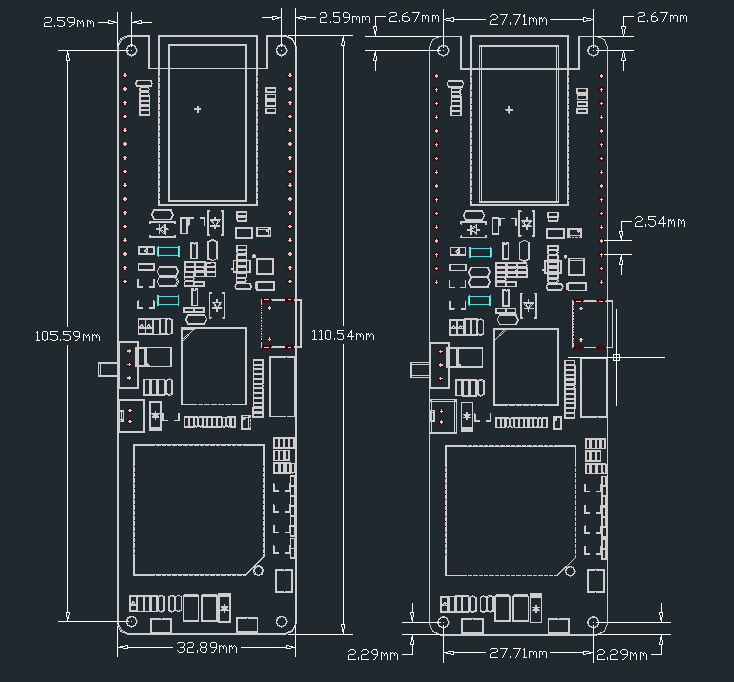

| Product Size | 111mm * 37mm * 20mm |
| Product Weight | 40g |
| Power Specifications | |
| Working Voltage | 5v input |
| Working Curent | 200mA |
| Sleep Current | 1.2mA |
| Charging Current | 780mA |
| Battery Model | 18650 |

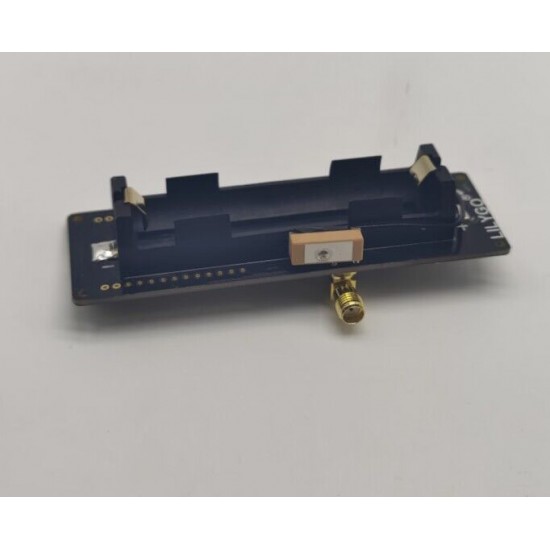

| Battery Holder Model | 18650 battery holder |

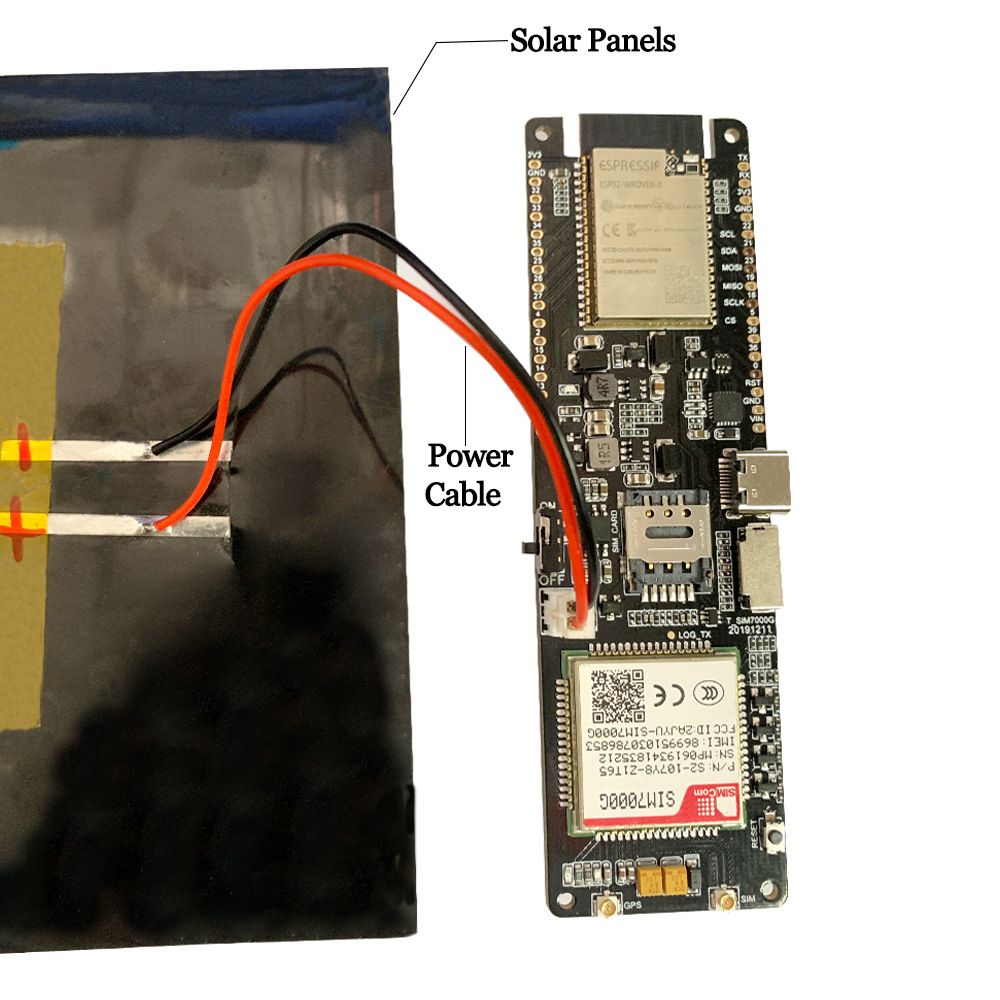

| JST Connector | SOLAR |
| USB | TYPE-C 3.0 |
| Wi-Fi | |
| Standard | FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC |
| Protocol | 802.11 b/g/n (802.11n, speed up to 150Mbps) A-MPDU and A-MSDU polymerization, support 0.4us Protection interval |
| Frequency | Range 2.4GHz〜2.5GHz (2400M〜2483.5M) |
| Transmit Power | 22dBm |
| Communication distance | 300m |
| Bluetooth | |
| Protocolmeet Bluetooth | v4.2BR/EDR and BLE standard |
| Radio Frequency | with -97dBm sensitivity NZIF receiver Class-1, ClasS-2&Class-3 emitter AFH |
| Audio Frequency | CVSD&SBC audio frequency |
| Software Specification | |
| Wi-Fi Mode | Station/SoftAP/SoftAP+Station/P2P |
| Seciirity Mechanism | WPA/WPA2/WPA2-Enterprise/WPS |
| Encryption Type | AES/RSA/ECC/SHA |
| Firmware Upgrade | UART download/OTA (Through network/host to download and firmware) |
| Software Development | Support cloud server development/SDK for user firmware development |
| Networking Protocol | IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT |
| User Configuration | AT + Instruction set, cloud server, android/iosapp |
| OS | FreeRTOS |

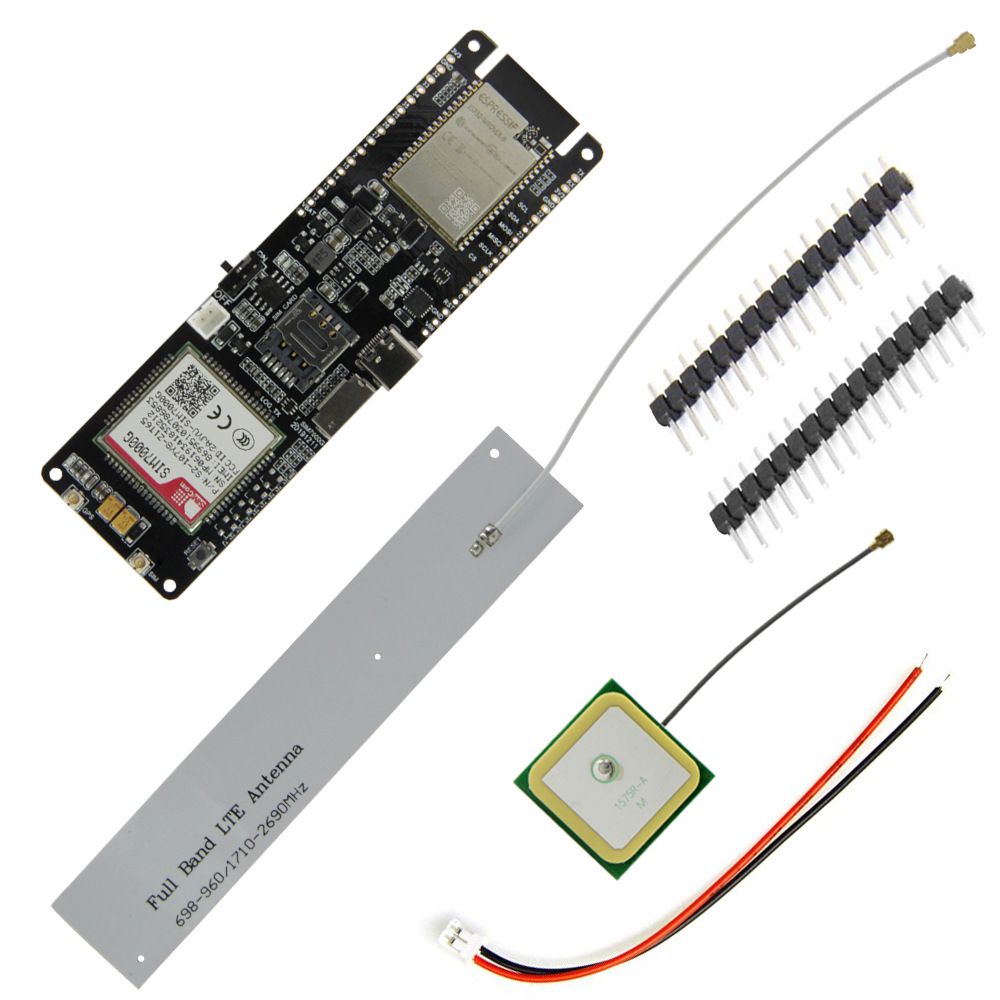

Package includes:
1 x Wireless Communication Module
2 x Pins
1 x Ceramic antenna
1 x LTE antenna
1 x Battery cable
>>>More details: Click here to open<<<
Update information: V1.1 (From December, 2020)
Feature:
| Hardware Specifications | |
| Main chip | ESP32 |
| Module | ESP32-WR0VER-B,SIH7000G |
| Interface | USB,SD Card, Solar Input interface |
| Flash Memory | 4M Flash / 8M PSRAM |
| Button | Reset,Power switch |
| USB to TTL | CP2104 / CH9102F (optional) |
| Car Clock | 40HHz |
| SIM Card Size | Nano SIM Card |
| SIM Antenna Model | Full Band LTE Antenna 698-960 1710-2690MHz |
| GPS Antenna Model | 1575R-AM |
| Operating Temperature Range | -40~85 degrees |
| Product Size | 111mm * 37mm * 20mm |
| Product Weight | 40g |
| Power Specifications | |
| Working Voltage | 5v input |
| Working Curent | 200mA |
| Sleep Current | 1.2mA |
| Charging Current | 780mA |
| Battery Model | 18650 |
| Battery Holder Model | 18650 battery holder |
| JST Connector | SOLAR |
| USB | TYPE-C 3.0 |
| Wi-Fi | |
| Standard | FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC |
| Protocol | 802.11 b/g/n (802.11n, speed up to 150Mbps) A-MPDU and A-MSDU polymerization, support 0.4us Protection interval |
| Frequency | Range 2.4GHz〜2.5GHz (2400M〜2483.5M) |
| Transmit Power | 22dBm |
| Communication distance | 300m |
| Bluetooth | |
| Protocolmeet Bluetooth | v4.2BR/EDR and BLE standard |
| Radio Frequency | with -97dBm sensitivity NZIF receiver Class-1, ClasS-2&Class-3 emitter AFH |
| Audio Frequency | CVSD&SBC audio frequency |
| Software Specification | |
| Wi-Fi Mode | Station/SoftAP/SoftAP+Station/P2P |
| Seciirity Mechanism | WPA/WPA2/WPA2-Enterprise/WPS |
| Encryption Type | AES/RSA/ECC/SHA |
| Firmware Upgrade | UART download/OTA (Through network/host to download and firmware) |
| Software Development | Support cloud server development/SDK for user firmware development |
| Networking Protocol | IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT |
| User Configuration | AT + Instruction set, cloud server, android/iosapp |
| OS | FreeRTOS |
Package includes:
1 x Wireless Communication Module
2 x Pins
1 x Ceramic antenna
1 x LTE antenna
1 x Battery cable
