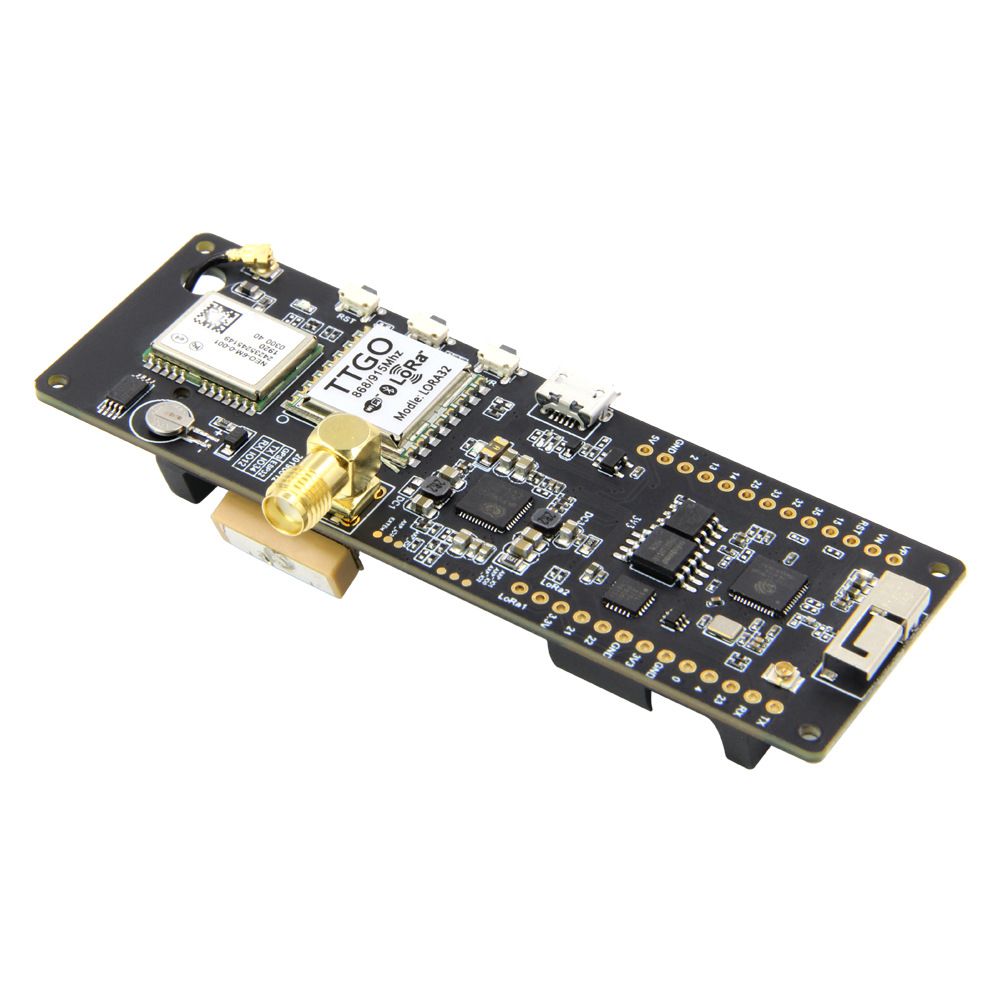

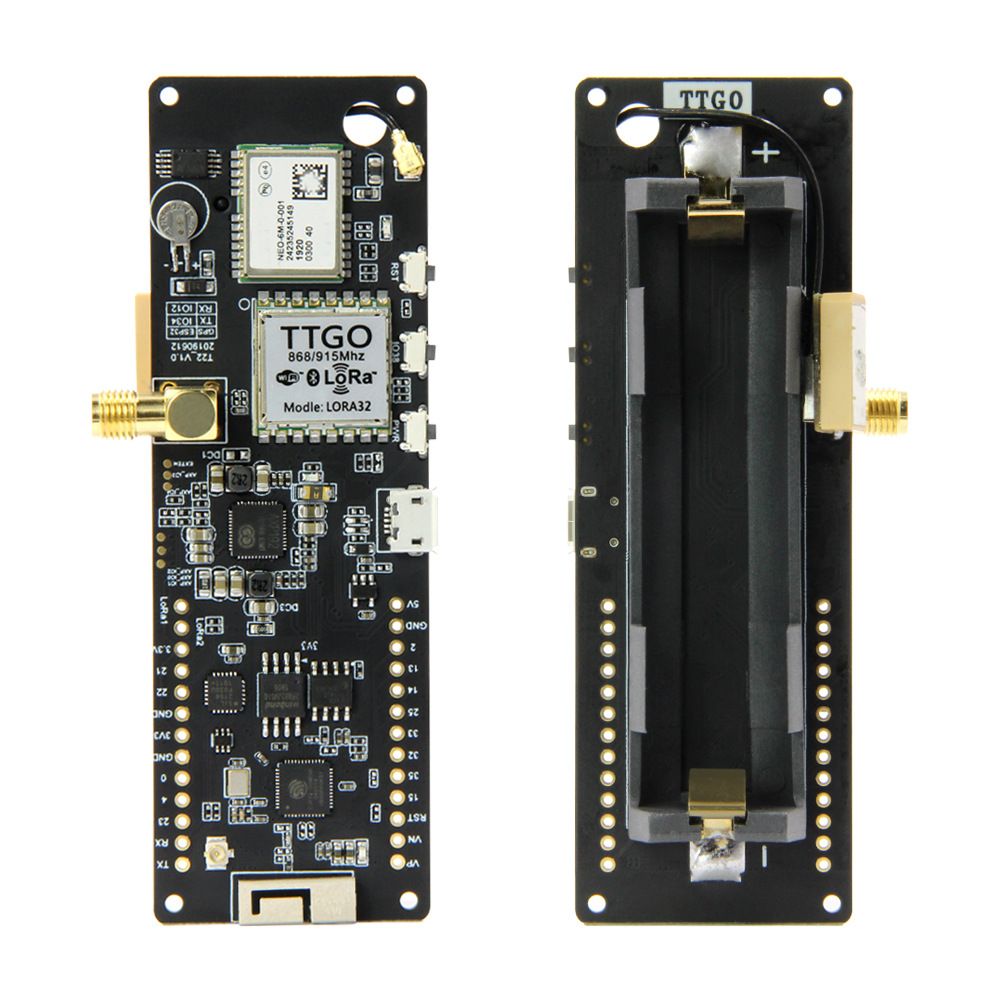

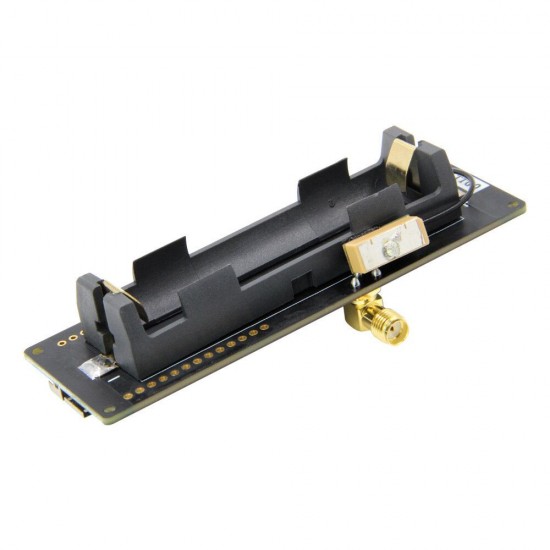

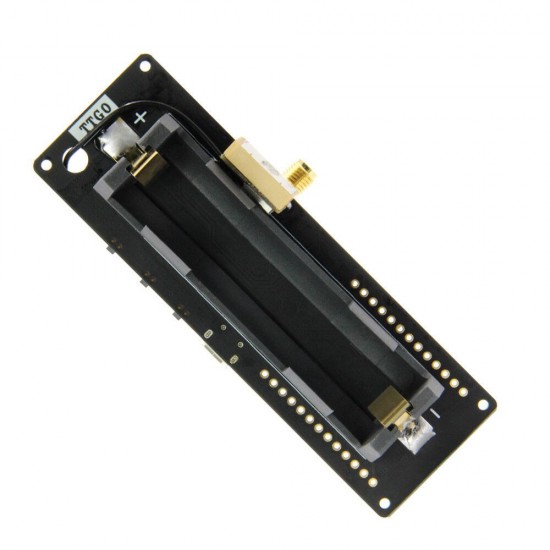

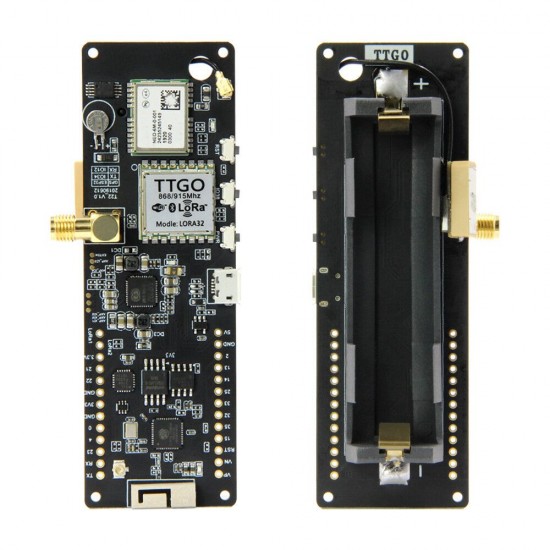

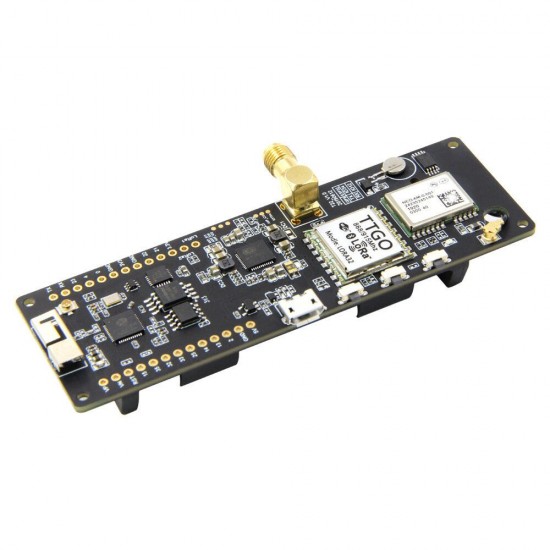

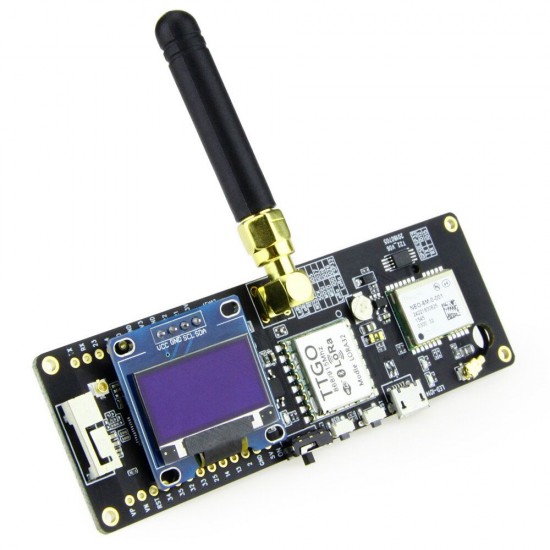

ESP32 433/868/915/923Mhz V1.1 WiFi Wireless bluetooth Module GPS NEO-6M SMA 18650 Battery Holder With OLED

Based on 0 reviews. - Write a review

$44.99

Ex Tax: $44.99

Stock: In Stock
Model: EB0041907
SKU: EB0041907

Available Options

frequency

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Build-in Bluetooth: Yes

WiFi: YES

Precise details>>

Precise details:

Note: OLED is not soldered to T-BEAM

If you need additional OLED, you can buy it from: Product ID:EB0050422/Product ID:969144

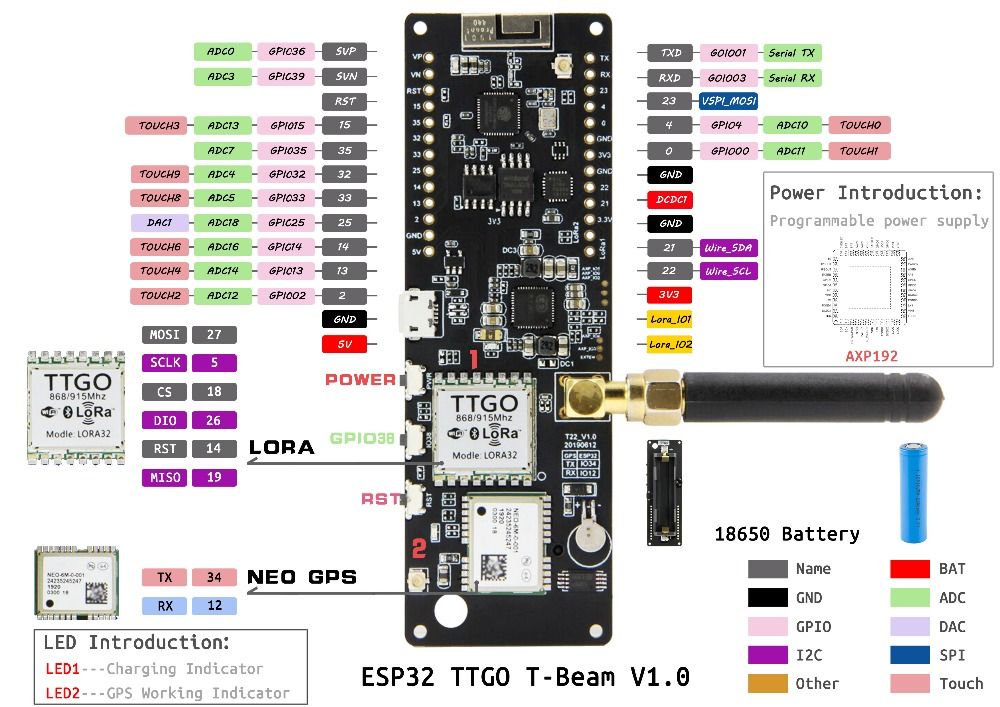

Product Upgrade Content:

1. Pin GPIO34 pin is replaced with GPIO35

2. Replace the charging IC (TP5400) with the power management AXP192

3. GPS TX, RX pin replacement

4. Power on and remove, replace with button to open

5. Reduced sleep current

6. GPS battery replacement

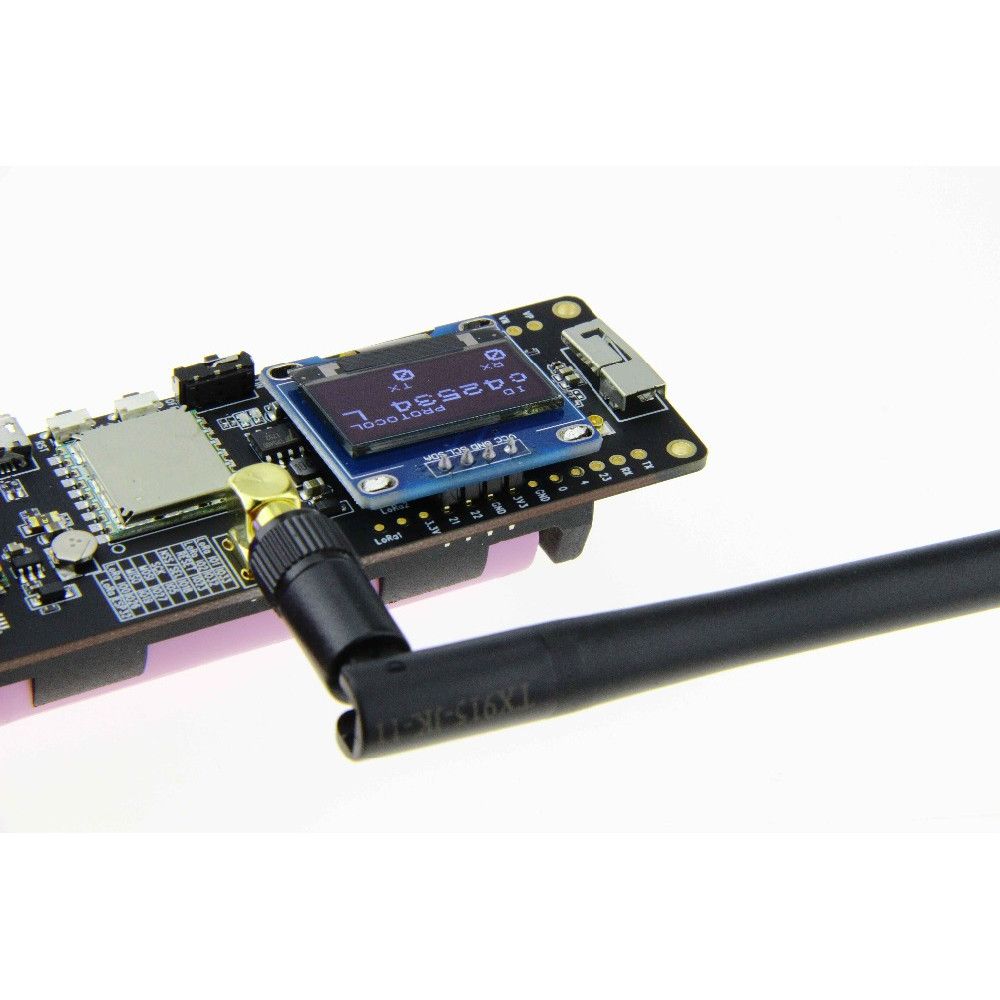

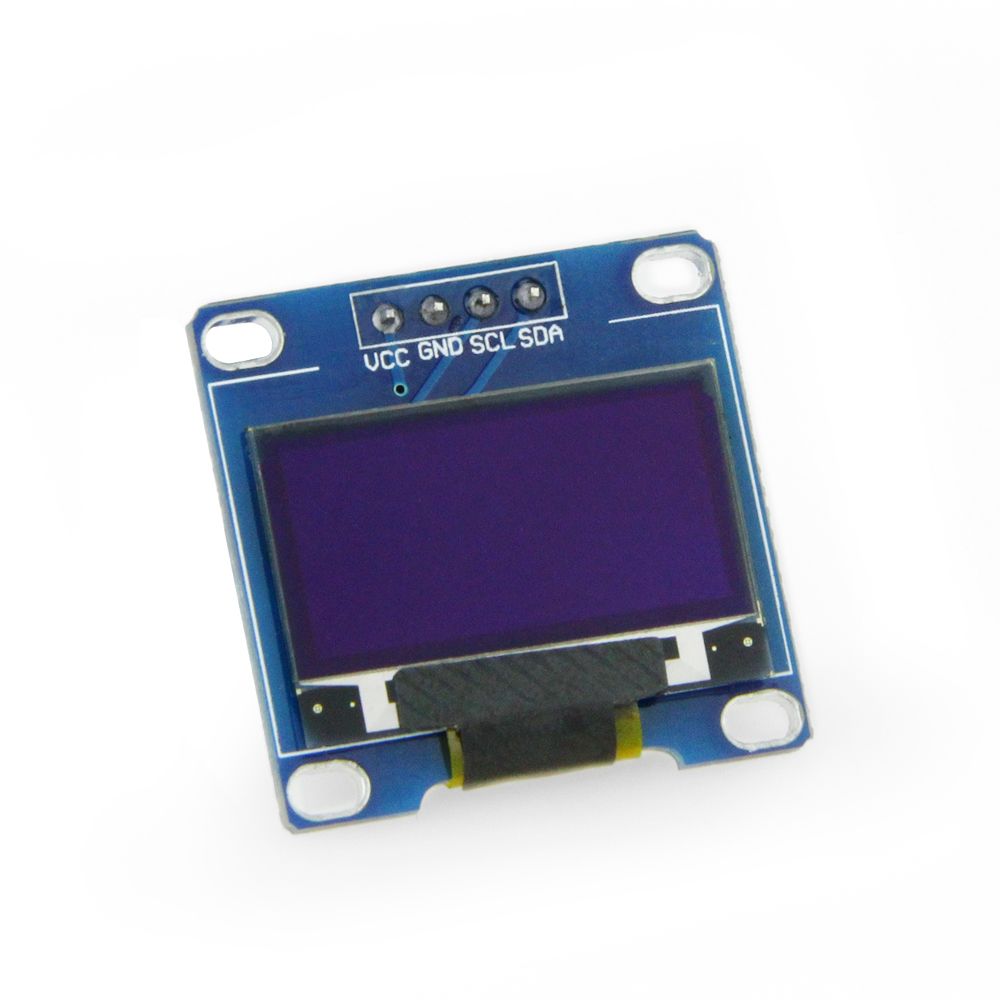

OLED Description:

1. Size: 0.96 inch

2. High resolution: 128 * 64

3. Color: white

4. Viewing angle: > 160 °

5. Driver IC: SSD1306

6. Working temperature: -30 celcius ~ 80 celcius

7. Module volume (generous): 27.0MM * 27.0MM * 4.1MM

8. Supports many control chip: Fully compatible with , 51 series, MSP430 series,STM32/2, etc. (a lot of routines for reference)

9. Wide voltage support: without any modification, directly supports 3.3V ~ 5V DC

10. Ultra-low power consumption: Normal operation Is 0.04W

11. IO port occupies minimal display: The IIC communication, as long as the two IO ports

ESP32 Features:

Lastest ESP32 Version: REV1

WIFI

bluetooth

4MB PSRAM

4MB Flash

3D Antenna

LORA Features:

Working voltage: 1.8~3.7v

Acceptable current: 10~14mA

Transmit current: 120mA@+20dBm, 90mA@+17dBm, 29mA@+13dBm

Operating frequency: 433/470MHz(433HMz version) /868M/915M(868MHz version)

Transmit power: +20dBm

Receive sensitivity:
-139dBm@LoRa &62.5Khz&SF=12&146bps

-136dBm@LoRa &125Khz&SF=12&293bps

-118dBm@LoRa &125Khz&SF=6&9380bps

-123dBm@FSK&5Khz&1.2Kbps

Frequency error: +/-15KHz

FIFO space: 64Byte

Data rate: 1.2K~300Kbps@FSK, 0.018K~37.5Kbps@LoRa

Modulation Mode: FSK,GFSK,MSK,GMSK,LoRa TM, OOK

Interface form: SPI

Sleep current: 0.2uA@SLEEP, 1.5uA@IDLE

Operating temperature: -40℃- +85℃

Digital RSSI function

Automatic frequency correction

Automatic gain control

Low voltage detection

Fast wake-up and frequency hopping

Highly configurable data packet handler

GPS:

GPS modules NEO-6M, 3V-5V power supply Universal

Destined module with ceramic antenna, signal super

Save the configuration parameter data EEPROM Down

With data backup battery

There are LED signal indicator

Default Baud Rate: 9600

Power:

TP5400

1A Battery Management

LED indicator: There are 4 LEDs show the battery status in real time.

USB: CP2104-GMR

Pre-Flash Firmware: -SoftRF V4.0

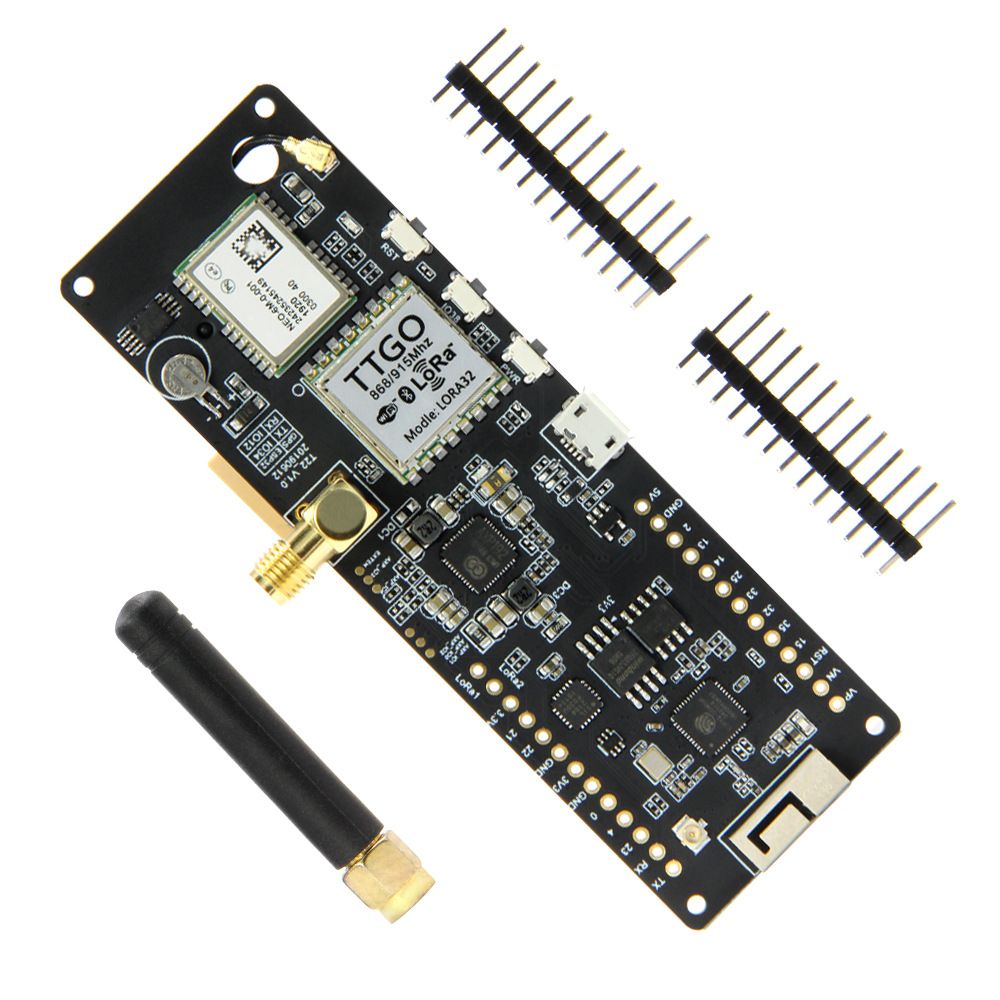

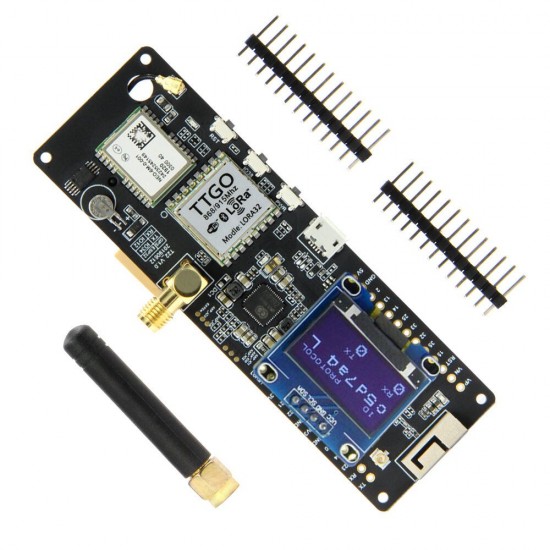

Package includes:

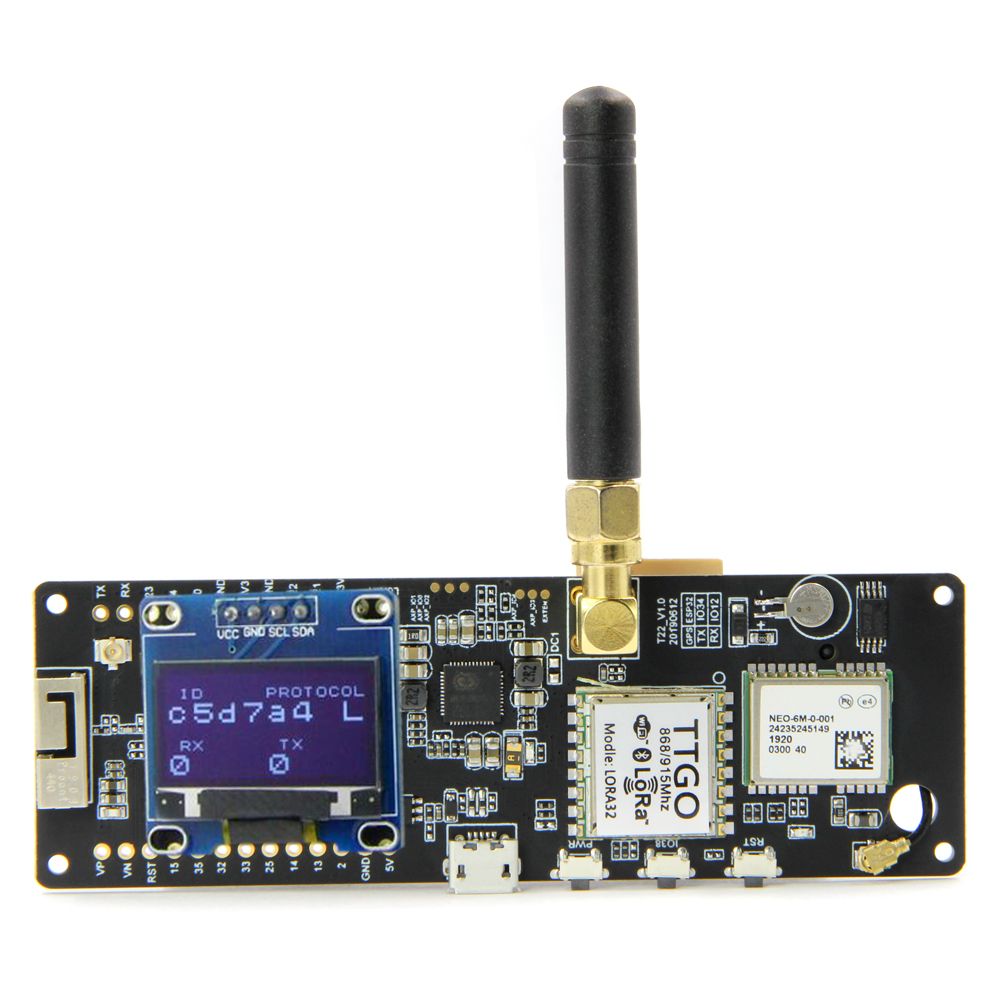

1 x TTGO T-Beam ESP32

1 x Antenna

1 x 0.96 inch 128X64 OLED

2 x Pin

Note: OLED is not soldered to T-BEAM

If you need additional OLED, you can buy it from: Product ID:EB0050422/Product ID:969144

Product Upgrade Content:

1. Pin GPIO34 pin is replaced with GPIO35

2. Replace the charging IC (TP5400) with the power management AXP192

3. GPS TX, RX pin replacement

4. Power on and remove, replace with button to open

5. Reduced sleep current

6. GPS battery replacement

OLED Description:

1. Size: 0.96 inch

2. High resolution: 128 * 64

3. Color: white

4. Viewing angle: > 160 °

5. Driver IC: SSD1306

6. Working temperature: -30 celcius ~ 80 celcius

7. Module volume (generous): 27.0MM * 27.0MM * 4.1MM

8. Supports many control chip: Fully compatible with , 51 series, MSP430 series,STM32/2, etc. (a lot of routines for reference)

9. Wide voltage support: without any modification, directly supports 3.3V ~ 5V DC

10. Ultra-low power consumption: Normal operation Is 0.04W

11. IO port occupies minimal display: The IIC communication, as long as the two IO ports

ESP32 Features:

Lastest ESP32 Version: REV1

WIFI

bluetooth

4MB PSRAM

4MB Flash

3D Antenna

LORA Features:

Working voltage: 1.8~3.7v

Acceptable current: 10~14mA

Transmit current: 120mA@+20dBm, 90mA@+17dBm, 29mA@+13dBm

Operating frequency: 433/470MHz(433HMz version) /868M/915M(868MHz version)

Transmit power: +20dBm

Receive sensitivity:
-139dBm@LoRa &62.5Khz&SF=12&146bps

-136dBm@LoRa &125Khz&SF=12&293bps

-118dBm@LoRa &125Khz&SF=6&9380bps

-123dBm@FSK&5Khz&1.2Kbps

Frequency error: +/-15KHz

FIFO space: 64Byte

Data rate: 1.2K~300Kbps@FSK, 0.018K~37.5Kbps@LoRa

Modulation Mode: FSK,GFSK,MSK,GMSK,LoRa TM, OOK

Interface form: SPI

Sleep current: 0.2uA@SLEEP, 1.5uA@IDLE

Operating temperature: -40℃- +85℃

Digital RSSI function

Automatic frequency correction

Automatic gain control

Low voltage detection

Fast wake-up and frequency hopping

Highly configurable data packet handler

GPS:

GPS modules NEO-6M, 3V-5V power supply Universal

Destined module with ceramic antenna, signal super

Save the configuration parameter data EEPROM Down

With data backup battery

There are LED signal indicator

Default Baud Rate: 9600

Power:

TP5400

1A Battery Management

LED indicator: There are 4 LEDs show the battery status in real time.

USB: CP2104-GMR

Pre-Flash Firmware: -SoftRF V4.0

Package includes:

1 x TTGO T-Beam ESP32

1 x Antenna

1 x 0.96 inch 128X64 OLED

2 x Pin
