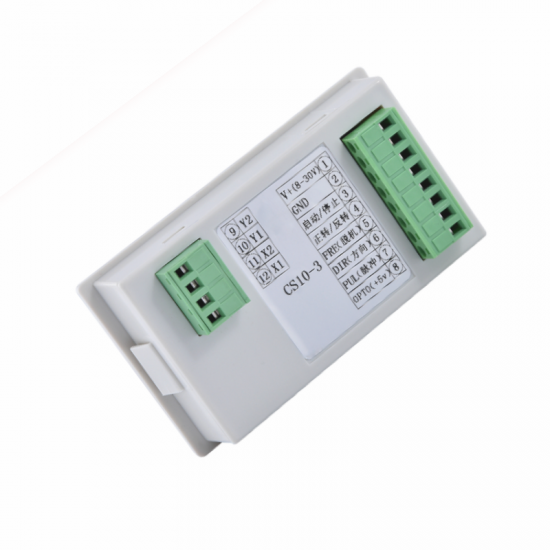

Speed RPM Display Stepper Servo Motor Driver Controller Board Speed Adjustable Reversal Fixed

Based on 0 reviews. - Write a review

$31.67

Ex Tax: $31.67

Stock: In Stock
Model: EB006150
SKU: EB006150

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

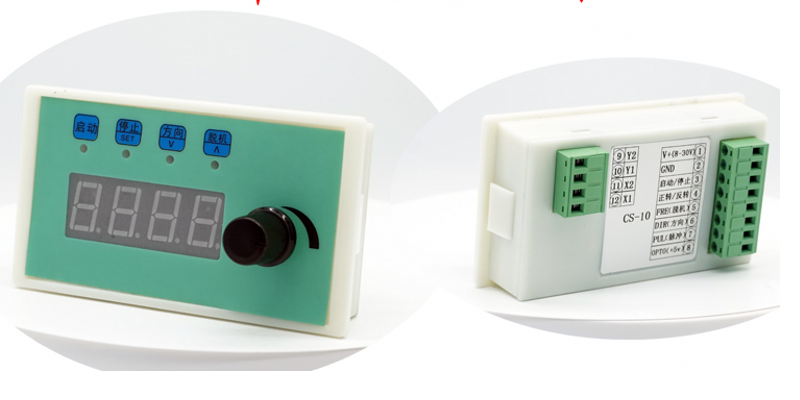

Description:

CS10-3 pulse generator can control stepper motor, servo motor, motor speed 0 0-1000 rpm, square wave, stepless adjustable. External

Start and stop, direction can achieve external control. With speed regulation and fixed length function.

Instructions:

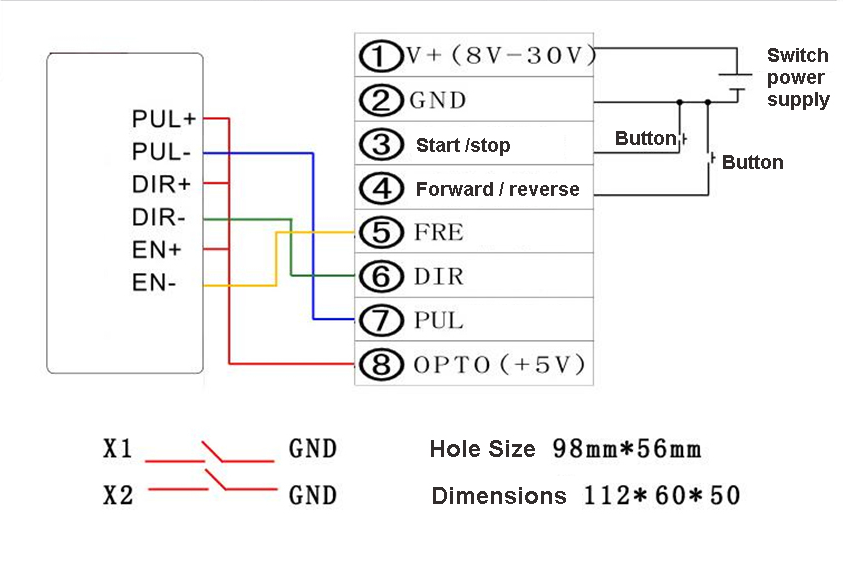

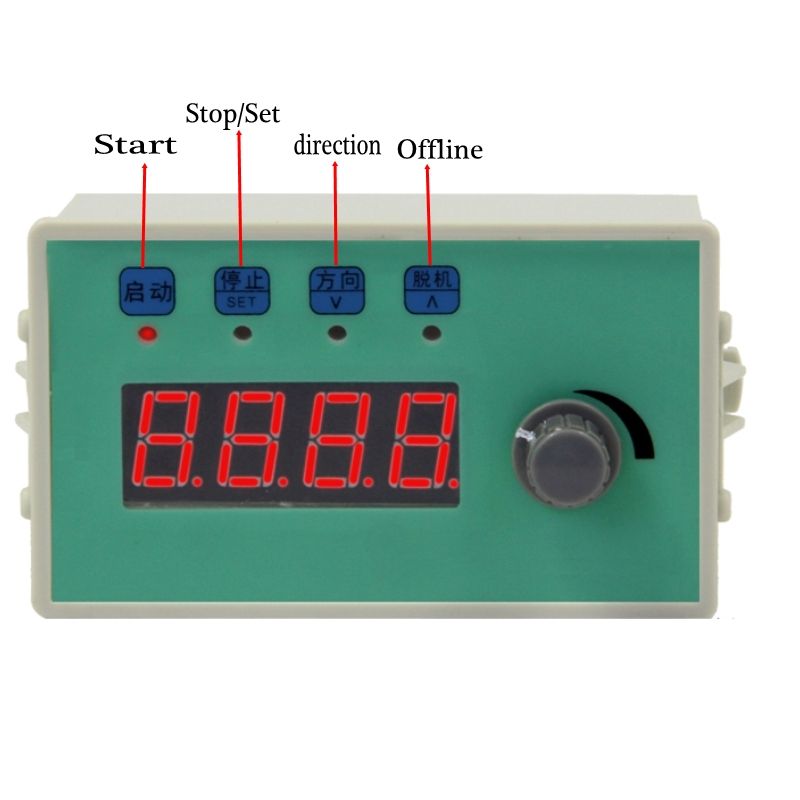

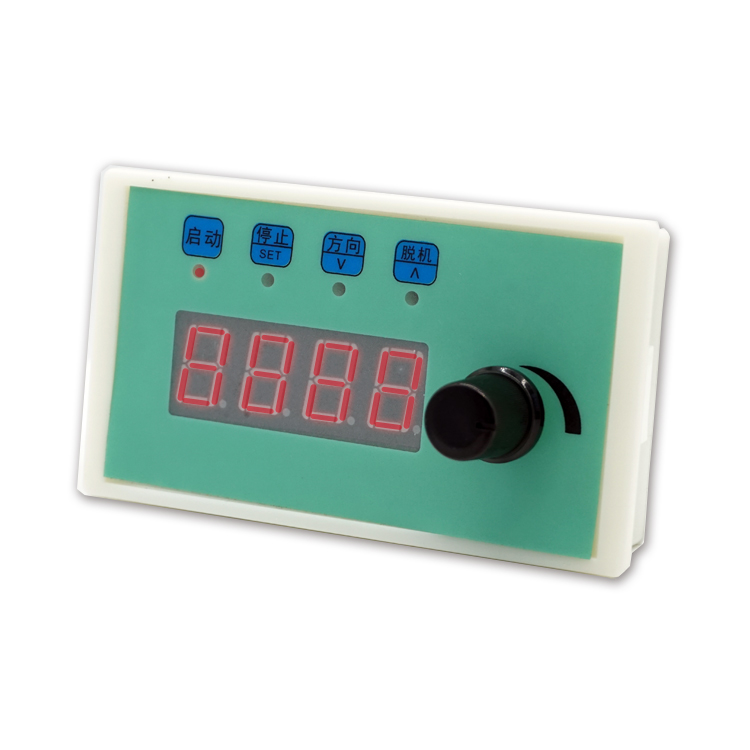

1. Display description: In the running state or stop state, the digital tube displays the current speed value in units of rpm.

Display the parameter code or parameter value of the setting in the setting status

2. Parameter setting: press and hold, press and hold Key, ACC appears, press againKey appears ACC parameter value, presswithKey modification, modify the pressConfirm, return to ACC status, presskey

The tAb appears, press Modo again, then click to display Model, then press to return to ACC parameter setting with ACC, pressKey exit

The parameter is set to the stop state.

ACC acceleration setting (1-99)1 fastest, 99 fastest, load reset slower, default value 5

tAb Subdivision number setting (1-64) This value is set according to the drive and should be set to the same as the drive.

Speed, default value 10.

RunWhen (0-1) is set to 0, the power-on is stopped. When set to 1, it will run when powered on. The default value is 0.

IN-S operation stop input settingDefault 0

0 Terminal 3 Turn on and start, open and stop, direction is terminal 4 Turn forward, reverse

1 Terminal 3 Press once to start, press again to stop, direction is terminal 4 Press to stop

2 Terminal 3 Press once to start, terminal 4 to stop

3 Terminal block 3 Press forward to start, press again to stop, press the line end 4 Press reverse to start, then press to stop

4 Terminal 3 Turn on forward rotation start, disconnect stop, terminal 4 turn on reverse start, stop and stop

Mode operation mode setting(0-3)0 speed control, 1 fixed length control, 2 continuous control, 3 round control, default value 0

In fixed length mode, stop state press the stop button to set P-01, long press the stop button is d1A, d1b

In continuous mode, stop state and press the stop button to set P-01, P-02, P-03

In the speed control mode, the X1 and X2 limits are valid, and the reverse direction is encountered.

P-01 Length value, number of pulses = P-01*d1A/d1b doub: Magnification setting Default 1 0-1000 rpm adjustable

P-02 delay value, in milliseconds, set to 2 0-2000 rpm adjustable

P-03 times value, continuous running times value is set to 3 0-3000 rpm adjustable

3. Operation description: The panel is started or the external terminal is activated. Adjust the potentiometer to adjust the speed during operation.

The panel stops or the external terminal stops. When it stops, it displays 0. If it is stopped, it needs to display the current adjusted speed of the potentiometer.

You can press the offline button. When the offline light is on, adjust the potentiometer to change the direction of the speed value in the stop state. Press the panel direction key or

External direction key
