Snail Speaker Cartoon Small Speaker Voice Recognition With Function Expansion Board Full Kit

Snail Speaker Cartoon Small Speaker Voice Recognition With Function Expansion Board Full Kit
Snail Speaker Cartoon Small Speaker Voice Recognition With Function Expansion Board Full Kit
Snail Speaker Cartoon Small Speaker Voice Recognition With Function Expansion Board Full Kit
Snail Speaker Cartoon Small Speaker Voice Recognition With Function Expansion Board Full Kit
Snail Speaker Cartoon Small Speaker Voice Recognition With Function Expansion Board Full Kit
Snail Speaker Cartoon Small Speaker Voice Recognition With Function Expansion Board Full Kit
Snail Speaker Cartoon Small Speaker Voice Recognition With Function Expansion Board Full Kit
Snail Speaker Cartoon Small Speaker Voice Recognition With Function Expansion Board Full Kit
Snail Speaker Cartoon Small Speaker Voice Recognition With Function Expansion Board Full Kit
$69.26
Ex Tax: $69.26
  • Stock: In Stock
  • Model: EB0042522
  • SKU: EB0042522
Product information link:

https://github.com/Xinyuan-LilyGO/TTGO_TWatch_Library
https://t-watch-document-en.readthedocs.io/en/latest/index.html

Hardware Specifications:

Chipset ESP32, dual-core MCU, PMU power management
FLASH QSPI flash 16MB
SRAM  520 kB SRAM / PSRAM 8MB
Button power key , IO36
Extended function
USB to TTL CP2104
Modular interface UART, SPI, SDIO, I2C, LED PWM , PWM, I2S, IRGPIO, capacitor touch sensor, ADC, DACLNA
On-board clock 40MHz crystal oscillator
Working voltage 2.7V-3.6V
Working current about 70mA
Battery capacity 180mA
Sleep current about 3mA
Working temperature   -40℃ ~ +85℃
Size & Weight 46.47 x 43 x 20.4mm , 43.19g
Display 1.54 inch LCD capacitive touch screen
Sensor BMA423 three accelerometer, built-in step counting algorithm, activity recognition / tracking, advanced gesture recognition.
RTC clock PCF8563

Power Supply Specifications:


Power Supply USB 5V/1A
Charging current Customizable programming
Battery 3.7V lithium battery

Wi-Fi:


Standard FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
Protocol 802.11 b/g/n(802.11n, speed up to150Mbps) A-MPDU and A-MSDU polymerization, support 0.4μS Protection interval
Frequency 2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power 22dBm
Communication distance 300m
Bluetooth
Protocol Meet bluetooth V4.2 BR/EDR and BLE standard
Radio frequency with -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
Audio frequency CVSD&SBC audio frequency

Software Specifications:


Wi-Fi Mode Station/SoftAP/SoftAP+Station/P2P
Security mechanism WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type  AES/RSA/ECC/SHA
Firmware upgrade UART download/OTA (Through network/host to download and write firmware)
Software Development Support cloud server development /SDK for user firmware development
Networking protocol IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
User Configuration AT + Instruction set, cloud server, android/iOSapp
OS FreeRTOS

Package includes:

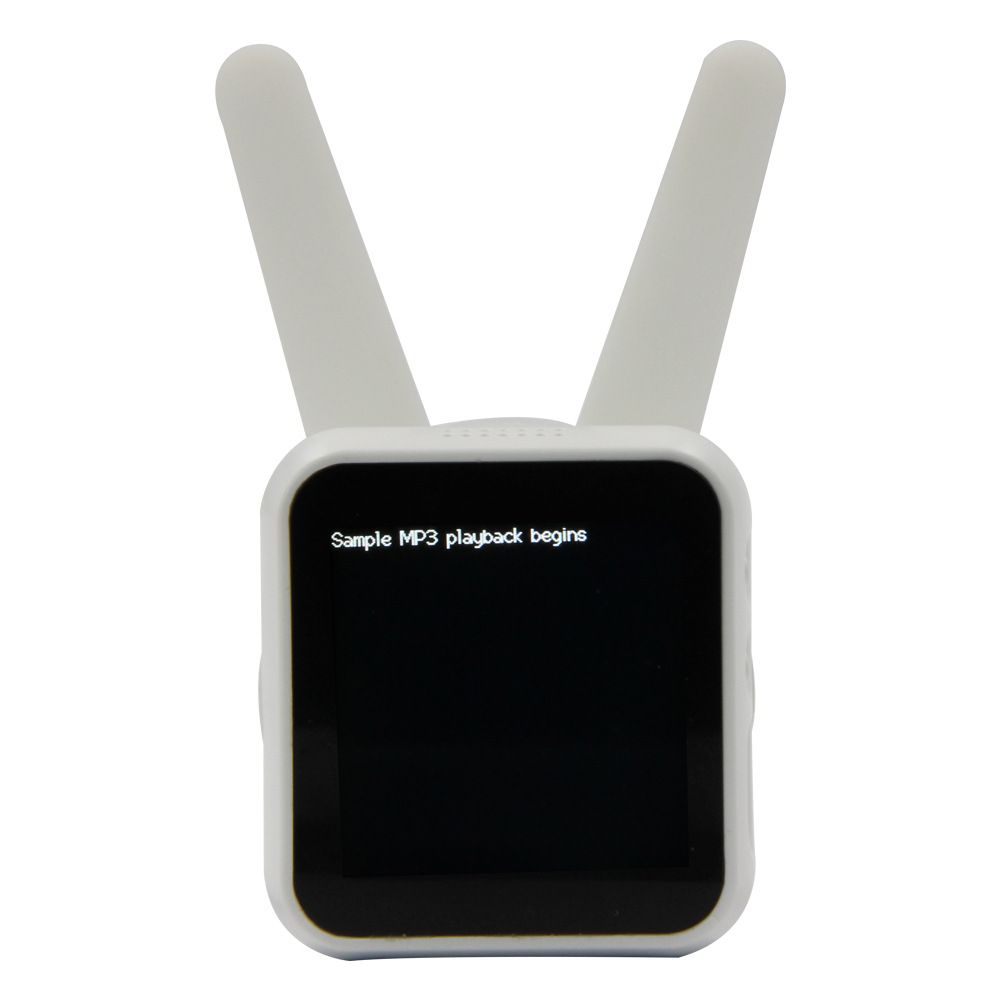

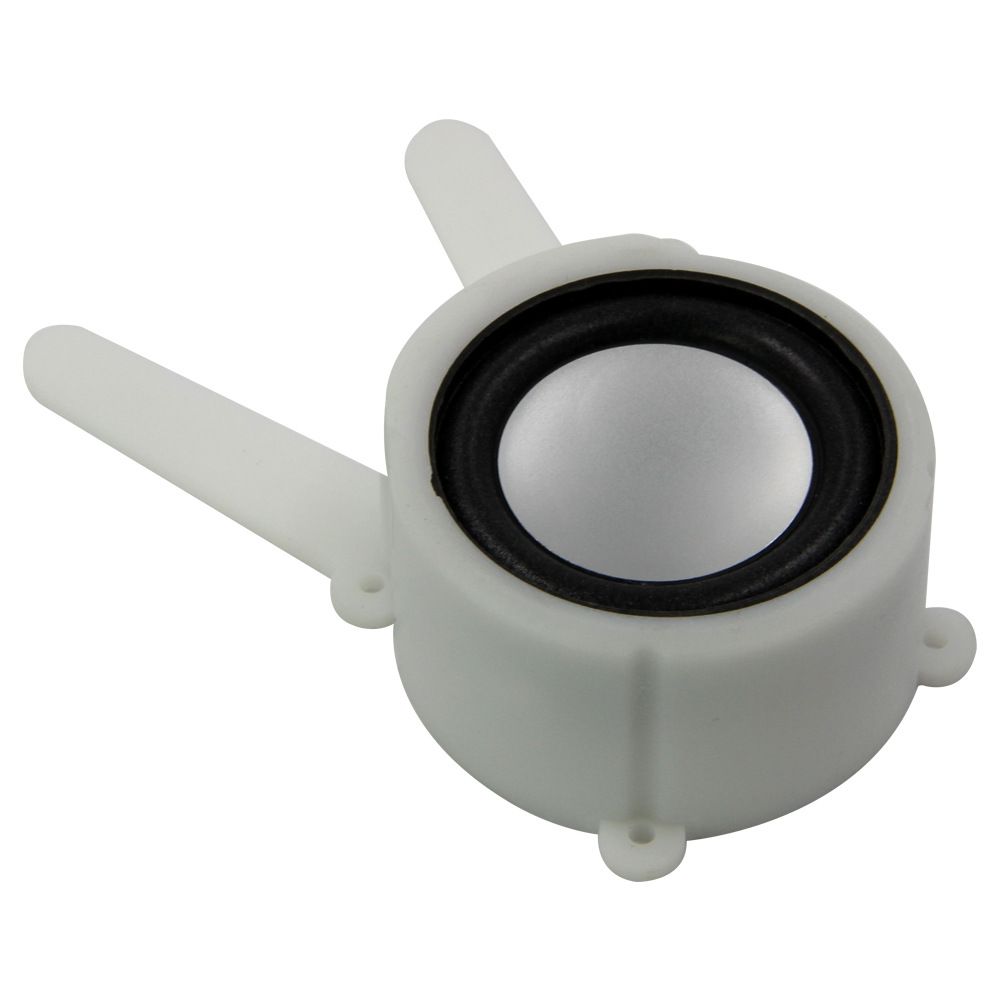

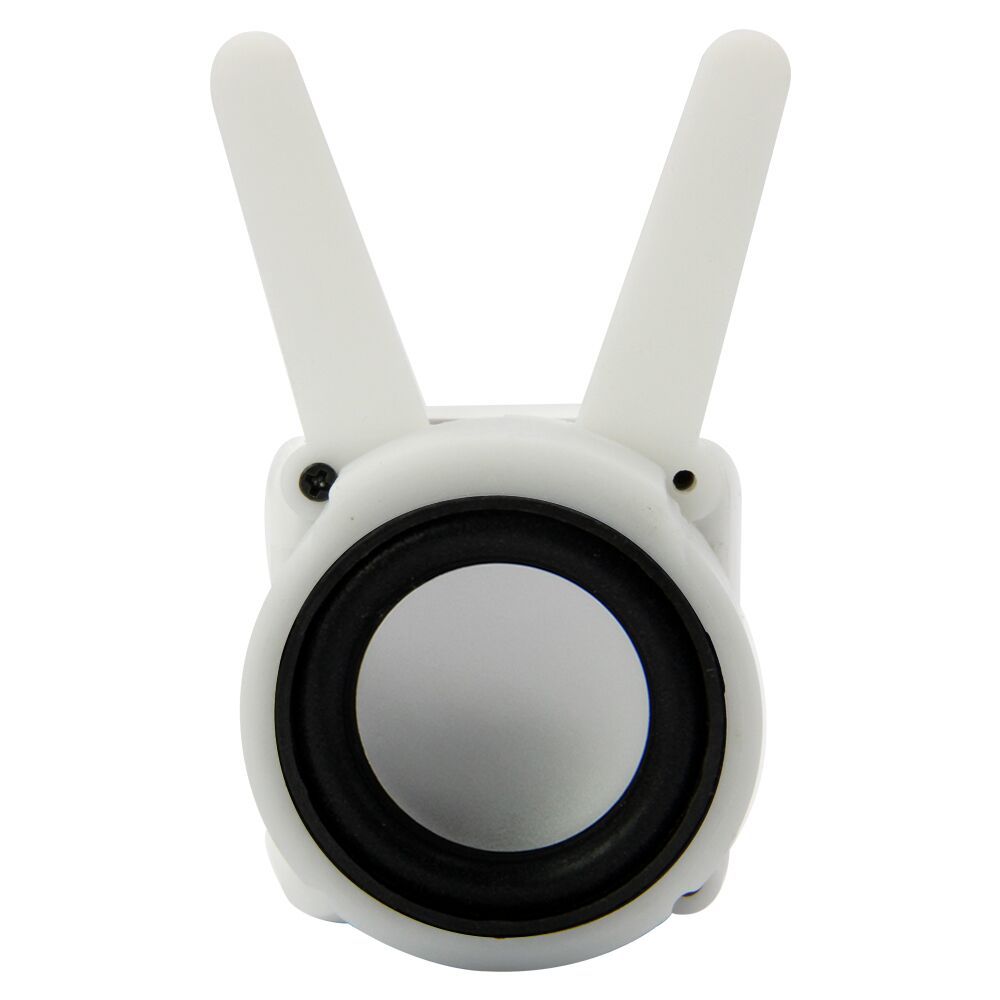

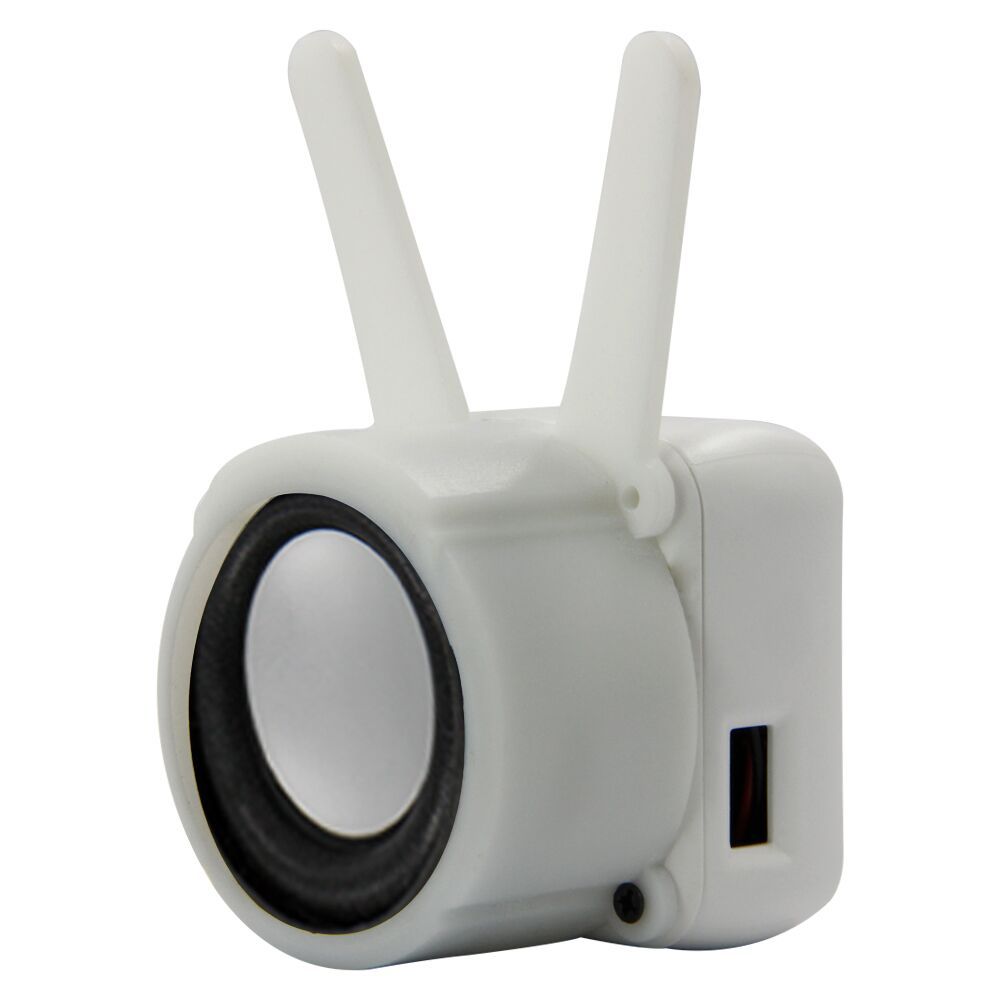

1 x T-Watch with speaker kit (with speaker expansion board)

LILYGOreg-T-Watch-Snail-Speaker-Cartoon-Small-Speaker-Voice-Recognition-With-Function-Expansion-Boar-1609382

LILYGOreg-T-Watch-Snail-Speaker-Cartoon-Small-Speaker-Voice-Recognition-With-Function-Expansion-Boar-1609382

LILYGOreg-T-Watch-Snail-Speaker-Cartoon-Small-Speaker-Voice-Recognition-With-Function-Expansion-Boar-1609382

LILYGOreg-T-Watch-Snail-Speaker-Cartoon-Small-Speaker-Voice-Recognition-With-Function-Expansion-Boar-1609382
