SY806MJIDS12 LCD Video Door Phone With IR Camera & Code Keypad
- Stock: In Stock
- Model: EB0025525
- SKU: EB0025525
Features :
Support 125KHz EM card.
Low power consumption (standby input current : <20mA).
3 access modes : Card, Card or PIN, Card with PIN.
Can work as a standalone keypad (PIN code length : 4-6 digits).
Antistatic Interference : 12KV.
Operating temperature : -20°c~60°c
Specifications :
| Intput Voltage : | 12VDC |
| Input current : | <60 mA |
| User Capacity : | 500 User Card, 1 Password |
| Card Type : | RFID compatible card |
| Frequency : | 125Khz |
| Read range : | 10-50mm |
| Wiring connections : | Electric Lock, Exit Button |
| Detecting distance : | 3-10cm |
Specifications of indoor monitor :
| Screen : | 7" TFT LCD (16:9 display) |
| Resolution : | 960 x 480 |
| input : | AC 100-240V 50/60Hz |
| output : | DC 15V 2000mA |
| Adapter type : | US EU AU UK plug |
| Adapter cable length : | 1.45m/ 4.75ft |
| Working state : | 8W |
| Standby state : | 0.5W |
| Call duration time : | approx. 120 seconds |
| Monitor duration time : | approx. 60 seconds |
| Material : | plastic |
| Dimensions : | 22.5 x 12.8 x 2.4cm |
Specifications of outdoor unit :
| Material : | plastic & metal |
| LED : | 6 x infrared LED lights |
| Camera : | CMOS 30M pixels |
| Viewing angle : | 92 degrees |
| calling state : | 12W |
| standby state : | 0.1W |
| Valid distance (6 x 0.75mm² copper wires) : | 80m/ 262.4ft |
| Dimensions : | 16.8 x11.2 x 6.6cm |
| Working temperature : | -10 degrees centigrade to +50 degrees centigrade |
| Working humidity : | ≤85% |
| Package size : | 28.5 x 18.5 x 12cm |
Packing includes:
1 x Outdoor unit with rain shield with Access Control System
2 x Power adapter (us/au/eu/uk plug)
2 x 6 pin cable (5m)
1 x 2 pin cable
1 x 3 pin cable
2 x Mounting plate
1 x Bag of screws
1 x User manual
5 x125KHz RFID Cards
1 x Remote Control

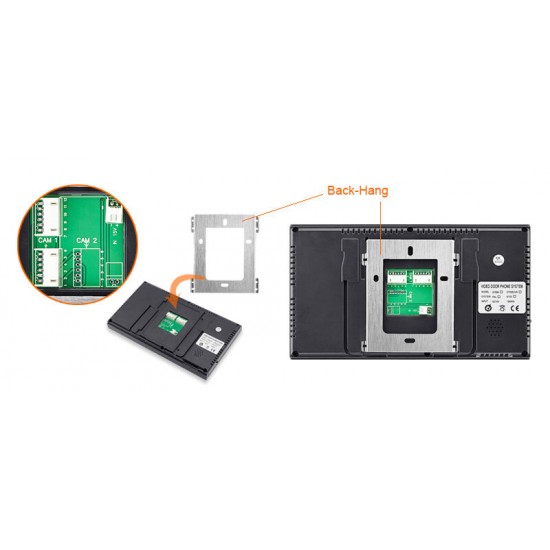

Details Pictures :
