SY1001A-MJF11 Touch Key 10 LCD Fingerprint Video Door Phone Intercom 1000TVL IR Camera
- Stock: In Stock
- Model: EB0025123
- SKU: EB0025123

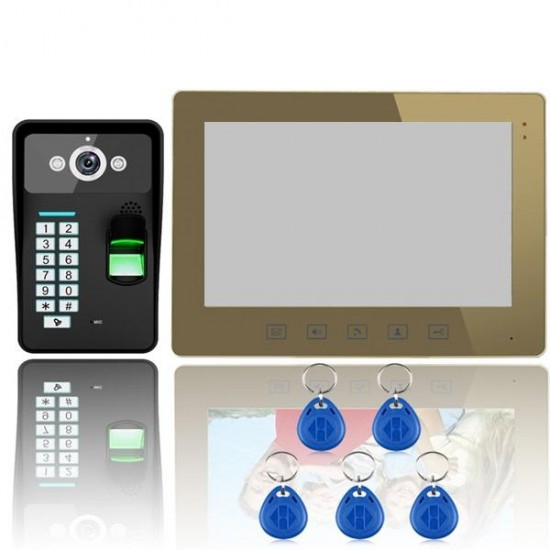

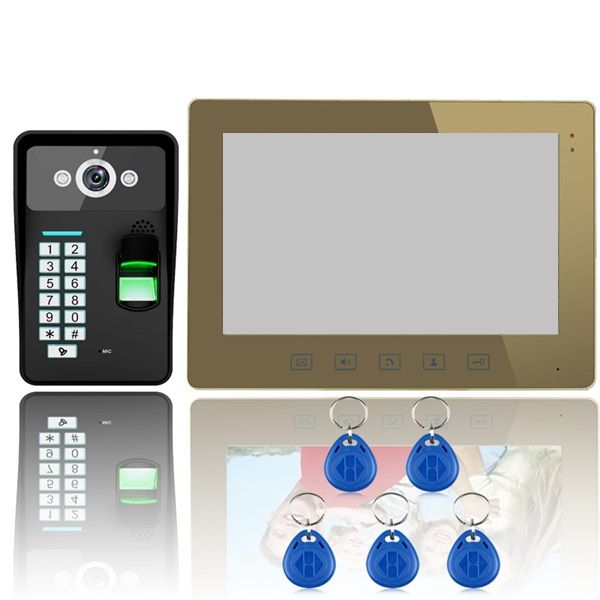

ENNIO SY1001A-MJF11 Touch Key 10" LCD Fingerprint Recognition Video Door Phone Intercom System IR Camera HD 1000 TV Line
The fingerprint outdoor unit is controlled by fingerprint sensor and code, it is internal integrated with the visual intercom circuit to connect indoor monitor.and use it to intercom, and unlock the door.
MJF Fingerprint Access Controller :
The MJF is a standalone access control, they use the latest microprocessor technology to operate door strikes and security systems that require a momentary (timed) or latching dry contact closure.
All programming is done through the keypad. Codes and operating parameters are stored within the microprocessor and can not be lost due to power failure.
Support 125KHz EM card.
3 ways to unlock( remote unlock, finger print and code)
Can work as a standalone keypad (PIN code length: 4-6 digits).
Relay output load can be 3A max.
125KHz RFID Cards :
These are 5pcs 125KHz RFID Proximity ID Card, they can work with the product which has 125Khz RFID card reader.
Water resistant.
Each comes with Key ring included.
Compatible with all RFID ID card reader to gain access.
Each token pre-programmed with unique ID which is printed on it.
Read valid cards unlock.
Read fingerprint unlock.
Input valid password unlock.
Read valid cards or input valid password unlock.
Read valid cards or fingerprint unlock.
input valid password or fingerprint unlock.
Read valid card,valid fingerprint or input valid password unlock.
Video door phone :
Combines many functions in one: two-way intercom, surveillance, unlock, hands free call and talk, etc.

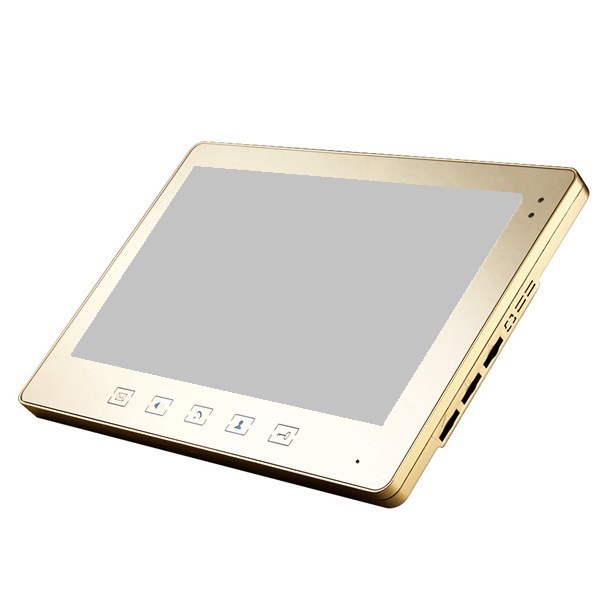

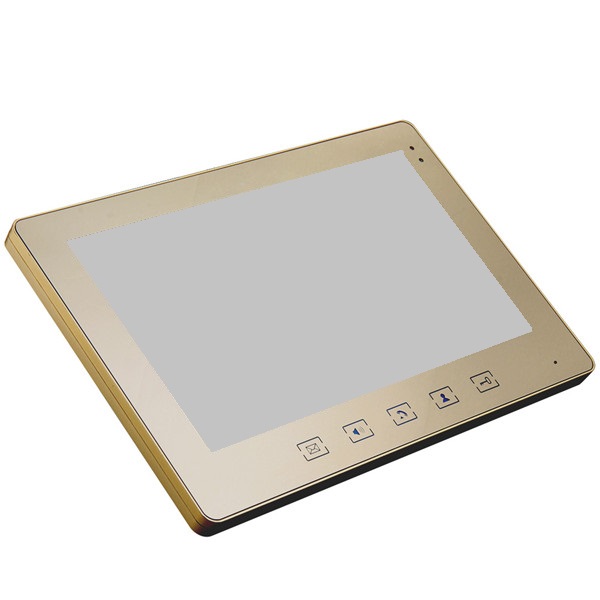

Indoor monitor: ultra-slim design, nice and luxurious, and with a mounting plate, it can be installed on walls easily.
10 inch TFT color LCD display screen, without radiation, low power consumption, high definition and with sensitive touch key press control.
Outdoor camera with clear IR night vision can monitor and capture images in low-illumination environment.

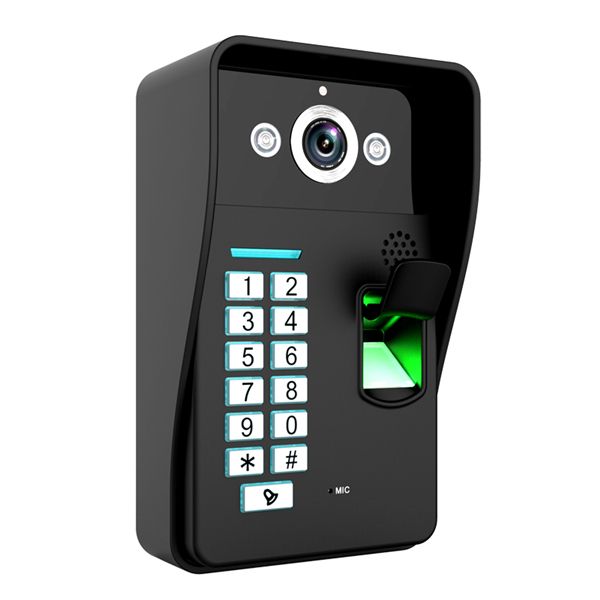

With a rain shield, waterproof, antioxidant and durable to use.
25 kinds of different melodies for your choices.
Volume, brightness and contrast are adjustable.
Supplied with connection cable and adapter, users can install it according to operating instruction.
Can be widely used in single-family houses,villas, offices, hotels and so on.
This product can meet different requirements: one outdoor camera can support up to four indoor monitors or two outdoor cameras can support up to four indoor monitors.
MJF Fingerprint Access Controller :
User Capacity: 1000 User Card,1 Password,1000 Fingerprint.
Card Type: RFID compatible card 125Khz
Read range: 10-30mm
Wiring connections: Electric Lock, Exit Button

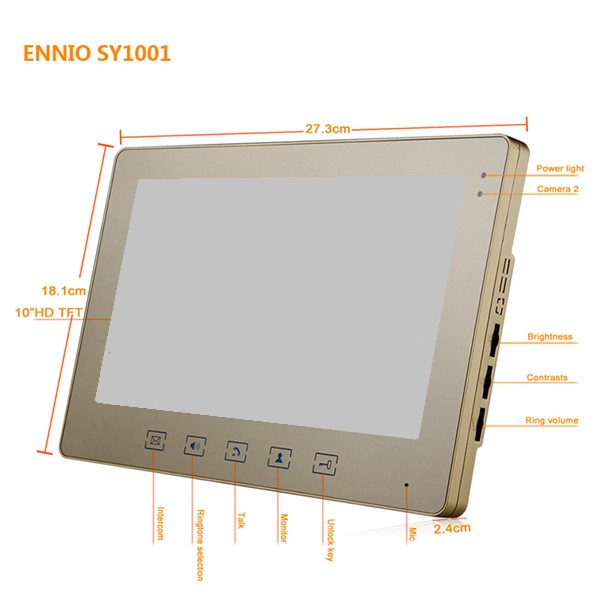

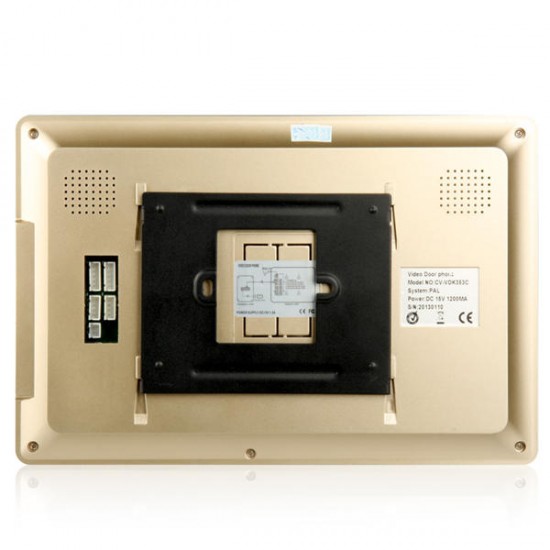

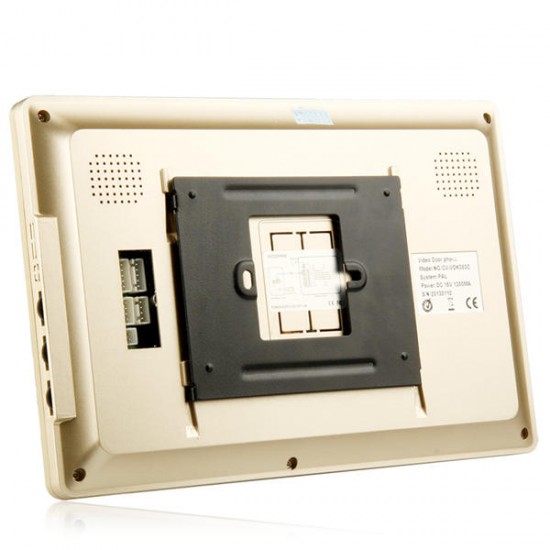

Indoor monitor :
Screen: 10" TFT LCD (16:9 display)
Resolution: 960 x 480
Power supplied by: power adapter
Power adapter: input: AC 100-240V 50/60Hz output: DC 15V 2000mA
Adapter cable length: 1.45m
Consumption: working state: 8W, standby state: 0.5W
Call duration time: approx,120 seconds
Monitor duration time: approx,60 seconds
Material: plastic

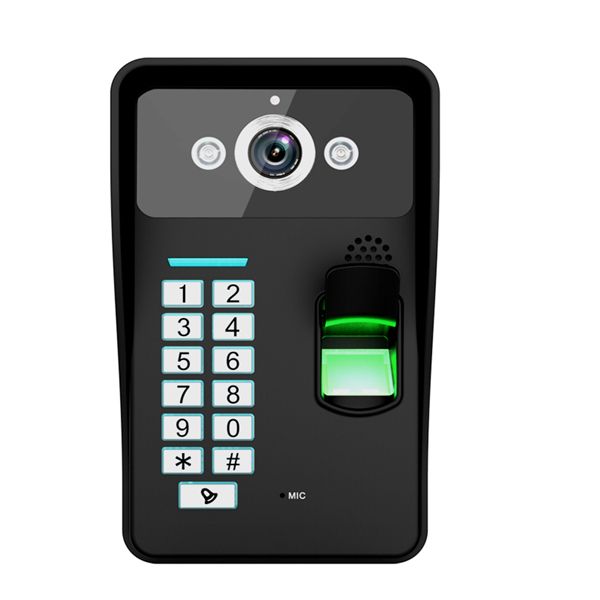

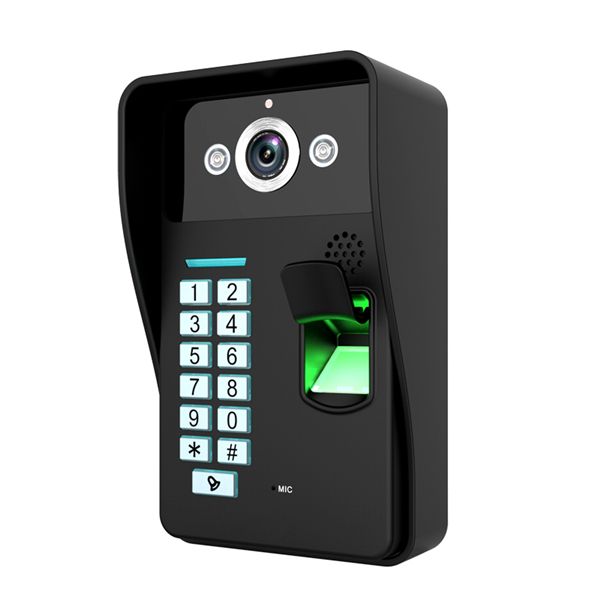

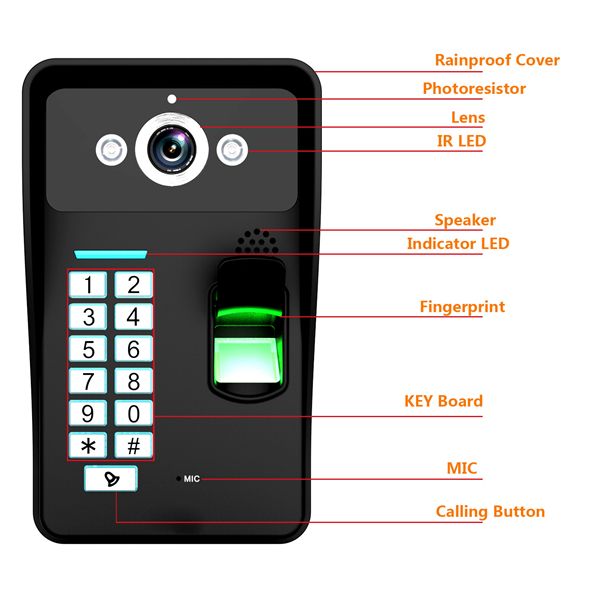

Outdoor unit :
Material: plastic
LED: 2 x infrared LED lights
Camera: 1/3 CMOS 1000 TV Line
Viewing angle: 92 degrees
Consumption: calling state: 12W, standby state: 0.1W
Valid distance (6 x 0.75M2 copper wires): 80m
Working temperature: -20℃ to + 50℃
Indoor monitor: 228 x 130 x 20m
Outdoor camera: 155 x 95 x 55mm
Package size: 275 x 145 x 95mm

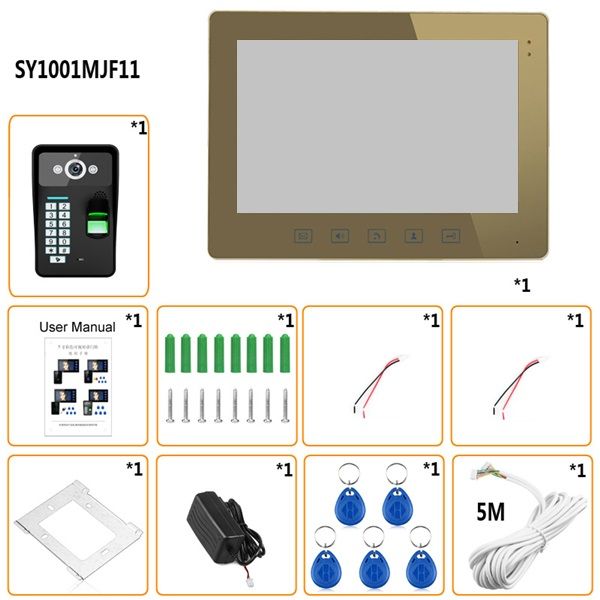

1 x Outdoor unit with rain shield with fingerprint access control
1 x Indoor Unit
1 x Power adapter (According to your country~)
1 x 6 pin cable (5m)
1 x 2 pin cable
1 x Mounting plate
1 x Bag of screws
1 x English User manual
5 x 125KHz RFID Card
,
,
,
,
,
,
,
,
,
