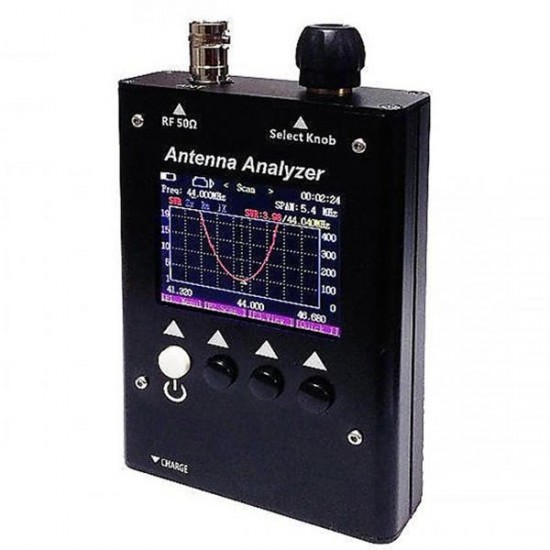

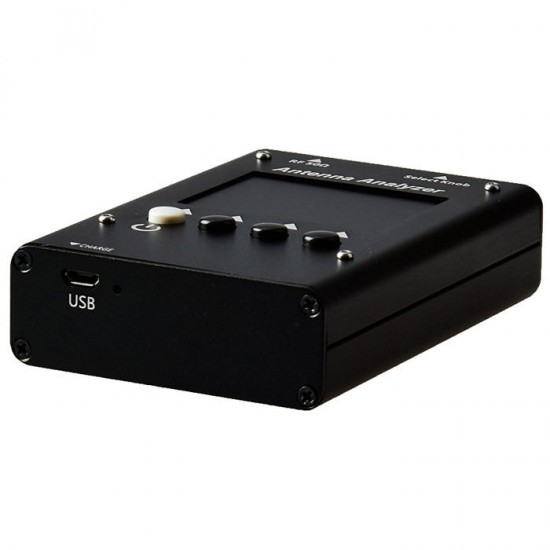

SA-160 0.5-60MHz Colour Graphic Antenna Annalyzer SWR Impedance Antenna Tester

SA-160 0.5-60MHz Colour Graphic Antenna Annalyzer SWR Impedance Antenna Tester
SA-160 0.5-60MHz Colour Graphic Antenna Annalyzer SWR Impedance Antenna Tester
SA-160 0.5-60MHz Colour Graphic Antenna Annalyzer SWR Impedance Antenna Tester
SA-160 0.5-60MHz Colour Graphic Antenna Annalyzer SWR Impedance Antenna Tester
SA-160 0.5-60MHz Colour Graphic Antenna Annalyzer SWR Impedance Antenna Tester
SA-160 0.5-60MHz Colour Graphic Antenna Annalyzer SWR Impedance Antenna Tester
SA-160 0.5-60MHz Colour Graphic Antenna Annalyzer SWR Impedance Antenna Tester
SA-160 0.5-60MHz Colour Graphic Antenna Annalyzer SWR Impedance Antenna Tester
SA-160 0.5-60MHz Colour Graphic Antenna Annalyzer SWR Impedance Antenna Tester
SA-160 0.5-60MHz Colour Graphic Antenna Annalyzer SWR Impedance Antenna Tester
SA-160 0.5-60MHz Colour Graphic Antenna Annalyzer SWR Impedance Antenna Tester
SA-160 0.5-60MHz Colour Graphic Antenna Annalyzer SWR Impedance Antenna Tester
SA-160 0.5-60MHz Colour Graphic Antenna Annalyzer SWR Impedance Antenna Tester
$218.62
Ex Tax: $218.62
  • Stock: In Stock
  • Model: EB004734
  • Dimensions: 70.00mm x 120.00mm x 25.00mm
  • SKU: EB004734
Description:

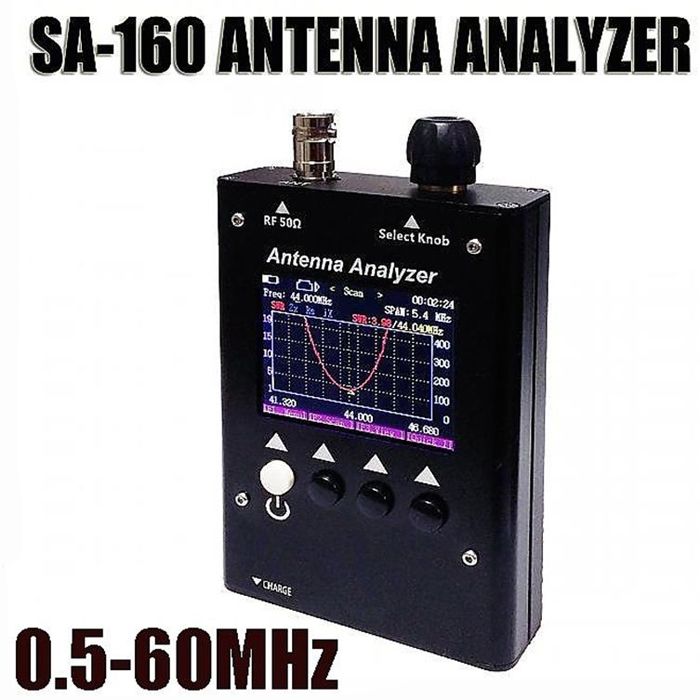

SA-160 antenna analyzers designed for testing, checking, tuning or repairing antennas and antenna feed lines.


Mainly, these are S.W.R. (Standing Wave Ratio) and impedance measurement instruments (vector impedance analyzers).
Easy-to use measurement modes. Make SURECOM attractive for professionals and hobbyists. It is quite important that graphical display of various parameters over a wide frequency range is a key feature of these analyzers which significantly reduces the time required to adjust an antenna.

Features:

2.2" precision LCD screen, high-lumen LCD brightness, easy to read in direct sunlight.
Heavy duty Aluminum enclosure,strong anti-interference ability.
Very compact and convenient for field use.
Built-in rechargeable Li-ion battery.
Full Band control (No need select Band).

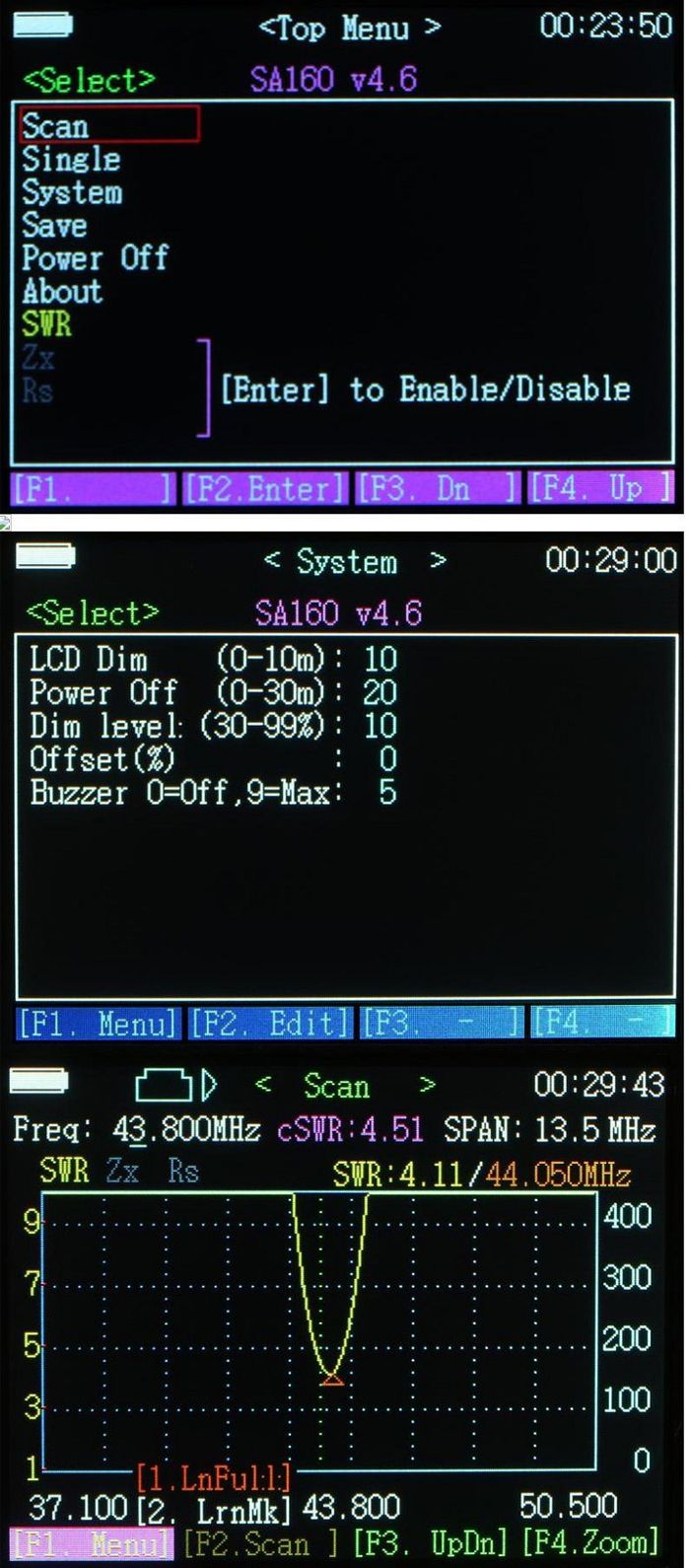

Easy setup, only four control buttons with convenient on-screen soft menus.
Constant battery status indicator and auto shut-off.
Built-in timer shows elapsed time when unit is turned on.
High efficiency IC, low power consumption, the longest working hours.
More choice measurement frequency Span.

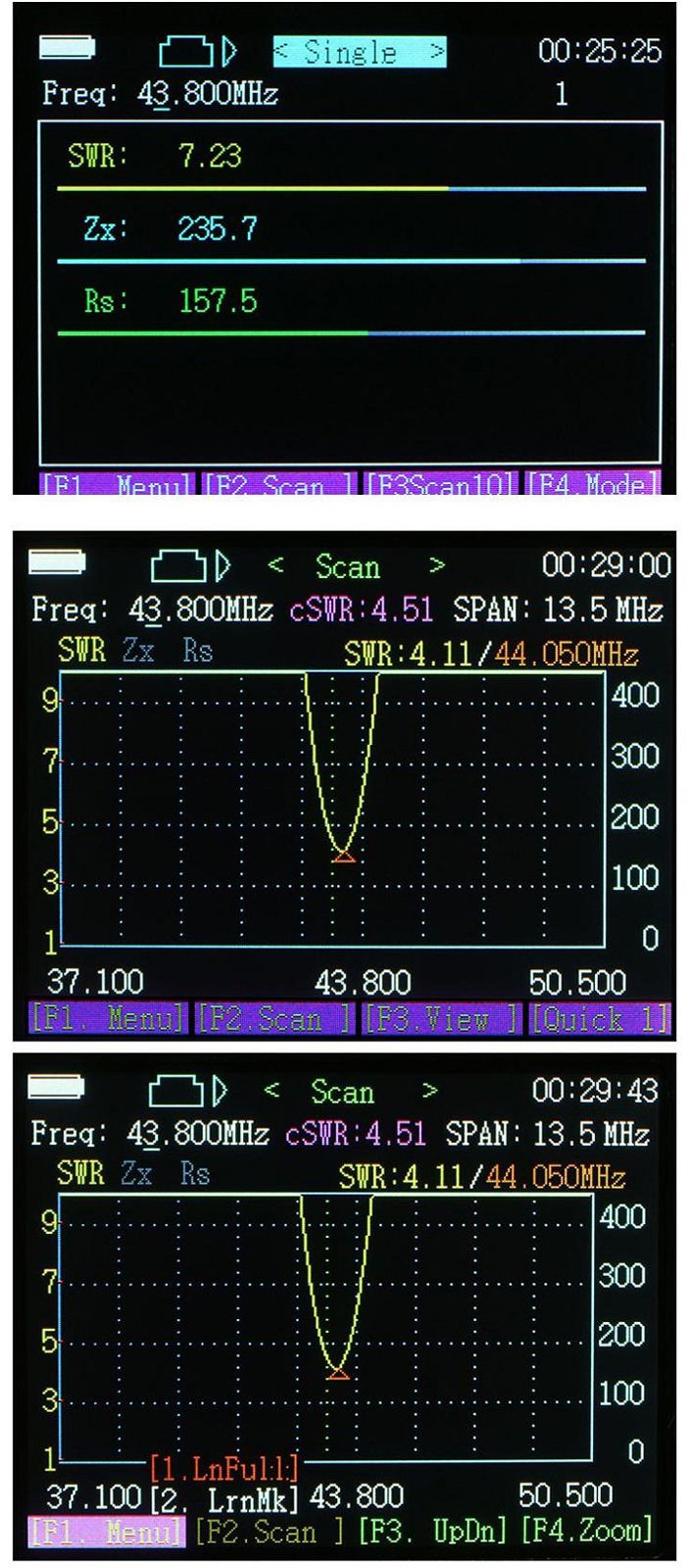

One botton quick scan mode HF1,HF2,HF3 or 3 band by full screen.
Auto marker the Best s.w.r. level reference.

Specifications:
Model No. SA-160
Frequency Range 0.5-60MHz
Connector: BNC  (50 OHM)
RF Output Power 1-1.5V(5 - 10dB)
Frequency Step 0.1/1/10/100/1000KHz
V.S.W.R. Range 1.00-19.99
ZRX Range 0-99.9
Build-in Battery  3.7V 900mah ,Li-ion 14500
Voltage input  DC5V> 500mA
Frequency stability <0.5PPM
Span width 0.54MHz/1.35MHz/2.7MHz/13.5MHz/27MHz/62.1
Charger indicator  Two-color LED Hidden (when not charging) there are three instructions state:
1, charging (red) ;
2, charging is completed (green)
3, Battery fault (flashing)
Charger Plug Standard Micro USB connector
Size  70 x 120 x 25 mm
Colour Display TFT LCD 320 x 240 pixels
Weight 172g

SURECOM-SA-160-05-60MHz-Colour-Graphic-Antenna-Annalyzer-SWR-Impedance-Antenna-Tester-1170136

SURECOM-SA-160-05-60MHz-Colour-Graphic-Antenna-Annalyzer-SWR-Impedance-Antenna-Tester-1170136

SURECOM-SA-160-05-60MHz-Colour-Graphic-Antenna-Annalyzer-SWR-Impedance-Antenna-Tester-1170136

Power Management
Power Source: Size 14500 of Lithium battery.
Charge Controller: Smart charger, LED charging-status indicator
Voltage Monitor: On-screen DVM, plus battery condition icon
Power Savers: Auto-off timer, Auto Run/Stop RFgenerator control
Interface
RF Connector: BNC -female
 Charge Connector: Micro-USB

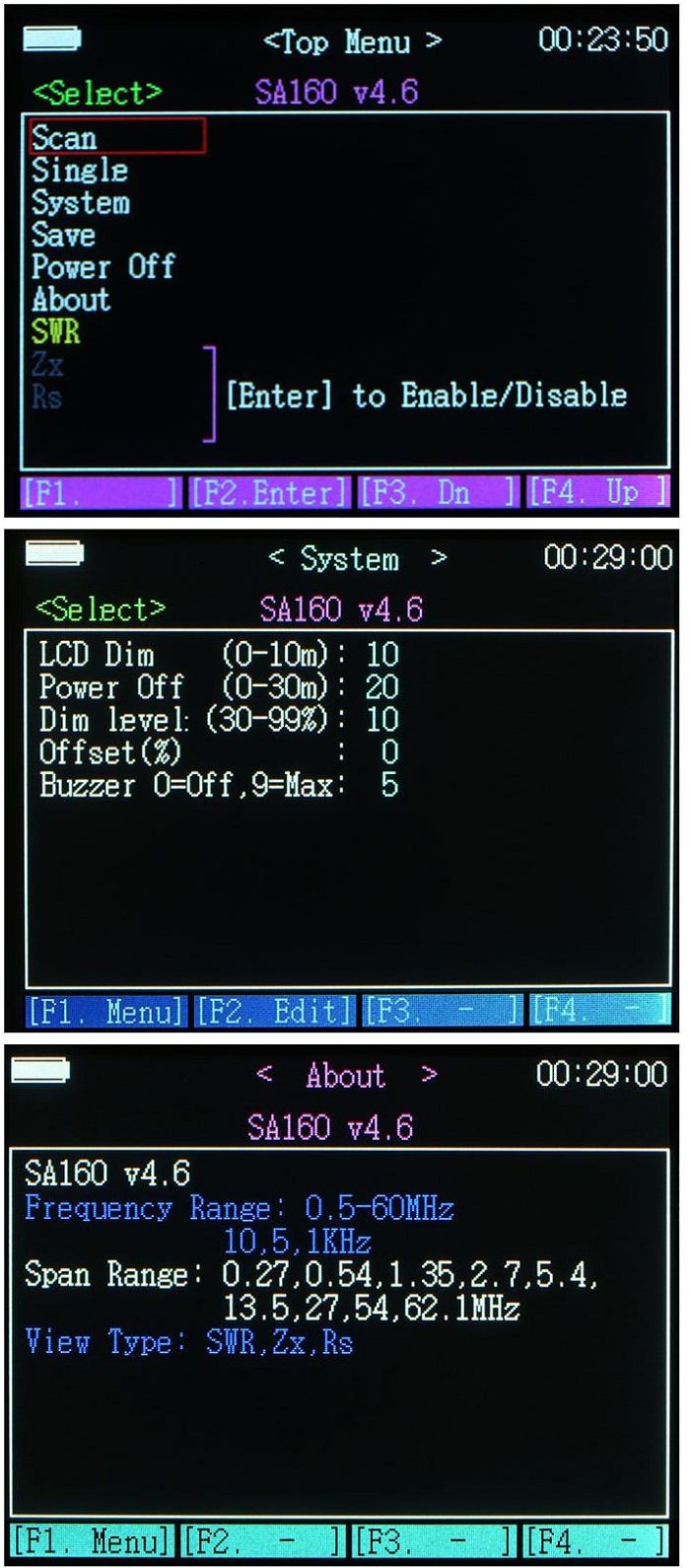

Control and Display
SPAN: 0.27/0.54/1.35/2.7/5.4/13.5/27/62.1MHz
LCD: 2.2 inch high-output color TFT
Function Keys :  4 botton, with on-screen (soft-menu) identifiers
Tuning:  Rotary encoder with press-in tuning-step selection
Weight and Dimensions
Case: Aluminum metal
Size: 7 cm wide x12cm height H x 2.5 cm
Weight: 6.1 oz (0.172 kg)

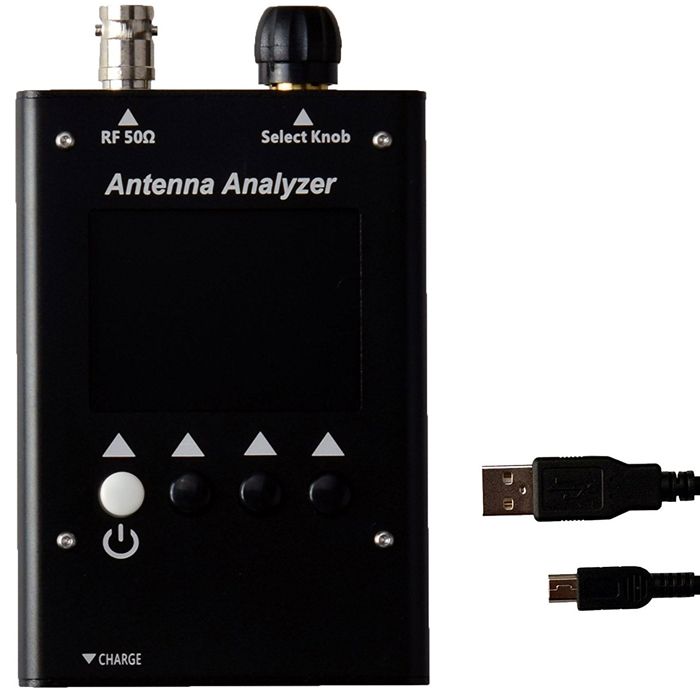

Package included:

1 x SURECOM SA160  (ENGLISH VERSION) Colour Graphic  Antenna Analyzer
1 x English User"s Manual
1 x Mirco Usb Charger Cable
1 x AC Adapter 100-240V (Depends on your country)

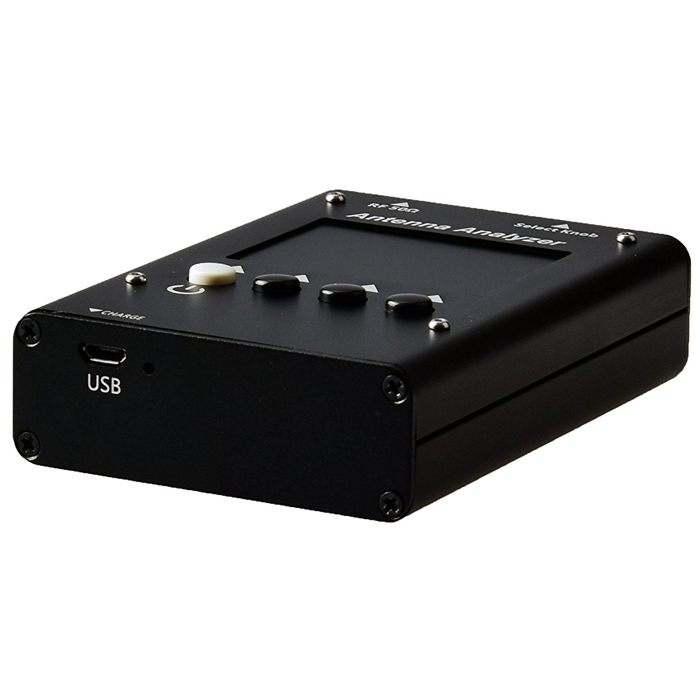

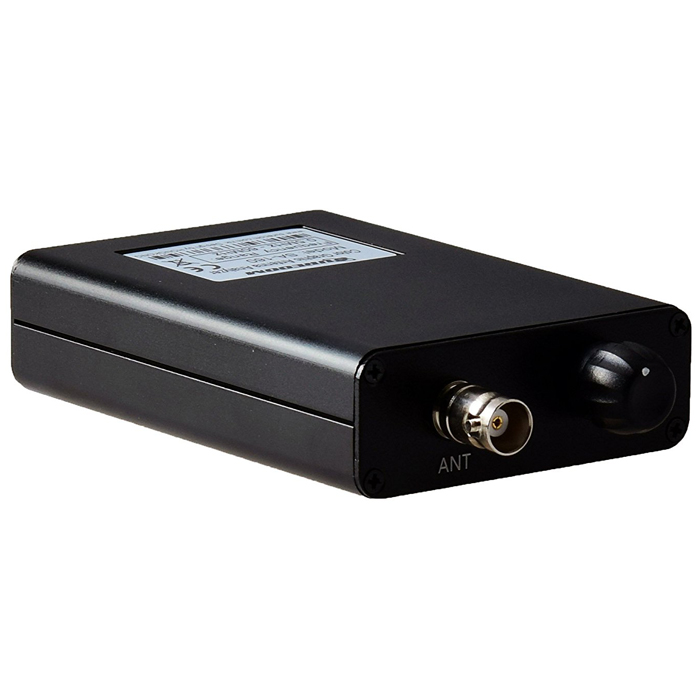

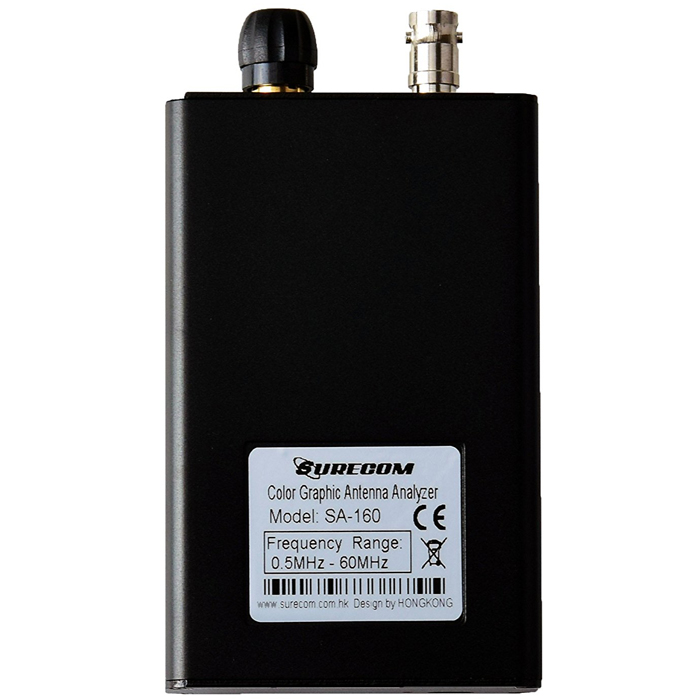

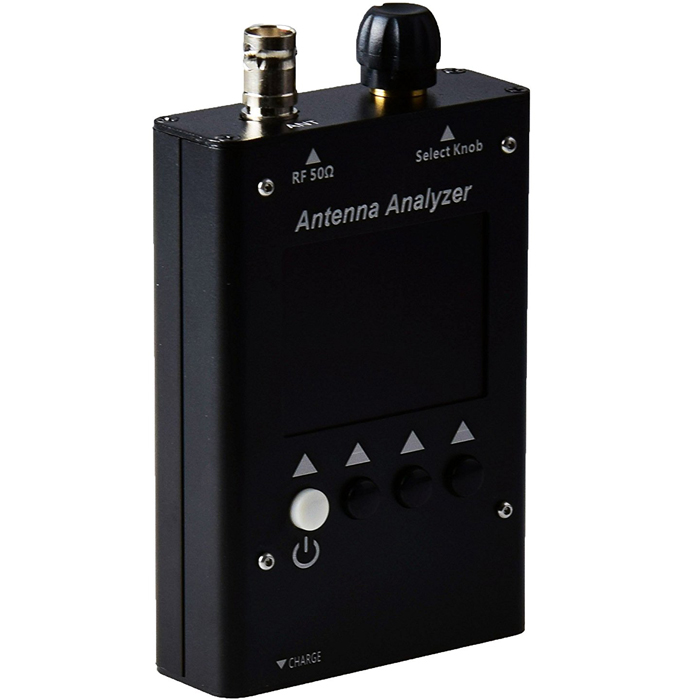

Detail Pictures:


SURECOM-SA-160-05-60MHz-Colour-Graphic-Antenna-Annalyzer-SWR-Impedance-Antenna-Tester-1170136

SURECOM-SA-160-05-60MHz-Colour-Graphic-Antenna-Annalyzer-SWR-Impedance-Antenna-Tester-1170136

SURECOM-SA-160-05-60MHz-Colour-Graphic-Antenna-Annalyzer-SWR-Impedance-Antenna-Tester-1170136

SURECOM-SA-160-05-60MHz-Colour-Graphic-Antenna-Annalyzer-SWR-Impedance-Antenna-Tester-1170136

SURECOM-SA-160-05-60MHz-Colour-Graphic-Antenna-Annalyzer-SWR-Impedance-Antenna-Tester-1170136

SURECOM-SA-160-05-60MHz-Colour-Graphic-Antenna-Annalyzer-SWR-Impedance-Antenna-Tester-1170136
