SA-36A Pro Class D 20Wx2 TDA7492PE HIfi Audio Digital Amplifier

Based on 0 reviews. - Write a review

$53.27

Ex Tax: $53.27

Stock: In Stock
Model: EB0018657
SKU: EB0018657

Available Options

Color.

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

SA-36A Pro has passed reliability tests. Constant temperature and humidity testing ( temperature :0-45 celsius degree; Humidity : 80% ; Time : Each 4H)

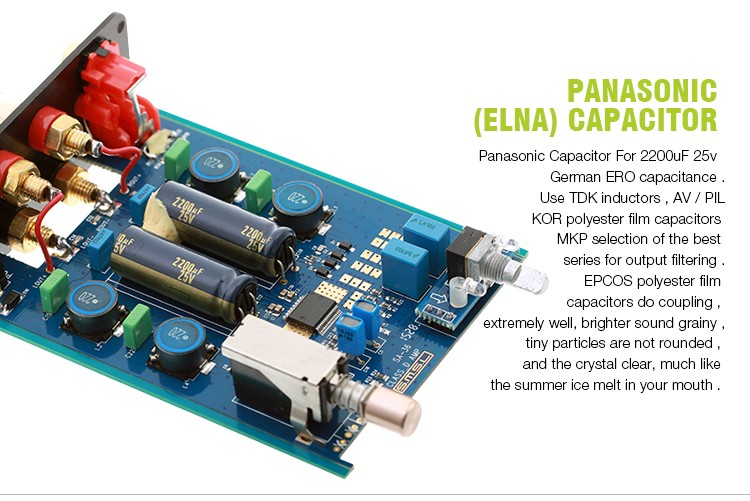

Use T DK inductors , AV / PILKOR polyester film capacitors MKP selection of the best series for output filtering. Element , though small, but collections are fine .

SA-36A Pro with Texas Instruments simplest design schematics design standards. Try to use the least , the best material for the principle. Avoid unnecessary coloration to the highest possible degree of reduction of musical flavor.

EPCOS polyester film capacitors do coupling , extremely well, brighter sound grainy , tiny particles are not rounded , and the crystal clear, much like the summer ice melt in your mouth . High frequency is very pretty, good ductility and not harsh.

Parameters:

Main Chip: TDA7492PE.

Power: 25W, 4Ω; 20W, 8Ω

Dynamic range : 103dB

Net Weight: 0.5kg

External dimensions : 150 x 92 x 43mm (including protruding parts)

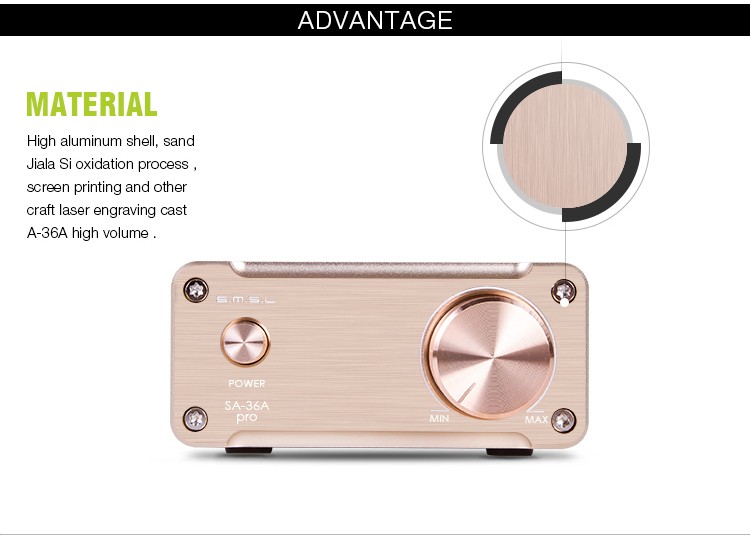

Housing material : aluminum

Housing Process: sandblasting + pull grain oxide ( not the same as the paint fade )

Screen technology: laser engraving ( not the same as the paint fade )

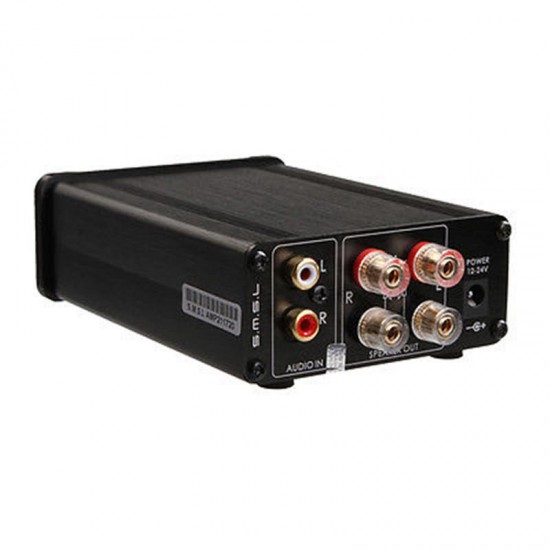

Signal Input : RCA gold-plated lotus pedestal signal input

Signal output : 4-wire signal output

Power supply : DC12-24V external diameter 5.5mm diameter 2.1mm Ungrateful positive

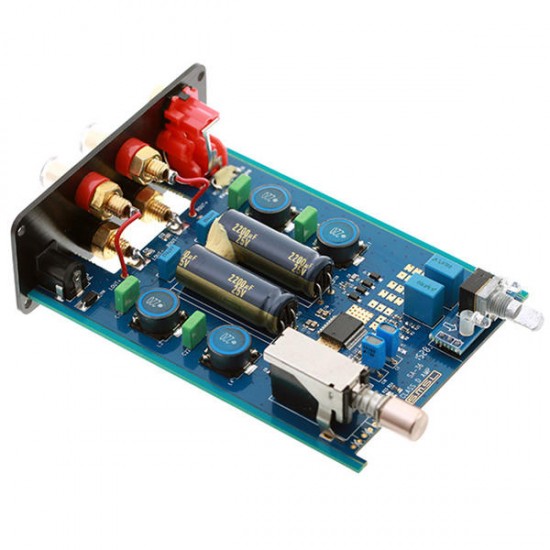

Circuit material: 1.6mm thick all glass fiber, IMG

Circuit plate : 1.6mm thick all- glass Immersion Gold

Package Included:

1 x SMSL SA-36A Pro Amplifier(no power supply included)

SMSL-SA-36A-Pro-Class-D-20Wx2-TDA7492PE-HIfi-Audio-Digital-Amplifier-1195377
