$16.99
Ex Tax: $16.99
  • Stock: In Stock
  • Model: EB0042262
  • SKU: EB0042262

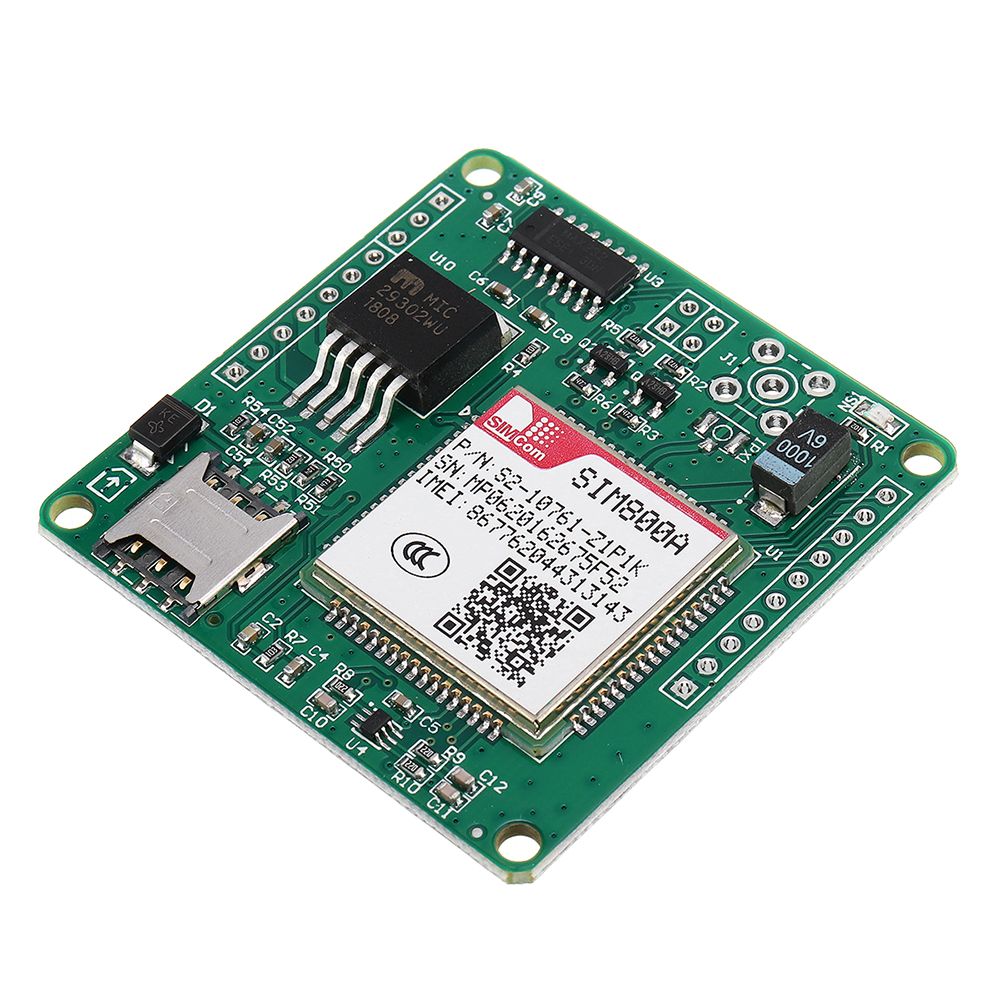

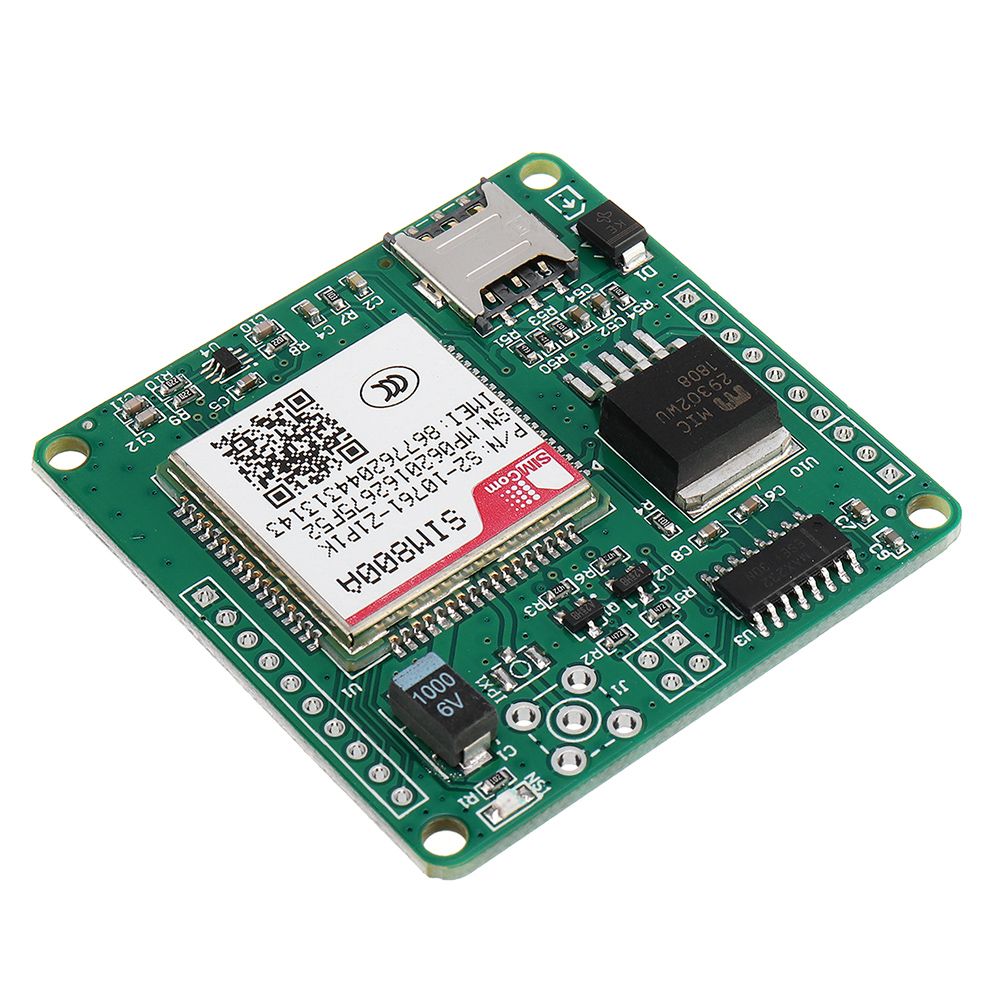

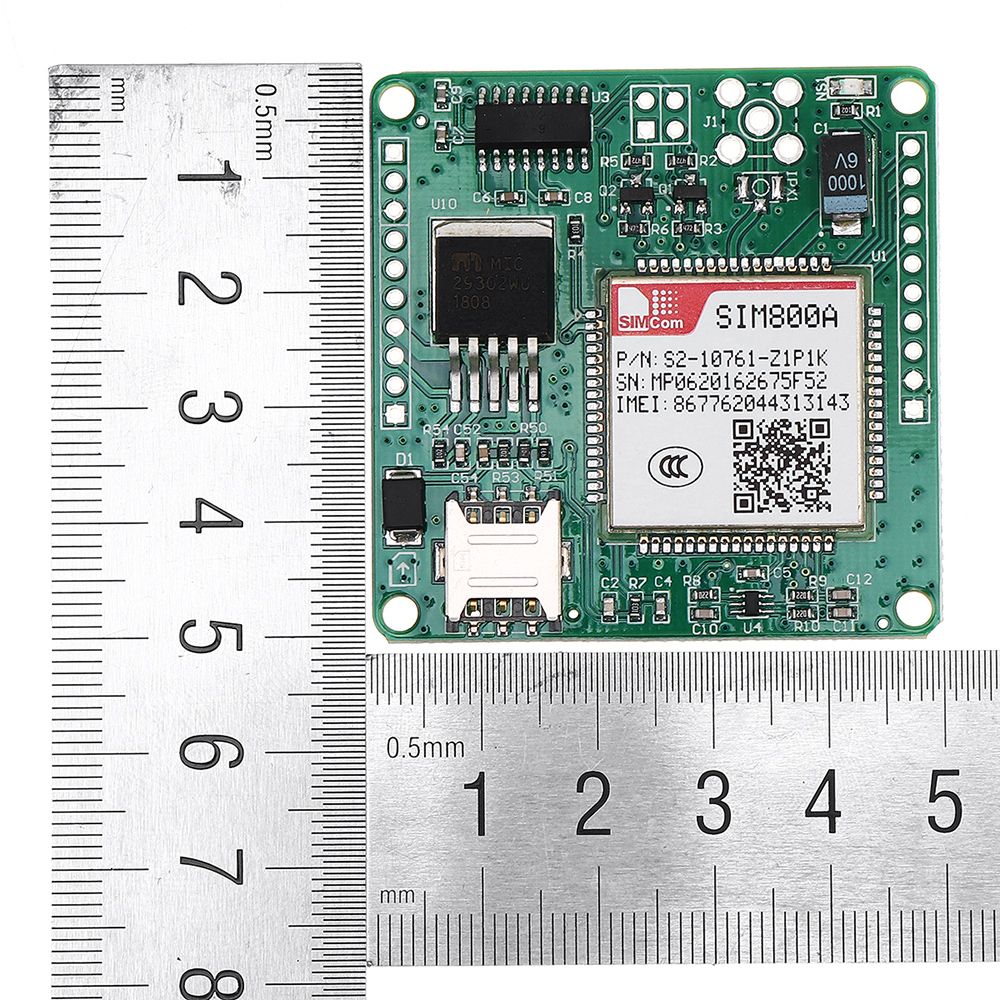

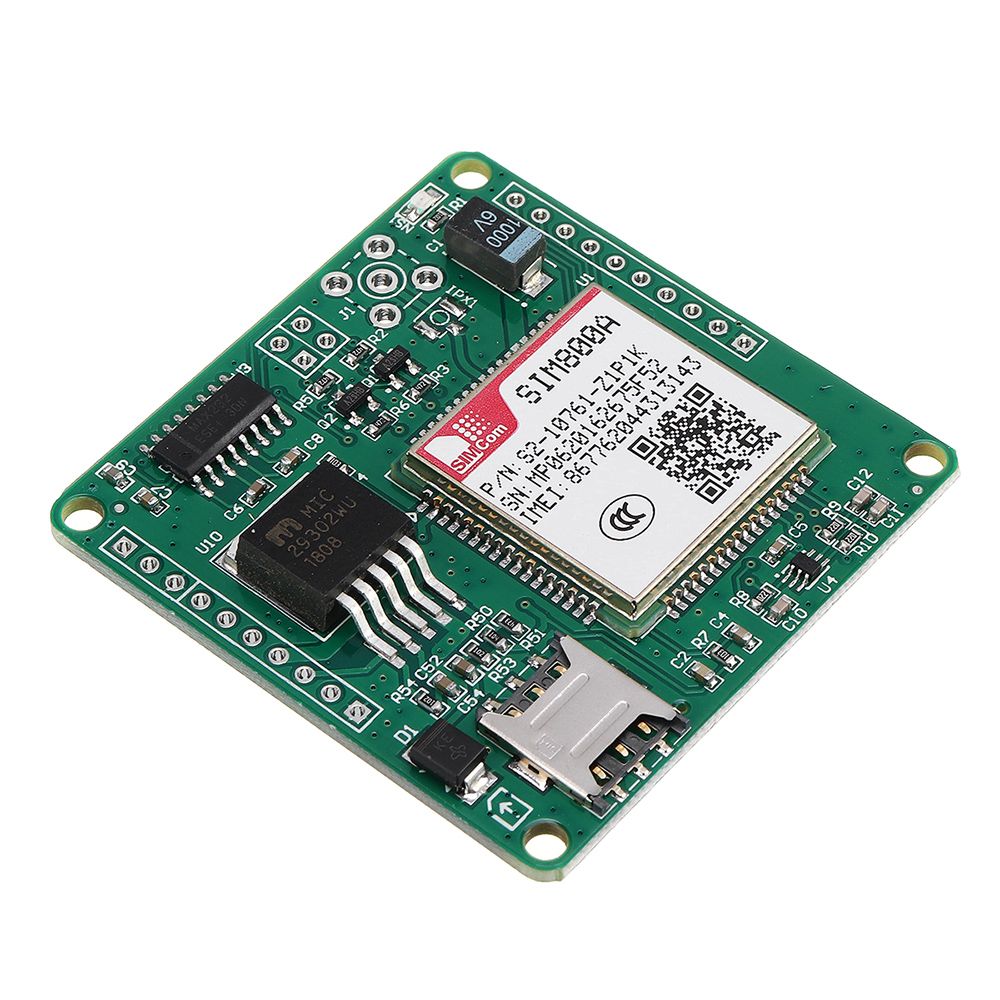

Introduction:

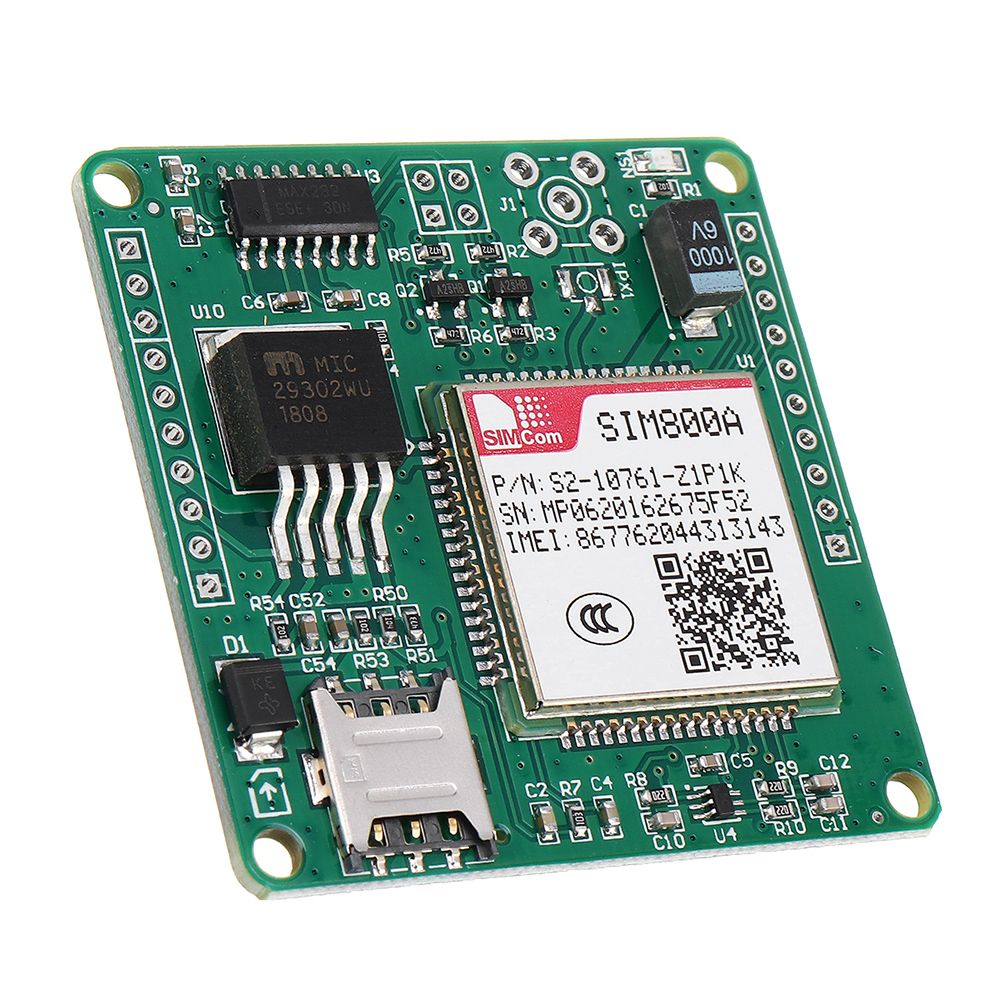

SIM800A_ Nano development board is a high-performance industrial-grade GSM/GPRS module with a rich interface, perfect function, stable operation, strong anti-interference, high integration of peripheral circuits and small size. It is especially suitable for various fields that require voice/SMS/GPRS data services, such as smart home, intelligent collection system, remote monitoring and so on.

Features:

Support dual-band GSM/GPRS (900MHz / 1800MHz)
Support RS232/TTL serial port (supports 3. 3V/5V system)
Support 5V- 18V power supply (9V1A power supply is recommended)
Reserved voice interface

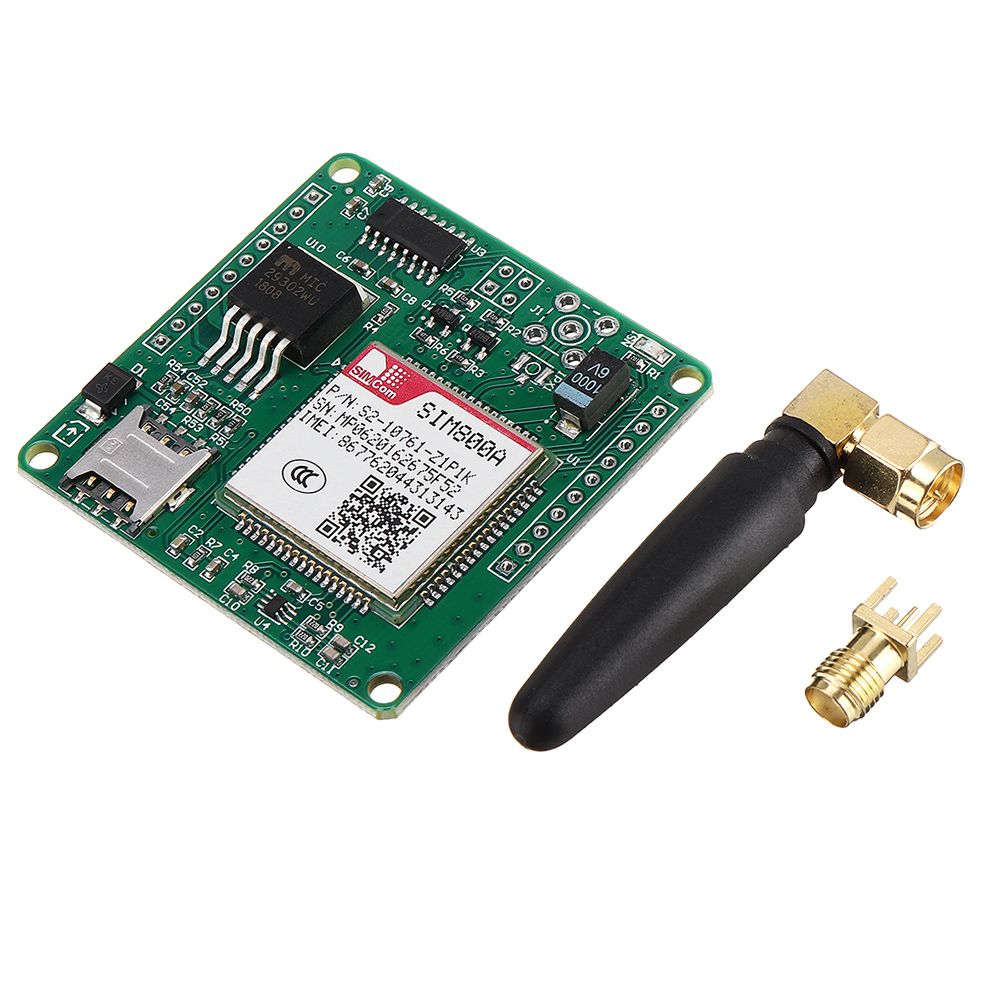

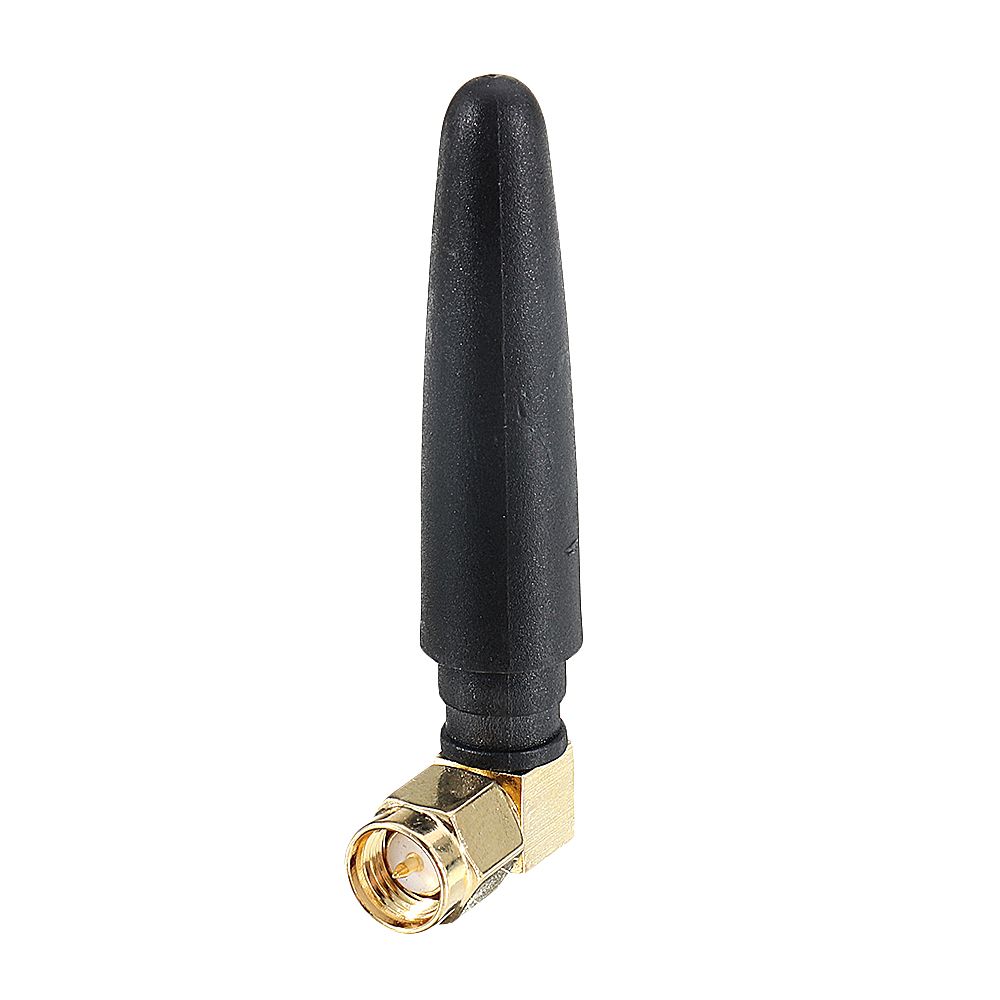

Reserve SMA and IPX interfaces
Support SMS service MT/M0/Text/PDU mode
Support TCP/UDP communication, FTP/HTTP service
Support Nano SIM card

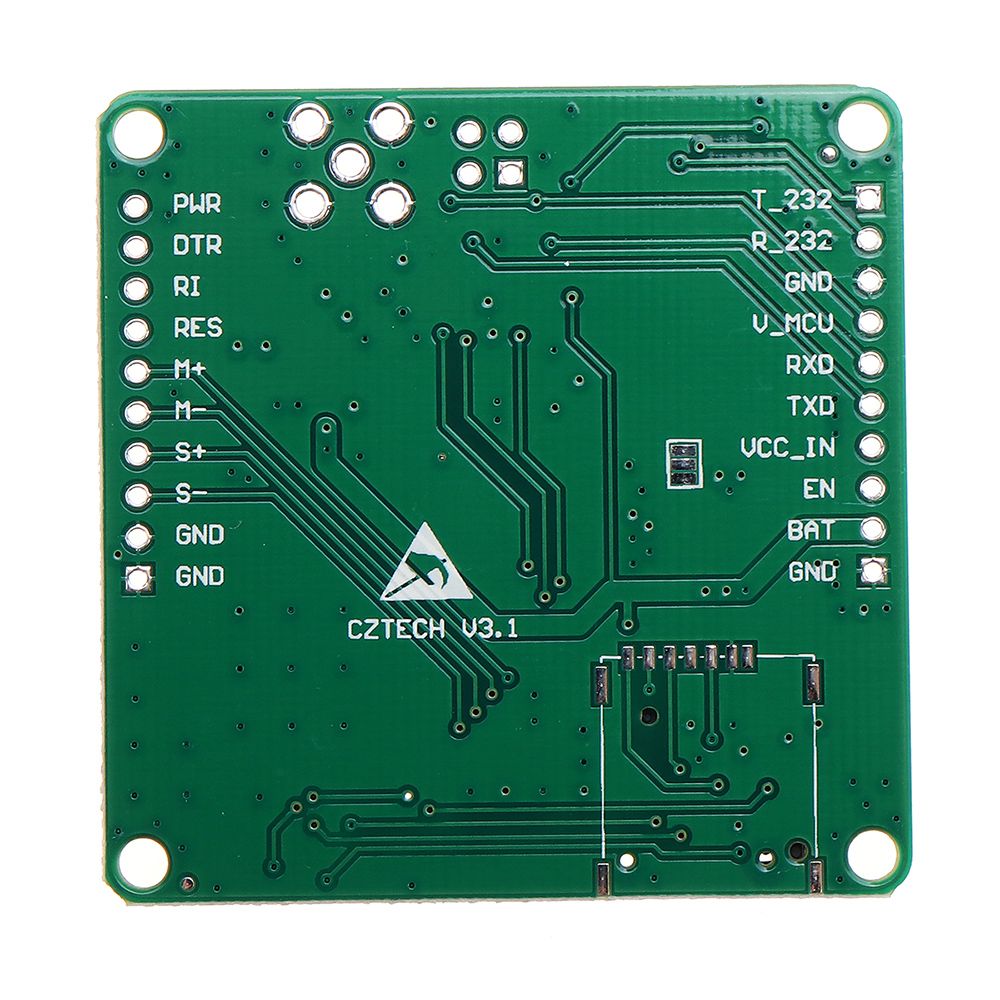

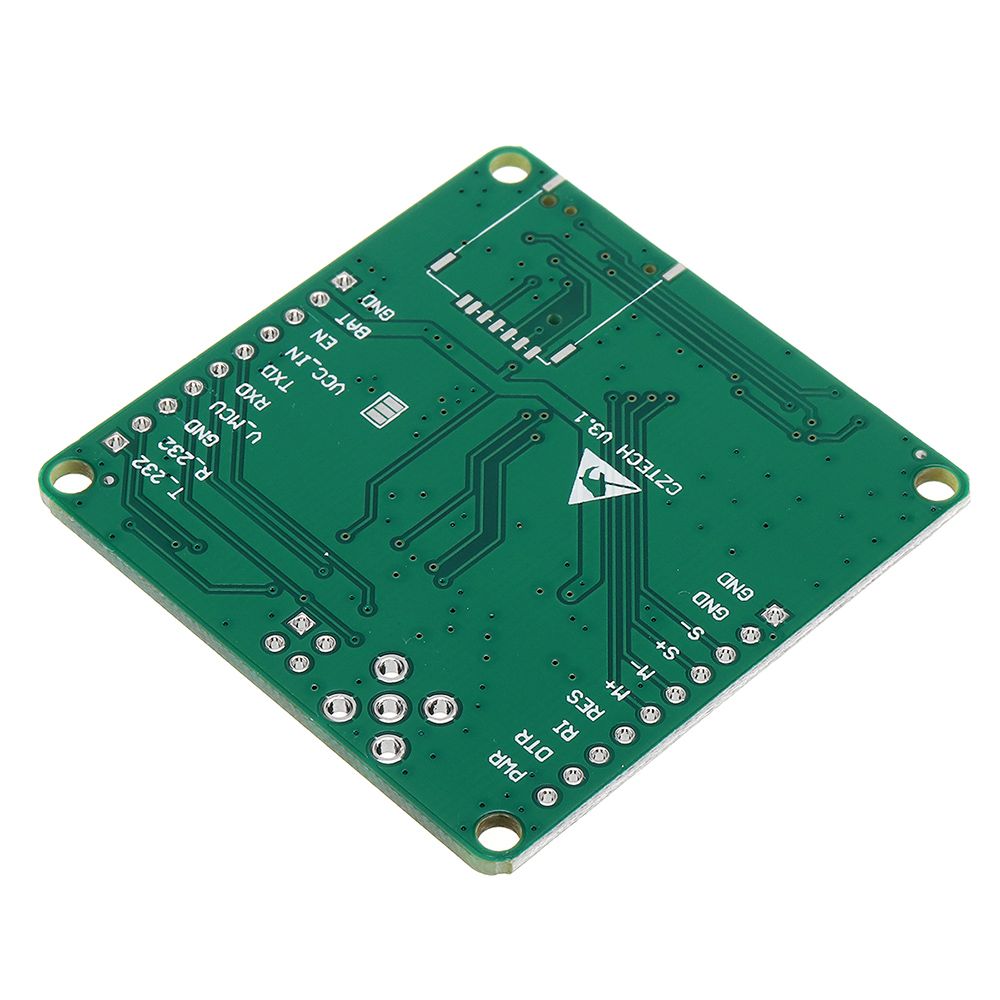

Pin description:

PWR: Positive power supply
DTR: DTR
RI: RI output pin
RES: reset foot
M+: Mic+
M-: Mic-
S+: horn positive
S-: horn negative
GND: power ground
BAT: Lithium battery power supply interface
EN: Power enable, default high
VCC_IN: external power input
TXD: TTL serial output
RXD: TTL serial input
V_MCU: Level matching interface
R_232: RS232 serial input
T_232: RS232 serial output

SIM800A Chip:

Main Characteristics:

Two-frequency 900/1800MHz
GPRS multi-slot class 12/10
GPRS m0bile station class B
Meet the GSM 2/2+ standard
 – Class 4 (2W @900MHz)
 – Class 1 (1W @1800MHz)
Size: 24*24*3mm
Controlled by AT c0mmands (GSM 07.07, 07.05 and SIMCOM enhanced AT c0mmand set)
Supply voltage: 3.4 ~ 4.4V
Low power consumption
Operating temperature: -40°C ~ +85°C

Data Transmission:

GPRS class 12: Maximum 85.6 kbps (downstream rate)
Support PBCCH
Coding schemes CS 1, 2, 3, 4
PPP-stack
CSD up to 14.4 kbps
USSD
Non-transparent

Software Features:

0710 MUX protocol
Embedded TCP/UDP protocol
FTP/HTTP
MMS
e-mail
DTMF detection
Interference detection
recording
SSL
Bluetooth 3.0 (optional)

Package includes:

1 x SIM800A Development Board
