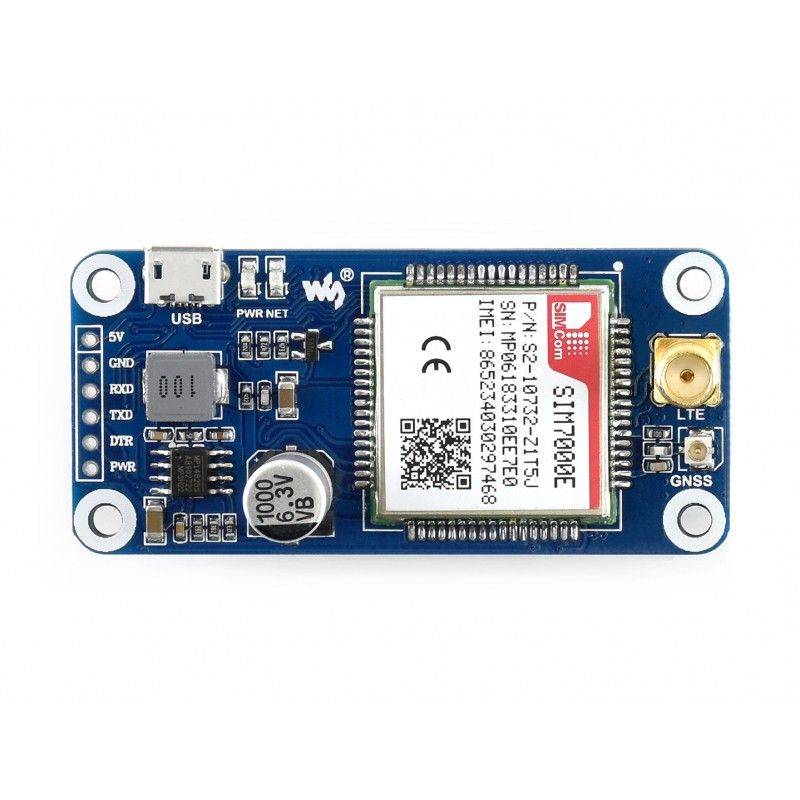

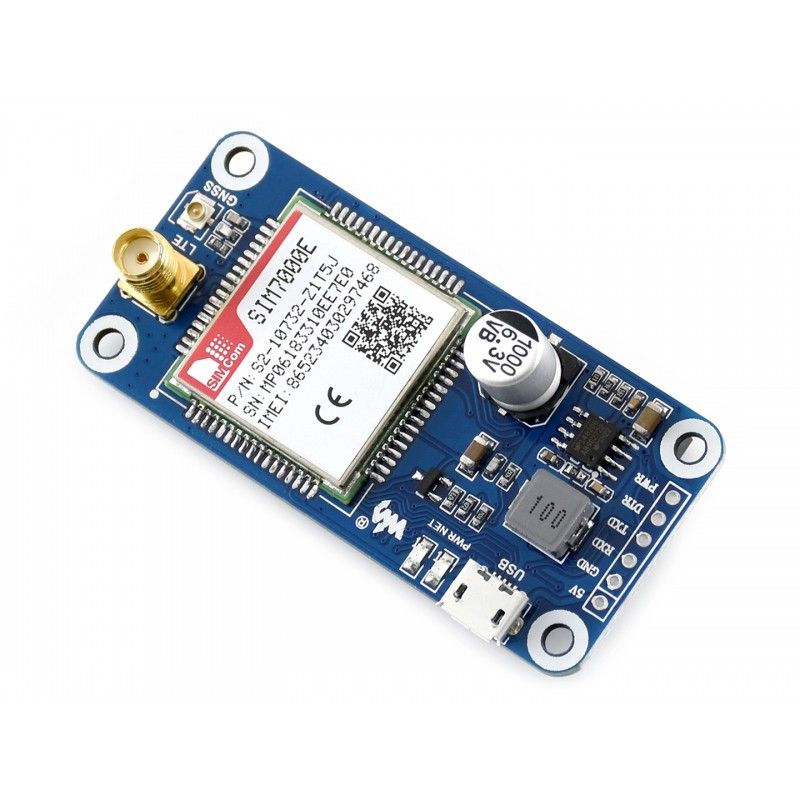

SIM7000E HAT NB-IoT/eMTC/EDGE/GPRS/GNSS HAT Development Board for Europe Africa Australia Southeast Asia For STM32
- Stock: In Stock
- Model: EB0042673
- SKU: EB0042673
- Antenna: YES
Precise details:
Documents:
Manual: Click here to open
Schematic: Click here to open
Driver: Click here to open
Code: Click here to open
Datasheet: Click here to open
Applicable Region:
SIM7000E is mainly applicable in Europe, Africa, Australia, Southeast Asia, SIM7000C is mainly applicable in AsiaPacific region.
Please check the supported bands according to your local service provider, select the proper one when placing order.
Overview:
This Raspberry Pi HAT features multi communication functionalities: NB-IoT, eMTC, EDGE, GPRS, and GNSS.
The NB-IoT (NarrowBand-Internet of Things) and eMTC (enhanced Machine Type Communication) are rising IoT communication technologies evolved from LTE (4G), with advantages include low power, low cost, wide coverage, etc. They are suited for applications such as intelligent instruments, remote controlling, asset tracking, remote monitoring, E-health, mobile POS terminals, sharing bikes, and so on. While the GSM/GPRS, and EDGE are traditional 2G/2.5G technologies capable of sending SMS or making other wireless communications.
Therefore, the SIM7000E NB-IoT HAT would be an ideal choice for either evaluating new rising technologies, or simply communicating/positioning via multiple ways.
Features:

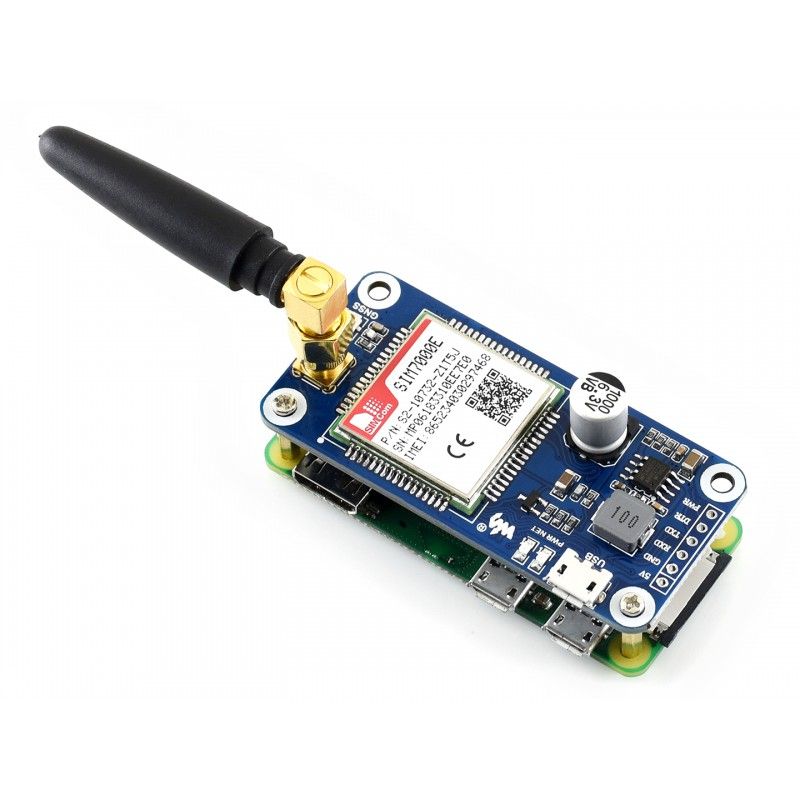

Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.
Supports GNSS positioning (GPS,GLONASS,BeiDou and Galileo)
Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
UART control pins, to connect with host boards like ARDUIN0/STM32
Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0Ω resistor

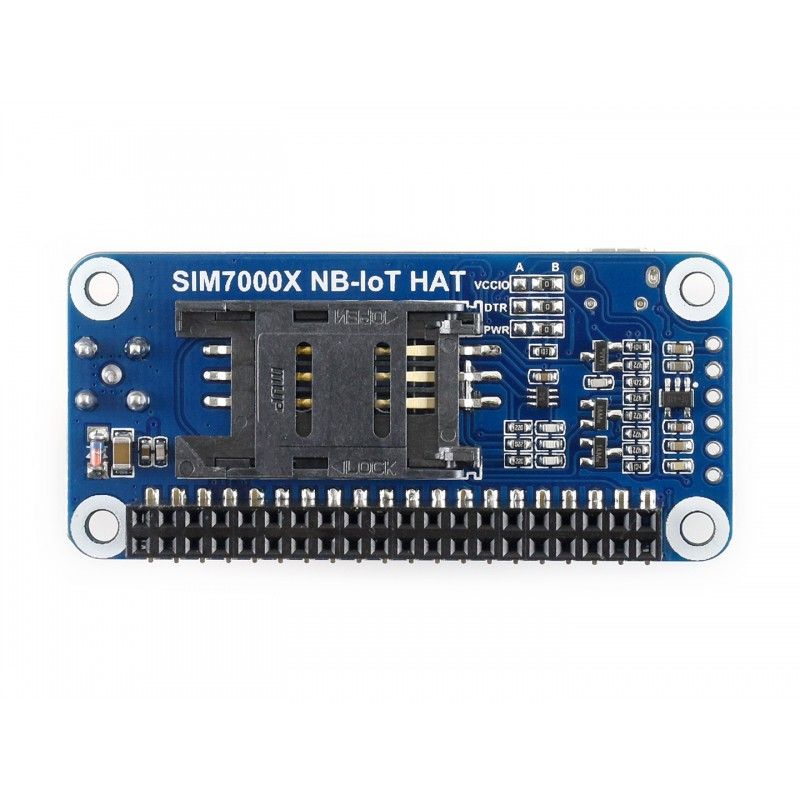

SIM card slot, compatible with both normal SIM card and NB-IoT specific card
2x LED indicators, easy to monitor the working status
Baudrate: 300bps~3686400bps
Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT
Communications Specifications:
| NB-IOT | EMTC | EDGE | GSM/GPRS | |
| Band | SIM7000E: FDD-LTE B3/B8/B20/B28 | GPRS/EDGE 900/1800 MHz | ||
| SIM7000C: FDD-LTE B1/B3/B5/B8 | ||||
| Power saving | Current in sleep mode: 1.2mA (@DRX=2.56s). Current in PSM mode: 9uA. | |||
| Emitting power | Class 3 (0.25W@LTE) | Class E2 (0.5W@EGSM900) | Class 4 (2W@GSM900) | |
| Class E1 (0.4W@DCS1800) | Class 1 (1W@DCS1800) | |||
| Data Speed | Uplink≤66kbps | Uplink≤375kbps | Uplink≤236.8kbps | Uplink≤85.6kbps |
| Downlink≤34kbps | Downlink≤300kbps | Downlink≤236.8kbps | Downlink≤85.6kbps | |
| SIM Card | NB Specific (Not Included) | Normal SIM (Not Included) | ||

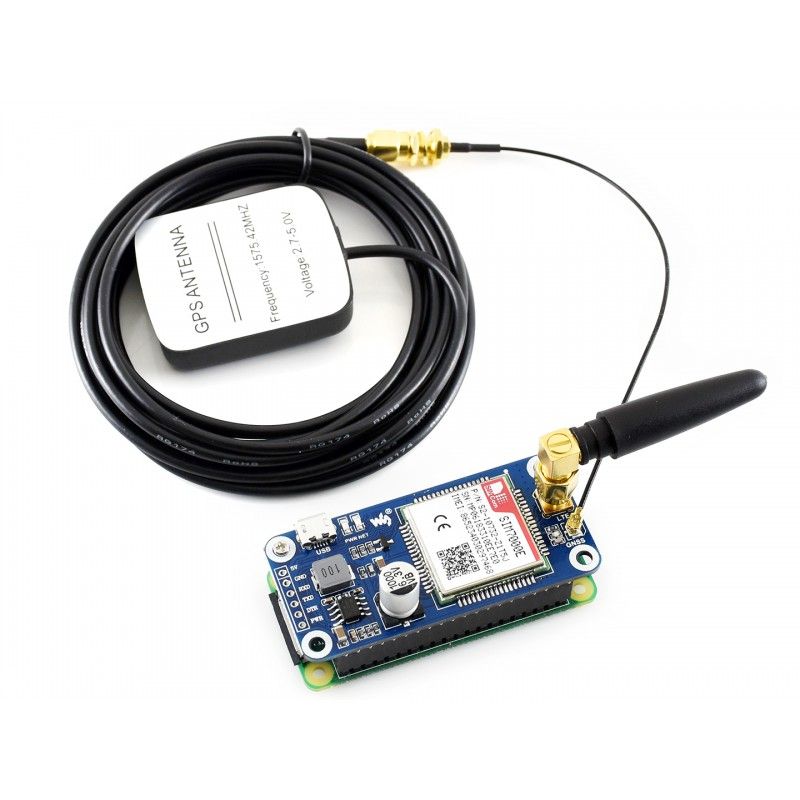

Package includes:
(the expansioin board is not includes)
1 x SIM7000E NB-IoT HAT
1 x GSM Antenna
1 x GPS External Antenna (B)
1 x USB type A plug to micro plug cable
1 x RPi screws pack (2pcs)
GNSS Specifications:
Receiver type
-16-channel
-C/A code
Sensitivity
-Tracking: -162 dBm (GPS)/-157 dBm (GLONASS)/TBD (BD)
-Cold starts: -148 dBm
Time-To-First-Fix
-Cold starts: <35s
-Hot starts: <1s
Accuracy
-Position: <2.5m CEP
Other Specifications:
Power supply: 5V
Operating voltage: 5V/3.3V (3.3V by default)
Sleep Mode current: 1.2mA(@DRX=2.56s)
Power Save Mode current: 9uA
Operating temperature: -40°C ~ 85°C
Storage temperature: -45°C ~ 90°C

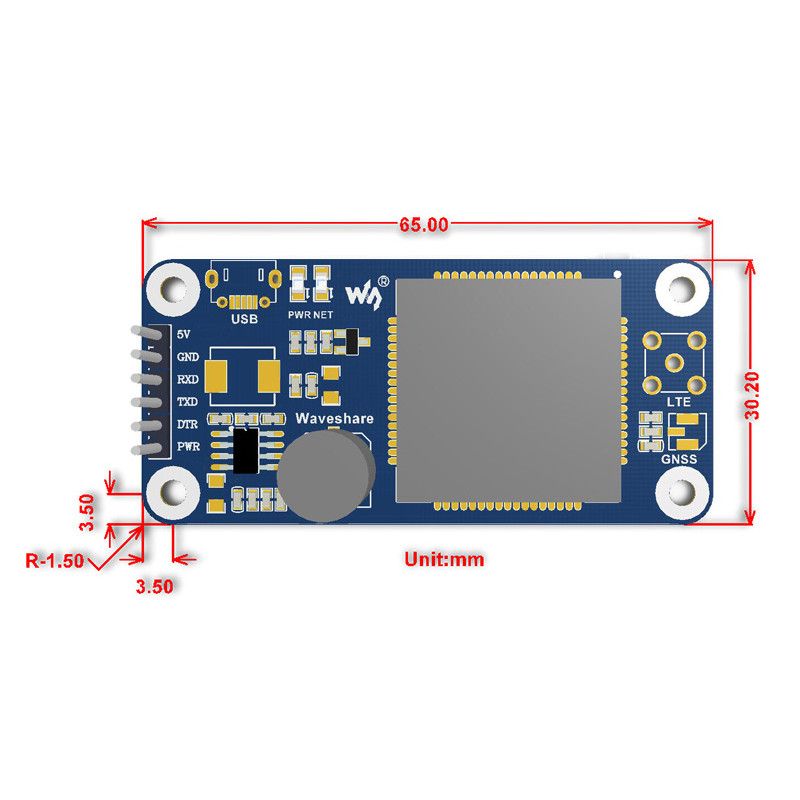

Dimension: 30.2mm x 65mm
Documents:
Driver: Click here to open: https://www.waveshare.com/wiki/File:SIM7X00-Driver.7z
Code: Click here to open: https://www.waveshare.com/wiki/File:SIM7000X-Demo.7z
Applicable Region:
SIM7000E is mainly applicable in Europe, Africa, Australia, Southeast Asia, SIM7000C is mainly applicable in AsiaPacific region.
Please check the supported bands according to your local service provider, select the proper one when placing order.
Overview:
This Raspberry Pi HAT features multi communication functionalities: NB-IoT, eMTC, EDGE, GPRS, and GNSS.
The NB-IoT (NarrowBand-Internet of Things) and eMTC (enhanced Machine Type Communication) are rising IoT communication technologies evolved from LTE (4G), with advantages include low power, low cost, wide coverage, etc. They are suited for applications such as intelligent instruments, remote controlling, asset tracking, remote monitoring, E-health, mobile POS terminals, sharing bikes, and so on. While the GSM/GPRS, and EDGE are traditional 2G/2.5G technologies capable of sending SMS or making other wireless communications.
Therefore, the SIM7000E NB-IoT HAT would be an ideal choice for either evaluating new rising technologies, or simply communicating/positioning via multiple ways.
Features:
Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.
Supports GNSS positioning (GPS,GLONASS,BeiDou and Galileo)
Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
UART control pins, to connect with host boards like ARDUIN0/STM32
Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0Ω resistor
SIM card slot, compatible with both normal SIM card and NB-IoT specific card
2x LED indicators, easy to monitor the working status
Baudrate: 300bps~3686400bps
Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT
Communications Specifications:
| NB-IOT | EMTC | EDGE | GSM/GPRS | |
| Band | SIM7000E: FDD-LTE B3/B8/B20/B28 | GPRS/EDGE 900/1800 MHz | ||
| SIM7000C: FDD-LTE B1/B3/B5/B8 | ||||
| Power saving | Current in sleep mode: 1.2mA (@DRX=2.56s). Current in PSM mode: 9uA. | |||
| Emitting power | Class 3 (0.25W@LTE) | Class E2 (0.5W@EGSM900) | Class 4 (2W@GSM900) | |
| Class E1 (0.4W@DCS1800) | Class 1 (1W@DCS1800) | |||
| Data Speed | Uplink≤66kbps | Uplink≤375kbps | Uplink≤236.8kbps | Uplink≤85.6kbps |
| Downlink≤34kbps | Downlink≤300kbps | Downlink≤236.8kbps | Downlink≤85.6kbps | |
| SIM Card | NB Specific (Not Included) | Normal SIM (Not Included) | ||
Package includes:
(the expansioin board is not includes)
1 x SIM7000E NB-IoT HAT
1 x GSM Antenna
1 x GPS External Antenna (B)
1 x USB type A plug to micro plug cable
1 x RPi screws pack (2pcs)
GNSS Specifications:
Receiver type
-16-channel
-C/A code
Sensitivity
-Tracking: -162 dBm (GPS)/-157 dBm (GLONASS)/TBD (BD)
-Cold starts: -148 dBm
Time-To-First-Fix
-Cold starts: <35s
-Hot starts: <1s
Accuracy
-Position: <2.5m CEP
Other Specifications:
Power supply: 5V
Operating voltage: 5V/3.3V (3.3V by default)
Sleep Mode current: 1.2mA(@DRX=2.56s)
Power Save Mode current: 9uA
Operating temperature: -40°C ~ 85°C
Storage temperature: -45°C ~ 90°C
Dimension: 30.2mm x 65mm
