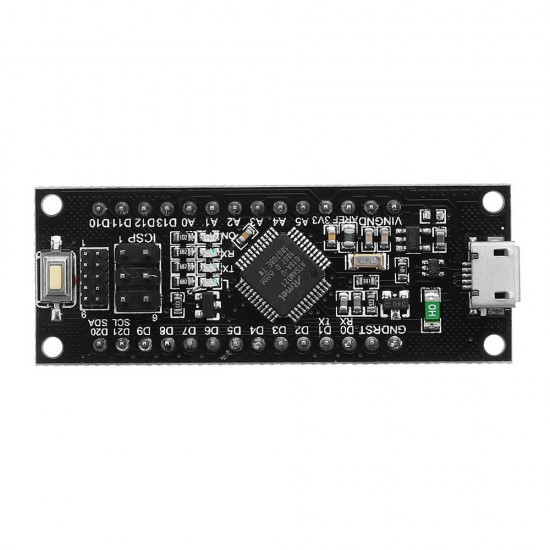

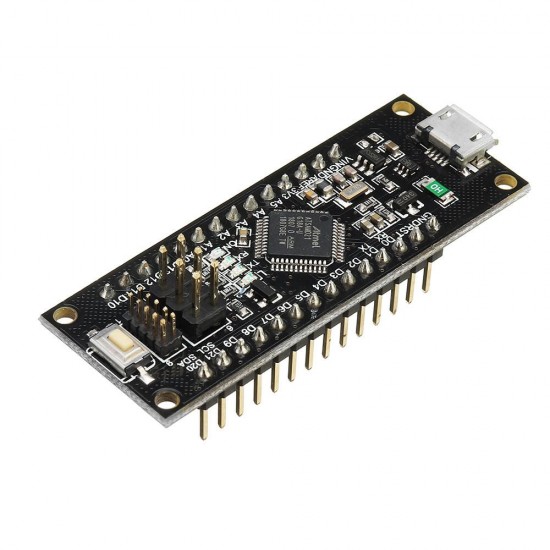

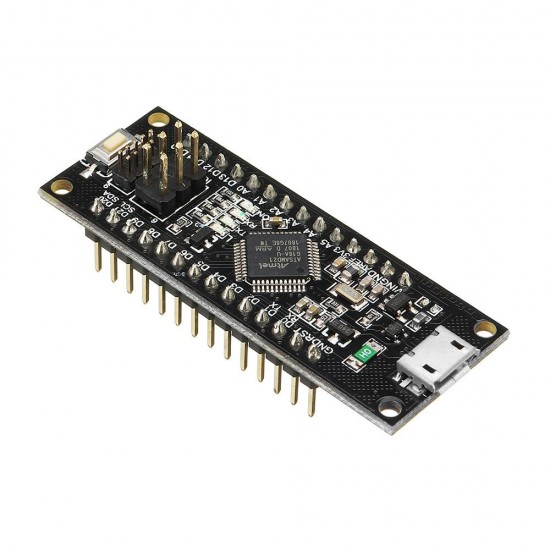

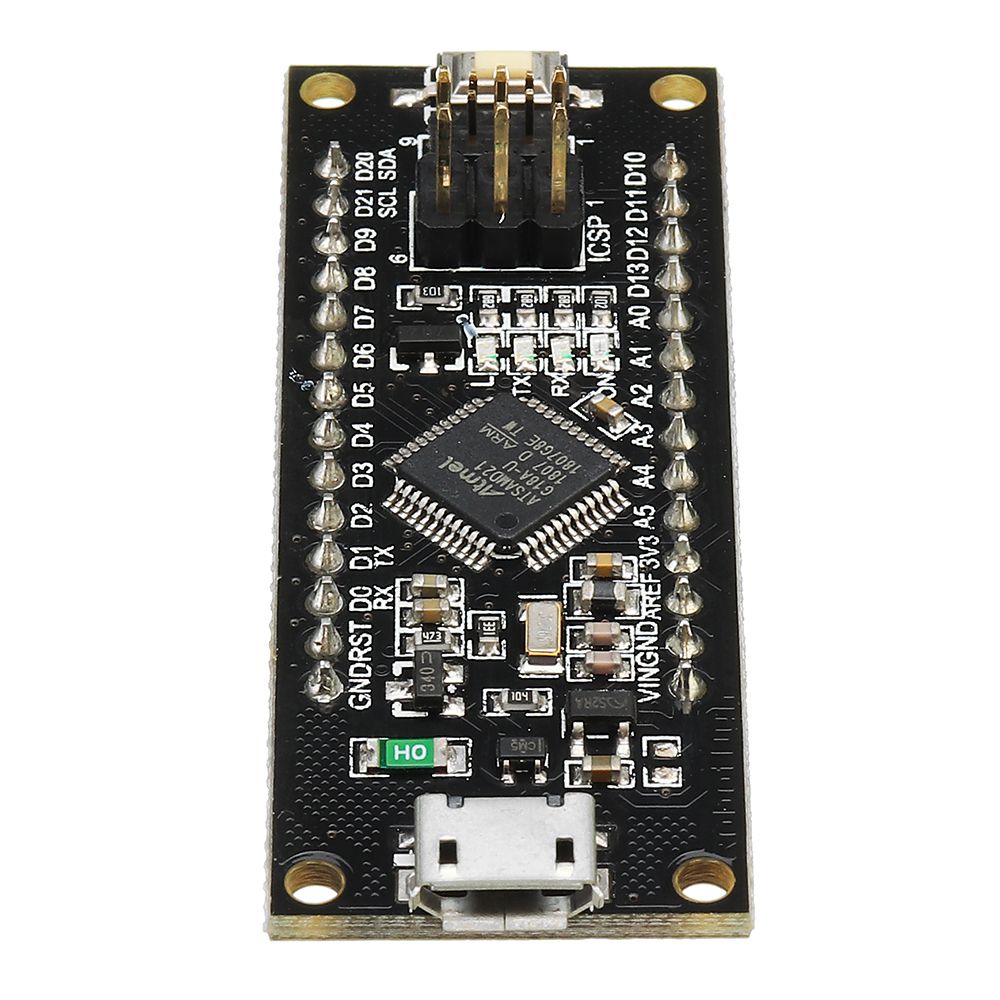

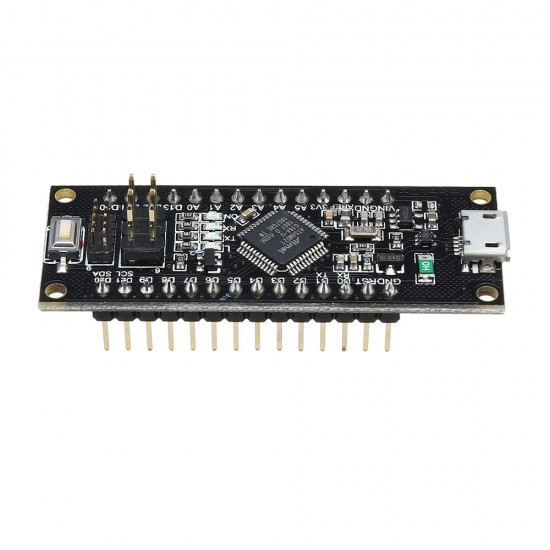

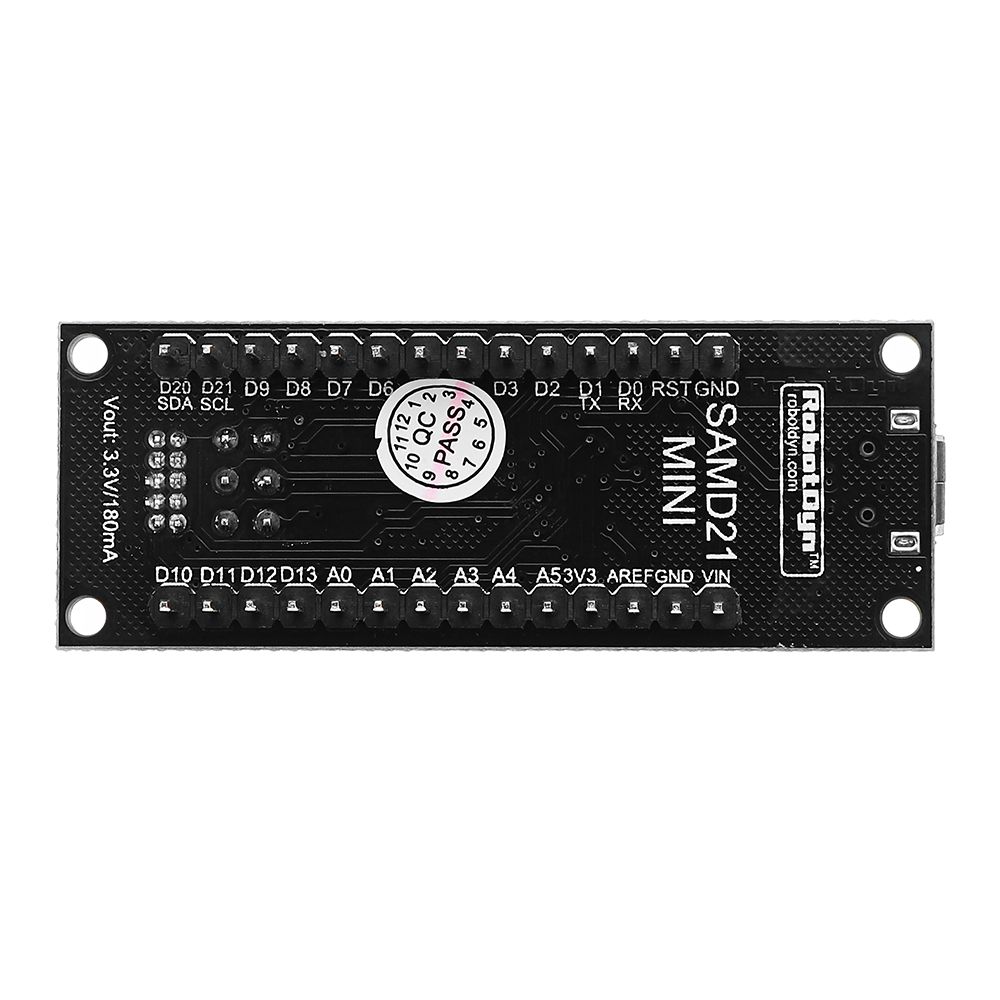

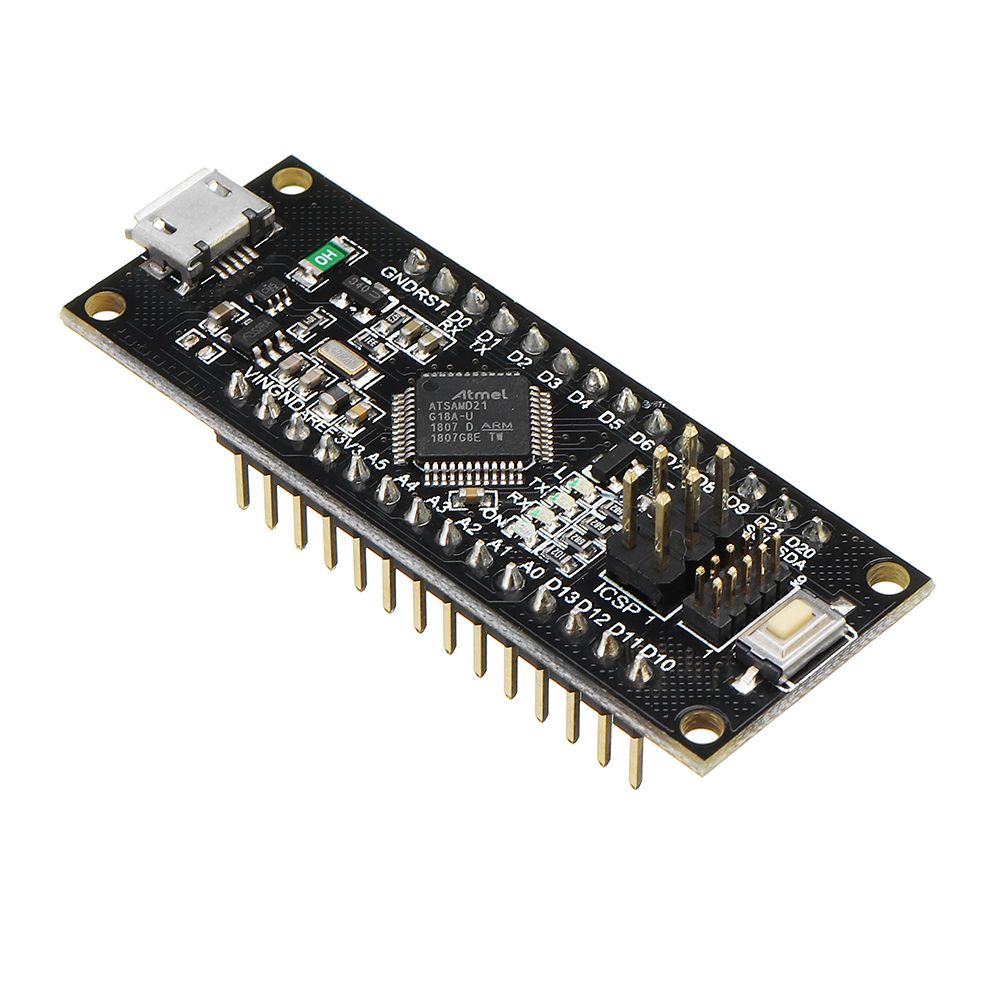

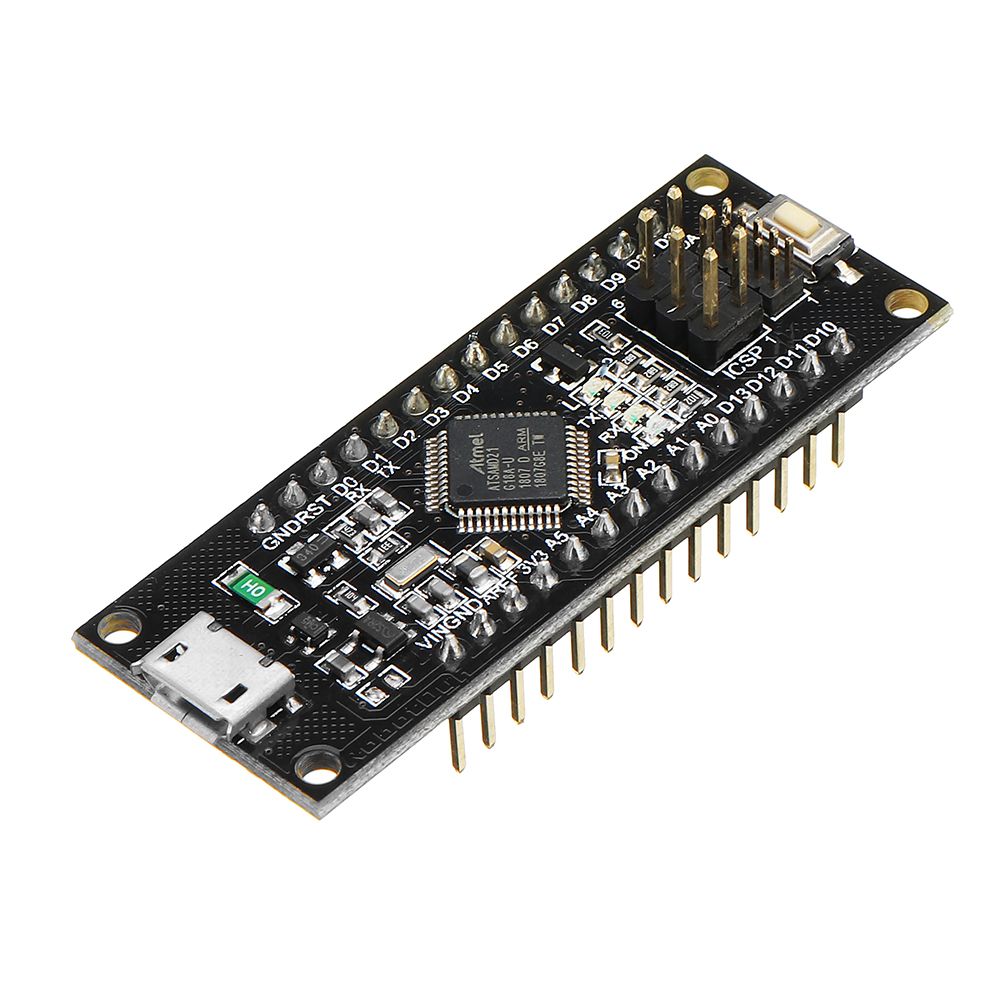

SAMD21 M0-Mini 32 Bit Cortex M0 Core 48 MHz Pins Soldered Development Board for Arduino - products that work with official Arduino boards
- Stock: In Stock
- Model: EB0041773
- SKU: EB0041773
Technical Parameters:
| Microcontroller | ATSAMD21G18 48pins LQFP |
| USB-TTL converter | SAMD21 MCU |
| Power Out | 3.3V-800mA |
| Power IN. USB | 5V |
| Power IN. VIN/DC Jack | 5V |
| Power Consumption | 3.3V 220mA |
| Logic Level | 3.3V |
| USB | Micro USB |
| Clock Frequency | 48MHz |
| Operating Supply Voltage | 3.3V |
| Digital I/O | 20(7-PWM) |
| Analog I/O | 6 |
| Data RAM Type/Size | 20Kb |
| Data ROM Type/Size | 128Kb |
| Interface Type | ISP |
| Operating temperature | −40С°/+85С° |
| Length×Width | 56.5×18mm |
Feature:
Package includes:
1 x Module
