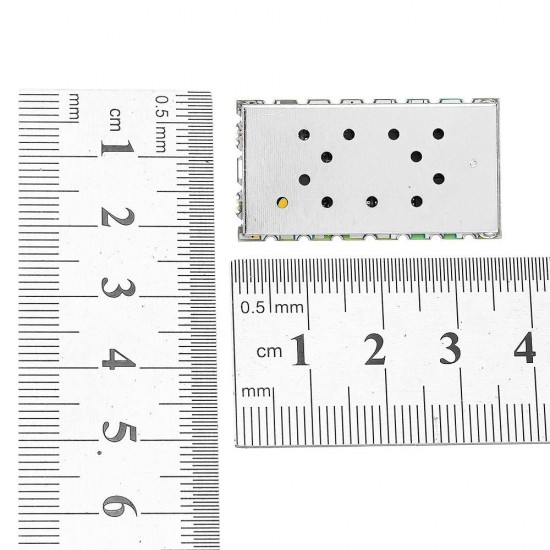

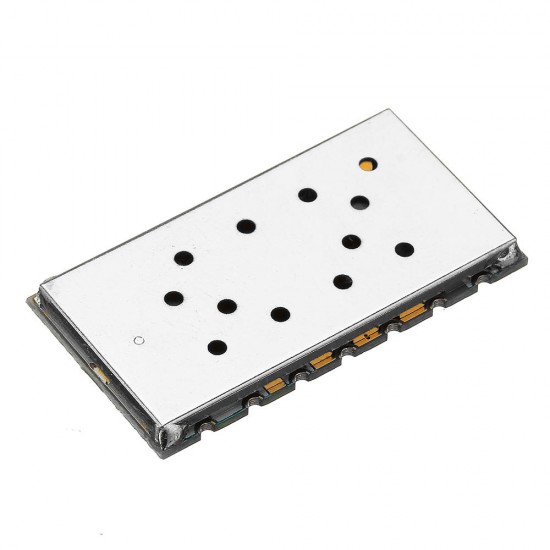

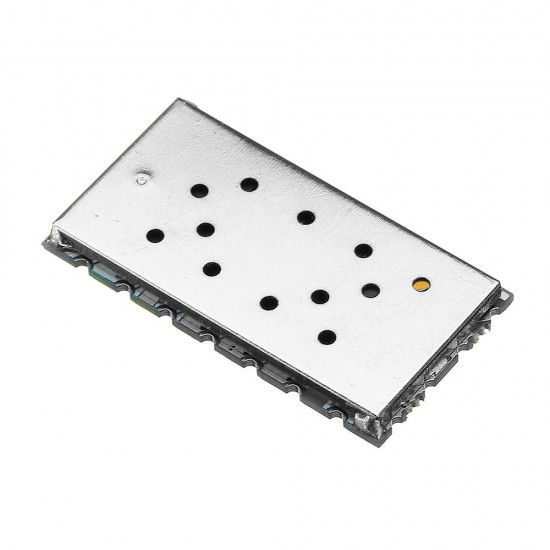

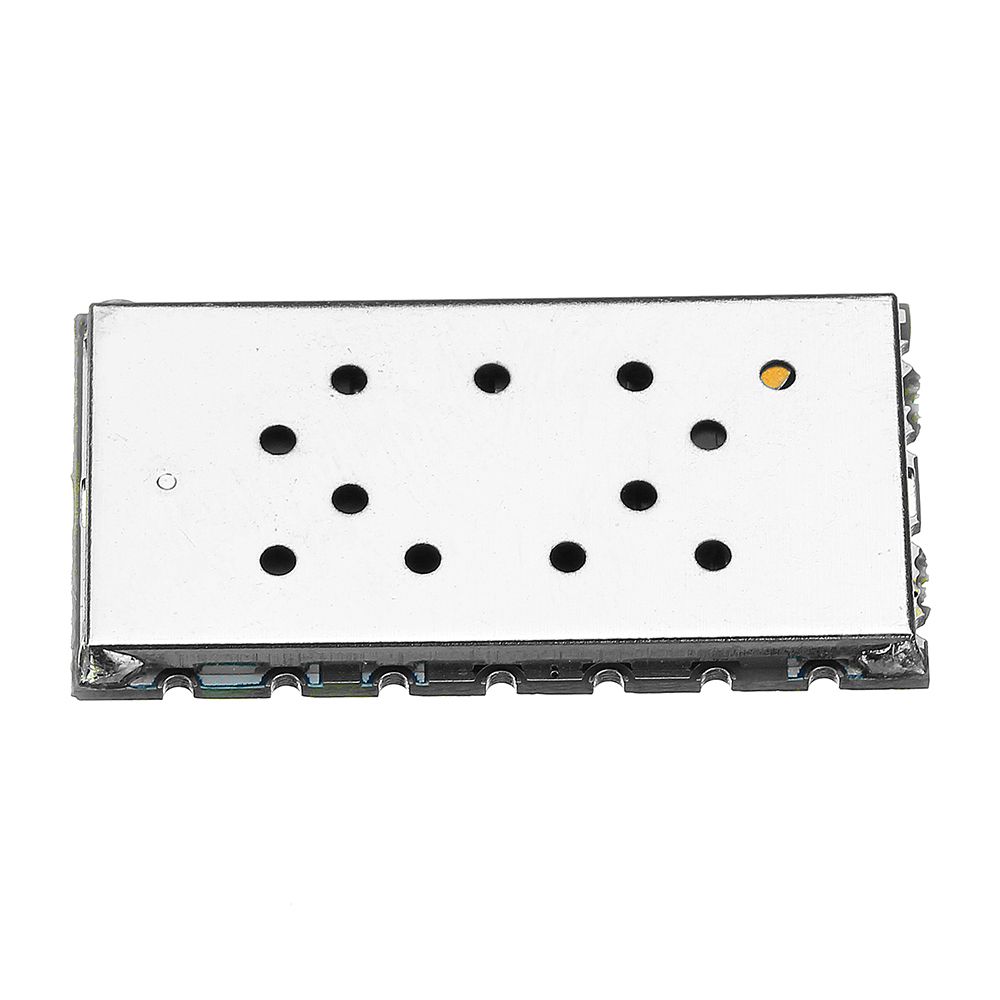

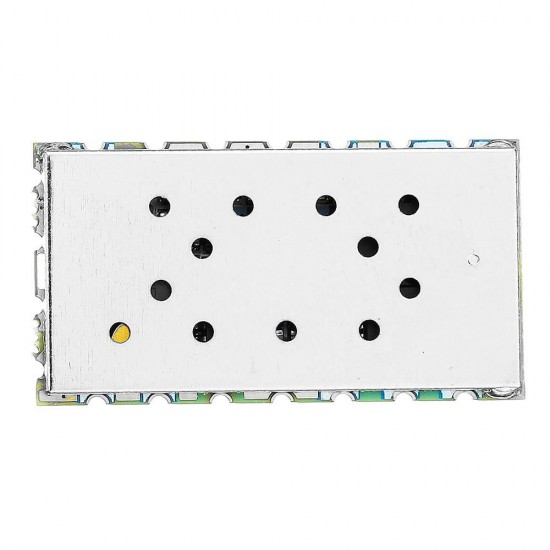

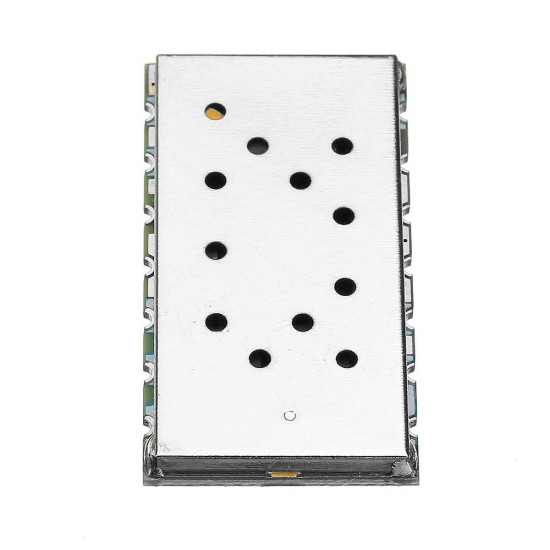

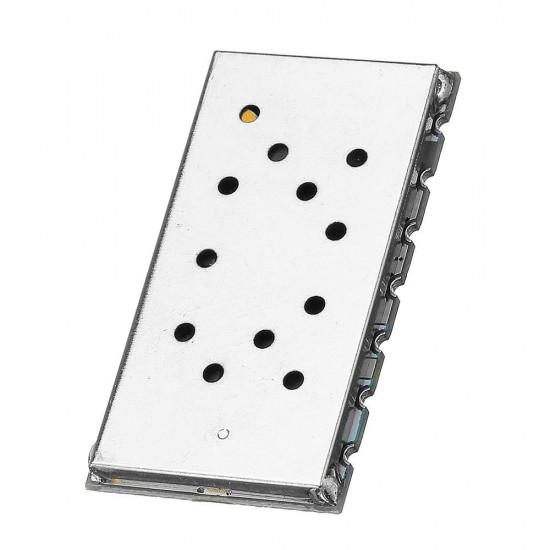

SA818 VHF Ultra High Frequency 1W Wireless Walkie-talkie Module Intercom Module Embedded
- Stock: In Stock
- Model: EB0042865
- SKU: EB0042865
● FCC, CE, IC certification
| parameter | Test Conditions | Minimum | typical | maximum | unit |
| Operating voltage range | 3.3 | 4.2 | 5.5 | V | |
| working temperature range | -30 | 25 | 70 | ℃ | |
| Current consumption | |||||
| Sleep current | ≤1 | uA | |||
| Receiving current | 60 | mA | |||
| Emission current (high power) | 650 | 750 | mA | ||
| Emission current (low power) | 450 | 550 | mA | ||
| Transmitting RF parameters | |||||
| Operating frequency range | UHF | 400 | 480 | MHZ | |
| Operating frequency range | VHF | 134 | 174 | MHZ | |
| Transmit power (high power) | @VCC=4.0V | 28 | 29.5 | 31 | dBm |
| Transmit power (low power) | 25 | 26.5 | 27 | dBm | |
| Modulation sensitivity | @1.5Khz/2.5KHZ offset | 10 | mV | ||
| Audio modulation distortion | @1.5Khz/2.5KHZ offse | 2 | 5 | % | |
| Signal to noise ratio | @1.5Khz/2.5KHZ offse | 38 | 40 | 45 | dB |
| Adjacent channel power | @12.5K offset | -60dBc | dBm | ||
| CTCSS modulation frequency offset | 0.35 | 0.5 | 0.75 | KHZ | |
| Receiving radio frequency parameters | |||||
| Receiving sensitivity | 13dB output voice signal ratio | -124 | dBm | ||
| Receive signal to noise ratio | @1.5KHZ frequency offset | 45 | 50 | dB | |
| Audio output amplitude | 700 | mV | |||
| Audio output impedance | 200 | OHm | |||

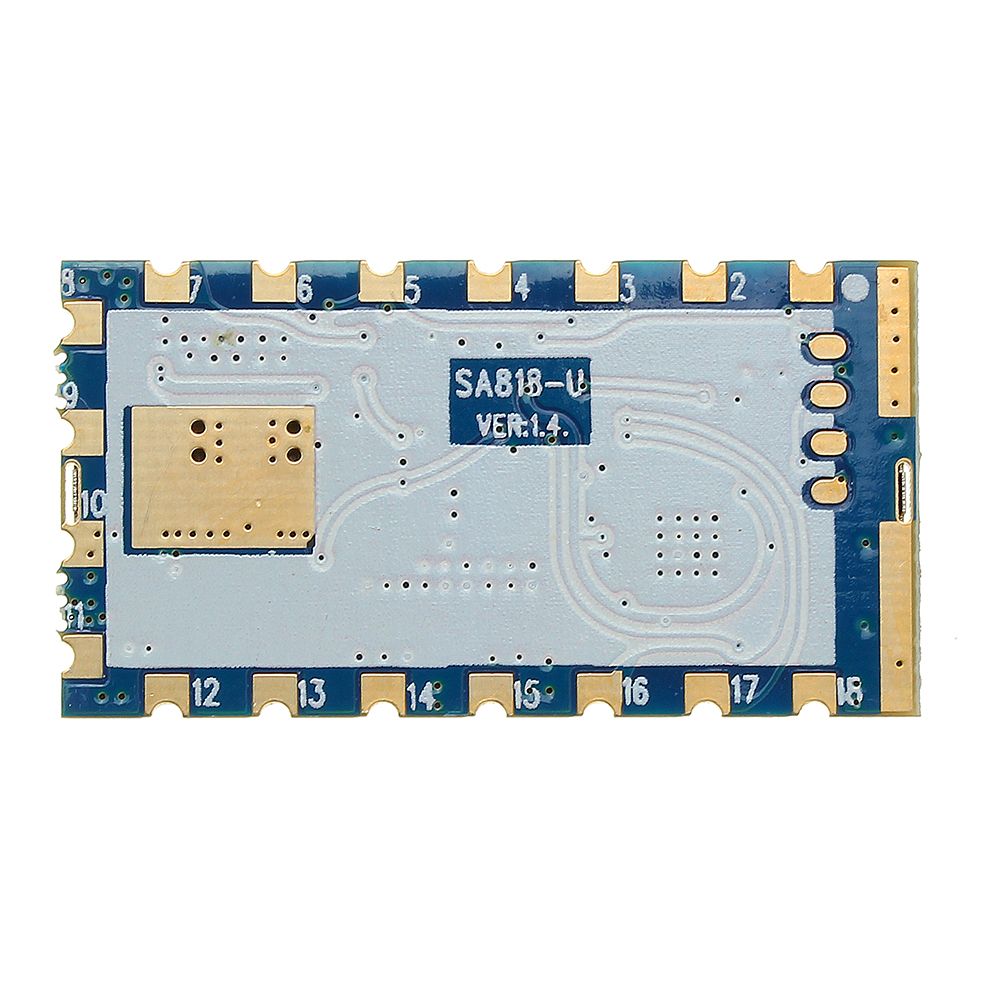

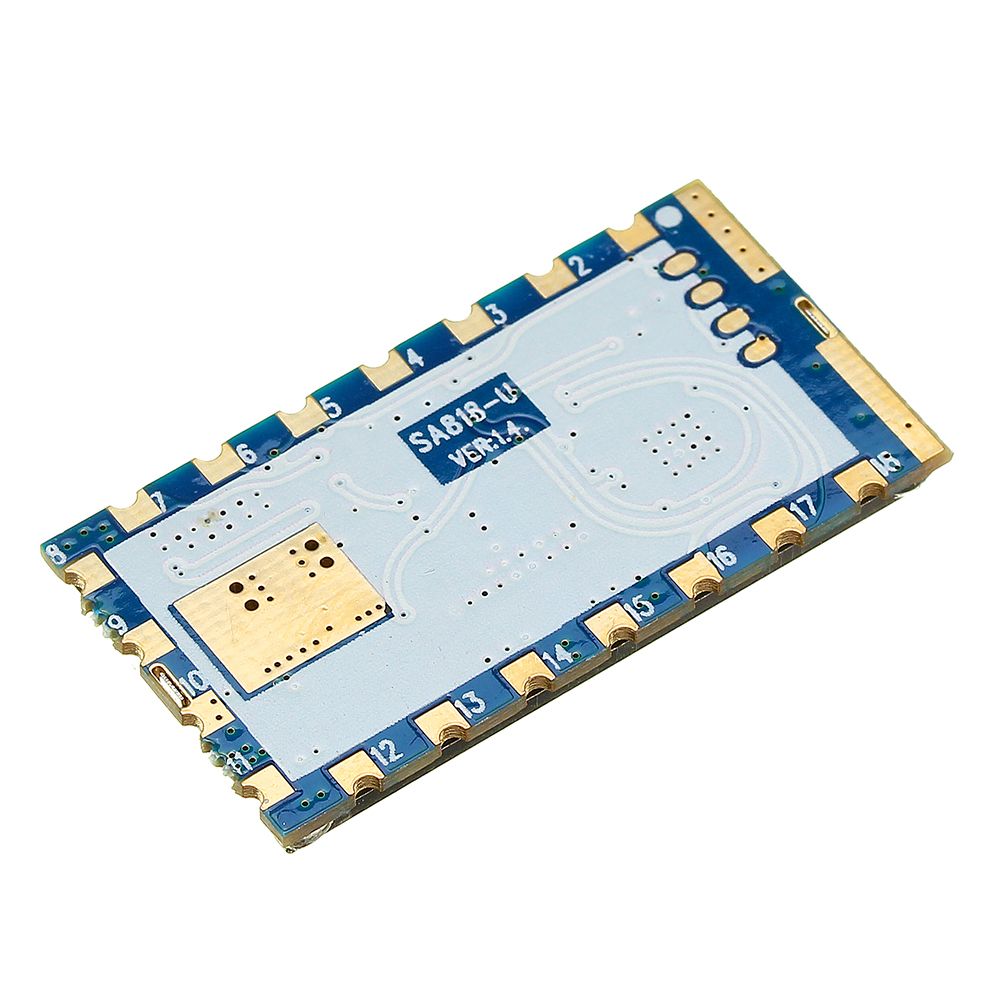

Pin:
| Number | Pin definition |
| 1 | Audio ON |
| 2 | NC |
| 3 | AF_OUT |
| 4 | NC |
| 5 | PTT |
| 6 | PD |
| 7 | H/L |
| 8 | VBAT |
| 9 | GND |
| 10 | GND |
| 11 | NC |
| 12 | ANT |
| 13,14,15 | NC |
| 16 | RXD |
| 17 | TXD |
| 18 | MIC_IN |
