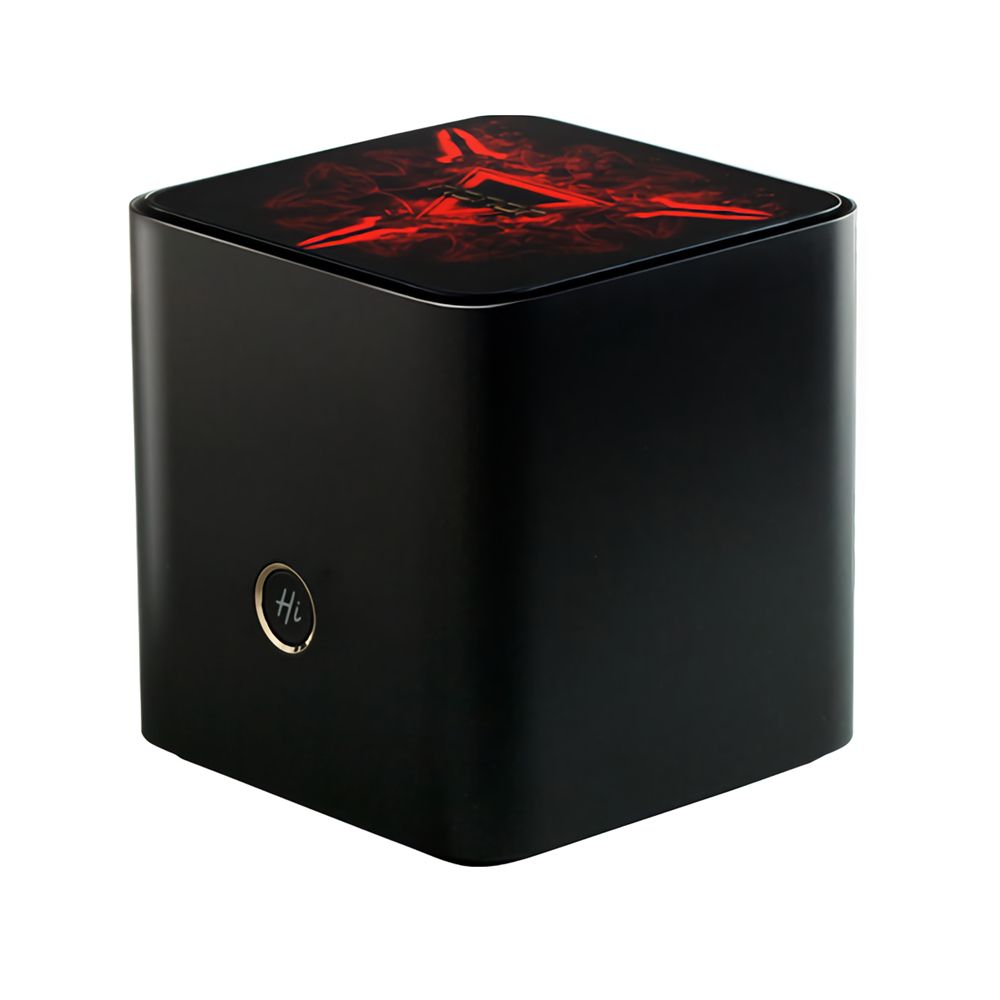

Router Pro Game Version Dual Band Wireless WiFi Router 867Mbps 256MB Wireless Signal Booster Repeater

General

Product type

Smart wireless router, home wireless router, gaming wireless router

Network standards

Wireless standards: IEEE 802.11ac, IEEE 802.11n, IEEE 802.11b, IEEE 802.11g, IEEE 802.11a

Wired standards

IEEE802.3u (100 Base-TX), IEEE802.3 (10 Base-T), IEEE 802.3z 1000BASE-X

Network protocol

Wireless protocol: TCP/IP protocol;
Wired protocol: TCP/IP, PPPoE, DHCP, ICMP, NAT protocol

Maximum transmission rate

1167Mbps

Transmission rate

2.4GHz: 300Mbps; 5GHz: 867Mbps

Coverage

Maximum outdoor coverage: about 300 meters (open and non-interference environment, the actual range depends on the actual environment)

Frequency range

Dual frequency (2.4GHz, 5GHz)

Function

WPS function

Renhotec

WDS function

Support WDS wireless bridge

Other Parameters

Size

Product size: 104×104×108mm

Packing size: 115×115×169mm

Weight

Product weight: about 385g

Package weight: about 805g

Environmental Standards

Working temperature: 0-40℃

Other Functions

CPU: Hisilicon dual-core 1GHz
RAM: 256MB
Flash: 128MB
Antenna: high-performance dual-frequency balun antenna
PA power amplifier/signal amplifier: 2 2.4G signal amplifiers, 2 5G signal amplifiers
LNA/low noise amplifier: 2.4G and 5G have two high gain and low noise figure receivers respectively
Heat dissipation and stability: ceramic heat dissipation process, heat dissipation effect exceeds copper and aluminum. The active radiation heat dissipation capacity is 8.8 times that of metal materials in a closed environment
WiFi function: 2.4G 300Mbps and 5G 867Mbps dual frequency concurrent
Data transmission rate: 10/100/1000Mbps

Other Features

Mobile App: Support iOS 6.0 and above/Android 2.3 and above
User management: support online and offline device management; control the duration of terminal equipment online; limit speed according to terminal equipment
WiFi mode: support App or web management page to adjust Wi-Fi mode (through wall, sleep, close)
Guest WiFi: Support to create guest WiFi name and password, and open the duration "4 hours", "1 day", "permanent"
WiFi timing off: support automatic WiFi off, custom start and end time
Intelligent networking: support to view the network topology
One-click physical examination: support online fault diagnosis, software update reminder
Internet application: support Thunder remote download
Remote management: support App remote connection management router
Dual-route Wi-Fi expansion: After the main route Hi light flashes orange, press the Hi button once, the flashing speeds up, and pairing starts. White is always on when pairing is complete
Connection: Support HiLink inside device interconnection, which can be gradually upgraded to connect home appliances, lighting, energy, security, audio and video and other smart home devices
Linkage: Supports automatic synchronization of network parameters such as WiFi name and WiFi password between HiLink inside devices
Software name: Huawei terminal home router management software V1.0
Local area network game acceleration: online games, live video streaming, downloading, game data priority forwarding, playing games without cards. Supported game list: LOL, CF, DNF, Dota1/2, FIFAonline, CS Online, QQ Car, World of Tanks, Inverse Warfare, Xunyou CF, Xunyou DNF, Xunyou LOL, Xunyou Counter War TOP14 Endgame and TGP Other endgames
WAN game acceleration: support all Tencent TGP end-game cross-network (telecom, Unicom, mobile, Netcom, Railcom, Education Network) acceleration
TGP game update package pre-download: TGP game update package is downloaded to the external hard drive in advance, go home and upgrade directly, and quickly start the game
TGP experience bonus: 1.1 times experience bonus, the higher the achievement of the game privilege, the richer the game package can be redeemed
