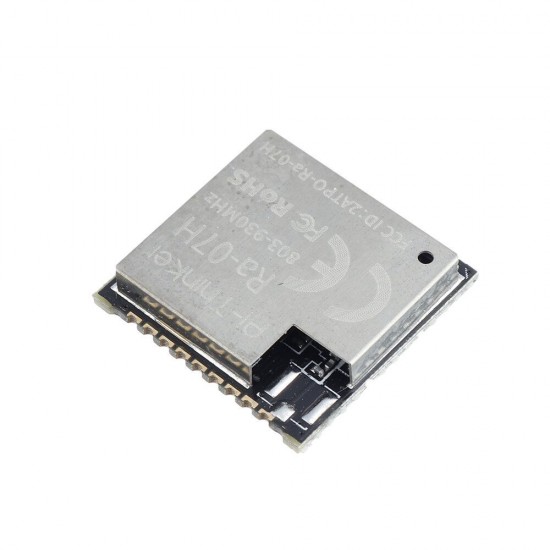

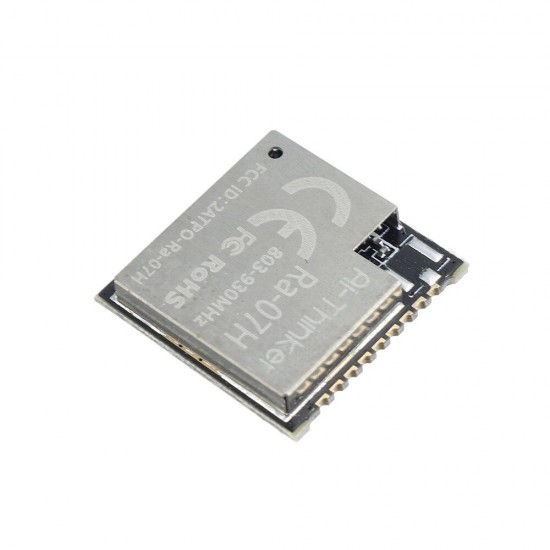

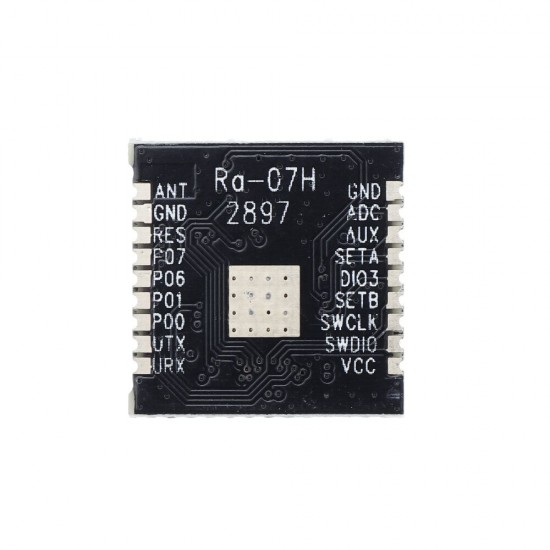

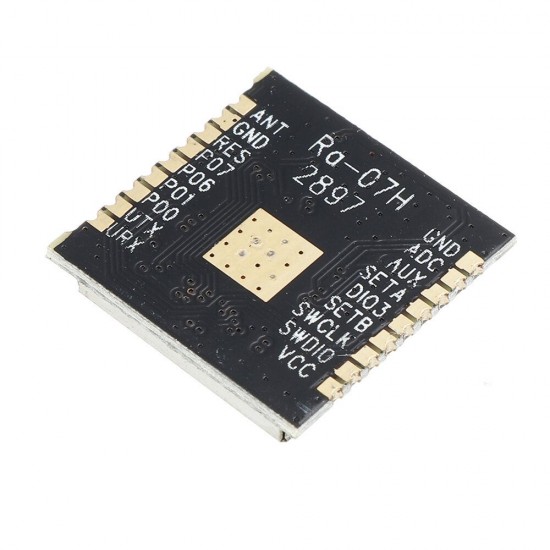

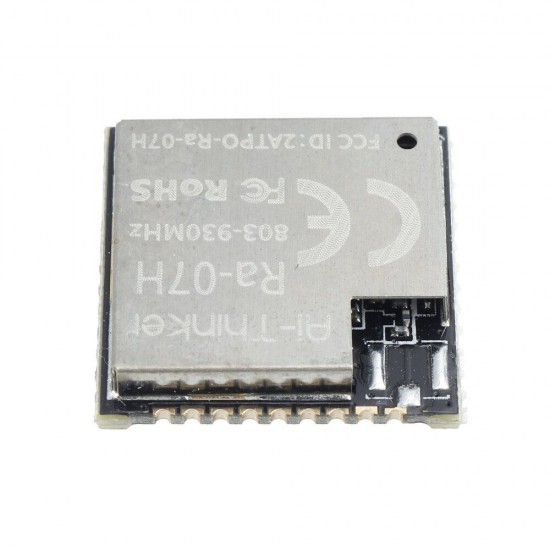

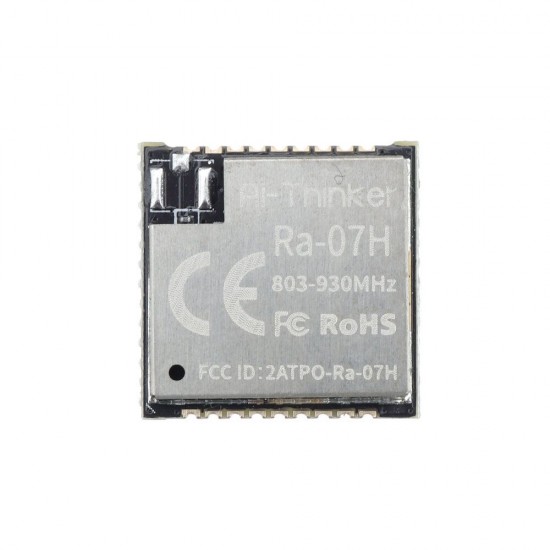

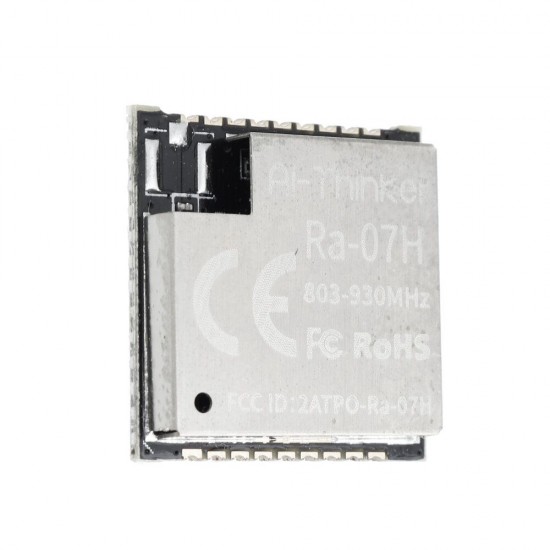

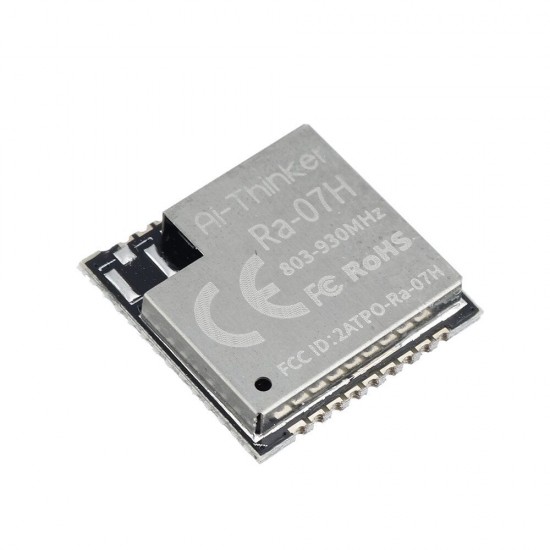

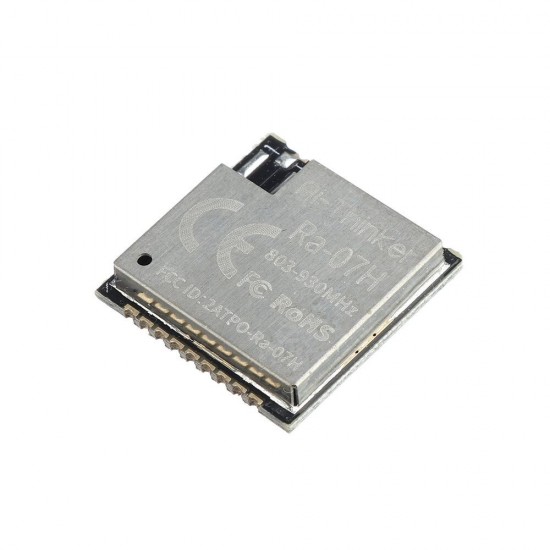

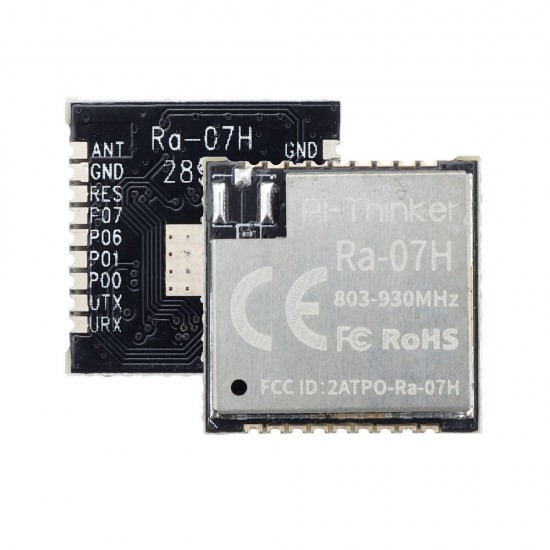

Ra-07H LoRaWAN Low Power Consumption RF Module 868MHz ASR6501 Chip
- Stock: In Stock
- Model: EB0047506
- SKU: EB0047506
- WiFi: YES
Precise details:
Documents:
Ra-07H Product Specification
Introduction:
Ra-07H module is a LoRaWAN module that supports long-distance communication, ultra-low power consumption, high sensitivity, and high cost performance.
The chip ASR6501 of the module integrates LoRa radio transceiver, LoRa modem and 32-bit RISC MCU.
MCU uses ARM Cortex M0 + core, operating frequency is 48MHz.
The operating frequency range of ASR6501 can support continuous coverage from 150MHz to 960MHz;
Support LoRa modulation method and (G)FSK modulation method.
Characteristic:
With super anti-interference ability, it can work normally in complex interference environment
Minimum receiving sensitivity: -137dBm (SF=12/BW=125KHz)
Maximum transmit power +21dBm
Working frequency: 803MHz~930MHz (default)
Power supply voltage input: 3.3V
Transmitting working current: 107mA (full load power consumption)
Receiving working current: 6mA
Sleep current: 3uA
Gateway features:
LoRa private concentrator protocol, flexible, simple, and customizable
Node modules in the area are automatically added to the gateway to form a star network, and three working modes of Class A/Class B/Class C can be selected to join the gateway
LoRA gateway three-channel communication, three working frequencies can be configured, and three channels of data can be sent and received at the same time
Support WAN port, support WIFI, optional 4G module
Support MQTT protocol to connect to cloud server, open MQTT protocol interface
Long-distance transmission, the transmission distance can reach 3000 meters under the open outdoor
Using MediaTek processor MT7688, main frequency: 580MHz, 128Mb Flash, 512Mb RAM
Support frequency hopping communication, wake up in the air, CAD channel detection
Support standard POE power supply or power adapter power supply
It can be widely used in various IoT scenarios:
Automatic meter reading
Home building automation
Security system
Remote irrigation system
Package includes:
1 x Board
