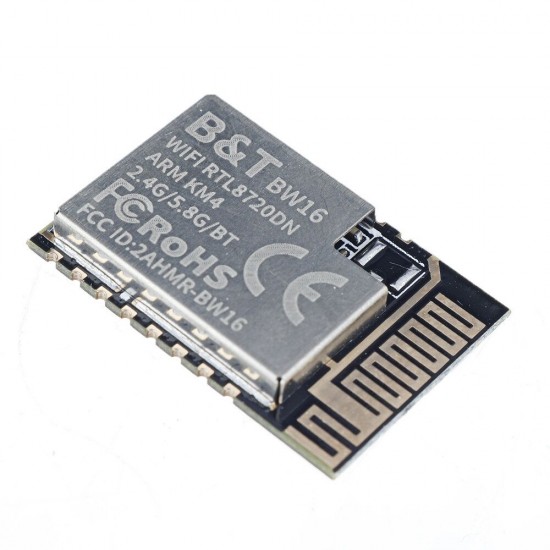

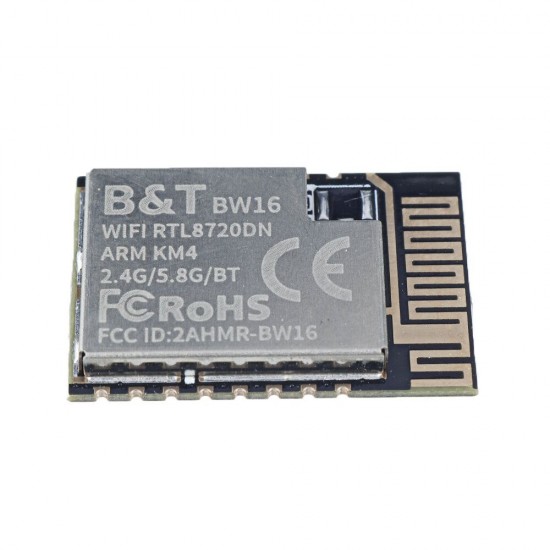

RTL8720DN Dual-band WiFi + Bluetooth Low Energy BLE 5.0 BW16 Module Board
- Stock: In Stock
- Model: EB0047457
- SKU: EB0047457
- WiFi: YES
Precise details:
>>>Manual: Click here to open<<<
Introduction:
BW16 is a dual-band Wi-Fi+Bluetooth SoC module developed based on RTL8720DN. BW16 supports dual-band (2.4GHz or 5GHz) WLAN and Bluetooth low energy 5.0; it integrates ARM V8 (Cortex-M4F compatible) high-performance MCU, ARM V8M (Cortex-M0 compatible) low-power MCU, WLAN (802.11 a / b / g / n), MAC, Bluetooth baseband and RF baseband, and provides a set of configurable GPIO ports for the control of different peripheral devices. BW16 also integrates internal memory, supports simple application development, and can implement complete Wi-Fi and BT 5.0 protocol functions.
Features:
Support 802.11a/b/g/n 1×1, 2.4GHz or 5GHz
Support HT20/HT40 mode
Support low-power beacon monitoring mode, low-power receiving mode, low-power suspend mode
Built-in AES/DES/SHA hardware engine
Support TrustZone-M, support safe boot
Support SWD debug port access protection and prohibited mode
Support BLE and BT5.0
Bluetooth supports high power mode (7dBm, sharing the same PA with Wi-Fi)
Wi-Fi and BT share the same antenna
Support STA/AP/STA+AP working mode
Support Simple Config (APP) / AirKiss (WeChat) one-click distribution network for Android and IOS
Support serial local upgrade and remote firmware upgrade (FOTA)
Size | 24 x 16 x 3(±0.2)mm |
Antenna form | Onboard PCB antenna or IPEX antenna |
Spectrum range | 2400-2483.5MHz or 5180-5825MHz |
Bluetooth | BT5.0 |
Bluetooth frequency range | 2.402 GHz-2.480 GHz |
Support interface | UART/GPIO/ADC/PWM/IIC/SPI/SWD |
Power supply range | Power supply voltage 3.0V-3.6V, typical value 3.3V, power supply current >450mA |
Operating temperature | -20°C~70°C |
Storage environment | -40°C~125°C, <90%RH |
Package includes:
1 x Wi-Fi+Bluetooth SoC module
