$3.99
Ex Tax: $3.99
  • Stock: In Stock
  • Model: EB0045469
  • SKU: EB0045469
More document click to download:  RTL8710AF

Specifications:

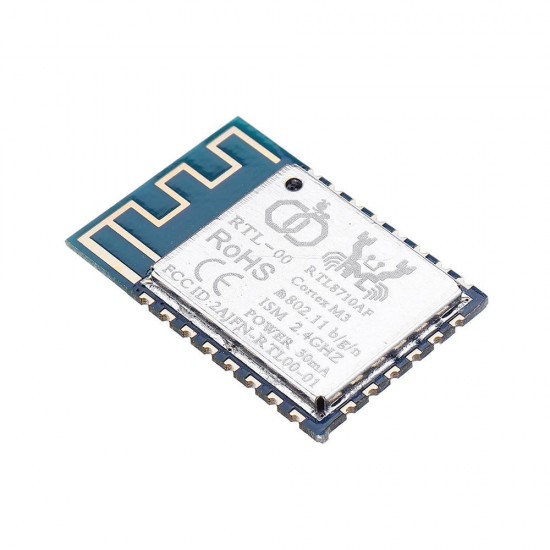

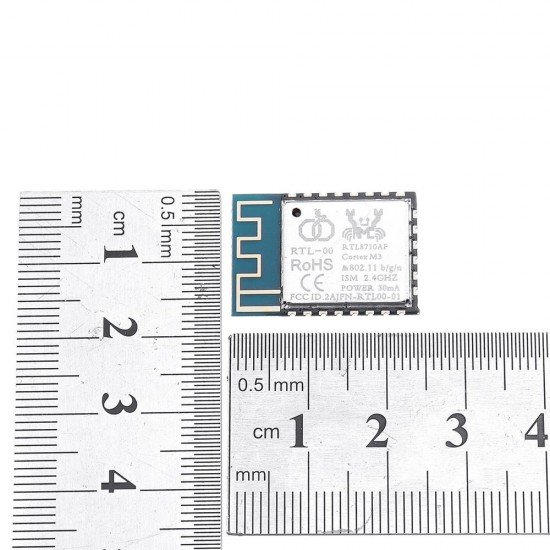

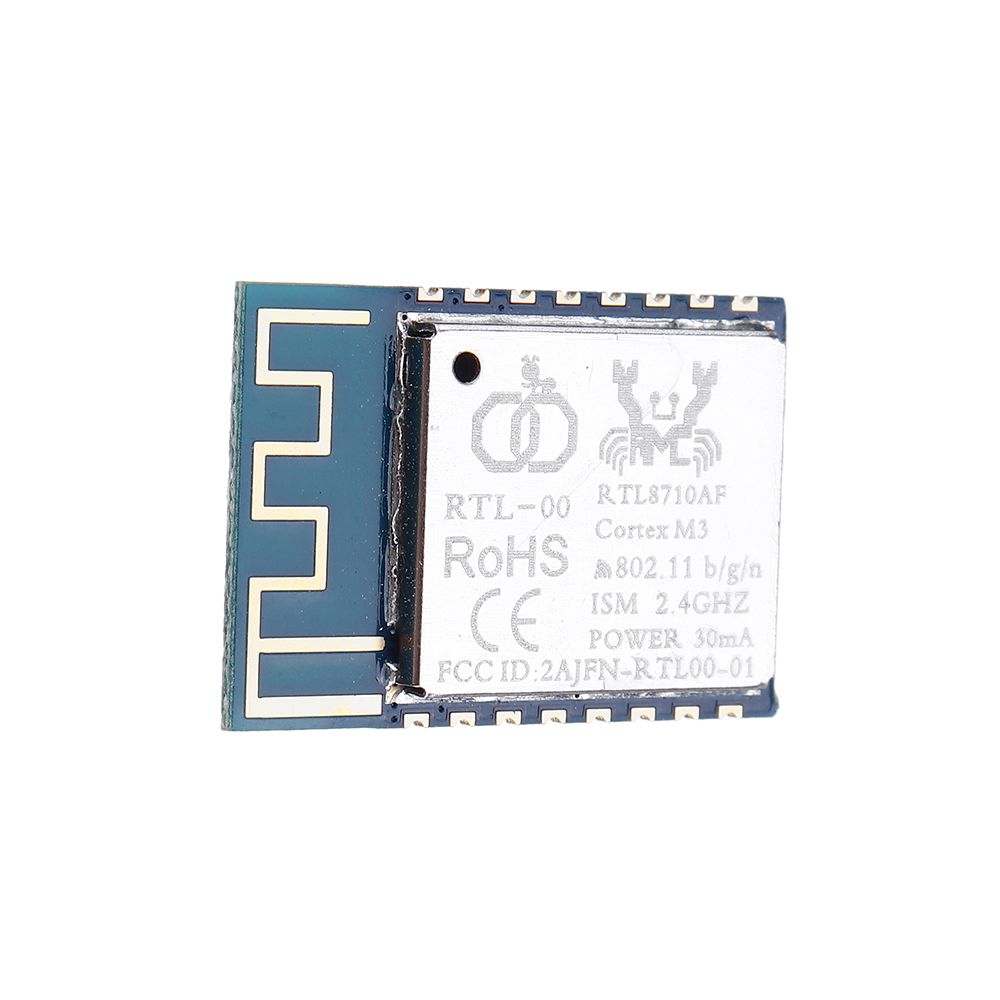

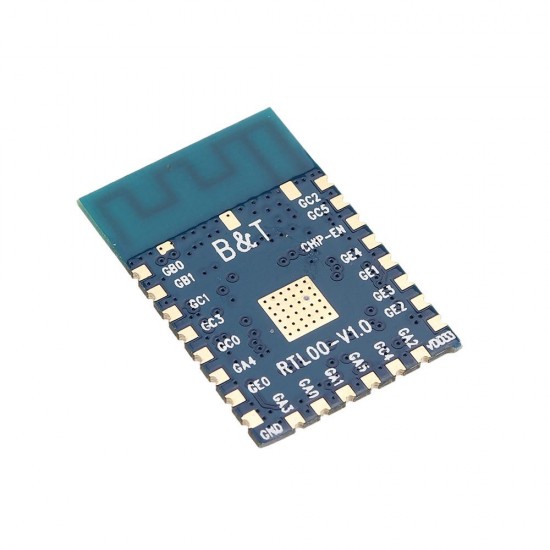

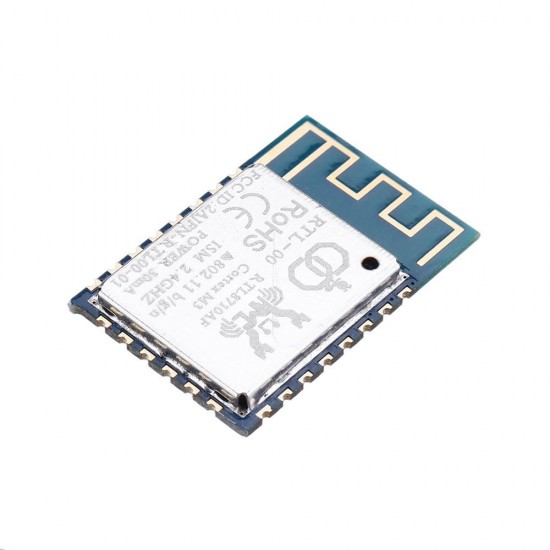

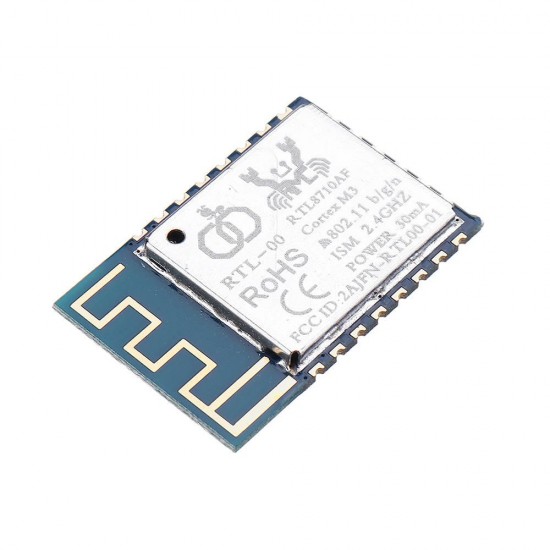

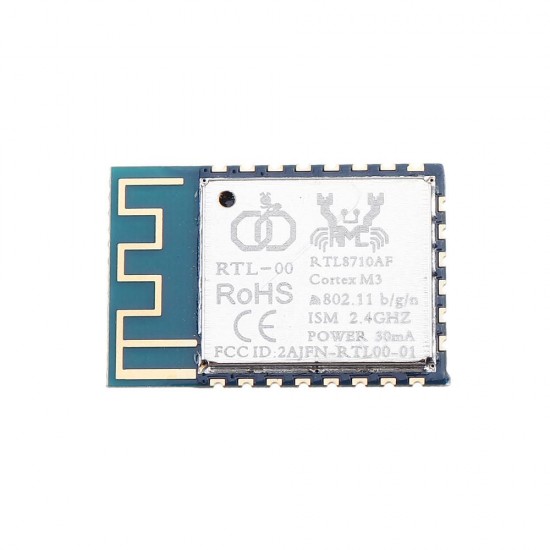

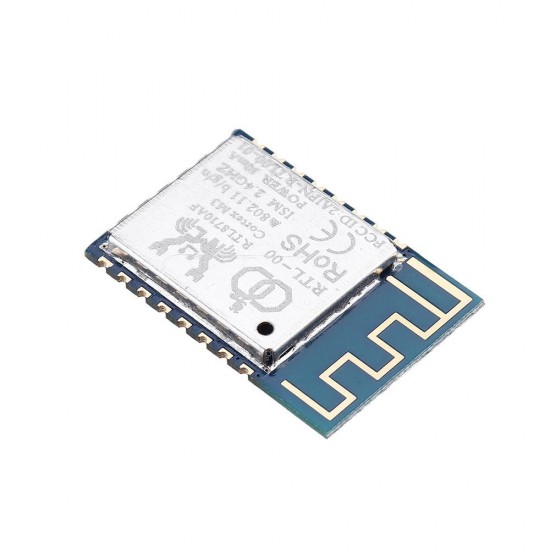

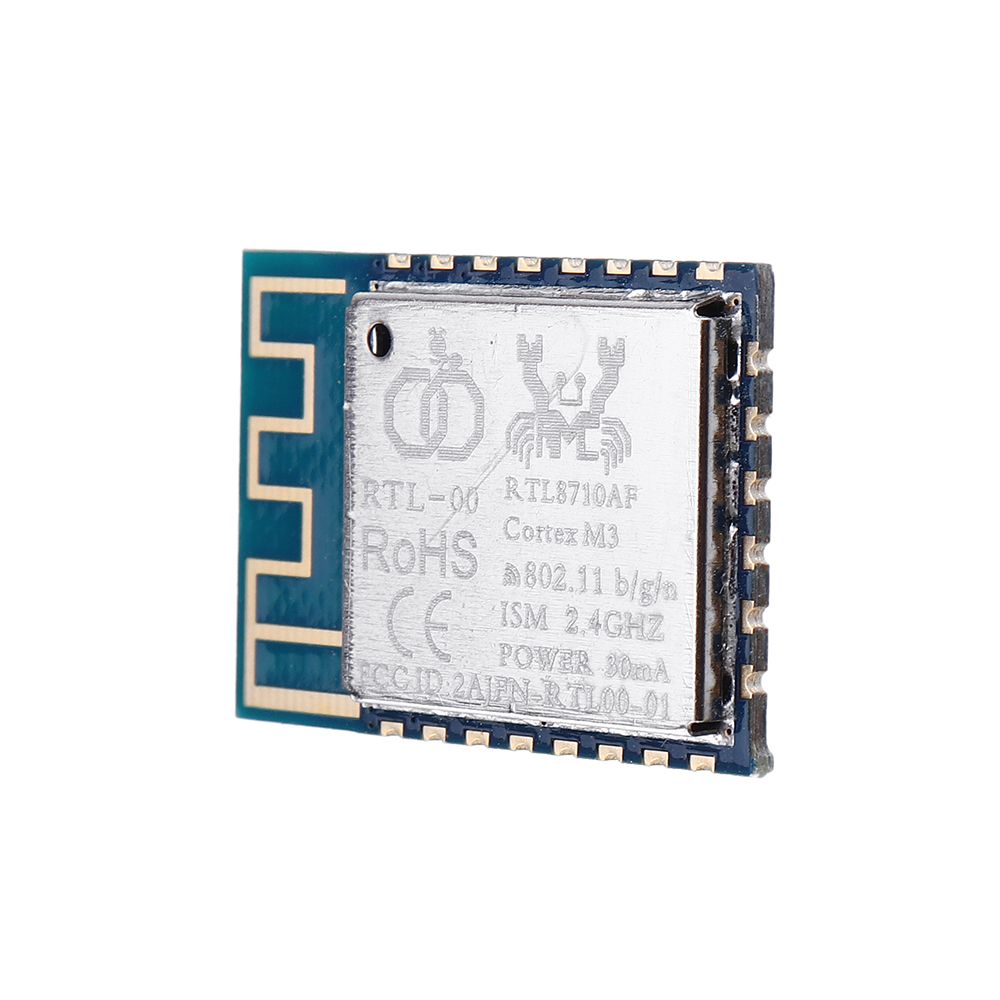

PADI IoT Stamp, powered by Realtek RTL8710AF, is a highly integrated, single-chip, low power WiFi controller with built-in antenna. The stamp combines an ARM Cortex M3, integrated Flash and RAM, WLAN MAC, WLAN baseband, RF balun, PA, LNA receiver, SAW filter and power management module. Designed for makers with high speed SPI/I2C/UART interfaces for IoT applications with minimum Printed Circuit Board (PCB) area requirement. The PADI IoT Stamp is even smaller than a US stamp.
RTL8710AF built-in cache improves system performance and reduces memory requirements. With on board 1MB Flash, PADI IoT stamp can be programmed to run custom firmware that can communicate with external sensors or chipset through various interface ports such as SPI, UART, I2C, PWM and GPIO.

Features:

- 802.11 b/g/n, CMOS MAC, Baseband PHY
-  Built-in low power 32-bit CPU as application processor
- Built-in TCP/IP protocol stack
-  Built-in TR Switch, balun, LN, Power Amplifier and Matching Network
- Built-in PLL, VLDO and Power Management Components
- MO, 2x1 MIMO
- A-MPDU, A-MSDU aggregation and 0.4s Guard Interval
- WiFi @ 2.4 GHz, Support WPA/WPA2 Security Mode
- Support STA/AP/STA+AP Module
-  Support Smart Config function (include Android and iOS devices)
- SPI , UART, I2C, PWM, GPIO
- Dormancy current 10uA, Shutdown current below 5uA
- Wake up, connect and transfer data packets within 2ms
- 802.11b mode +17dBm Output Power
- Standby power below 1.0mW (DTIM3)
- Operating Temperature Range: -20℃ ~ 85 ℃

Package Included:

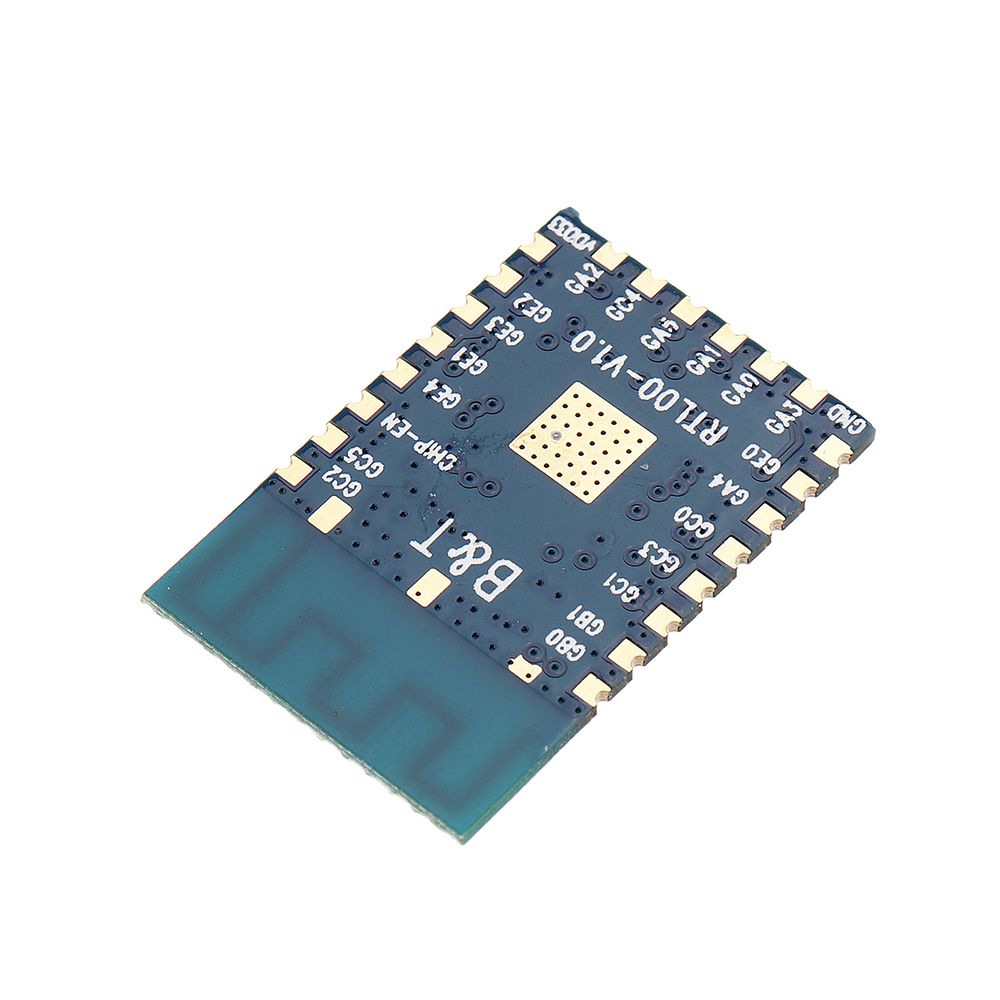

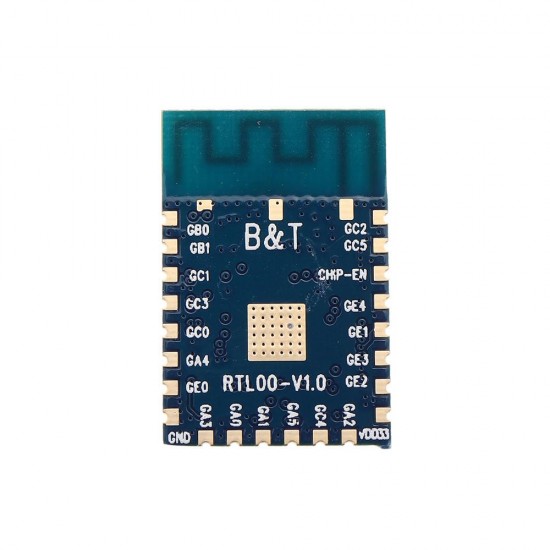

1 x RTL8710AF Wireless IOT Module
