RS485 TTL RS232 Temperature Sensor Converter Module for 10K 3950 NTC Thermistor Resistor Replace DS18B20 PT100

>>>Manual: Click here to open<<<

Specifications:

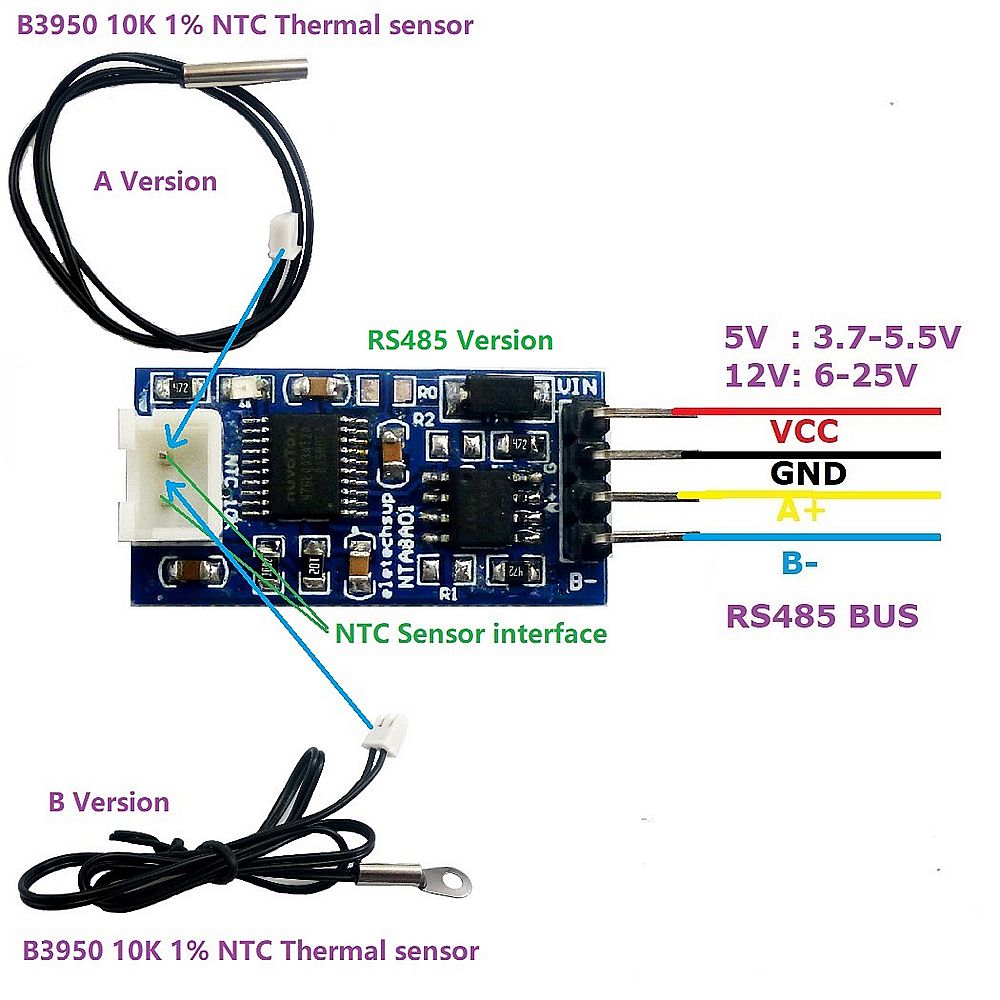

- Working voltage: 5V version: DC 3.7-5.5V; 12V version: 6-25V

- Working current: 8-13mA

- MODBUS RTU protocol, 03 read command, 06 write command.

- Serial port baud rate: 9600 (default), N, 8, 1

- By modifying the 485 address, up to 247 modules can be cascaded (more than 16 please use R485 repeater)

- Adapted sensor: B3950 10K 1% NTC thermistor Resistor

- Temperature measurement range (using our NTC sensor): -20 ° C to +125 ° C.

- Temperature measurement accuracy (using our NTC sensor): 1%.

- Size: 30 x 15 x 6MM

NTC Sensor Specifications:

Product Name: 5*25mmNTC Waterproof Probe

Total length : 50CM

Resistance value: 10K

Resistance accuracy: ±1%

Resistance B value: 3950 ± 1%

Temperature range: -20 ° C -125℃

Wire size: 2651 26# parallel line temperature 105 °C

Plug model: XH2.54-2P

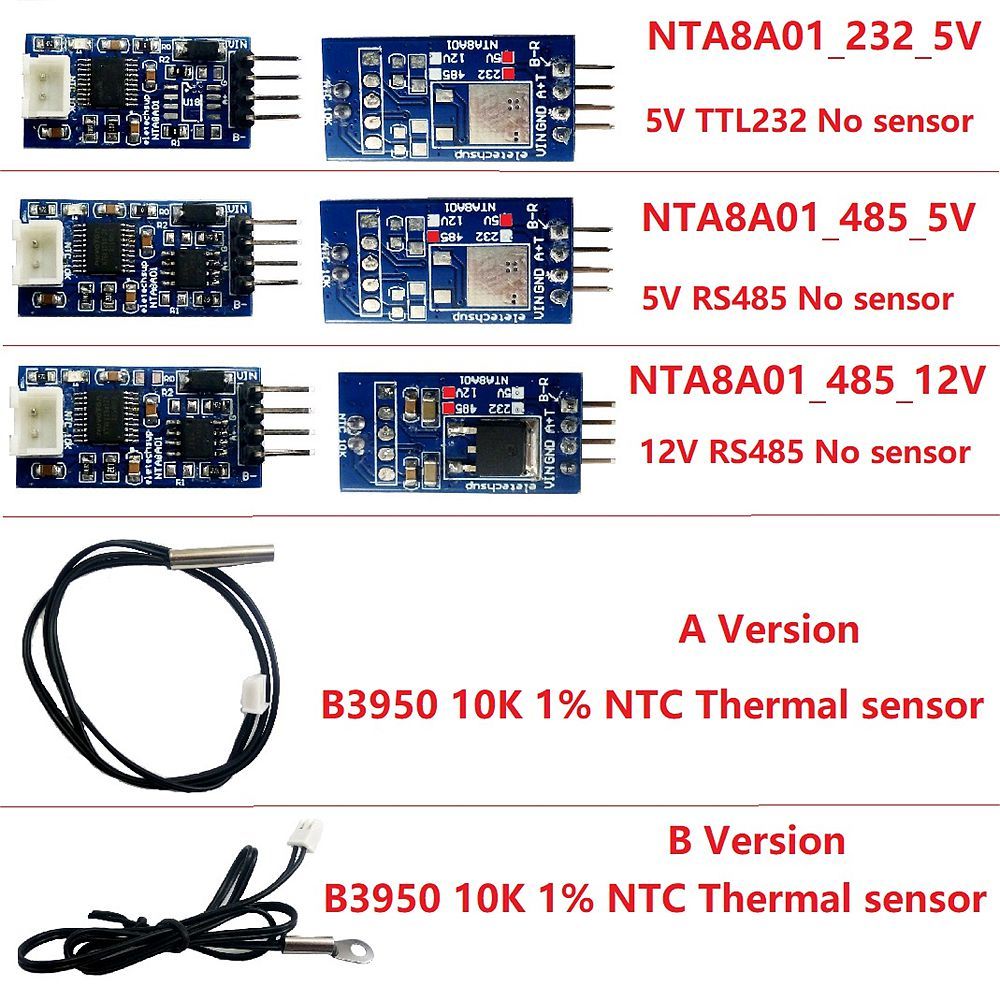

NTC Probe: A version without mounting holes, B version with mounting holes (4MM/M4)

Application:

PLC control system

NTC thermistor sensor

Thermostatic Controls

Industrial Systems

Thermometers

Thermally Sensitive Systems

Indoor and outdoor temperature measurement

Temperature in vegetable garden

Weather forecasting, and monitoring

Temperature in Computer Room

Warehouse temperature

Package Included:

1 x RS485 TTL RS232 Temperature Sensor Converter Module
