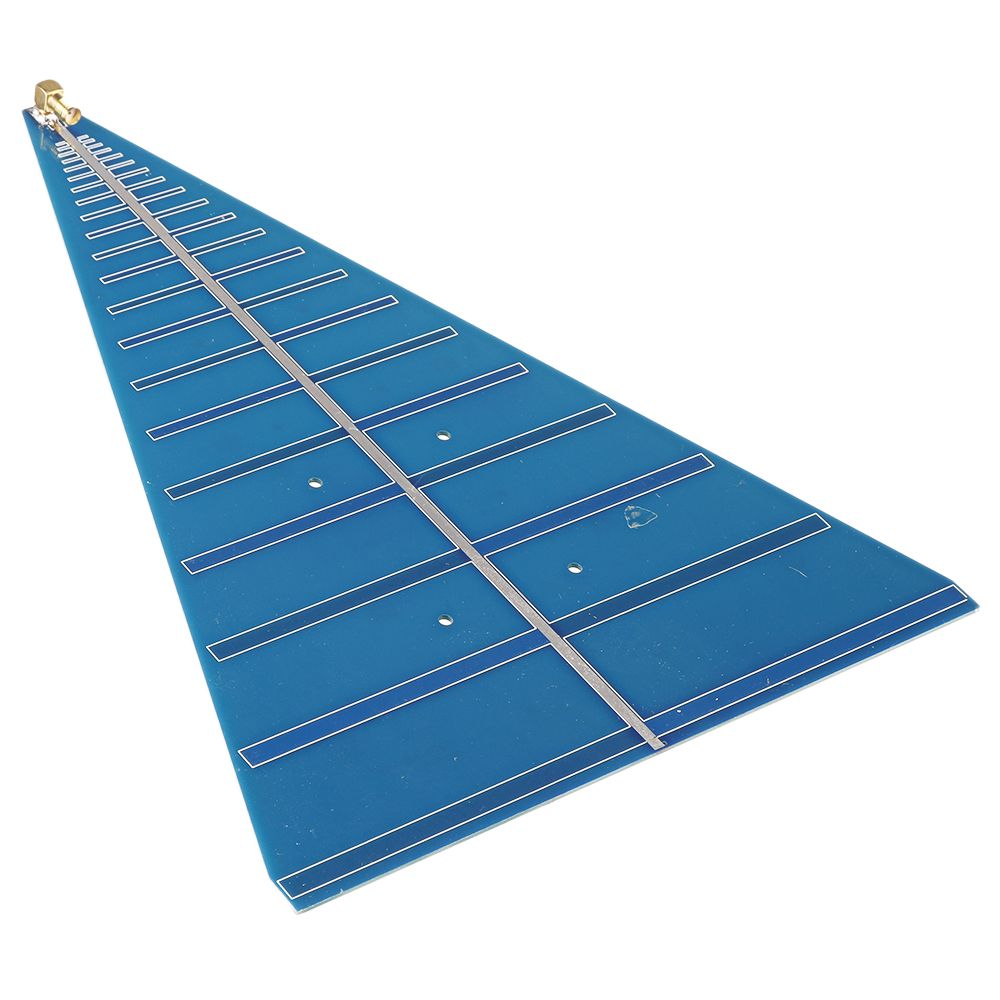

600M-16G Broadband Antenna Directional Antenna UWB Wifi Antenna

600M-16G Broadband Antenna Directional Antenna UWB Wifi Antenna
600M-16G Broadband Antenna Directional Antenna UWB Wifi Antenna
600M-16G Broadband Antenna Directional Antenna UWB Wifi Antenna
600M-16G Broadband Antenna Directional Antenna UWB Wifi Antenna
600M-16G Broadband Antenna Directional Antenna UWB Wifi Antenna
600M-16G Broadband Antenna Directional Antenna UWB Wifi Antenna
600M-16G Broadband Antenna Directional Antenna UWB Wifi Antenna
600M-16G Broadband Antenna Directional Antenna UWB Wifi Antenna
600M-16G Broadband Antenna Directional Antenna UWB Wifi Antenna
600M-16G Broadband Antenna Directional Antenna UWB Wifi Antenna
600M-16G Broadband Antenna Directional Antenna UWB Wifi Antenna
600M-16G Broadband Antenna Directional Antenna UWB Wifi Antenna
600M-16G Broadband Antenna Directional Antenna UWB Wifi Antenna
600M-16G Broadband Antenna Directional Antenna UWB Wifi Antenna
600M-16G Broadband Antenna Directional Antenna UWB Wifi Antenna
600M-16G Broadband Antenna Directional Antenna UWB Wifi Antenna
600M-16G Broadband Antenna Directional Antenna UWB Wifi Antenna
600M-16G Broadband Antenna Directional Antenna UWB Wifi Antenna
600M-16G Broadband Antenna Directional Antenna UWB Wifi Antenna
$23.99
Ex Tax: $23.99
  • Stock: In Stock
  • Model: EB0051592
  • SKU: EB0051592
  • Price Tag: US$ 5.99 - US$ 15.99
    Precise details>>
    Content-Length: 2359 >
    SR_LPD002_V102 (600M-16G) main parameters:

    Working frequency band: 600M-16G

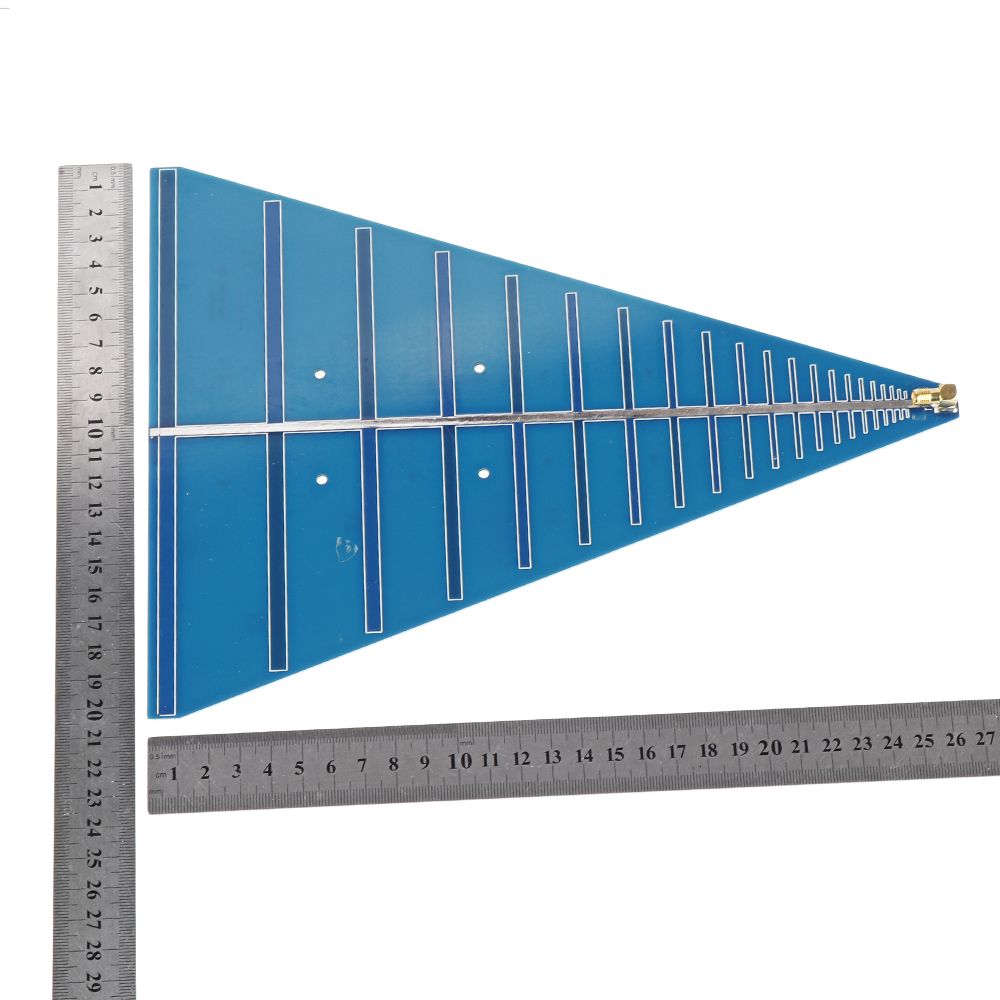

    Dimensions: 240mmX270mm
    Antenna direction angle: 28 degrees
    Power: less than 5W
    SR_LPD002_V102 (600M-16G)

    Package includes:

    1 x Board

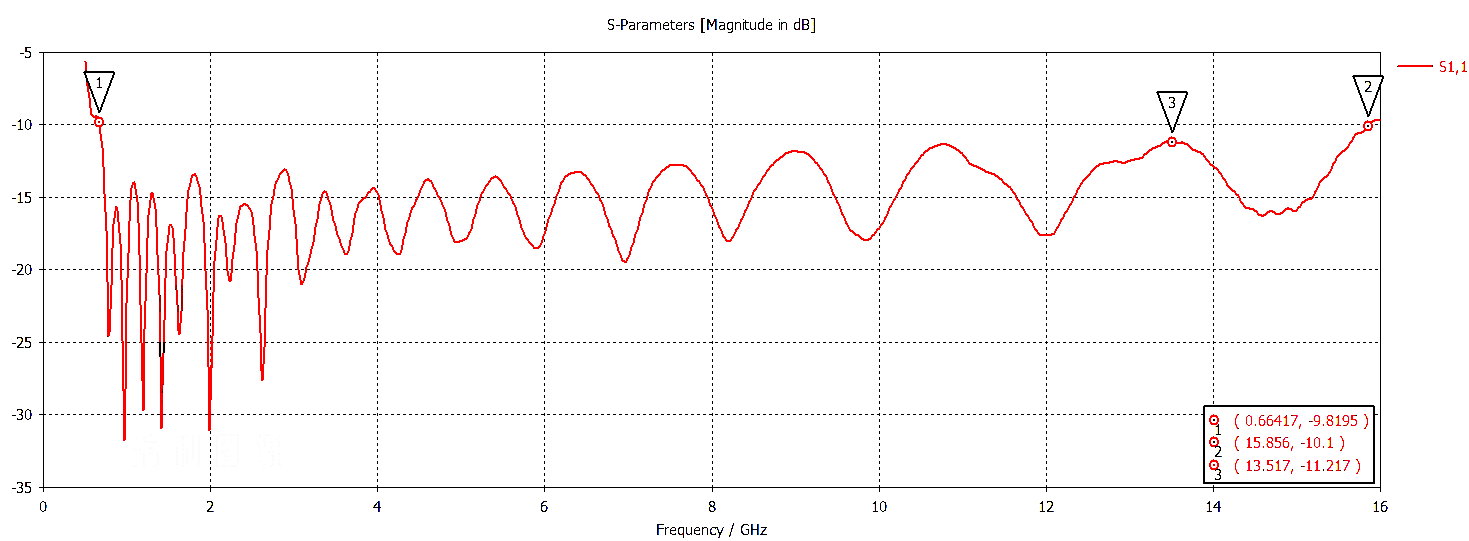

    Simulation diagram S11:

    600M-16G-Broadband-Antenna-Directional-Antenna-UWB-Wifi-Antenna-1718136

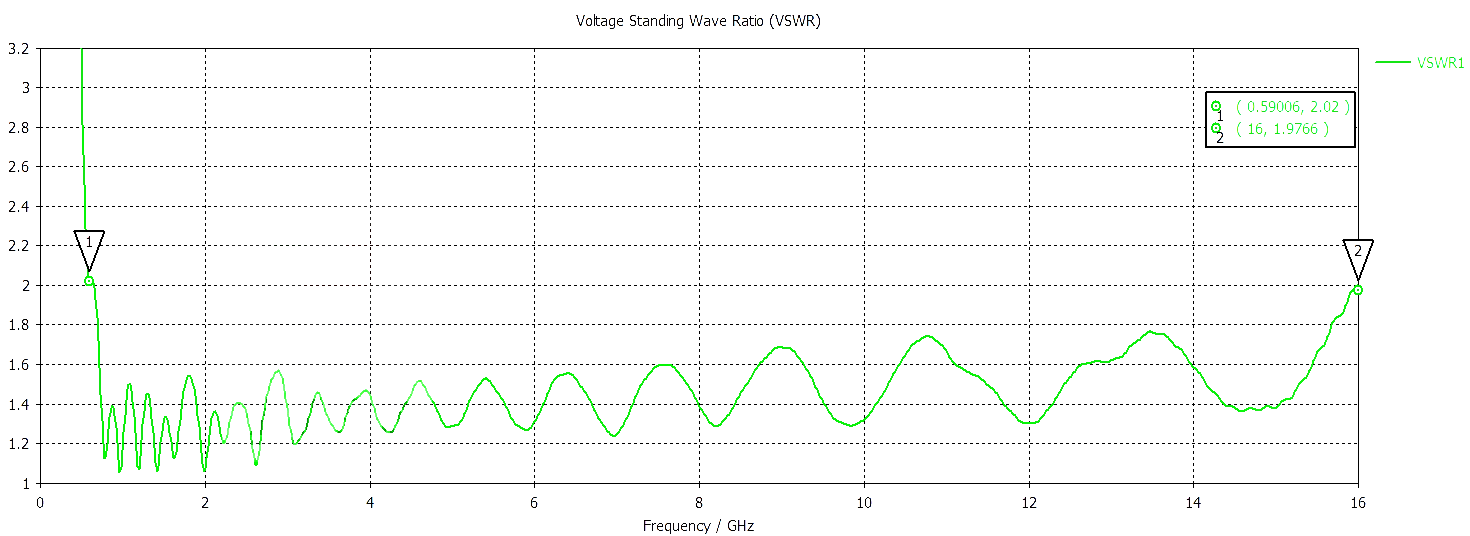

    Simulation diagram VSWR:

    600M-16G-Broadband-Antenna-Directional-Antenna-UWB-Wifi-Antenna-1718136

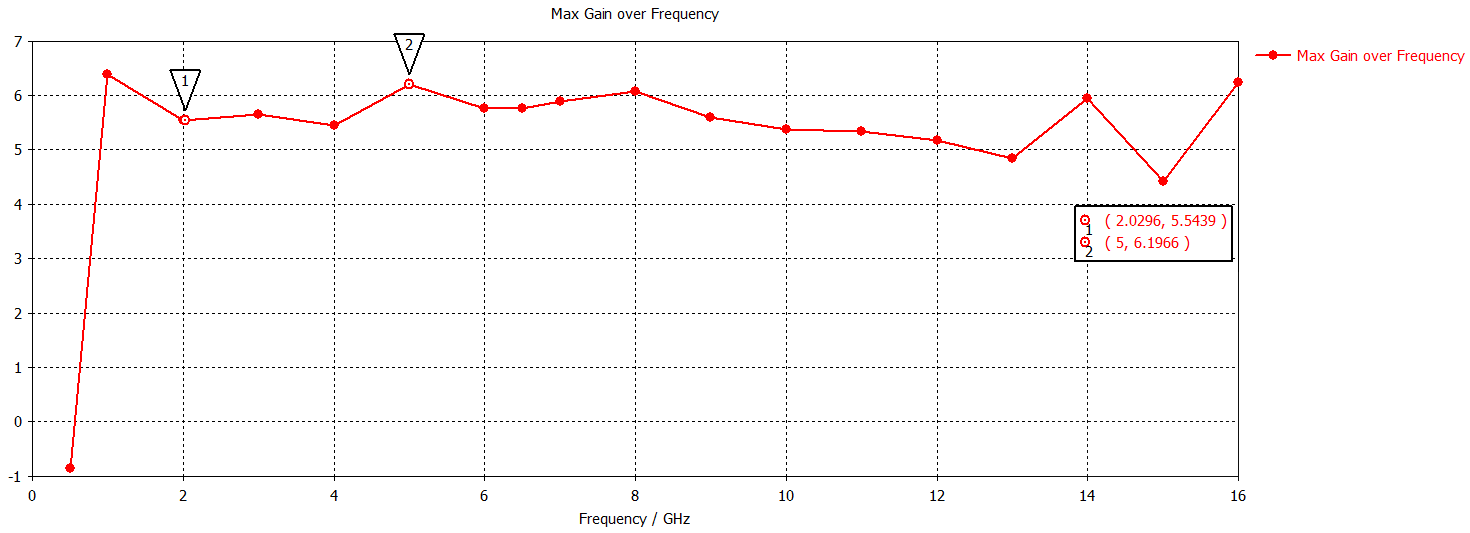

    Simulation plot, gain, antenna gain between 5-6dB:

    600M-16G-Broadband-Antenna-Directional-Antenna-UWB-Wifi-Antenna-1718136

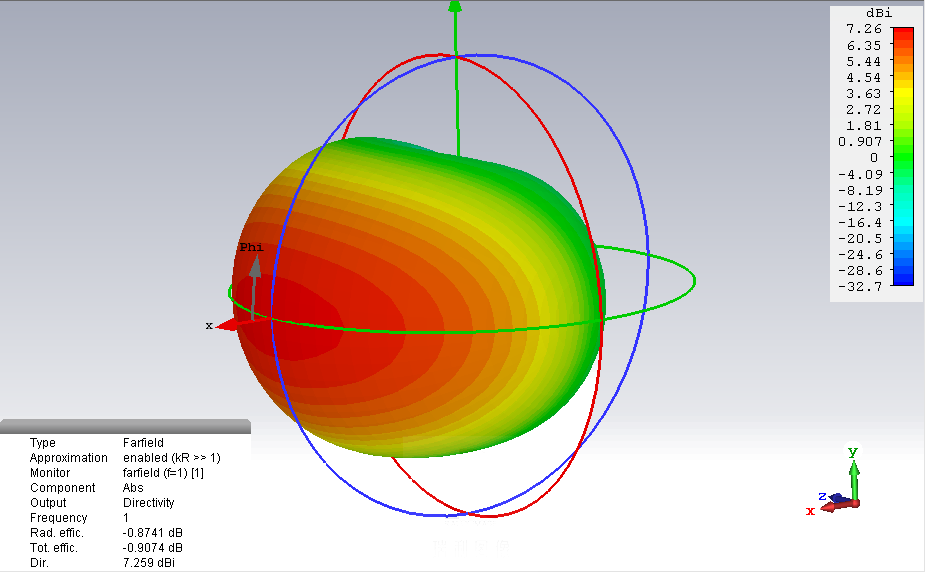

    Simulation map, 1GHz far field radiation pattern:

    600M-16G-Broadband-Antenna-Directional-Antenna-UWB-Wifi-Antenna-1718136

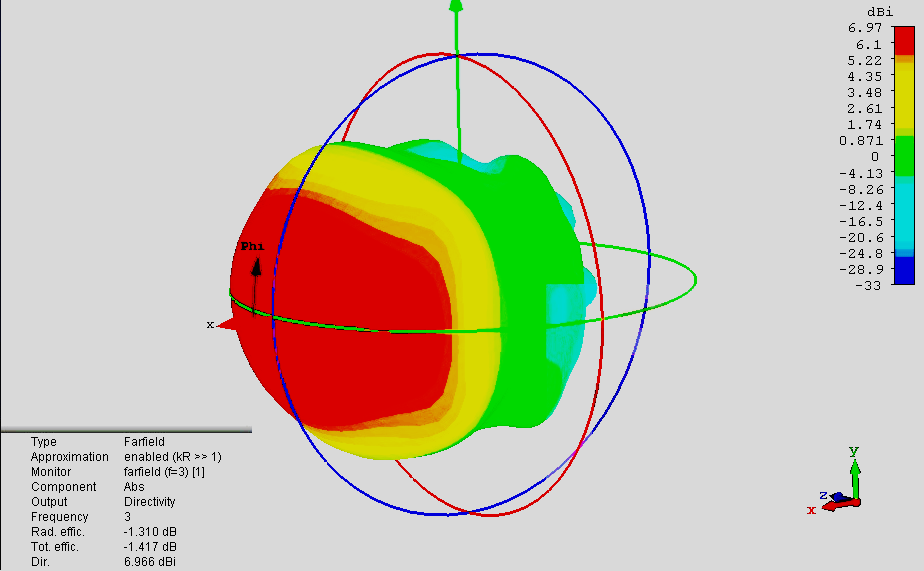

    Simulation diagram, 3GHz far field radiation pattern:

    600M-16G-Broadband-Antenna-Directional-Antenna-UWB-Wifi-Antenna-1718136

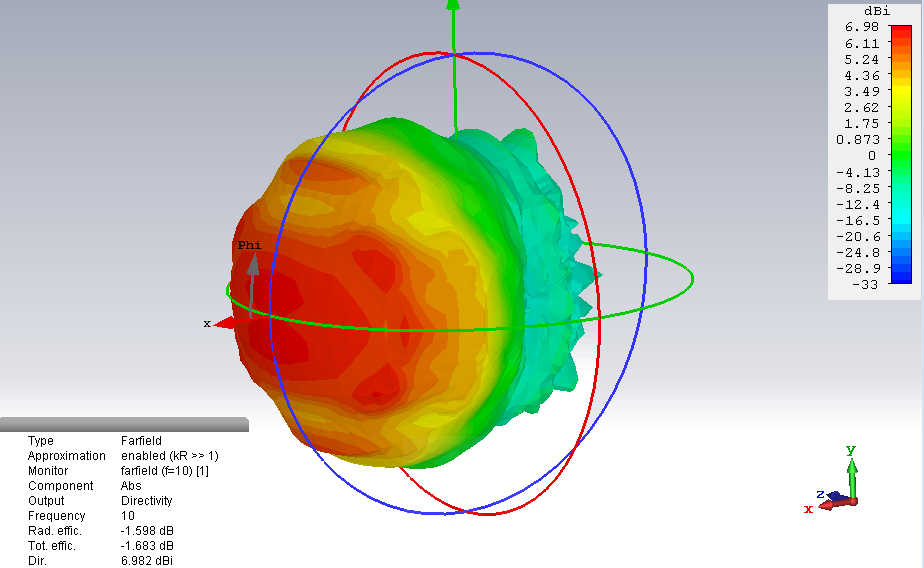

    Simulation diagram, 10 GHz far field radiation pattern:

    600M-16G-Broadband-Antenna-Directional-Antenna-UWB-Wifi-Antenna-1718136

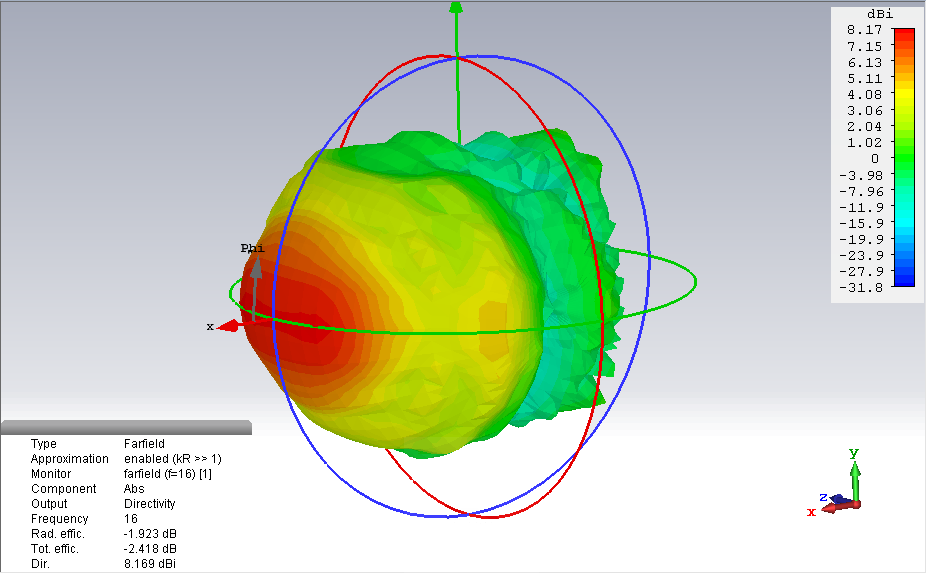

    Simulation map, 16GHz far field radiation pattern:

    600M-16G-Broadband-Antenna-Directional-Antenna-UWB-Wifi-Antenna-1718136

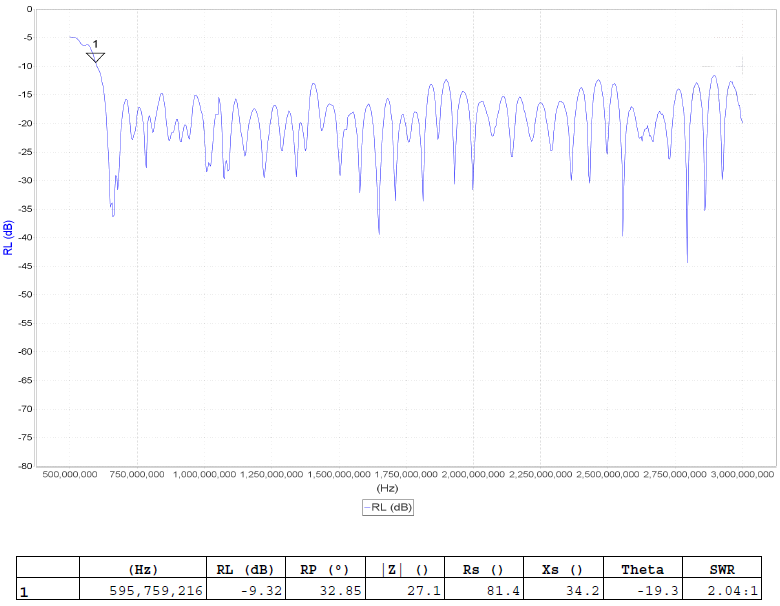

    Measured S11 map (500M-3G):

    600M-16G-Broadband-Antenna-Directional-Antenna-UWB-Wifi-Antenna-1718136

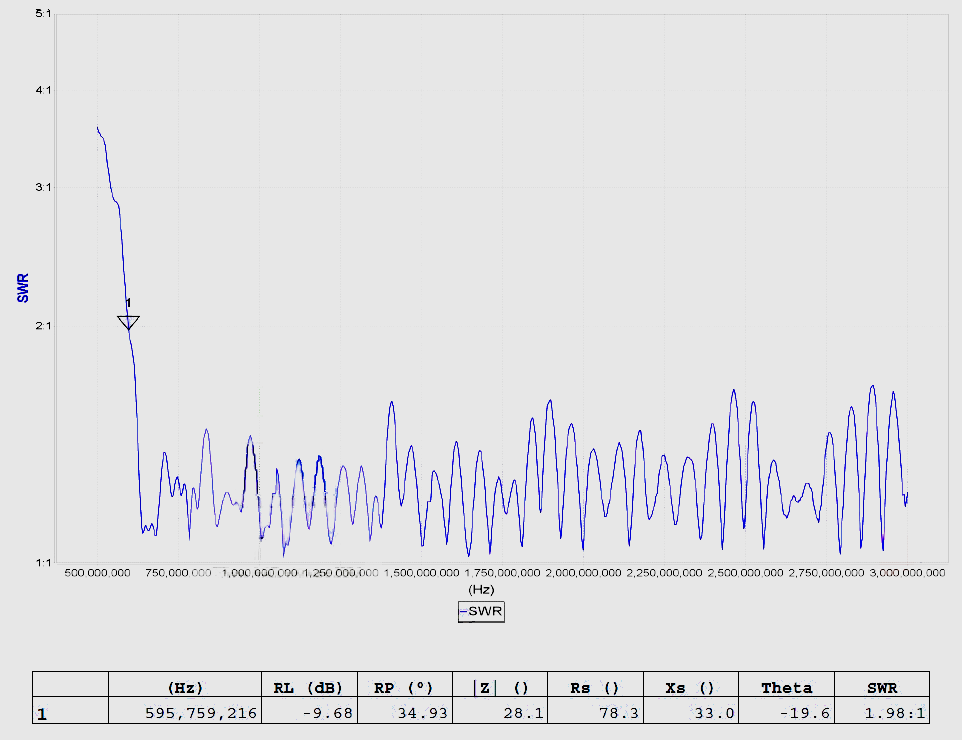

    Measured VSWR diagram (500M-3G):

    600M-16G-Broadband-Antenna-Directional-Antenna-UWB-Wifi-Antenna-1718136

    600M-16G-Broadband-Antenna-Directional-Antenna-UWB-Wifi-Antenna-1718136

    600M-16G-Broadband-Antenna-Directional-Antenna-UWB-Wifi-Antenna-1718136

    600M-16G-Broadband-Antenna-Directional-Antenna-UWB-Wifi-Antenna-1718136

    600M-16G-Broadband-Antenna-Directional-Antenna-UWB-Wifi-Antenna-1718136

    600M-16G-Broadband-Antenna-Directional-Antenna-UWB-Wifi-Antenna-1718136

    600M-16G-Broadband-Antenna-Directional-Antenna-UWB-Wifi-Antenna-1718136

    600M-16G-Broadband-Antenna-Directional-Antenna-UWB-Wifi-Antenna-1718136

    600M-16G-Broadband-Antenna-Directional-Antenna-UWB-Wifi-Antenna-1718136

    600M-16G-Broadband-Antenna-Directional-Antenna-UWB-Wifi-Antenna-1718136

    600M-16G-Broadband-Antenna-Directional-Antenna-UWB-Wifi-Antenna-1718136
