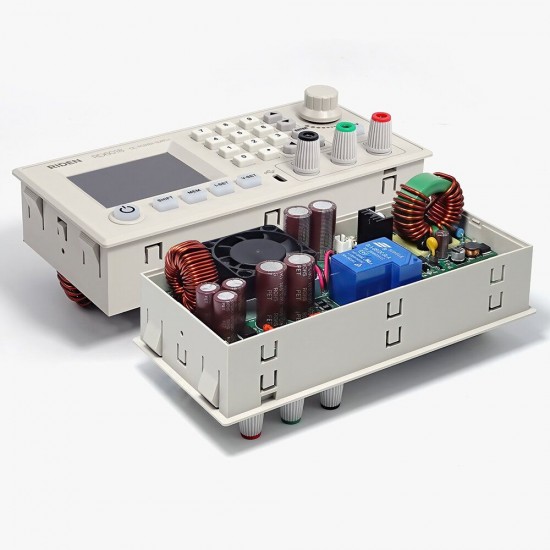

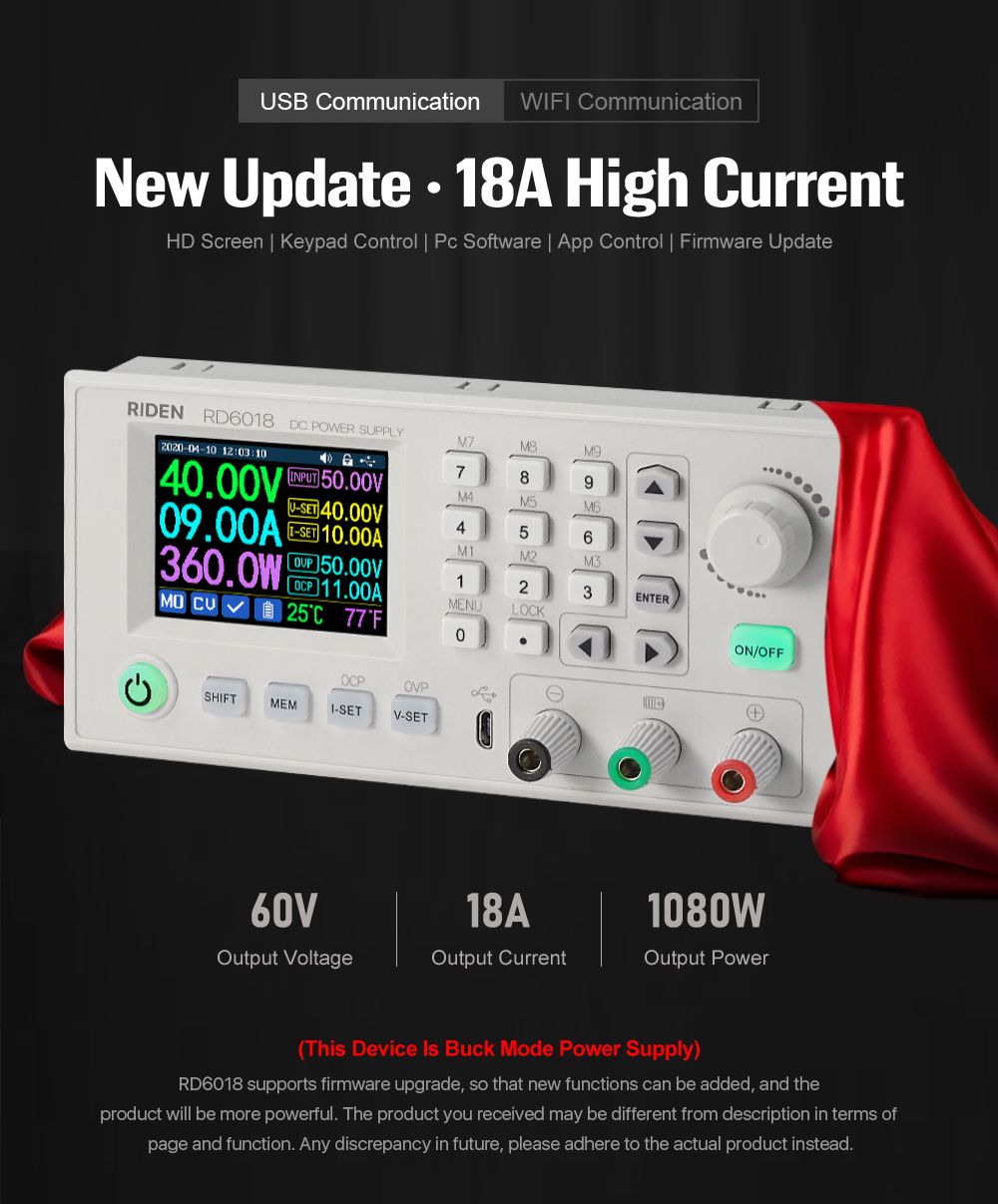

RD6018 RD6018W USB WiFi DC to DC Voltage Step Down Power Supply Module Buck Converter Voltmeter Multimeter 60V 18A 1080W
- Stock: In Stock
- Model: EB0043624
- SKU: EB0043624
Note before buying:
1. RD6018 series has two versions: RD6018 and RD6018-W,RD6018-W have WIFI board , RD6018 don't have . RD6018-W can use WIFI board to connect APP, also use USB micro cable to connect PC solftware . RD6018 don't have WIFI board, only support PC software by connecting with USB micro cable, no support APP. For wifi board to connect PC software, now it did not support.
Note: WiFi connection is a test function, due to poor compatibility of some computers, if you cannot connect PC software via WiFi, please ignore this function. For this function, we do not provide any guarantee and technical support, and we will decide whether to keep this function based on customer feedback.
2. For PC software, it only support win 7 and above for now. For APP, it only support android 5.0 and above. For APP and PC software, because there may be incompatibilities problems, please download first before buying , if you can download and install, you can make order, or else stop buying. If you don't test the PC software and APP function before buying and find that the products works fine except the PC software or APP, we refuse to refund.
Technical parameters:
| Model | RD6006 (1587151) | RD6006-W (1587151) | RD6012 (1687705) | RD6012-W (1687705) | RD6018 | RD6018-W |
| Input voltage range | 6-70.00V | |||||
| Output voltage range | 0-60.00V | |||||

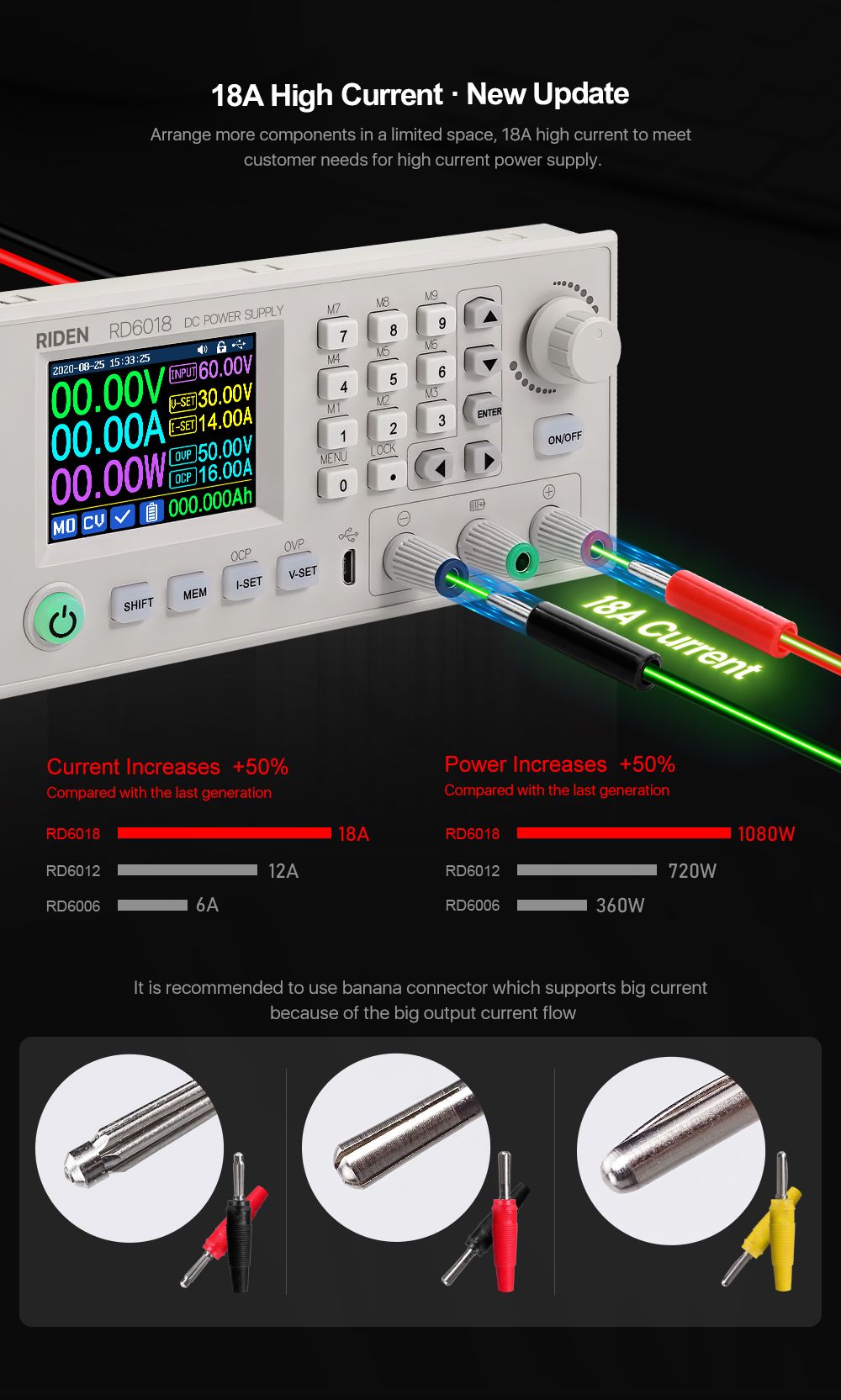

| Output current range | 0-6.000A | 0-12.00A | 0-18.00A | |||

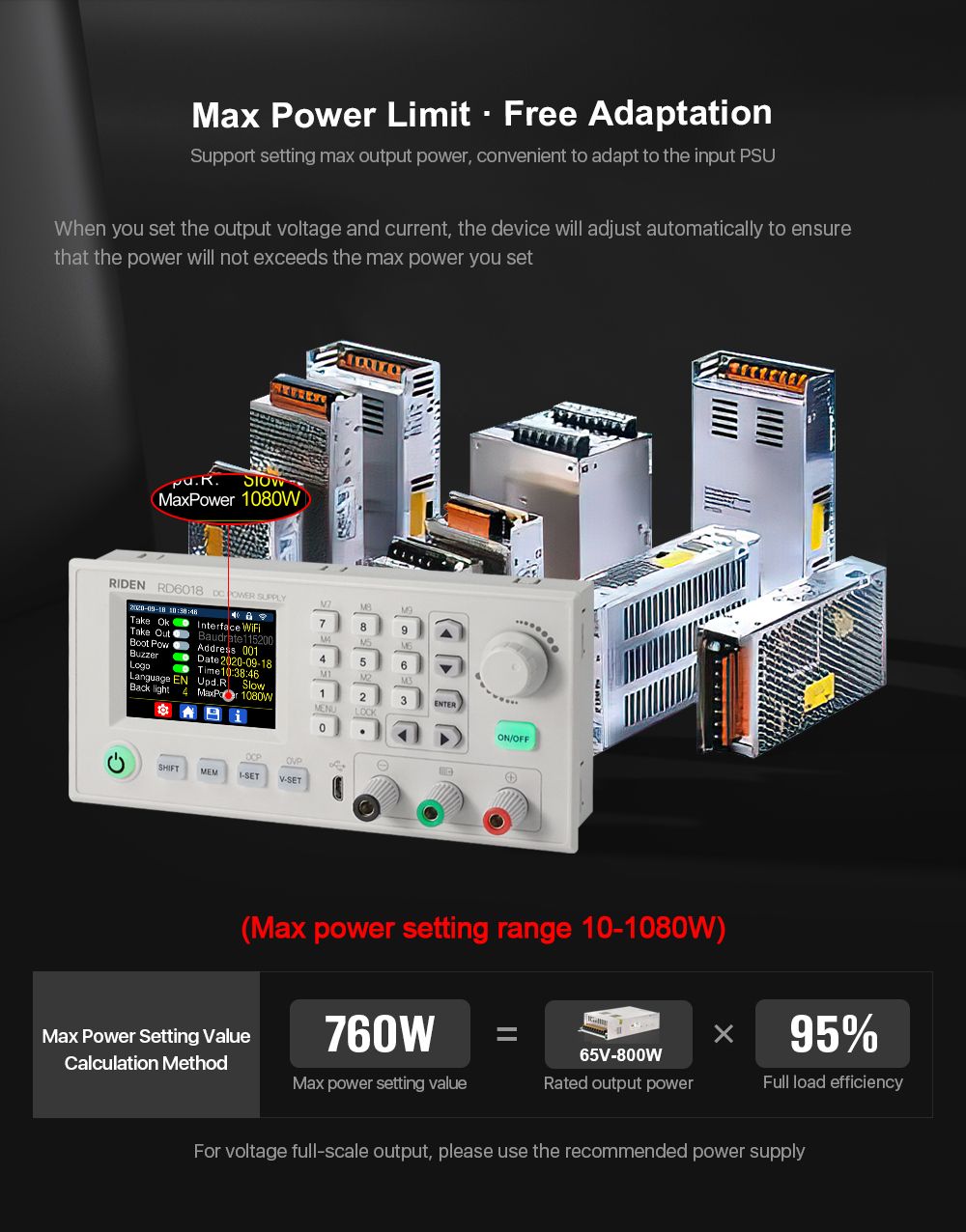

| Output power range | 0-360W | 0-720W | 0-1080W | |||
| Input voltage measurement resolution | 0.01V | |||||
| Output voltage setting measurement resolution | 0.01V | |||||
| Output current setting measurement resolution | 0.001A | 0.01A | ||||
| Battery voltage measurement resolution | 0.01V | |||||
| Input voltage measurement accuracy | ±(1%+5 digits) | |||||
| Output voltage accuracy between setting and measurement | ±(0.3%+3 digits) | |||||
| Output current accuracy between setting and measurement | ±(0.5%+5 digits) | |||||
| Battery voltage measurement accuracy | ±(0.5%+3 digits) | |||||
| Automatic cut off current value when charging | 10mA | 100mA | ||||
| Output ripple typical | 100mV VPP | 250mV VPP@6A | ||||
| Working temperature range | -10℃~40℃ | |||||
| External sensor Temperature detection range: | -10℃~100℃/0℉~200℉ | |||||
| External sensor Temperature detection accuracy: | ±3℃/±6℉ | |||||
| Constant voltage mode response time | 2ms（0.1A-5A Load） | |||||
| Constant voltage mode load regulation | ±(0.1%+2 digits) | |||||
| Constant current mode load regulation | ±(0.1%+3 digits) | |||||
| Capacity measurement range | 0-9999.99Ah | |||||
| Energy measurement range | 0-9999.99Wh | |||||
| Capacity and energy statistical error | ±2％ | |||||
| Buck working mode | Voltage drop >1V and >10% | |||||
| Cooling fan start condition | Output voltage>40V or Output current>4A or System temperature>45℃ | Output current>8A or System temperature>45℃ | ||||
| Cooling fan shut down condition when working | Output voltage <40V and Output current <3.9A and System temperature <45℃ | Output current <7.9A and System temperature <45℃ | ||||
| Over temperature protection | System temperature >80℃ | |||||
| Screen brightness setting | 0-5(6 level in total) | |||||

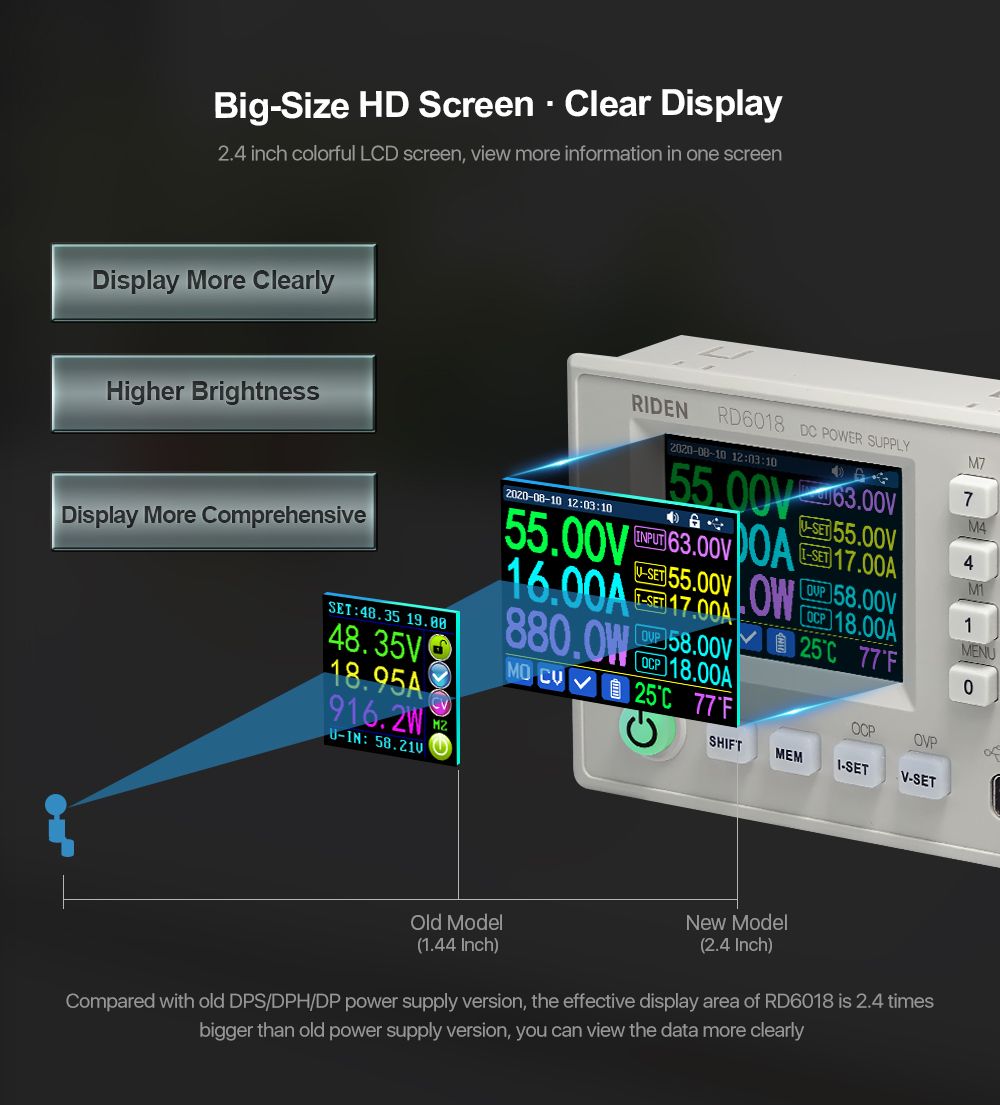

| Screen | 2.4 inch color HD display | |||||
| Weight(with package) | About 0.58kg | About 0.61kg | About 0.68kg | |||
| Product dimension | 167*81*65mm | 167*81*69mm | ||||
| Support USB communication | YES | |||||
| Support WiFi communication | No | YES | No | YES | No | YES |
Documents:
RD6018(W) operation instructon: https://drive.google.com/drive/folders/1V0l6P1sIJilN1yBOsTO9YGLVdkuO0cX9
APP download:
Android system: download at file link (Support android 5.0 -android 10.0): https://drive.google.com/drive/folders/1V0l6P1sIJilN1yBOsTO9YGLVdkuO0cX9?usp=sharing or Search RdPower to download , support Android 5.0 and above phone
IOS system: Search RdPower to download , support IOS10.0-IOS13.4 System
Instruction video for manual:
a. Battery Charging Function Introduction: https://img.renhotecic.com/ic/download/video/irTbqfqtgU0.mp4
b. Output Voltage and Output Current Setting: https://img.renhotecic.com/ic/download/video/S6Kan66dNsk.mp4
c. Data Group Quick Storage and Call out: https://img.renhotecic.com/ic/download/video/eo5saPjOGpo.mp4
d. Keypad lock and unlock: https://img.renhotecic.com/ic/download/video/zxpmasJyQ6Y.mp4
e. System Setting: https://img.renhotecic.com/ic/download/video/Q9d3rIgIrOc.mp4

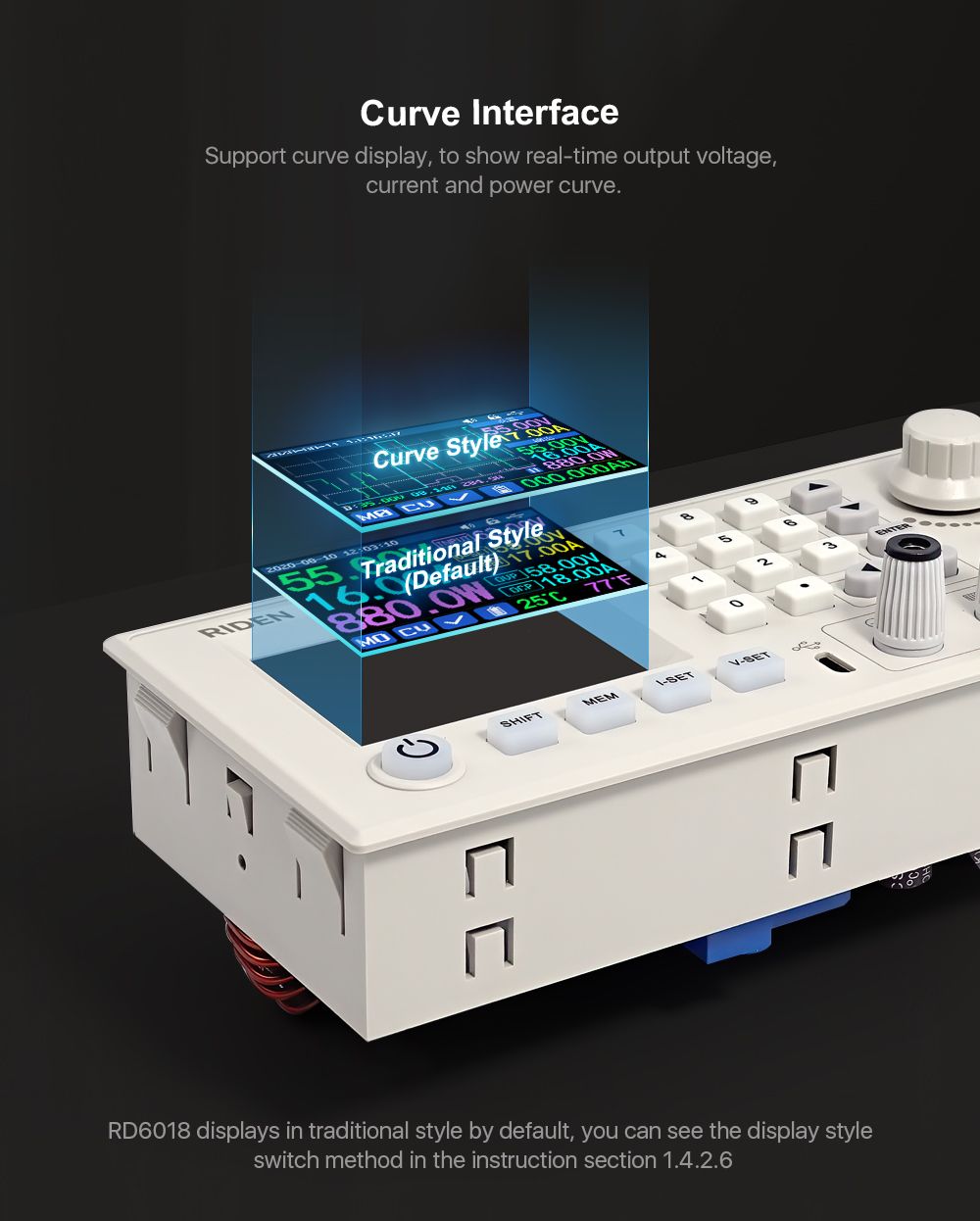

f. Main Page Style Setting: https://img.renhotecic.com/ic/download/video/f51VDiY2VHE.mp4
g: Storage Data Setting: https://img.renhotecic.com/ic/download/video/i1kTeurS13I.mp4
h: System Information: https://img.renhotecic.com/ic/download/video/Um4NQObeeJE.mp4
i: IOS APP Download, Installation and Connection: https://img.renhotecic.com/ic/download/video/nH2HYwop0TE.mp4
j: IOS APP Operation: https://img.renhotecic.com/ic/download/video/lXSw1CM9IY8.mp4
k: Android APP Download, Installation and Connection: https://img.renhotecic.com/ic/download/video/QwyBEUCnp9c.mp4
l: Anroid APP Operation: https://img.renhotecic.com/ic/download/video/hqrF4keTfbE.mp4

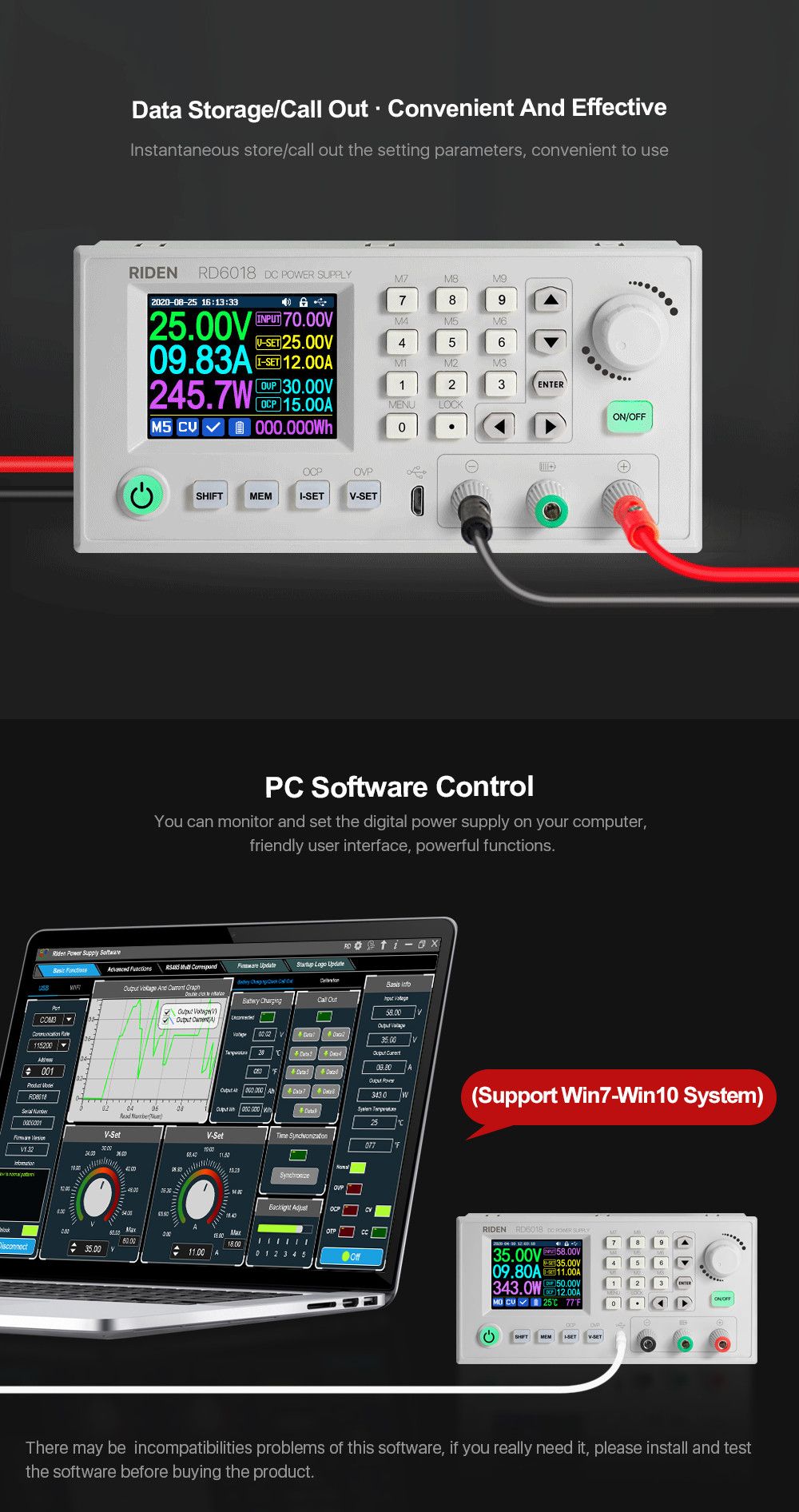

m: PC Software Download and basic operation: https://img.renhotecic.com/ic/download/video/mjt1RMaah1Y.mp4

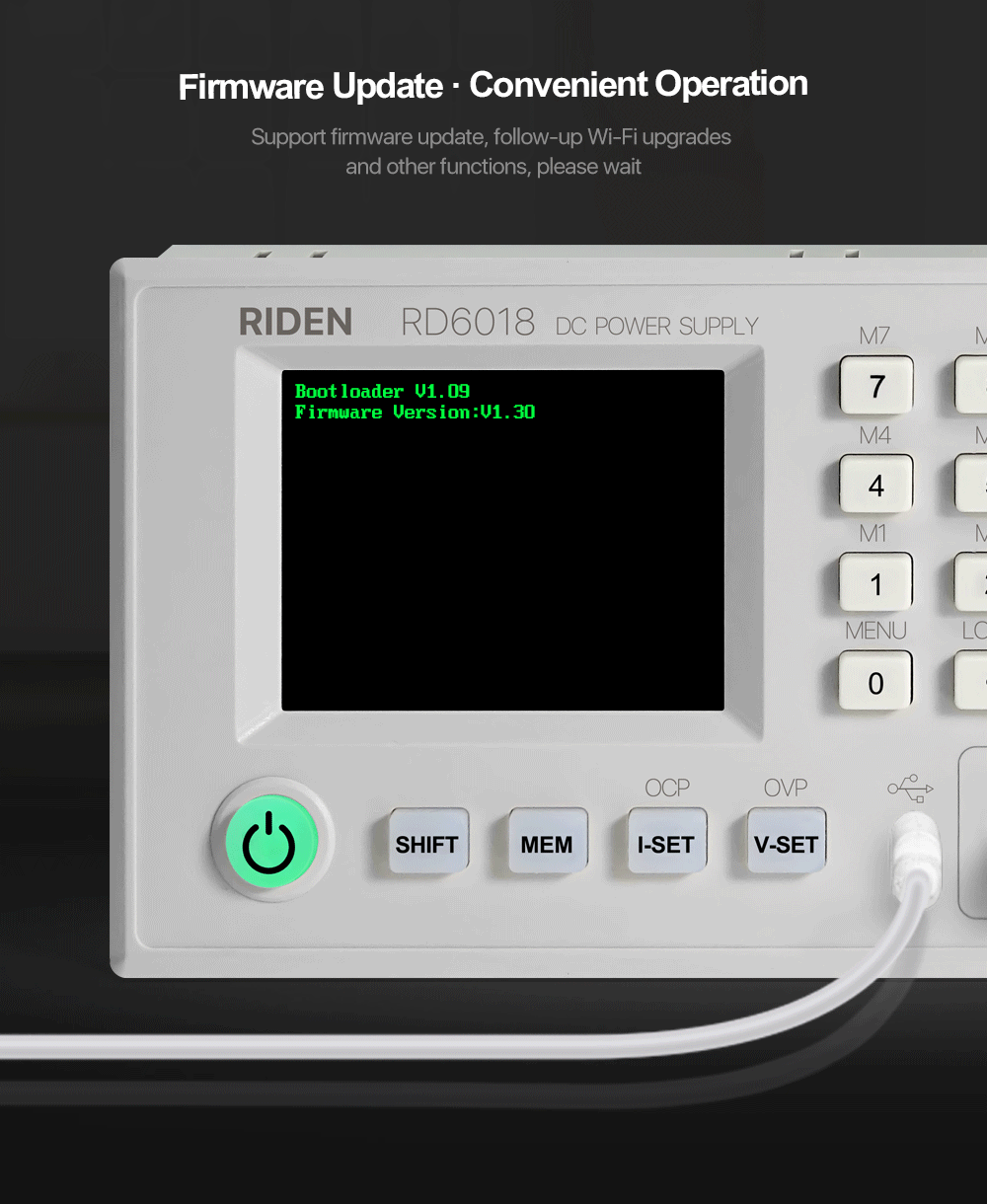

o: Firmware Upgrade: https://img.renhotecic.com/ic/download/video/NOoLfDw0DiY.mp4
p: Calibration: https://img.renhotecic.com/ic/download/video/c9sn1wY2mjE.mp4
q: Logo Update: https://img.renhotecic.com/ic/download/video/vuVhBsohWts.mp4
Package includes: (optional)

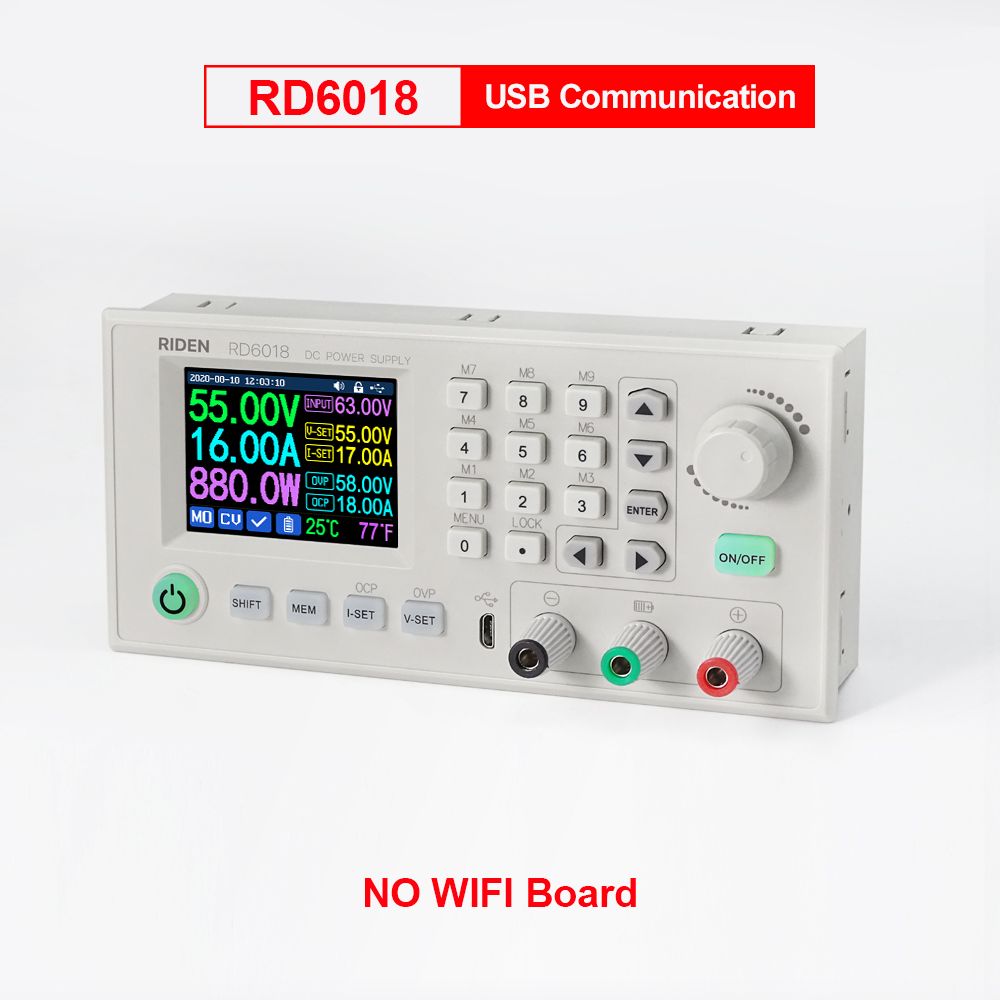

RD6018 version:
1 x RD6018 power supply without WiFi module

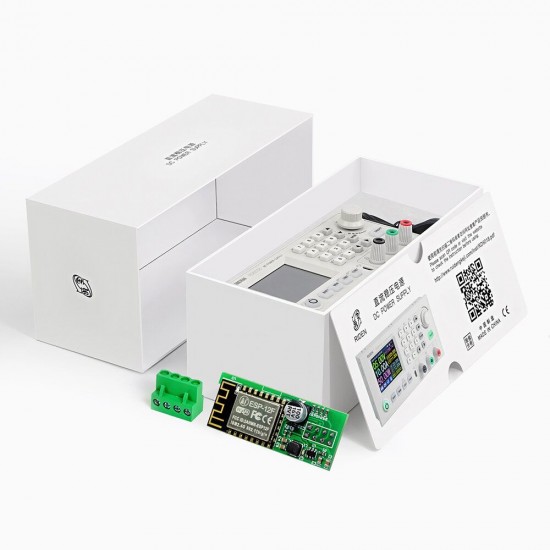

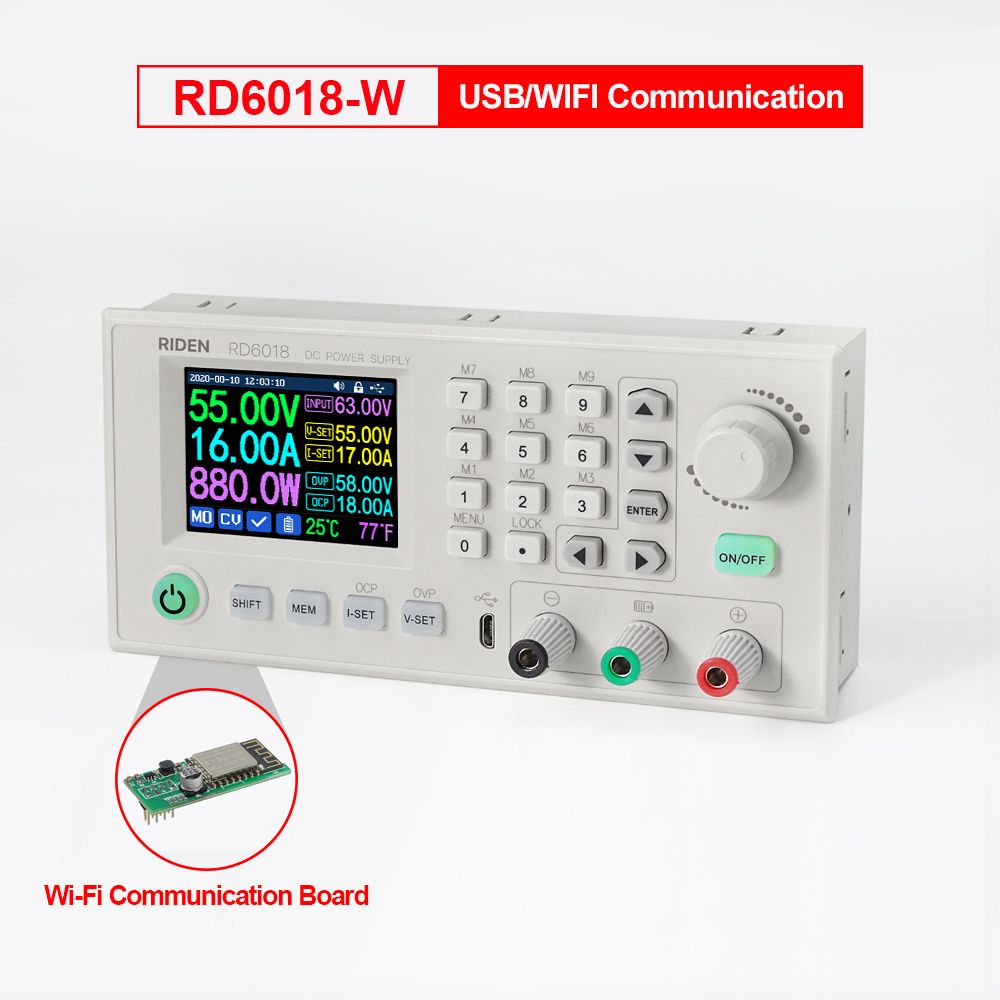

RD6018W version:
1 x RD6018W power supply with WiFi module
