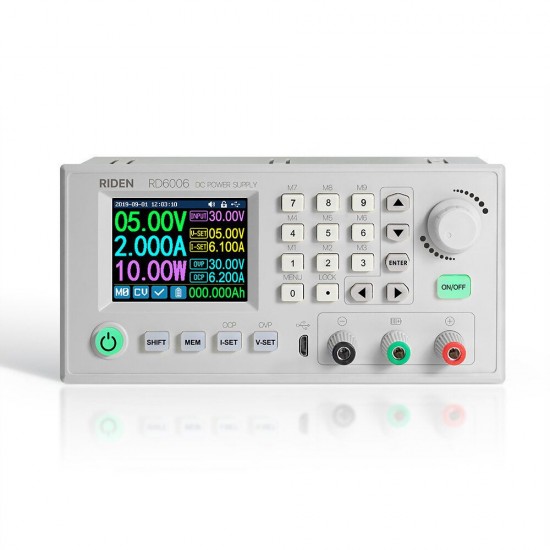

RD6006/RD6006-W Digital Control Switch Adjustable Power Supply DC Stabilized Power Adapter Buck Module Monitoring Power Supply

Based on 0 reviews. - Write a review

$63.99

Ex Tax: $63.99

Stock: In Stock
Model: EB0045192
SKU: EB0045192

Available Options

Type

RD6006-W

RD6006

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Precise details:

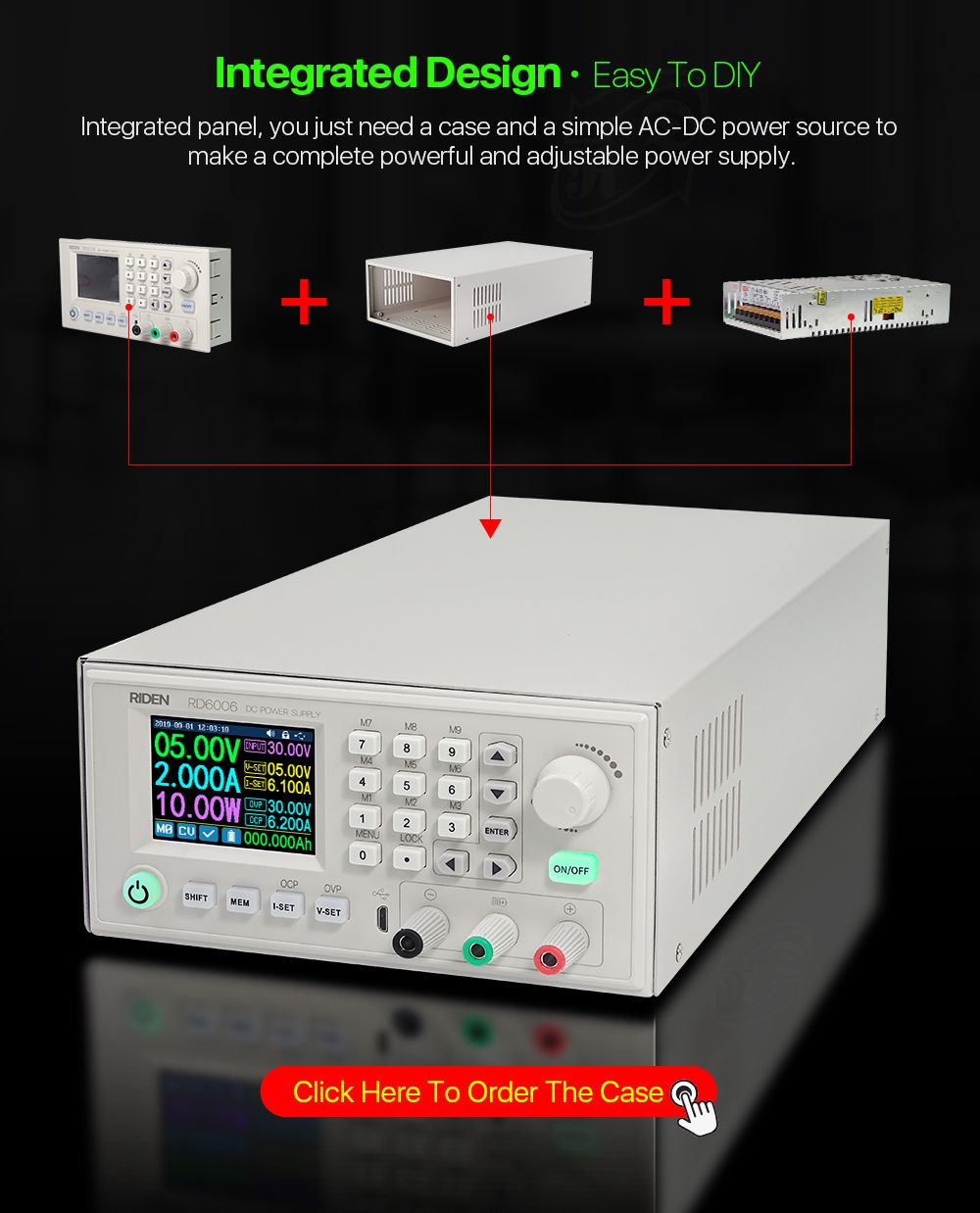

If you need the S06A Case, please buy Product ID: EB0045200
If you need the power supply, please buy Product ID: EB0045197 (Please use this matching power supply. After-sales service is not provided due to problems caused by other power supplies. Thank you) Please select 60V output power supply

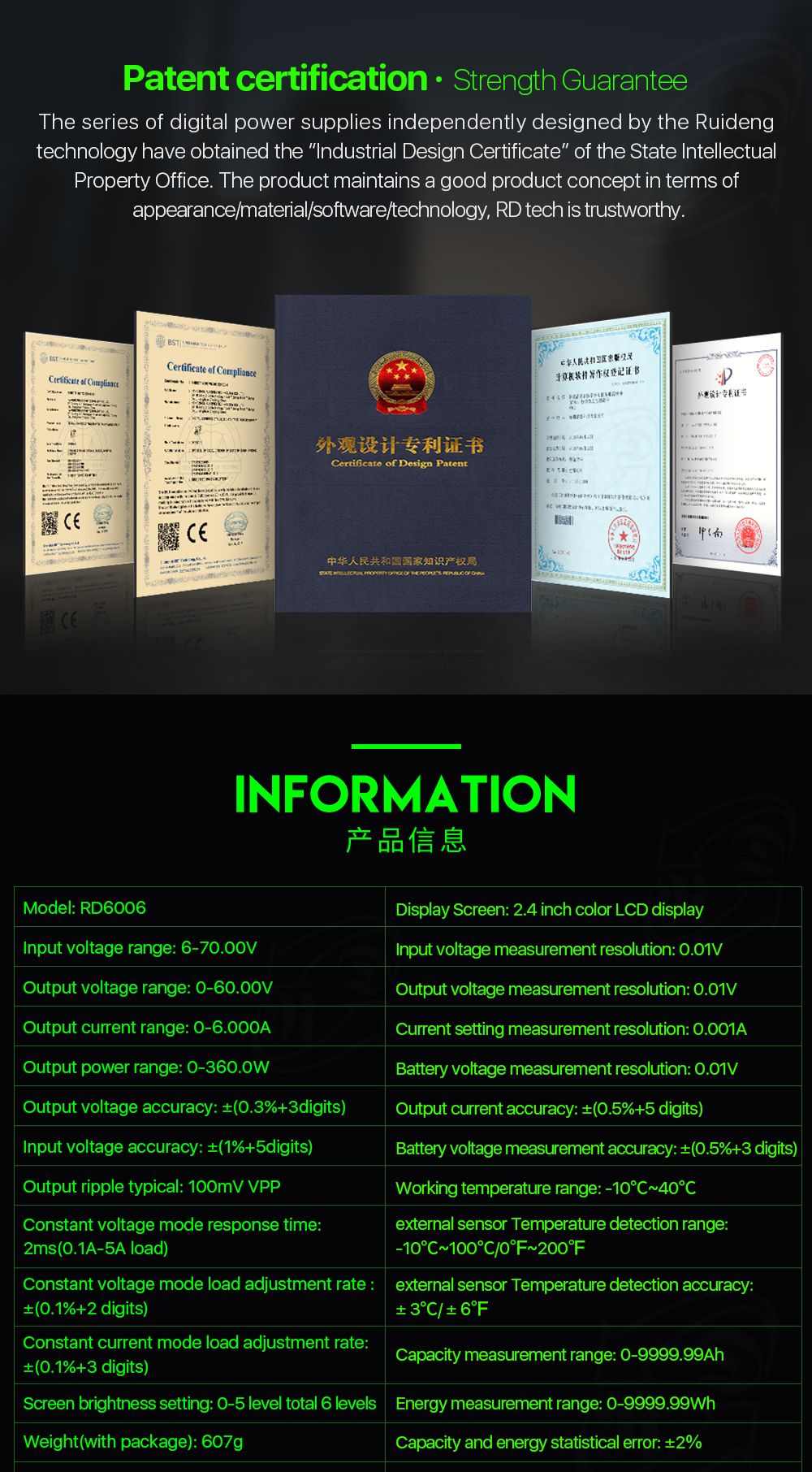

Technical Parameter:

Model: RD6006/RD6006-W (optional)	Display Screen: 2.4 inch color LCD display
Input voltage range: 6-70.00V	Input voltage measurement resolution: 0.01V
Output voltage range: 0-60.00V	Output voltage measurement resolution: 0.01V
Output current range: 0-6.000A	Current setting measurement resolution: 0.001A
Output power range: 0-360.0W	Battery voltage measurement resolution: 0.01V
Output voltage accuracy: ±(0.3%+3 digits)	Output current accuracy: ±(0.5%+5 digits)
Input voltage accuracy: ±(1%+5 digits)	Battery voltage measurement accuracy: ±(0.5%+3 digits)
Output ripple typical: 100mV VPP	Working temperature range:-10℃~40℃
Constant voltage mode response time: 2ms (0.1A-5A load)	External sensor Temperature detection range: -10℃~100℃/0℉~200℉
Constant voltage mode load adjustment rate : ±(0.1%+2 digits)	External sensor Temperature detection accuracy: ± 3℃/ ± 6℉
Constant current mode load adjustment rate: ±(0.1%+3 digits)	Capacity measurement range: 0-9999.99Ah
Screen brightness setting: 0-5 level total 6 levels	Energy measurement range: 0-9999.99Wh
Weight(with package): 607g	Capacity and energy statistical error: ±2%

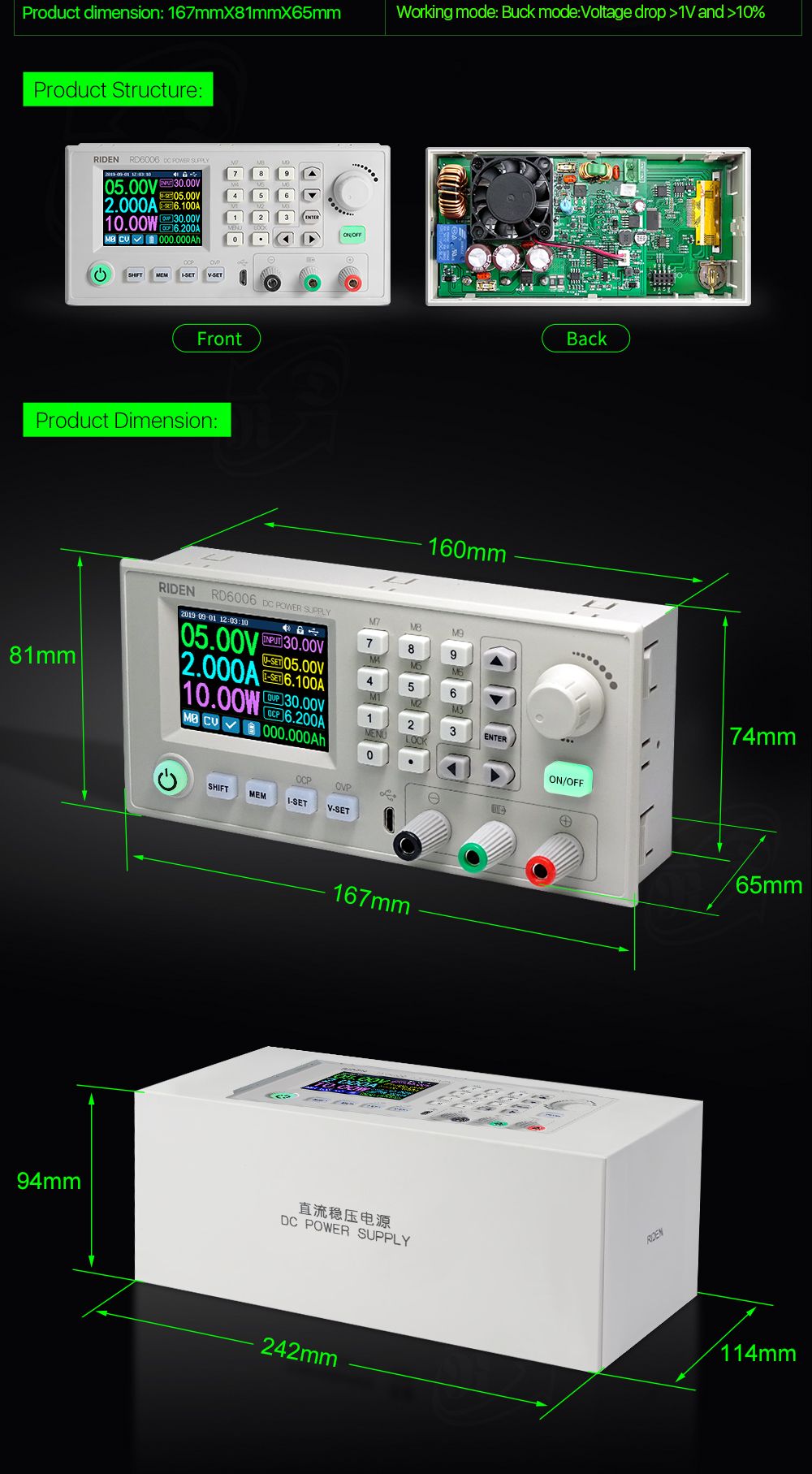

Product dimension: 1678165mm	Working mode: Buck mode Voltage drop >1V and >10%

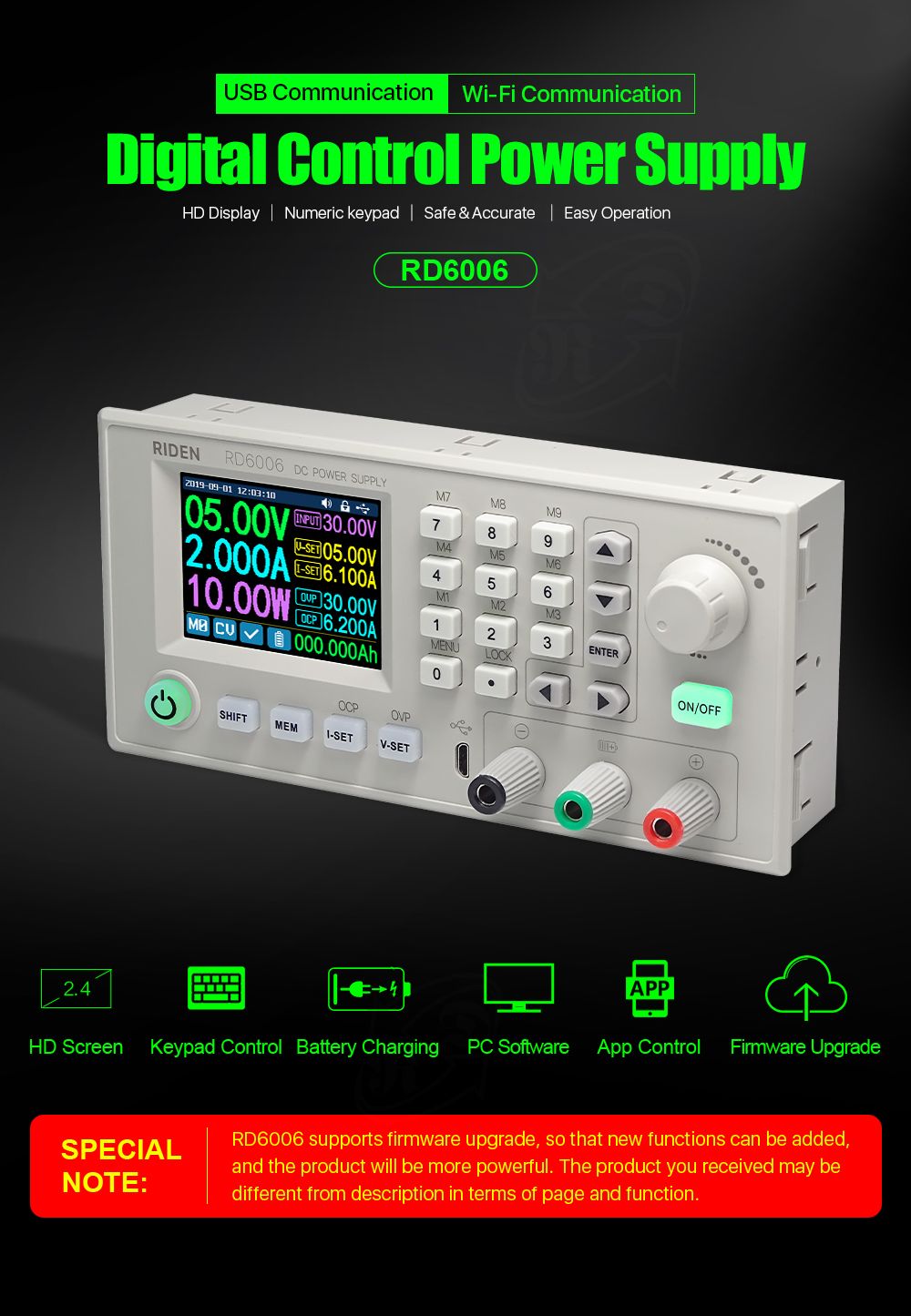

Core Function:

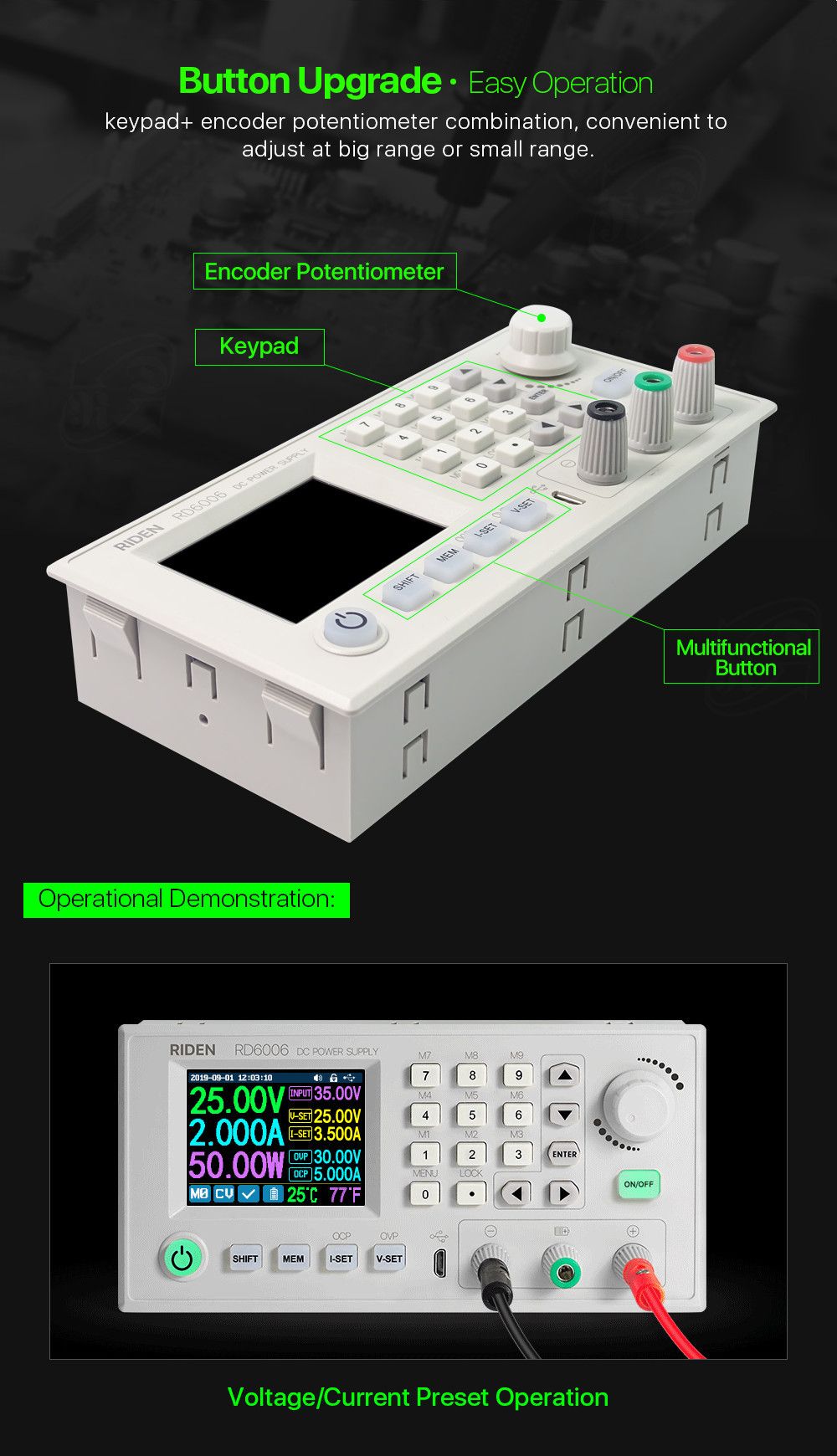

Keypad + encoder potentiometer combination adjustment

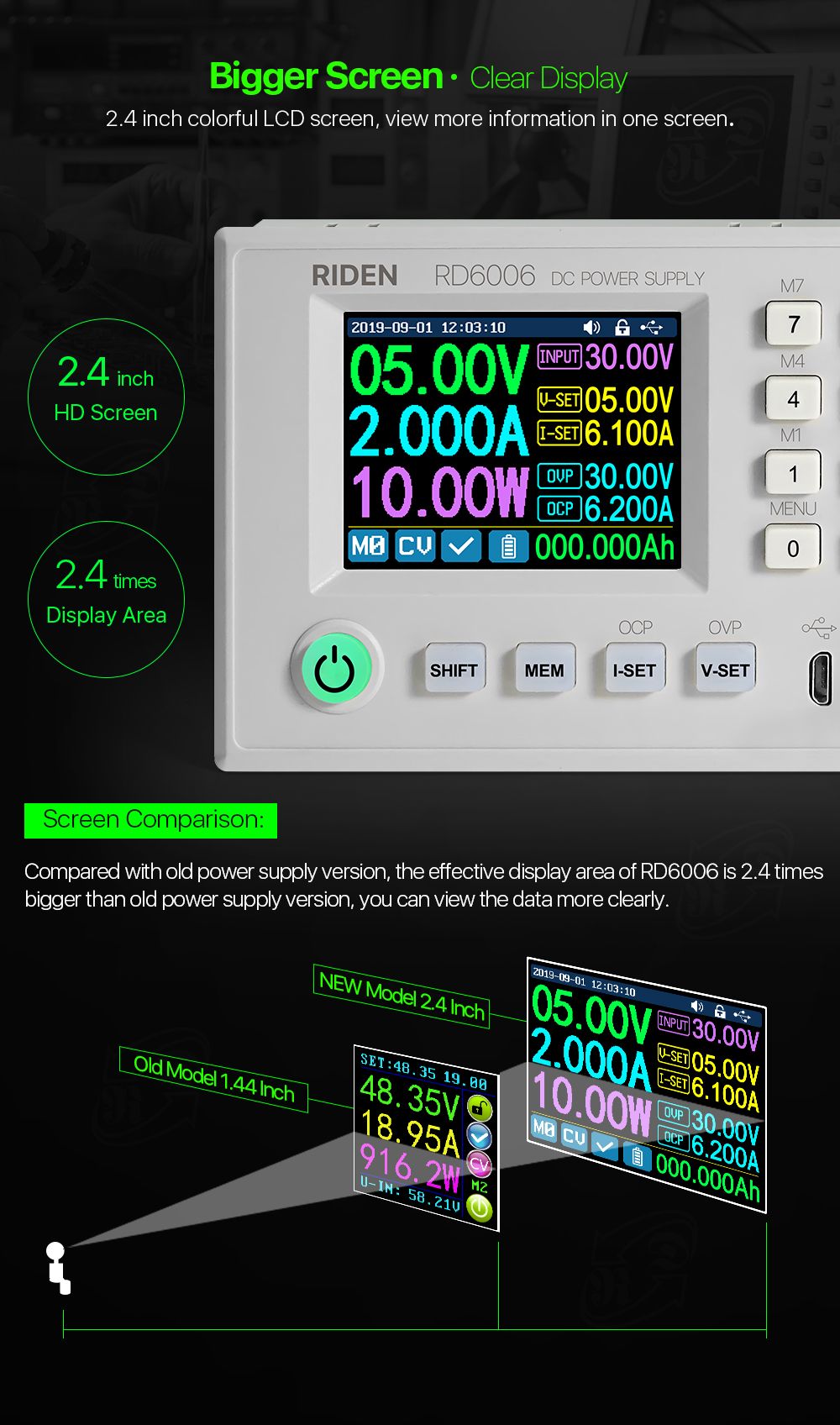

2.4 inch HD color screen

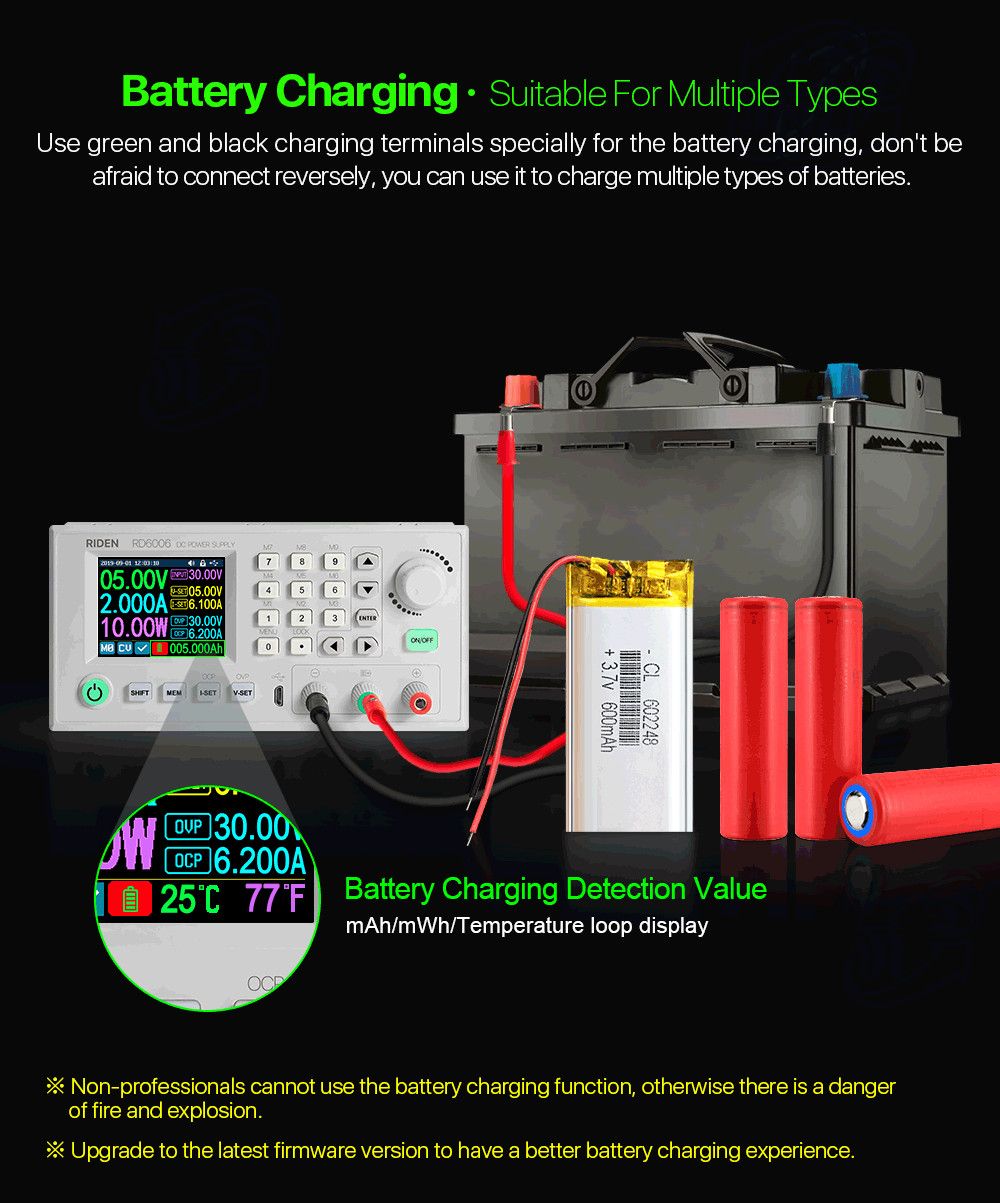

Battery charging special interface

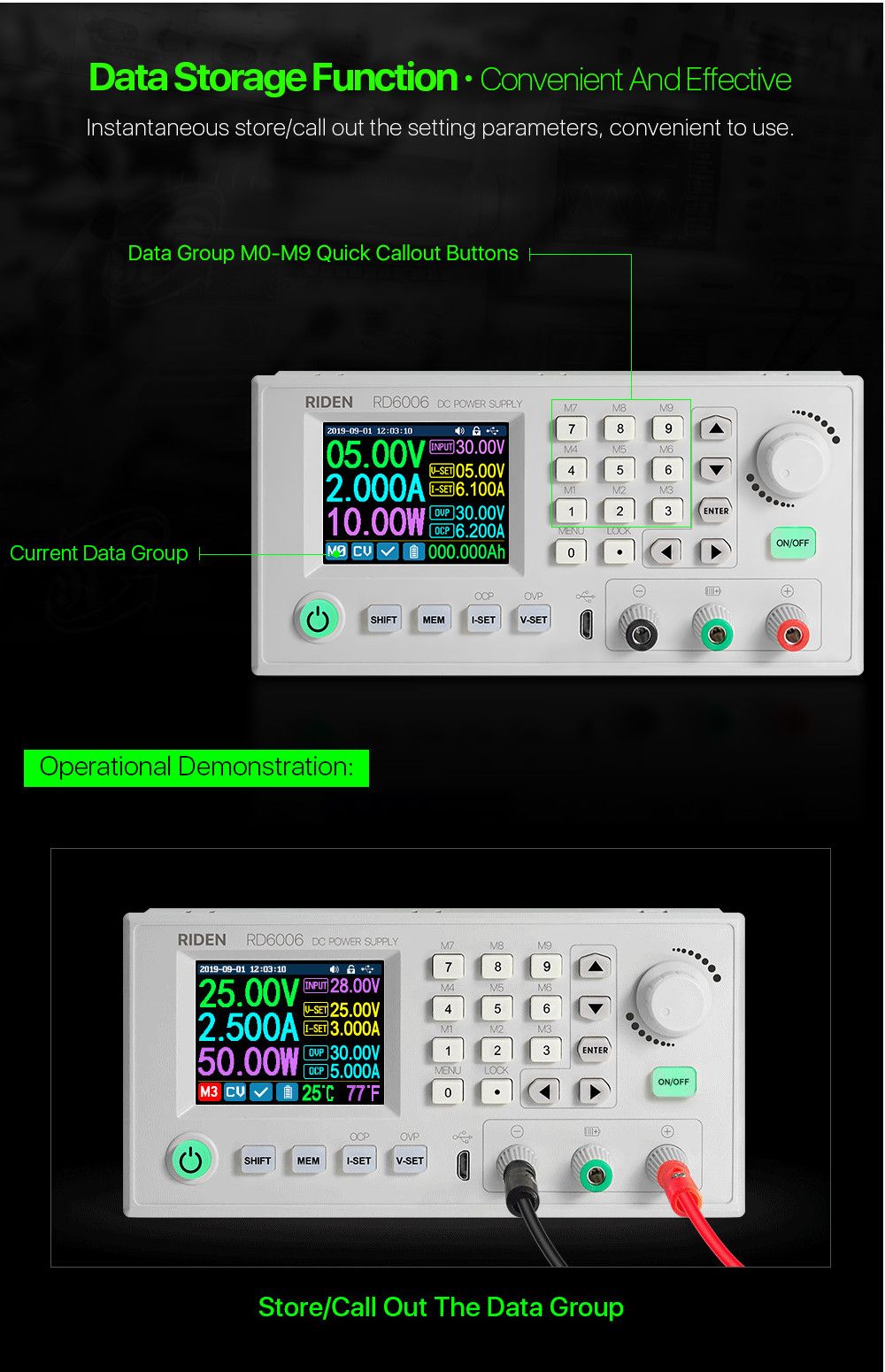

Data quick storage & recall

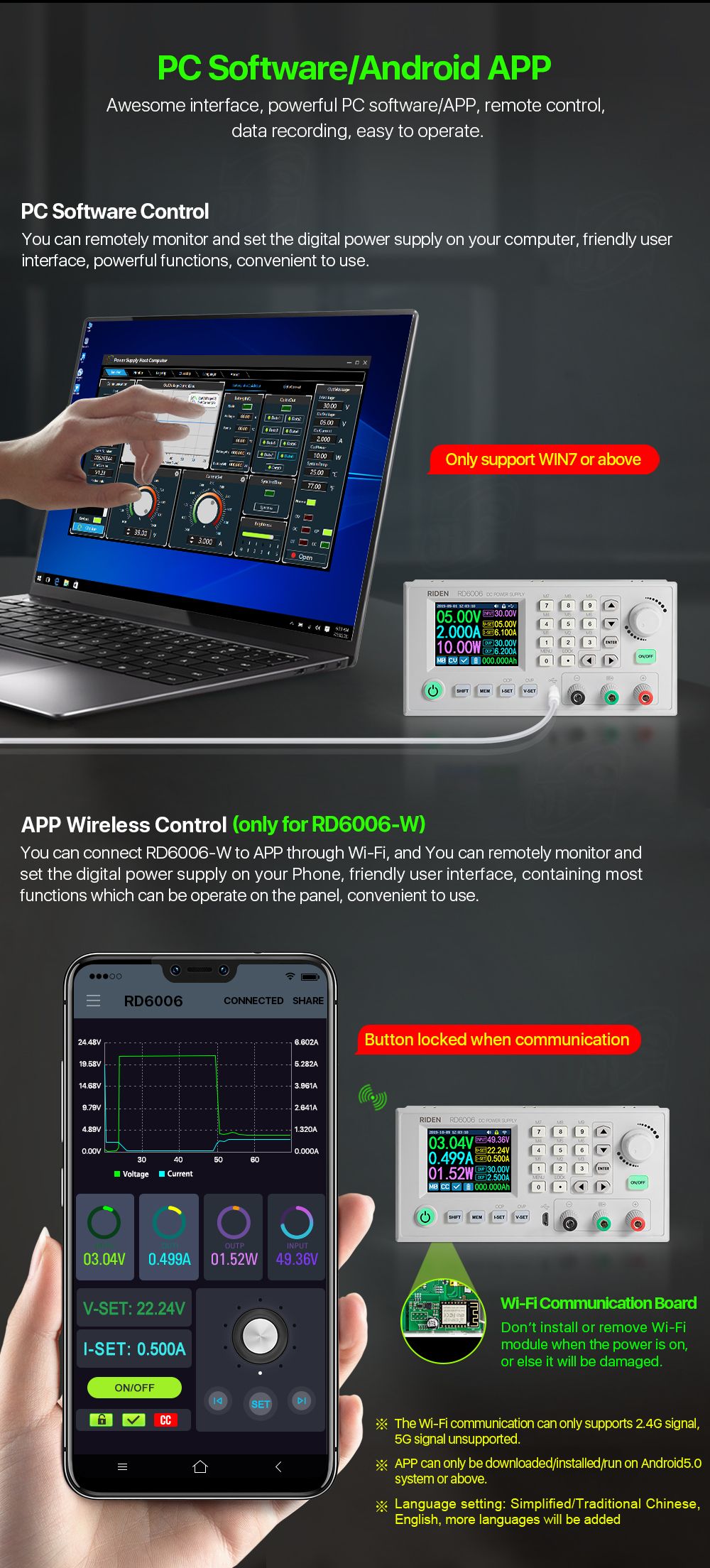

New PC software

Wi-Fi connection, Phone APP control

Package includes:

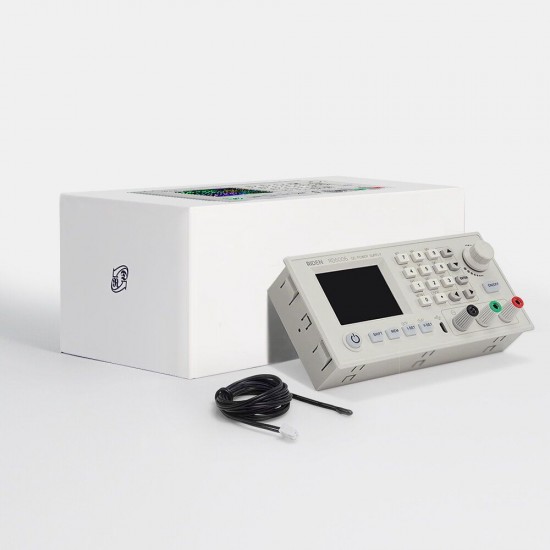

1 x RD6006 Digital Control Switch Adjustable Power Supply

Note before buying:

1. RD6006 has two versions: RD6006 and RD6006-W, RD6006-W have WIFI board, RD6006 doesn't have. RD6006-W can use the WIFI board to connect APP and software, also use USB micro cable to connect PC software. RD6006 doesn't have WIFI board, it only supports PC software by connecting with USB micro cable, no support APP.

2. For PC software, it only supports win 7 and above for now. For APP, it only supports Android 5.0 and above. for APP and PC software, please download first before buying, if you can download and install, you can make the order, or else stop buying.

3. For APP and PC software, before buying, please download and install first, if it can't be installed, stop buying. because of some PC language and phone system problems, it can't be install. so please check first before buying.

Document download:

A: Main download llink in English and Russian: https://drive.google.com/open?id=17V-JWHvqMF-NuWSznEiJ4RKrnn_Pkt5v

B: Back up download link: https://www.renhotecic.com/image/download/rar/RD6006.rar

2. Android APP: Search RdPower to download at Google Play, or download at file link https://drive.google.com/open?id=17V-JWHvqMF-NuWSznEiJ4RKrnn_Pkt5v, Support android 5.0 and above phone

IOS APP download: Search RdPower to download, support IOS8.0 and above phone
