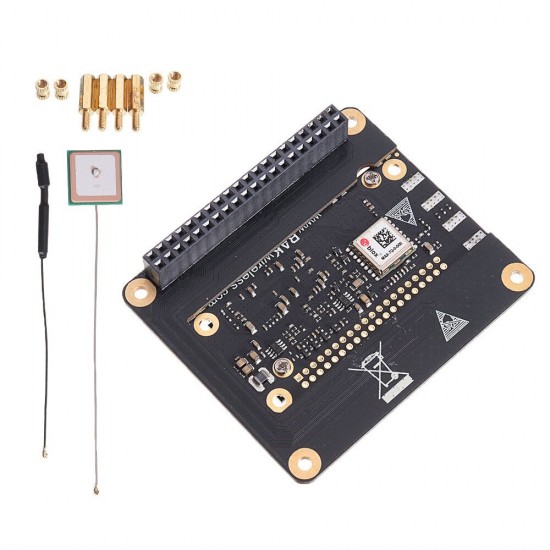

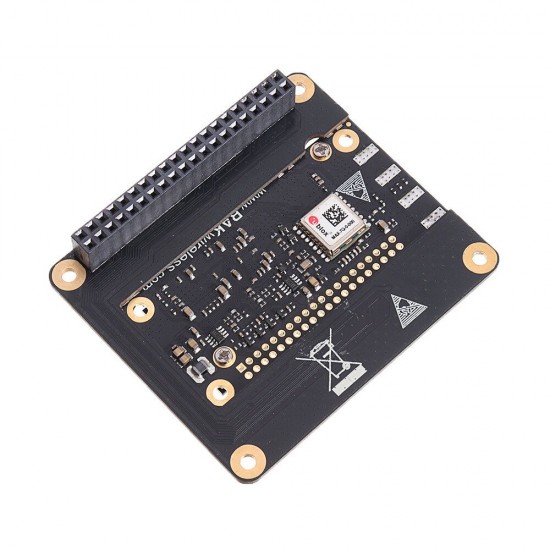

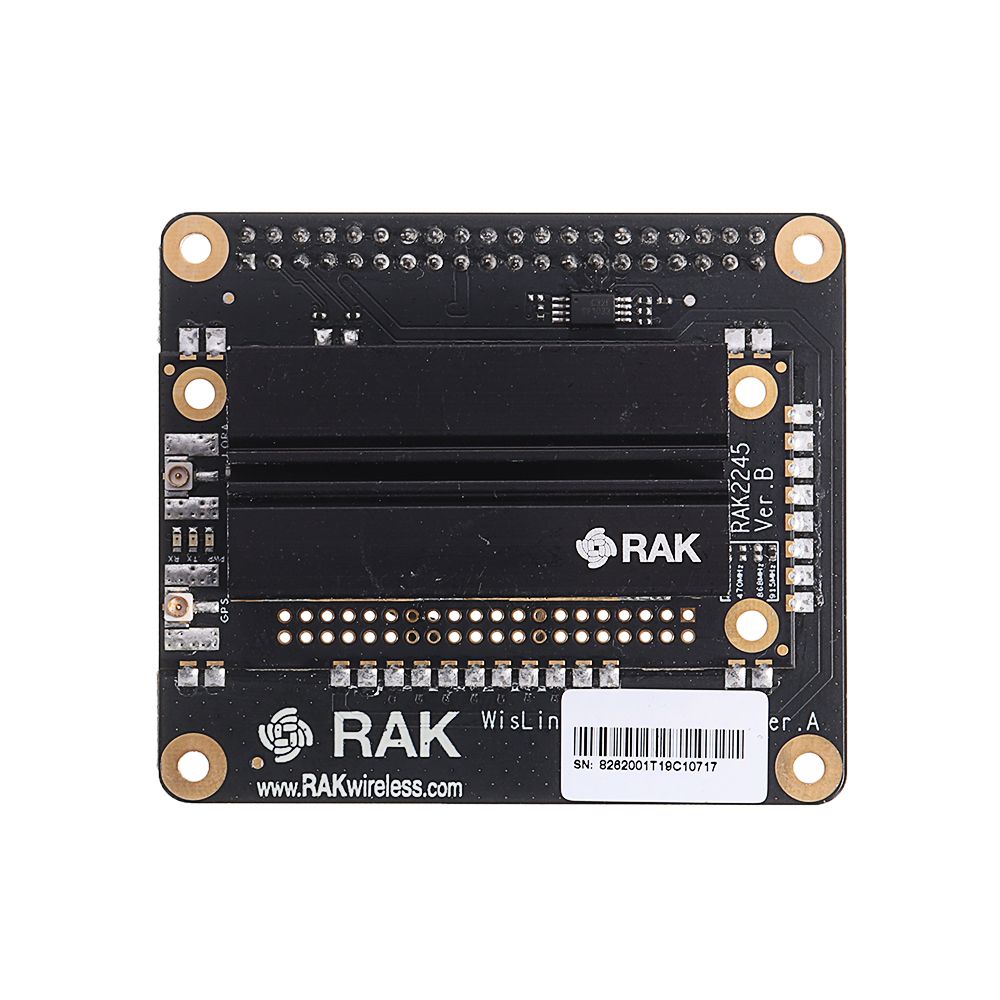

RAK2245 Pi HAT LoRaWAN Concentrator Gateway Integrated SX1301 GPS RAK831 Upgrade Version Wireless Module
- Stock: In Stock
- Model: EB000539
- SKU: EB000539
| LoRa module | -SX1301 base processor, support 8 uplink channels and 1 downlink channel; -2 SX125x HF / LF receiving and transmitting front ends; |

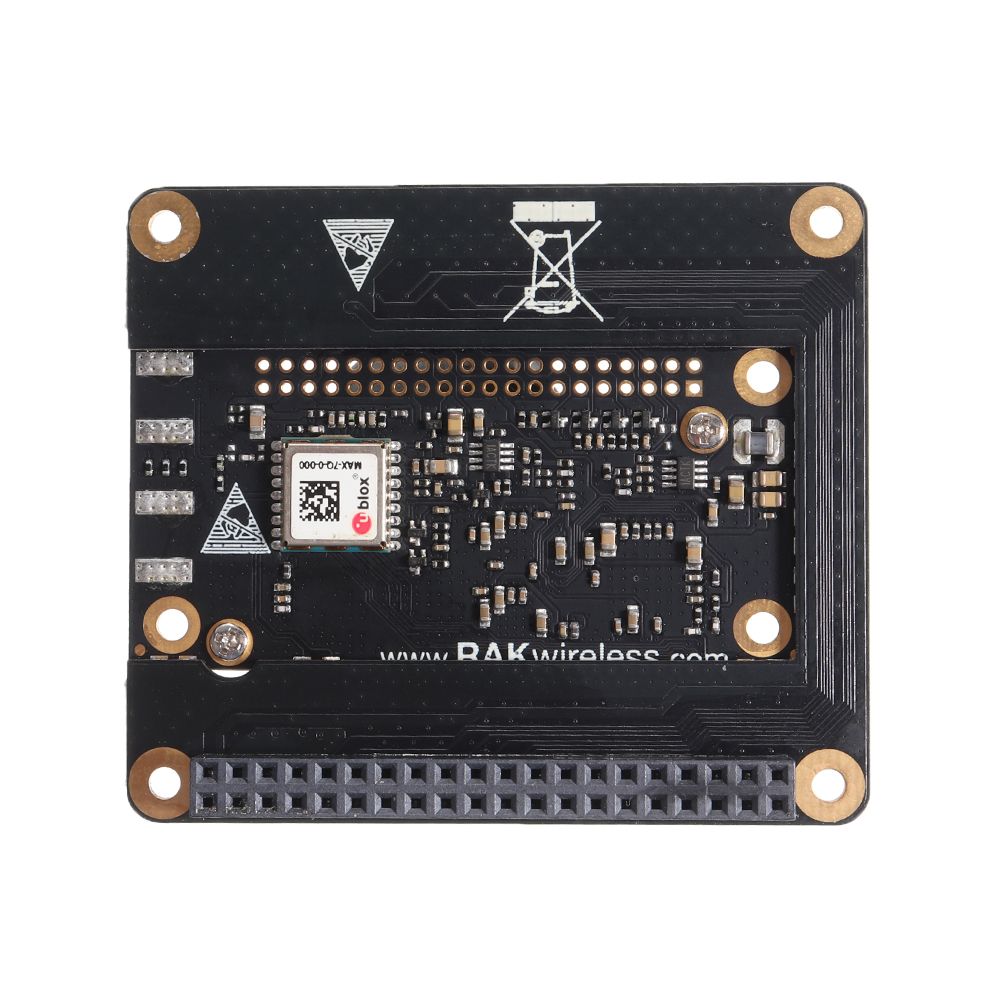

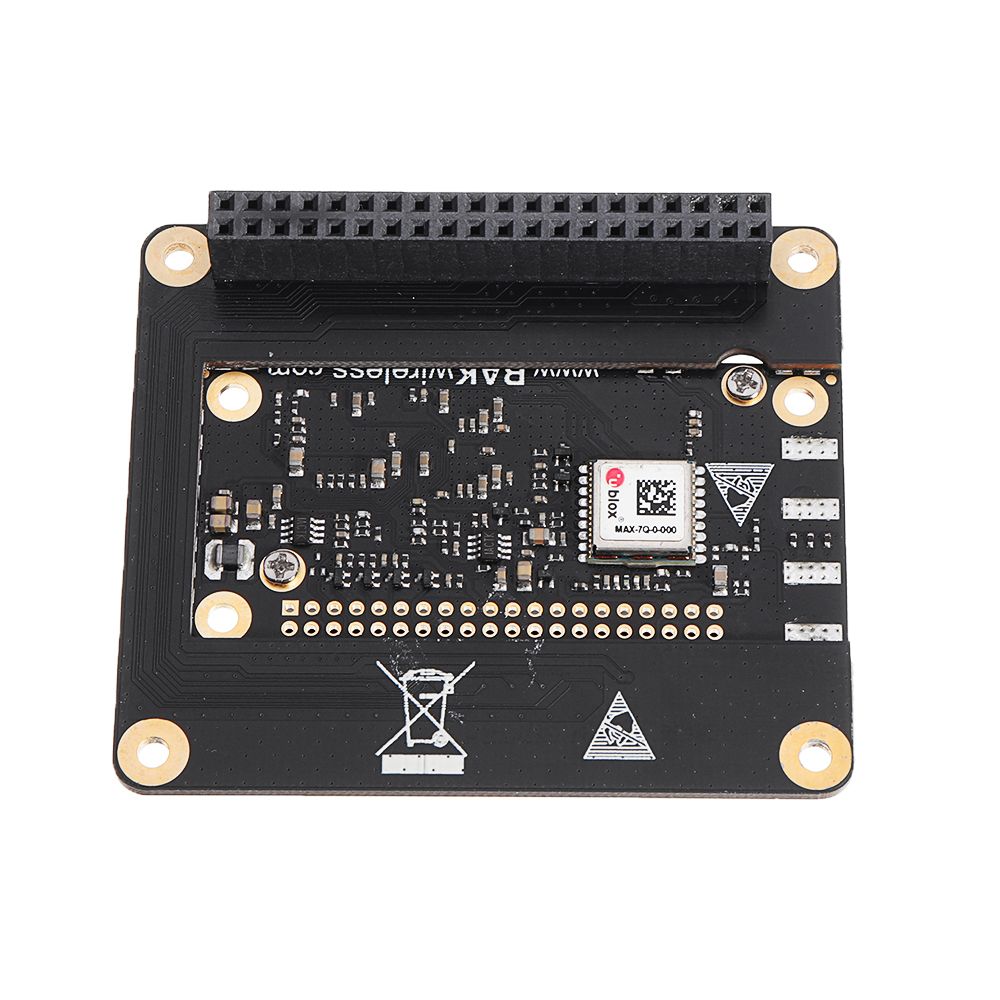

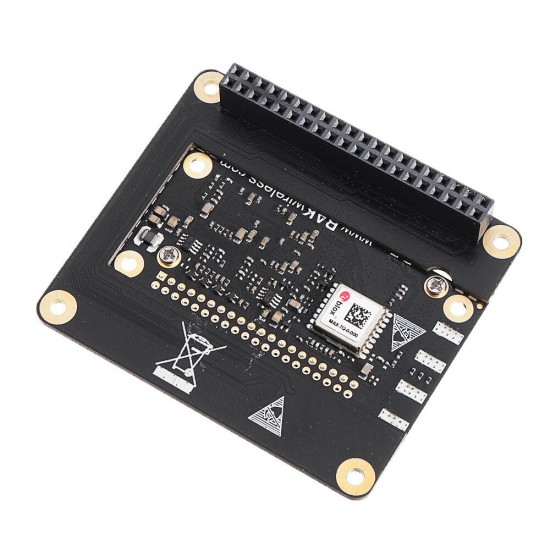

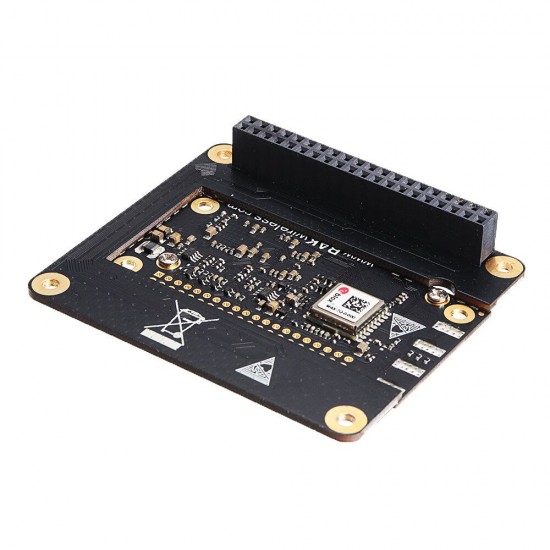

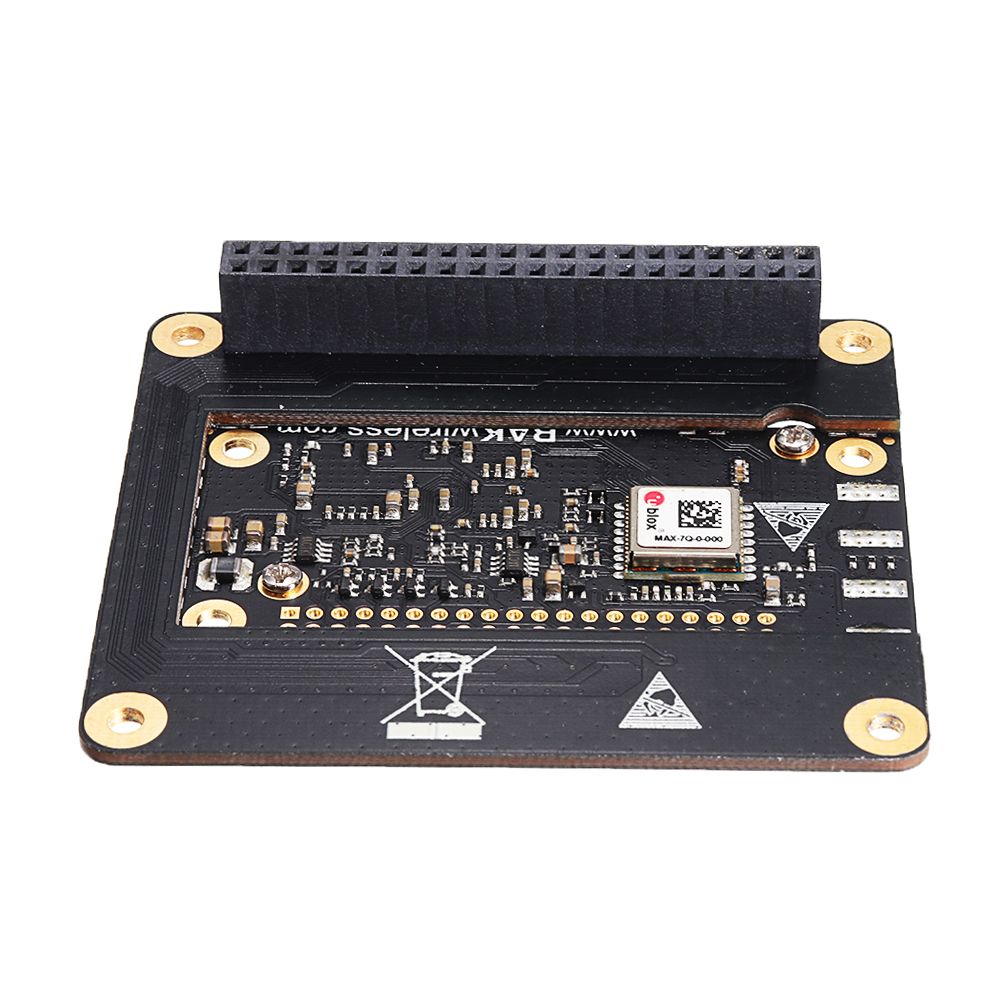

| GPS module | Ublox MAX-7Q |
| Interface form | Follow Raspberry Pi HAT specifications |

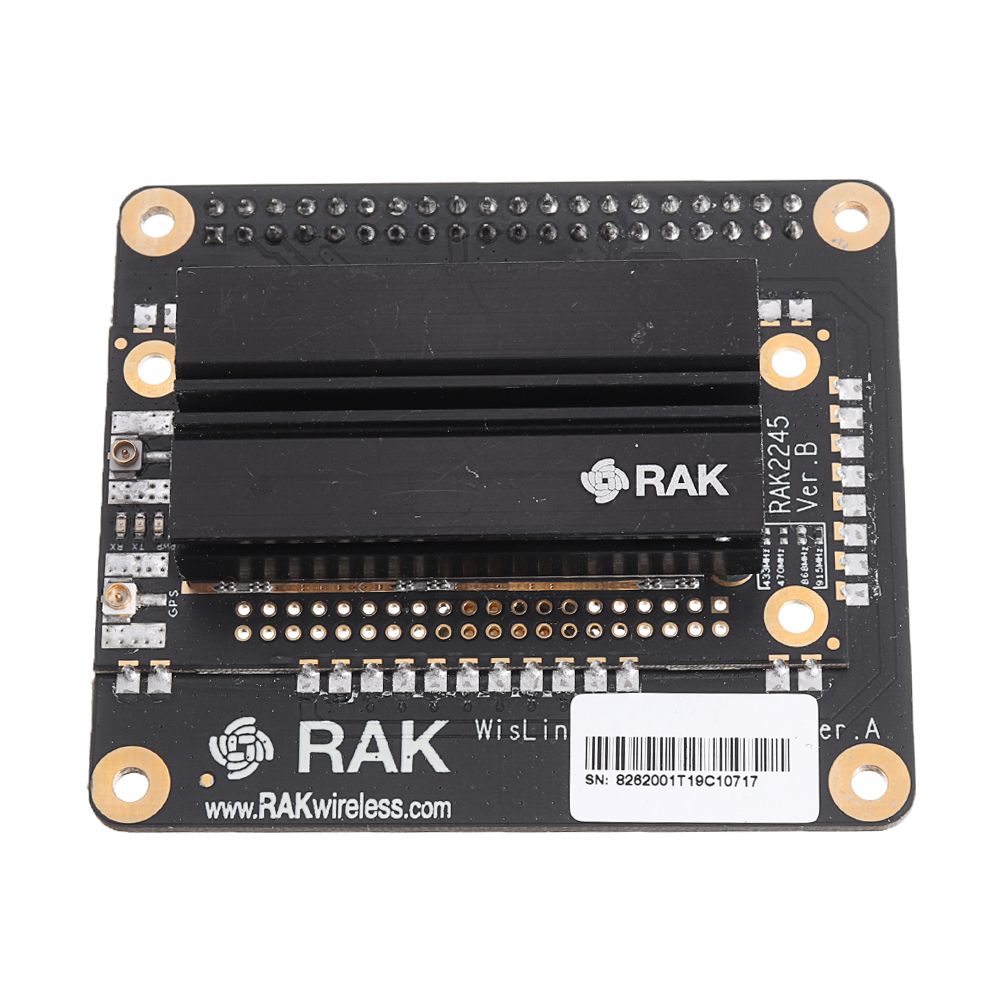

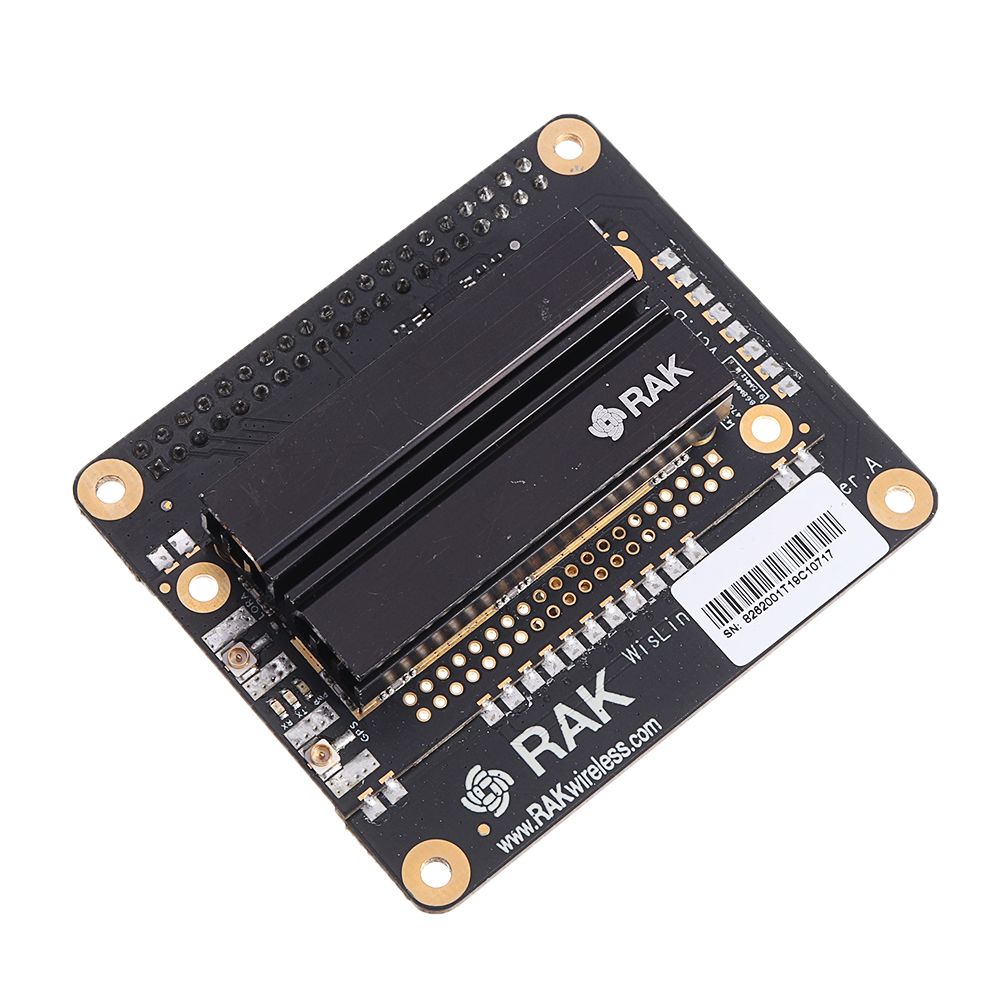

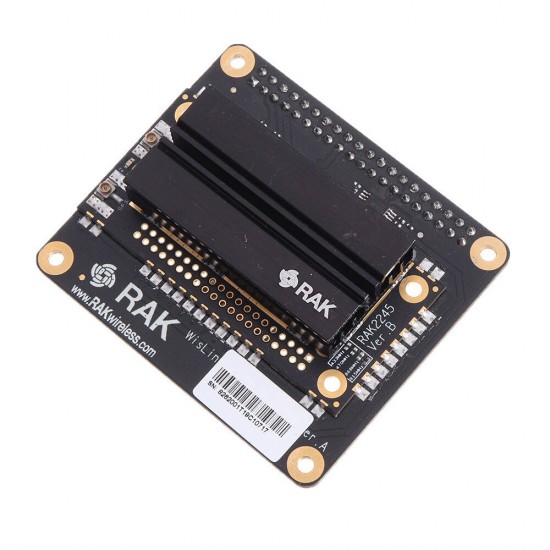

| Heat sink | Aluminum type heat sink with graphite heat sink inside |
| Frequency band | EU433, CN470, EU868f US915, AS923, AU915, KR920, IN865 |
| LoRaWAN version | LoRaWAN V1.0.2 |
| Distance | City: 2 ~ 4km / Suburban: 5 ~ 10km / Wide area: 15km |
| Number of nodes | 500 nodes per square kilometer |
| Transmit power | 27dBm (max), normally 25dBm |
| Receive sensitivity | -139dBm (minimum) @ SF12, bandwidth 125KHz |
| Powered by | DC 5V ± 5% |
| Interface form | SPI, UART, GPIOs |
| Antenna connection | 1xU.FL connector for LoRa, 1xU.FL connector for GPS |
| Power consumption | TX (typical): 336mA / RX (typical): 360mA |

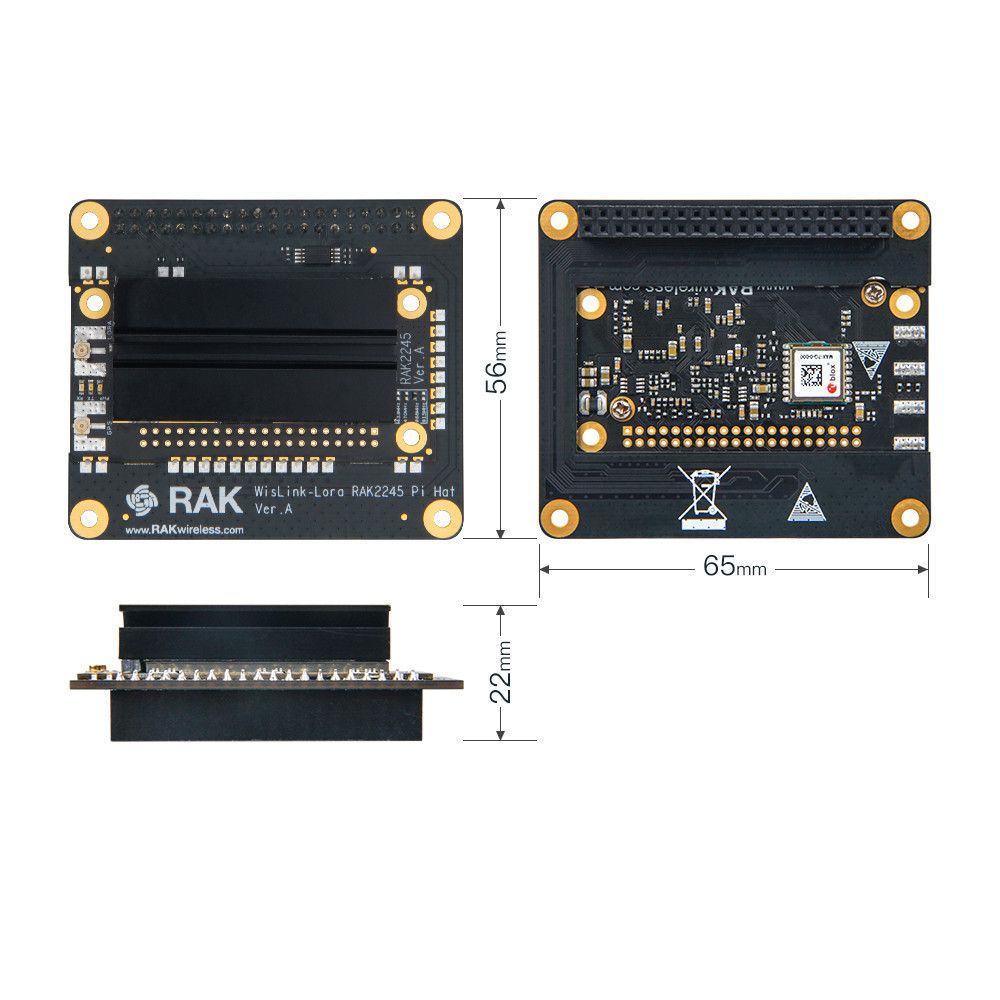

| Physical parameter | Dimensions (length x width x height): 56.00 x 65.00 x 22.00 mm (± 2mm, including heat sink) Weight: about 32.6g |
| Temperature range | Normal working temperature: -20 ° C ~ + 65 ° C Scalable temperature: -40 ° C ~ + 85 ° C Storage temperature -40 ° C ~ 85 ° C |
Package includes:
1 x RAK2245 Pi HAT
