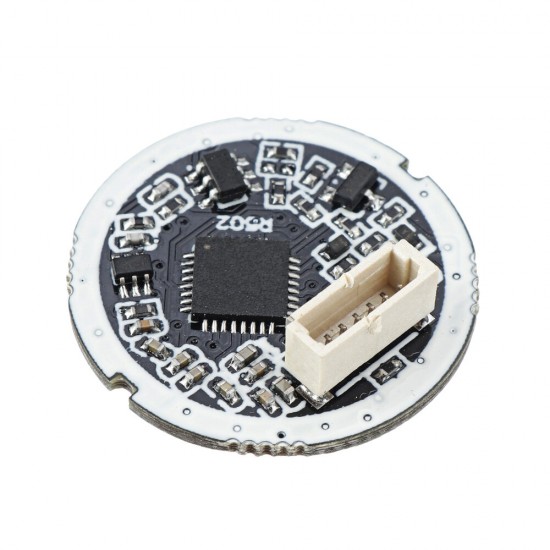

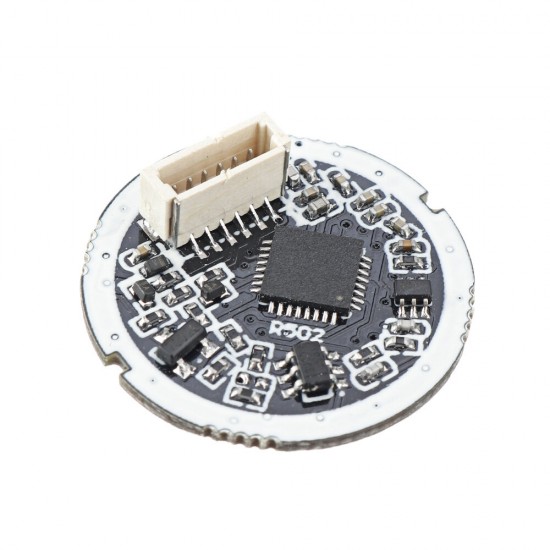

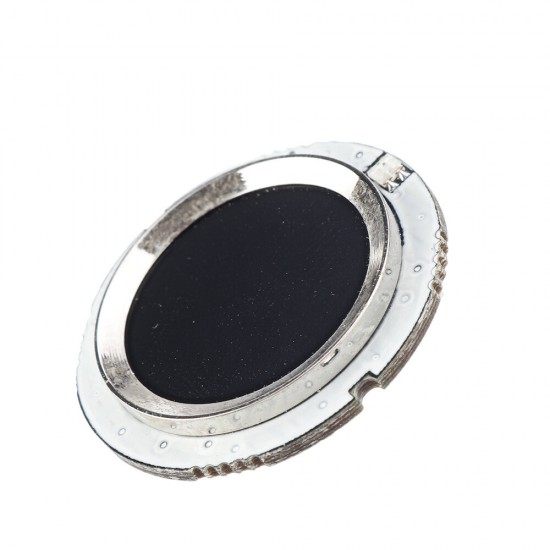

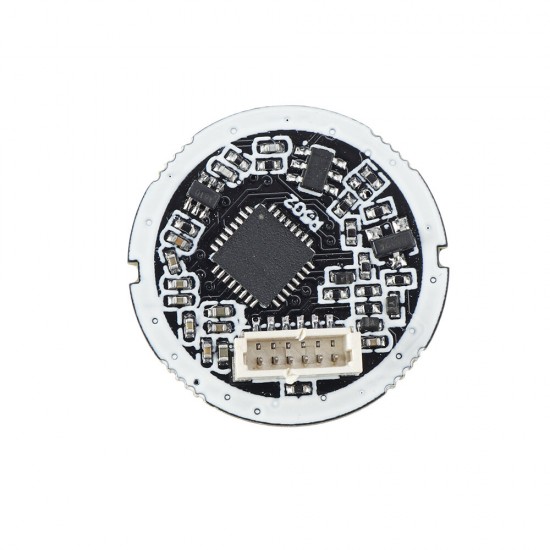

R502 Capacitive Fingerprint Reader Access Control Module Sensor Scanner with 200 Finger Capacity Small Circular Blue Red LED MX1.0-6pin DC3.3V
- Stock: In Stock
- Model: EB0043873
- SKU: EB0043873
>>>Manual: Click here to open<<<
Features:
1. Integrated image collecting and algorithm chip together, ALL-in-One
2. The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate
3. The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box
Specifications:
Model | R502 |
Type | Capacitive Fingerprint Module |
Interface | UART(TTL) |
Resolution | 508 DPI |
Renhotec | DC 3.3V |
Fingerprint Capacity | 200 |
Sensing array | 192*192 pixel |
Working current | 18mA |
Standby current | Typical touch standby voltage: 3.3V, Average current: 2uA |

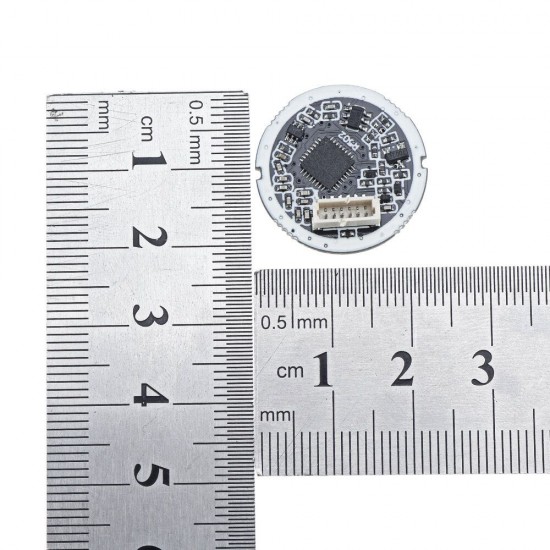

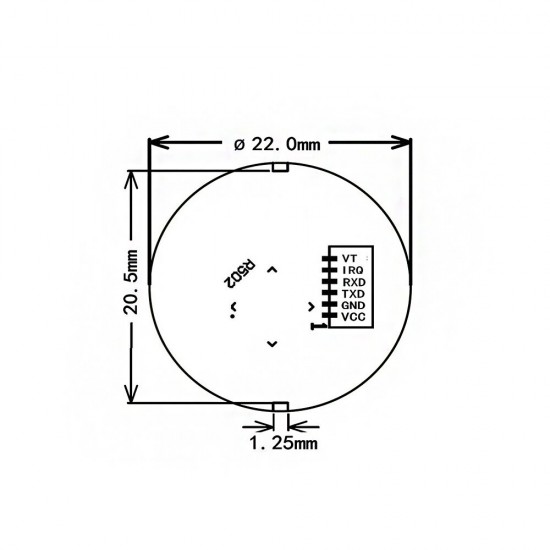

Fingerprint module size | Diameter 22(mm) |

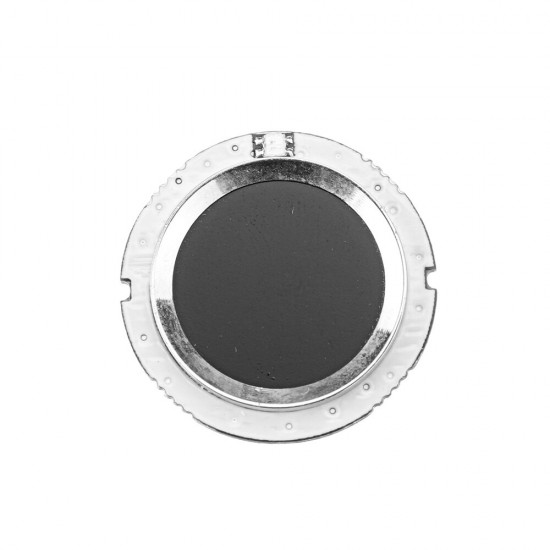

Effective collection area | Diameter 15.5 (mm) |

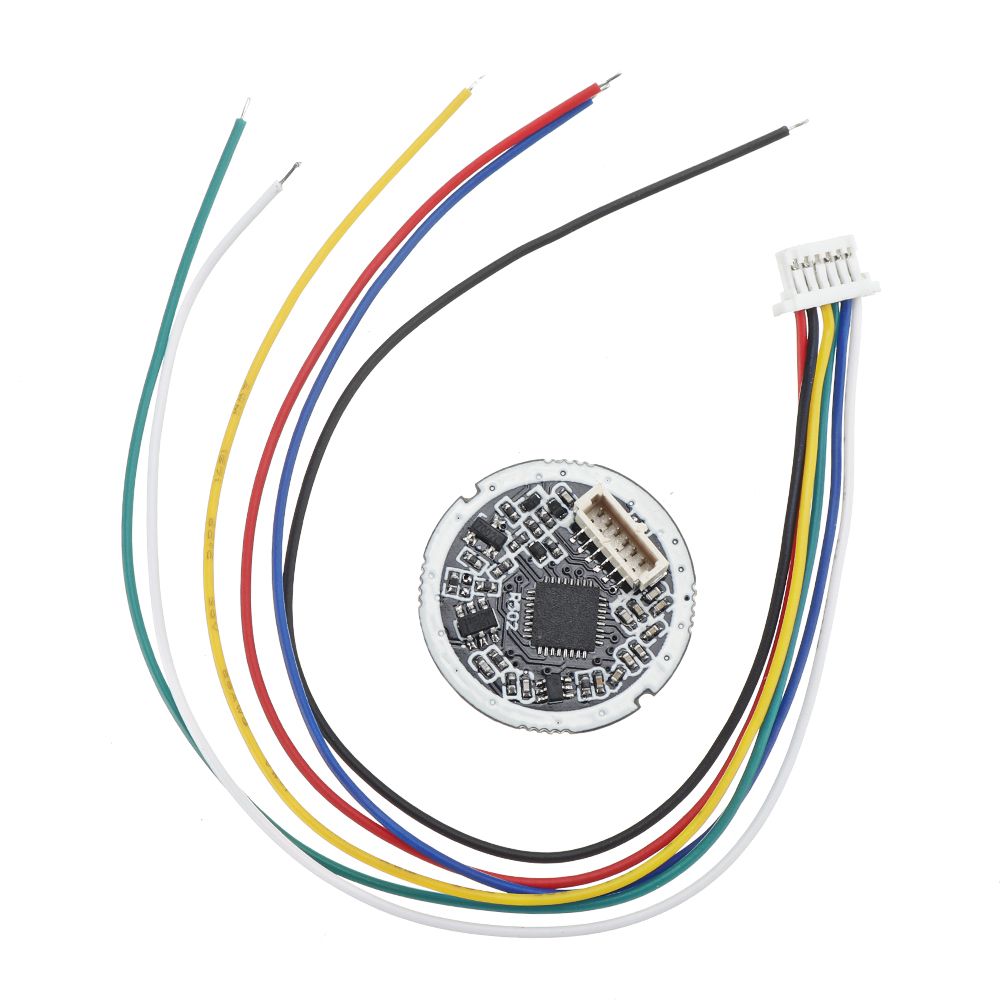

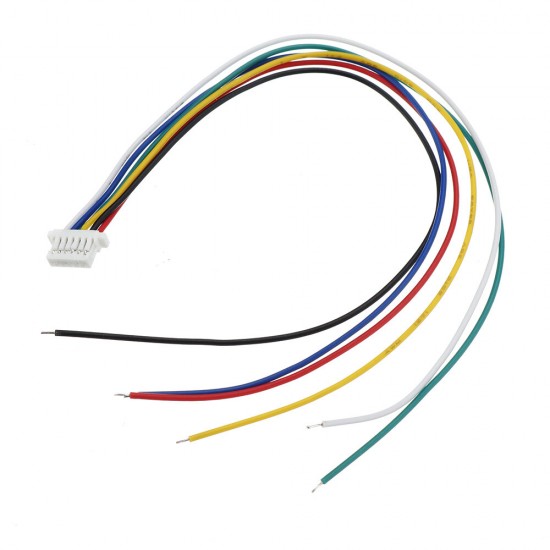

Connector | MX1.0-6Pin |
LED Color | Purple and Blue and Red |
Scanning Speed | < 0.2 second |
Verification Speed | < 0.3 second |
Matching Method | 1:1; 1:N |
FRR | ≤1% |
FAR | ≤0.001% |
Work environment | -20C ---60C |
Work Humidity | 10-85% |
Anti-static capacity | 15KV |
Abrasive resistance intensity | 1 million times |
Communications baud rate (UART): | (9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps) |
·Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual
Package Included:
1 x R502 Capacitive Fingerprint Reader Access Control Module
| Model | R501 | R502 | R502-A | R502-AW | R503 |
| Diameter | 36mm | 22mm | 22mm | 55*50*8.4mm | 28mm |
| Interface | UART | UART | UART | UART | UART |
| Renhotec | DC4.2-6V | DC3.3V | DC3.3V | DC3.3V | DC3.3V |
| Resolution | 508DPI | 508DPI | 508DPI | 508DPI | 508DPI |
| Working current | 42mA | 18mA | 20mA | 20mA | 20mA |
| Fingerprint capacity | 500 | 200 | 200 | 200 | 200 |
| Sensing Array | 190*192 pixel | 190*192 pixel | 190*192 pixel | 190*192 pixel | 190*192 pixel |
| Effective collection area | diameter 15.5 mm | diameter 15.5 mm | diameter 15.5 mm | diameter 15.5 mm | diameter 15.5 mm |
| Finger touch function | YES | YES | YES | YES | YES |
| LED Color | Red/Blue | Purple/Red/Blue | Purple/Red/Blue | Purple/Red/Blue | Purple/Red/Blue |
| LED Control | No | Yes | Yes | Yes | Yes |
| Connector | MX 1.25mm 6pin | MX 1.0mm 6pin | MX 1.0mm 6pin | MX 1.0mm 6pin | MX 1.0mm 6pin |
| Connect control board | K200/K202/K212/K215 V1.2/K216 | K200-3.3/K202/K215-V1.2/K216 | K200-3.3/K202/K215-V1.2/K216 | K200-3.3/K202/K215-V1.2/K216 | K200-3.3/K202/K215-V1.2/K216 |
