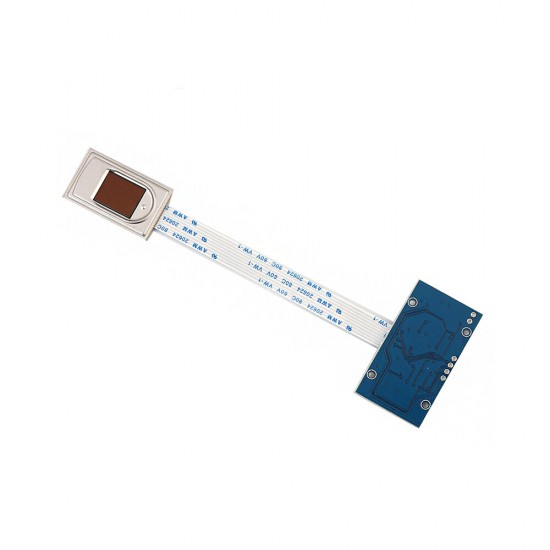

R306 Biometric Capacitive FPC1011F3 Fingerprint Access Control Module Scanner with Windows and Android System

R306 Biometric Capacitive FPC1011F3 Fingerprint Access Control Module Scanner with Windows and Android System
R306 Biometric Capacitive FPC1011F3 Fingerprint Access Control Module Scanner with Windows and Android System
R306 Biometric Capacitive FPC1011F3 Fingerprint Access Control Module Scanner with Windows and Android System
R306 Biometric Capacitive FPC1011F3 Fingerprint Access Control Module Scanner with Windows and Android System
R306 Biometric Capacitive FPC1011F3 Fingerprint Access Control Module Scanner with Windows and Android System
R306 Biometric Capacitive FPC1011F3 Fingerprint Access Control Module Scanner with Windows and Android System
R306 Biometric Capacitive FPC1011F3 Fingerprint Access Control Module Scanner with Windows and Android System
R306 Biometric Capacitive FPC1011F3 Fingerprint Access Control Module Scanner with Windows and Android System
R306 Biometric Capacitive FPC1011F3 Fingerprint Access Control Module Scanner with Windows and Android System
R306 Biometric Capacitive FPC1011F3 Fingerprint Access Control Module Scanner with Windows and Android System
R306 Biometric Capacitive FPC1011F3 Fingerprint Access Control Module Scanner with Windows and Android System
R306 Biometric Capacitive FPC1011F3 Fingerprint Access Control Module Scanner with Windows and Android System
R306 Biometric Capacitive FPC1011F3 Fingerprint Access Control Module Scanner with Windows and Android System
$43.19
Ex Tax: $43.19
  • Stock: In Stock
  • Model: EB0045672
  • SKU: EB0045672

Features:

·Communication interface : USB and UART
·1:N Identification (One-to-Many)
·1:1 Verification (One-to-One)
·High speed fingerprint identification algorithm engine
·Self study function
·Fingerprint feature data read/write functions
·Get Feature Data of Captured fingerprint and Verify/Identify Downloaded Feature with Captured
·Fingerprint Identify Downloaded Feature with Captured fingerprint
·Security Level setting
·Able to set BaudRate/ Device ID/Device Password
·Operating system:Windows 98, Me, NT4.0, 2000, XP,WIN 7 or Android
·Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual

Specifications:

Model
R306
Type
Capacitive Fingerprint Module
Interface
USB,UART(RS232 TTL)
Resolution
363 DPI
Voltage
DC 4.2-6V
Fingerprint Capacity
1000
Sensing array
208*288 pixel
Fingerprint module size
33.4*20.4*1.0 (mm)
Effective collection area
11 * 15 (mm)
Scanning Speed
< 0.2 second
Verification Speed
< 0.3 second
Matching Method
1:1; 1:N
FRR
≤0.1%
FAR
≤0.0001%
Work environment
-20C ---50C
Work Humidity
10-85%
Anti-static capacity
15KV
Abrasive resistance intensity
1 million times
Communications baud rate (UART):
(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)

Package Incldued:

1 x R306 Biometric Capacitive FPC1011F3 Fingerprint Access Control Module
1 x Connect Cable

ModelR300R301TR302R303R303TR304R306R311R305R307R308
Size33.4*20.4*1.0mm33.4*20.4*1.0mm33.4*20.4*1.0mm33.4*20.4*1.0mm33.4*20.4*1.0mm33.4*20.4*1.0mm33.4*20.4*1.0mm35*23*1.5mm55*32*21.5mm52*20*22mm55.5*20.5*21mm
InterfaceUARTUSB/UARTUSB/UARTUSB/UARTUSB/UARTUSB/UARTUSB/UARTUSB/UARTUSB/UARTUSB/UARTUART
VottageDC4.2-6VDC4.2-6VDC4.2-6VDC4.2-6VDC4.2-6VDC4.2-6VDC4.2-6VDC4.2-6VDC4.2-6VDC4.2-6VDC4.4-6V
Working Current30mA40mA42mA40mA40mA40mA40mA40mA110mA50mA110mA
Fingerprint Capacity2003000120100010001000100010009801000500
Sensing Array(pixel)160*160 192*192160*160208*288208*288192*256208*288256*360300000300000300000
Resolutin(DPI)508508508508508508363508508508508
Effective collection area(mm)12*1210*108*811*1511*1511*1511*1512.8*18.15*1811*1511*15
Fingerprint touch functionYESYESYESNOYESNONOYESNOYESYES
ConnectorMX 1.25mm 6pinMX 1.25mm 6pinMX 1.25mm 6pinMX 1.25mm 4pinMX 1.25mm 6pinMX 1.25mm 4pinMX 1.25mm 4pinMX 1.25mm 6pinMX 1.25mm 4pinMX 1.25mm 6pinMX 1.25mm 6pin
Connect control boardK200/K212/K215 V1.2/K216K200/K212/K215 V1.2/K216K200/K212/K215 V1.2/K216K200/K212/K215 V1.2/K216K200/K212/K215 V1.2/K216K200/K212/K215 V1.2/K216K200/K212/K215 V1.2/K216K200/K212/K215 V1.2/K216K200/K212/K215 V1.2/K216K200/K212/K215 V1.2/K216None
