QH005 5MP ONVIF H.265 P2P IR Outdoor IP Camera with Smart Analysis Function Night Vision Motion Detect
- Stock: In Stock
- Model: EB0023952
- SKU: EB0023952
Support Day/Night,IR distance 15m, make your night view as daytime.
| Model | ESCAM QH005 | |
| Camera | ||
| Sensor | 1/2.7" CMOS | |
| Effective Pixels | 5MP | |
| Electronic Shutter Speed | Auto/Manual, 1/25~1/10000s | |
| Min. illumination | Color: 0.01Lux@F1.2; B&W: 0Lux@F1.2(IR on) | |
| Lens | 3.6mm fixed lens | |
| Angle of View | 75.7° | |
| Functions | ||
| Day/night switch | 15M (6 x IR Lamps) | |
| White Balance | Auto white balance | |
| BLC | Support BLC | |
| S/N Ratio | ≥50db (AGC closed) | |
| Digital noise reduction | Support 3D noise reduction | |
| WDR | Support D-WDR | |
| Motion tracking | Support motion tracking | |
| Private shelter | Support 4 zones | |
| OSD | Support OSD setting | |
| Smart Analysis | Target Count, Object Left/Lost, Area tracking, Line Crossing | |
| Video | ||
| Compression | H.264/H.265 | |
| Resolution | Mainstream:5MP(2560*1920) | |
| Substream: D1(704*576),VGA(640×480) | ||
| Video frame rate | 1-20FPS | |
| Biterate | 16Kbps-4Mbps continuously adjustable, support CBR / VBR | |
| Video adjustment | brightness, saturability, chromacity adjustment | |
| Audio | ||
| Audio | Not support | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| IP type | Dynamic IP and Static IP | |
| Network agreement | TCP/IP, DHCP, HTTP, HTTPS, NTP, DNS, RTP ,RTSP | |
| Access protocol | Support ONVIF | |
| Max user qty | 4 | |
| Client | iOS, Android, Windows PC | |
| General | ||
| Power supply | DC12V 1A | |
| Power Consumption | <6W | |
| Working Environment | -20°C to +60°C, 10%~90% | |
| Waterproof | IP66 | |

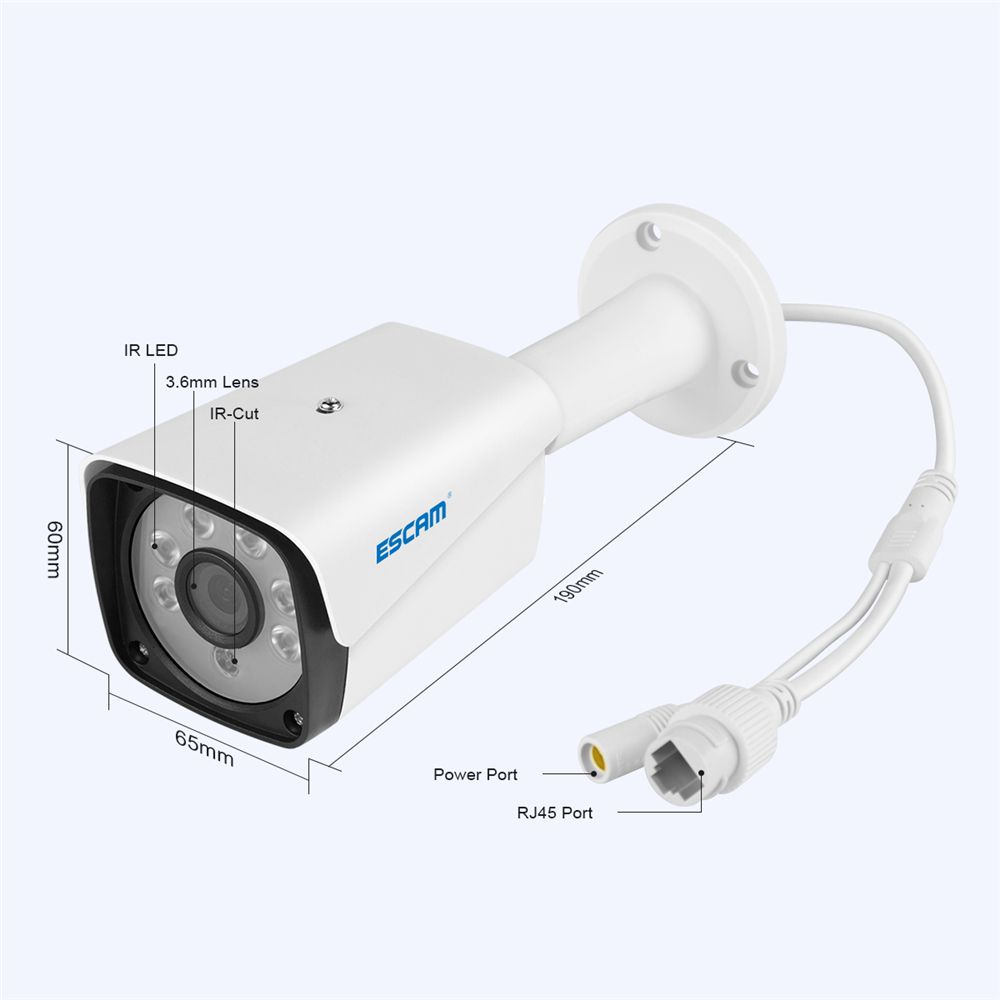

| Dimension | 190mmx65mmx60mm | |
| Weight | 0.25kg | |
| Package Dimension | 220mmx105mmx100mm | |
| Package Weight | 0.46kg | |

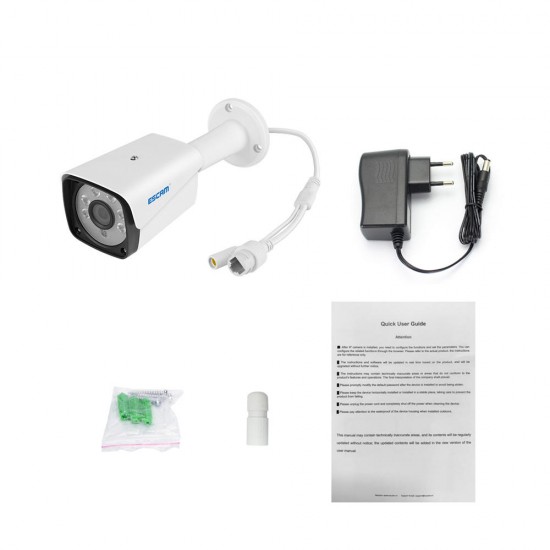

Package includeds :
1 x ESCAM QH005 IP Camera
1 x Power adapter
1 x Set of Screws
1 x Waterproof hat
1 x User Manual
