QCC3003 bluetooth Audio Module Stereo bluetooth 5.0 Receiver Analog I2S Output DIY Speaker Amplifier Board

Based on 0 reviews. - Write a review

$10.99

Ex Tax: $10.99

Stock: In Stock
Model: EB0051752
SKU: EB0051752

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Bluetooth Standard: Bluetooth5.0
Build-in Bluetooth: Yes

Voltage: DC5V

Precise details>>

X-Akamai-Transformed: 9 2290 0 pmb=mRUM,1 Content-Length: 2098 >

Product description:

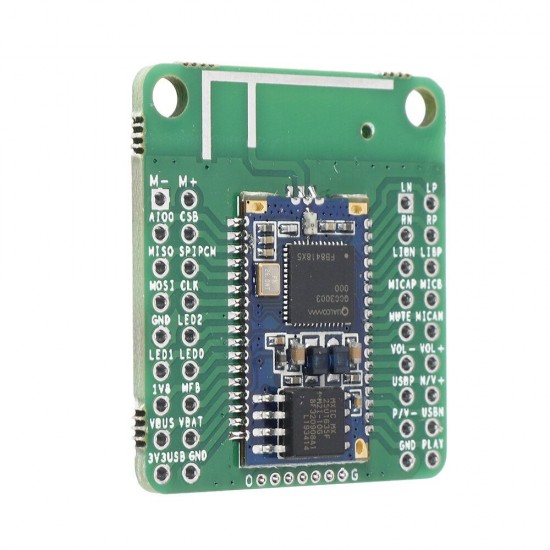

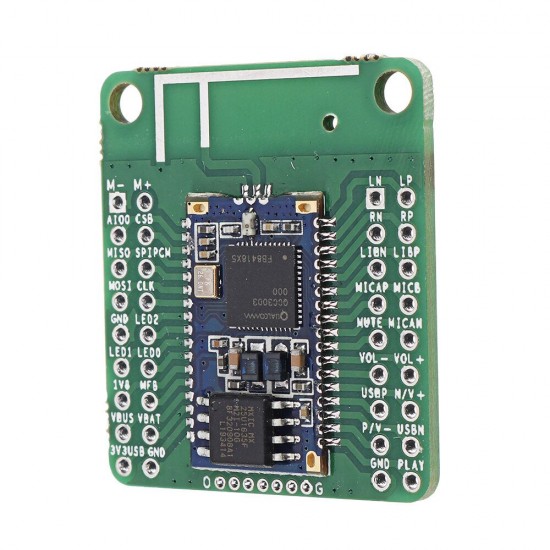

QCC3003 Bluetooth version V5.0 stereo audio module

The adapter board has integrated indicator circuit, MIC circuit, and power-on startup circuit, which is convenient to use.

Features:

1. Amplifier board size: 2.85x3.2CM

2. Call function

3. Bluetooth stereo (SBC, AAC)

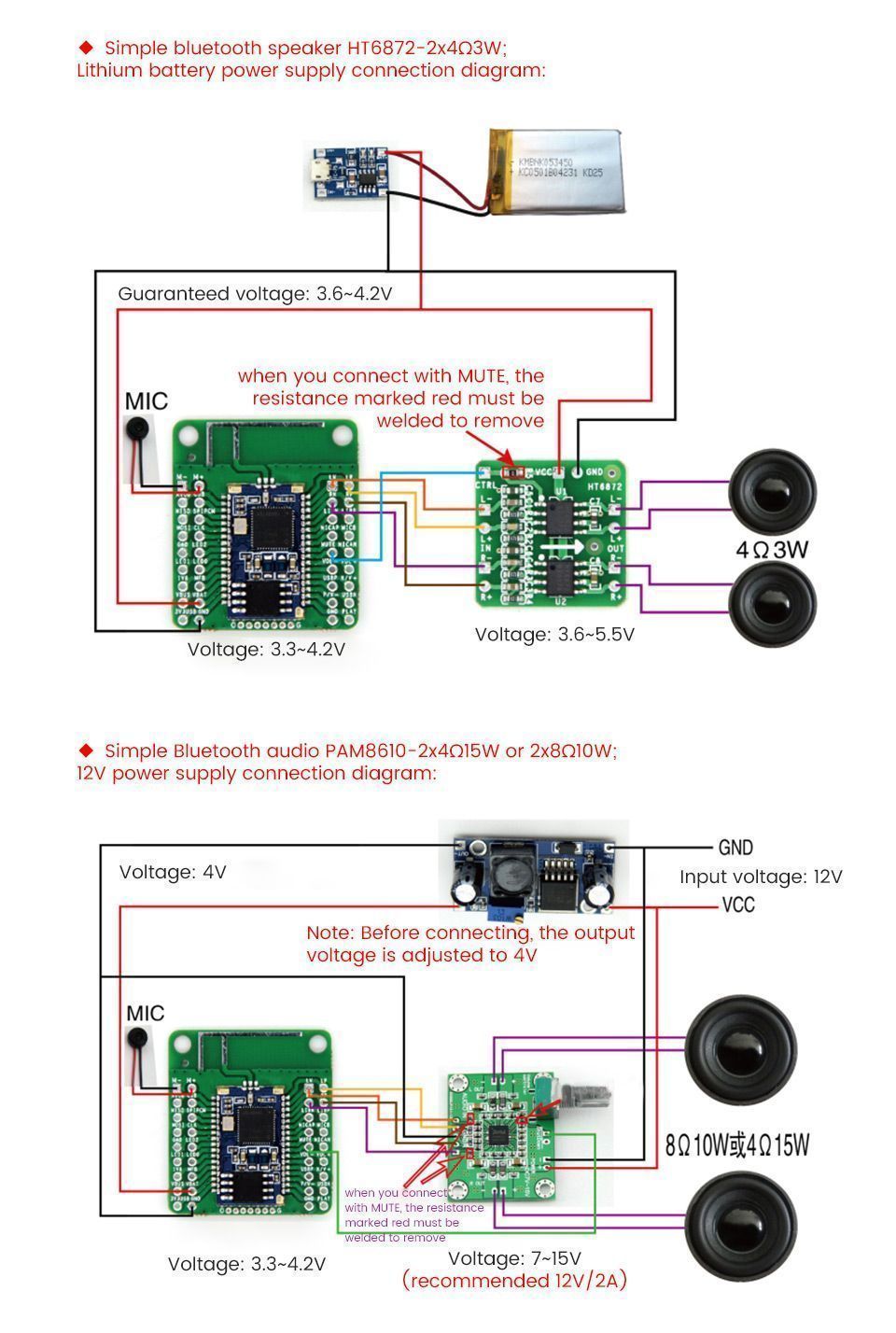

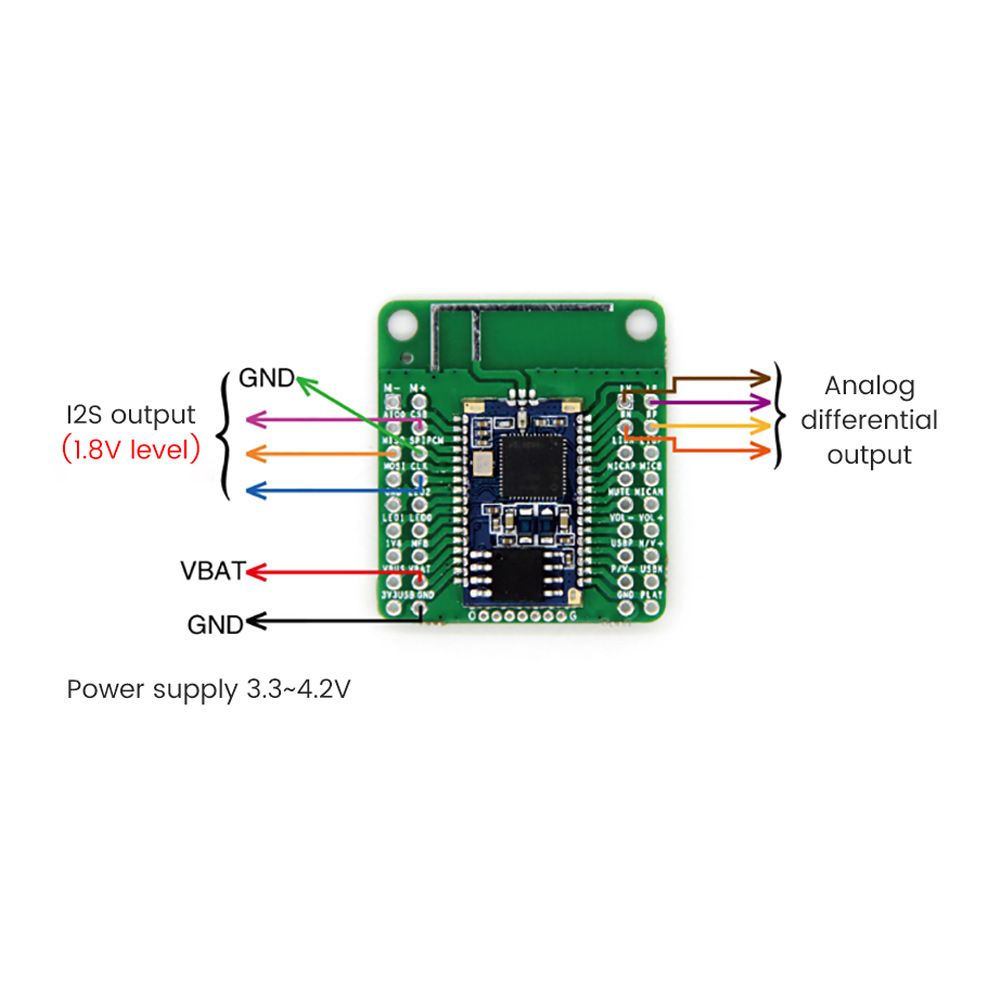

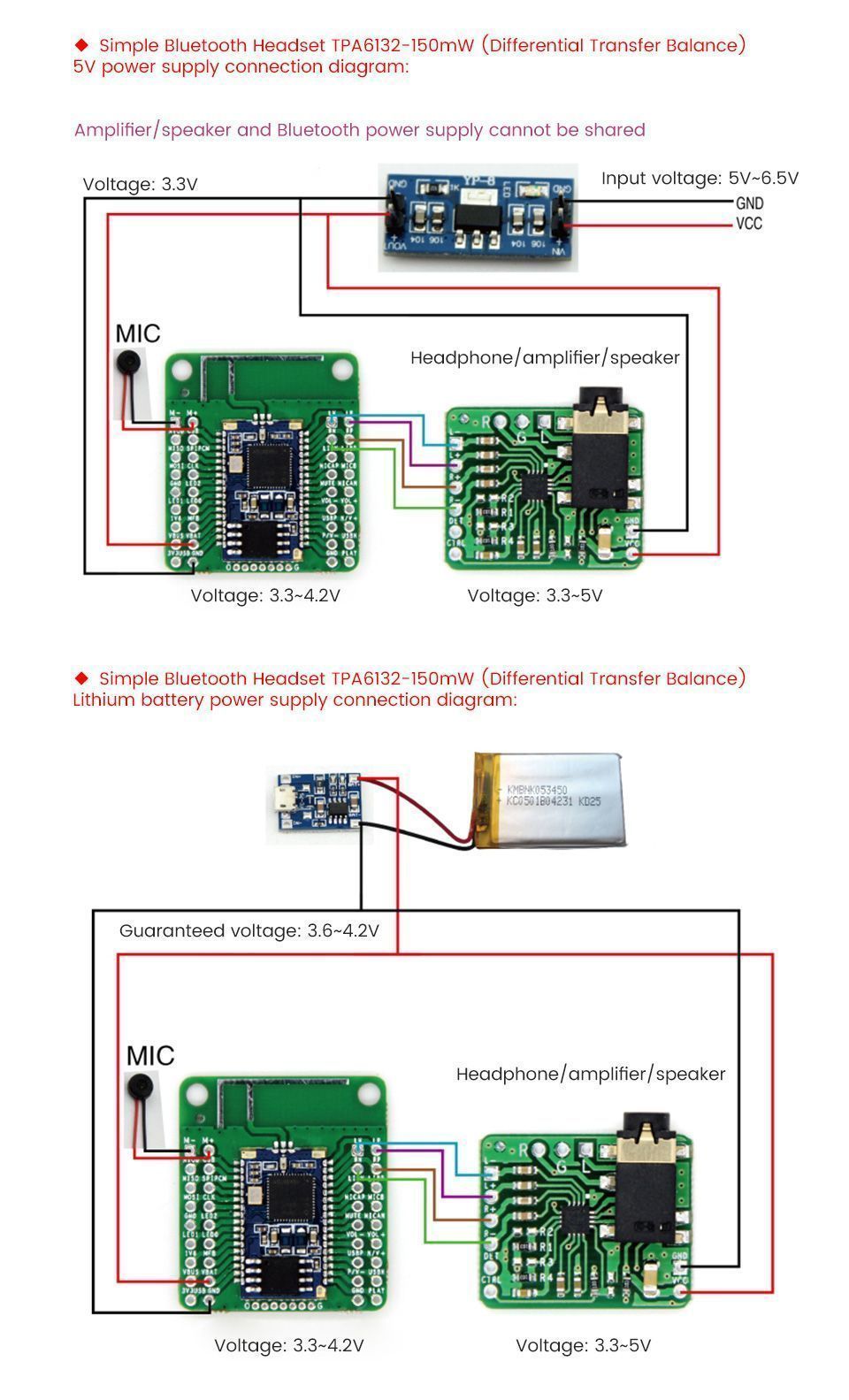

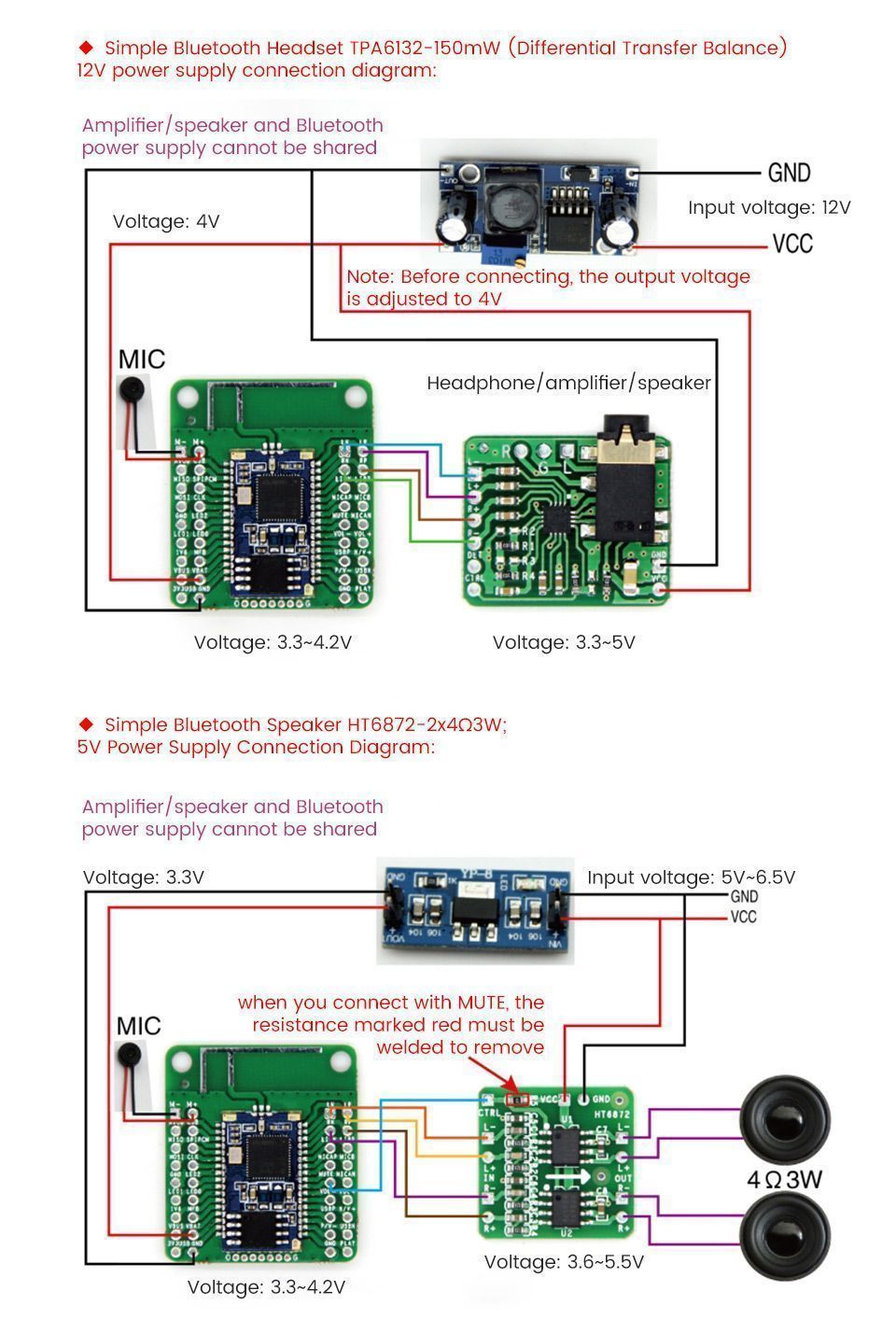

4. Analog differential output: It is recommended to use a differential input amplifier

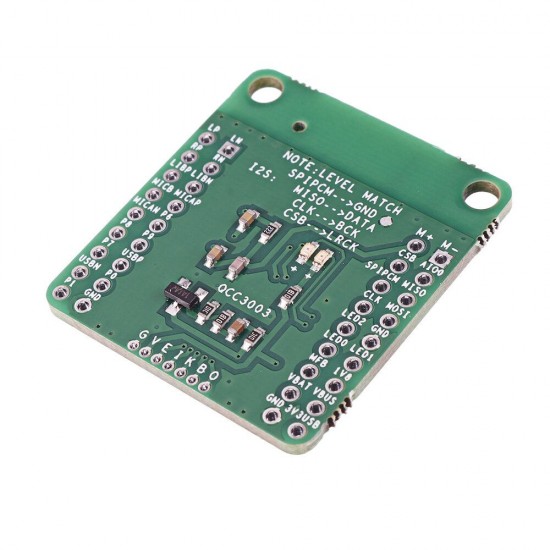

5.I2S output: PCM510x or ES90xx (I2S mode) is recommended.

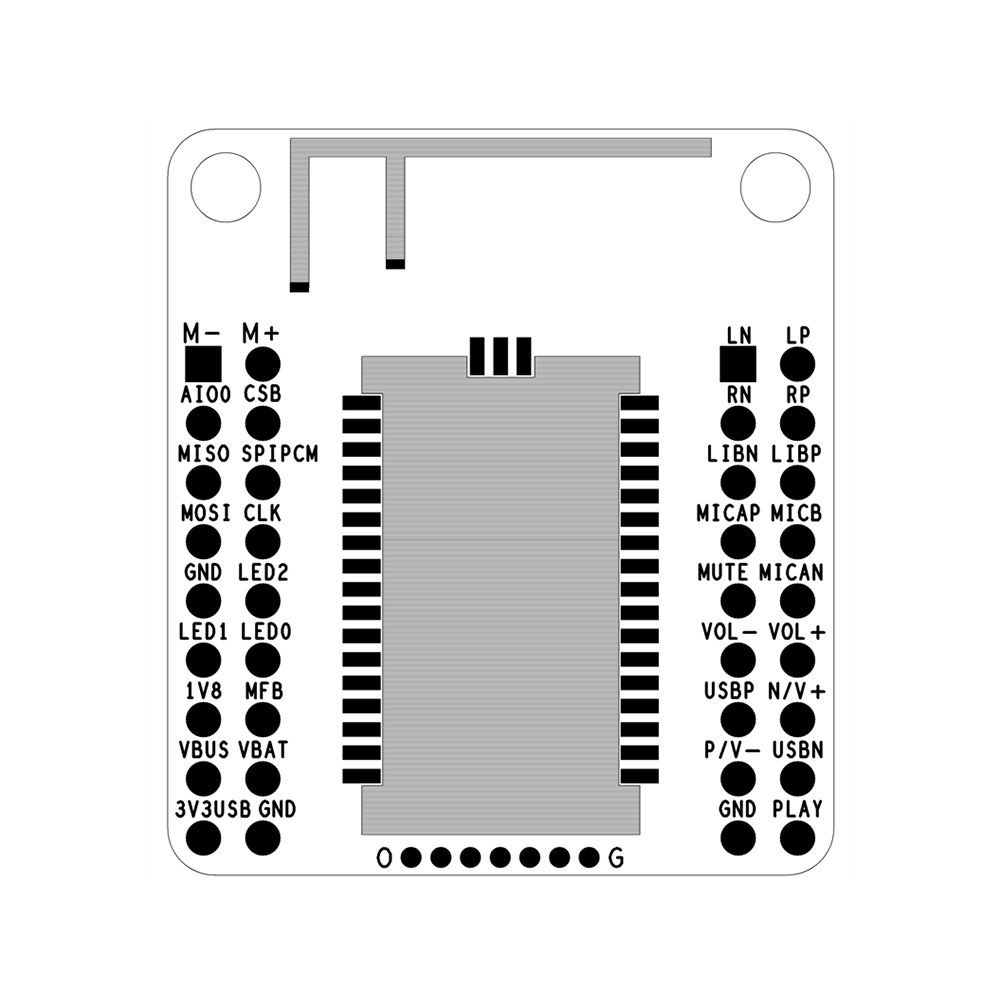

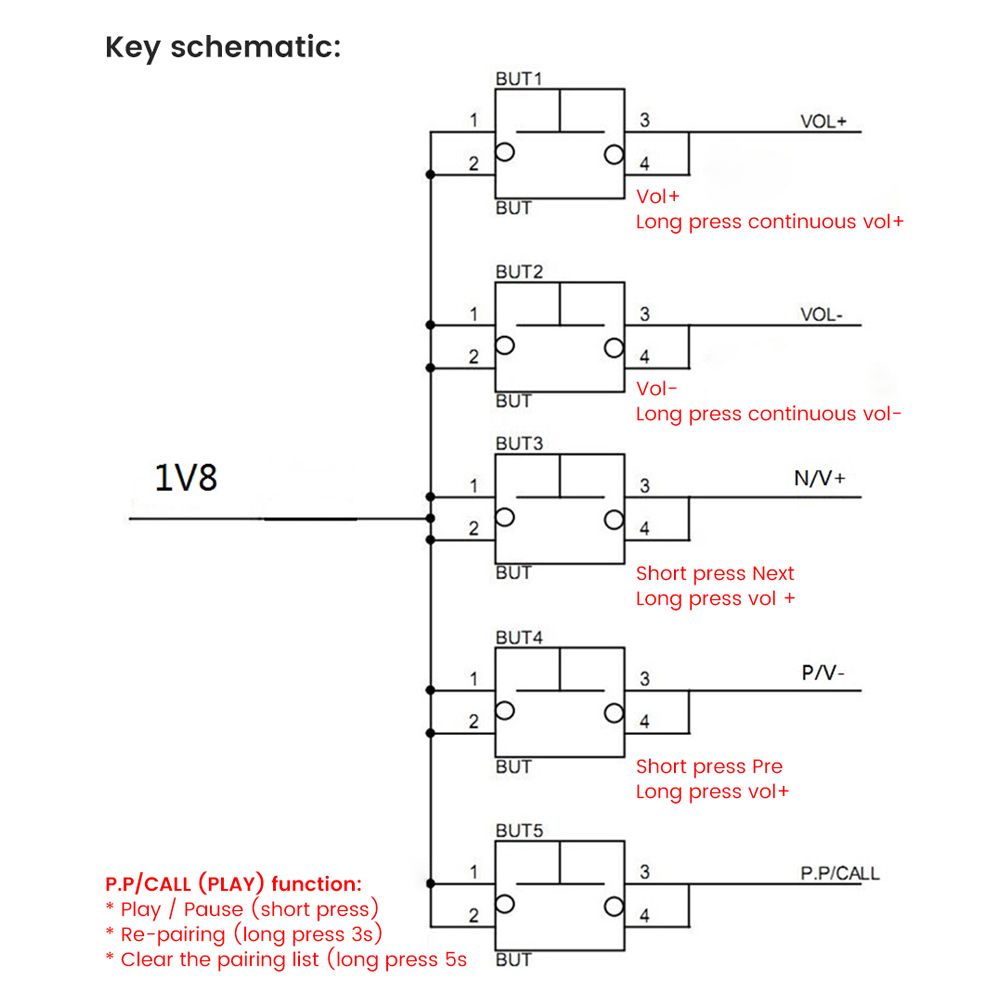

Key description: (1V8 button common end, the button line length is less than 5cm)

"VOL+": short press volume, long press continuous volume plus

"VOL-": short press volume down, long press continuous volume minus

"N/V+" : short press a song, long press continuous volume plus

"P/V-": short press the previous song, long press the continuous volume minus

"PLAY": short press play/pause/answer/hang up, long press 1 second to reject the call

Special Key function :

"PLAY" : Press and hold for 3 seconds to force the pairing mode, press and hold for 6 seconds to clear the pairing list.

Package included:

1 x Amplifier Board
