Programmable Timer TRV Thermostatic Radiator Valve Actuator Radiator Thermostat for Heater Radiator Room Thermometer
- Stock: In Stock
- Model: EB005414
- SKU: EB005414
Description:
This actuator will fine turning for valve status of opened, according to room temperature and setting temperature to meet better status of power saving for put off the working life of battery. Radiator actuator valve also known as electric valve, is a new concept for water valve device, suitable for housing, shopping mall, hotel heating and central air conditioning temperature control, room temperature control.
Features:
The thermostatic radiator valves is a special valve using cooperatively with heating radiator.

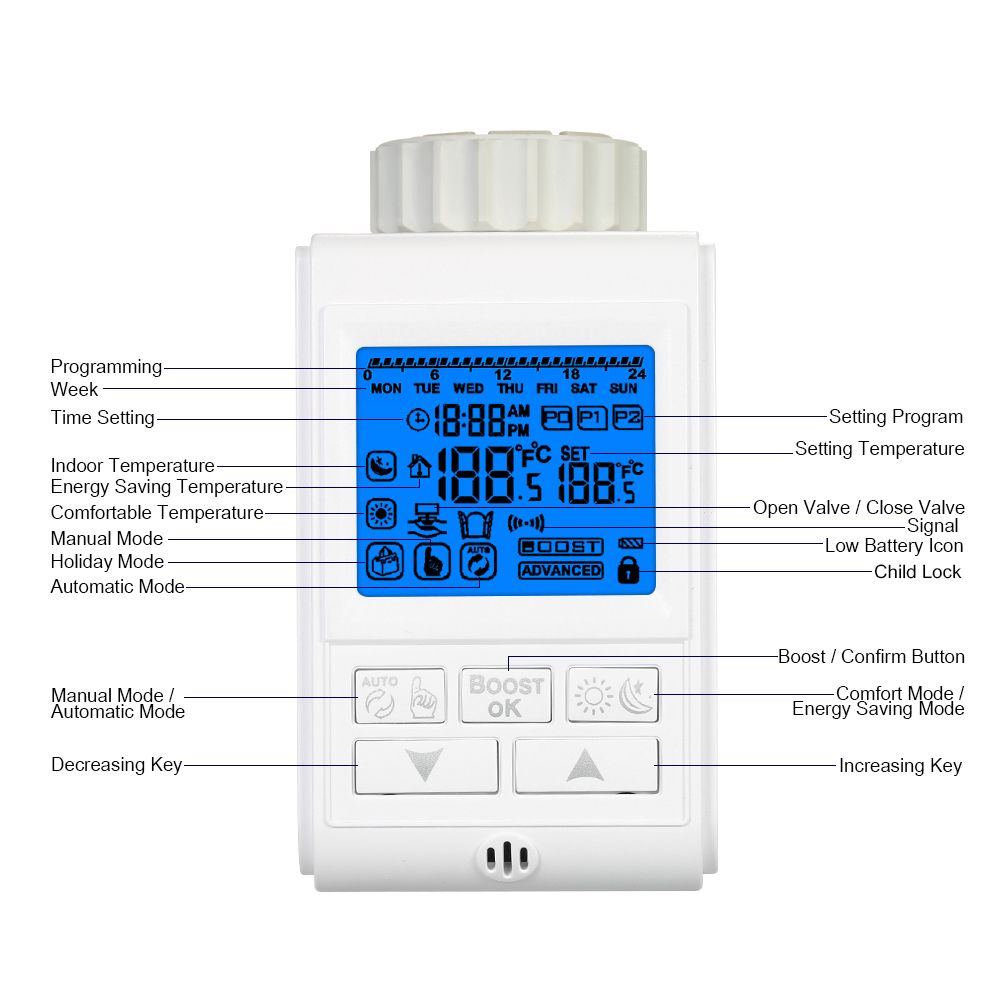

1.6" blue backlight LCD screen display and 5 buttons makes it easier to read and set the value in dark.

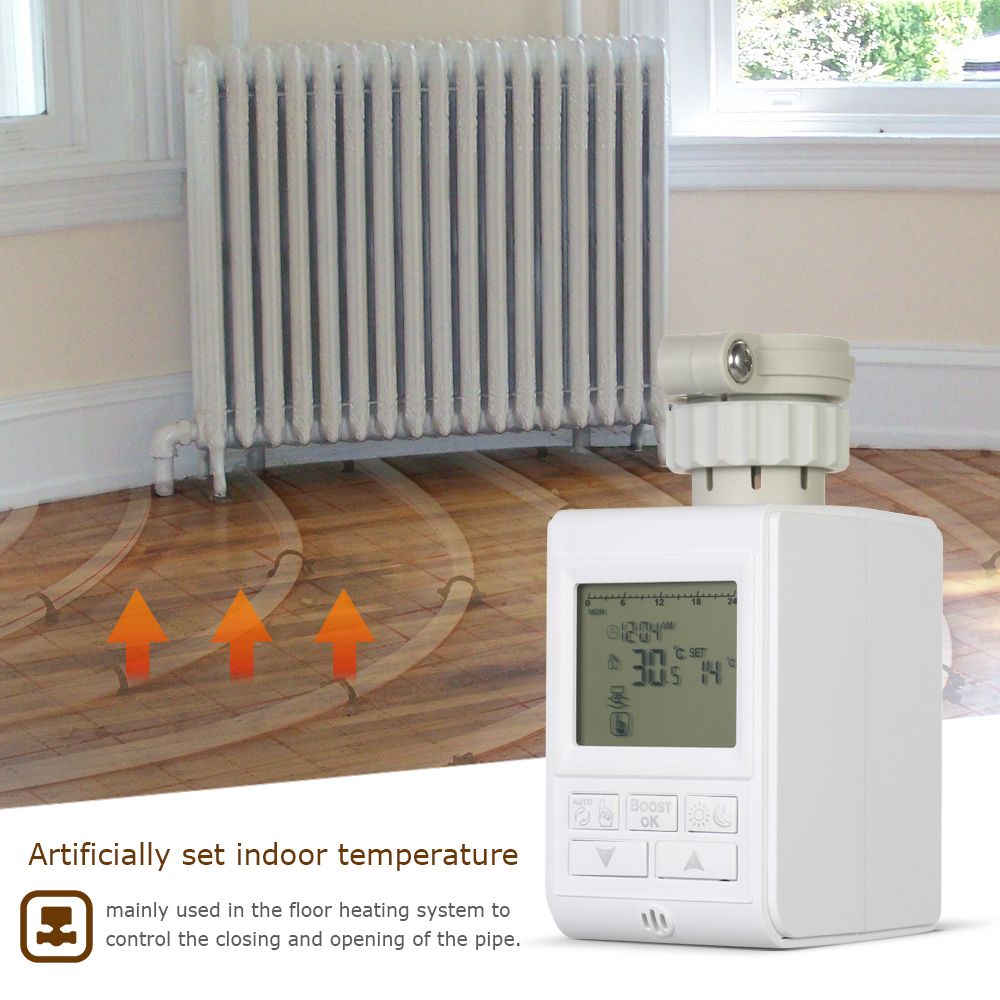

Artificially set indoor temperature, mainly used in the floor heating system to control the closing and opening of the pipe.
Adjust the flowing through the radiator without the need for external power hot water flow to realize the constant room temperature.
Directly control the water valve instead of installing an actuator plus temperature control valve.

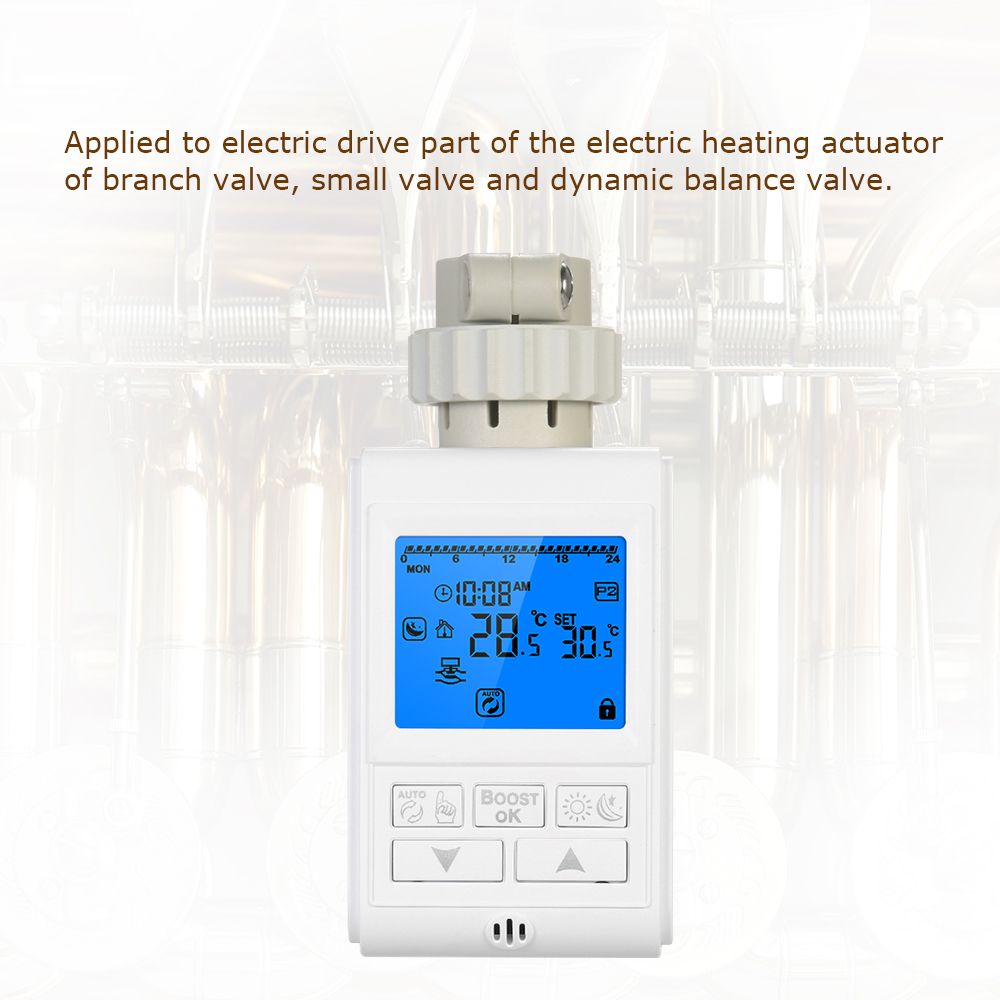

Applied to electric drive part of the electric heating actuator of branch valve, small valve and dynamic balance valve.
Nut connection installation method, easy and fast to install, convenient to disassemble.
Specifications:
Color: White
Material: ABS
Item Shape: Rectangle
Backlight: Blue backlight

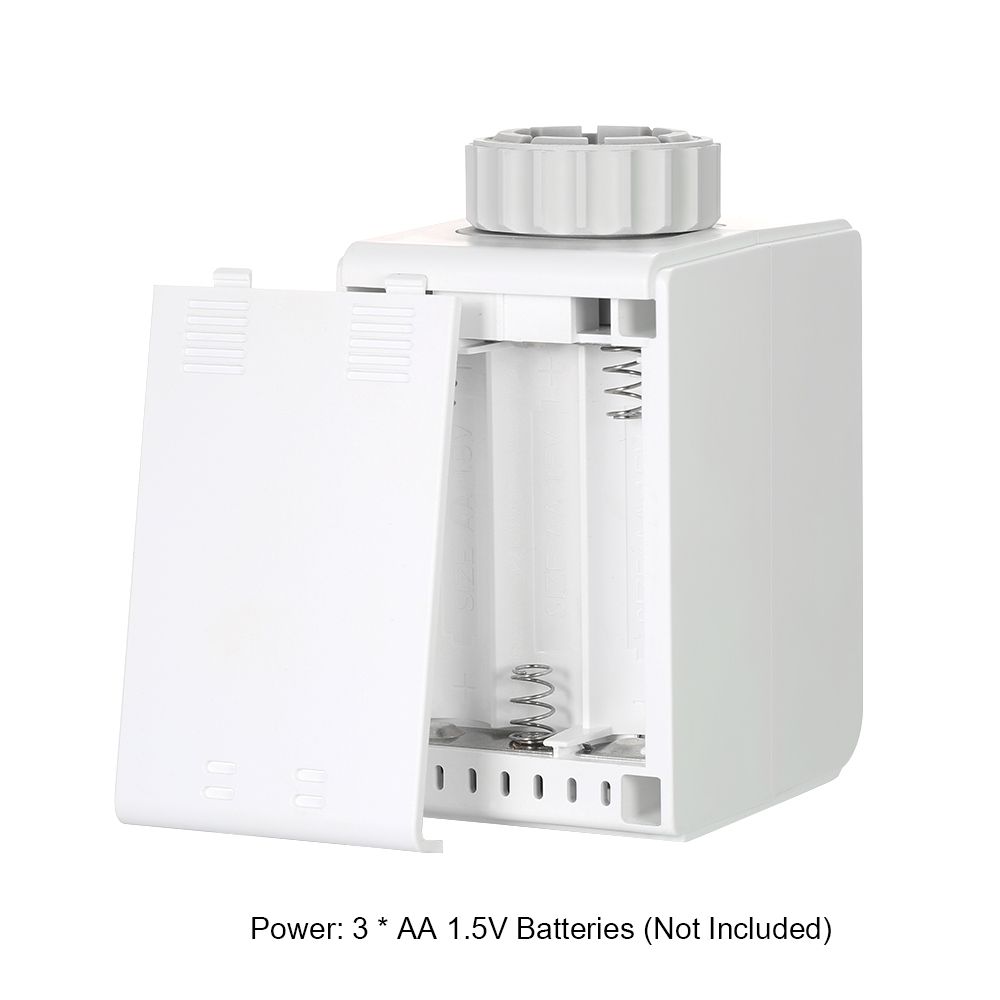

Power: 3 * AA 1.5V Batteries (Not Included)
Working Temperature: 0~70°C/32~158°F
Display Accuracy: 0.5°
Range of Temperature Adjustment: 5~70° / 41~158°F
Probe Sensor: NTC(10k)1%
Range of Temperature Display: 0~70° / 32~158°F
Thread Size: M30 * 1.5
Insulating Condition: Normal Environment
Running Program: Set per 1 week as a cycle
Maximum Current: 90mA
Maximum Route: 4.5mm
Application: Heating Device, Central Air Conditioning Temperature Control, Room Temperature Control
Screen Size: Approx. 61 * 47mm / 2.40 * 1.85in

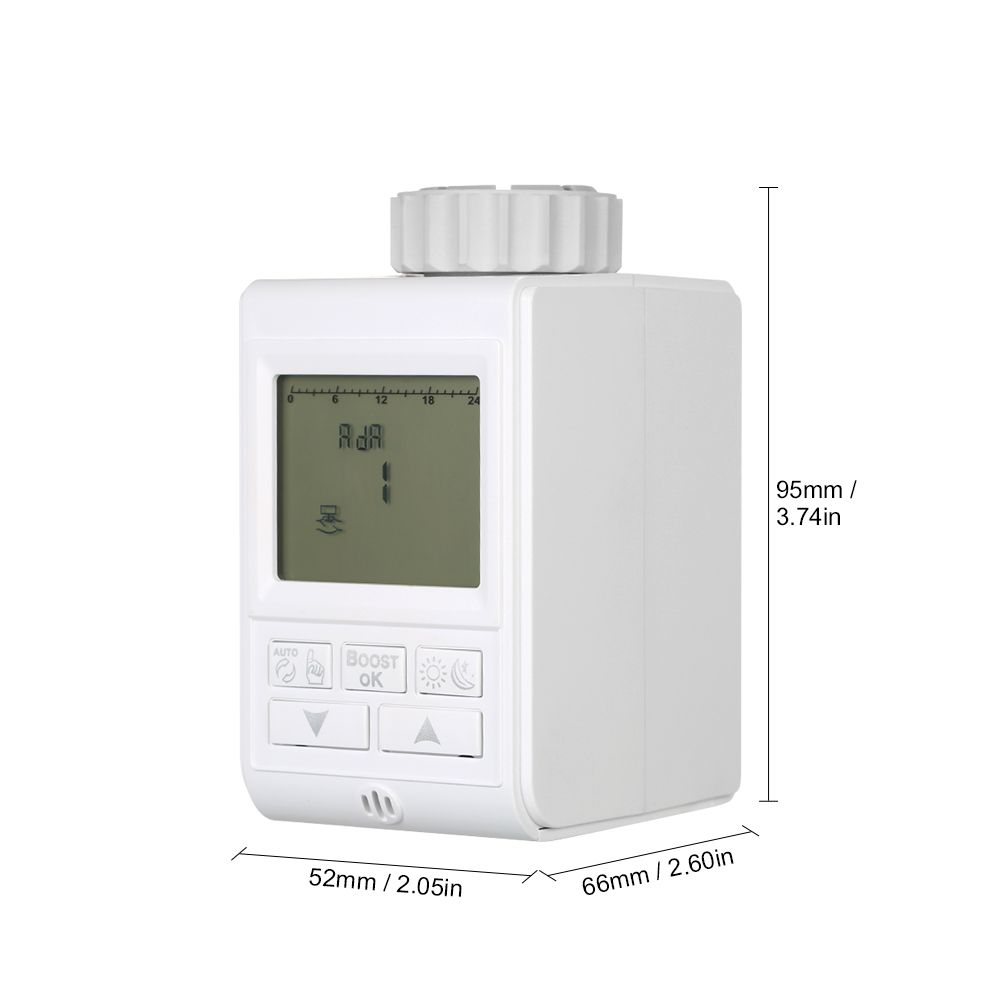

Item Size: Approx. 52 * 66 * 95mm / 2.05 * 2.60 * 3.74in
Item Weight: Approx. 172g / 6.06oz
Package Weight: Approx. 219g / 7.72oz
Package Size: Approx. 11 * 9.5 * 8cm / 4.33 * 3.74 * 3.15in

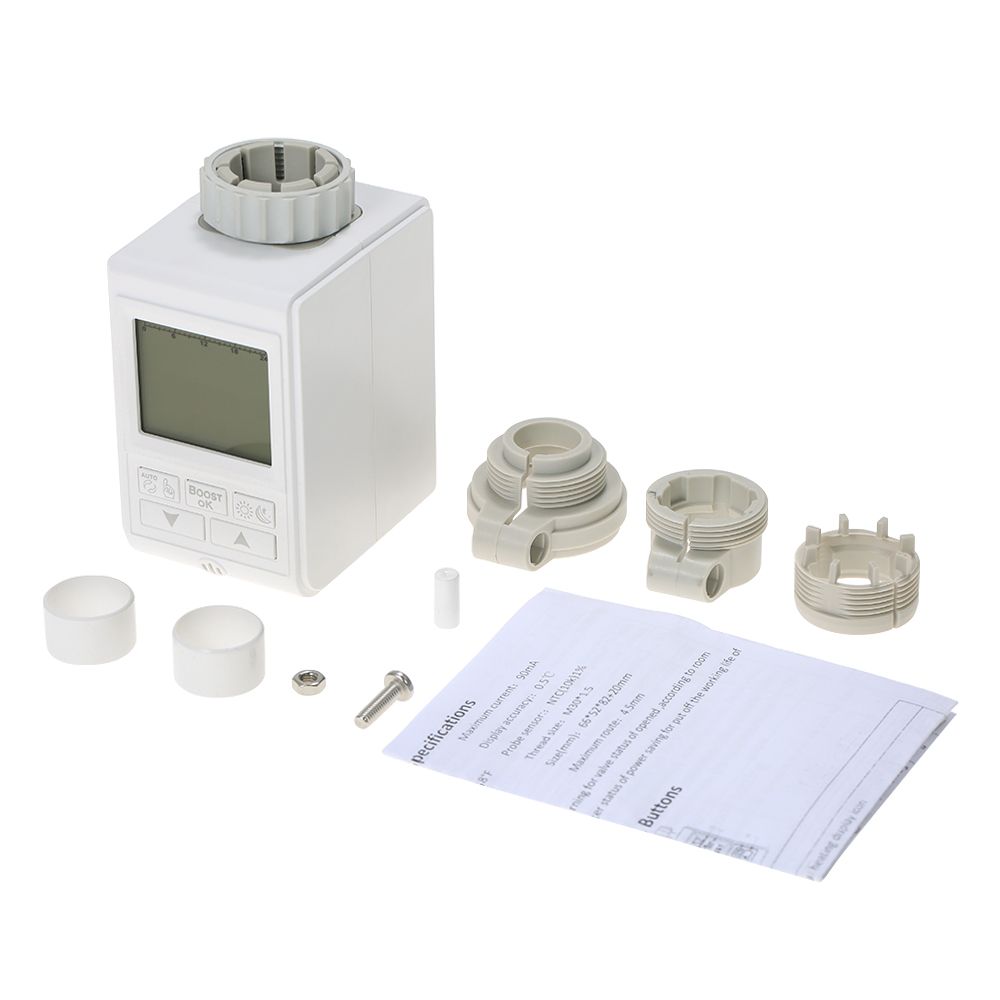

Package Includes:
1 * Radiator Thermostat
1 * Bag of Accessory
1 * English User Manual
Details Pictures:
