Professional M4070 Handheld LCR Bridge Capacitance Inductance Meter
- Stock: In Stock
- Model: EB004787
- SKU: EB004787

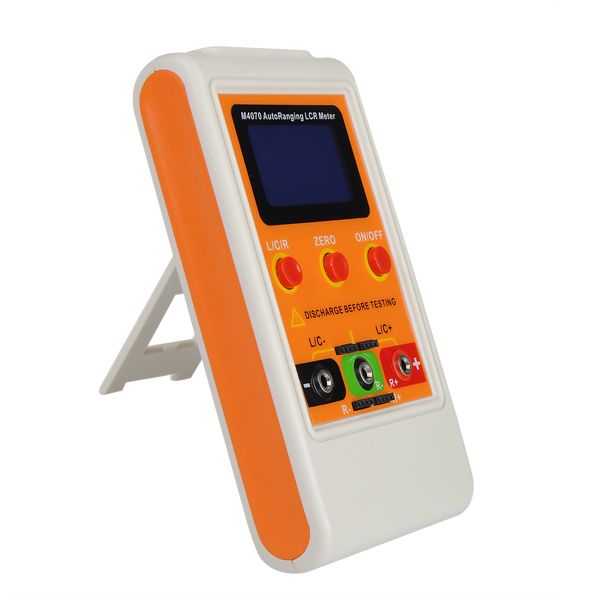

M4070 Handheld LCR Bridge Capacitance Inductance Meter
M4070 LCR meter is auto-ranging component tester, can drive up to 500 KHz, suitable for small value capacitor and inductor measurement. It provides very stable and high resolution measurement up to 5 digits. Meter can measure 0.00pF to 100.00mF capacitance, 0.000uH to 100.00H and 0.00Ω to 10.000MΩ This meter is using two technique measurement, LC oscillation and RC oscillation.
LC is much suitable for small value measurement and RC for high value capacitance.
Features:
Fully auto-ranging designed
High resolution, up to 5 digit display, most finest resolution: 0.01pF, 0.001uH, 0.01R
High stability and measurement range for L/ C/ R
USB charging with rechargeable battery inside
Large LCD display with backlight

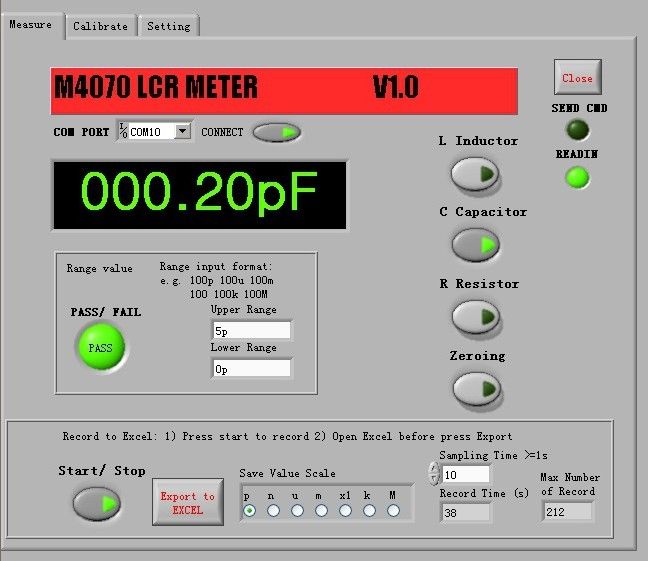

USB PC program, can take record and pass and fail component sorting function.
Specification:
Model : M4070
LCR Meter Series
LCR Testing Parameter : Main Parameter: L / C / R
Testing frequency : C: 10 to 500Khz L: 10 to 360Khz
Testing Method : Auto select LC and RC Oscillation
Calibration : Power on auto calibrate with internal reference capacitor
Testing voltage : 1.5Vrms
Best Tolerance : L: 1% +1 Digit, C: 1% +1 Digit, R: 0.5% +1 Digit
LCD update or Testing time : <3/s, (e.g. 100mF Capacitor <30s)
Range Selection : Automatically
Zeroing : Open / short circuit
Terminal : Mini-USB(Virtual Com Port)
Display Range :

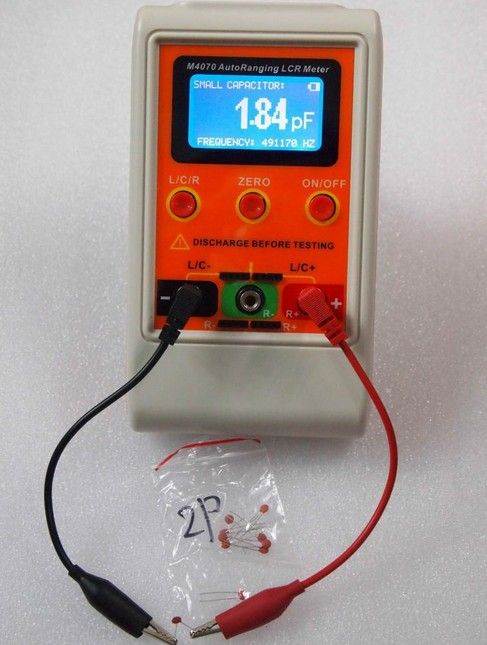

C: 0.00pF ~100.000mF (pF/nF/uF/mF)

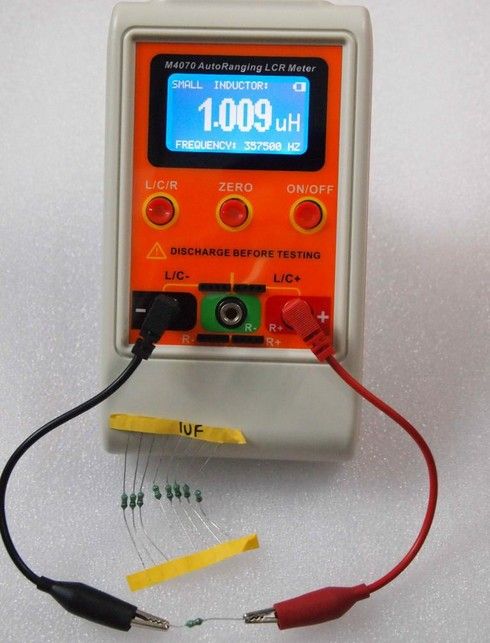

L :0.000uH ~ 100.000H (uH/mH/H)
Hz (LC Oscillation Frequency) : 0 to 900000Hz
(s) (RC Constant Time) : 0.000 to 99.999
R : 0.00 Ω ~ 20.000 MΩ (Ω/kΩ)
LCD Display : 128 x 64 , with backlight
Fuse Protection : 200mA
Charging terminal : Mini-USB (500mA)
Battery : 3.7V Li-polymer
Number of Testing Terminal :Main 3, Secondary 4
Reading Display : Max. 99999

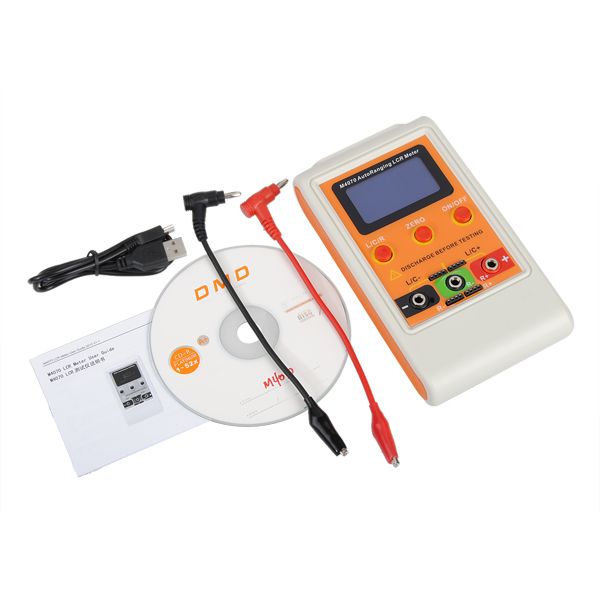

Package included :
1 x M4070 LCR Inductance Meter
1 x USB Cable

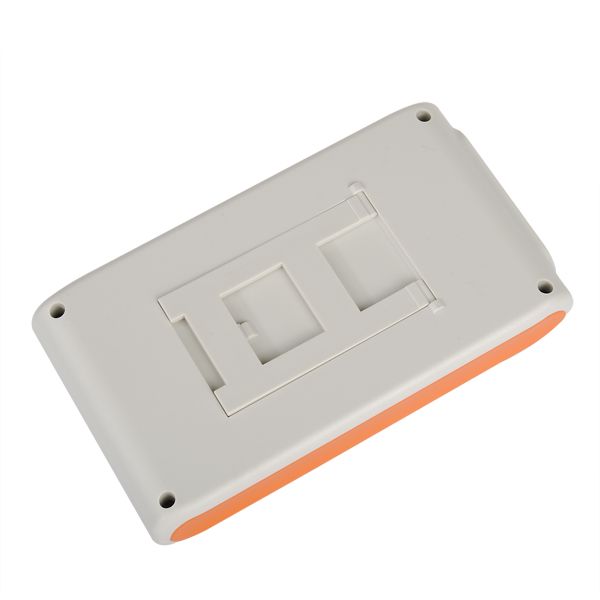

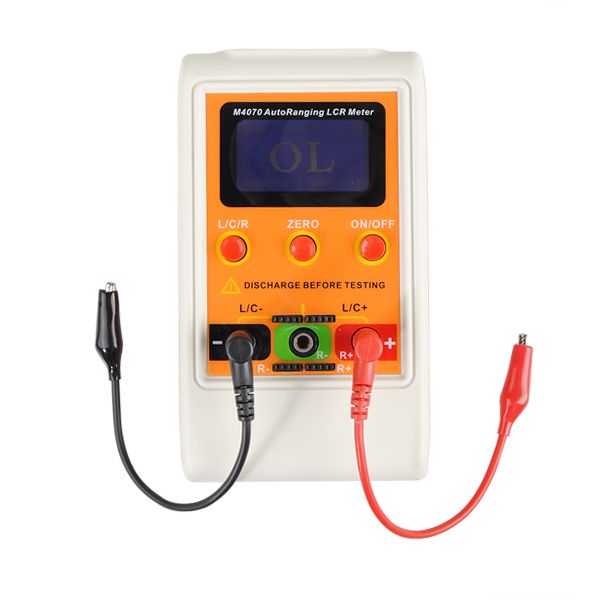

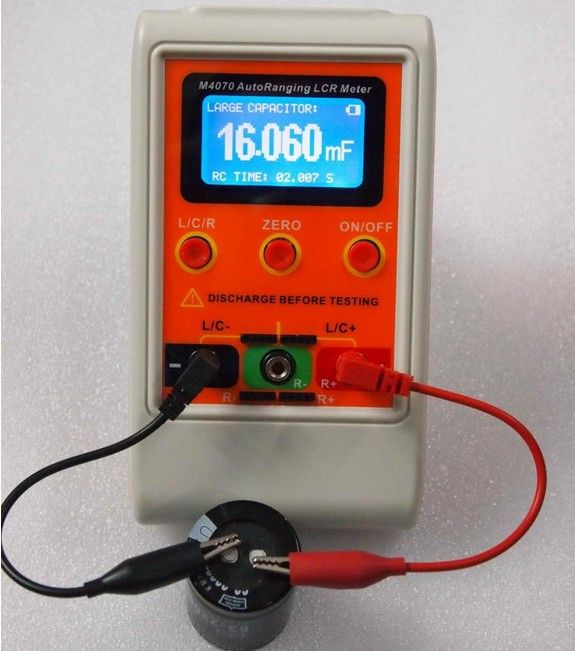

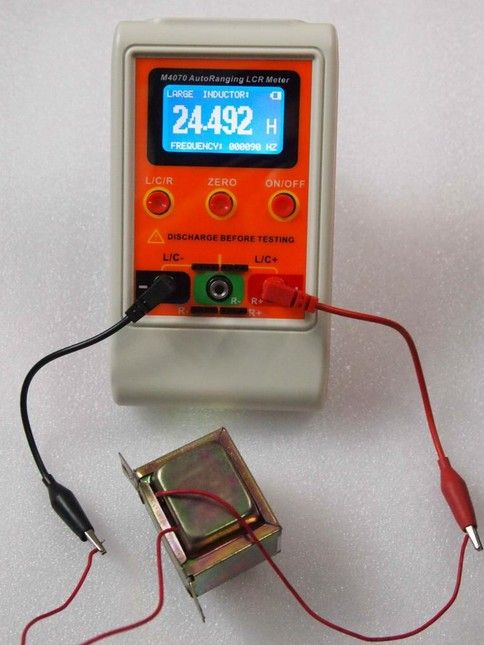

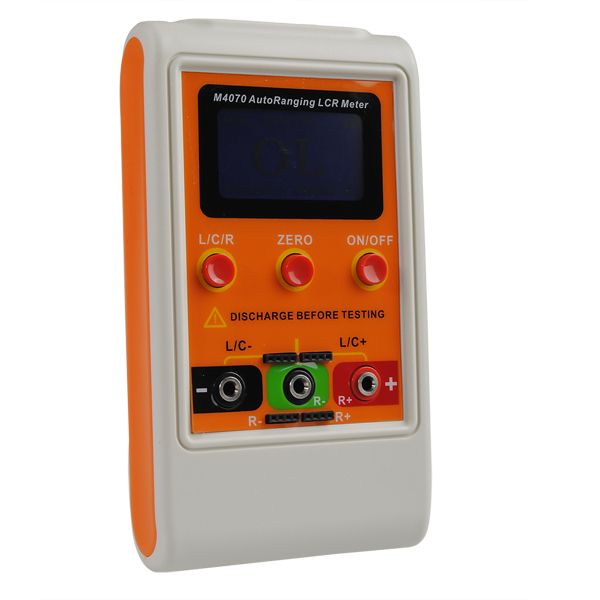

Details pictures :
