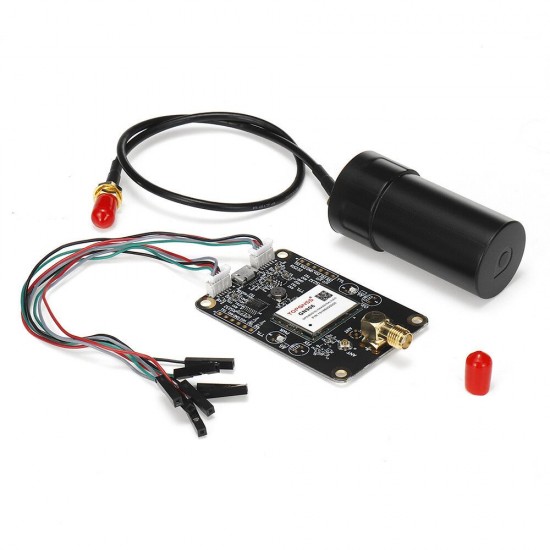

Personal Inspection RTK Module Antenna ZED-F9P Four-star Eight-frequency RTK Motherboard

Based on 0 reviews. - Write a review

$504.99

Ex Tax: $504.99

Stock: In Stock
Model: EB0041687
SKU: EB0041687

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Instruction: Click here to open

Feature:

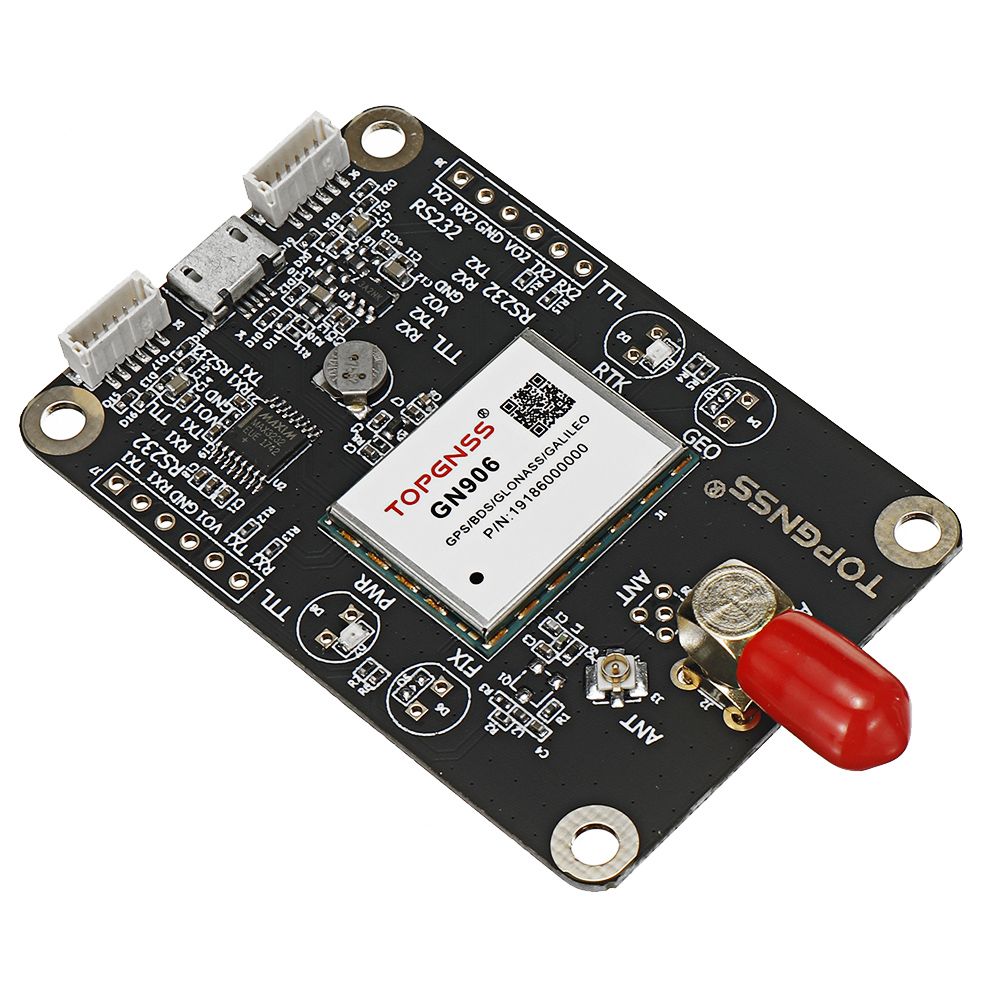

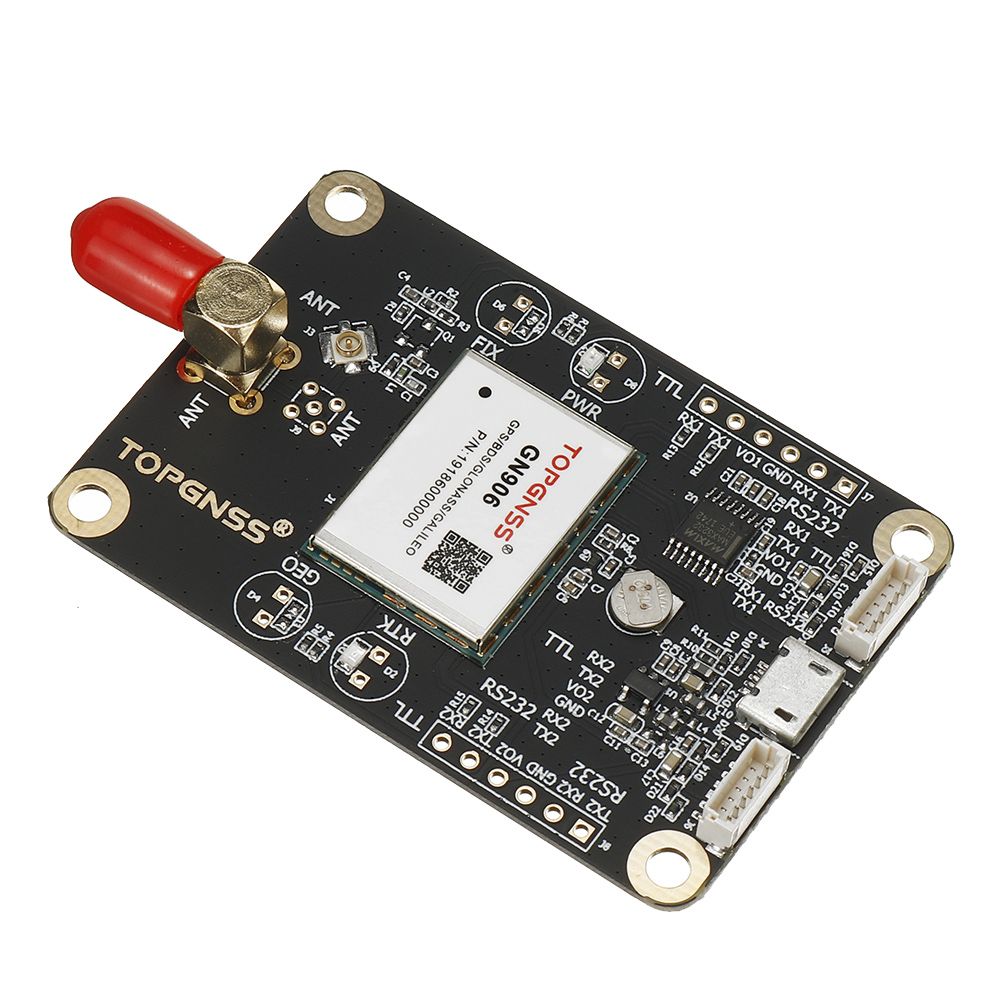

TOP-F906 High-precisi0n GNSS receiver module with new F9 receiving multi-band GNSS module, integrated with ublox multi-band RTK technology can achieve centimeter-level accuracy.

The TOP-F906 has built-in support for standard RTCM correction and supports centimeter-level navigation from a virtual reference station (VRS) in the local base station or network RTK settings.

TOP-F906 GNSS module design with integrated USB, RS232, UART level compatible design with dual UART ports (UART1, UART2) Different output levels can be selected via the connection cable.

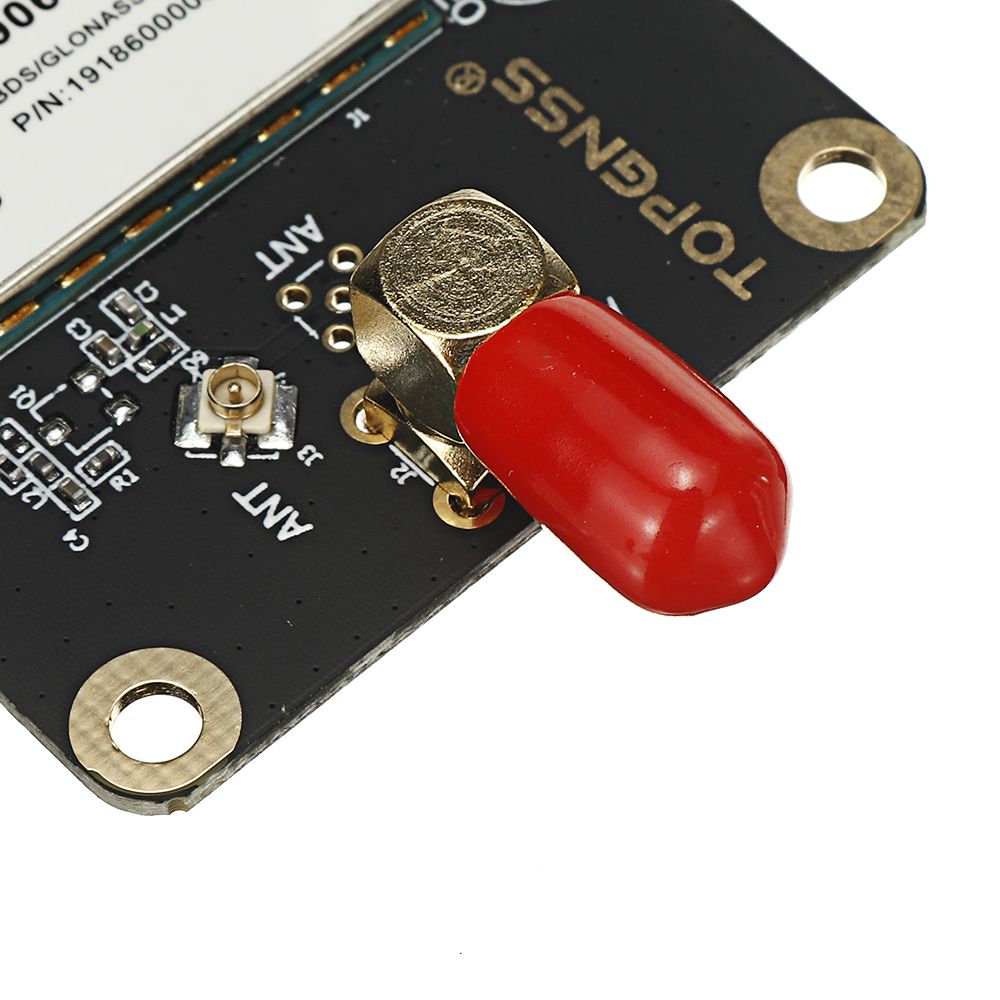

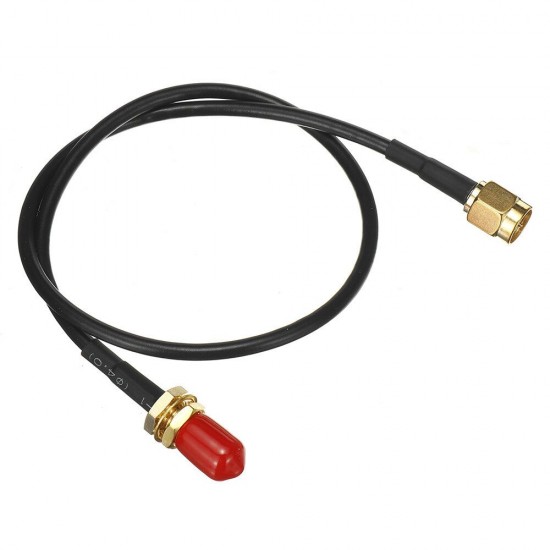

The module integrates three antenna connectors (IPEX, MMCX pad SMA) for easy integration with different antennas.

Support multiple calibration services, allowing each application to optimize performance based on the individual needs of the application. Rich application interface, optional connector or soldering pin.

The module is easy to integrate, low in design cost, the package size is only 60*40mm, power consumption is small, multi-band GNSS reception, through the external wireless data transmission module radio, can realize the precise positioning and navigation requirements of mobile industrial machinery, several seconds It achieves RTK centimeter accuracy and is very suitable for mass-market adoption.

TOP-F906 Features:

Receiver type:

Default level: UART/TTL

184 channel

ZED-F9P GNSS module design

GPS L1C / A L2C, GLO L1OF L2OF, GAL E1B / C E5b, BDS B1I B2I, QZSS L1C / A L2C

Baud rate: 38400 (default) can be set

Update rate: 1HZ (default) can be set

RTK up to 20 Hz1

Working voltage: 3.3-5V

Dual-port design: port 1, port 2.

Port 1: For configuration and NMEA or RTCM data input and output.

Port 2: For NMEA or RTCM input.

USB can test and set parameters of TOP-F906 card by USB connection RTK location

Accuracy: RTK 0.01 m + 1 ppm CEP

Convergence time: RTK <30 seconds

Acquisition of cold start: 24 seconds

Auxiliary start: 2 seconds

Reoccupy: 2 seconds

Size: 60*40mm

TOP-F906 features:

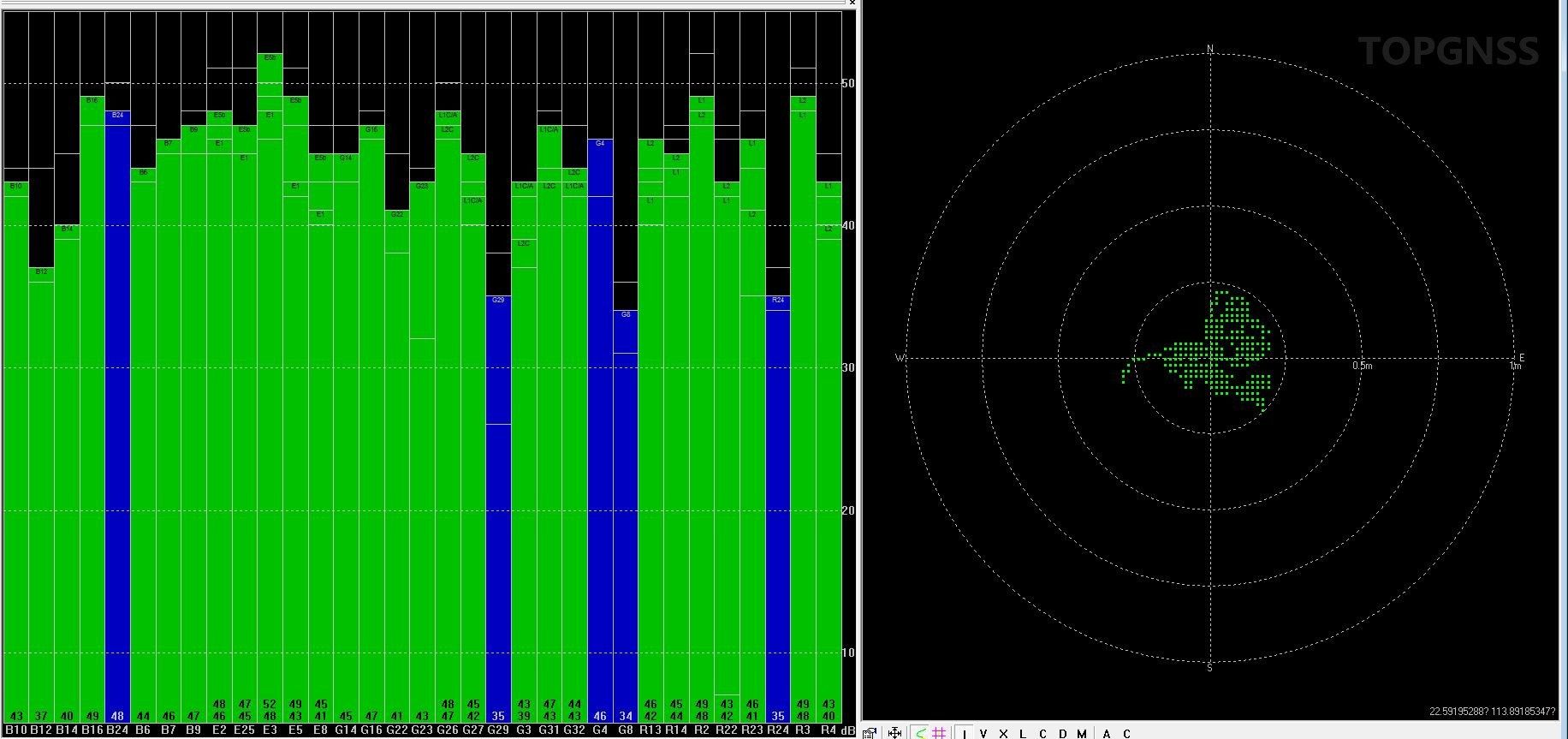

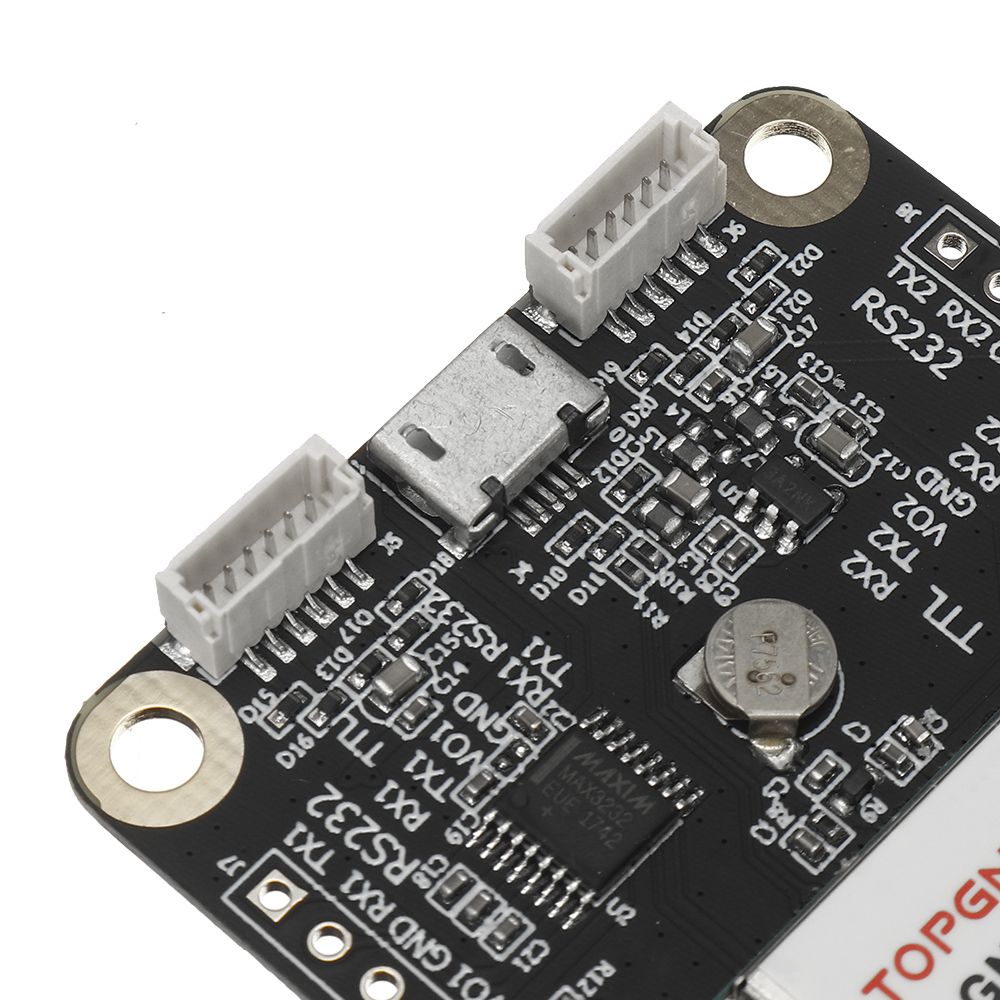

On-board Ultra low noise 3.3V voltage regulator with noise 9nV/Hz USB, rs232 and Uart (TX, RX) interface SMA IPEX antenna connectors u-center GPS Evaluation Software

Extensive visualization and evaluation features

1TTL UART port, 1 RS232 port, 1 USB port

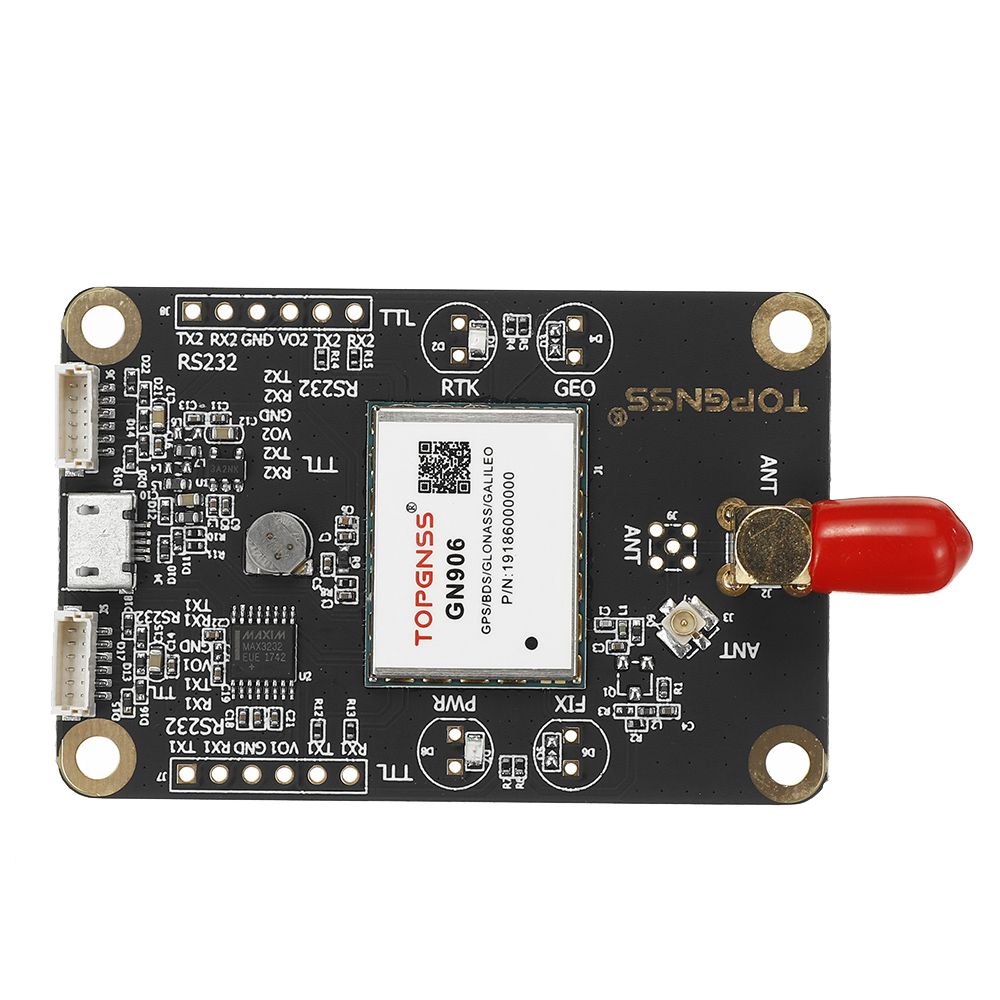

Power LED, GEO LED, RTK LED,FIX LED

Backup battery

Dimensions: 60x40 mm

Weight: 12 gram

Package includes:

1 x Motherboard
