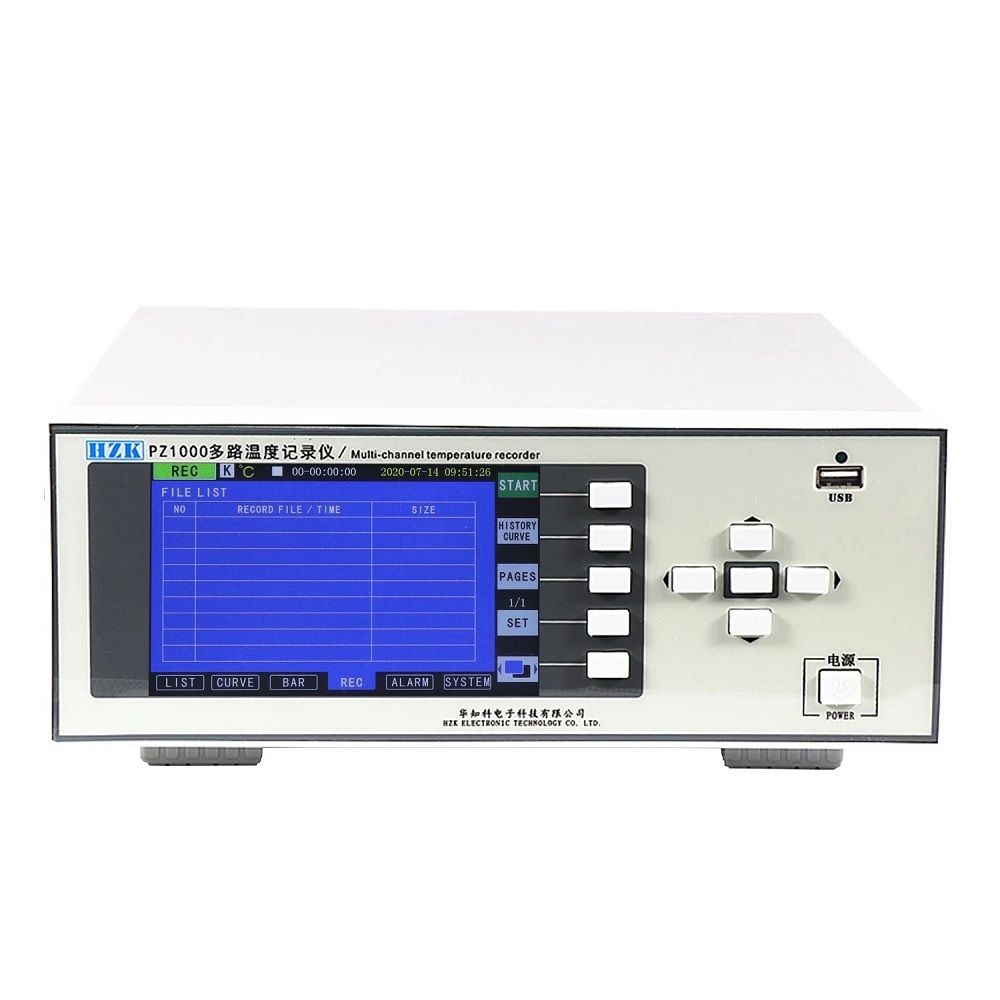

PZ1008P 5 Inch Multi-channel Temperature Recorder 8-Channel Temperature Tester Built-in 8G Memory 3 Display Mode History Query Beeper Alarm

Features:

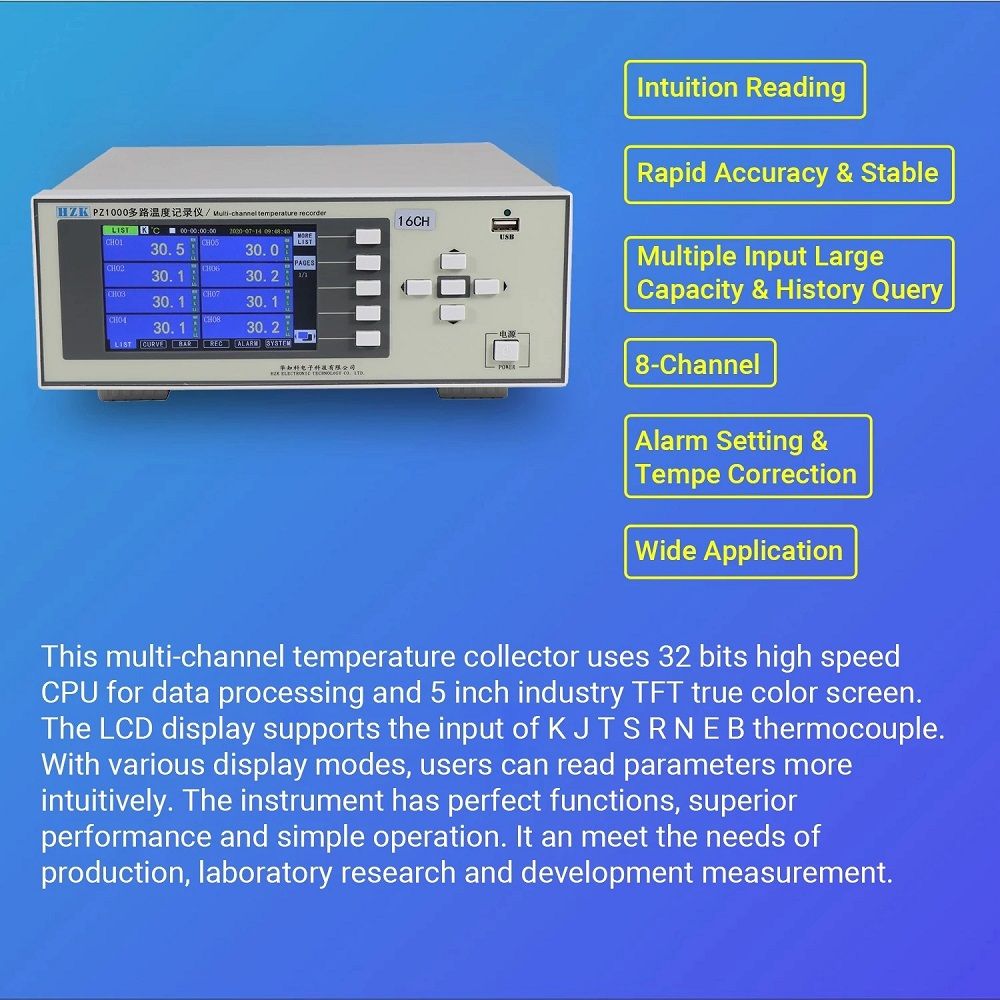

Intuition Reading --- 7in Large TFT color LCD touch screen resolution 800x600, large view angle. 3 type data display mode: Number List, Curve Chart and Column Chart; ℃ ℉ K 3-type unite adjustable. The real-time clear display ensure instant reading and got result at a glance, more easy and convenient.
Rapid Accuracy & Stable --- Adopt 32-bit high-speed MCU data sampling design, measurement more accurate, faster and more stable. Measure accuracy 0.5℃, display resolution 0.1℃.
Multiple Input Large Capacity & History Query--- Support for multiple sensor input: K J T S R N E B.  Designed with USB interface, support U disk to download copy records, more convenient use. Built-in 8G memory, which can record 64 files at most. Each file can record 60-thousand groups of data. It supports the machine to query the historical curve chart.
8-Channel --- The modular design, convenient for users to expand demand expansion. Each modular has 8 channels. The voltage difference between channels can be as high as AC/DC 350V, with strong Anti-interference ability.
Alarm Setting & Tempe Correction --- Each channel can set multi-layer alarm value independently, LL (ultra-low), L(too low), H (too high), HH (ultra-high), and can output alarm through relay, and they are beeper real-time. Independent temperature correction dela alue foreach channel and cold end correction.
Wide Application --- Widely used in production lines, laboratories, quality inspection departments of production enterprises in the fields of lighting appliances, power tools, household appliances, motors, electric appliances, medicament, petroleum, chemical industry, metallurgy, electric power and other industries and scientific research units.

Specification:

Display mode: 5 inch TFT true color LCD industrial screen

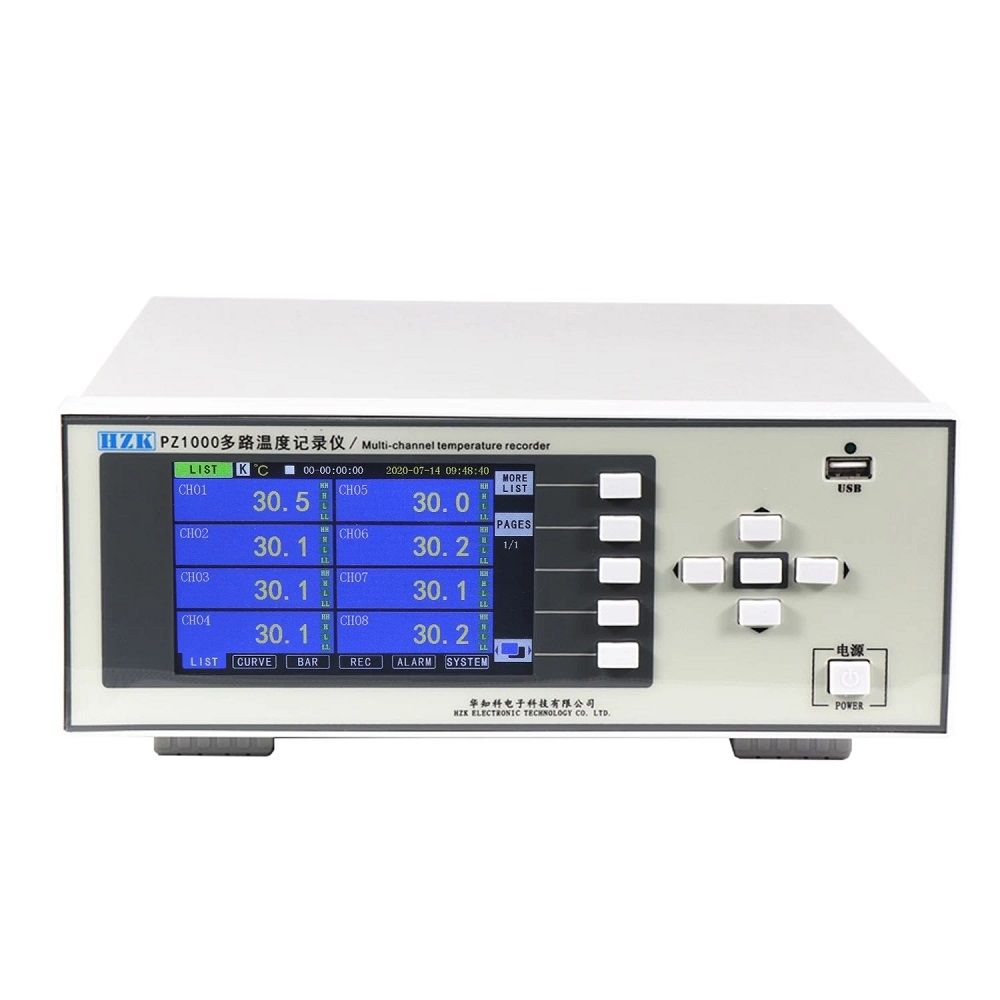

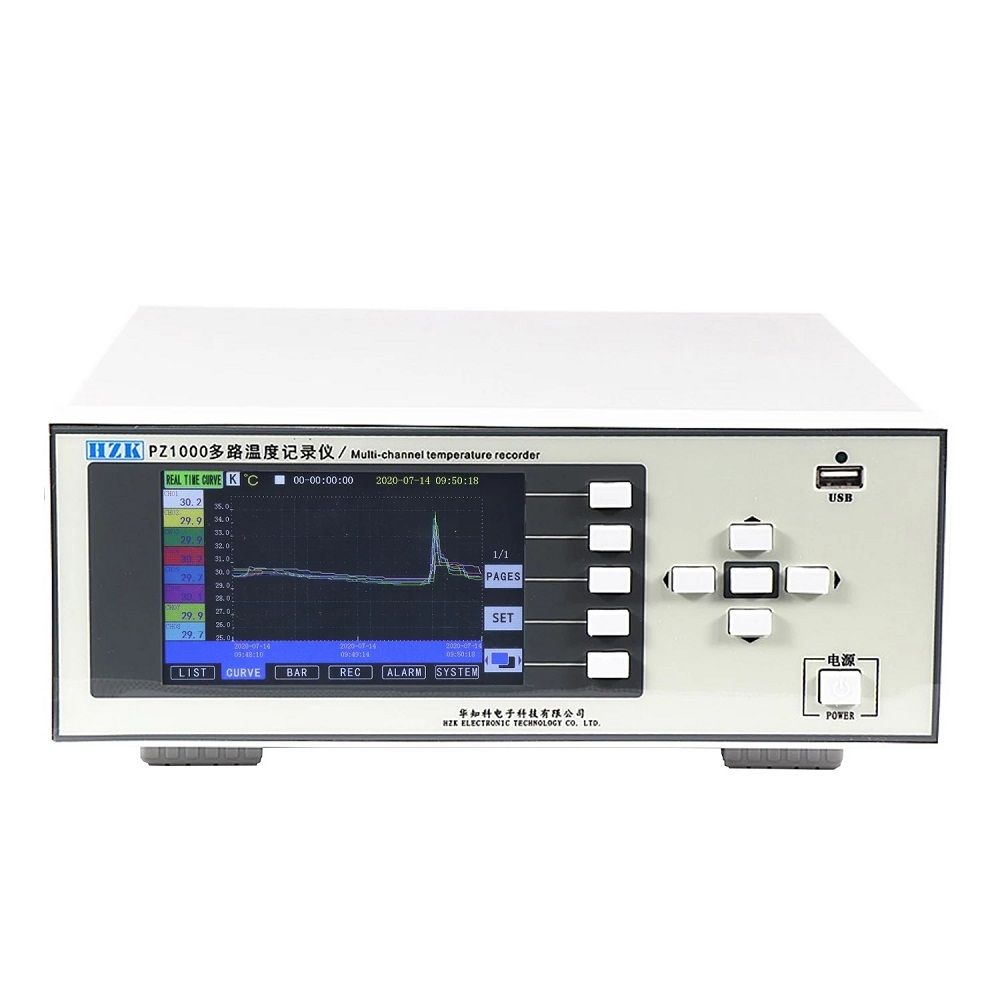

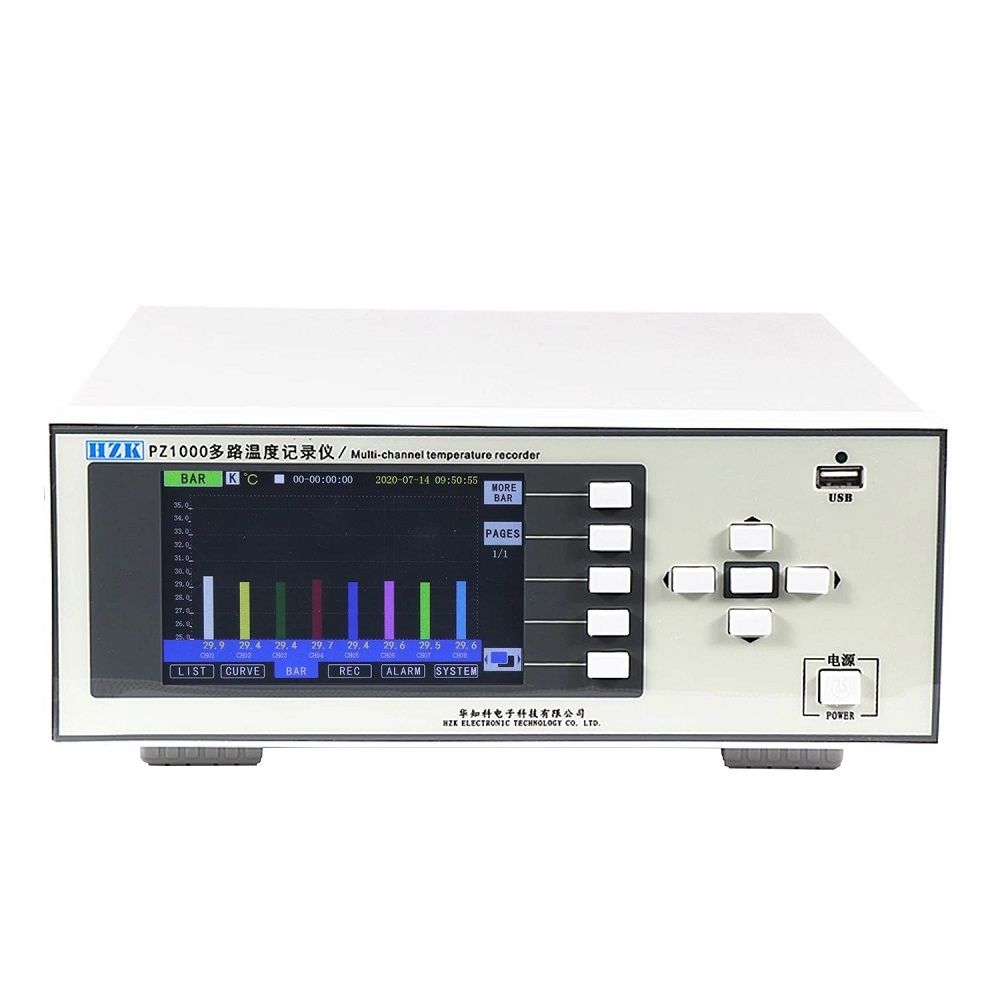

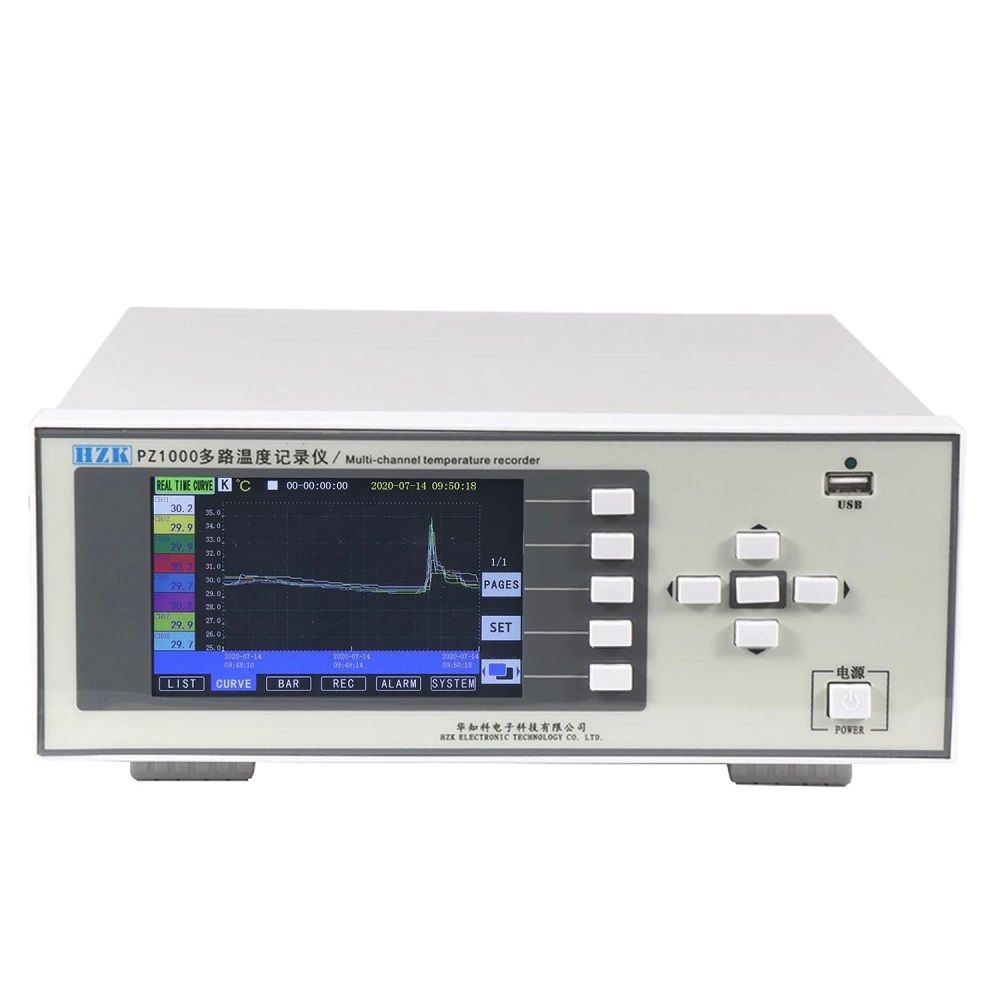

Display Mode: Real time list value, real-time column chart, real-time curve chart

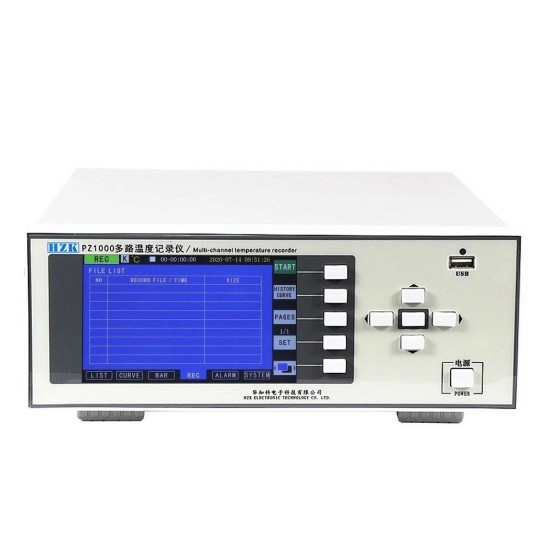

History Query: History curves and historical alarm records queried
Channel Number: 8 channels per module
Thermocouple: K J T S R N E B
K type thermocouple: -100〜1370℃ accuracy ±0.5℃+0.6℃
J type thermocouple: -100〜1200℃ accuracy ±0.5℃+0.6℃
T type thermocouple: -100〜400℃ accuracy ±0.5℃+0.5℃
S type thermocouple: 300〜1768℃ accuracy ±0.5℃+0.6℃
R type thermocouple: 300〜1768℃ accuracy ±0.5℃+0.8℃
N type thermocouple: 0〜1300℃ accuracy ±0.5℃+0.9℃
Resolution: 0.1℃
Recording interval: 1S-9999S Can be set up
Communication interface: Standard USB
Channel isolation: DC/AC current up to 350V, High voltage live measurement, super anti-interference ability
Power supply: 220V±10%, frequency 50Hz/60Hz ≤5W /86-265VWide voltage(Optional) ≤5W
Accessories: Each channel is equipped with a K type thermocouple

Package includes:

1 * 8-Channel Temperature Tester
1 * Power Cord
1 * User Manual
1 * Thermocouple Line
1 * Disc
