PVR204 1080P 4+2CH ONVIF NVR PVR with 2CH Cloud Channel Video Recorder for IP Camera System

PVR204 1080P 4+2CH ONVIF NVR PVR with 2CH Cloud Channel Video Recorder for IP Camera System
PVR204 1080P 4+2CH ONVIF NVR PVR with 2CH Cloud Channel Video Recorder for IP Camera System
PVR204 1080P 4+2CH ONVIF NVR PVR with 2CH Cloud Channel Video Recorder for IP Camera System
PVR204 1080P 4+2CH ONVIF NVR PVR with 2CH Cloud Channel Video Recorder for IP Camera System
PVR204 1080P 4+2CH ONVIF NVR PVR with 2CH Cloud Channel Video Recorder for IP Camera System
PVR204 1080P 4+2CH ONVIF NVR PVR with 2CH Cloud Channel Video Recorder for IP Camera System
PVR204 1080P 4+2CH ONVIF NVR PVR with 2CH Cloud Channel Video Recorder for IP Camera System
PVR204 1080P 4+2CH ONVIF NVR PVR with 2CH Cloud Channel Video Recorder for IP Camera System
PVR204 1080P 4+2CH ONVIF NVR PVR with 2CH Cloud Channel Video Recorder for IP Camera System
PVR204 1080P 4+2CH ONVIF NVR PVR with 2CH Cloud Channel Video Recorder for IP Camera System
PVR204 1080P 4+2CH ONVIF NVR PVR with 2CH Cloud Channel Video Recorder for IP Camera System
PVR204 1080P 4+2CH ONVIF NVR PVR with 2CH Cloud Channel Video Recorder for IP Camera System
PVR204 1080P 4+2CH ONVIF NVR PVR with 2CH Cloud Channel Video Recorder for IP Camera System
PVR204 1080P 4+2CH ONVIF NVR PVR with 2CH Cloud Channel Video Recorder for IP Camera System
PVR204 1080P 4+2CH ONVIF NVR PVR with 2CH Cloud Channel Video Recorder for IP Camera System
PVR204 1080P 4+2CH ONVIF NVR PVR with 2CH Cloud Channel Video Recorder for IP Camera System
PVR204 1080P 4+2CH ONVIF NVR PVR with 2CH Cloud Channel Video Recorder for IP Camera System
PVR204 1080P 4+2CH ONVIF NVR PVR with 2CH Cloud Channel Video Recorder for IP Camera System
PVR204 1080P 4+2CH ONVIF NVR PVR with 2CH Cloud Channel Video Recorder for IP Camera System
PVR204 1080P 4+2CH ONVIF NVR PVR with 2CH Cloud Channel Video Recorder for IP Camera System
PVR204 1080P 4+2CH ONVIF NVR PVR with 2CH Cloud Channel Video Recorder for IP Camera System
PVR204 1080P 4+2CH ONVIF NVR PVR with 2CH Cloud Channel Video Recorder for IP Camera System
PVR204 1080P 4+2CH ONVIF NVR PVR with 2CH Cloud Channel Video Recorder for IP Camera System
PVR204 1080P 4+2CH ONVIF NVR PVR with 2CH Cloud Channel Video Recorder for IP Camera System
PVR204 1080P 4+2CH ONVIF NVR PVR with 2CH Cloud Channel Video Recorder for IP Camera System
$48.75
Ex Tax: $48.75
  • Stock: In Stock
  • Model: EB0024839
  • Dimensions: 210.00mm x 209.00mm x 40.00mm
  • SKU: EB0024839

Available Options

WoW!!!

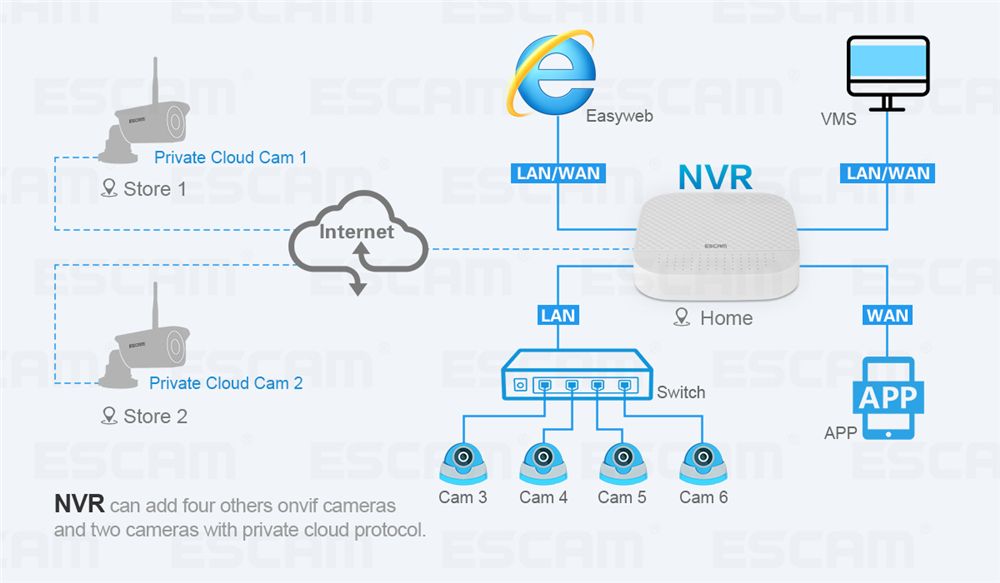

You can put 4 cameras and 1 PVR in different places or countries to record video.

Features :

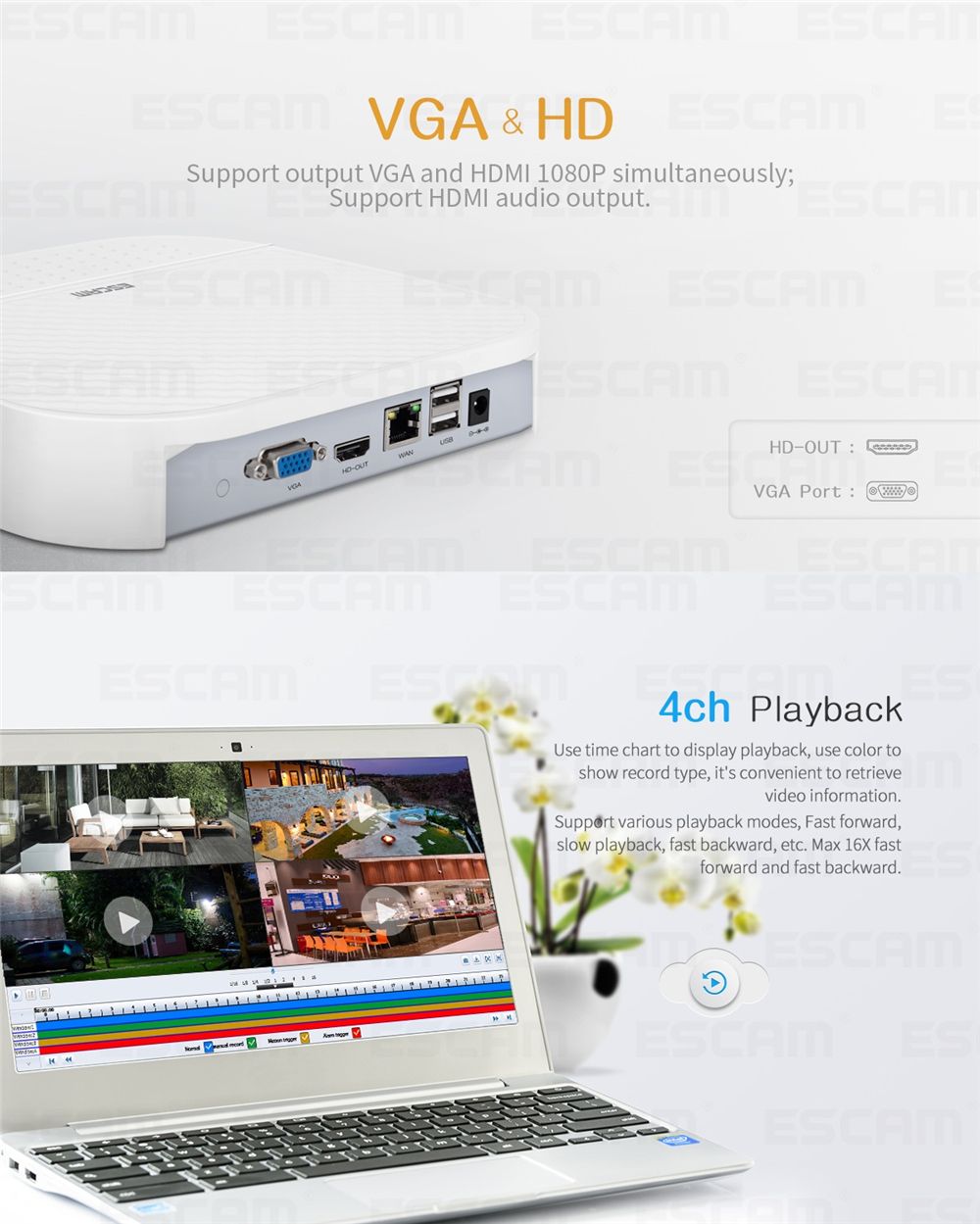

Support output VGA and HDMI 1080P simultaneously.
Support Max.6ch preview, 4ch playback; add 2ch cloud channel, can add ESCAM IP camera with private protocol remotely.
Single picture support Max. 2MP main-stream, 4 pictures support max. 4*1.3MP mainstream.
Support HDMI audio output.
Support preview snapshot and playback snapshot.
Use time chart to display playback, use color to show record type, It’s convenient to retrieve video information.
You can backup the record according to the occurrence time and duration, even for seconds.
Camera’s IP address can be modified in bulk, Cameras can be added remotely.
Can connect with IP camera, Support various Onvif version.
Can connect with main brand IPC (private protocol and standard ONVIF).
Preview channel position can be switched freely; MAC address doesn’t change, convenient for installing.
The backup record and picture via U-disk can playback on NVR, much more convenient.
Support various playback modes, Fast forward, slow playback, fast backward, etc. Max 16X fast forward and fast backward.
Support WEB/VMS, android/IOS mobile app.

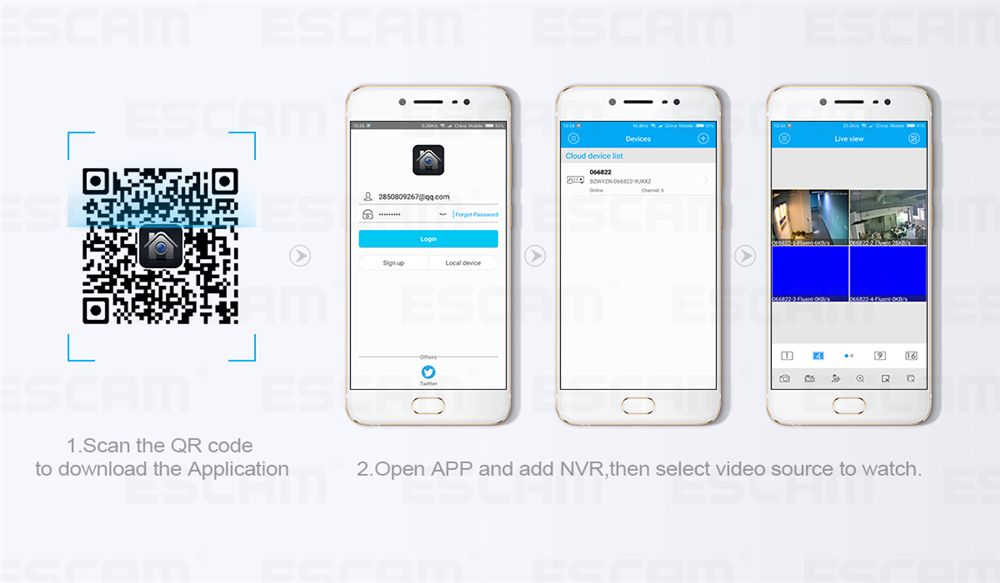

Support P2P, QR scan and playback via mobile app.

Specification :

System
Model No. ESCAM PVR204
Main chipset HI3520D
Operating system Embedded Linux operating system
Interface
Operate interface 16 bits graphic interface, support mouse and keyboard operation
Image display 1/4/6ch
Video
Video mode 6ch 1080P/960P/720P
Frame rate NTSC@30fps, PAL@25fps
Video output VGA*1, HDMI*1, 1080P resolution
Image decode H.264
Playback quality 1080P/960P/720P
Area shutter support (your camera needs to support)
Motion detection support ( your camera needs to support)
Audio
Format G.711U
Talk NO
Input Audio input number is the same as channel number
Output Support HDMI audio output
Playback
Record mode Timing, motion detection, record manually
Playback channel 1ch 1080P/4ch 960P
Record retrieval Time, event, and timeline
Storage backup
Record saving Local hard-disk
Backup mode USB HDD, USB flash disk
Remote surveillance
Mobile surveillance Smartphone (iPhone, Android)
Computer surveillance Support IE and VMS remote surveillance

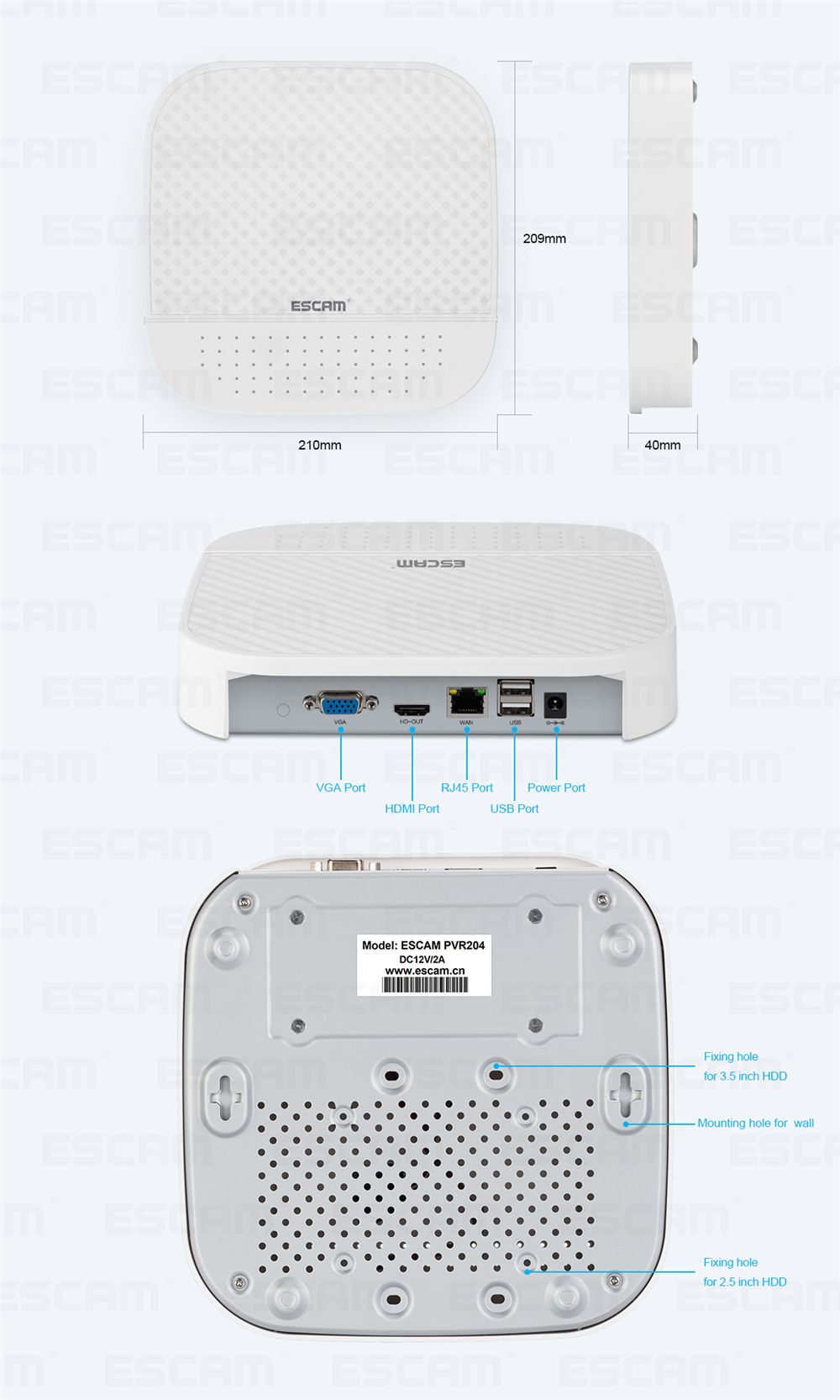

Interface
Video output 1*VGA, 1*HDMI
Network 1*RJ45 10/100M Ethernet interface self-adaption
USB 2*USB2.0
Hard-disk 1*SATA 2.0; Max SATA is 6T
Others
ONVIF Support
Power 12V 2A
Consumption ≤15W
Working environment -10℃ to +50℃ 10%-95%RH
Product size 210*209*40mm
Product  weight 436g
Package size 320*240*52mm
Gross Weight 965g

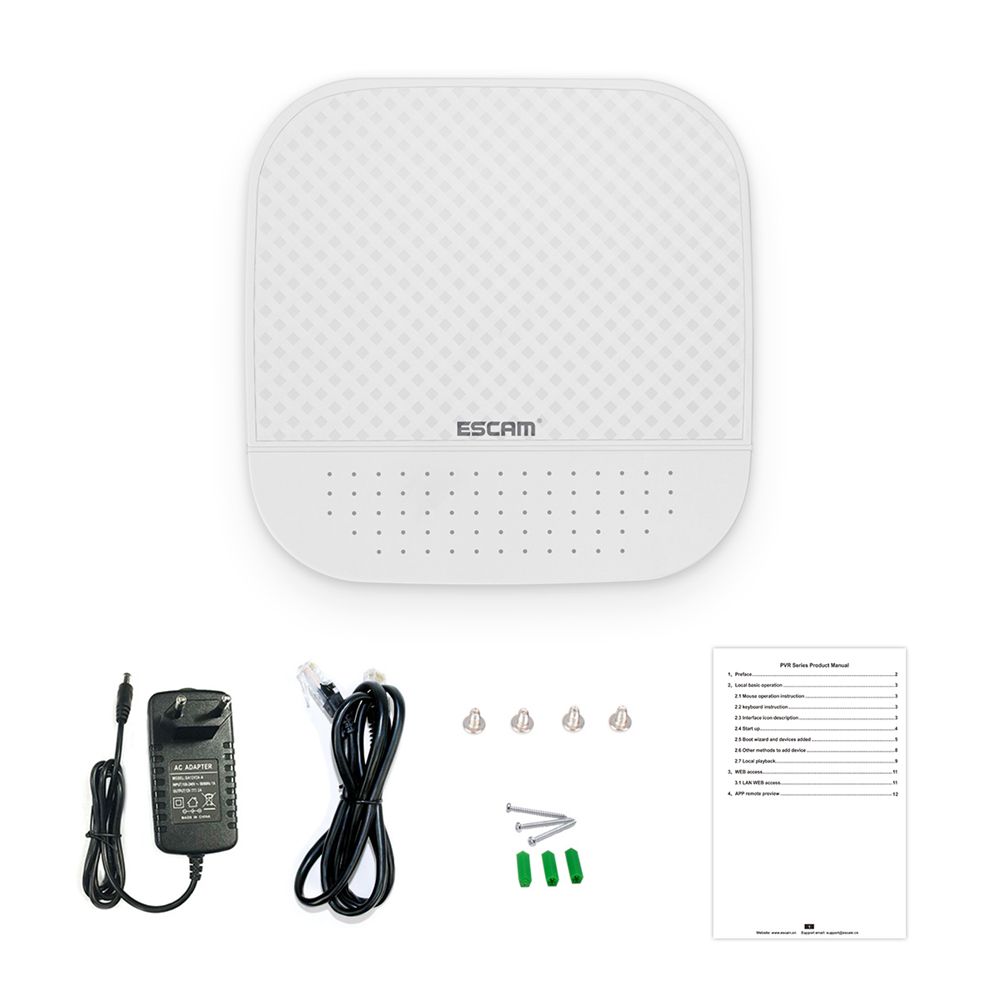

Package includeds :

1 x ESCAM PVR204 4CH PVR
1 x Power Adapter (EU/US/UK/AU Plug for Optional~)
1 x User Manual
2 x Screw
1 x Network Cable

>>>> Click to Download ESCAM PVR204 User Manual <<<<

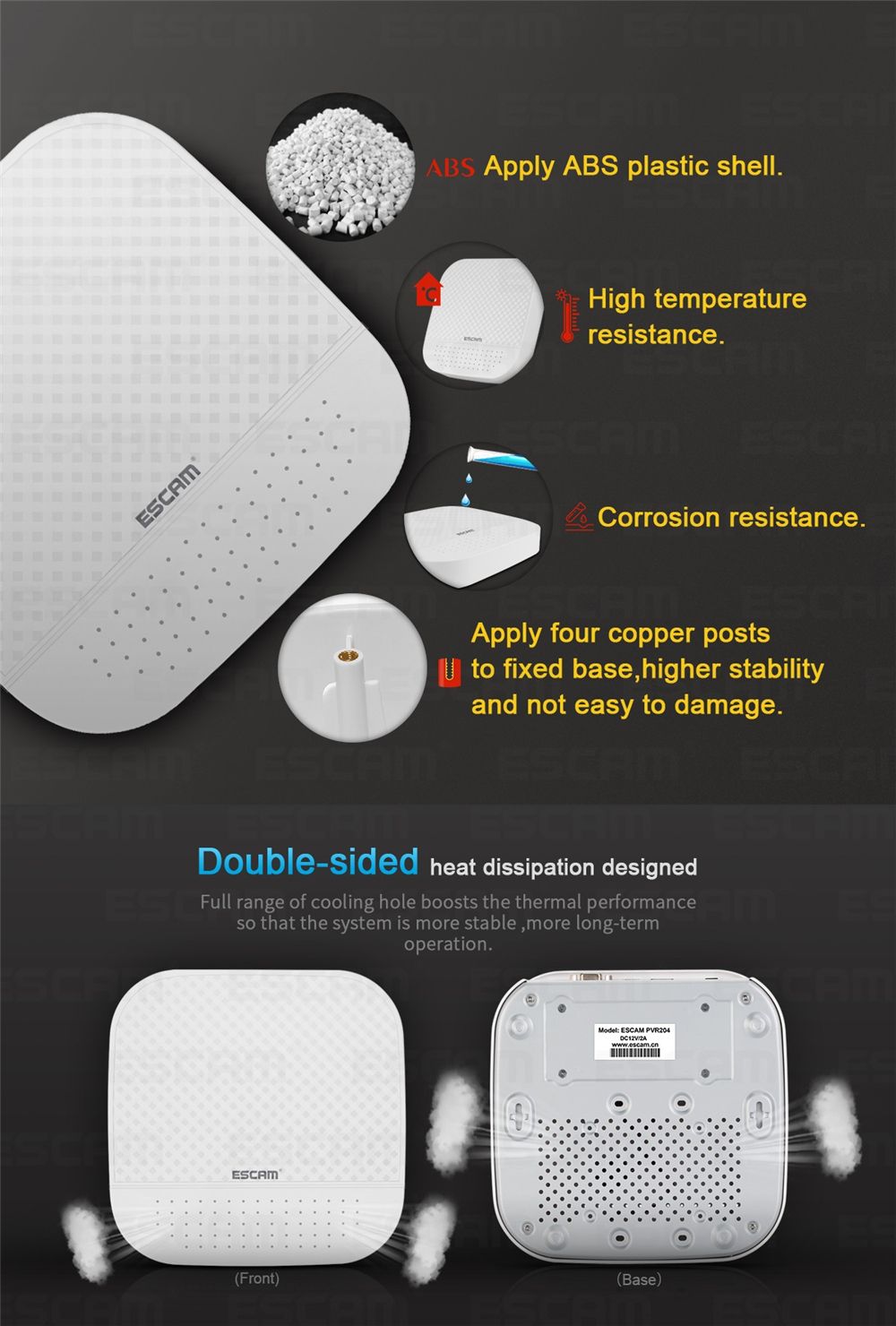

Details pictures :


ESCAM-PVR204-1080P-42CH-ONVIF-NVR-PVR-with-2CH-Cloud-Channel-Video-Recorder-for-IP-Camera-System-1306323

ESCAM-PVR204-1080P-42CH-ONVIF-NVR-PVR-with-2CH-Cloud-Channel-Video-Recorder-for-IP-Camera-System-1306323

ESCAM-PVR204-1080P-42CH-ONVIF-NVR-PVR-with-2CH-Cloud-Channel-Video-Recorder-for-IP-Camera-System-1306323

ESCAM-PVR204-1080P-42CH-ONVIF-NVR-PVR-with-2CH-Cloud-Channel-Video-Recorder-for-IP-Camera-System-1306323

ESCAM-PVR204-1080P-42CH-ONVIF-NVR-PVR-with-2CH-Cloud-Channel-Video-Recorder-for-IP-Camera-System-1306323

ESCAM-PVR204-1080P-42CH-ONVIF-NVR-PVR-with-2CH-Cloud-Channel-Video-Recorder-for-IP-Camera-System-1306323

ESCAM-PVR204-1080P-42CH-ONVIF-NVR-PVR-with-2CH-Cloud-Channel-Video-Recorder-for-IP-Camera-System-1306323

ESCAM-PVR204-1080P-42CH-ONVIF-NVR-PVR-with-2CH-Cloud-Channel-Video-Recorder-for-IP-Camera-System-1306323

ESCAM-PVR204-1080P-42CH-ONVIF-NVR-PVR-with-2CH-Cloud-Channel-Video-Recorder-for-IP-Camera-System-1306323

ESCAM-PVR204-1080P-42CH-ONVIF-NVR-PVR-with-2CH-Cloud-Channel-Video-Recorder-for-IP-Camera-System-1306323
