PD3.0 QC4.0 USB Tester Voltage Current Tester Ripple Dual Type-C Meter

Based on 0 reviews. - Write a review

$58.99

Ex Tax: $58.99

Stock: In Stock
Model: EB002959
Dimensions: 62.00mm x 24.00mm x 12.00mm
SKU: EB002959

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

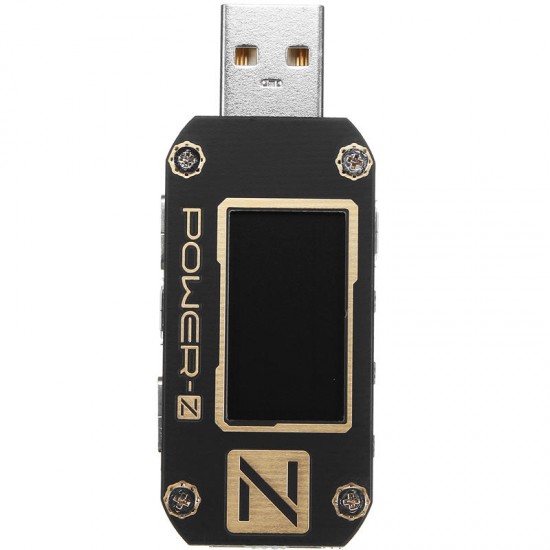

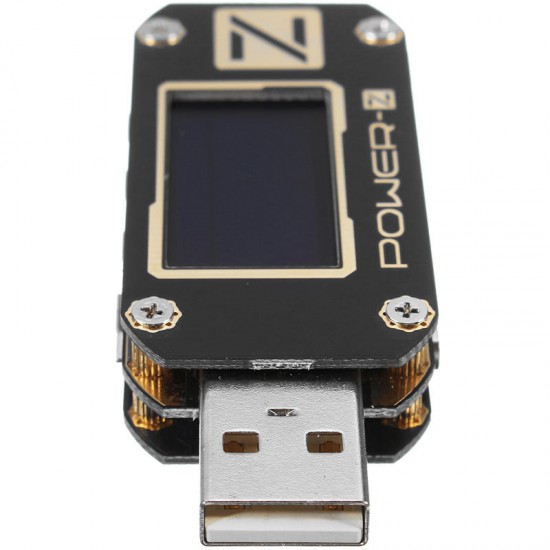

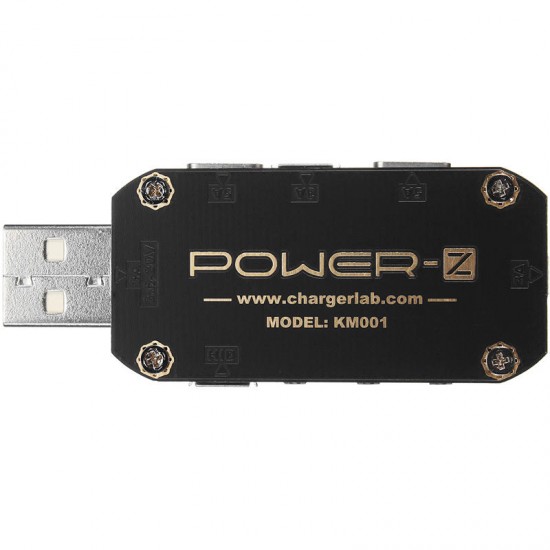

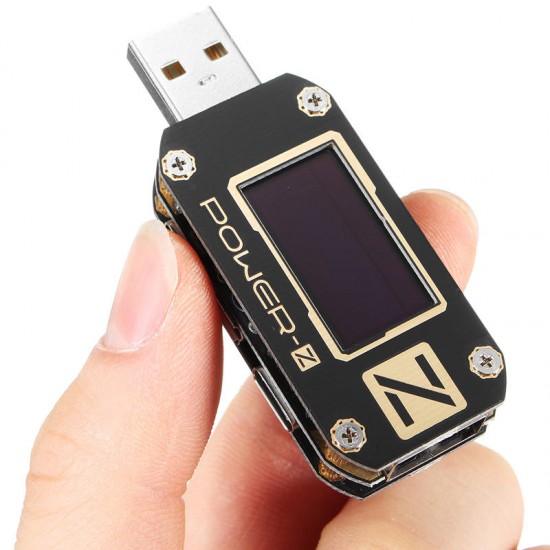

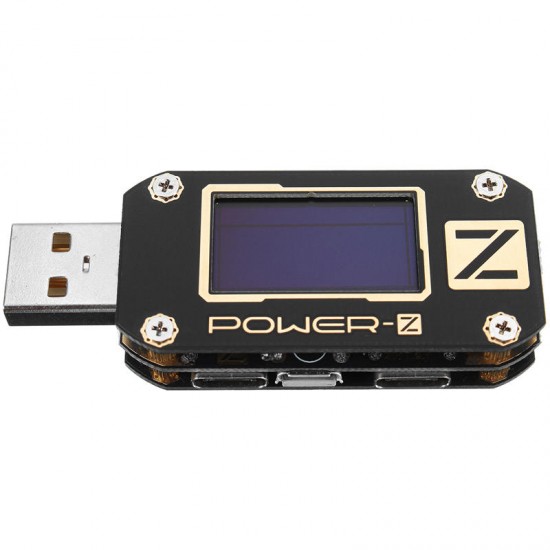

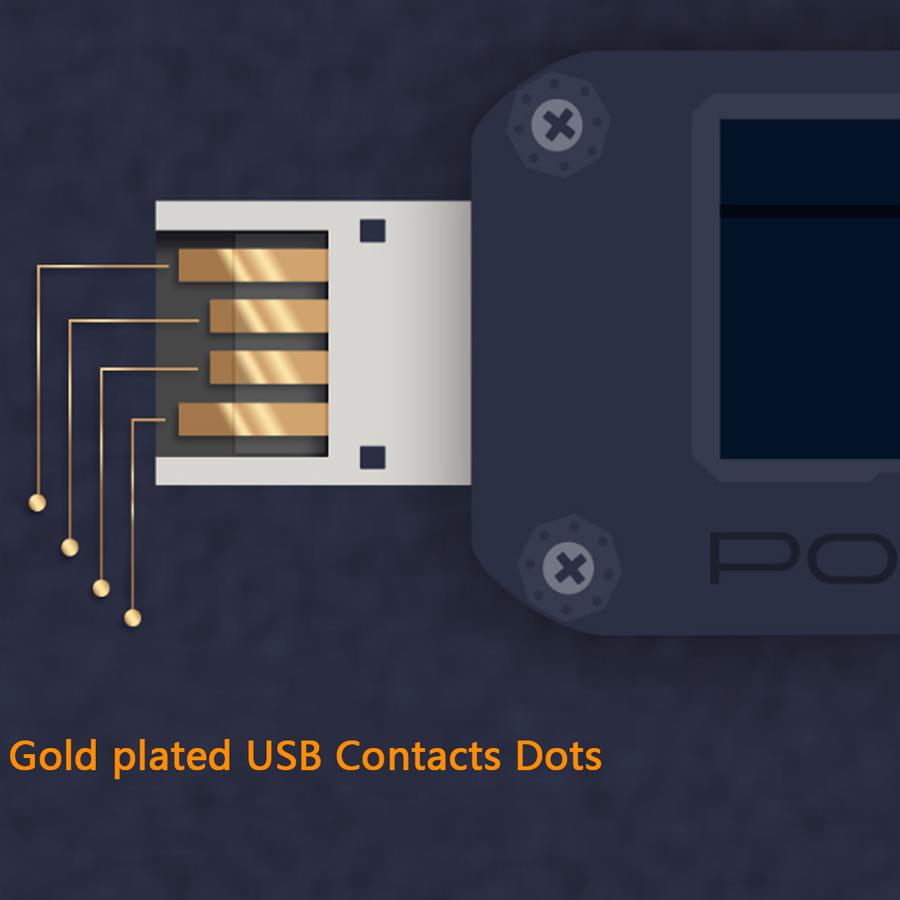

POWER-Z KM001 comes with an OLED screen resolution of 128 × 64. The front panel with black glasses fiber gold-plated, four corners of the use of immersion gold hole fixed, the appearance and size of the USB table is no different from ordinary, ordinary users will soon be able to get started. USB table built-in a measurement accuracy of 0.02%, temperature drift for the 10ppm voltage and current ADC dedicated chip. At the same time in order to ensure the accuracy of the current, but also integrates a typical temperature drift of 20ppm, power of 3W high-quality sampling resistor. Up to 0.01% error.

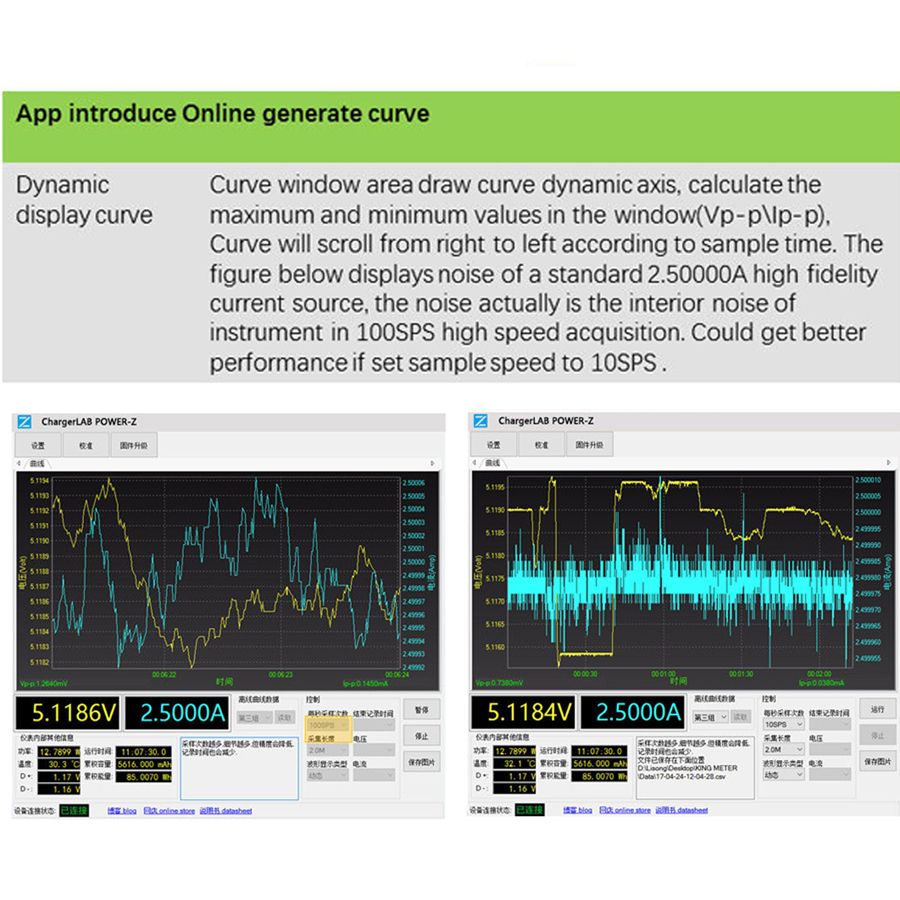

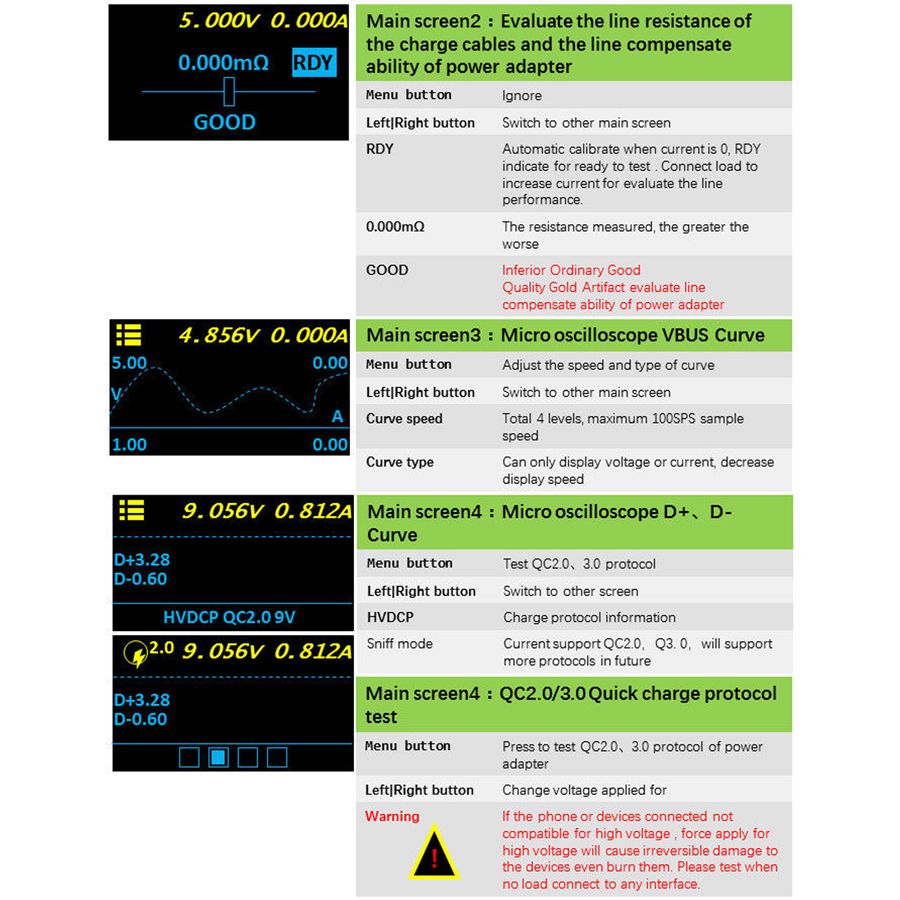

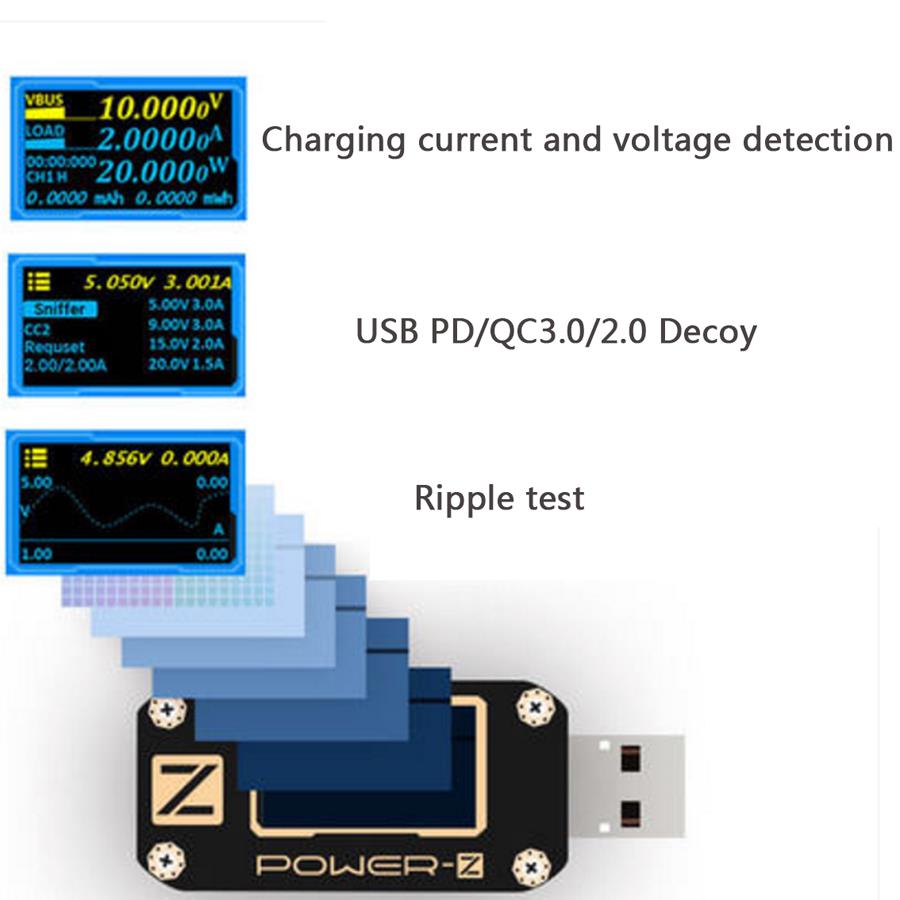

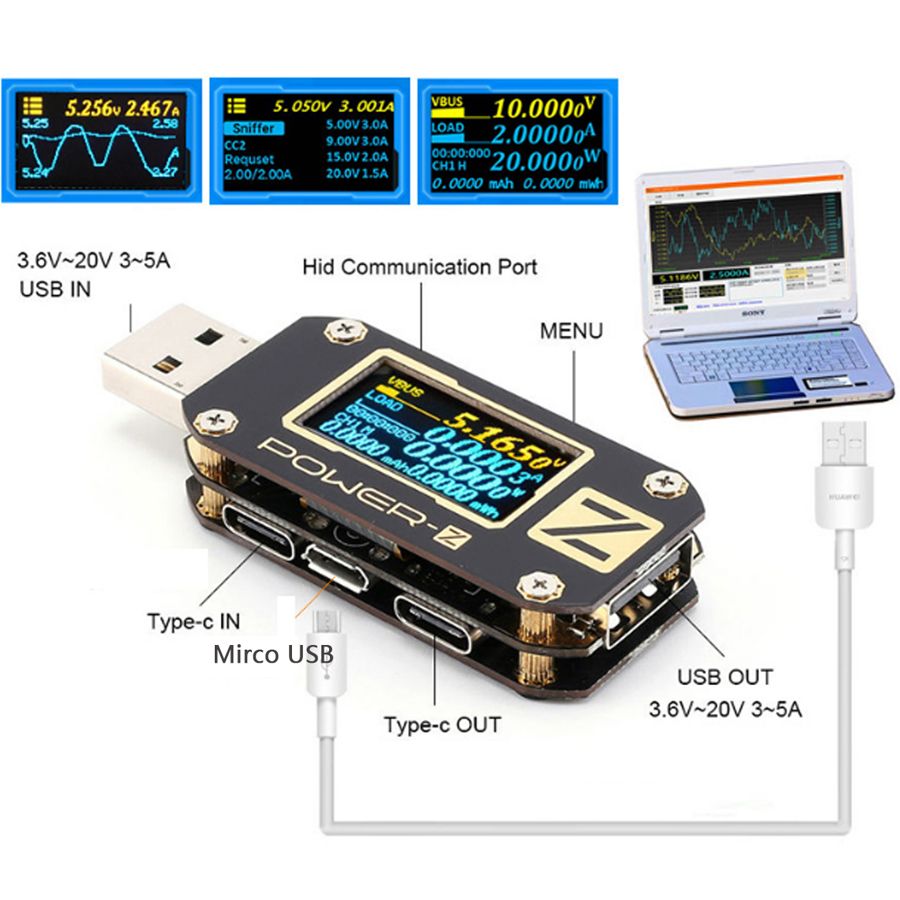

OWER-Z KM001 This test table integrates a total of six USB ports, to meet the needs of most of the players test. Another feature of it is to support ripple testing. Its function is similar to a micro-oscilloscope, you can test less than 50Hz ripple, the daily use of enough.

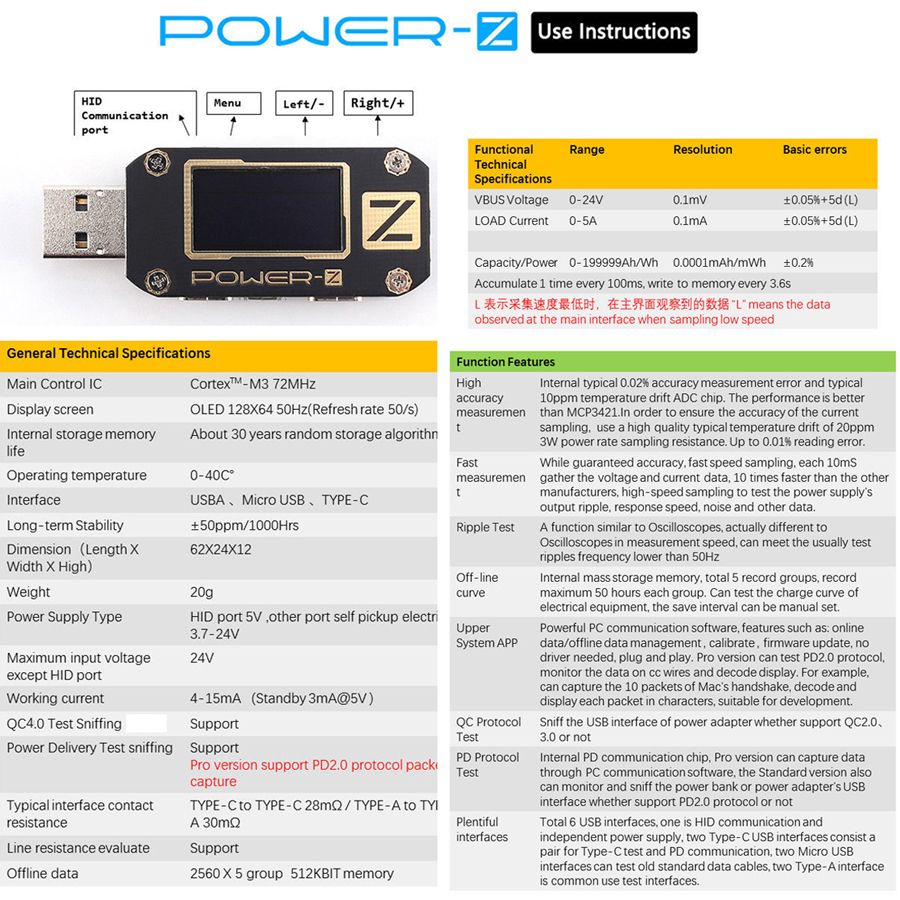

Specification:

1. Main control IC: Cortex-M3 72MHz

2. Display screen: OLED 128 x 64 50MHz (Refresh rate 50/s)

3. nternal storage memory life: About 30 years random storage algorithm

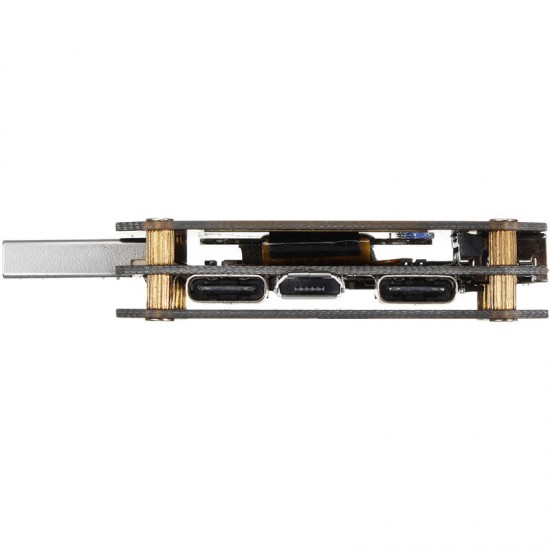

4. Interface: USB-A, Micro USB, TYPE-C.

5. Long-Term Stability: ±50ppm/1000Hrs

6. Power supply type: HID port 5V, other port self pickup electricity 3.7-24V.

7. Maximum input voltage: 24V

8. Working current: 4-15mA (Standby 3mA@5V)

9. QC4.0 Test Sniffing: Renhotec

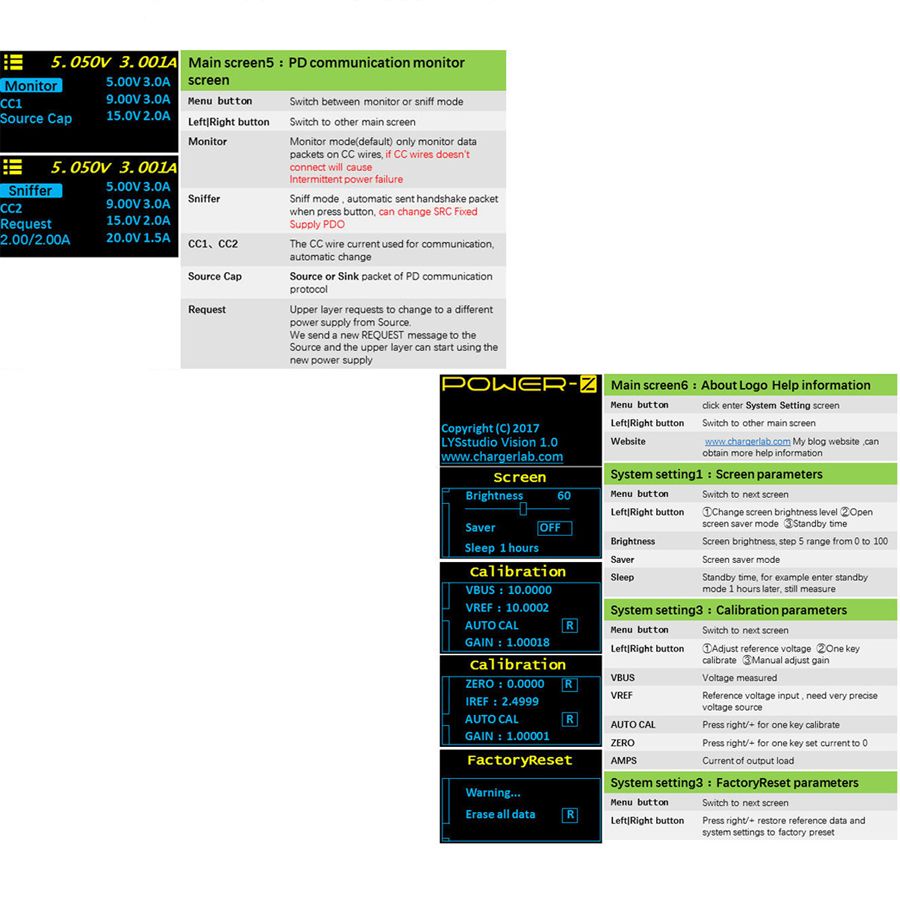

10. Power Delivery Test Sniffing: Support;Pro version support PD2.0 protocol packet capture

11. Typical interface contact resistance: TYPE-C to TYPE-C 28m ohm/TYPE-A to TYPE-a 30m ohm.

12. Line resistance evaluate: Renhotec

13. Offline data: 2560 x 5 group 512KBIT memory

14. Dimension: 62 x 24 x 12mm

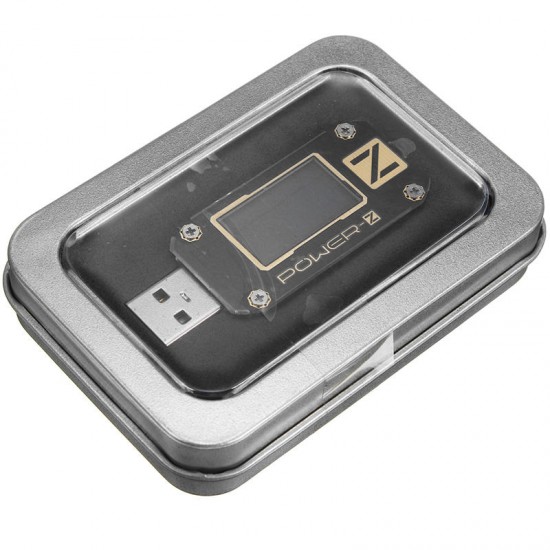

Package Included:

1 x POWER-Z USB PD QC3.0 QC2.0 Tester

POWER-Z-PD30-QC40-USB-Tester-Voltage-Current-Tester-Ripple-Dual-Type-C-Meter-1226355
