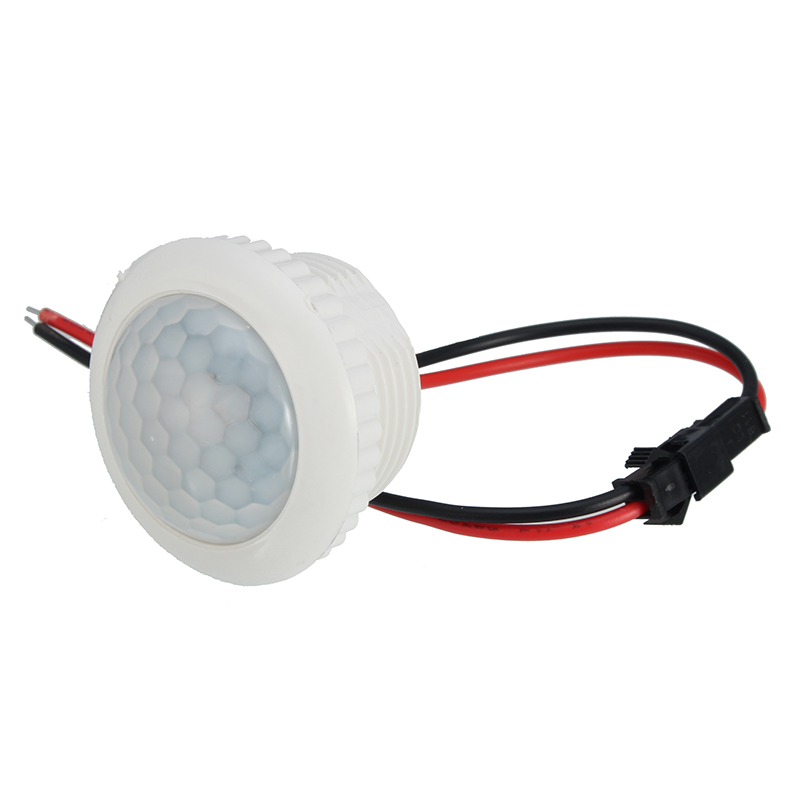

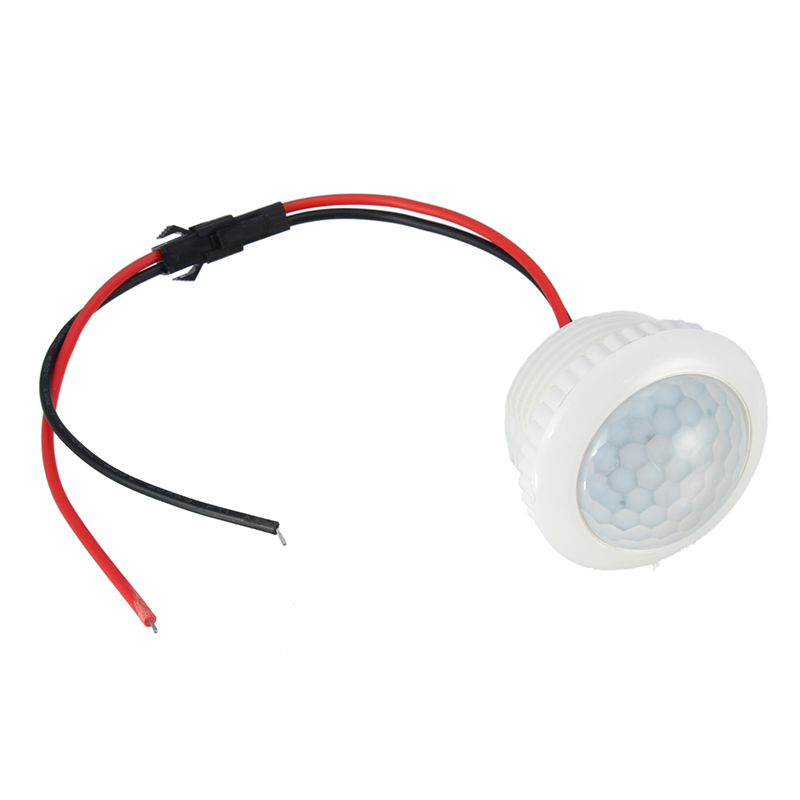

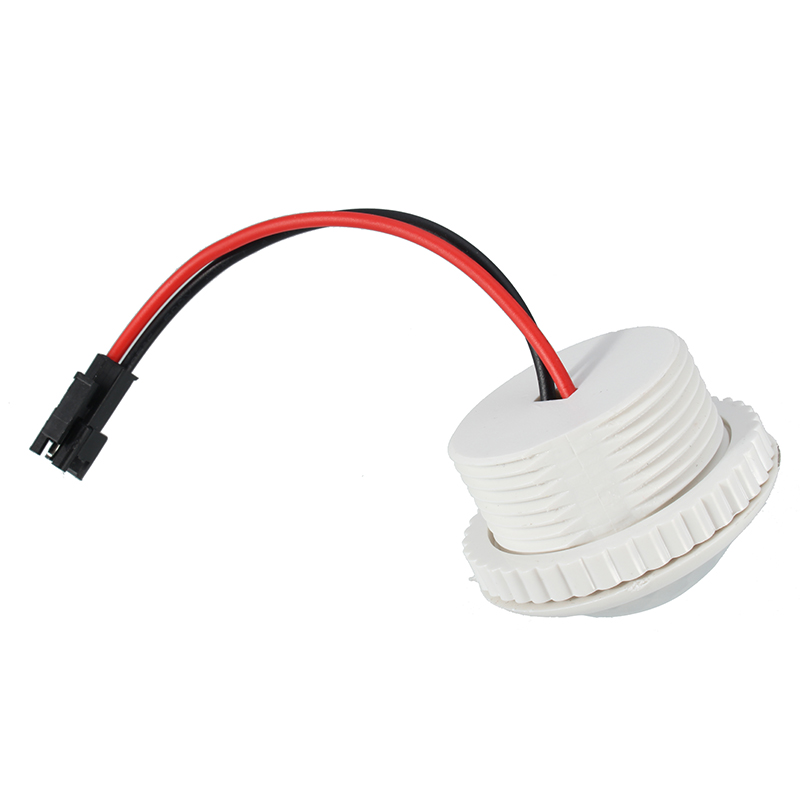

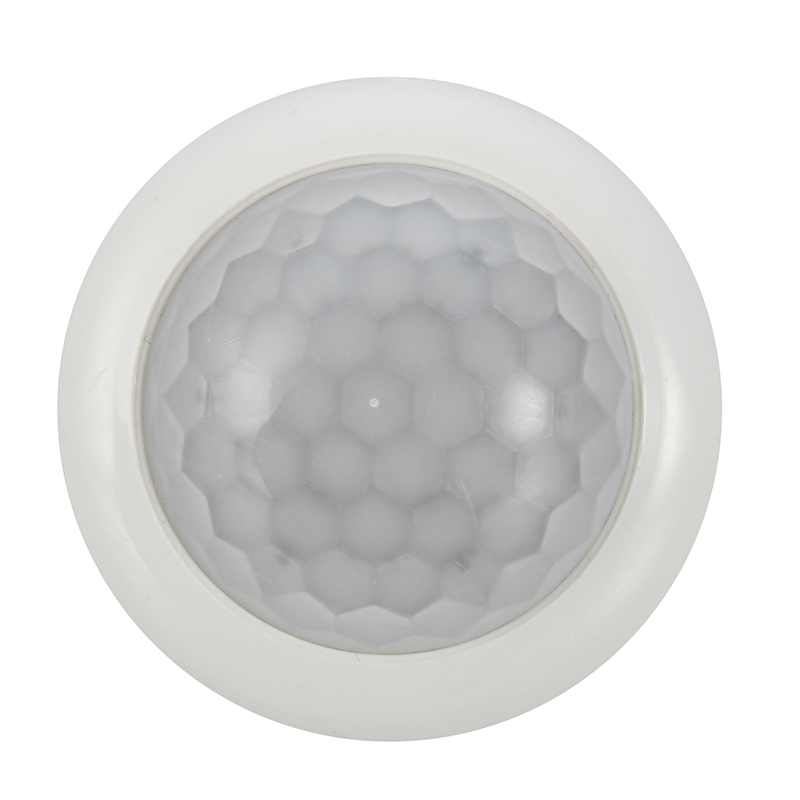

PIR IR Infrared Human Induction Lamp Switch Light Control Ceiling Module Motion Sensor AC220V
- Stock: In Stock
- Model: EB0040374
- SKU: EB0040374
- Application: Indoor
- Connection: Wired
- Material: Plastic
- Price Tag: US$ 0.00 - US$ 5.99
- Voltage: 220V
- Waterproof: No
Precise details:
Specifications:Sensing Mode:PIR Sensing + Light Control
Rated Voltage:220V 50HZ
Output Way:Controllable Silicon
Load Power:Incandescent lamp ≤100W,Energy-saving lamp ≤30W, LED≤18W
Delay:20s (People are moving within the sensing area, the switch will auto delay and keep connecting;if people stay still,switch will stop responsing)

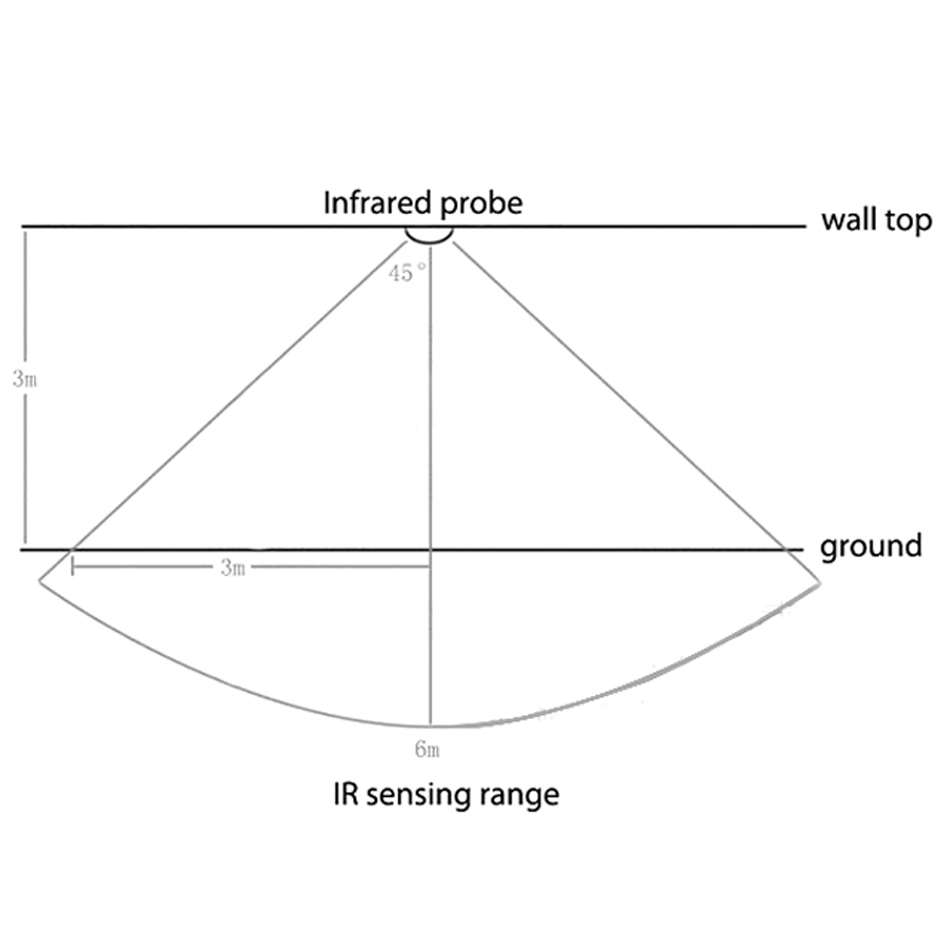

Sensing Distance:3-6M (High temperature will influence switch sensibility)
Sensing Angle:110°
Sensitivity To Light:Darkness
Features:
*Adaptive to filament, electricity saving lamp

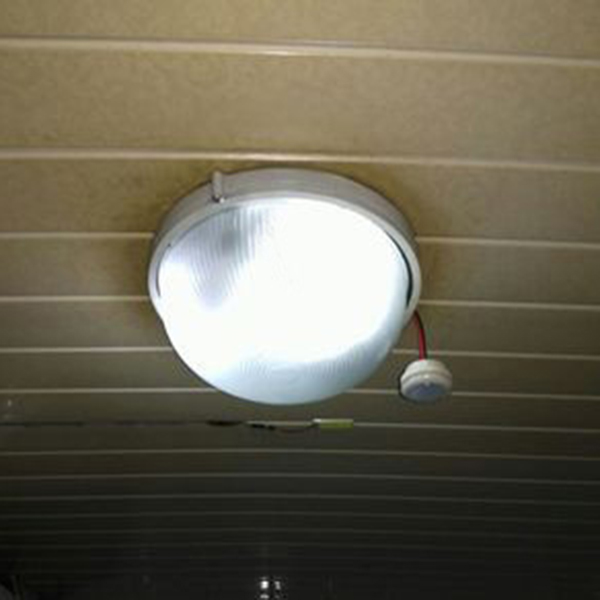

*This lamp is internal equipped with auto body sensor.If people come the lamp will power on;if people leave,the lamp will power off.
*Inner body auto sensor adopts infrared heat releasing device,and it can accurately capture moving low frequency signal and automatically power on.
*When people leave,the lamp will auto delay power off,convenient and energy saving.
*Inner side of the lap is set up with auto ambient brightness detecting circuit.
*Only when ambient brightness is lower than setting value,the sensor will receive sense and let the lamp power off.
*And it is energy saving
Notice:
-When installing,please disconnect the power to guarantee safety
-Don't apply it to overpower current or voltage
-Don't install it accessible to water
-Detection distance will change according to ambient temperature's difference.In summer,detection distance is short(It is obvious when close to human body's temperature);in winter, detection distance will be far
-Don't install it in lower than -20 Celsius or higher than 60 Celsius
-Don't expose it to sun
-Don't install it in which there are moving objects
-The first time power on ,there will one minute initiation;during this period,the device will shine,it is normal phenomenon
-In coastal zone,thermal flow will trigger the sensor because of ocean current.If installing filament lamp which emits great heat,please keep far away from the sensor(at least 1m)

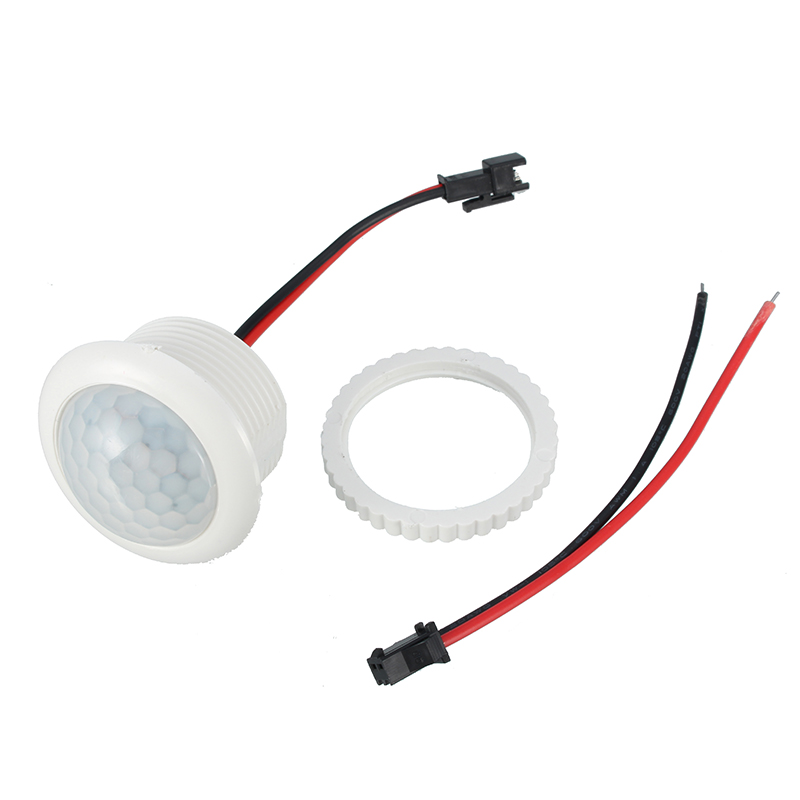

Package Included:
1 X PIR Switch Sensor
Sensing Mode:PIR Sensing + Light Control
Rated Voltage:220V 50HZ
Output Way:Controllable Silicon
Load Power:Incandescent lamp ≤100W,Energy-saving lamp ≤30W, LED≤18W
Delay:20s (People are moving within the sensing area, the switch will auto delay and keep connecting;if people stay still,switch will stop responsing)
Sensing Distance:3-6M (High temperature will influence switch sensibility)
Sensing Angle:110°
Sensitivity To Light:Darkness
Features:
*Adaptive to filament, electricity saving lamp
*This lamp is internal equipped with auto body sensor.If people come the lamp will power on;if people leave,the lamp will power off.
*Inner body auto sensor adopts infrared heat releasing device,and it can accurately capture moving low frequency signal and automatically power on.
*When people leave,the lamp will auto delay power off,convenient and energy saving.
*Inner side of the lap is set up with auto ambient brightness detecting circuit.
*Only when ambient brightness is lower than setting value,the sensor will receive sense and let the lamp power off.
*And it is energy saving
Notice:
-When installing,please disconnect the power to guarantee safety
-Don't apply it to overpower current or voltage
-Don't install it accessible to water
-Detection distance will change according to ambient temperature's difference.In summer,detection distance is short(It is obvious when close to human body's temperature);in winter, detection distance will be far
-Don't install it in lower than -20 Celsius or higher than 60 Celsius
-Don't expose it to sun
-Don't install it in which there are moving objects
-The first time power on ,there will one minute initiation;during this period,the device will shine,it is normal phenomenon
-In coastal zone,thermal flow will trigger the sensor because of ocean current.If installing filament lamp which emits great heat,please keep far away from the sensor(at least 1m)
Package Included:
1 X PIR Switch Sensor
