DL69-2042 Dual AC Digital Ammeter Voltmeter LCD Panel Amp/Volt Meter With Back Case

Based on 0 reviews. - Write a review

$13.49

Ex Tax: $13.49

Stock: In Stock
Model: EB003159
Dimensions: 79.00mm x 46.00mm x 42.00mm
SKU: EB003159

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

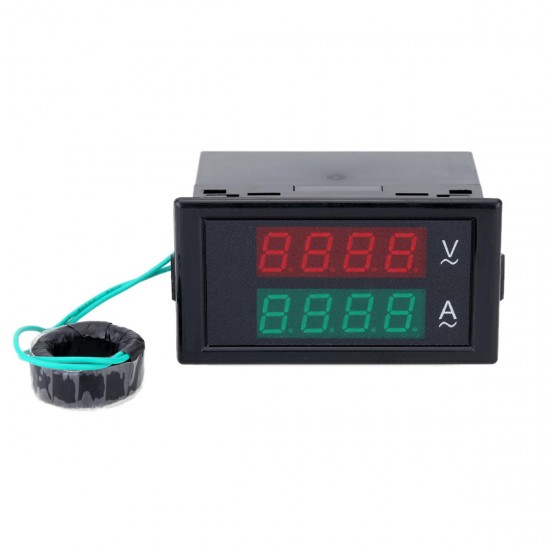

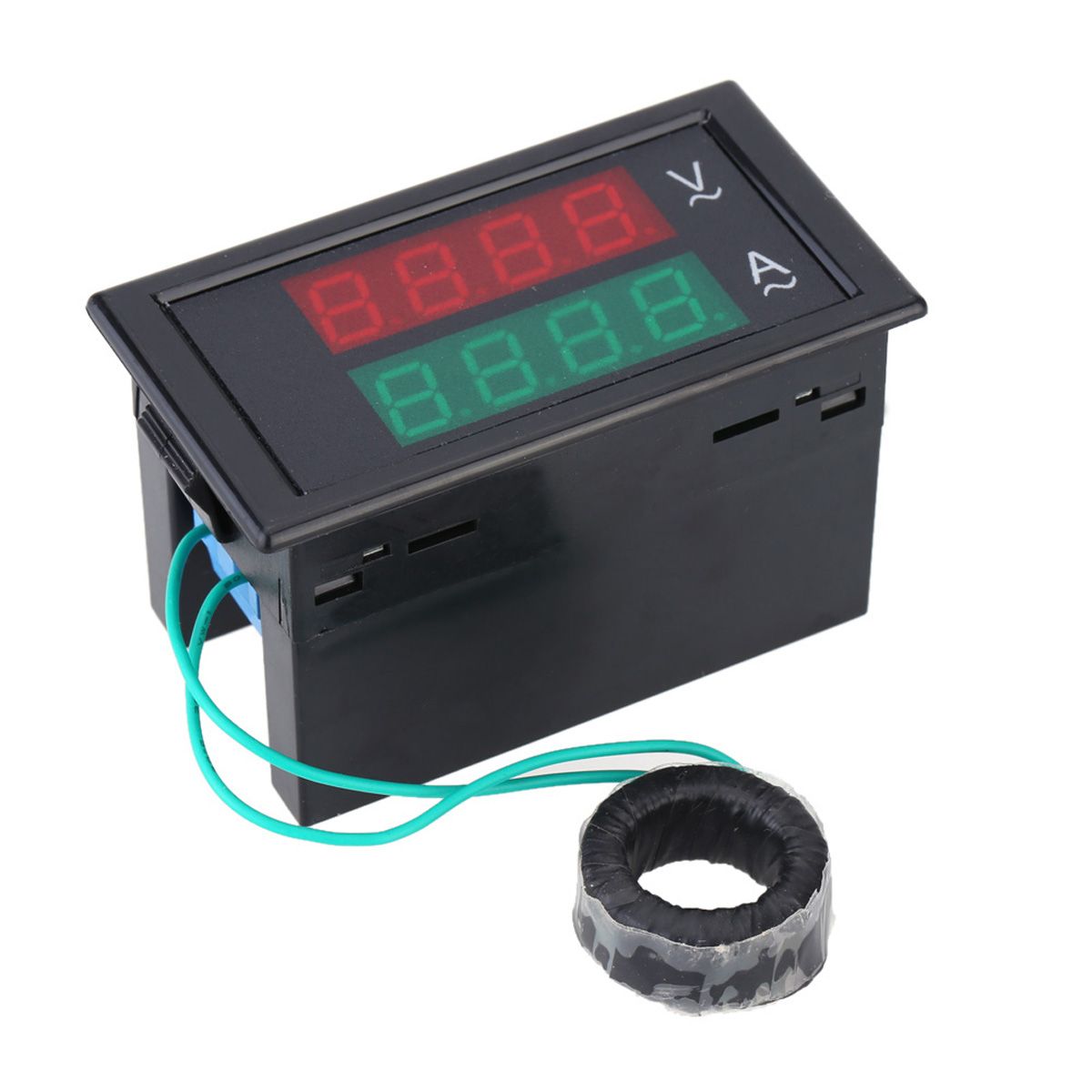

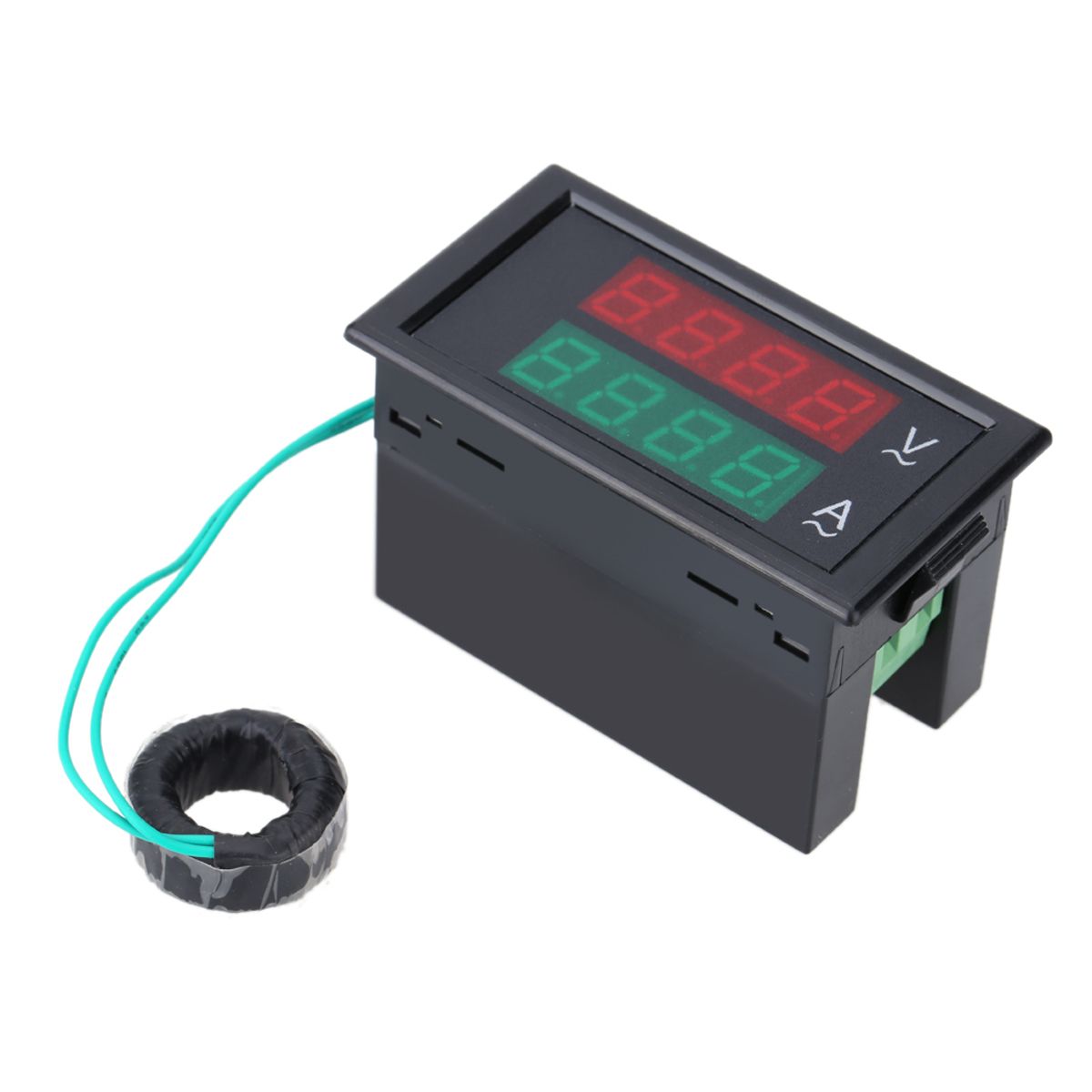

Display the AC voltage and current simultaneously by LED digital tube.

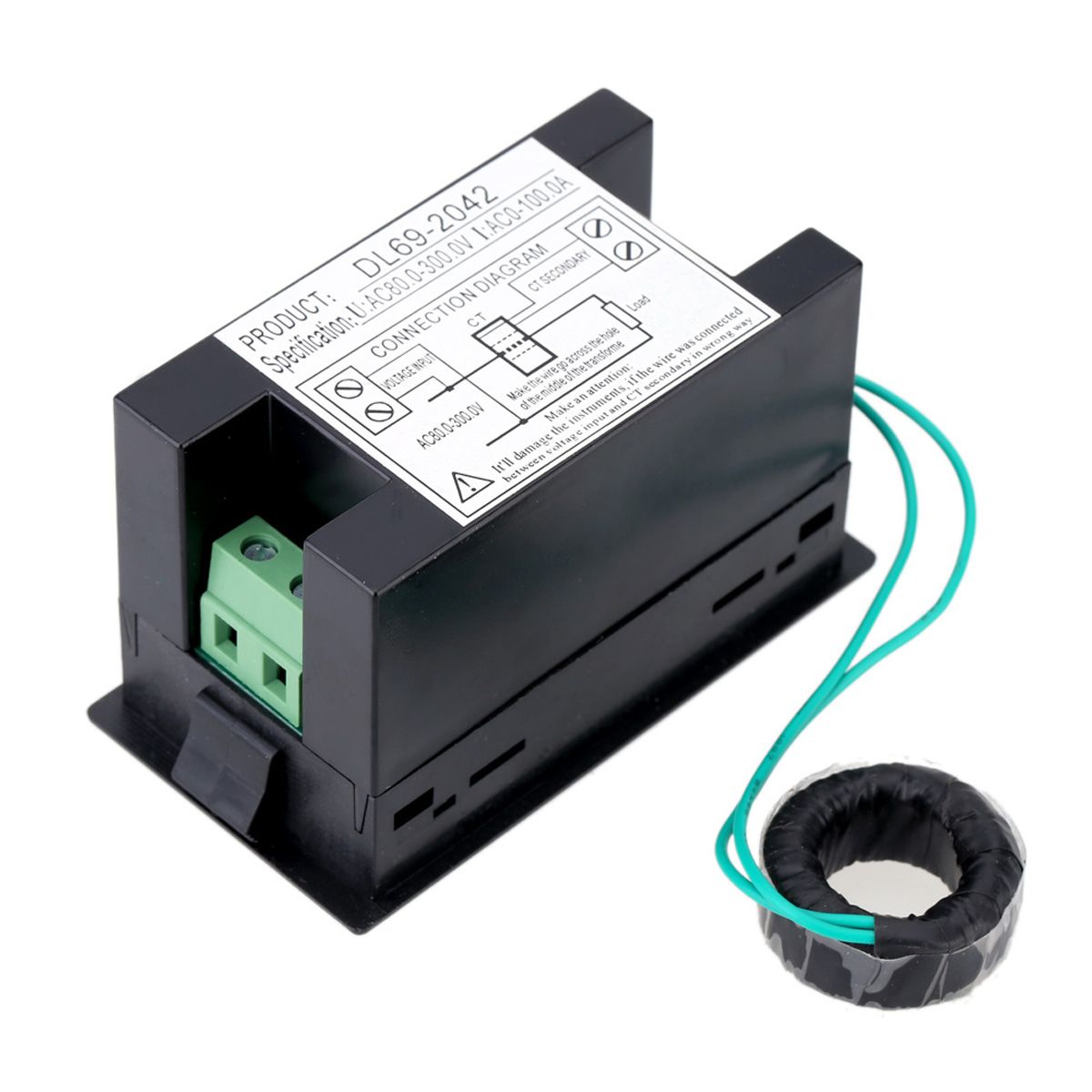

Including one independent small precise current transformer with a rear cover.

Wide measurement voltage and current range.

No need to add power supply and AC transformer.

Widely used in audio amplifier, power distribution box, distribution cabinet, regulators, teaching aids, household small distribution box, etc.

Specification:

AC voltage: AC 80-300V (single phase) 200-450V (three-phase)

AC current: AC 0-100.0A, when measured current is less than 10A, current display resolution is 0.01A; when measured current is more than 10A, display resolution is 0.1A; measuring range automatic conversion (decimal automatic shift) True RMS measurement

Power consumption: 0.2VA

Measurement speed: About 2 times per second

Product size: about 79 x 46x 42mm / 3.1 x 1.8 x 1.6in

Product weight: about 83g / 2.93oz

Package size: about 80 x 44 x 49mm / 3.2 x 1.8 x 2in

Package weight: about 93g / 3.28oz

Package included:

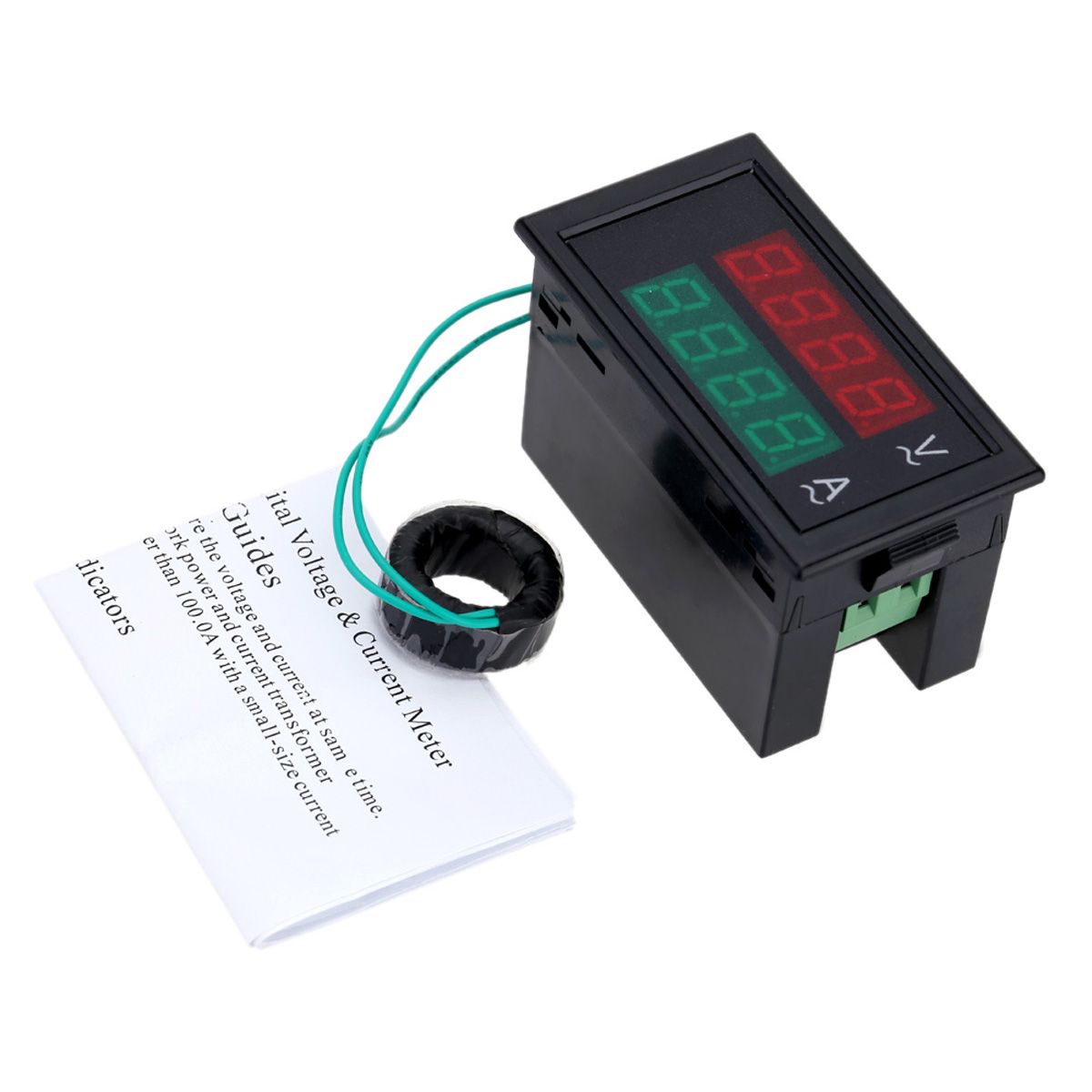

1 x Dual Digital LCD Panel Amp/ Volt Meter 100A 80-300V
