Description:

►The difference between TEMPerX232_T and TEMPerX232 is that TEMPerX232_T have a probe.
►TEMPerX232_T is a comprehensive USB thermometer.
►Device build-in temperature and humidity sensors.
►It through expansion interface can connect other probes. (Such as DS18B20 probe, TX probe,HS10 probe.)
►USB support HID mode and USB to COM port mode.

Features:

•TEMPerX232 is USB interface.
•It supports for HID character printing mode and COM port mode.
•COM port communication mode instruction is text format.
•Device build-in high-precision temperature and humidity sensor
•Used for detection temperature and humidity of environment;
•Device has a 3.5mm audio interface for external probe; (DS18B20 sensor, TX sensor and HS10 sensor)
•Offer windows, Linux, android drive.

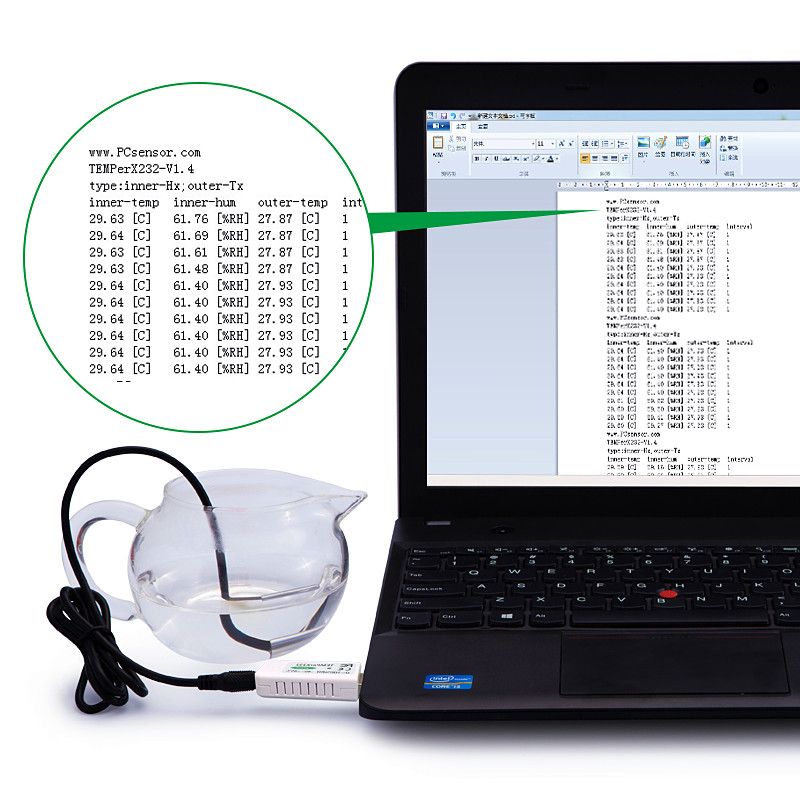

•The software support all Windows system, supports data logging, Email alarm, graph transformation, Skype and MSN function. MSN/Skype function enables remote viewing data. In addition, the data can be saved into TXT or CSV format automatically, Can be opened by Excel conveniently.

Specification:


Internal sensor: Temperature range: -40 ~ + 85℃, Humidity rang: 0 ~ 100RH%;
Outer sensor temperature range :-40~+120℃;
Internal sensor temperature resolution: 0.01℃;
Internal sensor humidity resolution: 0.04RH%;
Internal sensor temperature accuracy: ± 0.3℃(In the range of 0~60℃);
Outer sensor temperature accuracy: ± 2℃
Internal sensor humidity accuracy: ± 3 RH% (In the range of  20 RH% ~ 80 RH%);
Voltage: 5V
Current: <20mA
RS232 Baud Rate: 9600bps
External sensors please refer to the corresponding sensor specifications.
Operating mode:
TEMPerX232 have HID mode and serial mode (com port). Press the “Press” button for 5 seconds, these two modes can be switch to each other
Mode Normal status Abnormal status
COM port Green LED Green Red LED
HID mode Blue LED Blue Red LED

Note:

♦The device is working in the serial mode (com port), the green light flashes. if the temperature or humidity exceeds the alert value. The green light will flash after flash red light. Go through view the data can be determined what type of alarm (temperature or humidity);
♦The device is working in HID mode, blue light flashes, if the temperature or humidity exceeds the alert value, the blue lights will flash after red light flash, Go through view the data can be determined what type of alarm (temperature or humidity).

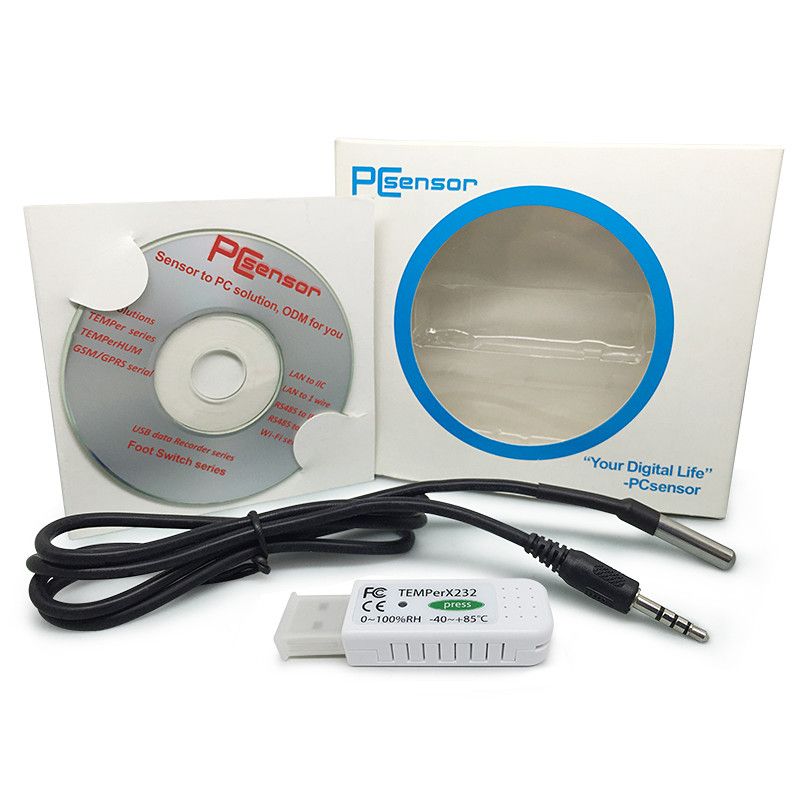

Package includes:

1 x Thermometer
1 x Probe
1 x CD

Detail pictures:




TEMPerX232_T-USB-Thermometer-Hygrometer-40125degC-Range-External-Temperature-TX-Probe-Temperature-Hu-1396755
TEMPerX232_T-USB-Thermometer-Hygrometer-40125degC-Range-External-Temperature-TX-Probe-Temperature-Hu-1396755
TEMPerX232_T-USB-Thermometer-Hygrometer-40125degC-Range-External-Temperature-TX-Probe-Temperature-Hu-1396755
TEMPerX232_T-USB-Thermometer-Hygrometer-40125degC-Range-External-Temperature-TX-Probe-Temperature-Hu-1396755
TEMPerX232_T-USB-Thermometer-Hygrometer-40125degC-Range-External-Temperature-TX-Probe-Temperature-Hu-1396755
