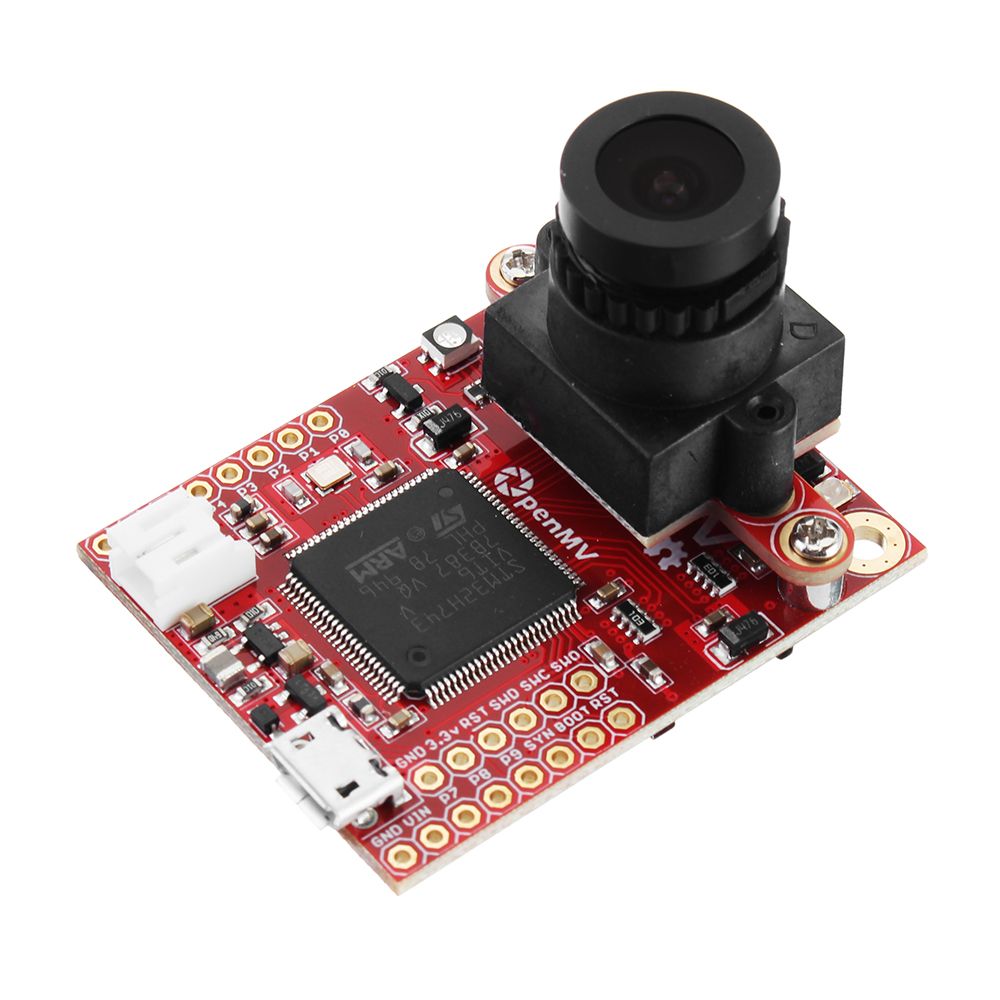

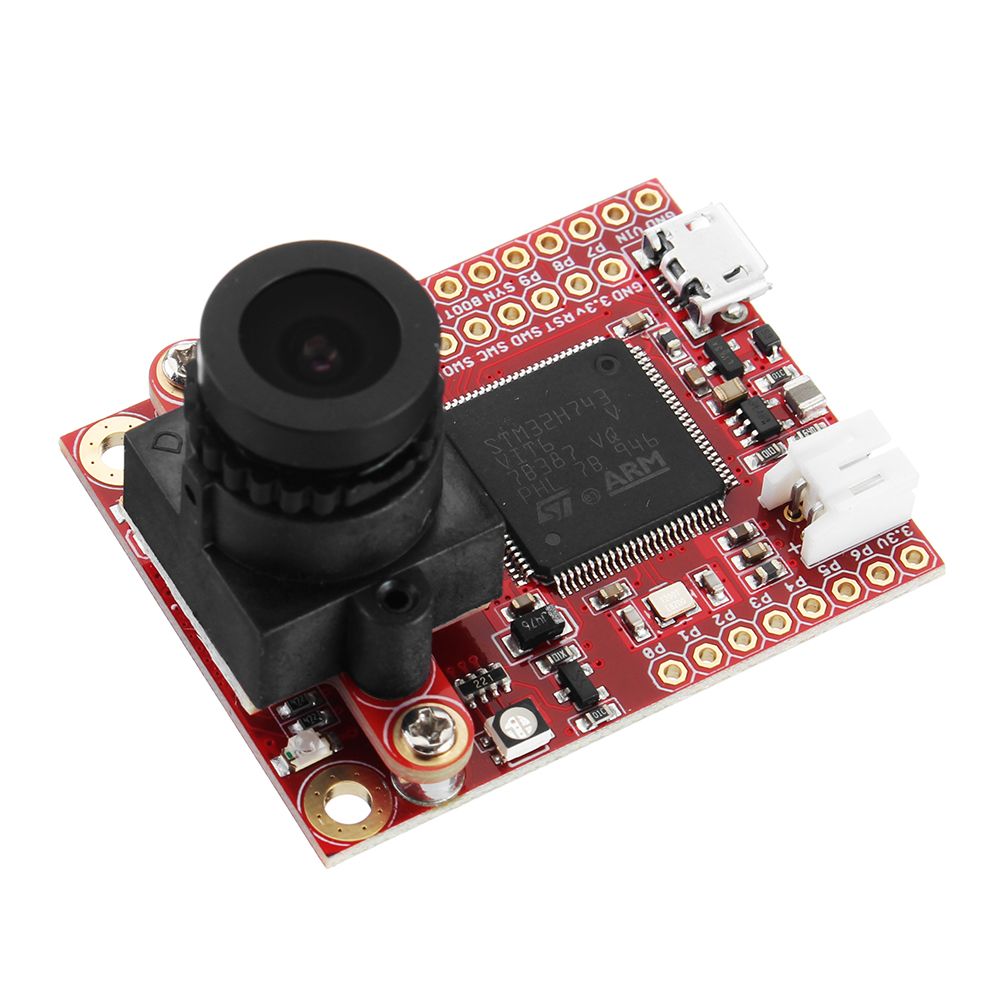

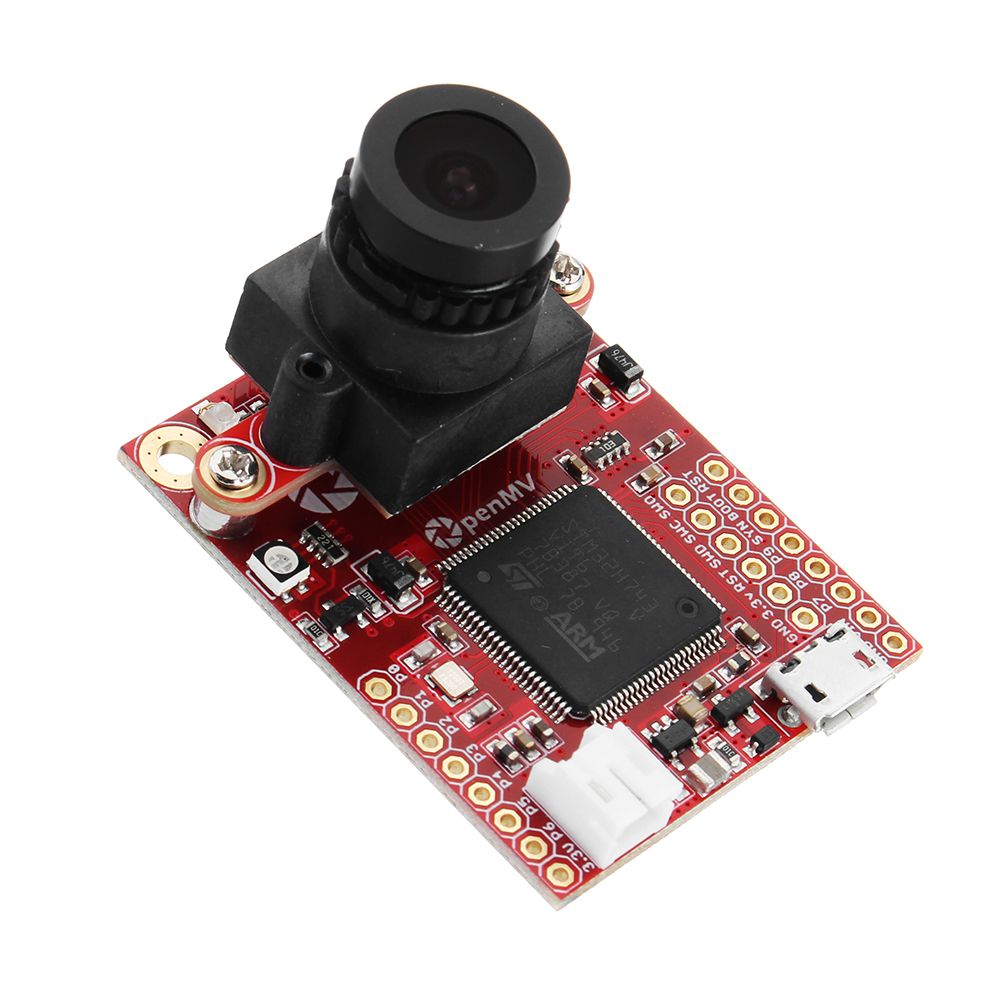

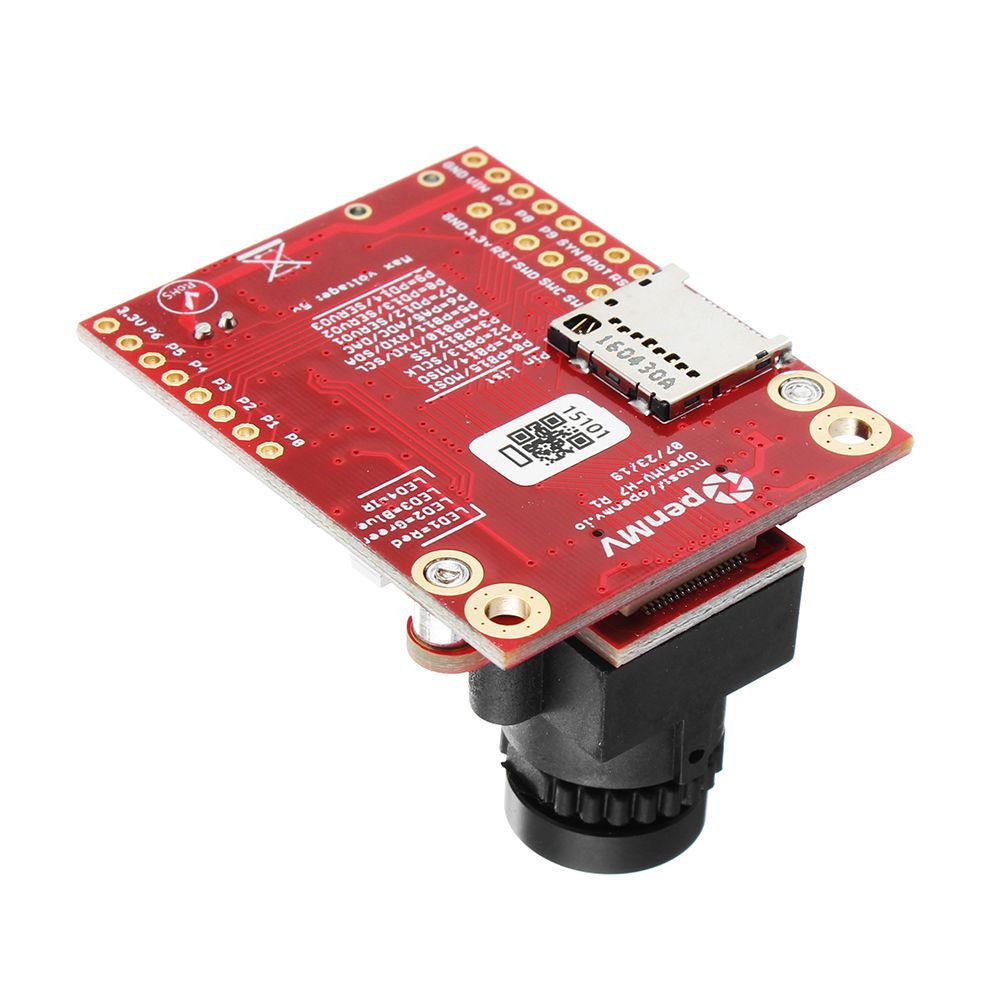

OpenMV4 H7 Cam OV7725 Smart Camera Image Processing Color Line QR Code Network Module
- Stock: In Stock
- Model: EB0042489
- SKU: EB0042489
| Processor | ARM® 32-bit Cortex®-M7 CPU |
| w/ Double Precision FPU | |
| 480 MHz (1027 DMIPS) | |
| Core Mark Score: 2400 | |
| (compare w/ Raspberry Pi 2: 2340) | |
| RAM Layout | 256KB .DATA/.BSS/Heap/Stack |
| 512KB Frame Buffer/Stack | |
| 256 KB DMA Buffers | |
| (1MB Total) | |
| Flash Layout | 128KB Bootloader |
| 128KB Embedded Flash Drive | |
| 1792KB Firmware | |
| (2MB Total) | |
| Supported Image Formats | Grayscale |
| RGB565 | |
| JPEG (and BAYER) | |
| Maximum Supported Resolutions | Grayscale: 640x480 and under |
| RGB565: 320x240 and under | |
| Grayscale JPEG: 640x480 and under | |
| RGB565 JPEG: 640x480 and under | |
| Lens Info | Focal Length: 2.8mm |
| Aperture: F2.0 | |
| Format: 1/3" | |
| HFOV = 70.8°, VFOV = 55.6° | |
| Mount: M12*0.5 | |
| IR Cut Filter: 650nm (removable) | |
| Electrical Info | All pins are 5V tolerant with 3.3V output. All pins can sink or source up to 25mA. P6 is not 5V tolerant in ADC or DAC mode. Up to 120mA may be sinked or sourced in total between all pins. VIN may be between 3.6V and 5V. Do not draw more than 250mA from your OpenMV Cam's 3.3V rail. |
| Weight | 19g |

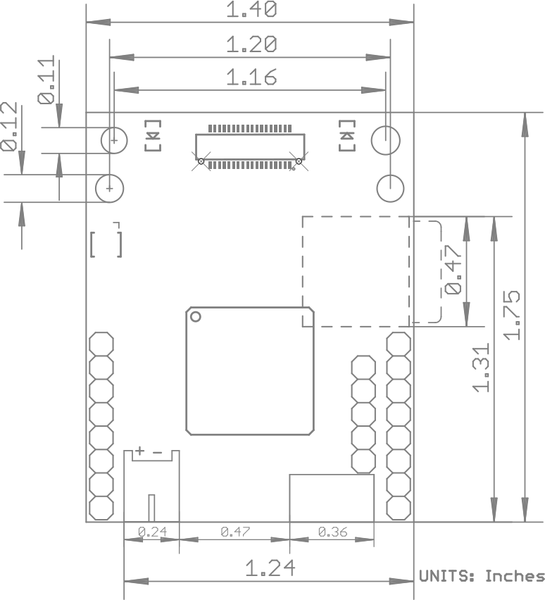

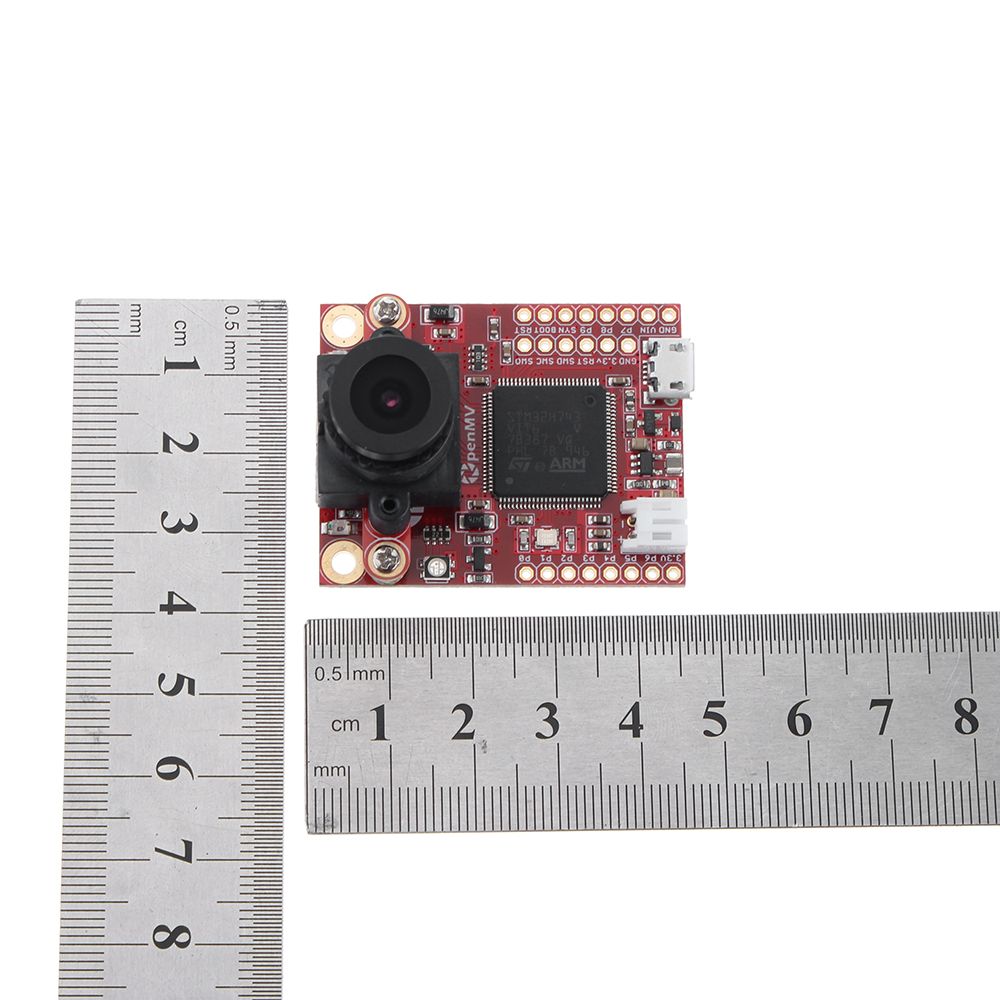

| Length | 45mm |
| Width | 36mm |
| Height | 30mm |
| Power Consumption | |
| Idle - No μSD Card | 110mA @ 3.3V |
| Idle - μSD Card | 110mA @ 3.3V |
| Active - No μSD Card | 160mA @ 3.3V |
| Active - μSD Card | 170mA @ 3.3V |
| Temperature Range | |
| Storage | -40°C to 125°C |
| Operating | -20°C to 70°C |

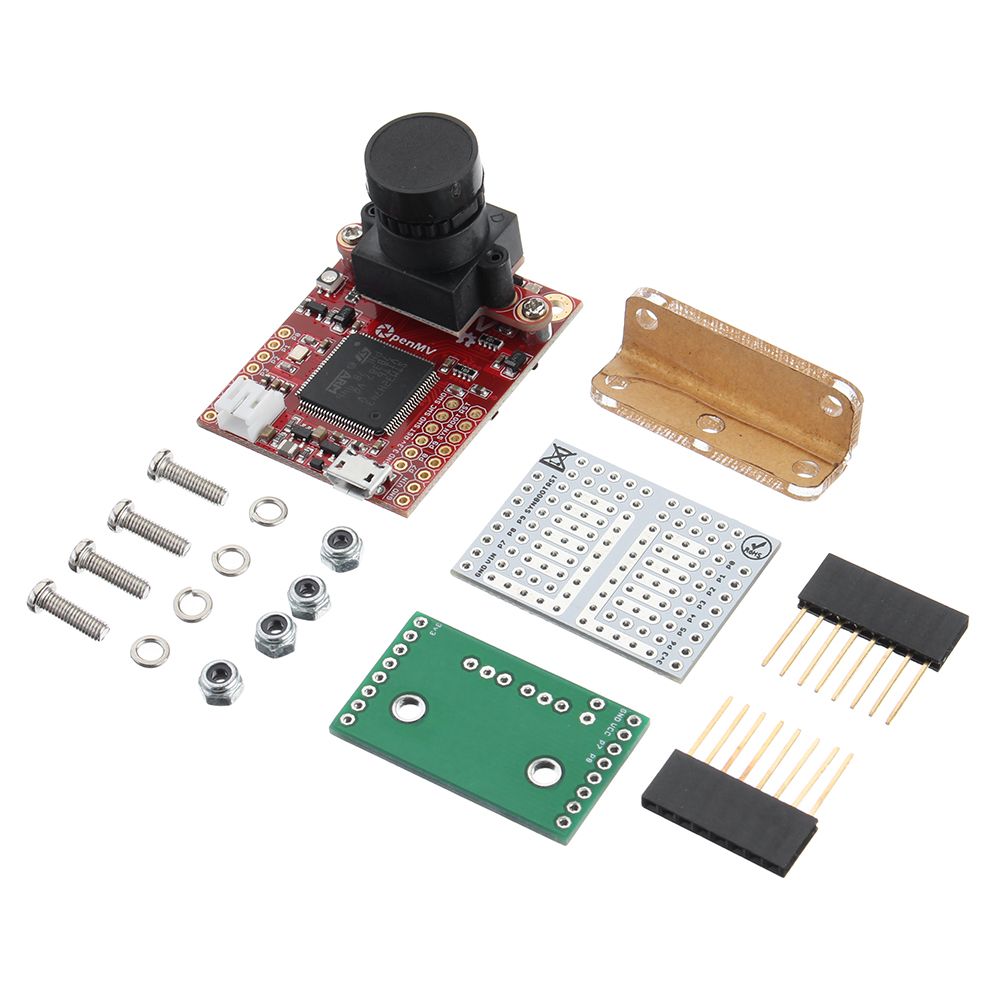

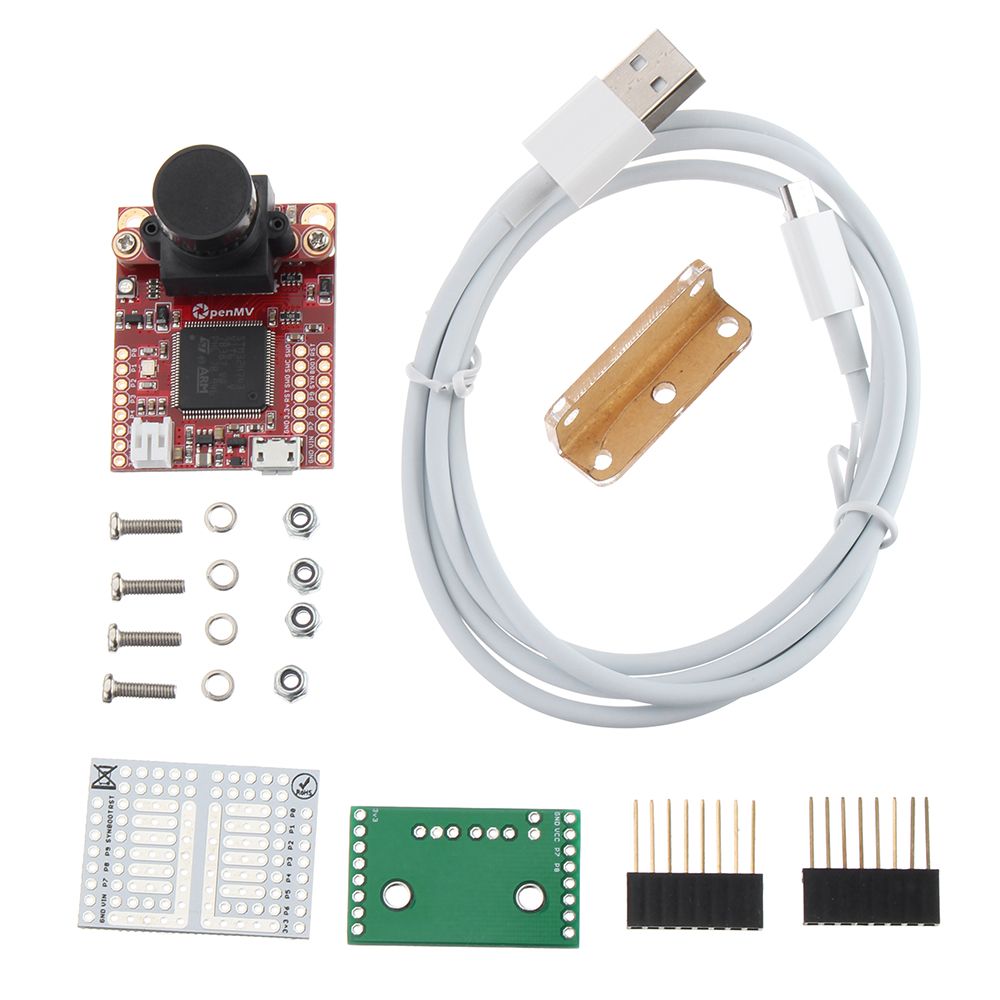

1 x OpenMV4 H7 Cam
