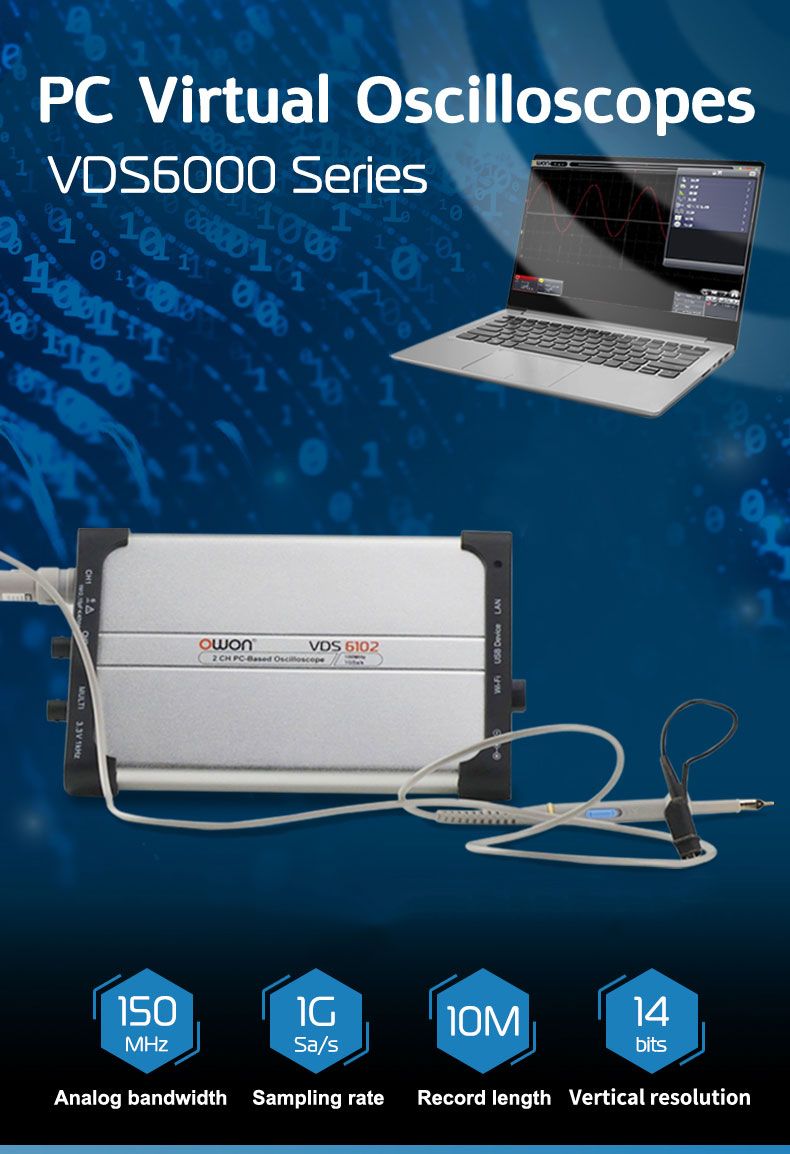

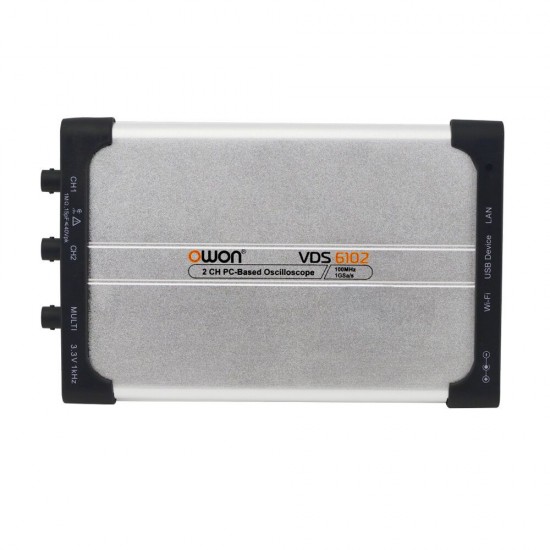

VDS6102 Digital Virtual Oscilloscopes 100MHz 2CH 1Gsa/s 8bits/14bits ADC Type-C USB 5-15V Power Supply PC Oscilloscope
- Stock: In Stock
- Model: EB004612
- SKU: EB004612
Model | VDS6102 | VDS6152 | VDS6102A | VDS6152A | |
bandwidth | 100MHz | 150MHz | 100MHz | 150MHz | |

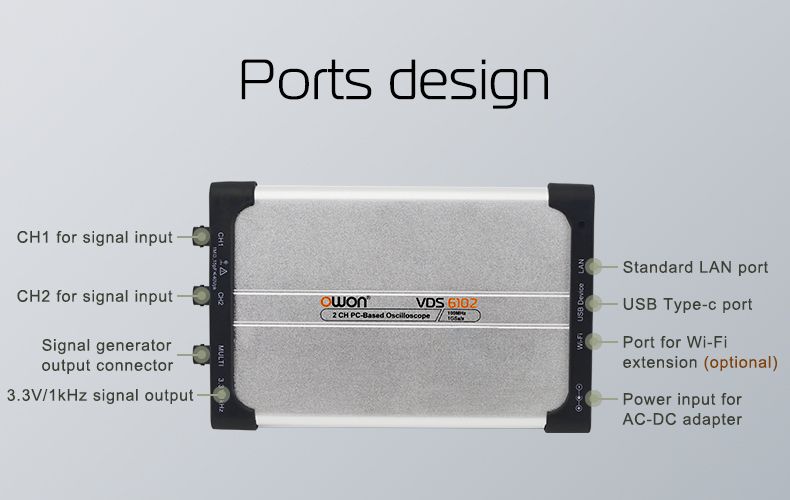

channel | 2CH scope + 1CH FG | ||||
Sample rate | Max 1GSa/s | ||||
Rise time | ≤3.5 ns | ≤2.3 ns | ≤3.5 ns | ≤2.3 ns | |
Horizontal scale | 5ns/div～100s/div，step by 1～2～5 | ||||
Sampling Mode | sample, peak detect, average | ||||
Rcord length | 10M | ||||
Input Coupling | DC, AC, ground | ||||
Input Impedance | 1 MΩ ± 2%, in parallel with 15 pF ± 5 pF | ||||
Vertical Sensitivity | 2mV/div～5V/div | ||||

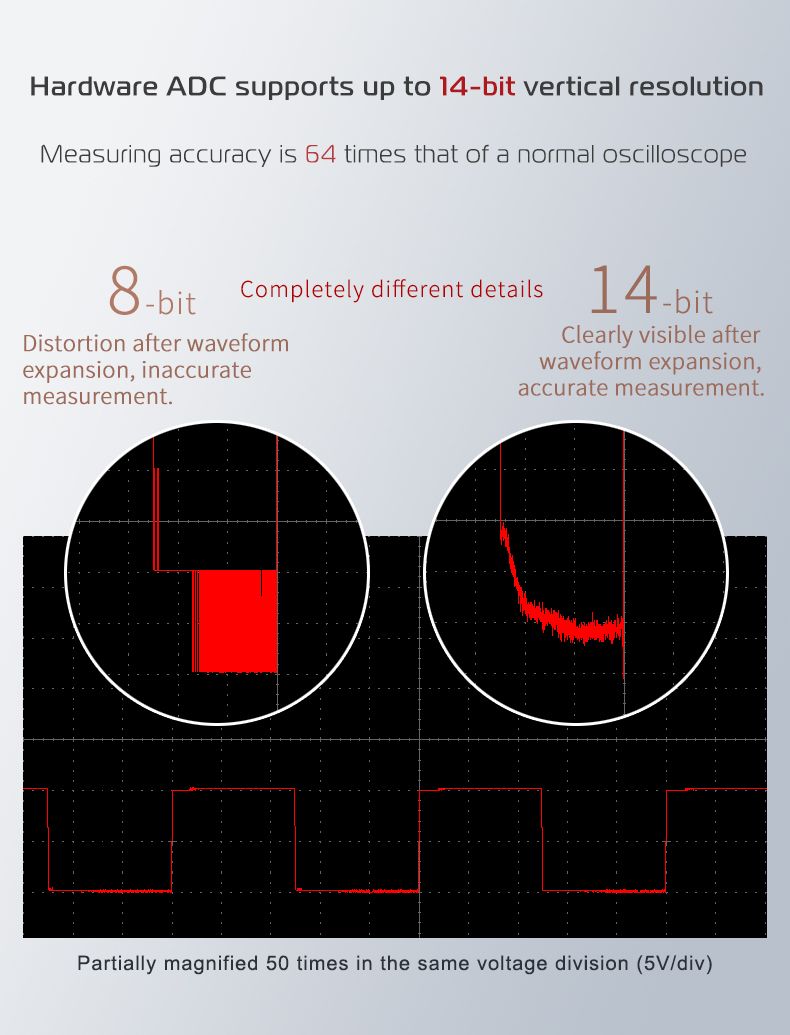

Vertical Resolution (A/D | 8bits | 14bits | |||
Max Input Voltage | 40 V (DC + AC Peak) | ||||
Probe Attenuation Factor | 1X，10X，100X，1000X | ||||
Channel isolation | 50Hz: 100 : 1，10MHz: 40 : 1 | ||||
Interpolation | Sin(x)/x | ||||
Vertical Range | ±2 V (2 mV/div – 50 mV/div)； | ||||
LF Respond (AC, -3dB) | ≥5Hz (at input, AC coupling, -3dB) | ||||
Trigger Type | edge, video, slope, pulse | ||||
Line/Field Frequency (video) | supported standards: NTSC, PAL and SECAM broadcast systems | ||||
Trigger Mode | auto, normal, single | ||||
Lissajous Figure | Bandwidth | full bandwidth | |||
Phase Difference | ±3 degrees | ||||
Automatic Measurement | Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A→B, Delay A→B, +Width, -Width, +Duty, -Duty | ||||

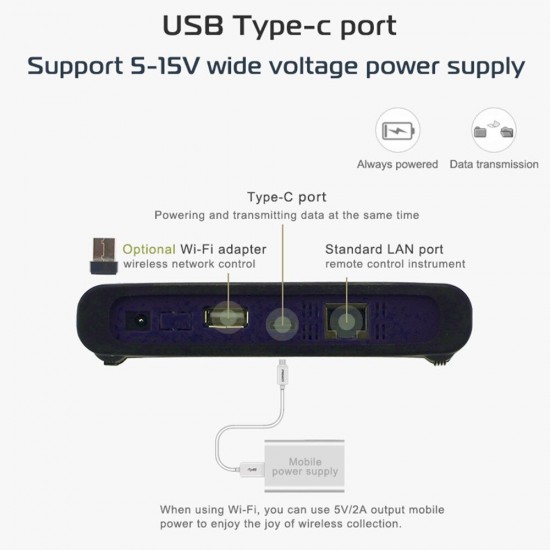

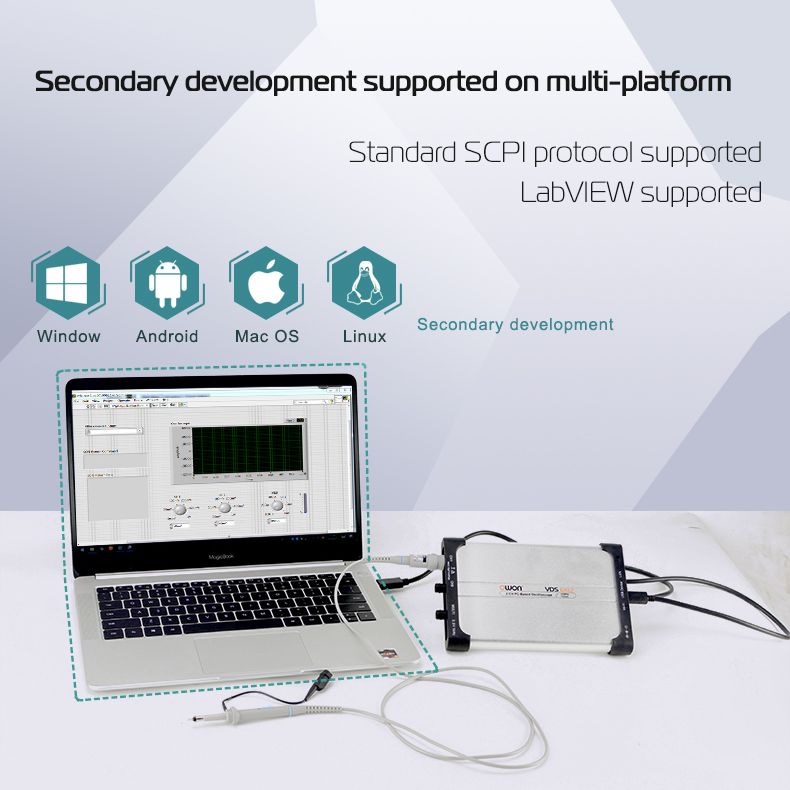

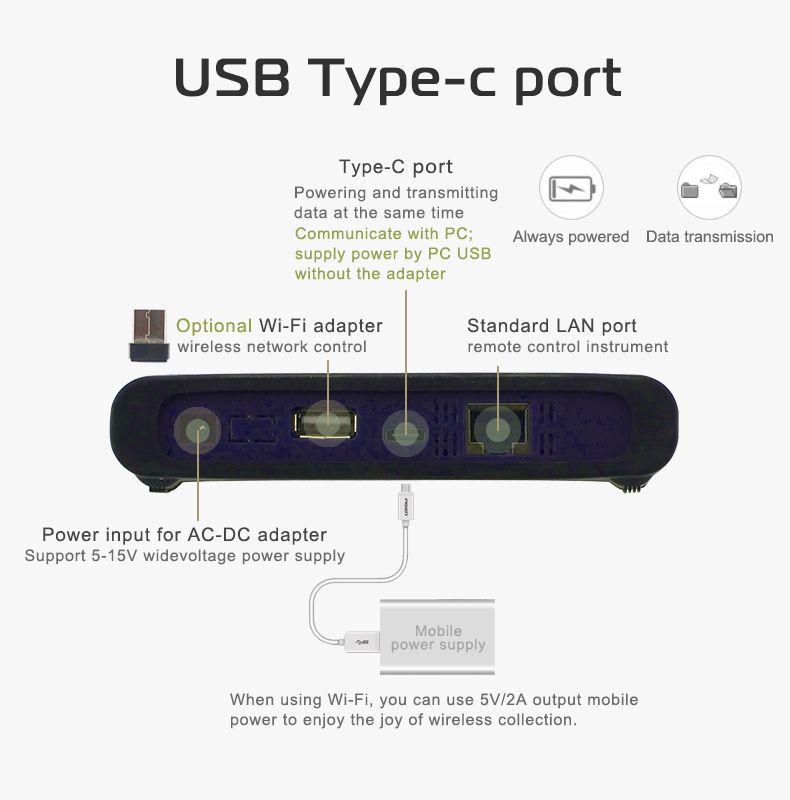

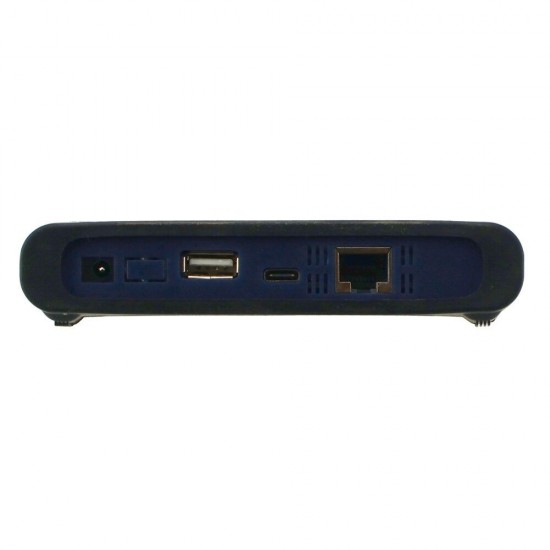

Communication Interface | USB (Typ-c)；LAN, WIFi (optional) | ||||
Power Consumption | ≤8W | ||||

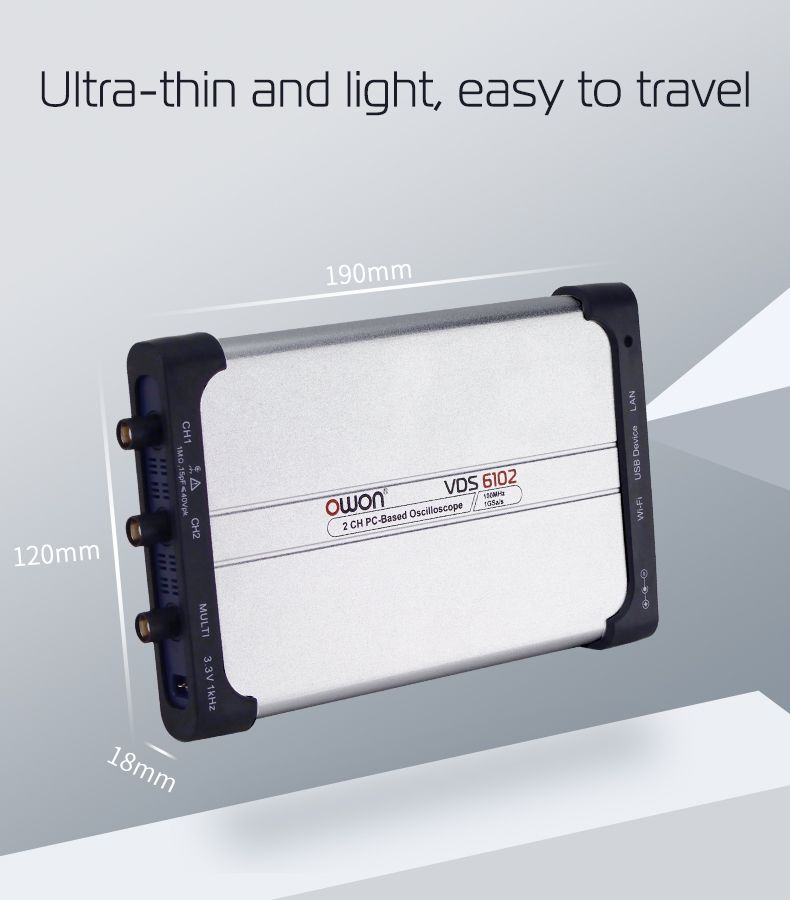

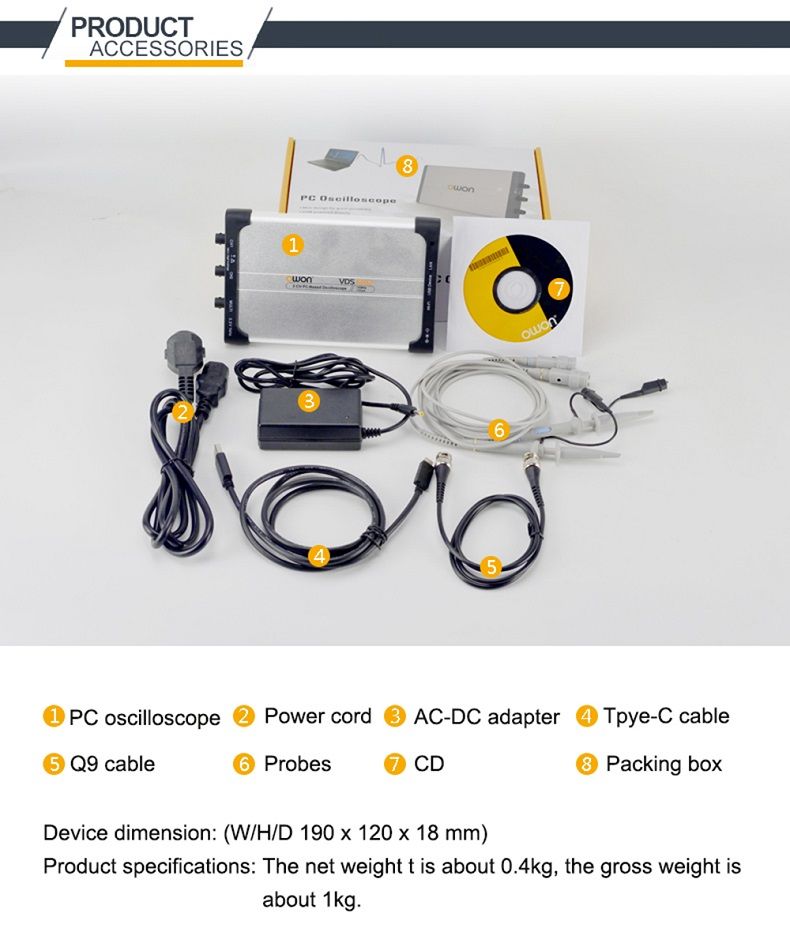

Dimensions (W × H × D) | 190mm×120mm×18mm | ||||
Device Weight | ≈0.38 kg | ||||

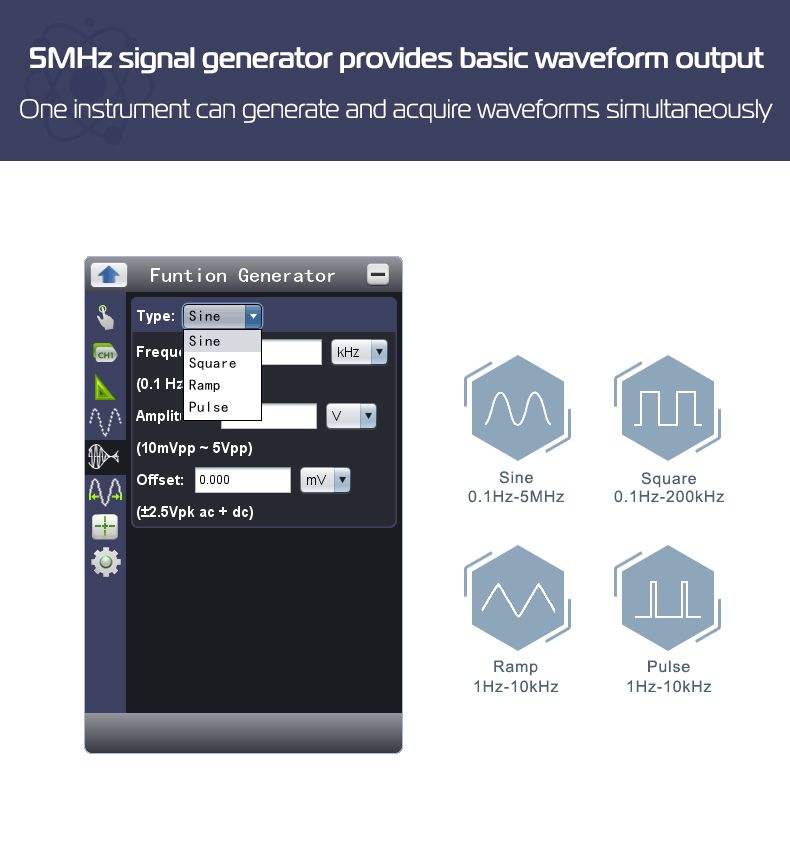

Function Generator | |
Standard Waveforms | Sine (0.1 Hz - 5 MHz), Square（0.1 Hz-200 kHz), Ramp（1 Hz-10 kHz), Pulse（1 Hz-10 kHz） |
Frequency Output | 5 MHz |
Sampling Rate | 25M Sa/s |
Channel | 1 |
Vertical Resolution | 10bits |
Amplitude Range | 10mVpp - 5Vpp |
DC Offset Range (AC+DC) | ±2.5V |
Output Impedance | 50 Ω (typical) |
