OV5640 Camera Module 2592x1944 5 Million Pixels Expansion Board Development Board STM32 Camera

OV5640 Camera Module 2592x1944 5 Million Pixels Expansion Board Development Board STM32 Camera
OV5640 Camera Module 2592x1944 5 Million Pixels Expansion Board Development Board STM32 Camera
OV5640 Camera Module 2592x1944 5 Million Pixels Expansion Board Development Board STM32 Camera
OV5640 Camera Module 2592x1944 5 Million Pixels Expansion Board Development Board STM32 Camera
OV5640 Camera Module 2592x1944 5 Million Pixels Expansion Board Development Board STM32 Camera
OV5640 Camera Module 2592x1944 5 Million Pixels Expansion Board Development Board STM32 Camera
OV5640 Camera Module 2592x1944 5 Million Pixels Expansion Board Development Board STM32 Camera
OV5640 Camera Module 2592x1944 5 Million Pixels Expansion Board Development Board STM32 Camera
OV5640 Camera Module 2592x1944 5 Million Pixels Expansion Board Development Board STM32 Camera
OV5640 Camera Module 2592x1944 5 Million Pixels Expansion Board Development Board STM32 Camera
OV5640 Camera Module 2592x1944 5 Million Pixels Expansion Board Development Board STM32 Camera
OV5640 Camera Module 2592x1944 5 Million Pixels Expansion Board Development Board STM32 Camera
OV5640 Camera Module 2592x1944 5 Million Pixels Expansion Board Development Board STM32 Camera
$30.99
Ex Tax: $30.99
  • Stock: In Stock
  • Model: EB0045254
  • SKU: EB0045254
Introduction:

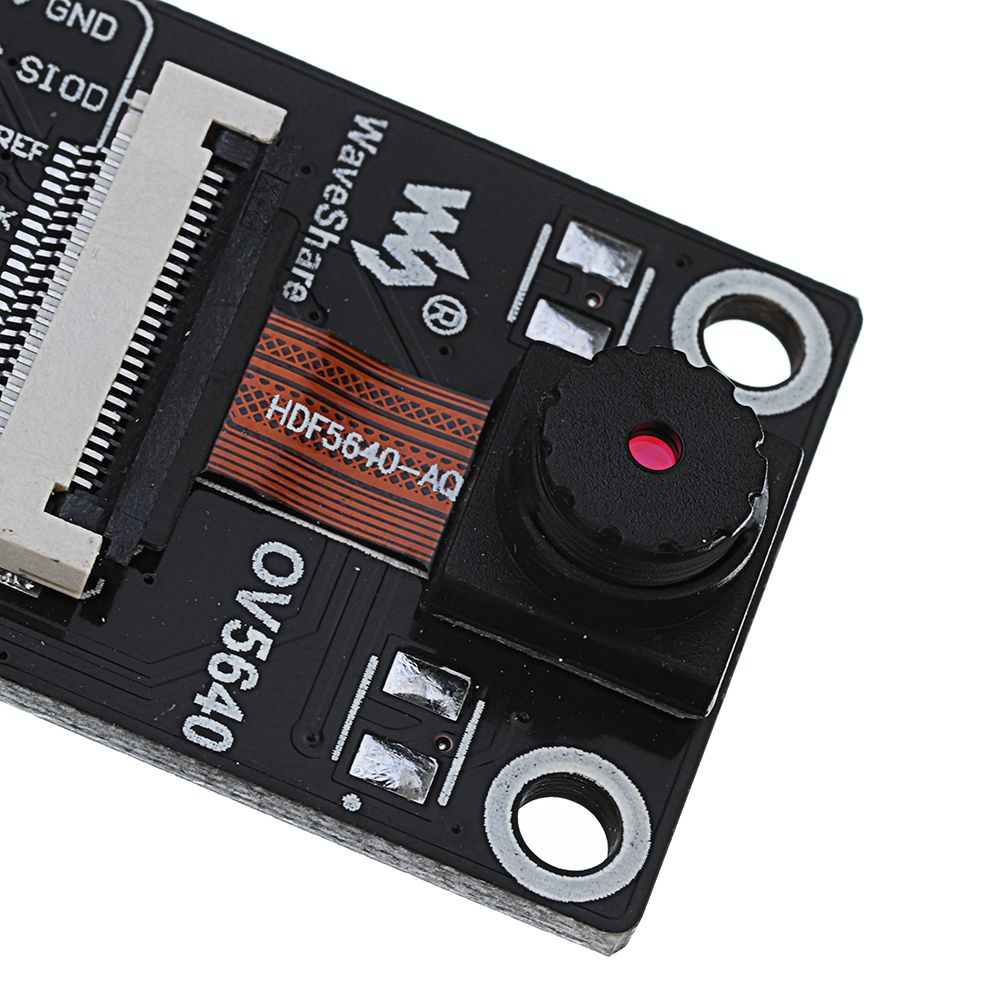

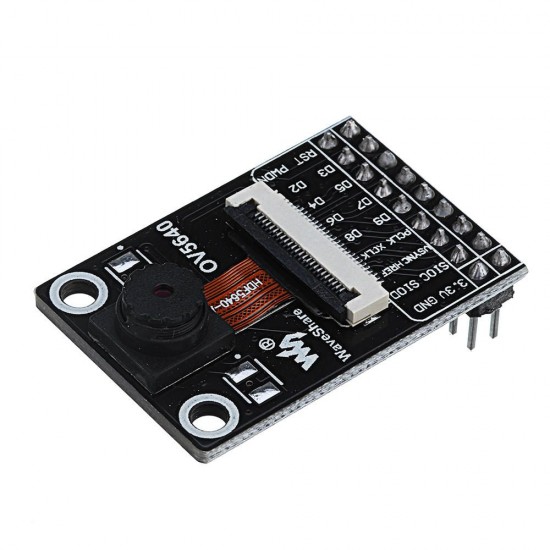

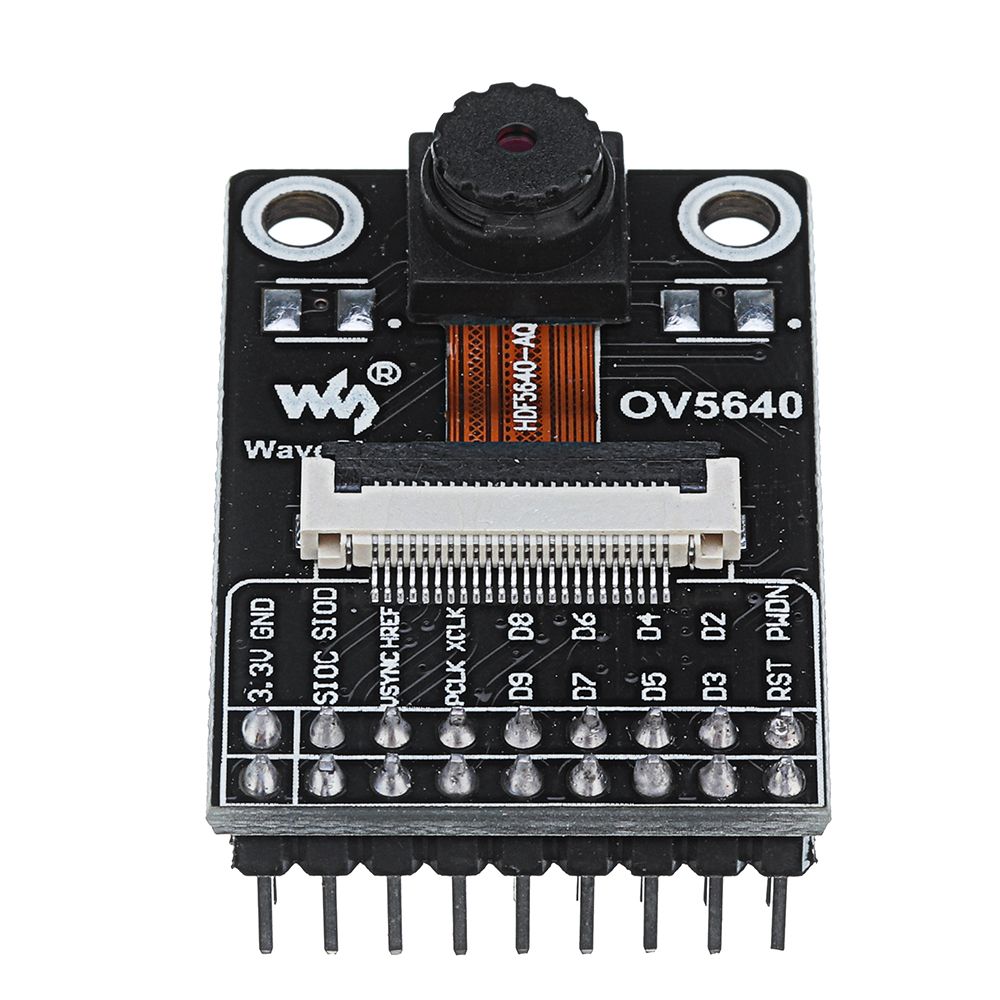

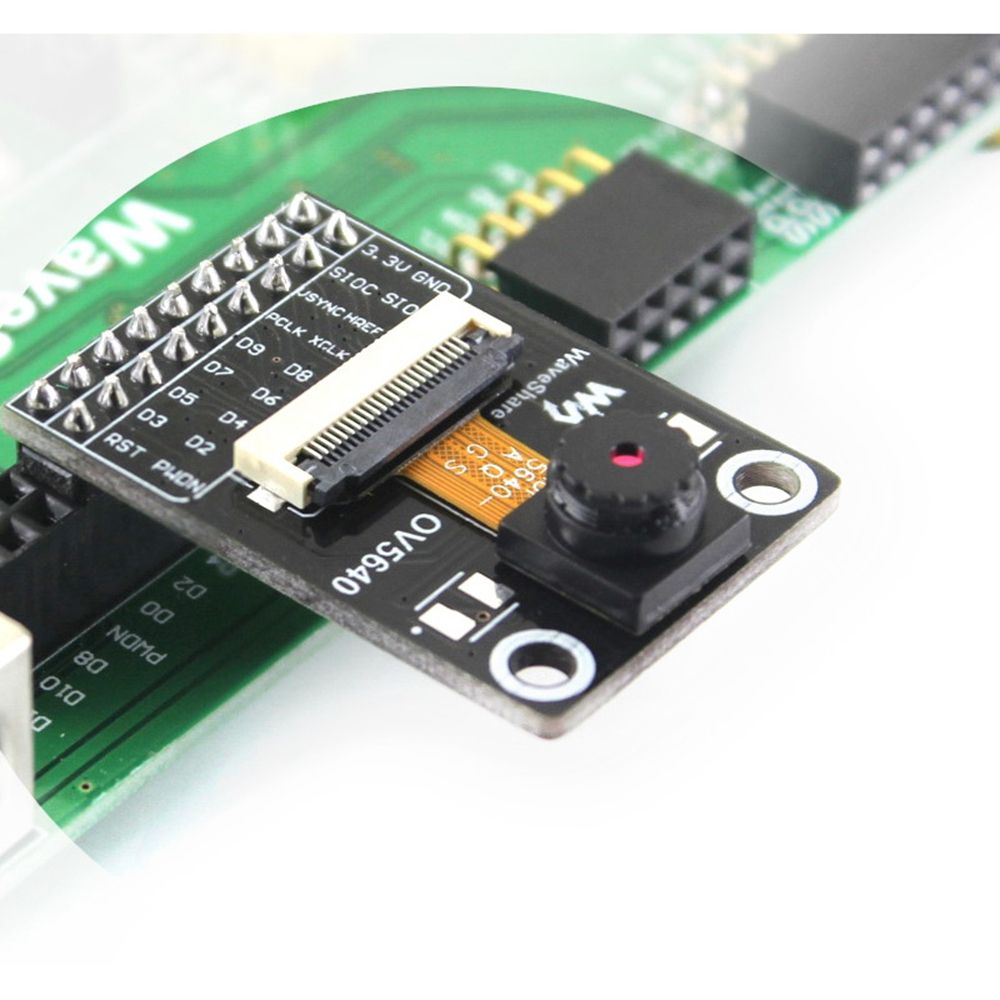

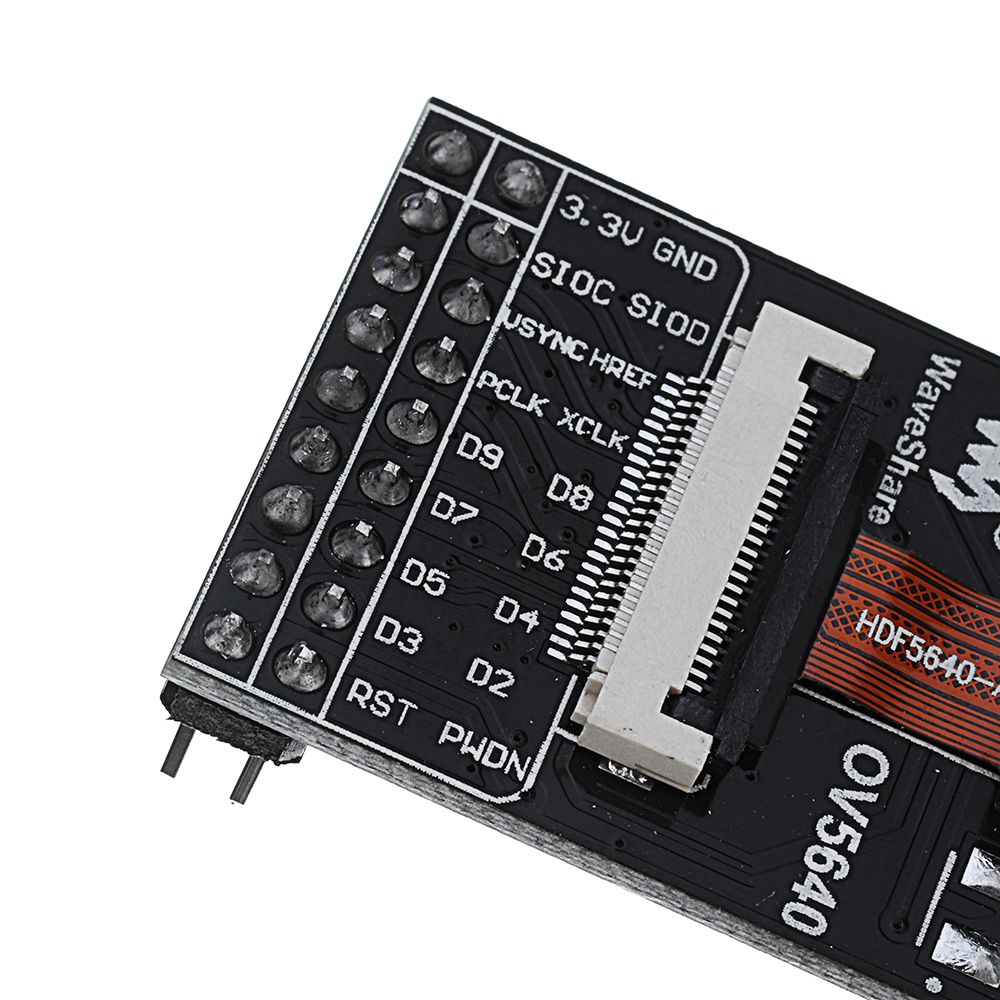

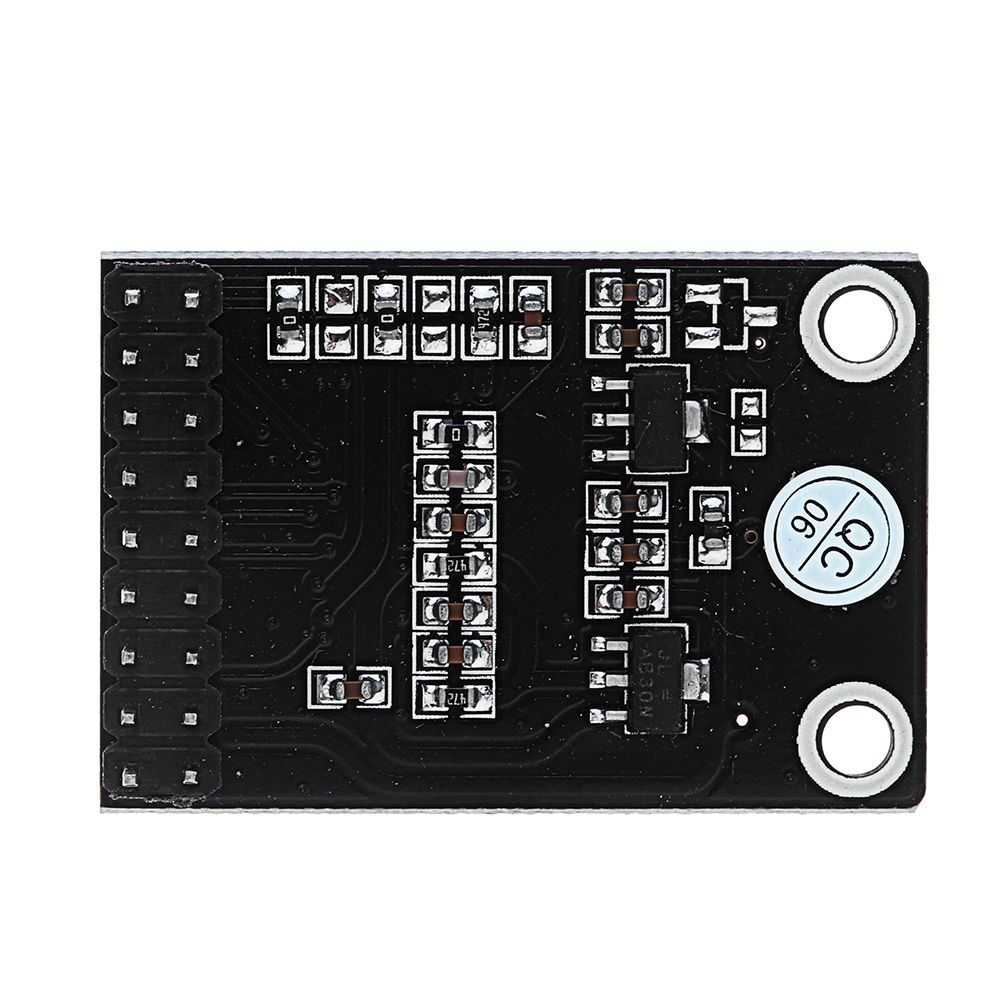

Based on the OV5640 camera module, 5 million pixels, image resolution up to 2592x1944.

Parameter:

Image: 5 million
Resolution: 2592x1944
Photosensitive chip: OV5640
High sensitivity, low crosstalk, low noise with 1.4um x 1.4um pixel OmniBSI technology
Supports automatic exposure, auto white balance, automatic elimination of light streaks, automatic black level calibration, and automatic bandpass filters
Support color saturation adjustment, tone adjustment, gamma correction, sharpness and lens calibration
Support for image scaling, panning, and window settings


Camera:

CCD size: 1/4 inch
Aperture (F): 2.8
Focal Length: 2.8mm
Diagonal angle: 63 degrees

Output format:

YUV(422/420)/YCbCr422
RGB565/555/444
CCIR656
RAW RGB
Compressed Data
Working voltage: 3.3V
Control interface: SCCB (compatible with I2C)
Data interface: DVP 8 bit

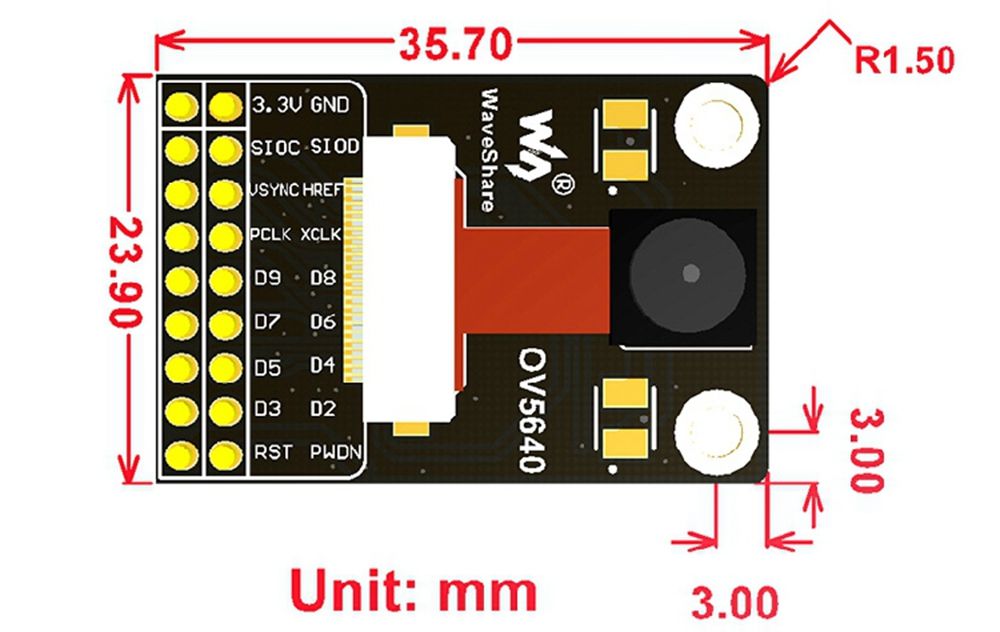

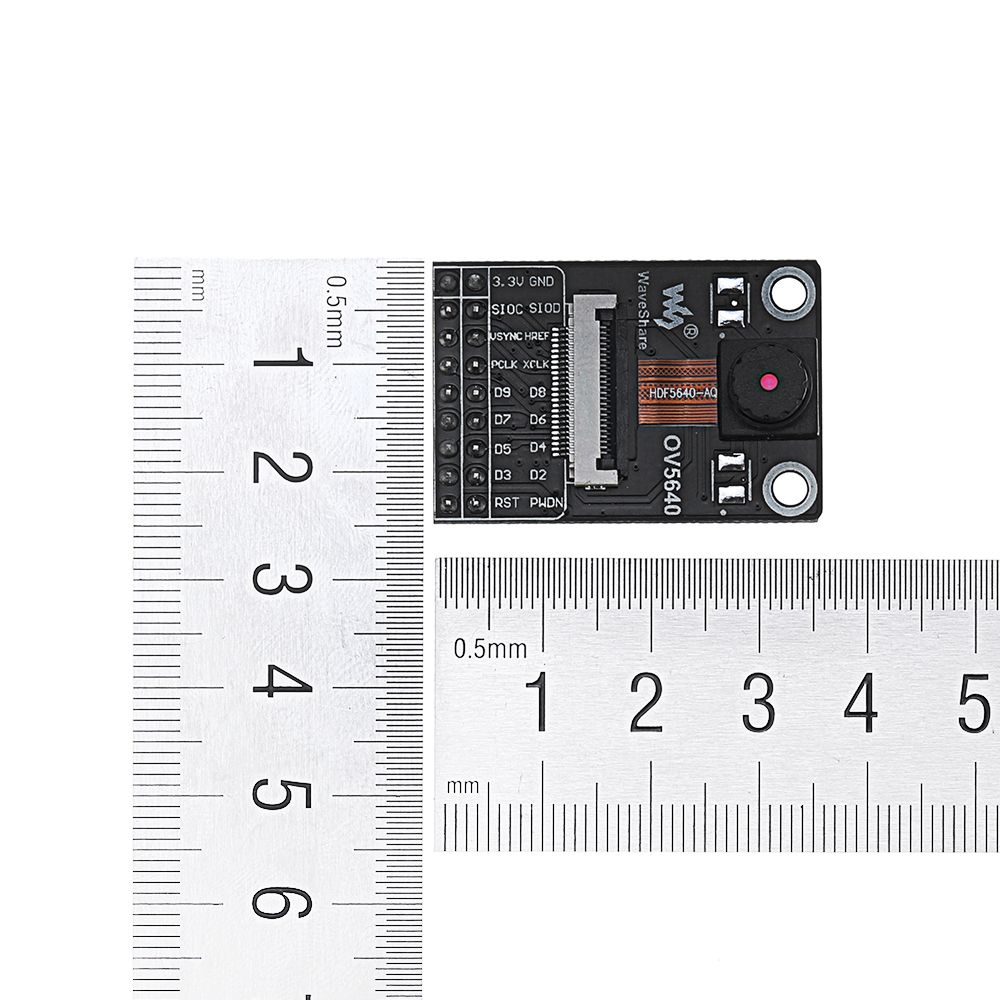

Size: 35.70mm × 23.90mm

Information includes:

Circuit schematic
Sample programs (STM32F4 and STM32F7)
User manual

Package includes:

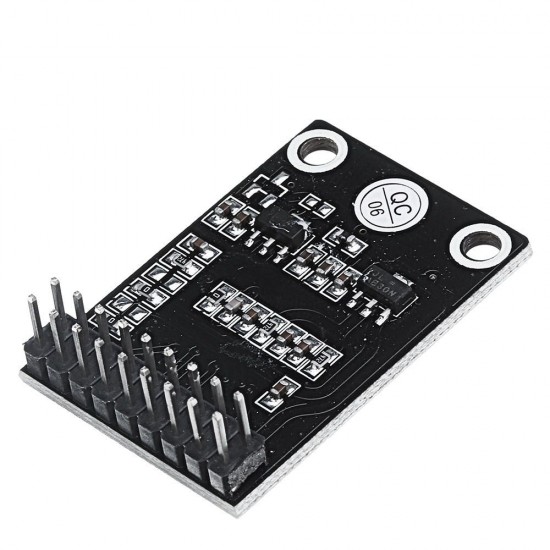

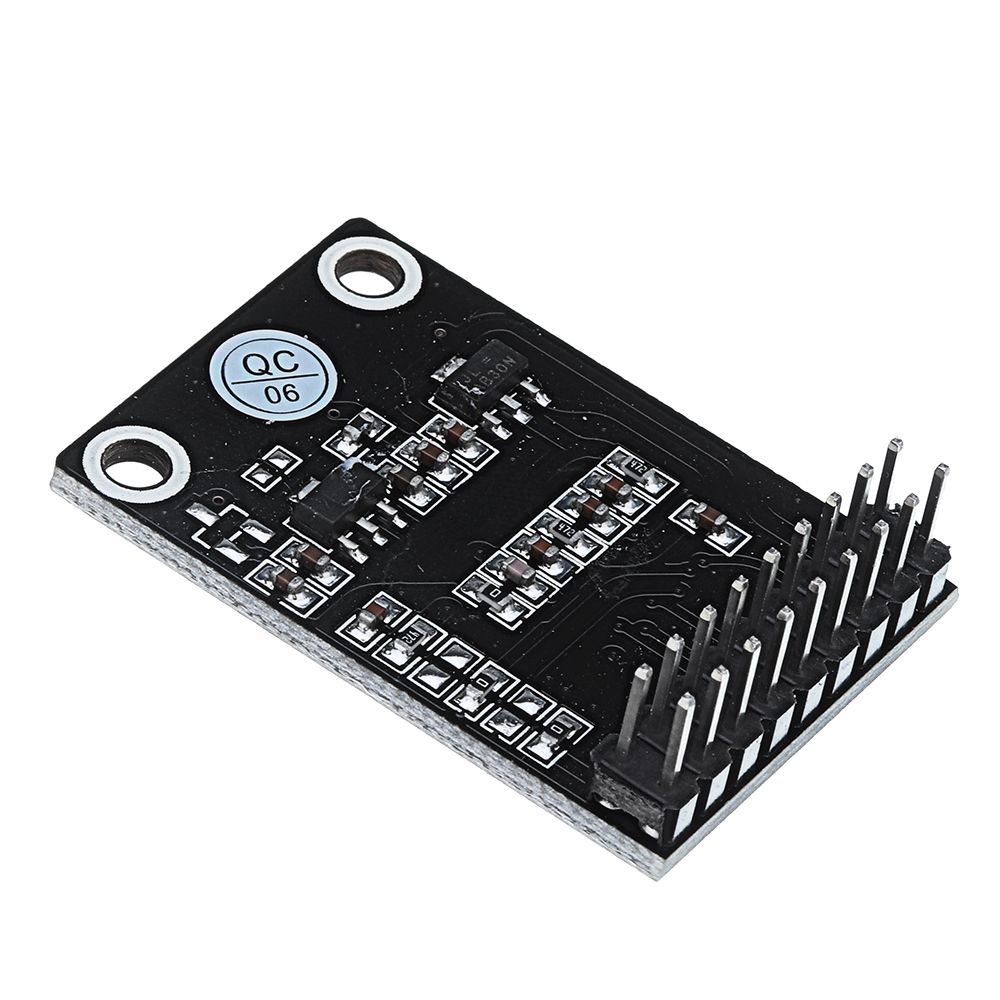

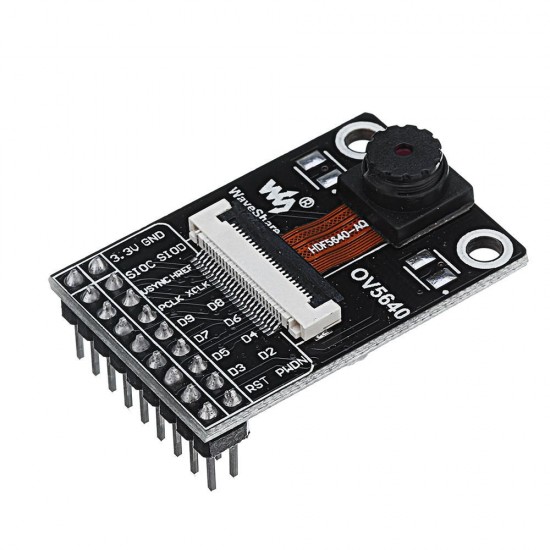

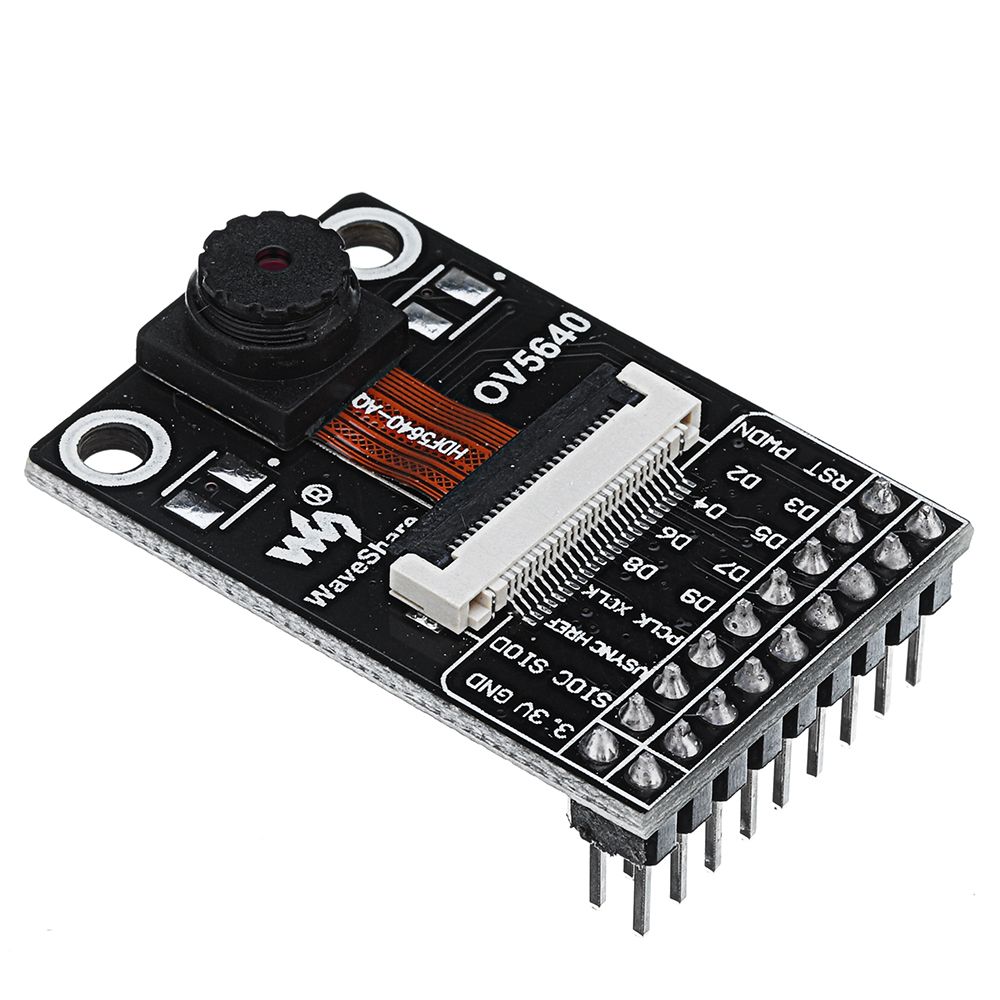

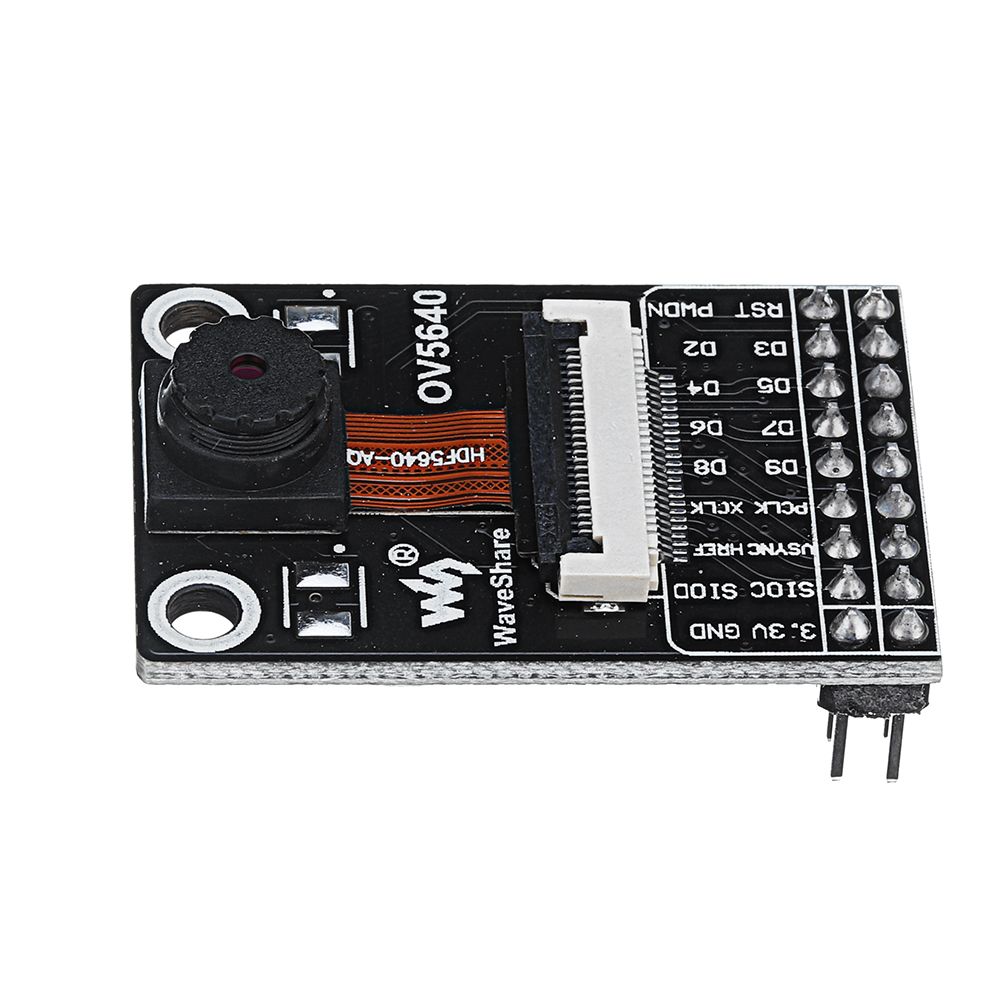

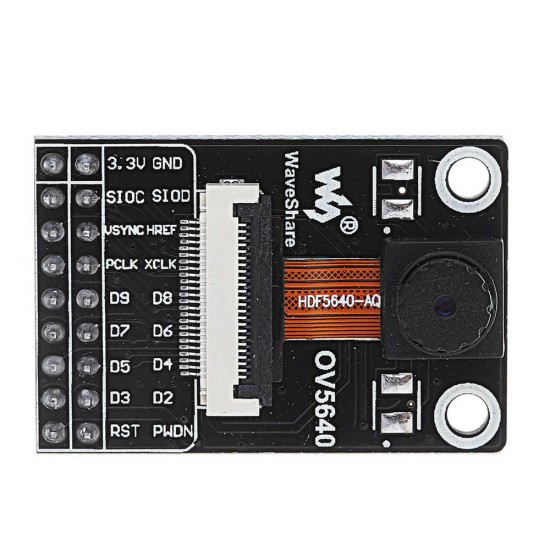

1 x OV5640 Camera Board (A)
