O2 Oxygen Meter Valve Body Zinc Alloy Inhaler Weld Pressure Reducing Valve Pressure Regulators Pressure Gauge

Based on 0 reviews. - Write a review

$18.99

Ex Tax: $18.99

Stock: In Stock
Model: EB003970
SKU: EB003970

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Specifications:

Product Material: Valve Body Zinc Alloy

Input pressure: 15Mpa; Output pressure: 0.2Mpa

Output flow: 0-10L/min

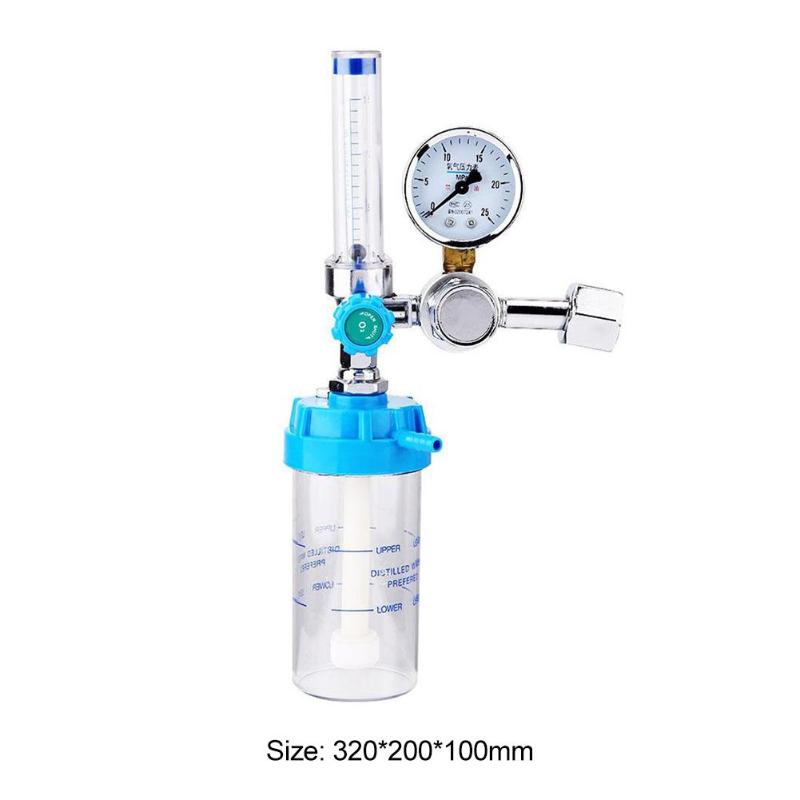

Size: 320*200*100mm/12.6*7.87*3.94"

Security role:

1. Before using the inhaler, all parts should be checked for damage and wiped clean with a dry cloth.

2. Oxygen barometer, absolute oil prohibition of pressure reducer.

3. Distilled water in humidifying bottles should be kept clean and replaced frequently.

4. In oxygen inhalation therapy, attention should be paid to the flow of oxygen, which can be adjusted by doctors.

Purpose:

It adjusts the variable import pressure to the stable export pressure as far as possible.

Working Principle:

Install the inhaler on the oxygen valve correctly, and open the cylinder valve, the high-pressure gas from the high-pressure chamber into the low-pressure chamber, through the flow control valve, flow meter into the nasal cavity of the patient. After rescue, first close the bottle valve and then the flow control valve.

Safety valve is a loading and unloading device to maintain the safe use of inhalers, and a signal device for the failure of inhalers. When the damage pressure of the output pressure rises to 1.3-2 times that of the output pressure, the relief valve will automatically exhaust.

Packages Includes:

1 X O2 Oxygen Meter Valve

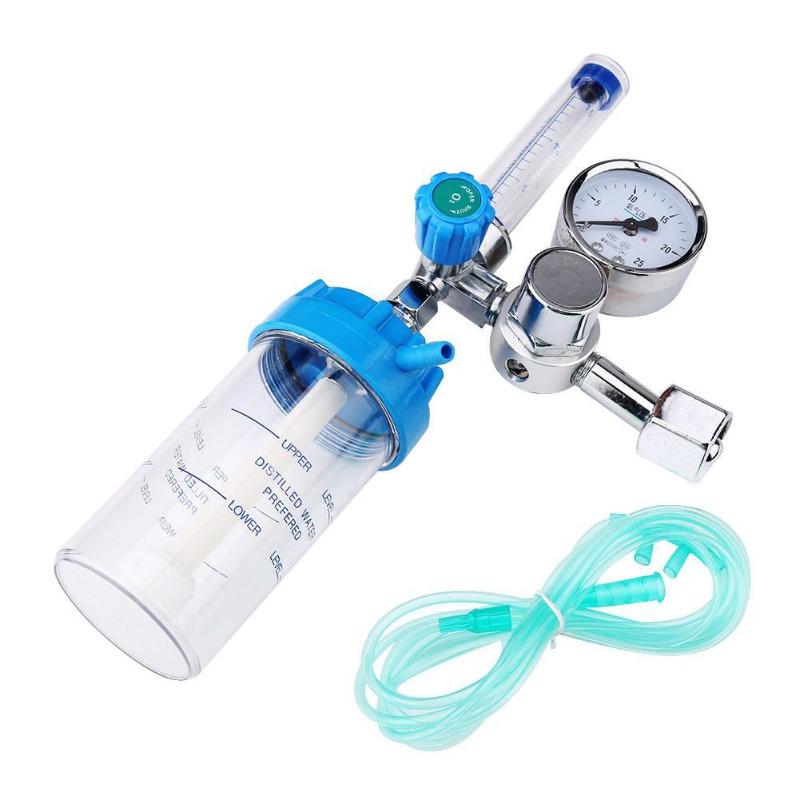

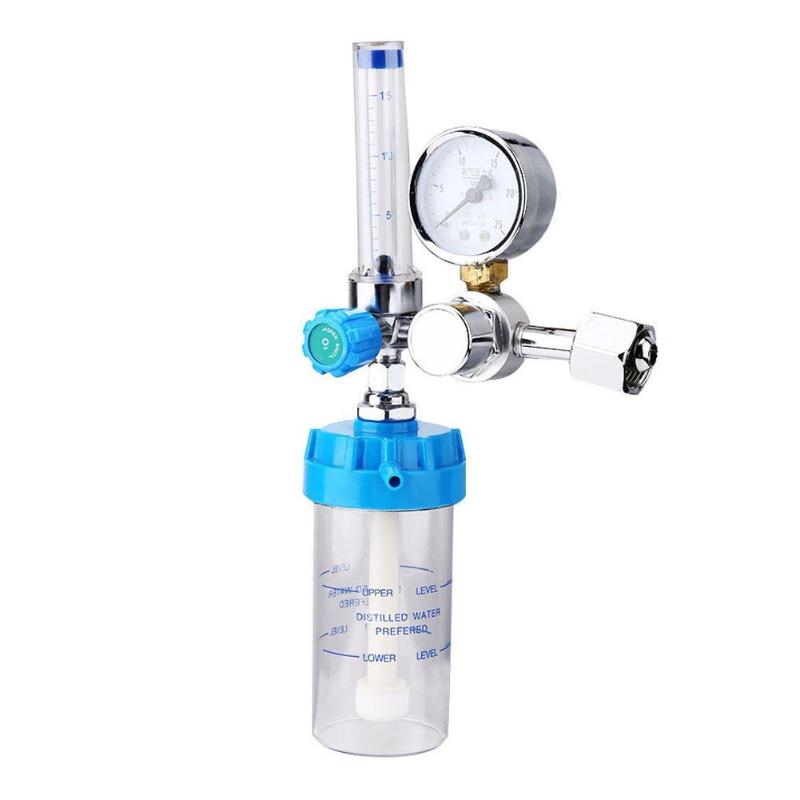

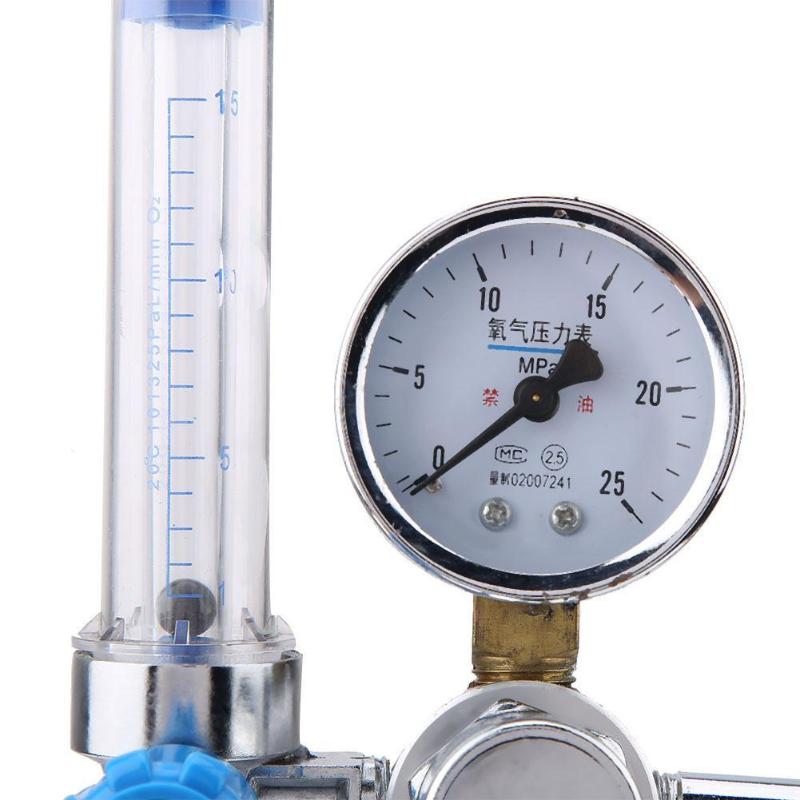

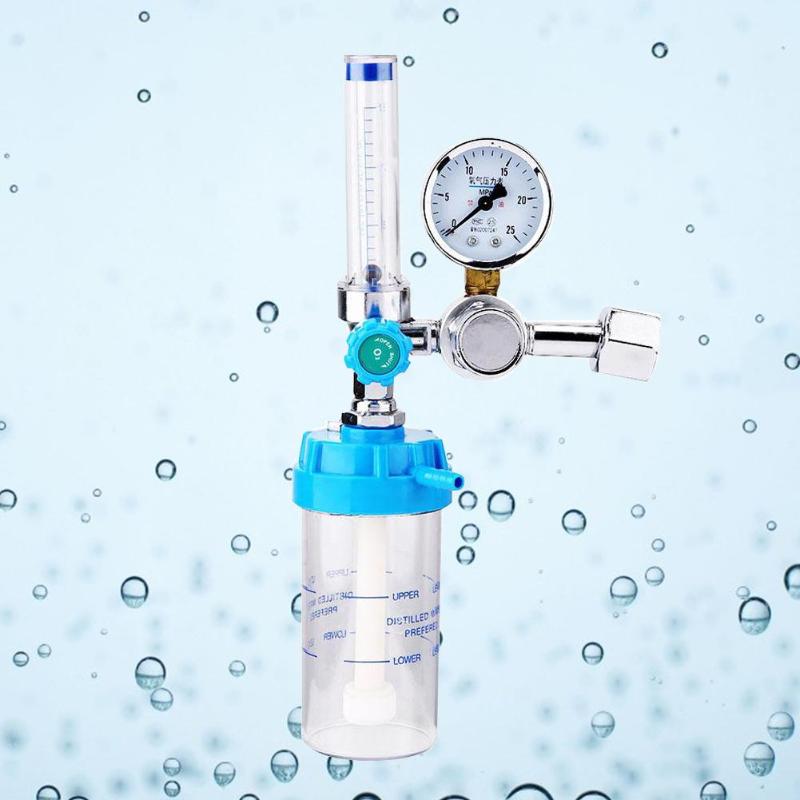

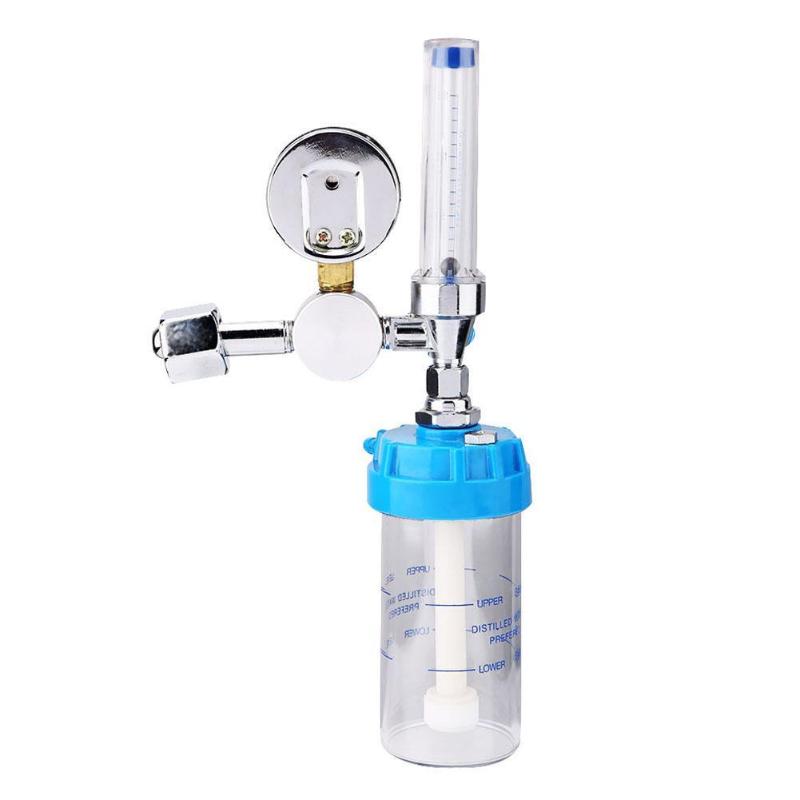

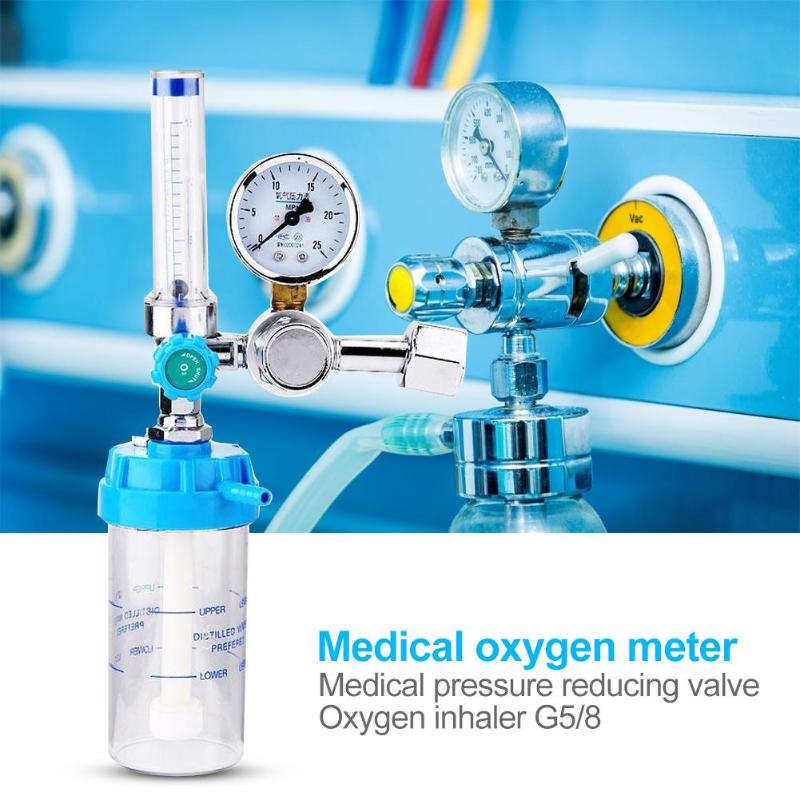

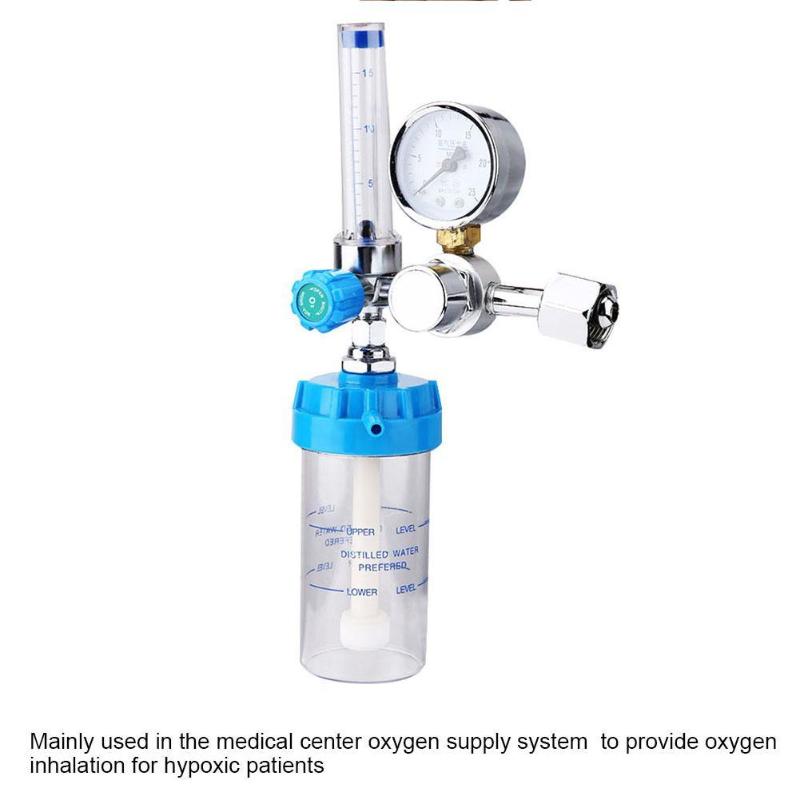

Details Pictures:

O2-Oxygen-Meter-Valve-Body-Zinc-Alloy-Inhaler-Weld-Pressure-Reducing-Valve-Pressure-Regulators-Press-1617043
