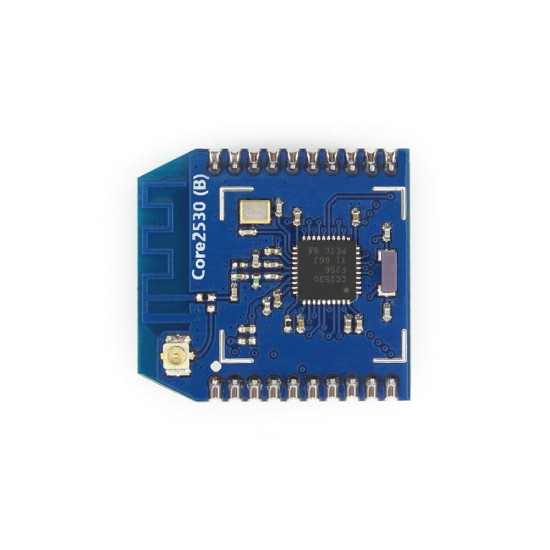

Networking Module CC2530F256RHAR CC2530 Wireless Module Compatible For XBee

Based on 0 reviews. - Write a review

$19.43

Ex Tax: $19.43

Stock: In Stock
Model: EB0041446
SKU: EB0041446

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

[Serial port related]:

Operation is as simple as operating the serial port

Support three kinds of serial port transparent transmission firmware: coordinator, router and terminal

The factory default configuration is a router (by downloading the coordinator or terminal firmware, it can be changed to the coordinator or terminal)

Support serial port to send big data packets and broadcast fast packet sending

Support serial download program (firmware support via serial bootloader; serial module required)

Support host computer software to set working mode, serial channel, baud rate, channel and other parameters

[Other]:

Supports automatic networking (at least one coordinator and one router are required for networking)

Real-time monitoring of the signal strength between the coordinator, routing and terminal

Support onboard PCB antenna and IPEX external antenna

Parameter:

Main control chip: CC2530F256RHAR

Communication distance: Use onboard PCB antenna, the distance can reach 130 meters (working environment: open area)

Working frequency band: 2.4GHz

Working voltage: 2.0V-3.6V

Temperature range: -40℃～85℃

Serial port baud rate: 38400bps (default), can be set to other baud rate

Volume: 26mm x 28mm (PCB)

[CC2530F256 core parameters]

Working frequency band: 2.4GHz

16 transmission channels, switch reliable communication channels according to the environment

Wireless transmission rate up to 250kbps

High-performance, low-power 8051 microcontroller core

RF transceiver for 2.4GHz IEEE 802.15.4

Wide power supply voltage range (2.0～3.6V)

Watchdog, battery monitor and temperature sensor

12-bit ADC with 8 inputs

2 USARTs supporting multiple serial communication protocols, 1 infrared generating circuit

1 general-purpose 16-bit and 2 8-bit timers

Advanced Encryption Standard (AES) coprocessor

21 general purpose I/O pins, 2 with 20mA current sink or current supply capability

Documents:

Schematic: Click here to open

Package includes:

1 x Networking Module
