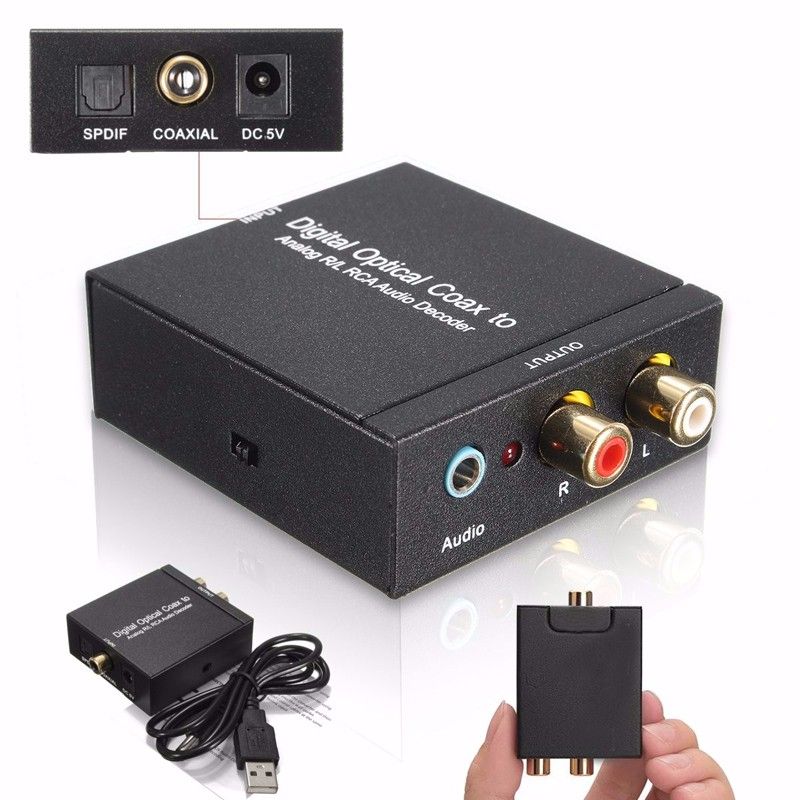

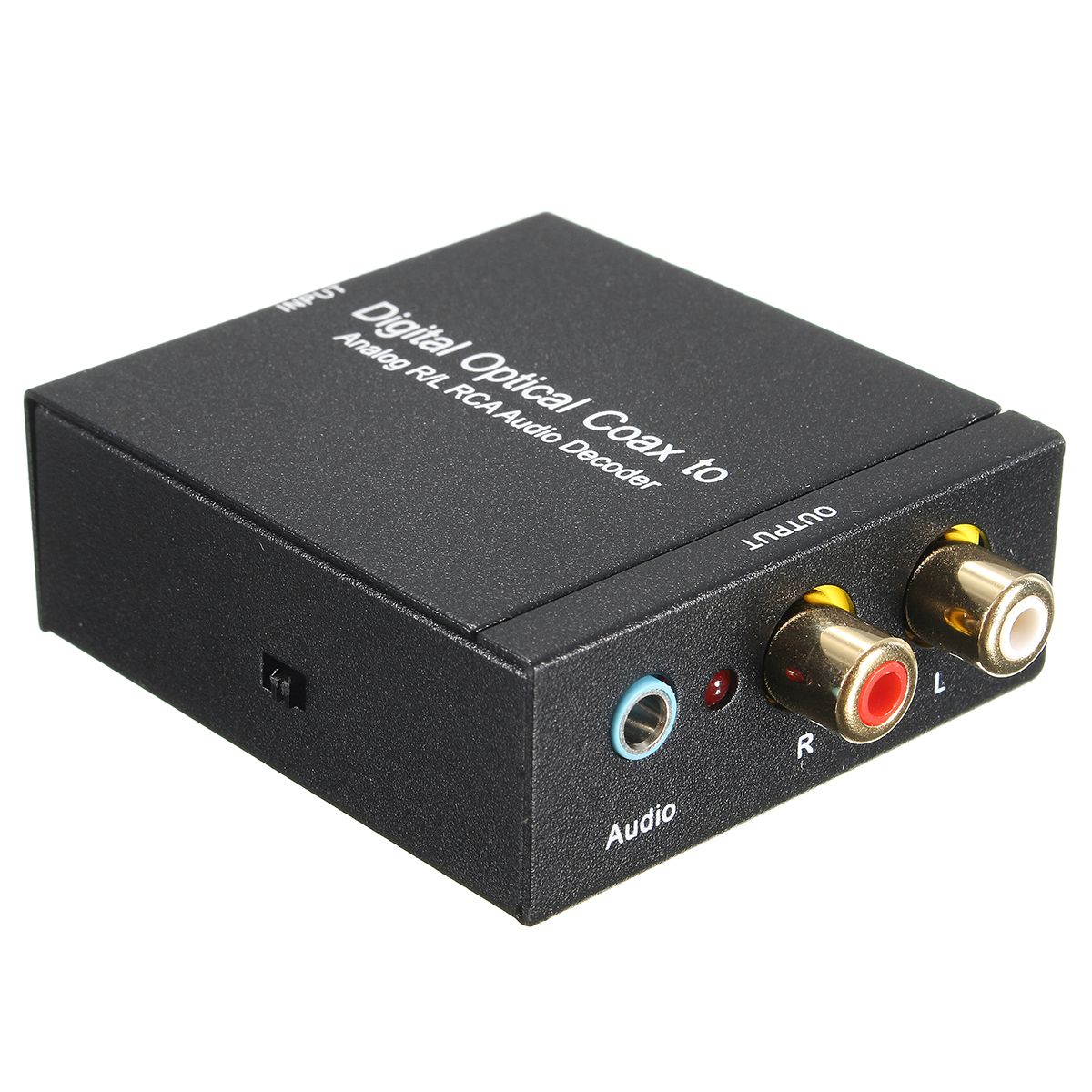

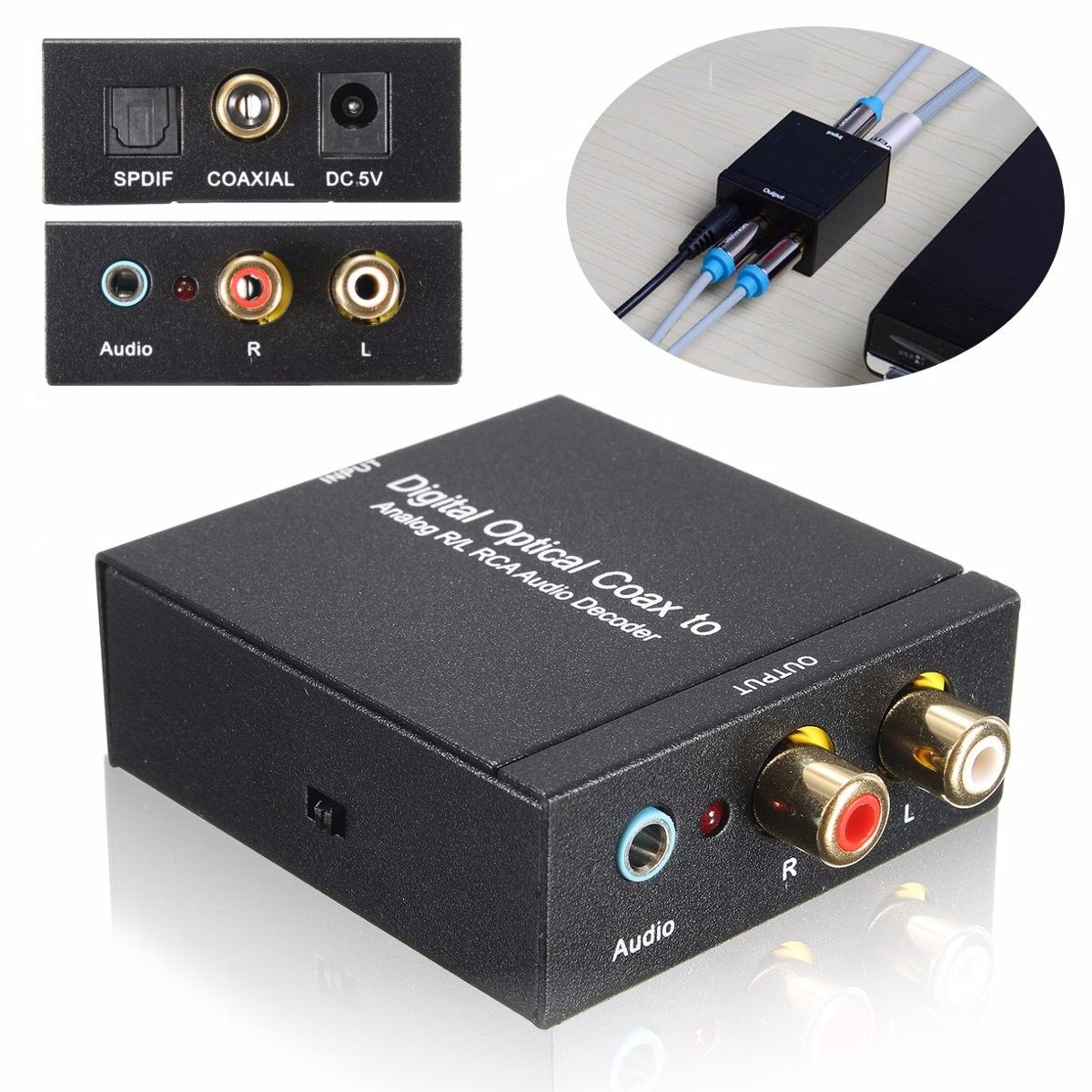

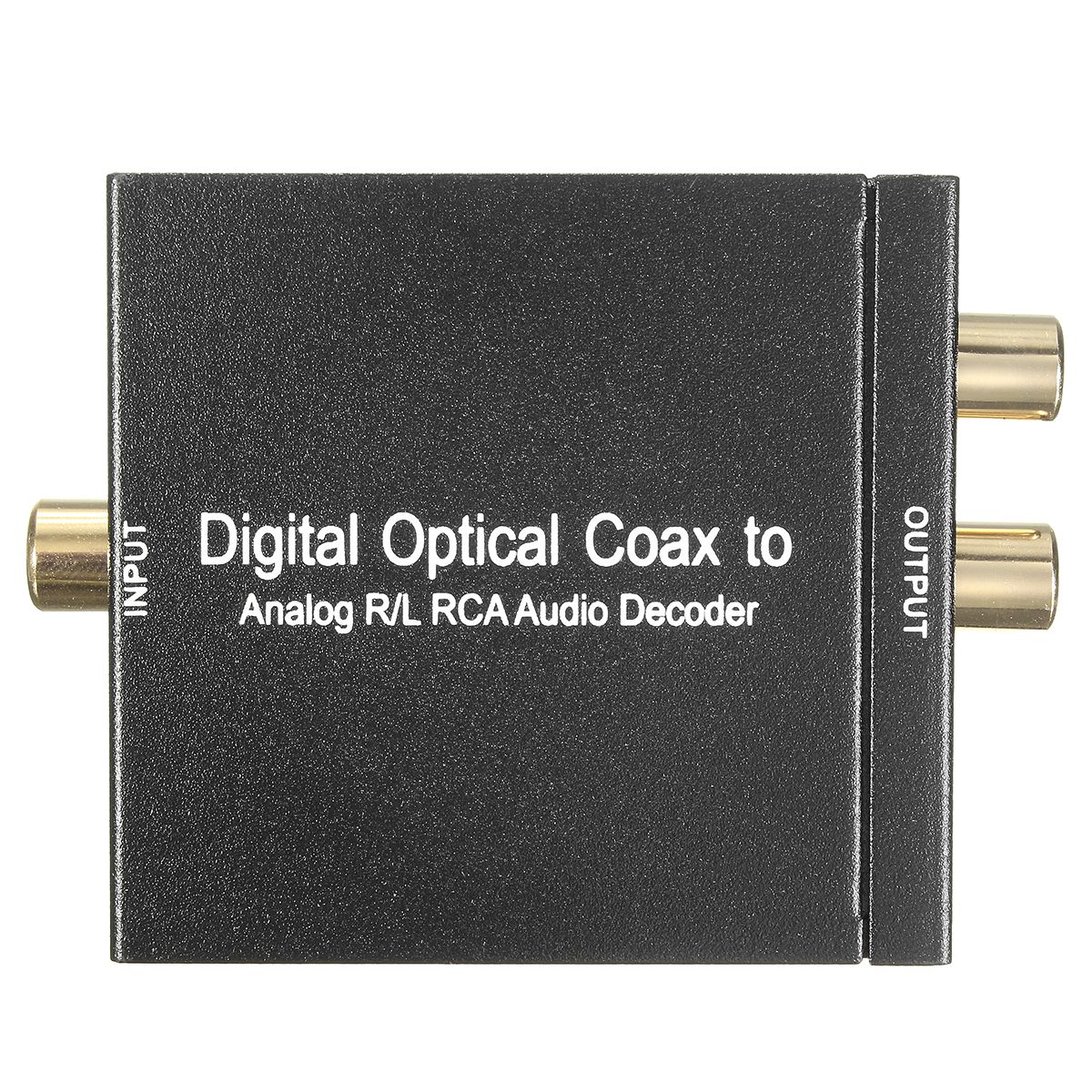

NK-Y2 Digital SPDIF Optical Coax to Analog RCA R/L DTS2.1/5.1 Audio Converter Decoder
- Stock: In Stock
- Model: EB0017836
- SKU: EB0017836
| Signal Inputs/Output | |
| Input Audio:Coaxial or SPDIF | Output Audio:L/R audio |
| Connector | |

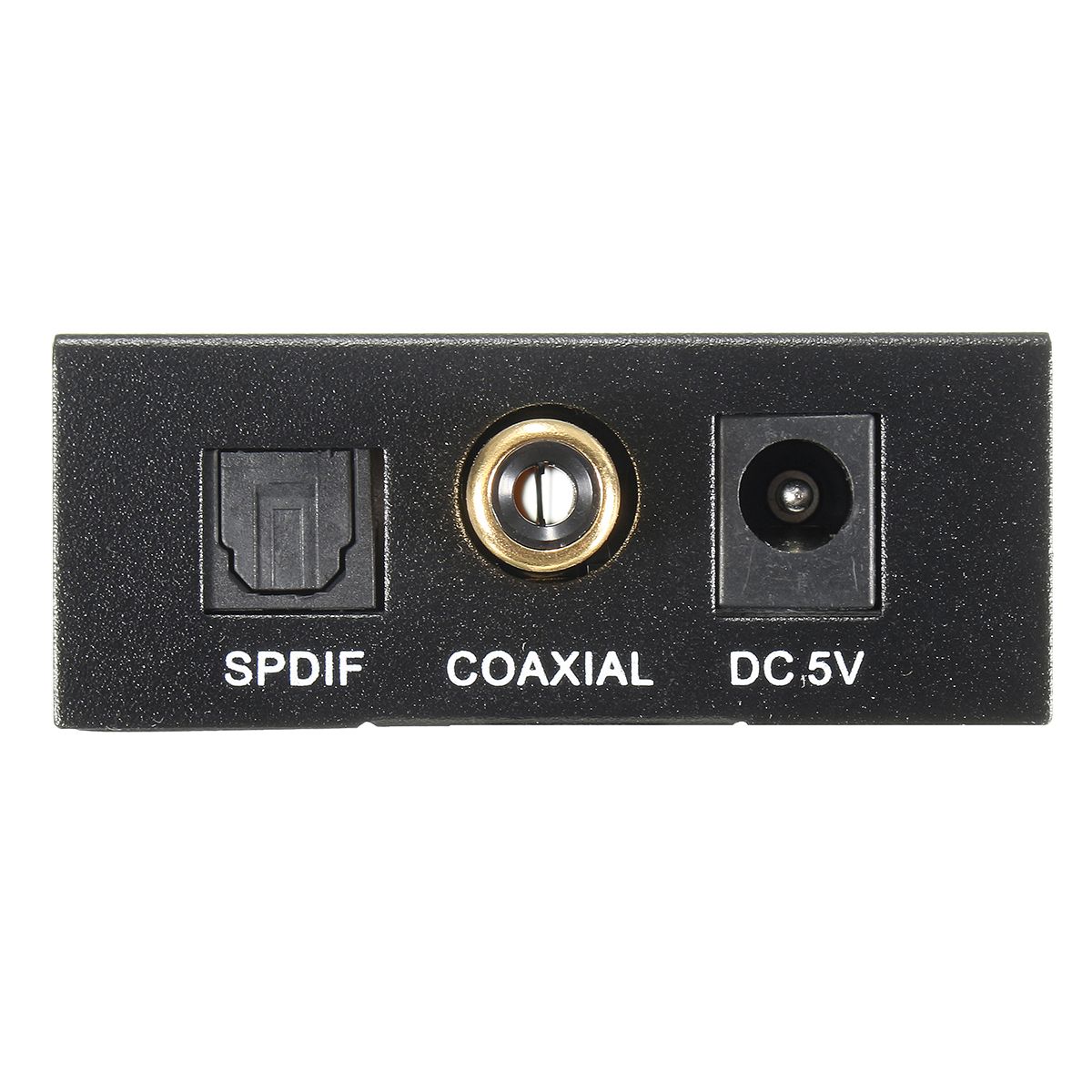

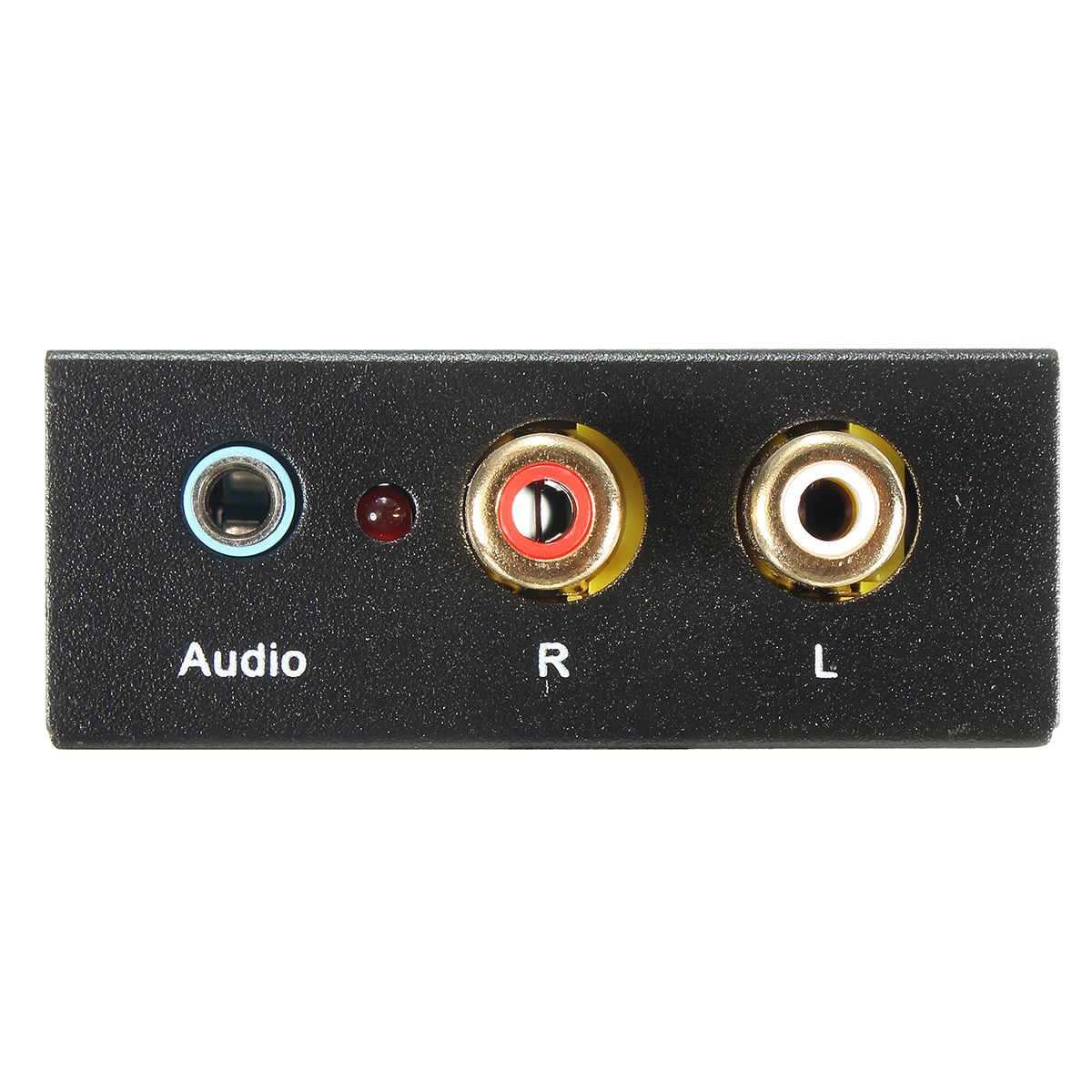

| Input audio connector:Toslink, Coaxial | Output audio connector:2×RCA(R/L) |
| Sampling rate:32,44,48 and 96KHz | |
| Mechanical | |

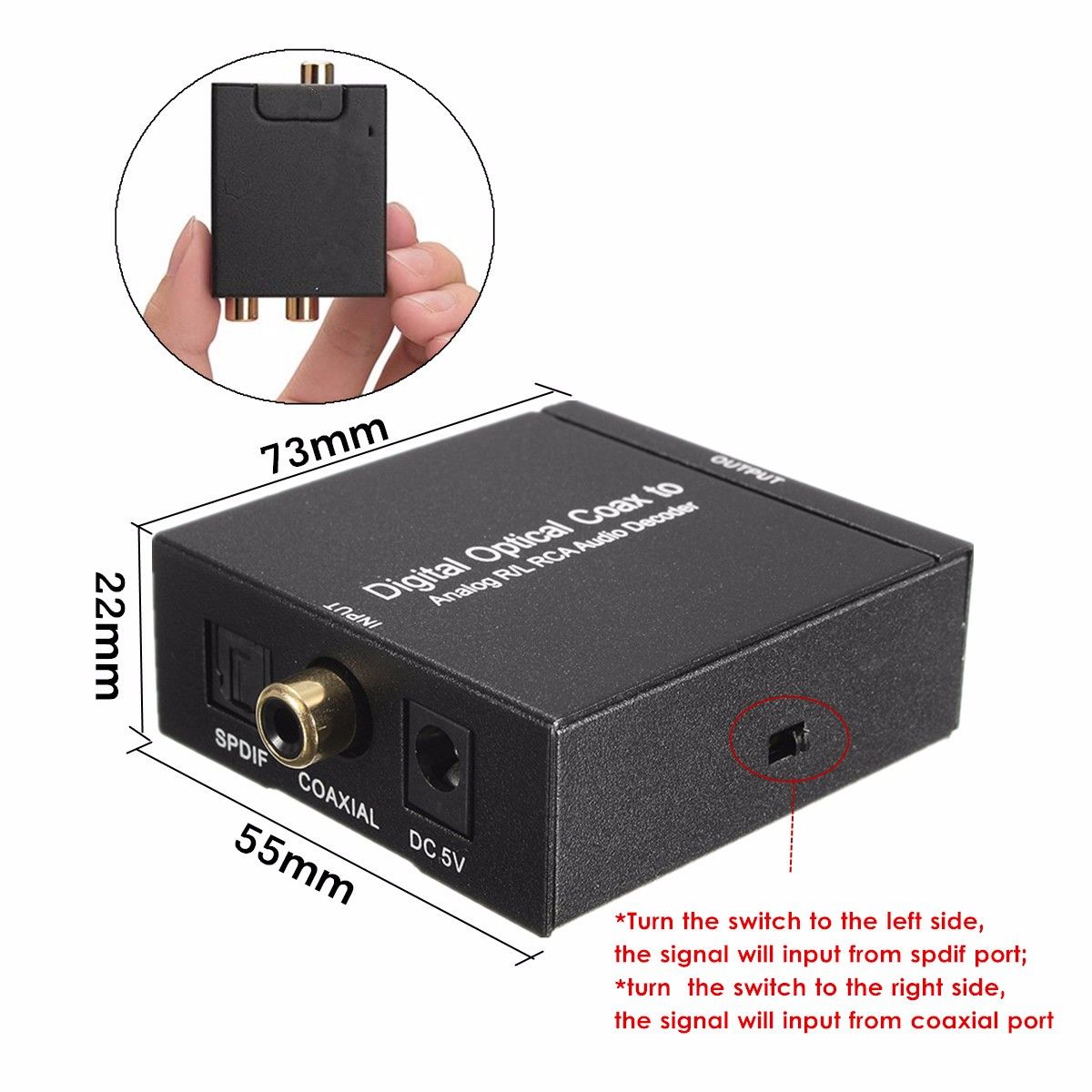

| Size(L-W-H):73×55×22mm | |
| Encironmental | |
| Operating Temperature:0℃ to +70℃ | Operating Humidity:10% to 85%RH(no condensation) |
| Storage Temperature:-10℃ to +80℃ | Storage Humidity:5% to 90% RH(no condensation) |
| Power Requirement | |
| External Power Supply:5V DC@2A | Power Consumption:0.5 watts(max) |
| Regulatory Approvals | |
| Converter Unit:FCC,CE,UL | Power Supply:UL,CE,FCC |
