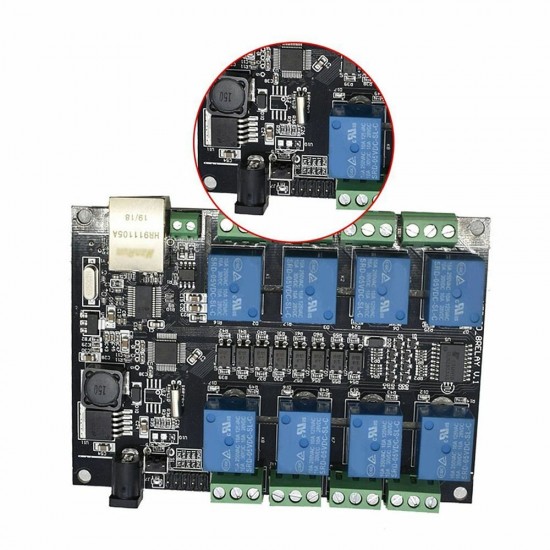

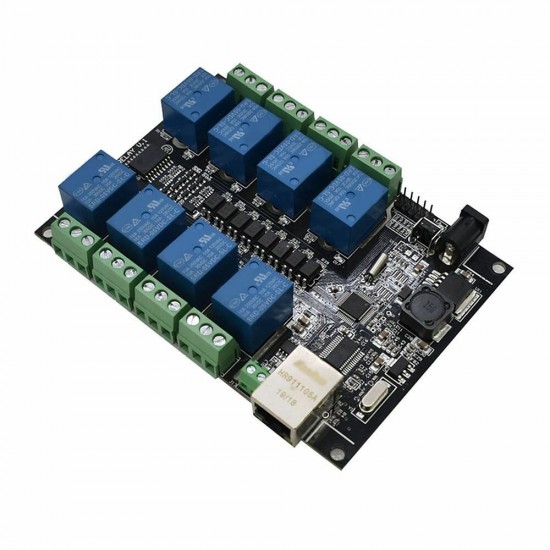

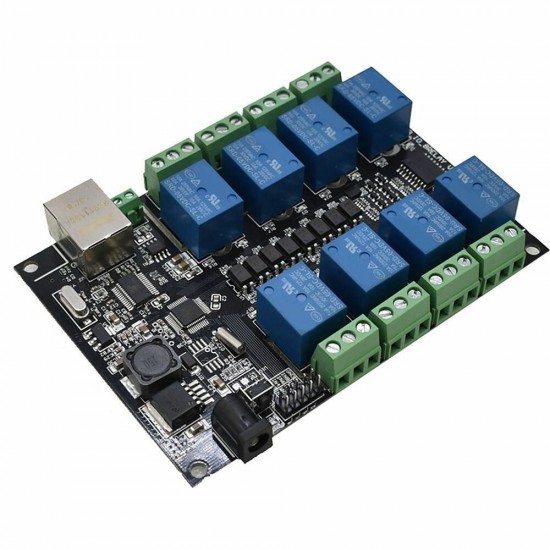

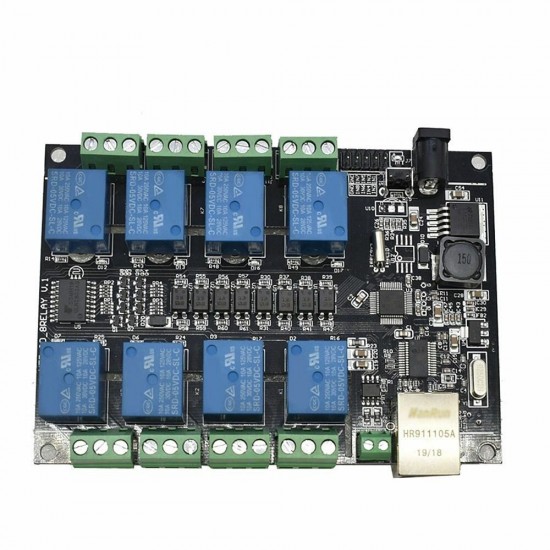

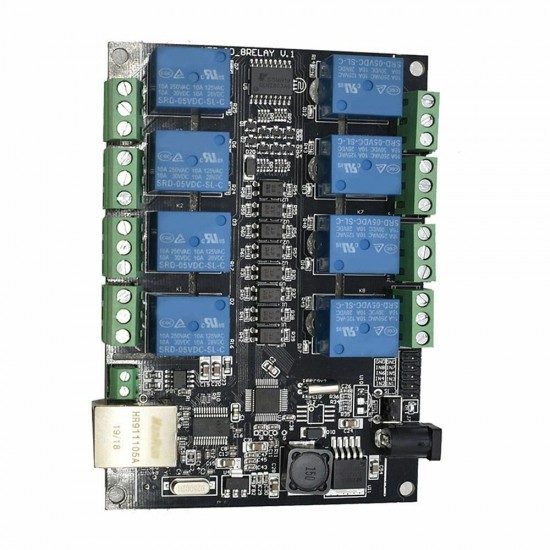

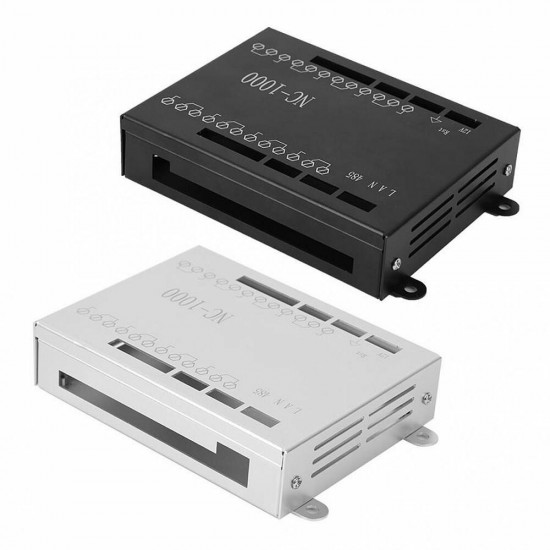

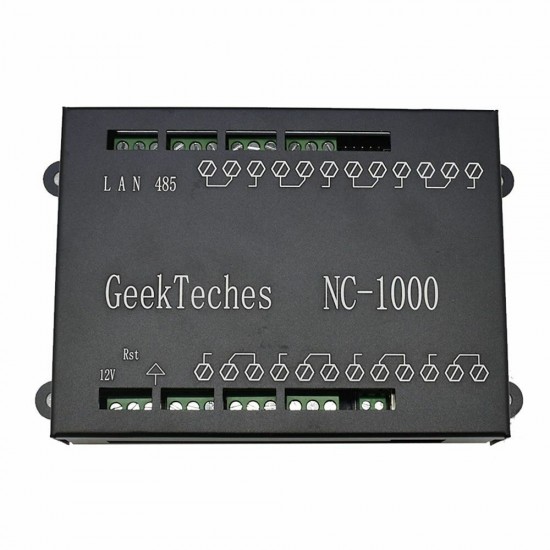

NC-1000 Ethernet RJ45 TCP/IP Remote Control Board with 8 Channels Relay Integrated AC250V 485 Networking Controller DC 7-24V

Based on 0 reviews. - Write a review

$56.99

Ex Tax: $56.99

Stock: In Stock
Model: EB0042520
SKU: EB0042520

Available Options

Color

Black

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

NC-1000 Remote Control Board ID: 1689484

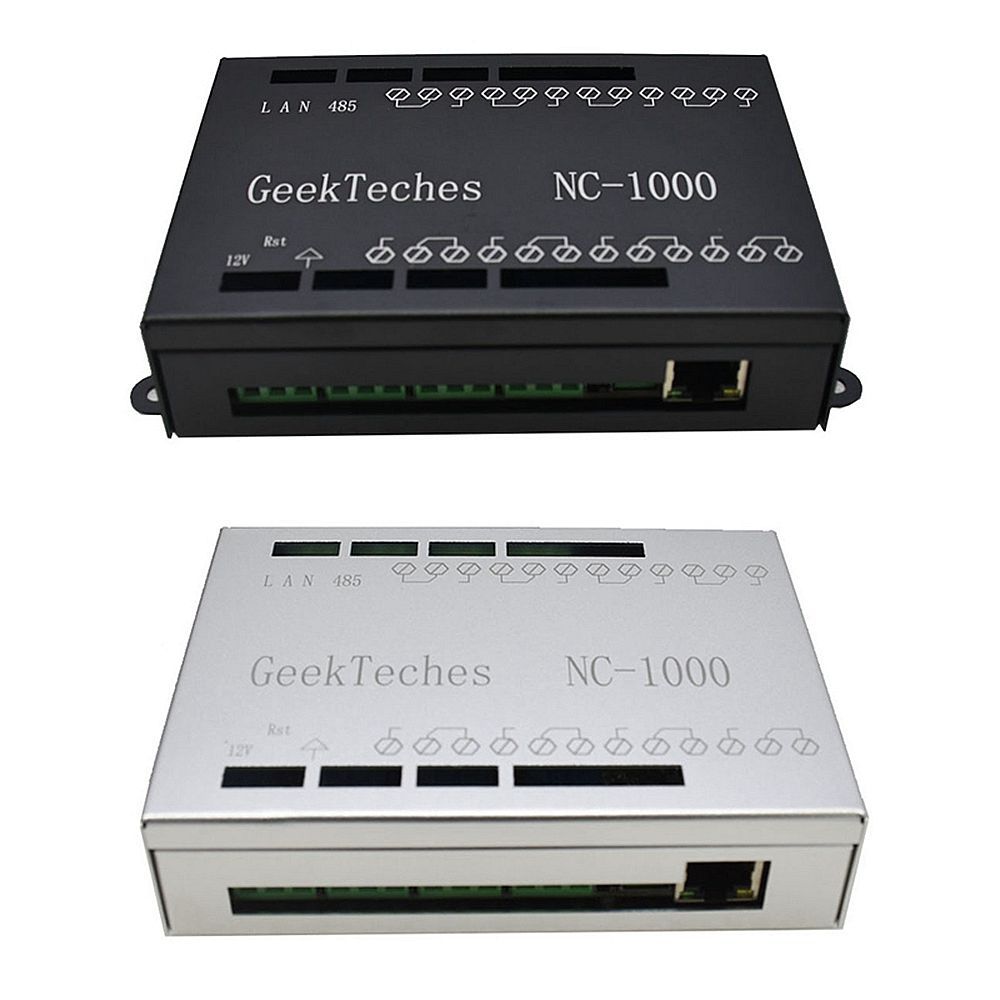

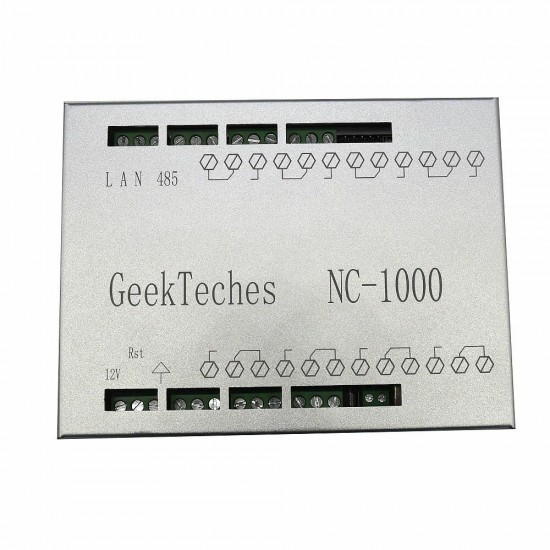

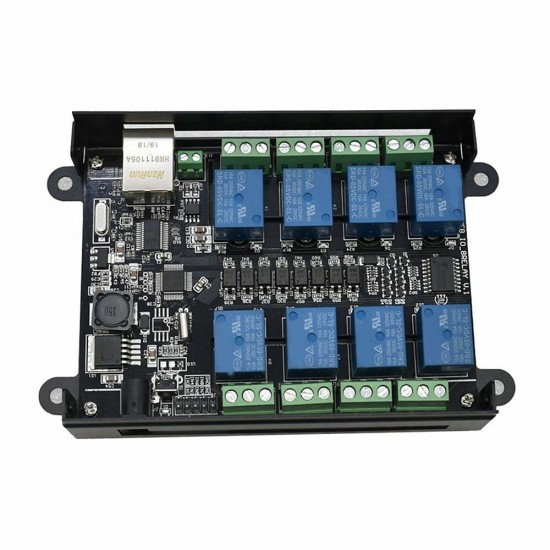

NC-1000 Remote Control Board with Shell ID: 1689461

Only Shell for NC-1000 ID: 1689472

Features:

1. Ethernet TCP/IP RJ45 Port.

2. Onbaord WEB server allows accessing and controlling the relay via WEB.

3. 8-Channel 250V/AC 10A Relay control individually.

4. Thicker tinning for relay's wiring

5. 8 external control outputs and active low level can control switch or sensor, etc.

6. Wide operating voltage range: 7-24V DC power supply.

7. Provide protocol for reengineering: When connected to router, it allows access control via Android, Mac, Tablet, Windows system from anywhere in the world with network.

8. Supports status return, can display current status of the relays.

9. IP Port can be modified.

10. With Reset function, short press to reset, long press to restore factory setting.

11. Supports 485 networking.

12. Internal circuit protection: with optocoupler to prevent from external voltage surge

Specifications:

Product weight: 235g

Product size: 14 x 9 x 4cm

Color:black / silver

Material: metal + pc

1: trigger signal input

IN1-IN8 has two ways to be inputted: A: Non-contact signal, release after IN ground

B: latch signal, IN ground can control the corresponding relay switch

2: serial port communication protocol

1 way open: FD 02 20 01 01 5D

1 way close: FD 02 20 01 00 5D

2 way open: FD 02 20 02 01 5D

2-way close: FD 02 20 02 00 5D

3-way open: FD 02 20 03 01 5D

3-way close: FD 02 20 03 00 5D,

4-way open: FD 02 20 04 01 5D

4-way close: FD 02 20 04 00 5D

5 way open: FD 02 20 05 01 5D

5-way close: FD 02 20 05 00 5D

6 way open: FD 02 20 06 01 5D

6-way close: FD 02 20 06 00 5D

7 way open: FD 02 20 07 01 5D

7 way close: FD 02 20 07 00 5D

8 way open: FD 02 20 08 01 5D

8-way close: FD 02 20 08 00 5D

Open 1-8: FD 02 20 F8 88 5D

1-8 pass: FD 02 20 F8 80 5D

Back: FB 21 55 xx XX FF: xx XX eac byte means 1ch high byte corresponding to the 16ch, low byte corresponding to 1ch

3. Long press "RESET" till the light is out. Then it will restore the factory default IP and port number.

Package Included:

1 x 8 Channels Relay Integrated Remote Controller with Shell
