$329.61
Ex Tax: $329.61
  • Stock: In Stock
  • Model: EB0041690
  • SKU: EB0041690
Overview:

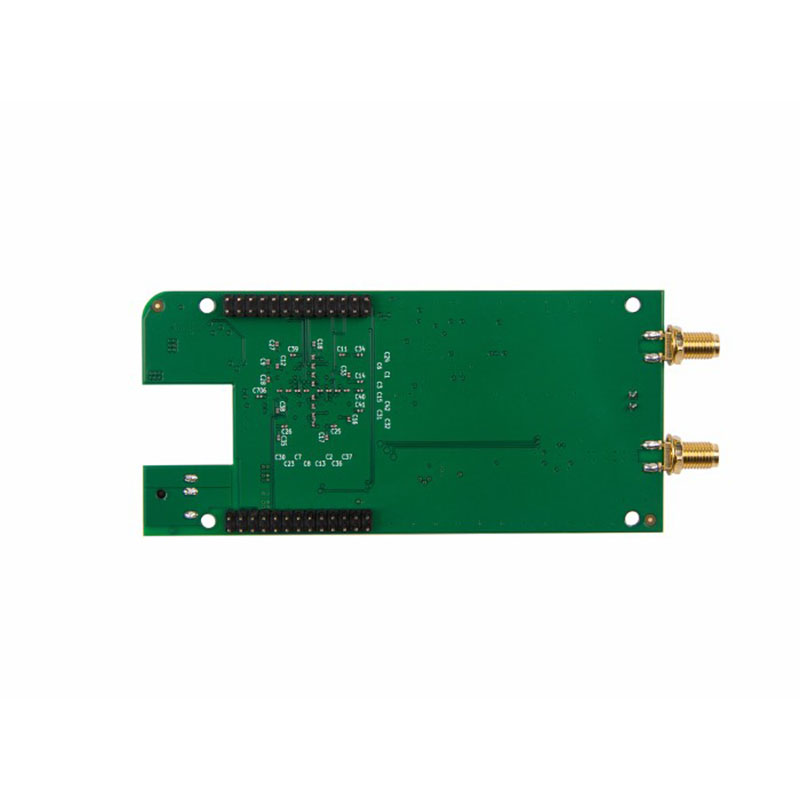

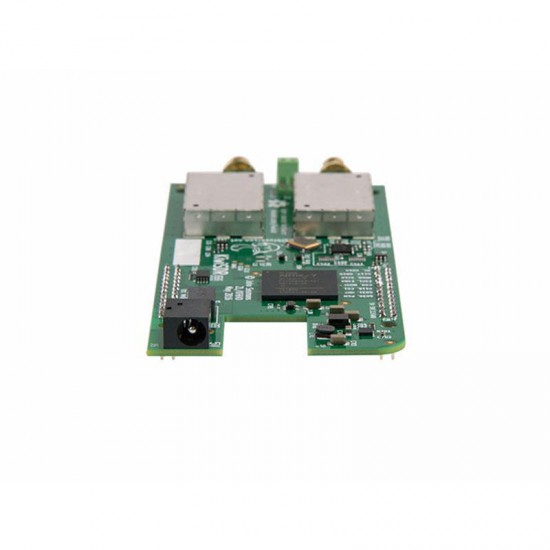

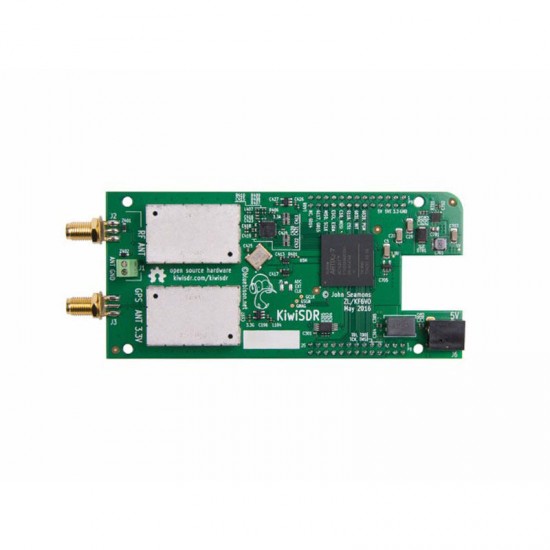

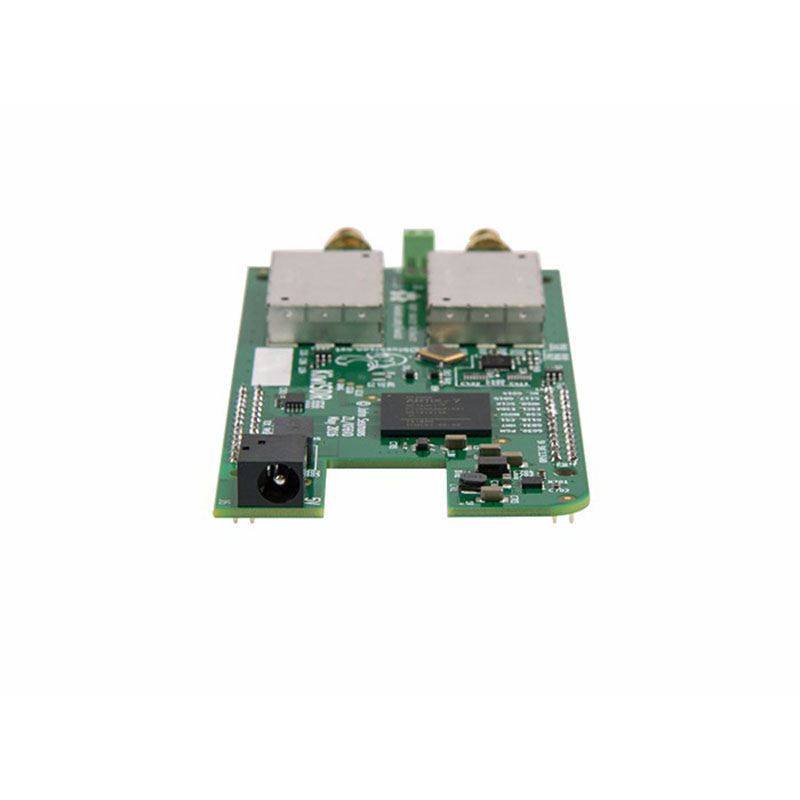

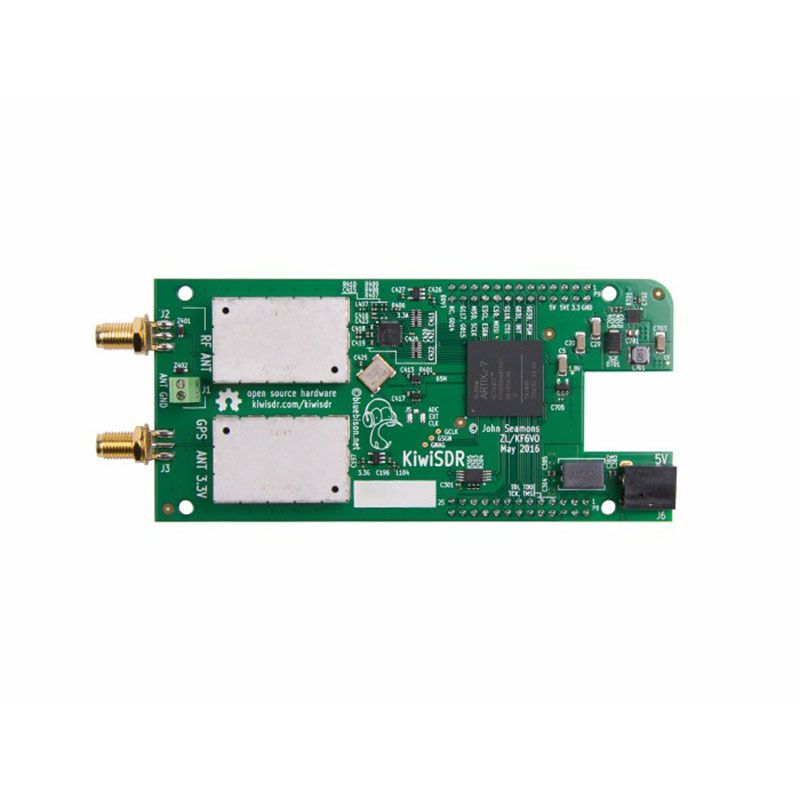

KiwiSDR is a software-defined radio (SDR) covering the short-wave/long-wave and AM broadcast bands from 10 kHz to 30 MHz worldwide, and a variety of public and amateur radio transmissions. KiwiSDR is a custom board that connects to BeagleBone Green and BeagleBone Black computers, with just the antenna, power and network. KiwiSDR is available in two versions: single board and kit (including BBG, housing and GPS antenna). Both versions include a micro-SD card, which is stored in the SD card.
Support HTML5 browsing and internet connection to listen to public KiwiSDR anywhere in the world. It can support up to four people to listen to one radio at the same time - each listener can listen to it independently.

Feature:

100% open source / open hardware.
Browser-based interface that allows four users to simultaneously connect to the web
Each connection tunes an independent receiver channel over the entire spectrum
Multi-channel parallel DDC design with bit-width optimized CIC filter
Automatically calibrate the frequency by receiving GPS timing
Simple hardware and software settings
Extended interface for adding decoders and utilities

Parameter:

10 kHz to 30 MHz (VLF-HF) spectrum.
Web interface based on OpenWebRX, from András Retzler, HA7ILM.
Demodulation mode: AM, AMN, LSB, USB, CW, CWN, NBFM.
Current extensions: WSPR viewer/decoder, IQ display, Loran-C viewer.
RF antenna connector: SMA and terminal block.
The integrated software from Andrew Holme's home-made GPS receiver defines a GPS receiver.
The GPS receives the Navstar system on the L1 frequency of 1575.42 MHz.
GPS antenna connector: SMA, 3.3V power supply for active antennas.
Voltage: + 5V DC, 2.1mm jack, center pin positive.
Current: 1.5A includes Beagle, and KiwiSDR powers the BeagleBone through the plug connector.
Dimensions: KiwiSDR PCB 117mm * 55mm with additional SMA connectors.

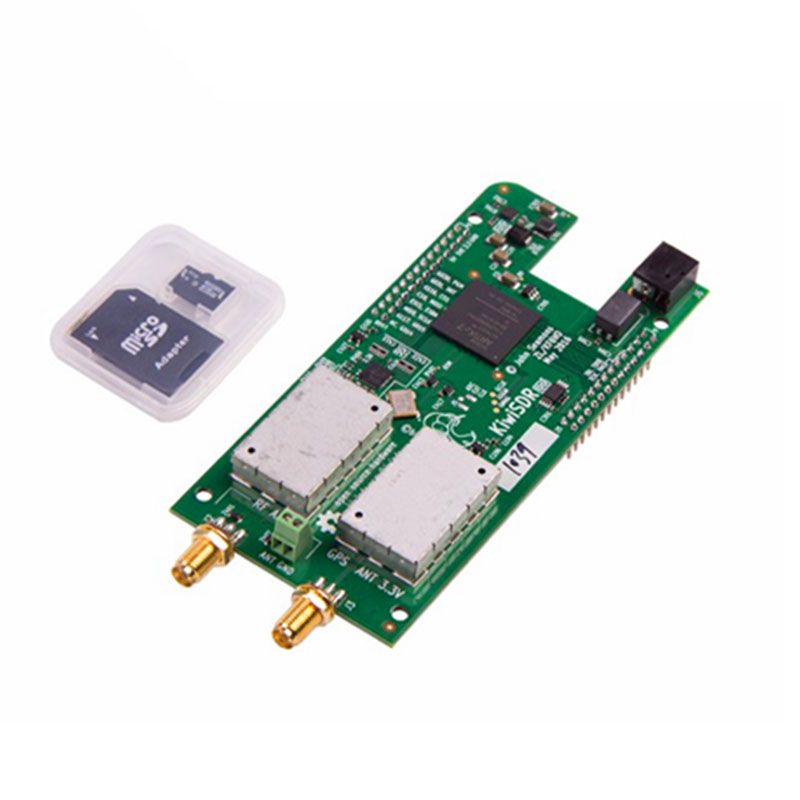

Package included:

1 x KiwiSDR Board
1 x Micro-SD card
