Mini PC Q190G4 With 4 LAN Port Intel Celeron J1900 2 GHz to 2.41 GHz Pfsense as Router Firewall Quad Core 2 GHz 4G RAM 32G SSD

Mini PC Q190G4 With 4 LAN Port Intel Celeron J1900 2 GHz to 2.41 GHz Pfsense as Router Firewall Quad Core 2 GHz 4G RAM 32G SSD
Mini PC Q190G4 With 4 LAN Port Intel Celeron J1900 2 GHz to 2.41 GHz Pfsense as Router Firewall Quad Core 2 GHz 4G RAM 32G SSD
Mini PC Q190G4 With 4 LAN Port Intel Celeron J1900 2 GHz to 2.41 GHz Pfsense as Router Firewall Quad Core 2 GHz 4G RAM 32G SSD
Mini PC Q190G4 With 4 LAN Port Intel Celeron J1900 2 GHz to 2.41 GHz Pfsense as Router Firewall Quad Core 2 GHz 4G RAM 32G SSD
Mini PC Q190G4 With 4 LAN Port Intel Celeron J1900 2 GHz to 2.41 GHz Pfsense as Router Firewall Quad Core 2 GHz 4G RAM 32G SSD
Mini PC Q190G4 With 4 LAN Port Intel Celeron J1900 2 GHz to 2.41 GHz Pfsense as Router Firewall Quad Core 2 GHz 4G RAM 32G SSD
Mini PC Q190G4 With 4 LAN Port Intel Celeron J1900 2 GHz to 2.41 GHz Pfsense as Router Firewall Quad Core 2 GHz 4G RAM 32G SSD
Mini PC Q190G4 With 4 LAN Port Intel Celeron J1900 2 GHz to 2.41 GHz Pfsense as Router Firewall Quad Core 2 GHz 4G RAM 32G SSD
Mini PC Q190G4 With 4 LAN Port Intel Celeron J1900 2 GHz to 2.41 GHz Pfsense as Router Firewall Quad Core 2 GHz 4G RAM 32G SSD
Mini PC Q190G4 With 4 LAN Port Intel Celeron J1900 2 GHz to 2.41 GHz Pfsense as Router Firewall Quad Core 2 GHz 4G RAM 32G SSD
Mini PC Q190G4 With 4 LAN Port Intel Celeron J1900 2 GHz to 2.41 GHz Pfsense as Router Firewall Quad Core 2 GHz 4G RAM 32G SSD
Mini PC Q190G4 With 4 LAN Port Intel Celeron J1900 2 GHz to 2.41 GHz Pfsense as Router Firewall Quad Core 2 GHz 4G RAM 32G SSD
Mini PC Q190G4 With 4 LAN Port Intel Celeron J1900 2 GHz to 2.41 GHz Pfsense as Router Firewall Quad Core 2 GHz 4G RAM 32G SSD
Mini PC Q190G4 With 4 LAN Port Intel Celeron J1900 2 GHz to 2.41 GHz Pfsense as Router Firewall Quad Core 2 GHz 4G RAM 32G SSD
Mini PC Q190G4 With 4 LAN Port Intel Celeron J1900 2 GHz to 2.41 GHz Pfsense as Router Firewall Quad Core 2 GHz 4G RAM 32G SSD
Mini PC Q190G4 With 4 LAN Port Intel Celeron J1900 2 GHz to 2.41 GHz Pfsense as Router Firewall Quad Core 2 GHz 4G RAM 32G SSD
Mini PC Q190G4 With 4 LAN Port Intel Celeron J1900 2 GHz to 2.41 GHz Pfsense as Router Firewall Quad Core 2 GHz 4G RAM 32G SSD
$199.99
Ex Tax: $199.99
  • Stock: In Stock
  • Model: EB0030244
  • SKU: EB0030244

QOTOM-Mini-PC-Q190G4-With-4-LAN-Port-Intel-Celeron-J1900-2-GHz-to-241-GHz-Pfsense-as-Router-Firewall-1193296

QOTOM-Mini-PC-Q190G4-With-4-LAN-Port-Intel-Celeron-J1900-2-GHz-to-241-GHz-Pfsense-as-Router-Firewall-1193296QOTOM-Mini-PC-Q190G4-With-4-LAN-Port-Intel-Celeron-J1900-2-GHz-to-241-GHz-Pfsense-as-Router-Firewall-1193296

Description:

With hackers working around the clock to identify the next potential victim, it’s more important than ever for you to prioritize security.

With 4 Intel Gigabit NIC and Intel Bay Trail j1900 Processor, QOTOM Mini PC Q190G4U is perfect fit to build a advanced Firewall Router and ensure that hardware and software work together to protect your business from malware and secure all the important, private data and content you create and share.

Specification:

Onboard CPU: Intel Celeron Processor J1900 (Quad-Core 2M Cache, 2 GHz, up to 2.41 GHz) Don't support AES-NI

Memory: Support DDR3L 1333/1600 MHz, 1.35V ;1 x DDR3 DIMM Memory Slot ; Max. Support up to 8GB Memory

Hard Disk: supports 1 * mSATA SSD

Integrated graphics: Intel HD Graphics

Onboard LAN: 4 x Intel I211-AT- 10/100/1000 Controller

Front-Panel Connectors:  Power on/off ; Power LED ; 3 x USB 2.0 Ports ; 1 x USB 3.0 Port ; 1 x VGA Port

Configurations:

Memory: Tigo 4GB RAM

Storage: LITEON 32G MSATA SSD



With hackers working around the clock to identify the next potential victim, it’s more important than ever for you to prioritize security. Without security solutions, your personal privacy and business are at risk.




With 4 Intel Gigabit NIC and Intel Bay Trail j1900 Processor, QOTOM Mini PC Q190G4U is perfect fit to build a advanced Firewall Router and ensure that hardware and software work together to protect your business from malware and secure all the important, private data and content you create and share.




pfSense 2.5 and AES-NI

A news from Netgate is that pfSense version 2.5 will be based on FreeBSD 12 and need AES-NI. To get more information, please visit Netgate Web. Thanks for the community! More powerful Mini PC Q330G4 (I3-4005U) and Q355G4 (I 5-5250U) support AES-NI.



Mini PC Q190G4U supports Windows, Linux, pfSense, Sophos, VyOS, Linux iptables, Untangle, ect. But it will come with the latest pfSense (Username: admin; Password: pfsense). You also can install OS and software package by yourself. F11 key boot from USB Drive. Delete key enter into BIOS.
[Please note: WiFi is incompatible with pfSense (only support AP-mode), please reinstall other OS if necessary.]

We can provide Windows drivers download link and motherboard user manual download link.



Specification
Dimension
S01: 134*126*36mm(L*H*W)
S02: 134*126*47mm(L*H*W)
Power Consumption
TDP 10W
Onboard CPU
Intel Celeron Processor J1900
(Quad-Core 2M Cache, 2 GHz, up to 2.41 GHz)
Don't support AES-NI
Memory
Support DDR3L 1333/1600 MHz, 1.35V
1 x DDR3 DIMM Memory Slot
Max. Support up to 8GB Memory
Hard Disk
S01: only supports 1 * mSATA SSD
S02: supports 1 * mSATA SSD and 1 * 2.5 inch SATA HDD / SSD
Integrated graphics
Intel HD Graphics
Onboard LAN
4 x Intel I211-AT- 10/100/1000 Controller

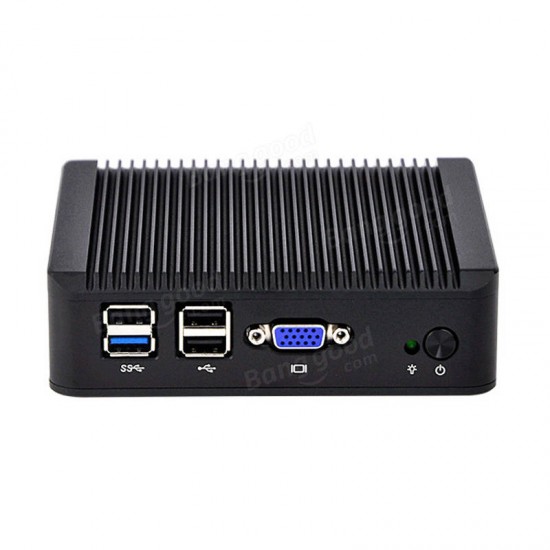

Front-Panel Connectors
• Power on/off
• Power LED
• 3 x USB 2.0 Ports
• 1 x USB 3.0 Port
• 1 x VGA Port

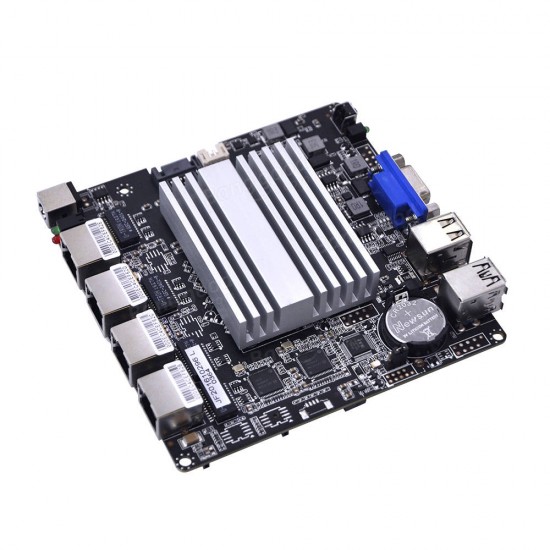

Internal Connectors

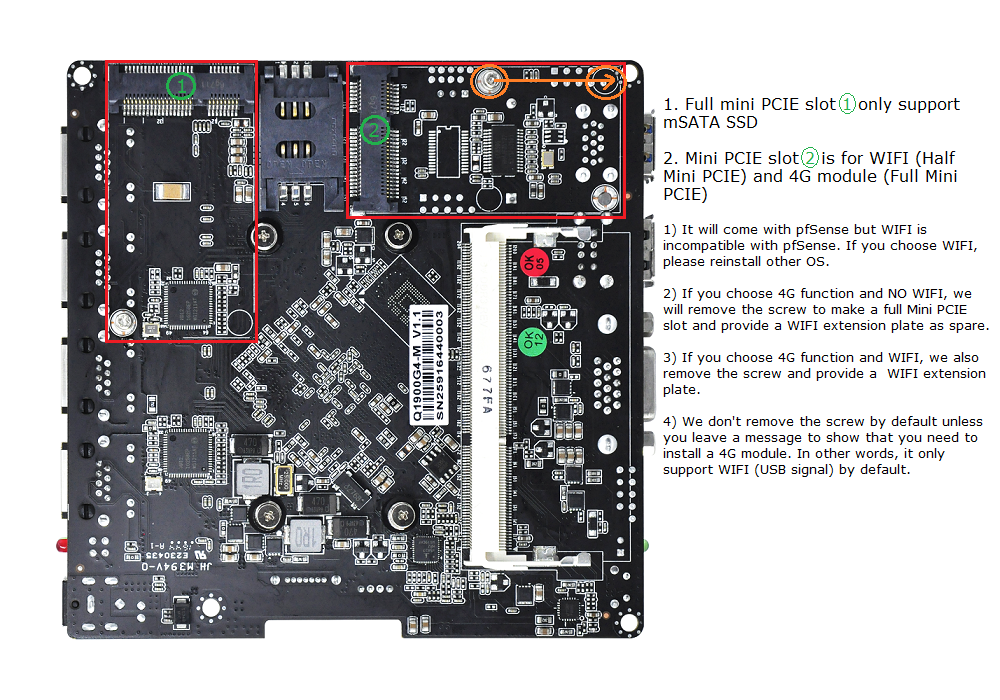

• 2 x Mini pcie ports
• 1 x DDR3L SO-DIMM Memory Slot
• 1 x SATA Port
• 1 x SATA power connector
• 1 x Automatically boot jumper
• 1 x SIM Card slot

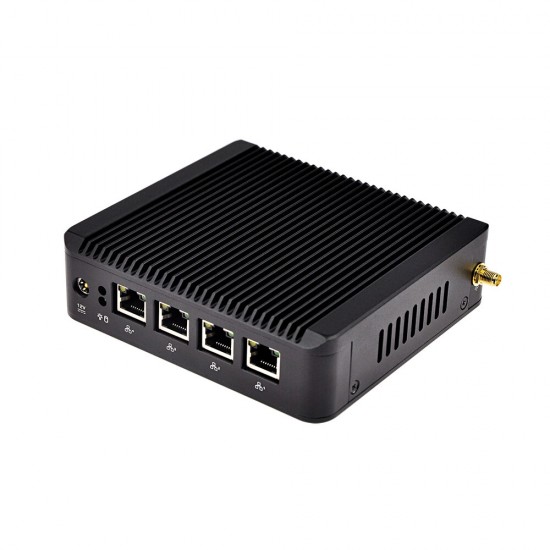

Back-Panel Connectors
• 1 × DV 12V input
• Power LED, HDD LED
• 4 x RJ-45 Ports

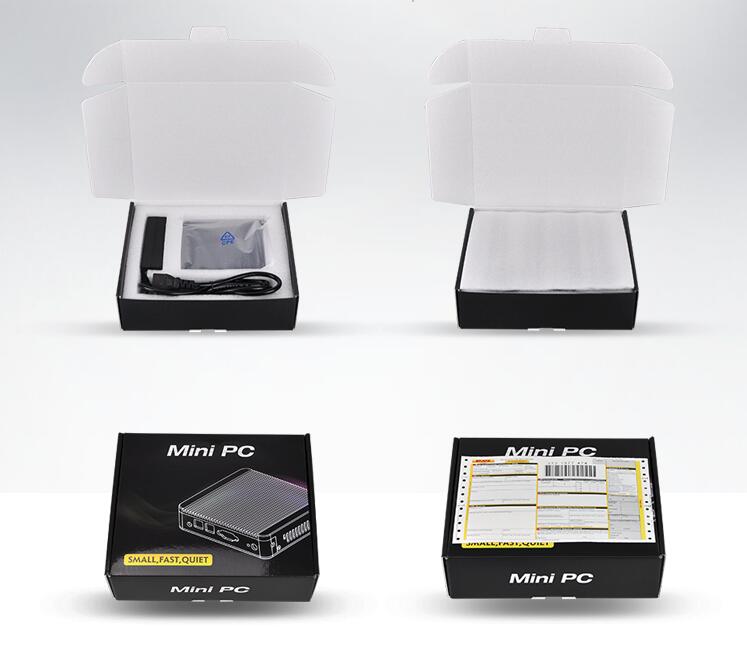

Package
Mini PC,  Power supply, (SATA Cable, 2 antennas)
Plug:  EU/ US/ UK/ Italy/ SA/ AU/  Switzerland Plug
Configurations
